1. Category of RH Series Edge Rounding Machine:

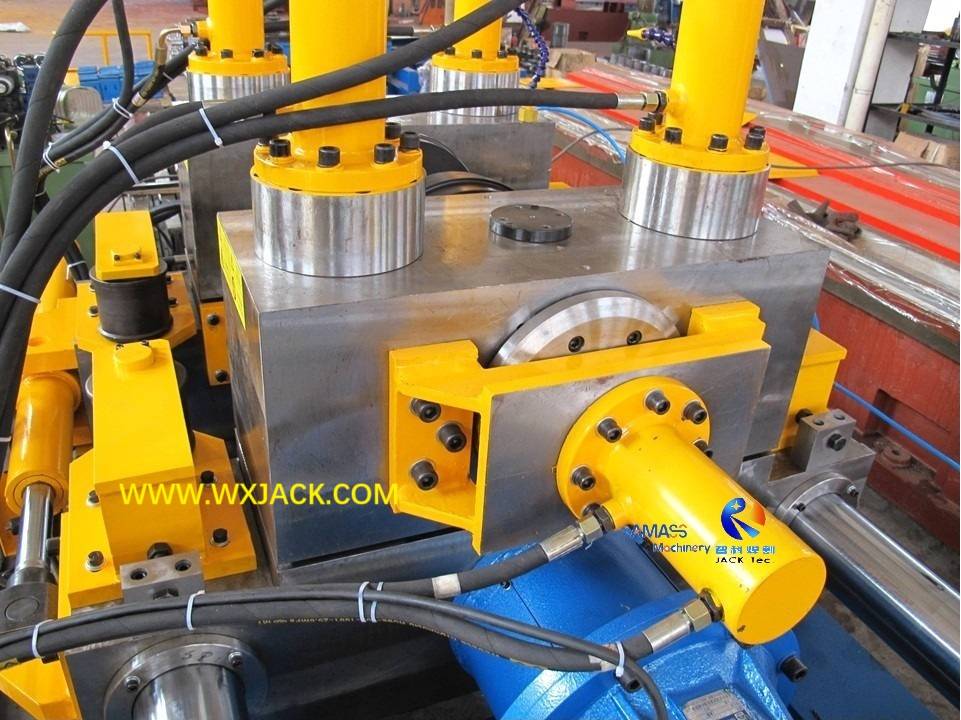

The attached first photo shows the two main sub categories of RH series Edge Deburring and Rounding machine:
1) Strip Plate Edge Rounding Deburring Machine:
a) This is for accomplishing on end trimming on narrow strip plate, which is shown in the upper section of the first picture;
b) Standard model is RH1000, for carrying out end rounding working parts strip plates, with max. width of 1000mm;
c) Narrower width of plate is available on being edge rounded, for example, RH800 model;
2) Wide Plate Edge Deburring and Rounding Machine:
a) This is for processing on wider width of workpiece sheet metal, which is shown in the lower section of the first picture;
b) Standard models include RH1500, RH2000, and RH3000, which is for fulfilling end trimming working parts plates, with the max. width of 1500mm, 2000mm, and 3000mm respectively.
2. Usage of RH Series Edge Rounding Deburring Machine:
1) Function: As introduced its product group, RH series machine is for implementing on rounding and deburring on the four edges of steel plates, such as strip board, metal plate, H Beam web, vertical plate of T Beam, into round edge of Radius 2 ~ 2.5mm. Please check attached and below photo:
Finished rounded small width plate, from Wuxi JACK Edge Rounding and Deburring Machine: (Fig.1)
2) Why Need Edge Rounding Operation: The sheet metal plates going thru the machine, its property of painting adhesion can be greatly enhanced; The stress concentration can also be obviously improved, available for next step of coating and painting;
3) Applicable Working Site: The adoption of RH series machine is a requisite step in producing this kinds of machinery tools: Which work in the damp environment with large volumes of moistures, such as Shipbuilding, Port, Offshore, etc.
3. Application of RH Series Plate Edge Rounding Deburring Machine:
Correspondingly, to be specific, from the perspective of application, RH series machine can be classified into four major categories of:
1) RH800 ~ RH1000 Strip models machine, for being applied in T Beam Production. To be specific, the second step following 1st operation plate cut. This is the reason that, the machine can also be grouped as an equipment deployed in T Beam Production Line:

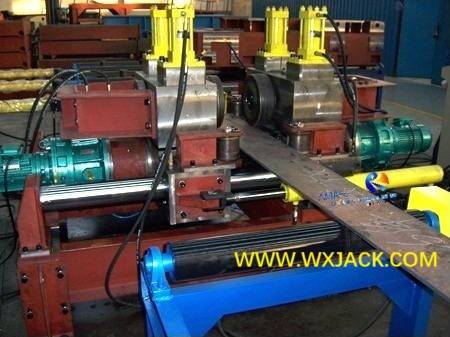

Wuxi JACK RH1000 Edge Rounding Machine in T Beam Production Line, for deburring and rounding on end plate of T Beam: (Fig.2)
2) RH1500~ RH3000 models machine, being applied in Shipbuilding;
3) RH1500~ RH3000 models machine, being used in Port Machinery;
4) RH1500~ RH3000 large models machine, as machinery in the field of Bridge Industry.
4. Introduction on RH Series Edge Rounding Machine:
1) Topics Covered: This product section starts on series of detailed introduction on RH series Edge Rounding Deburring Machine, from the aspect of mechanical structure/ performance / usage/ operation, and service, etc. in the subsequent production sections;
2) Mechanical Structure: As can be observed from the attached pictures, the RH1000 model machine has different appearance (or general structure) from that of the larger ones of RH1500, RH2000, and RH3000 models machine. The reason behind that we will have deep exploration in the subsequent product sections;
3) To have better understanding on these products, we arrange these models in staggered models, from the biggest model of RH3000;
4) Detailed parameters of each standard model of RH series machine are listed in its corresponding product section;
5) Besides the standard models, we can also design and produce special made Edge Rounding Deburring Machine based on customer demand.
