PHJ and ZHJ series Automatic H Beam Fabrication Machine improves automation degree of welding T Beam H Beam production, and reduces manual labor operation to the minimum level.
Variable Cost Reduction: Before introduction of these Automatic H Beam Production Machine, it needs 6 operators to compose a team for welding H Beam production:
1) To be specific,
a) 2 operators for operating on H Beam Assembly and Tack Welding Machine;
b) 2 operators for operating on H Beam Gantry Welding Machine;
c) 1 operator for working on H Beam Straightening Machine;
d) 1 operator for transferring workpieces among these three H Beam Production Machine;
2) For working on 3 in 1 H Beam Welding Machine: Now, only 1~1.5 operators are needed to take care on one set of PHJ and ZHJ series Automatic H Beam Assembly Welding Straightening Integrated Machine. Here 1.5 operators refer to one veteran operator leading an apprentice for backup.

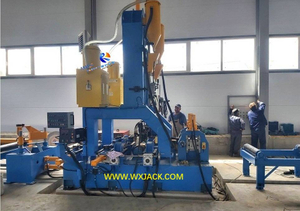

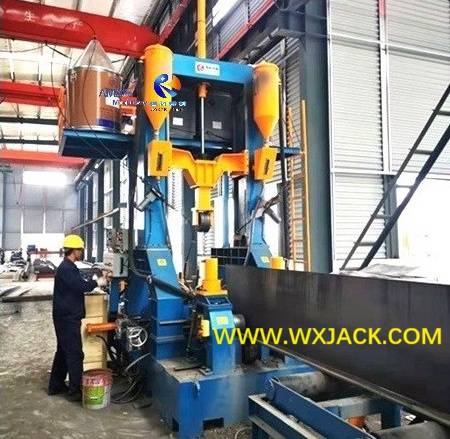

Checking from the above photo, the operating sequence on 3 in 1 H Beam Welding Machine:
1) Loading flanges and web onto input conveyor of the PHJ and ZHJ series 3 in 1 H Beam Welding Machine;
2) Setting welding parameters on the control console of SAW welding power supply. For batch production in the 3 in 1 H Beam Welding Machine, one time set up is fine;
3) Watch on working process of the PHJ and ZHJ series Automatic H Beam Fabrication Machine;

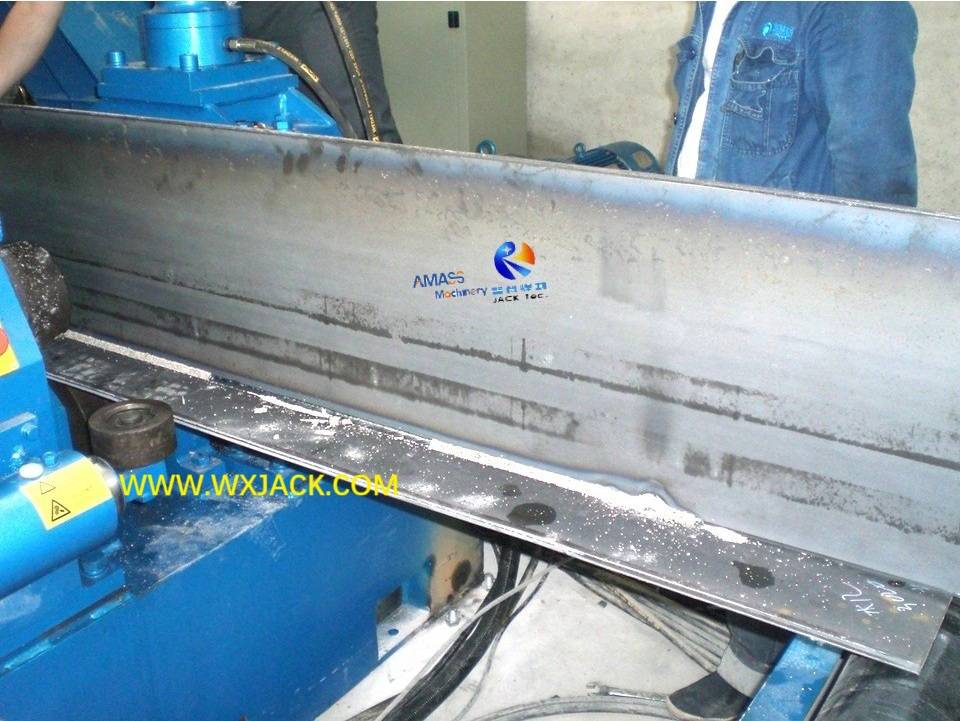

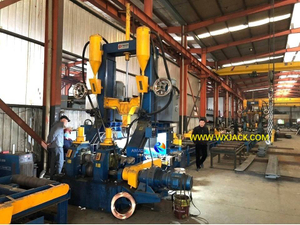

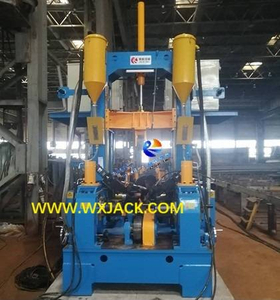

1) See attached picture, workshop of PHJ and ZHJ series Automatic Vertical H Beam Welder draws much closer to unmanned condition, thanks to its high automation;
2) The secret behind highly automation of this Automatic 3 in 1 H Beam Welding Machine is its design, that assistant jobs involving manual work is greatly reduced:

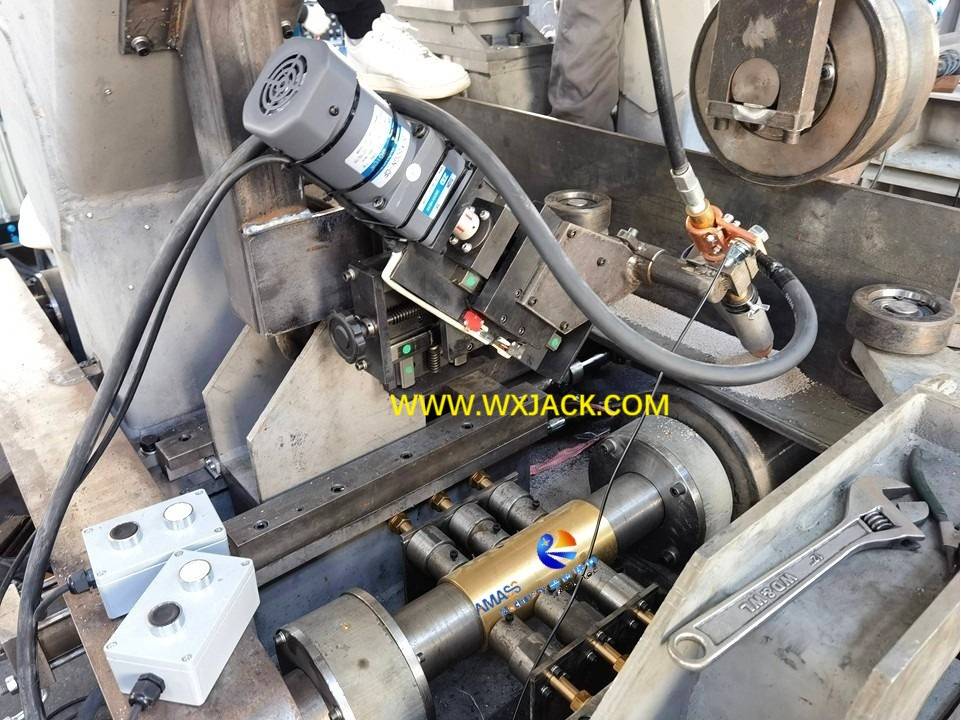

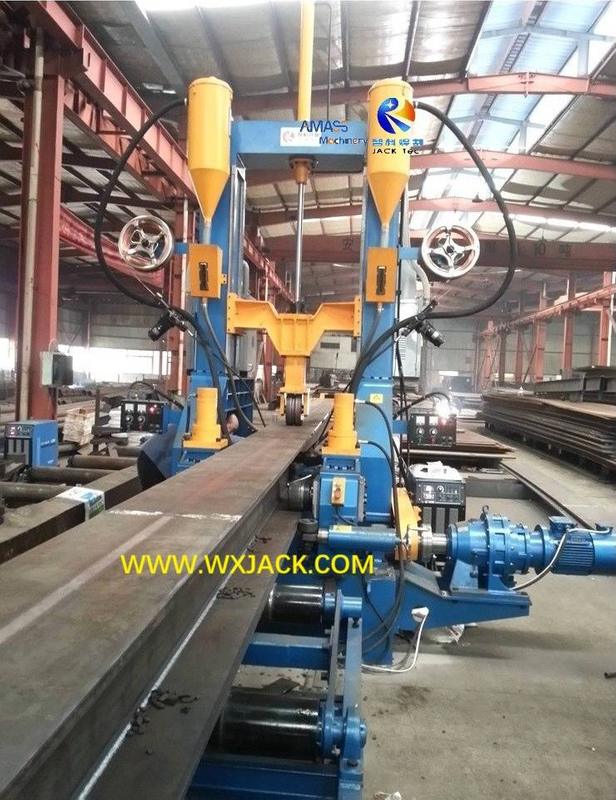

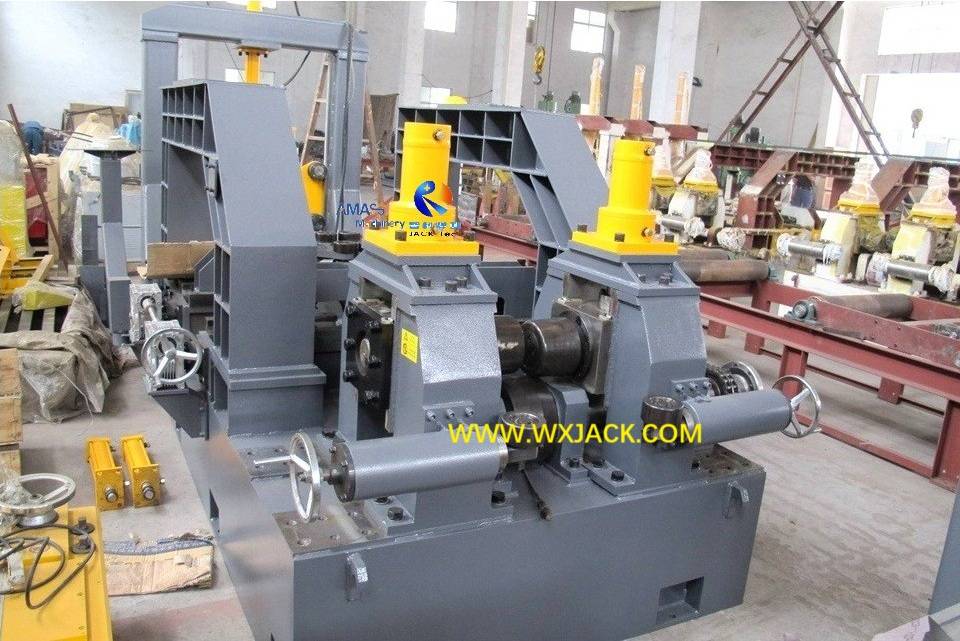

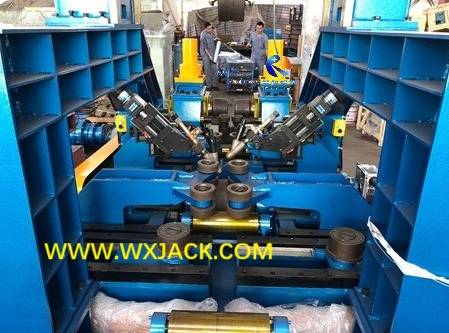

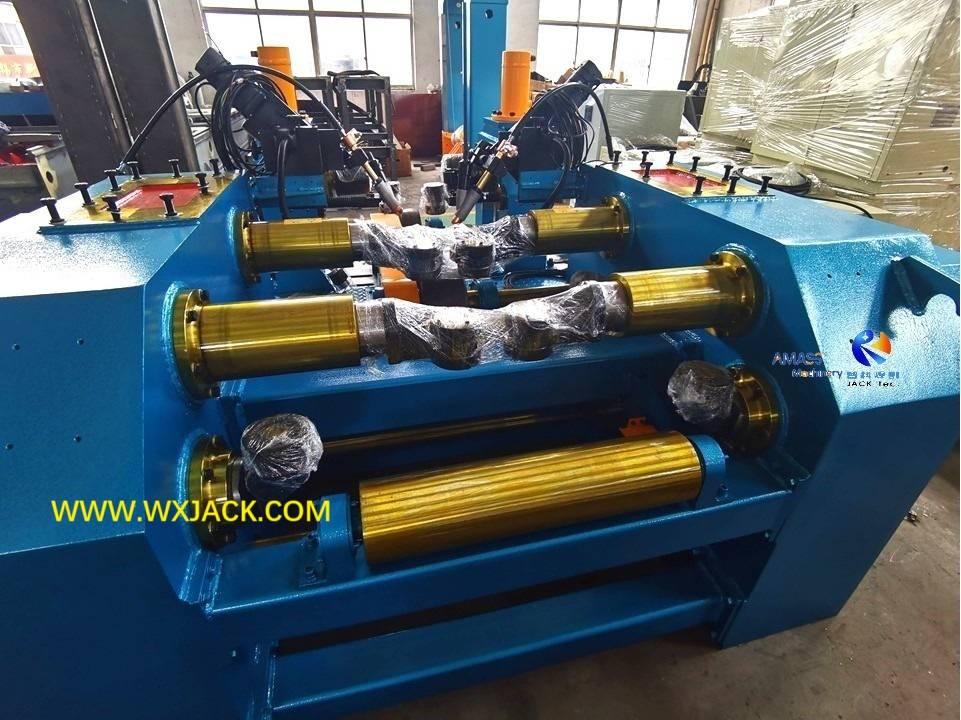

When the raw material flanges and web are sent into the Vertical H Beam Welder, all the following operation of workpiece Assembly, Welding and Straightening can be finished with working units of the H Beam Fabrication Machine respectively. See below photo:

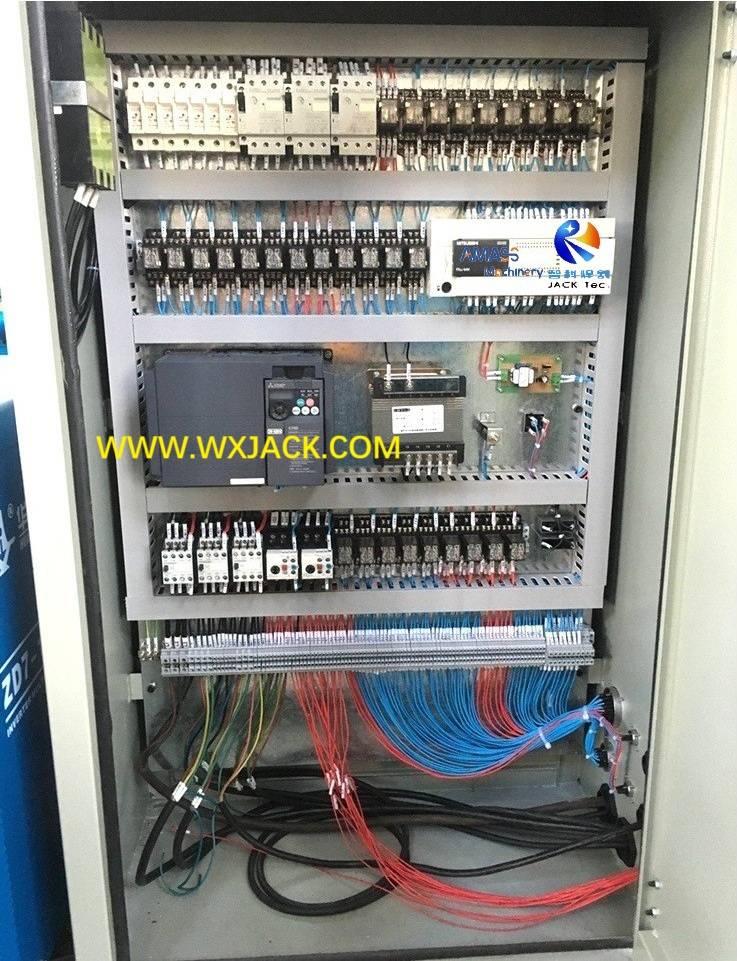

3) The whole production process in PHJ and ZHJ series Automatic 3 in 1 H Beam Welding Machine is manipulated with control system, of which PLC is the core element (brain);
4) Continuous Improvement: With years of groping, we maintains continuous improvement on mechanical structure, process technology, control program of the 3 in 1 H Beam Welding Machine, maintaining it at optimum status all the while.
Below are specifications of PHJ and ZHJ series Automatic H Beam Assembly Welding Straightening Integrated Machine:
Technical Parameter | PHJ15 /18 / 20 Automatic H Beam Fabrication Machine | ZHJ8015 /8018 / 8020 Automatic H Beam Fabrication Machine |
Web Height | 200∼1500/ 1800/ 2000 mm | 200∼1500 / 1800/ 2000 mm |
Web Thickness | 5∼30mm | 6∼32 mm |
Flange Width | 200∼800 mm | 150∼750 mm |
Flange Thickness | 6∼40 mm | |
Workpiece Length | 3000∼15000mm (Can be longer or shorter) | |
Single Pass Welding Seam Height | 8 ~ 12 mm | |
Welding Speed (Assembly, Straighten same) | 200∼1200mm/min. (Inverter Control) | |
Overall Dimension of 3 in 1 H Beam Welding Machine Main Body(L×W×H) | 28m×4m×(4.6/ 4.9/ 5.1) m | 28m×4m×(4.2/ 4.5/ 4.8m) |
