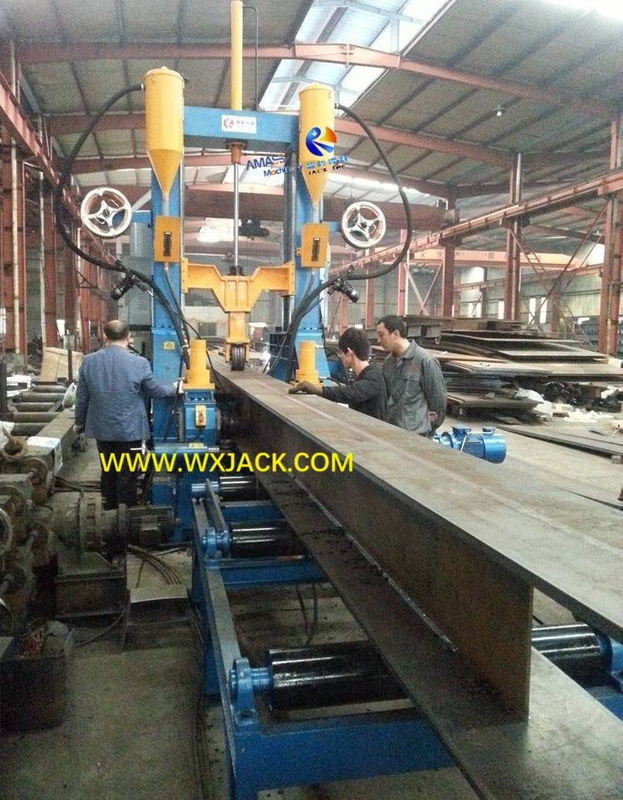

“Fit Up Full” explains the start point on developing PHJ/ ZHJ series H Beam Fabrication Machine: that one set of such Automatic H Beam Production machine equals to complete machine group of H Beam production line.
1) When making light to medium size T Beam H Beam, single set of PHJ/ ZHJ series Multifunction H Beam Welding Machine incorporates full function groups of H Beam Production Line;
2) Because of this integration, material intermittent transfer among all the H Beam Production machine in the line is also eliminated.
a) The raw materials of steel strips (Cut from CNC Strip Plate Cutting Machine, for assembled as flange and web of T Beam H Beam) are hoisted onto input conveyor of the Fit Up Full Vertical H Beam Welder;

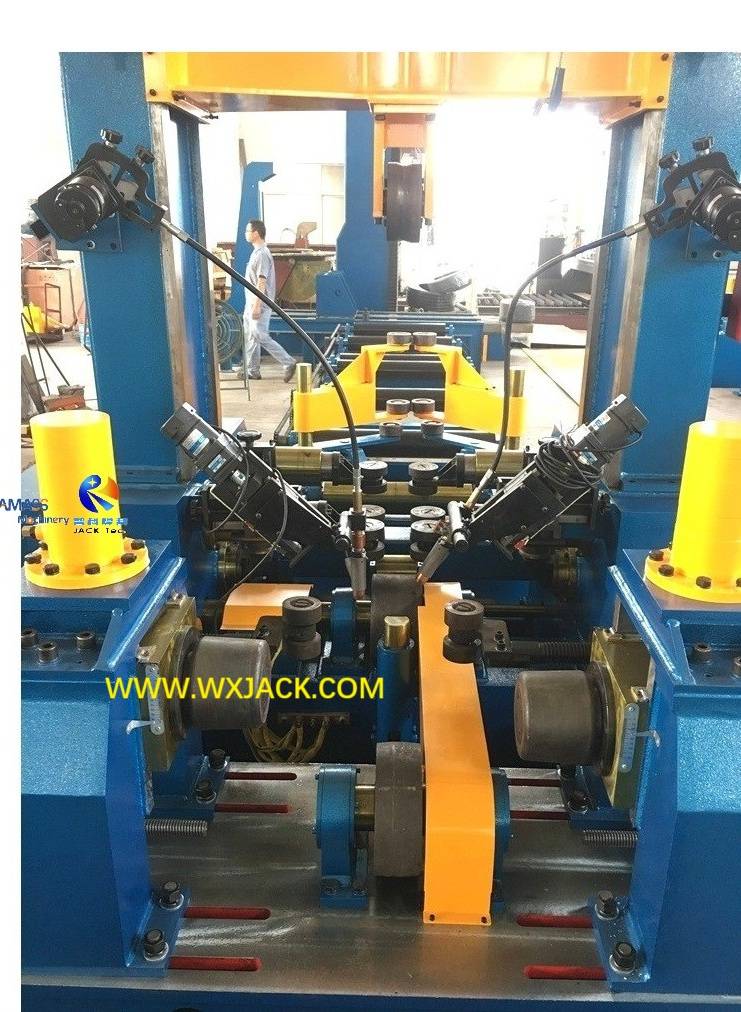

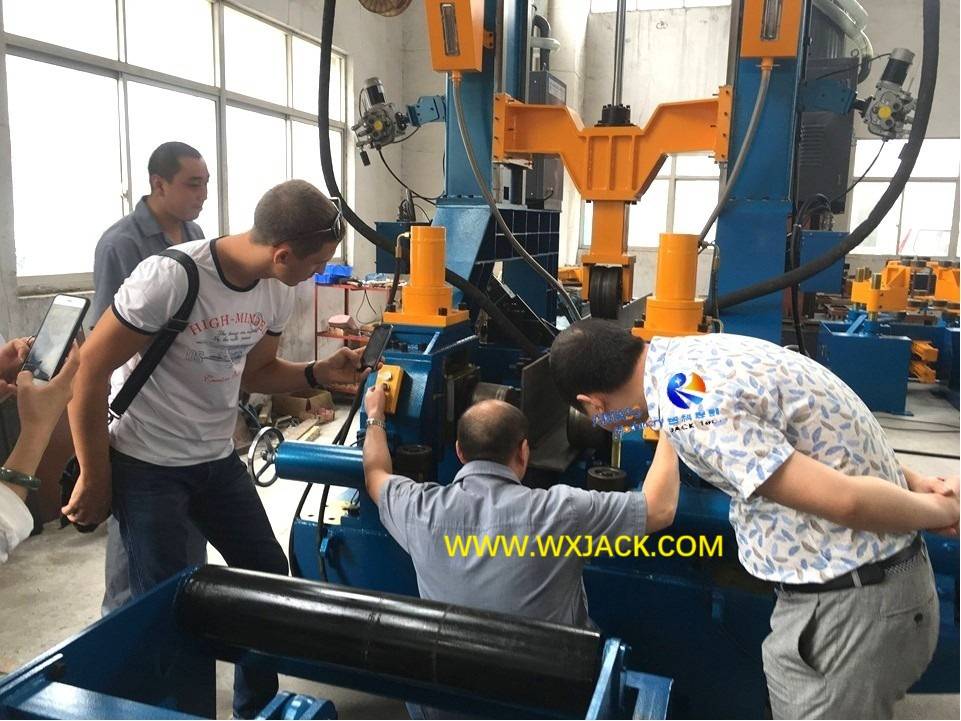

b) For accurate positioning and assembling of the flange and web with hydraulic manipulators, there are two sets of flange and web aligning units at its terminals;
c) The fit up workpiece goes forward to the exact position of precise alignment rollers (Flange and web both), completing assembling step in the Fit up Full H Beam Fabrication Machine;
a) The original CO2 tack welding procedure in the conventional H Beam Assembly machine is removed in this Multifunction H Beam Welding Machine;

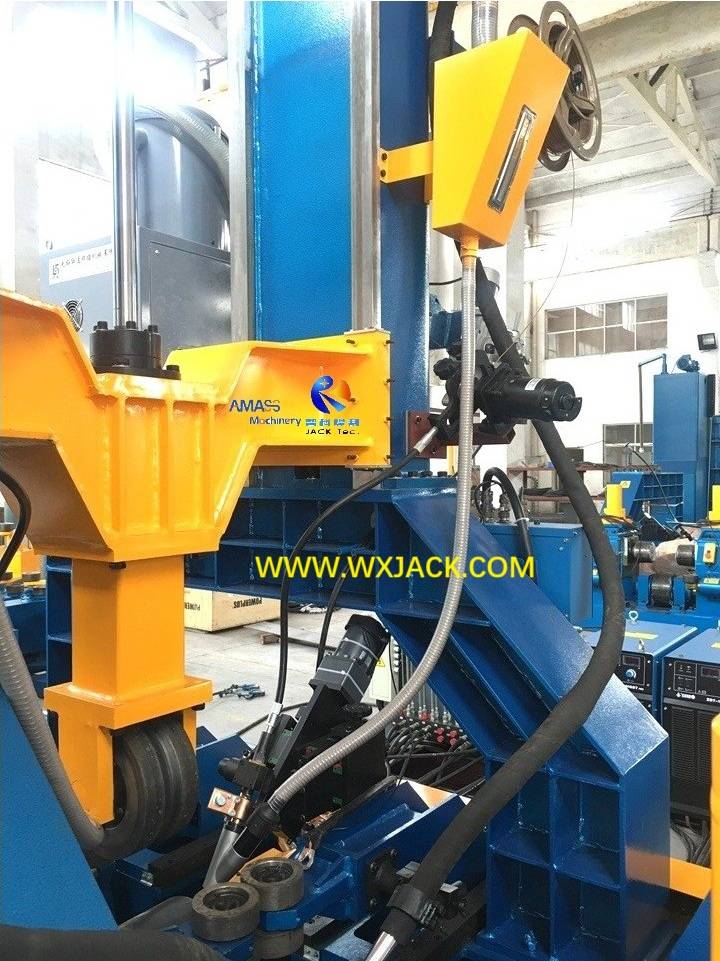

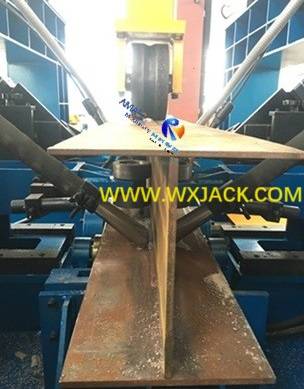

b) 2 sets of SAW or CO2 welding power supply, together with welding assistant units (Wire feeder, and SAW Flux recycling unit) work together, welding the 2 seams alongside both sides of T Beam H Beam web at the same time, featuring in high efficiency and good quality;

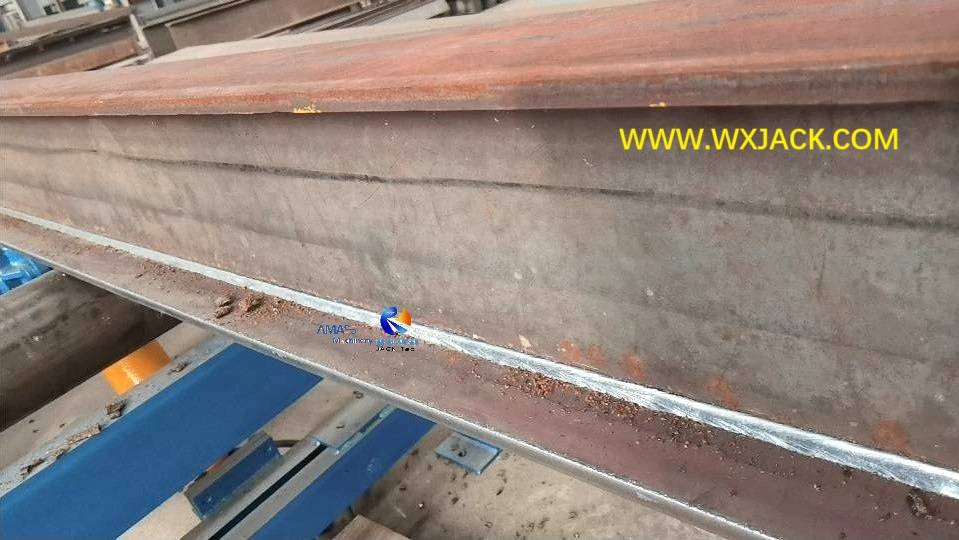

c) For any one piece of welding H Beam produced from this H Beam Assembly Welding Straightening machine, it needs to carry out two times of welding, for completing on top and bottom both sides 4 pieces of welding seam;
d) To do this, the piece of workpiece need to go thru the Fit Up Full Vertical H Beam Welder two times. The first time into T-shape, and the second time into 工-shape;
a) Usually flanges of welding H Beam deforms after welding;
b) Straightening system of the Fit Up Full Multifunction H Beam Welding Machine is for correcting this up bend deformation;
c) It is hydraulic downward stroke style, with strong force and easy control;
From this we can see that one set of the PHJ/ZHJ H Beam Assembly Welding Straightening machine can fulfil the whole task of welding H Beam production procedure. This is the reason it is described as “Fit Up Full”.
Below are technical indexes of Wuxi JACK PHJ and ZHJ series H Beam Assembly Welding Straightening Machine (Vertical H Beam Welder):
Technical Parameter | PHJ15 | PHJ18 | PHJ20 | ZHJ8015 | ZHJ8018 | ZHJ8020 |
Fit Up Full H Beam Fabrication Machine | ||||||
Web Height | 200∼1500mm | 200∼1800mm | 200∼2000mm | 200∼1500mm | 200∼1800mm | 200∼2000mm |
Web Thickness | 5∼30mm | 6∼32 mm | ||||
Flange Width | 200∼800mm | 150∼750mm | ||||
Flange Thickness | 6∼40 mm | |||||
Workpiece Length | 3000∼15000mm | |||||
Single Pass Welding Seam Height | 8 ~ 12 mm | |||||
Welding Speed (Assembly, Straighten same) | 200∼1200mm/min.(Inverter control, Variable Frequency Drive) | |||||
Machine size(L×W×H) | 28m×4m×4.6m | 28m×4m×4.9m | 28m×4m×5.1m | 28m×4m×4.2m | 28m×4m×4.5m | 28m×4m×4.8m |
Driving Way | Assembly/Straightening: Hydraulic; Welding: Electric |
