Standard Type SXBJ-6 Double Head Metal Plate Edge Milling Machine

A. Outline on SXBJ-6 Standard Sheet Metal Plate Edge Milling Machine:

1) The SXBJ-6 Double Heads Metal Plate Edge Beveling Equipment of this product section is the standard model, in the product group of XBJ and SXBJ series Sheet Metal Plate End Beveling Machine;

2) Comparatively, we have introduced a model of custom made SXBJ-6 Sheet Metal Plate End Milling Equipment in the several product sections before. Please make compare the SXBJ-6 Standard Sheet Metal Plate Edge Chamfering Machine here, with the special made SXBJ-6 Edge Milling Machine.

2. Comparison between SXJBJ-6 Special and Standard Sheet Metal Plate End Beveling Machine:

The primary difference between SXBJ-6 custom made and Standard Sheet Metal Plate Edge Beveling Equipment is the installation orientation of the two sets of edge milling carriages in the Edge Milling Machine:

1. Brief Review on SXBJ-6 Special Made Sheet Metal Plate Edge Milling Machine:

1) The SXBJ-6 custom made Edge Milling Machine introduced before has its milling head carriages installed on both sides of the End Milling Equipment mechanical machine body;

2) In other words, there is one set of milling head carriage assembled on both sides of mechanical main frame of the Edge Beveling Equipment respectively;

3) For this reason, viewing from lateral side of the tailor made SXBJ-6 Edge Milling Machine, the mechanical machine body has symmetrical cross section shape, with the ground fitting trough for guiding the horizontal movement of milling head carriages at both sides of the End Milling Equipment;

4) Lateral view on mechanical main frame of SXBJ-6 special made Edge Milling Machine: (Fig.1)

2. Mechanical Property of SXBJ-6 Standard Sheet Metal Plate End Milling Equipment:

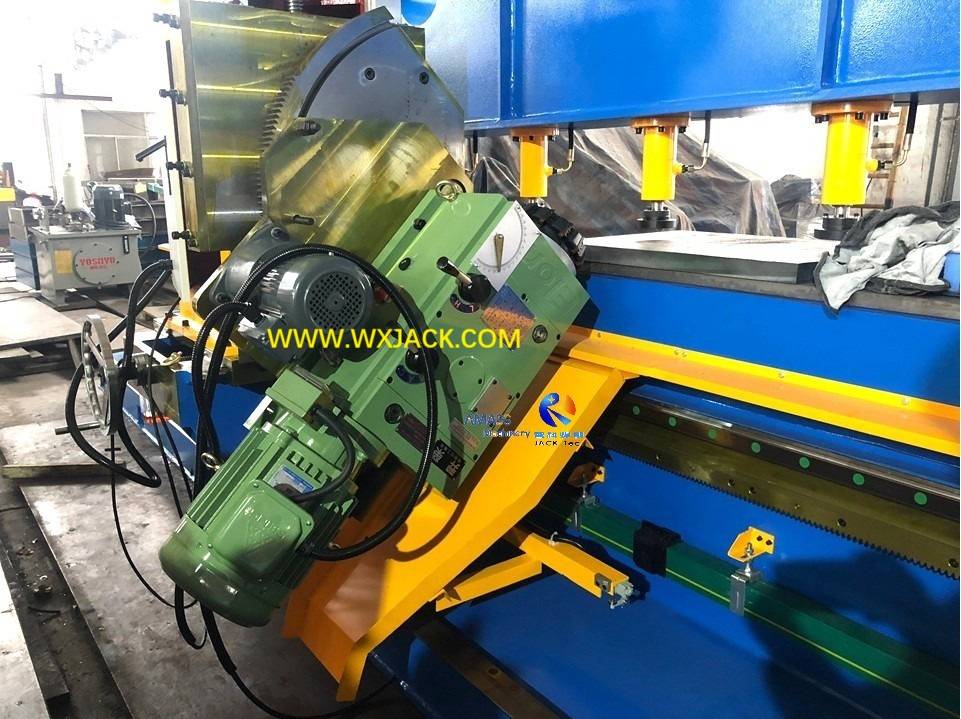

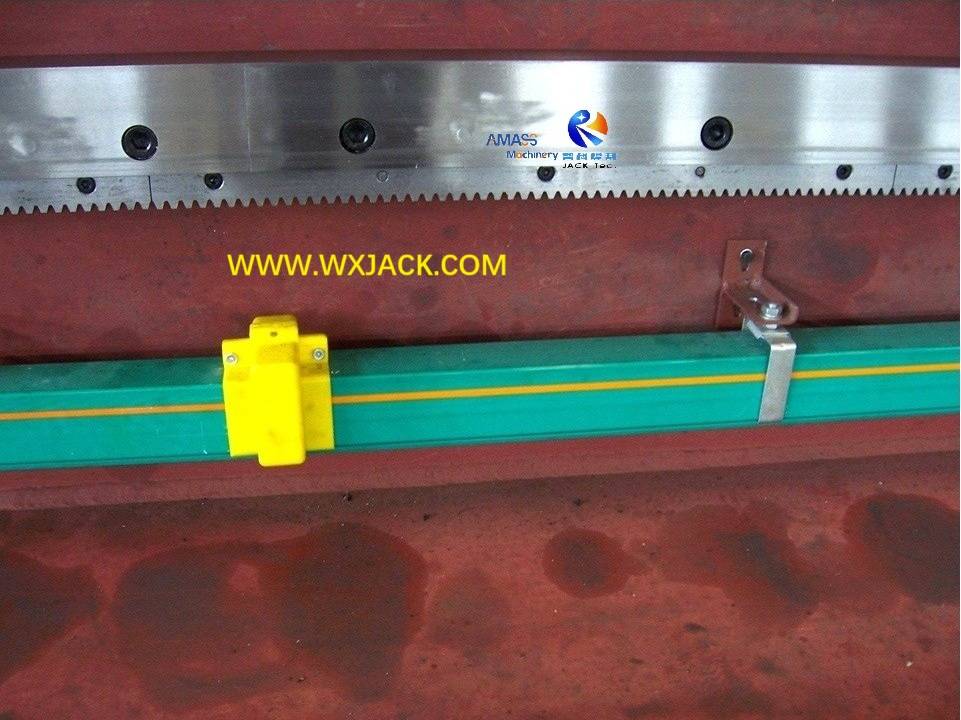

1) For the SXBJ-6 Standard Sheet Metal Plate Edge Milling Machine here, it has two sets of milling head carriages installed at the same operating side of the Edge Beveling Equipment;

2) Hence, viewing from lateral side of the standard Edge Milling Machine mechanical main body, it has asymmetrical cross section, which means only one side of the End Beveling Machine has the guiding trough for horizontal movement of milling head carriages;

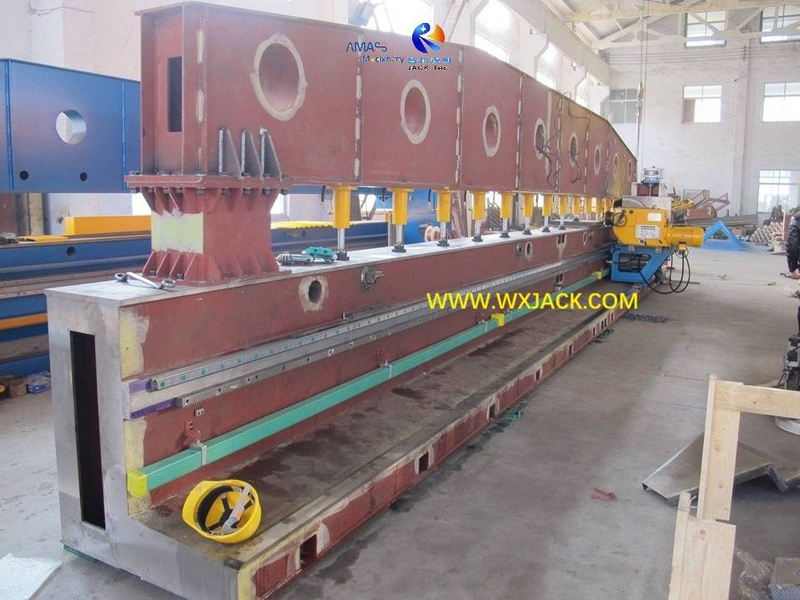

3) Lateral view on mechanical main frame of SXBJ-6 special made Edge Milling Machine: (Fig.2)

4) At first glance shown in the above photo, the mechanical main body of the SXBJ-6 Standard Sheet Metal Plate Edge Milling Machine has fairly long length, considering its nominal stroke of 6000mm;

5) This is because in XBJ and SXBJ models general purpose Sheet Metal Plate Edge Milling Machine, installed with two sets of milling head carriages, length of the working table should be sufficient to accommodate the space for completing 6000mm stroke, to make welding groove in the End Milling Equipment, as well as the individual width of the two sets of milling carriages;

6) So, mechanical main frame of the standard Edge Milling Machine usually has both sides lateral extension of another 6000mm length, based on the 6000mm nominal stroke of the SXBJ-6 Edge Milling Machine.

C. Operation of SXBJ-6 Standard Sheet Metal Plate Edge Milling Machine:

1) Output: Installed with two sets of edge milling carriages at the same operating side of the Edge Beveling Equipment, the SXBJ-6 standard sheet metal plate Edge Chamfering Machine can deliver all the available welding grooves on edges of workpiece, in the form of upper edge/ lower edge/ straight edge/ slant side chamfers, finished with one time stroke of steel plate fitting into the End Beveling Machine;

2) The 6 typical types of welding grooves output from XBJ and SXBJ series Sheet Metal Plate Edge Milling Machine: (Fig.3)

3) Technical Documents: For detailed operation and maintenance of the XBJ and SXBJ series Sheet Metal Plate End Beveling Machine, Wuxi JACK have prepared comprehensive content manual book equipped together with the Edge Milling Machine, covering topics of Safety, Machine Structure, Supply Range, Operation, Trouble shooting, and Maintenance, for customers reference;

4) Skill Training: Besides, Wuxi JACK will give training to customer operators, at the completion of Edge Milling Machine installation and acceptance at customer site.

D. Technical Parameters of SXBJ-6 Standard Sheet Metal Plate Edge Milling Machine:

Below are technical parameters of the SXBJ-6 Double Heads Standard Sheet Metal Plate Edge Beveling Equipment:
