Advanced Wuxi JACK CNC Pipe Cutting Machine

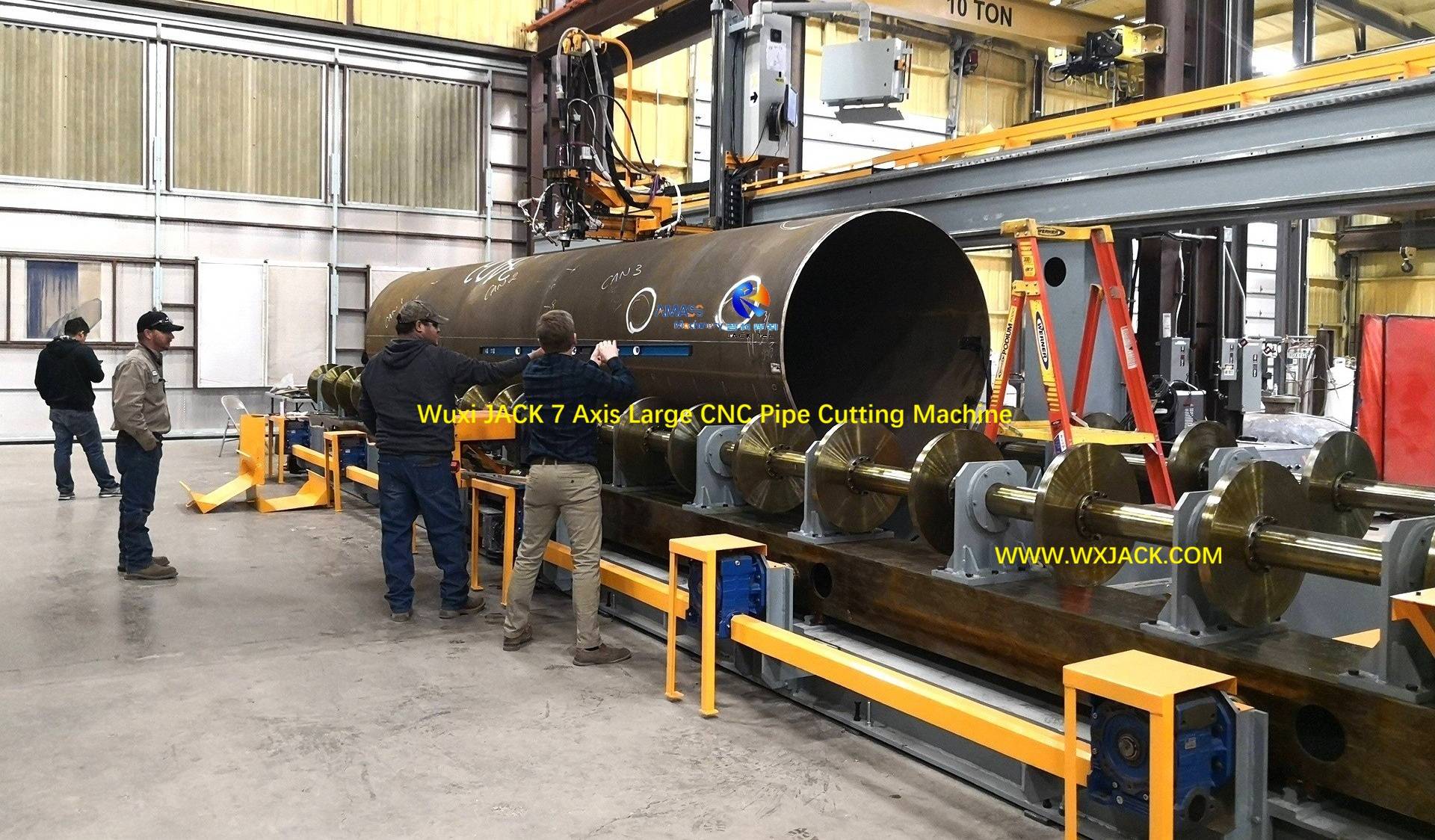

1- 7 Axis Large CNC Pipe Cutting Machine 5- IMG_20181221_183957

A. Wide Use of Wuxi JACK Flame Plasma CNC Pipe Cutting Machine:

1. This page is for comprehensive summary on Wuxi JACK CNC Pipe Intersection Cutting Machine, in the form of graphical demonstration and texts, covering topics of:



1) Function and Main Specification of Wuxi JACK CNC Steel Pipe Cutting Machine;
2) Control Principle and Axis of Wuxi JACK CNC Pipe Flame Cutting Machine;
3) The Leading Edge Technology Cutting Torch of Wuxi JACK CNC Pipe Cutting Machine;
4) The Control Software of Wuxi JACK CNC Pipe Intersection Cutting Machine;
5) The Workpiece Fixture of Wuxi JACK CNC Pipe Cutting Machine;
6) User Friendly Operation of Wuxi JACK Pipe Intersection Cutting Machine;
7) Multiple Choices on Models of Wuxi JACK CNC Pipe Cutting Machine;
8) Wide Application and Broad Customer Base of Wuxi JACK Pipe Intersection Cutting Machine;

2. Our aim is, with reviewing on this web page, customers and anyone who has interest on Flame and Plasma CNC Pipe Intersection Cutting Machine, can have an overall understanding on this superior product of Wuxi JACK;
3. Source: This web page is originated from summary slides “Advanced Wuxi JACK CNC Pipe Cutting Machine”.





B. The Function and Usage of CNC Pipe Intersection Cutting Machine:

1. CNC-CP series CNC Pipe Cutting Machine has 3 main functions of:

1) Cut off metal pipe into certain length;
2) Cut holes of different diameters with straight or slant edge;
3) Make oblique beveling on edge of pipe;

2. The typical finished workpieces from CNC Steel Pipe Cutting Machine: (Fig.1)

Fig1 CNC Pipe Intersection Cutting Machine









C. Related Pages of Wuxi JACK CNC Pipe Flame Cutting Machine and Related Equipment:


1. CNC Pipe Cutting Machine;
2. CNC Pipe Intersection Cutting Machine;
3. Working Video of CNC Pipe Cutting Machine;
4. CNC Plate Cutting Machine;
5. CNC Flame Plate Cutting Machine;
6. CNC Plasma Plate Cutting Machine



D. The General Introduction and Technical View on Wuxi JACK CNC Pipe Cutting Machine:

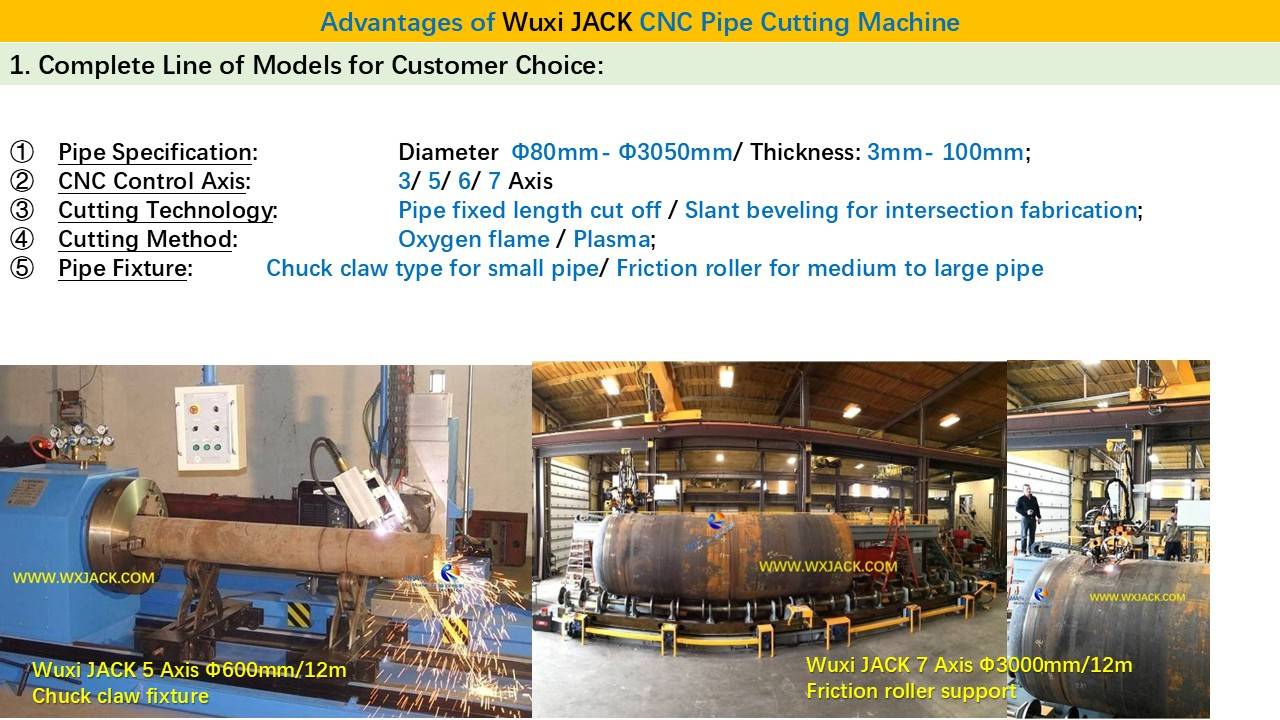

Slides 1: The Complete Line and Main Specification of Wuxi JACK CNC Pipe Intersection Cutting Machine Delivered to Customer:

This page of Slides is on one page summary on function of Wuxi JACK CNC Steel Pipe Cutting Machine:



1. Models of Wuxi JACK CNC Steel Pipe Cutting Machine:

1) We have series of models (CNC-CP600/ CNC-CP1400/ CNC-CP2000/ CNC-CP2500/ CNC-CP3000...) fitting for wide variety of diameters of pipes, from Φ80mm to Φ3000mm;
2) Thickness of pipe wall can be from 3mm to 80mm;



2. Control Axis in Wuxi JACK CNC Pipe Cutting Machine:

1) According to customer demand on function, and diameter of workpiece, has 4 options of 3 /5/ 6/ 7 Axis to choose from;
2) 3 axis CNC Pipe Cutting Machine is for small to medium diameter pipe straight edge cut off;
3) 5/ 6/7 axis CNC Pipe Intersection Cutting Machine fulfil more complicated tasks of slant edge beveling;



3. Pipe Fixture Applied in CNC Pipe Flame Cutting Machine:

1) Depending on different diameters of pipe, we have chuck fixture for clamping small pipe, diameter in the range of Φ80mm to Φ600mm;
2) And friction roller for laying large diameter pipes, in the range of Φ600mm to Φ3000mm;



4. Cutting Media Adopted in CNC Pipe Cutting Machine:

1) Customer can select plasma for cutting small to medium thickness pipe,
2) Flame for cutting thick thickness pipe;
3) Or combination in one set of CNC Pipe Cutting Machine.



This page of Slides demonstrates 2 typical models of Wuxi JACK CNC Pipe Intersection Cutting Machine as below:

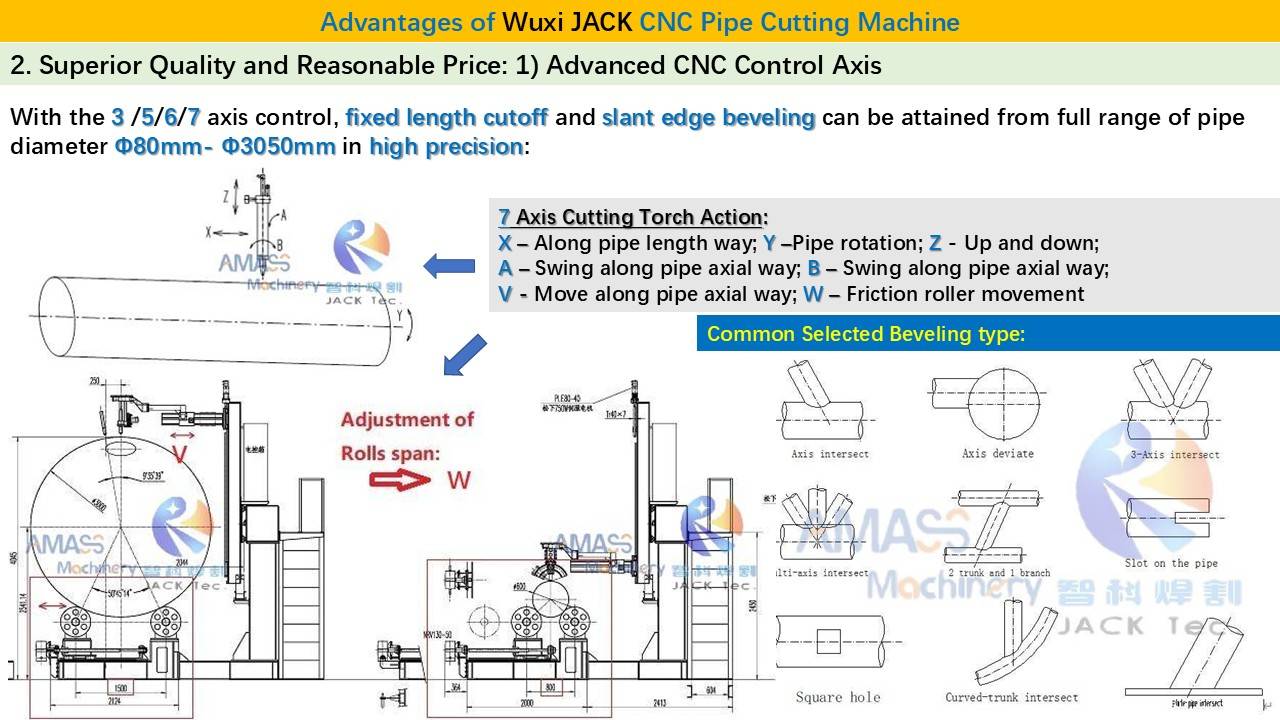

Slides 2: The Advanced Control Axis in Wuxi JACK CNC Pipe Cutting Machine:

This page of Slides gives clear indication on control axis adopted in Wuxi JACK CNC Pipe Intersection Cutting Machine:


In terms of control axis, there are 3 shifts of control axis configuration in CNC Steel Pipe Cutting Machine, from simple to complex:

1. 3 Axis CNC Pipe Cutting Machine:

1) The meaning of corresponding X/ Y/ Z axis are listed as below on this page of Slides;
2) These 3 axes fulfil cutting off pipes into designated length, with straight edge;



2. 5 Axis CNC Pipe Intersection Cutting Machine:

1) On the basis of X/ Y/ Z axis, and adding on A/B axis, the 5 axis CNC Pipe Flame Cutting Machine acquires ability of slant edge chamfering;
2) 5 axis is applied to pipe diameter range from small to medium (Up to Φ2000mm);



3. 6/ 7 Axis CNC Pipe Intersection Cutting Machine:

1) On the basis of X/Y/X/A/B axis, adding on V axis, this comes to 6 axis CNC Pipe Cutting Machine;

2) Still further, adding on W axis, it grows into 7 axis CNC Pipe Cutting Machine;

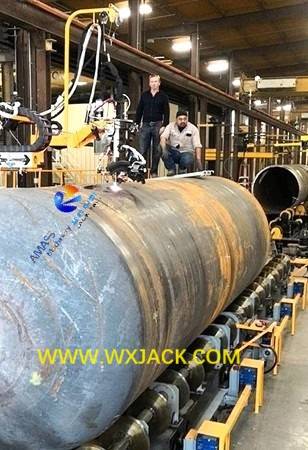

3) 6 /7 Axis CNC Pipe Intersection Cutting Machine belong to large CNC Pipe Cutting Machine, applicable for cutting large diameter pipes: Φ2000mm to Φ3000mm;
4) 6/7 axis large CNC Pipe Cutting Machine has similar function as 5 axis CNC Pipe Cutting Machine;
5) The purpose on V/ W axis is, with increasement on workpiece diameter, the cutting torch and friction rollers need to have moving function, for fulfilling task of beveling on large pipes.

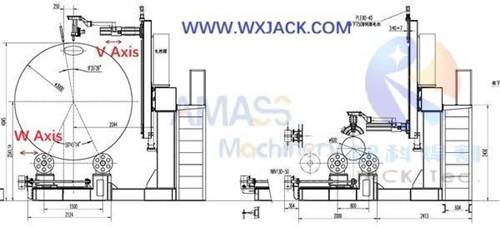

From left to right, the 3 sketches on this page of Slides give illustration on the 7 control axis in Wuxi JACK CNC Pipe Intersection Cutting Machine, and the classical workpieces available for being cut in the CNC Pipe Cutting Machine.

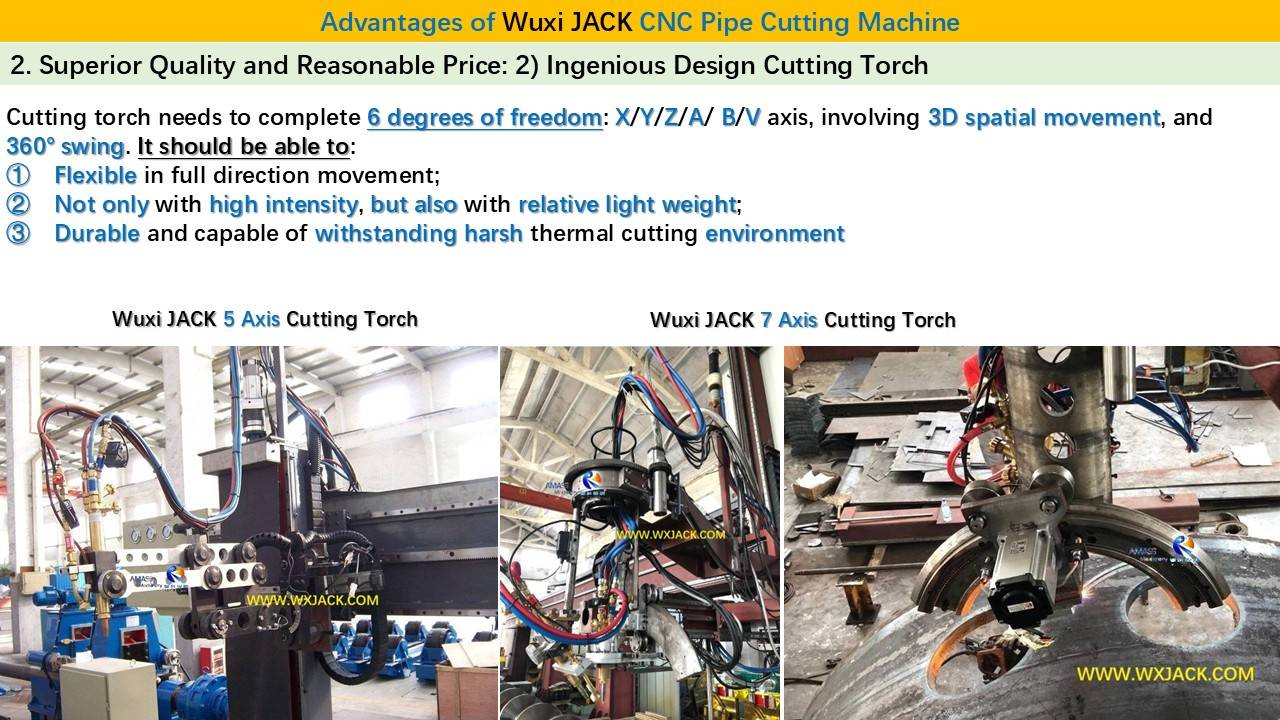

Slides 3: The Ingenious Design and Workmanship on Cutting Torch of Wuxi JACK CNC Pipe Cutting Machine:

This page of Slides focuses on the superlative cutting torch of Wuxi JACK CNC Pipe Flame Cutting Machine:


1. Of the 7 axis introduced in the previous Slides, 6 of them are for controlling movement of cutting torch;

2. For this reason, the cutting torch in CNC Steel Pipe Cutting Machine should meet the technical demands as below:

1) Flexible with multiple joints, for fulfilling all direction working action;
2) High strength structure with light weight;
3) Durable and heat/ dust resistance.



The 5 pieces of photo on this page of Slides, shows cutting torches equipped in Wuxi JACK 6/7 axis CNC Pipe Cutting Machine, and its components.

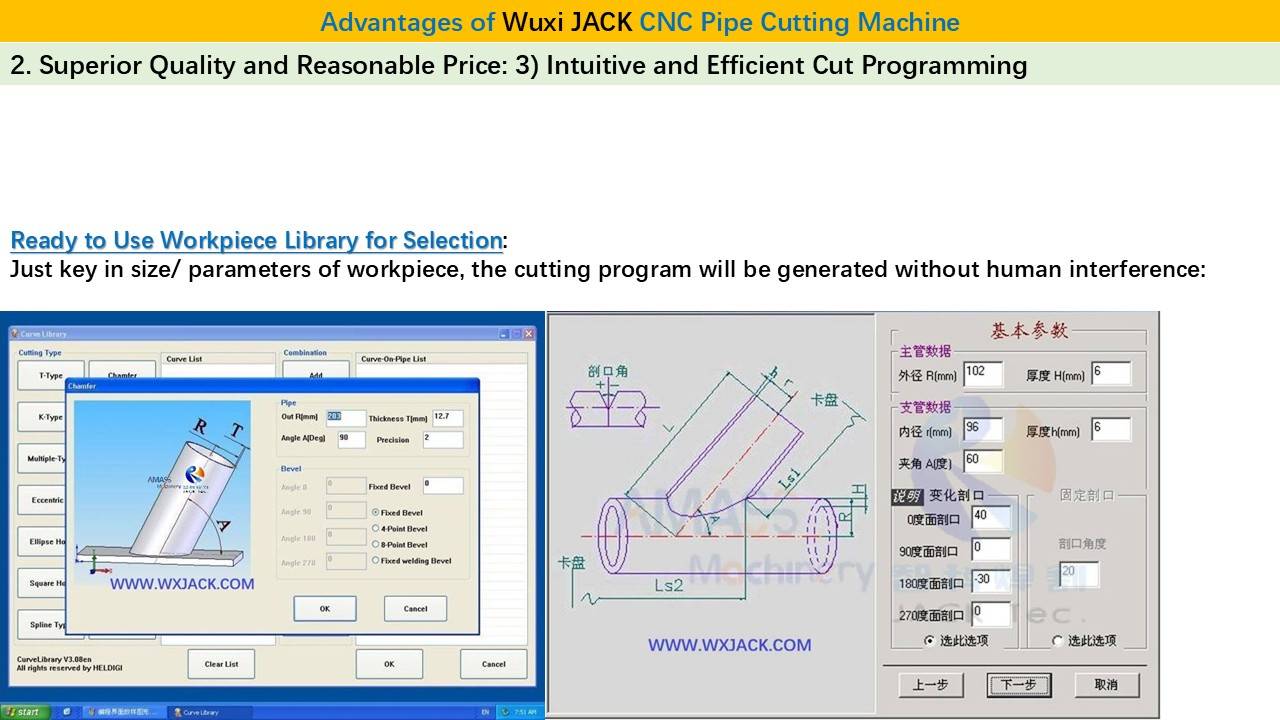

Slides 4 The Powerful Control Software in Wuxi JACK CNC Steel Pipe Cutting Machine:

This page of Slides demonstrates the powerful function and easy management in Wuxi JACK CNC Pipe Cutting Machine:

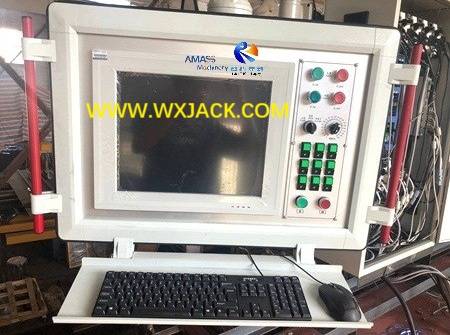

1. Controller: The electric control system of CNC Pipe Intersection Cutting Machine is industrial level computer. Its software operating system is developed by Wuxi JACK engineering team;

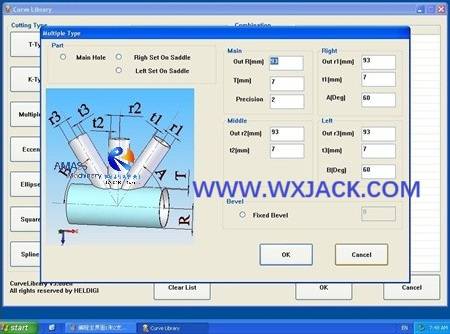

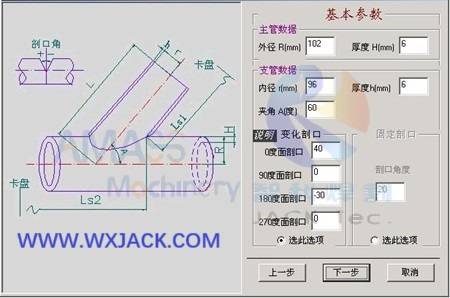

2. Cutting Program: As shown in snapshots pasted on this page of Slides, the complicated cutting programming in CNC Pipe Cutting Machine is generated automatically, without human intervention;
3. Easy Management: Operator just key in dimension of workpiece, by means of interface of control software. This guarantees accuracy of cutting program in CNC Pipe Cutting Machine.



The 7 photos on this page of Slides, show operating interface of Wuxi JACK CNC Pipe Flame Cutting Machine, as well as the cutting torch actions series during cutting.

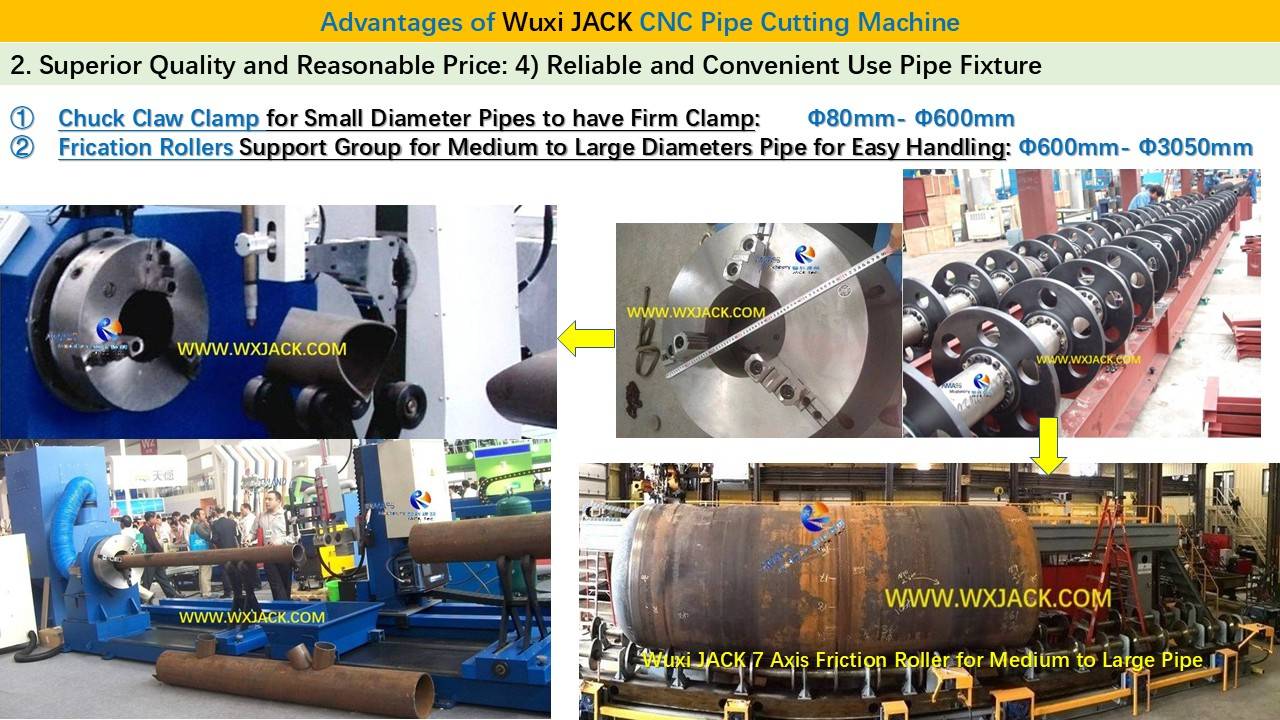

Slides 5: The Reliable Pipe Fixture of Wuxi JACK CNC Pipe Cutting Machine:

This page of Slides demonstrates on the workpiece fixture of Wuxi JACK CNC Pipe Intersection Cutting Machine:

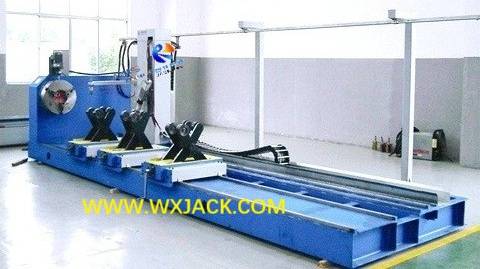

1. The Left 4 Photos: For small pipes, which have diameters from Φ80mm to Φ600mm, need to use chuck to clamp the pipe firmly, in small size CNC Pipe Cutting Machine;

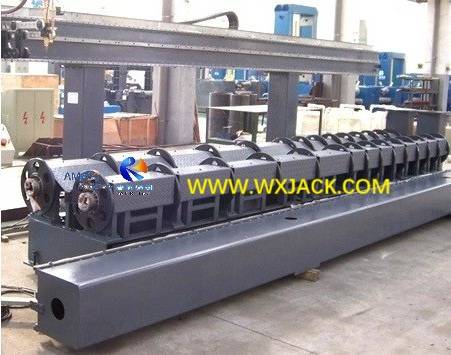

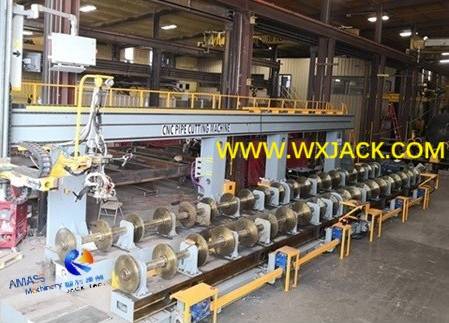

2. The Right 2 Photos: For medium to large pipes, which have diameters from Φ600mm to Φ3000mm, due to its large size and heavy weight, which do not exhibit swing phenomenon, friction rollers are adopted in large CNC Pipe Cutting Machine for laying pipes.

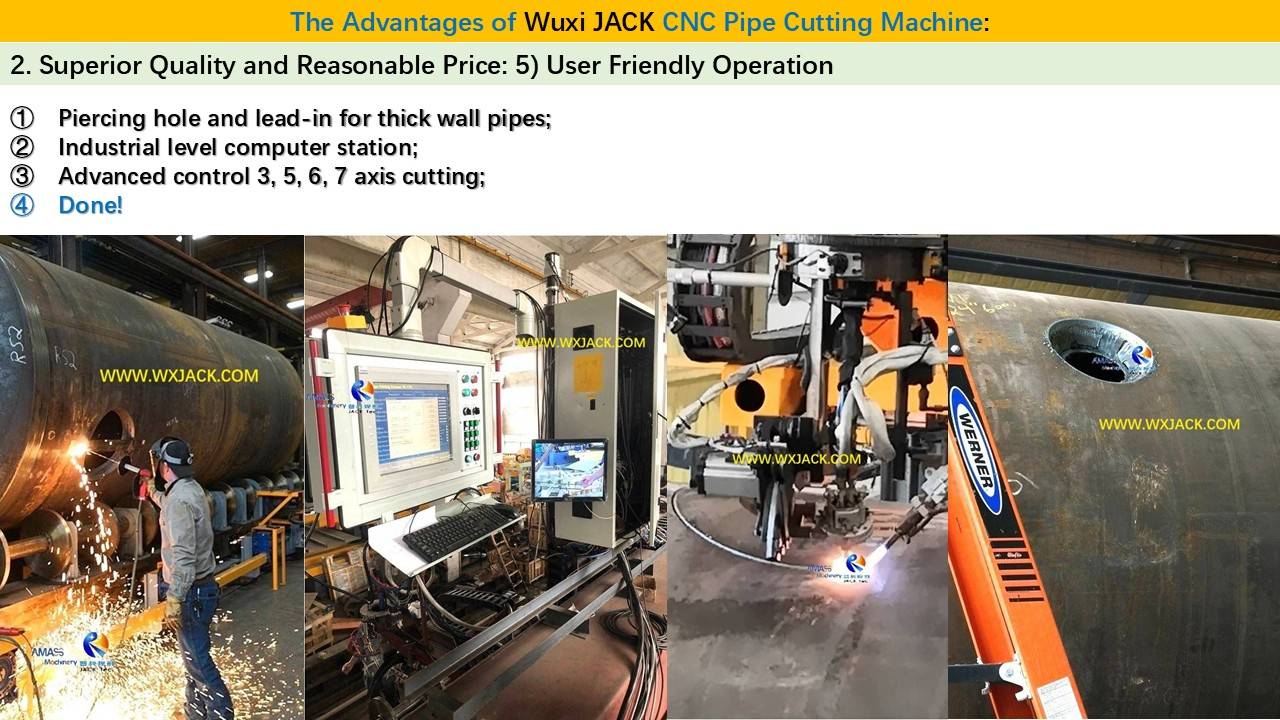

Slides 6: The User Friendly Operation in Wuxi JACK CNC Pipe Flame Cutting Machine:

This page of Slides is on convenient and easy operation in Wuxi JACK CNC Steel Pipe Cutting Machine:




1. Photo 1: For big thickness workpiece, which are thicker than 50mm, need to make piercing and cut lead-in line ahead of time official cutting at Wuxi JACK CNC Pipe Flame Cutting Machine;

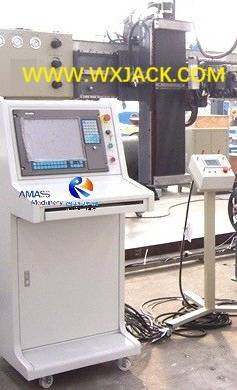

2. Photo 2: Operating station of Wuxi JACK CNC Pipe Intersection Cutting Machine;

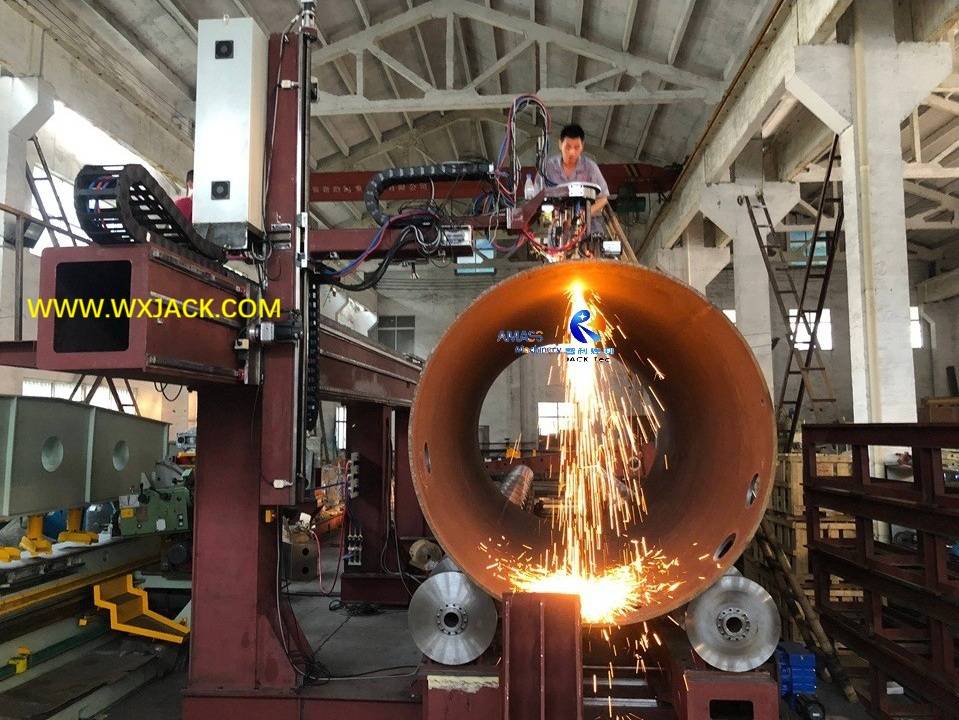

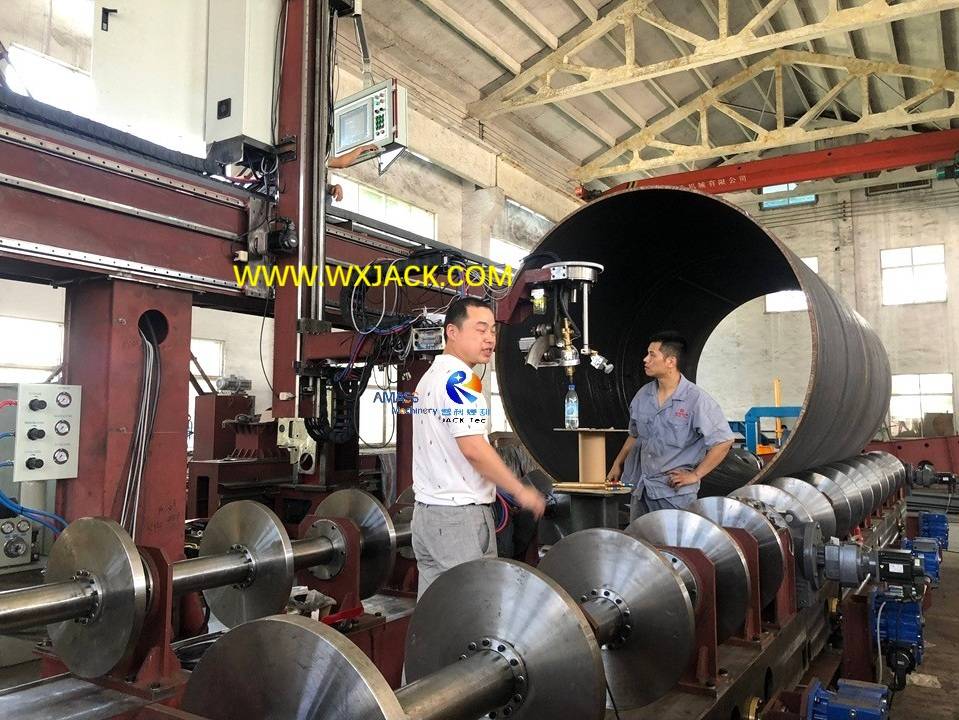

3. Photo 3: The cutting moment of Wuxi JACK 7 axis large CNC Pipe Cutting Machine;

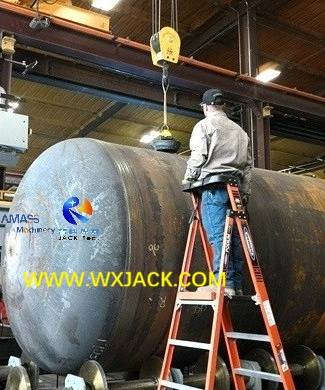

4. Photo 4: The finished large diameter Φ3000mm 80mm thickness pipe produced from Wuxi JACK CNC Steel Pipe Cutting Machine.

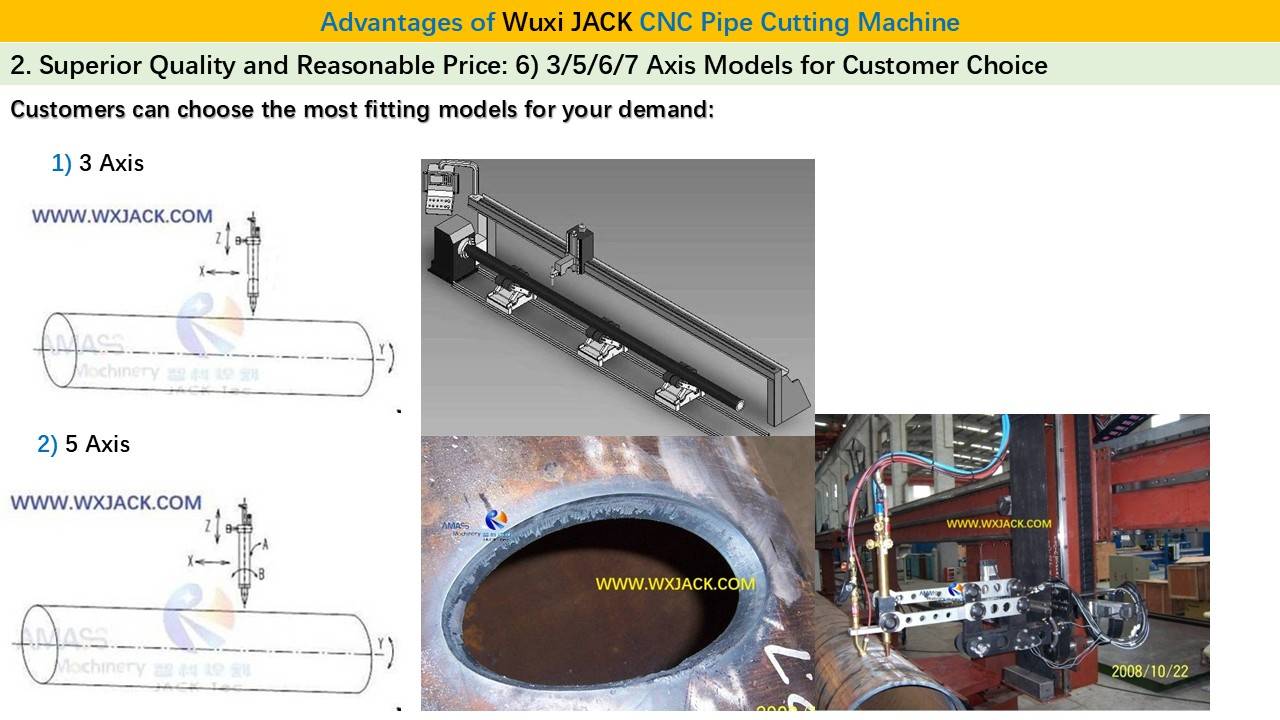

Slides 7 and 8: The Multiple Choices on Variety Models in Wuxi JACK CNC Pipe Cutting Machine:

These 2 pages of Slides are on rich assortment of models in Wuxi JACK CNC Pipe Intersection Cutting Machine:



1. Wuxi JACK produces full range of CNC-CP series CNC Pipe Cutting Machine. Customers can select the most fitting type, according to below factors of:

1) Diameter range of workpiece pipes;

2) Expected function of the CNC Pipe Cutting Machine;
3) Thickness range of pipe wall and corresponding cutting media;

2. Slides 7: The Wuxi JACK Small and Medium Size 3 Axis and 5 Axis CNC Pipe Cutting Machine:

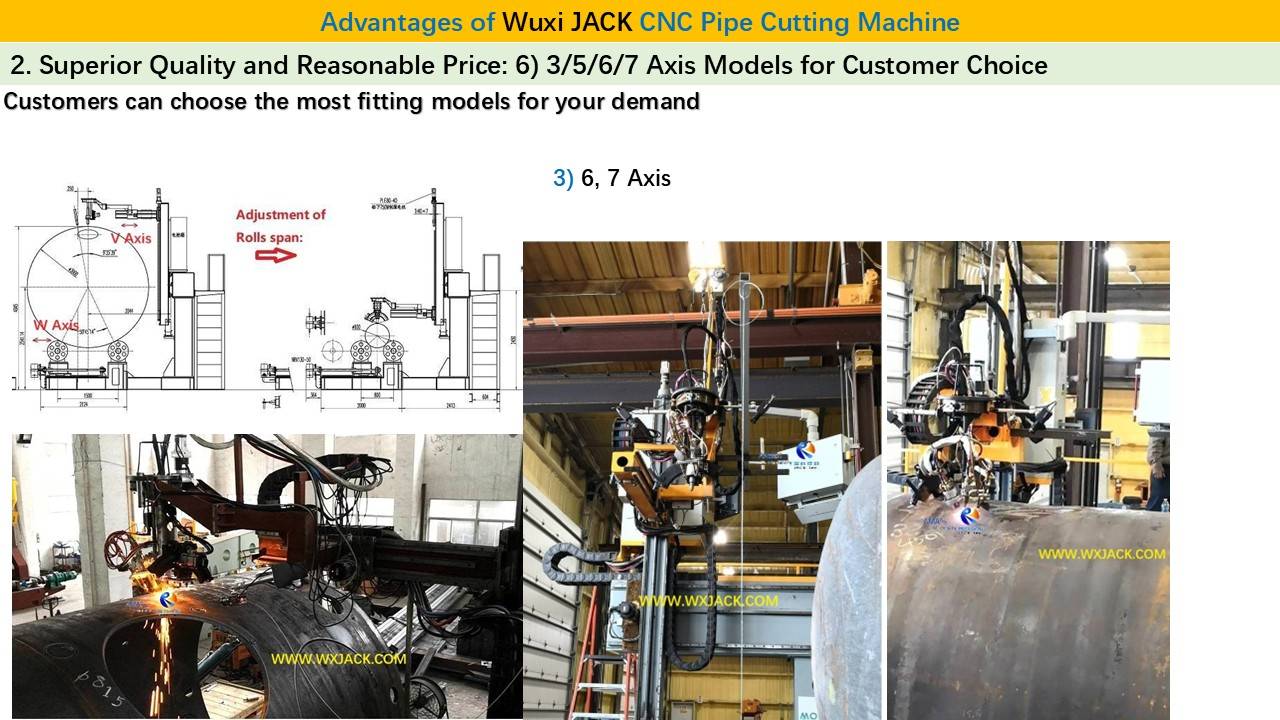

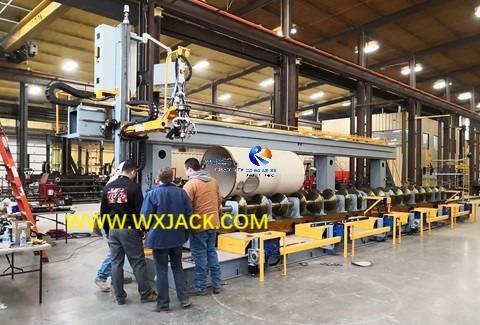

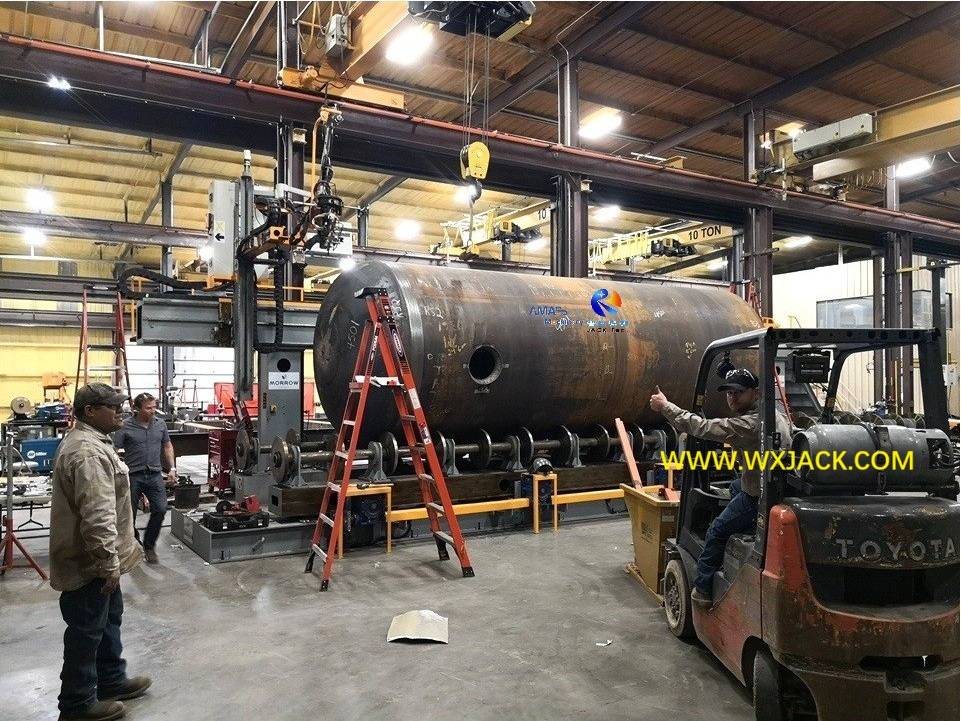

Slides 8: The Wuxi JACK 6 Axis and 7 Axis Large CNC Pipe Intersection Cutting Machine:

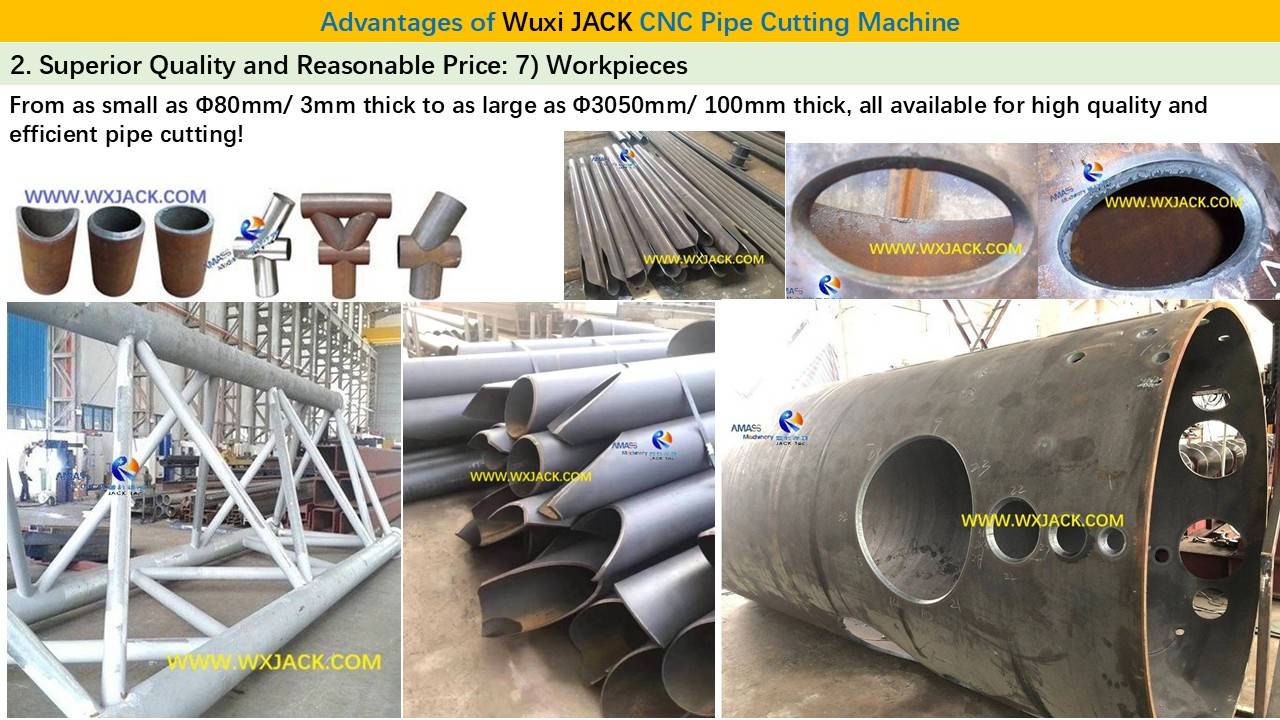

Slides 9: The Wide Variety of Workpieces available for being Cut from Wuxi JACK CNC Pipe Intersection Cutting Machine:

This page of Slides is on extensive application of Wuxi JACK CNC Pipe Flame Cutting Machine:



As can be observed from the 7 photos on this page of Slides, Wuxi JACK CNC-CP series CNC Pipe Cutting Machine can cut out wide range of metal pipes:

1. From the smallest Φ80mm diameter 3mm thickness, to the largest Φ3000mm diameter 80mm thickness;
2. Multiple kinds of bevels and intersection purpose chamfers;
3. As well as its application into pipe steel structure, fabricated from finished workpieces of CNC Steel Pipe Cutting Machine.

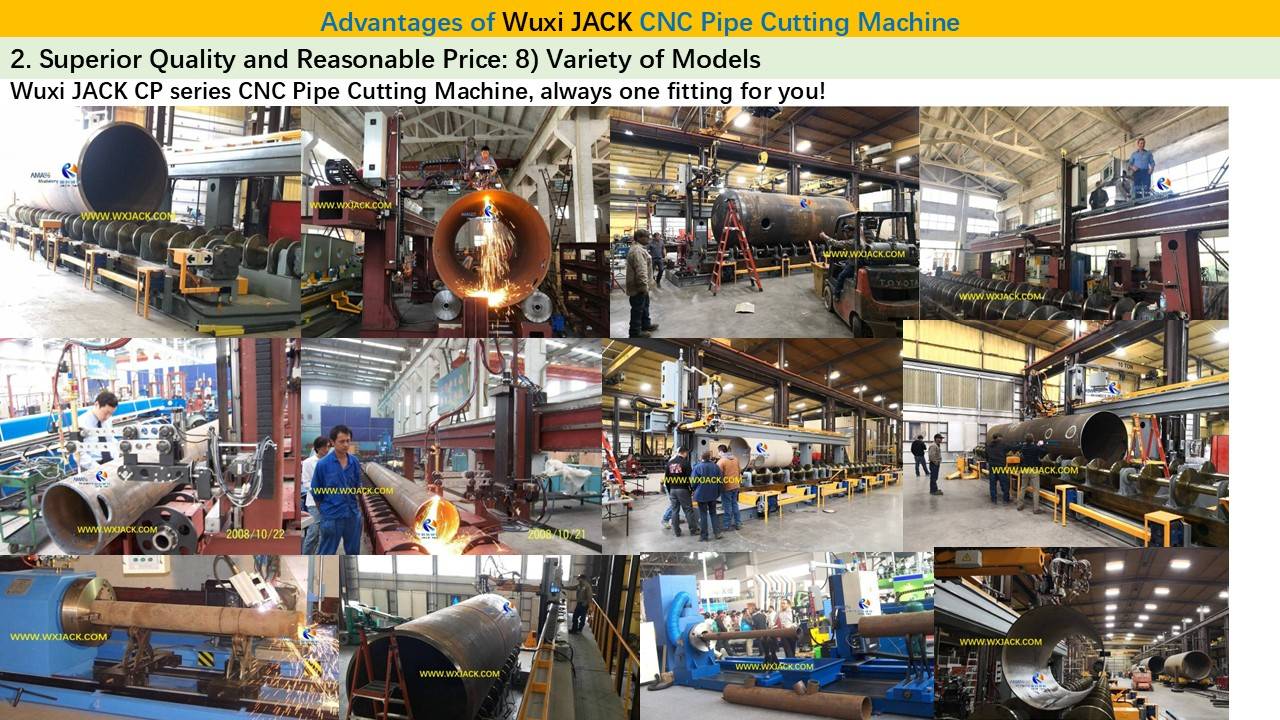

Slides 10: The Wide Variety of Structures and Models of Wuxi JACK CNC Pipe Intersection Cutting Machine:

This page of Slides shows 12 successful business cases of Wuxi JACK flame and plasma CNC Pipe Cutting Machine, delivers to worldwide customers, over the past decade.
