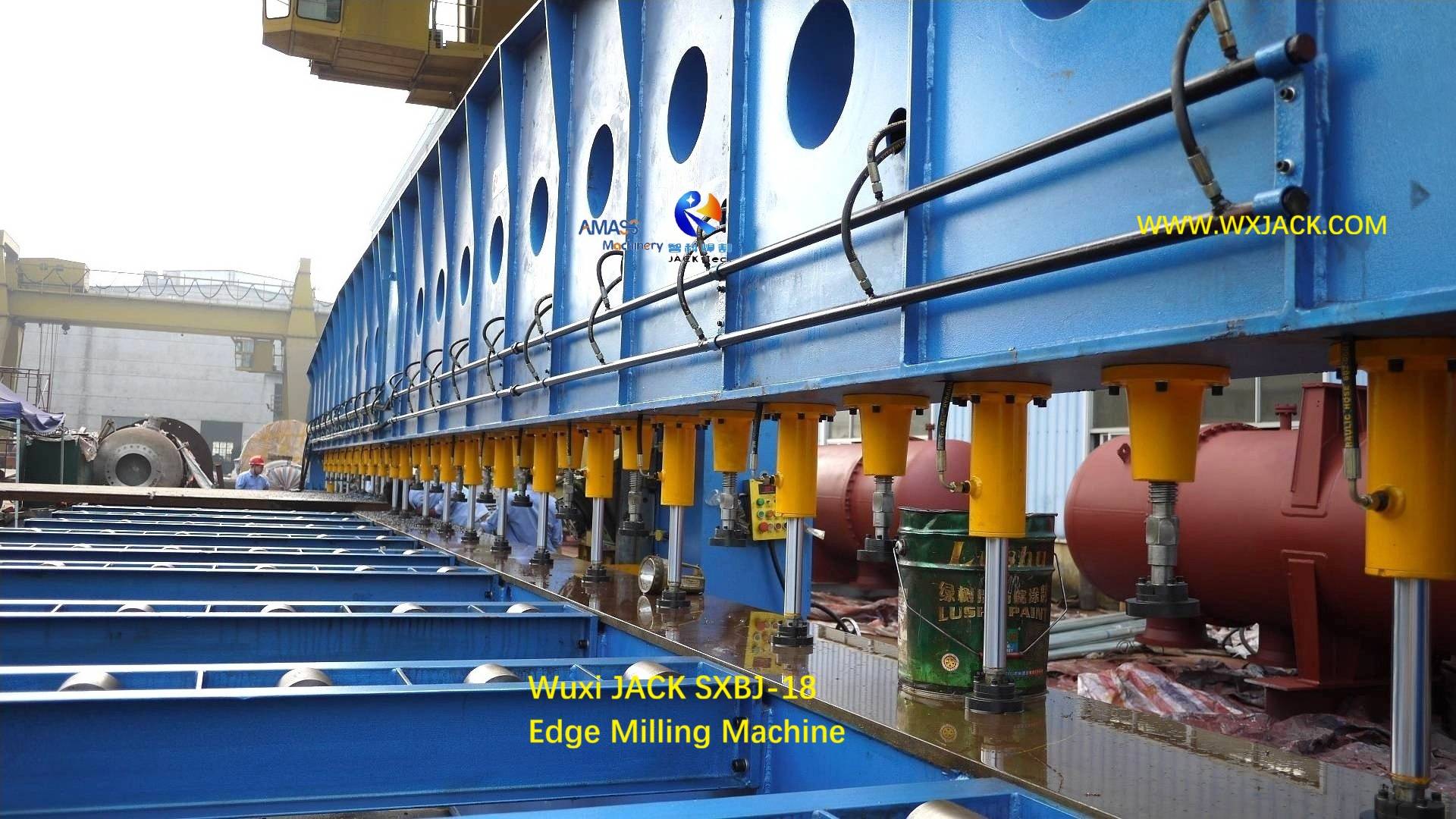

1 Sheet Metal Steel Plate End Edge Milling Machine 4

Working Video of Wuxi JACK

Edge Milling Machine

Navigation Bar on “Working Video of Edge Milling Machine”

Brief Introduction on Edge Milling Machine

1. The Usage and Workpiece of Edge Milling Machine:

1) Edge Milling Machine, the other name is Plate Beveling Machine, or End Milling Machine, is a kind of universal use machining equipment specifically for sheet metal plate, especially carbon steel plate;

2) The classical 6 kinds of bevels available on being machined from End Milling Machine can be listed as below (Fig.1)

Fig1 Edge Milling Machine




3) A set of Wuxi JACK Sheet Metal Edge Milling Machine is making up edge beveling on steel plate: (Fig.2)

Fig2 Sheet Metal Steel Plate End Edge Milling Machine 7



4) Close watch on superior quality of finished bevel from Wuxi JACK Edge Milling Machine: (Fig.3)



Fig2 Sheet Metal Steel Plate End Edge Milling Machine IMG_20220103_094212



2. Thematic Web Pages for Introducing Wuxi JACK End Milling Machine:

Based on function and configuration of the Edge Milling Machine, we have 4 pages for introducing this product group of Plate Beveling Machine:
1) Edge Milling Machine;
2) General Purpose Edge Milling Machine;
3) Double Heads Long Stroke Edge Milling Machine;
4) Advanced Configuration Edge Milling Machine;

The Subject of Working Video Page for Sheet Metal Edge Milling Machine



1. In each of the above listed pages, we give 6~7 videos for presenting how does Wuxi JACK Edge Milling Machine in operation from different perspective. Here we pick up more different videos, to give all around introduction of the End Milling Machine;


2. The 5 themes covered in videos of the Sheet Metal Edge Milling Machine in this page are:

1) Upper and Straight Edge Beveling in End Milling Machine;
2) Lower Edge Beveling in Edge Milling Machine;
3) Commissioning on Edge Milling Machine during its Manufacture;
4) Wuxi JACK Edge Milling Machine running at customer site;
5) The leading edge functions of Wuxi JACK Edge Milling Machine



3. Dedicated Web Pages for Working Video of Sheet Metal End Milling Machine:

1) Video of Edge Milling Machine; (This Page)
2) Video of General Purpose Edge Milling Machine;
3) Video of Double Heads Edge Milling Machine;
4) Video of Advanced Configuration Edge Milling Machine;

5) Video of Wuxi JACK Standard and Special Made End Milling Machine

Working Video of Upper Edge and or Straight Edge Beveling in Plate Edge Milling Machine

1) This video was taken at Wuxi JACK facility, when making a set of SXBJ125 double heads Sheet Metal Edge Milling Machine that was exported to Russia in Jan. 2022;
2) The video focuses on upper edge beveling validation in the Edge Milling Machine. The operating pendant hung on the milling carriage displays the machining working speed at that moment: 340 mm/min. This working speed can be adjusted based on process technology of edge milling in the Sheet Metal Edge Milling Machine;
3) You can also find the circular angular ruler at lateral side of milling head, in this set of Plate Beveling Machine.

1) This video was taken on the same set of SXBJ-125 Sheet Metal Edge Milling Machine as the previous video, also focusing on up edge beveling trial running at Wuxi JACK workshop;
2) The difference is, the video was taken at the opposing side of milling head. You can check how does the milling head and its facer blade installed on its carriage in the Sheet Metal Edge Milling Machine.

1) The machining job in this set of Wuxi JACK SXBJ-9 Sheet Metal Edge Milling Machine is straight edge end milling. The working speed during that period was 210 mm/min., as you can check from beginning of the video;
2) In Edge Milling Machine, usually straight edge beveling and upper edge beveling are made with same piece of milling head, and bottom edge milling is made with the second piece of milling head of the End Milling Machine.

1) This video on upper chamfering in Wuxi JACK Double Heads Sheet Metal Edge Milling Machine was taken a distance of 1~2 m away from the milling head. So, it can give more general and overall view on assembling condition of milling head and its working elements in the End Milling Machine;
2) Usually during manufacture of Sheet Metal Edge Milling Machine, before final assembling of mechanical main frame (Working table and gantry), the milling head and its facer blade should be checked first. This is the reason from the video you can find that, the milling head was being validated on working table of the Sheet Metal Edge Milling Machine, before installing the overhead downward stroke gantry.

Working Video of Lower Edge Beveling in Sheet Metal Edge Milling Machine

1) The lower edge beveling in this set of Wuxi JACK SXBJ-125 Sheet Metal Edge Milling Machine was tried following upper edge beveling. So, you can find from the video, the finished top groove on the tested steel plate;
2) You can also check, that the bottom chamfering speed at that time in the End Milling Machine was 440 mm./min.
3) The 2 pieces of black color lever on the cover of green color milling head, are for quick speed changing spindle revolutionary speed from 9 options, which is adjusted based on steel plate to be machined in the Sheet Metal Edge Milling Machine.

1) This video has duration of 2 minutes and 17 seconds. It gives many information on working condition of Wuxi JACK SXBJ series double heads Sheet Metal Edge Milling Machine in it;
2) The video starts from counter of milling head feeding motor; Then to HMI (Human machine interface) and its touch screen, for controlling milling angle of the Plate Beveling Machine;
3) Then, the video takes long time to concentrate on bottom edge beveling tried in the Sheet Metal Edge Milling Machine. During the process, operator adjusted working speed from 360 mm/min. to 440 mm/min., by means of the turning knob in the hand held operating pendant of the Plate Beveling Machine milling carriage;
4) The last period of the video has close up observance on finished effect on edge milling on the steel plate, delivered from this special made Sheet Metal Edge Milling Machine.

Working Video of Commissioning on Wuxi JACK Sheet Metal Edge Milling Machine during its Manufacture Process

1) This video was taken on milling head feeding motor in Wuxi JACK SXBJ-16 Double Heads Sheet Metal Edge Milling Machine, when it was being produced in workshop;
2) In plate End Milling Machine, the feeding of milling head toward steel plate can be made either with manual job, or motor drive. The orange color counter in the video is for position control of the milling head feeding motor of the End Milling Machine;
3) The black color handwheel is for turning and adjusting the milling head; The blue color worm reducer is for transmission of the milling head feeding motor in the Sheet Metal Edge Milling Machine.

1) This video was taken on the same set of Wuxi JACK SXBJ-16 Sheet Metal Edge Milling Machine, on the same group of milling head driving and transmission unit;
2) During the first half of the video, the milling head in the End Milling Machine was fed forward and retreat with motor drive. In this process, you can find the black color handwheel revolving automatically in high speed revolution during movement of the Plate Beveling Machine milling head;
3) Then, operator tried manual control of milling head movement in the Sheet Metal Edge Milling Machine: First hand turning clockwise, then counter clockwise rotation of the black color handwheel had being tried by operator;
4) During the entire validation process for the milling head feeding and retreating in the Plate Beveling Machine, the counter always changed its numerical display to reflect position change of the milling head.

1) This video shows at the completion of milling head validation, which is made by means of up or lower beveling in Wuxi JACK XBJ and SXBJ Sheet Metal Edge Milling Machine, The milling head and its carriage moved to its original position, or next operating point;
2) Due to the confinement of its traveling stroke in the video, the milling head moved in relative slow speed in this set of Sheet Metal Edge Milling Machine, around 1000~ 2000 mm/min. In practical application, the idle running of milling carriage in the End Milling Machine usually in the speed of 4000 mm/min.

1) Same as the previous video, this video was also taken on idle running of milling head and its carriage, during manufacture of XBJ and SXBJ series Sheet Metal Edge Milling Machine at Wuxi JACK facility;
2) The difference is, in this set of SXBJ-16 long stroke Sheet Metal Edge Milling Machine, you can find the whole set mechanical main frame of the machine had been finished assembly, the gantry and workpiece loading system had been installed, making it a set of completed Plate End Milling Machine;
3) For this reason, the idle running of the milling head carriage was made at higher speed of 4000 mm/min., approaching actual running condition of the End Milling Machine at customer site.

1) This short video was taken on mechanical bed of Wuxi JACK SXBJ-15 Double heads Sheet Metal Edge Milling Machine during its order to delivery process;
2) You can find the yellow color self lubricating unit equipped in the End Milling Machine. The lubrication is made in automatic way: There is a small PLC (Programmable logic controller) embedded in the self lubricating system. During running of the Sheet Metal Edge Milling Machine, every 10~ 15 seconds, it will apply lubricating oil onto linear guiderail, and running unit of the Plate Beveling Machine.

1) This short video was taken on a set of Wuxi JACK XBJ-9 Sheet Metal Edge Milling Machine in production at Wuxi JACK workshop;
2) The uniqueness of this set of End Milling Machine lies in its superior quality facer blade and milling head: As you can find from the video, the facer blade can produce more precise finished effect;
3) The facer blade has heavier beveling capability than ordinary types in End Milling Machine: Suppose every stroke of beveling is 3~4mm depth of beveling in ordinary Sheet Metal Edge Milling Machine, then the facer blade in this set of advanced Plate Beveling Machine can deliver 5~6mm depth in one stroke, thus rendering higher productivity with more easy and smooth machining operation in the Sheet Metal Edge Milling Machine.

Working Video of Wuxi JACK Sheet Metal Edge Milling Machine Working at Customer Site

1) This is a set of Wuxi JACK SXBJ-16 double heads Sheet Metal Edge Milling Machine working at a Chinese customer factory, in Guangdong province. This End Milling Machine is installed and put into operation outdoors. So, its proper protection and maintenance is of vital importance for guarantee long term high standard service;
2) The customer is a Petrochemical company. In the video, the Sheet Metal Edge Milling Machine was making straight edge end milling.

1) This 1 minute and 24 seconds video was taken at ZPMC (ZHENHUA Port Machinery Company), a renowned Chinese Port Machinery company, on a set of Wuxi JACK tailor made SXBJ-4 Sheet Metal Edge Milling Machine. There are 2 sets of such End Milling Machine working in pair, designed and produced specifically for production line use;
2) At the beginning of the video, you can check from the touch screen of HMI (Human machine interface), the target and actual milling angle of the milling head in the Sheet Metal Edge Milling Machine was 75° up edge chamfering;
3) Then, the camera lens moves to steel plate workpiece, on the actual 75° chamfering in process in the Plate Beveling Machine at that time;
4) You can also find the limit switch of milling head, and the yellow color scrap collecting hopper, which give protection on the Sheet Metal Edge Milling Machine during its running.

Working Video of Advanced and Unique Function in Wuxi JACK Sheet Metal End Milling Machine

1) This video for commissioning on Sheet Metal Edge Milling Machine has duration of 1 minute and 13 seconds. However, if you view it carefully, the video looks rather interesting;
2) The tilting range of milling head in this set of Wuxi JACK SXBJ-125 Sheet Metal Edge Milling Machine is -45°~ +45°. So, every piece of milling head in this double heads Plate Beveling Machine can perform both up and lower edge beveling, compared with either up or bottom in ordinary milling head of the End Milling Machine;
3) At the beginning of the video, the milling head was orientated at 45°, which can be identified from the digital display on the milling head, as well as the touch screen of HMI (Human machine interface), on the door of Edge Milling Machine milling head control board;
4) Then, with time going, the milling head was turned to the flat position of 0°, then went downward still further to the other extreme angular position of -45°. All of these can be identified from the HMI touch screen, and the milling head digital display in the Sheet Metal Edge Milling Machine.

1) In the video is the hydraulic drive workpiece loading and unloading system equipped for End Milling Machine. Only Wuxi JACK produced Sheet Metal Edge Milling Machine has this powerful and valuable function group;
2) This unit is especially useful for large model SXBJ and XBJ Edge Milling Machine, which has long length and heavy weight steel plate to be moved into and pulled out of the Plate Beveling Machine;
3) Before introduction of this working unit, the material handling job in the End Milling Machine is dangerous and time consuming. Now, it relieves operator of the Sheet Metal Edge Milling Machine from the hardest part of operation, also raise productivity of the Edge Milling Machine.
