1. Automatic I H Beam Welding Production Line:

1) H Beam Welding: There are 4 sets of LHC model H Beam SAW Welding Machine, forming submerged arc welding zone, welding one piece of welding seam consecutively. 45° fillet welding guarantees welding seam height of above 12mm and sufficient deep fusion. H Beam is put onto hydraulic 60° Turnover Equipment;
2) H Beam flipping and movement among work stations are implemented automatically with 60°/ 90°/ 180° Turnover Machine, Moving and Elevating Cart, 120m- 240m independent Conveyor, no need overhead travel crane. Operators work safely, just manage and watch on production process;
3) Suitable on producing medium to heavy H Beam with high automation: Web height up to 2,000mm, flange thickness 80mm;
4) All the machines of entire line are usually provided from the same H Beam Production Line Supplier, in unison design, convenient for installation, commissioning, interlock of line equipment, and daily service;
5) All operations in the process of H Beam production are automatic, especially main steps of: H Beam assembly and CO2 tack welding, SAW welding, flange straightening, overturning, flipping and movement;

2. Semi-Automatic I H Beam Welding Production Line:

1) H Beam Machine: Maintains the 3 types of basic equipment:
a) H Beam Assembly Machine;
b) H Beam SAW Welding Machine;
c) H Beam Straightening Machine;
Of different models and quantity, flexible;
2) H Beam flipping and movement is mainly by means of overhead travel cranes, 2- 3 sets, 10- 20 tons loading capacity;
3) H Beam SAW Welding Machine is selected with LHA model gantry frame or LHT model open T frame type. Depending on expected TAKT, one or two sets are deployed;
4) No or seldom conveyors, movement carts among work stations, with travel cranes overhead. Therefore, layout and installation of H Beam Machines on assembly, SAW welding and straightening are relatively flexible;
5) Applicable for producing large and heavy H Beam with web height up to 3000mm, flange thickness 100mm, yield strength 345MPa or even 485MPa;
6) Operators should command higher skill than in automatic line, including welding knowledge, capable of manual CO2 tack welding during H Beam assembly, repair welding on SAW; Comply with security regulations; Proficient on operating travel cranes;

3. Single Equipment 3 in 1 H Beam SAW Welding Machine:

1) The other name: 3 in 1 H Beam Assembly Welding Straightening Integral Machine, or 3 in 1 H Beam Fabrication Machine;
2) Characteristic: One set of this machine integrates 3 primary functions of H Beam fabrication: Flange and web assembly/ SAW welding/ Flange straightening;

3) Welding Technique in 3 in 1 H Beam Machine:

a) Removes CO2 tack welding during H Beam assembly;
b) SAW welding is in the position of 0° tack welding: Single pass of welding toe ≦10mm, the welding current should not be too high (≦1000A for single arc SAW): Or, welding flux will flow around, causing inferior welding seam;
c) One time pass of welding is applicable for fabricating flange thickness ≦20mm;
d) For fabricating on H Beam flange with thickness ≧ 20mm, either have the H Beam going through the 3 in 1 H Beam Machine 2 times, or welding the H Beam with sole purpose LHA or LHT model H Beam SAW Welding Machine: 45° fillet welding;
4) So, this machine is especially suitable on producing light to medium welding H Beam;

5) Advantages of 3 in 1 H Beam Machine:

Saves 50%- 60% total cost on:
a) Period cost: Machine investment budget, workshop floor area;
b) Variable cost: Daily running cost, consumables, electricity, assistant unit, labor cost;
c) Higher productivity, reducing around 40%- 50% cycle time;

4. H Beam Fabrication Line Composed of 2 sets of 3 in 1 H Beam SAW Welding Machine:

1) Compact and Simplified Line: Ever since put into market of 3 in 1 H Beam Machine, a kind of highly efficient fabrication line come into being, for the purpose of raising H Beam production efficiency. It is composed of:
a) 2 sets of PHJ or ZHJ models three in one H Beam SAW Welding Machine;
b) 1 set of stationary hydraulic drive 90° Turnover Machine, composed of 3 sets of overturning racks, between the 2 sets of machine;
2) Production Arrangement: In this way,
a) Workpiece (H Beam) goes through the entire fabrication line,
b) At the 1st set of 3 in 1 H Beam Machine, 2 pieces of its welding seam will be fabricated and flattened;
c) Then, the H Beam is flipped 90° at the intermediate station of hydraulic 90° Turnover Machine, sent forward to the 2nd set of machine;
d) The other 2 pieces of welding seams on H Beam will be fabricated at the 2nd set of 3 in 1 H Beam Machine;
3) Advantages: Compared with conventional automatic and semi-automatic H Beam Welding Production Line, such 3 in 1 H Beam Fabrication Line has lower investment, compact overall dimension, simple constructure, high efficiency, highly automation, fluent process flow, and flexible production arrangement.

Specifications of Wuxi JACK Automatic/ Semi-Automatic H Beam Welding Production Line, 3 in 1 H Beam SAW Welding Machine

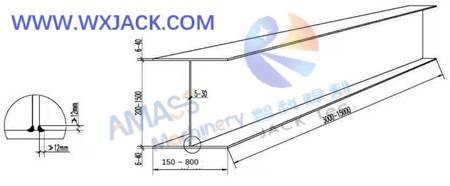

Sketch on cross section / full view of H Beam: (Fig.1, 2)
Fig1 H Beam Welding Production Line 2Fig2 H Beam Fabrication Machine
45° fillet welding (Left) versus 0° flat welding (Right) in H Beam SAW welding: (Fig.3, 4)

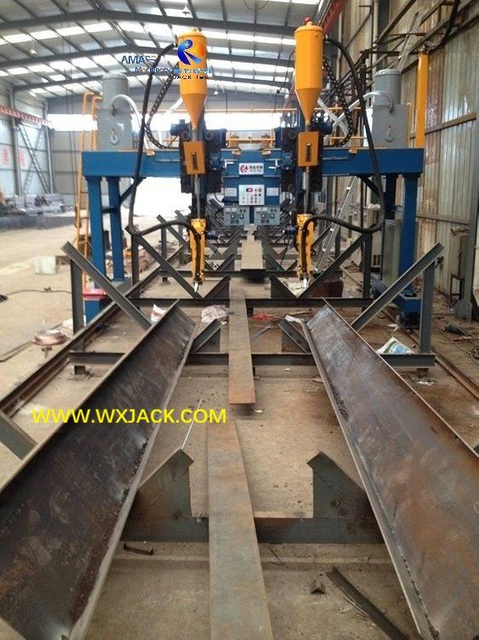

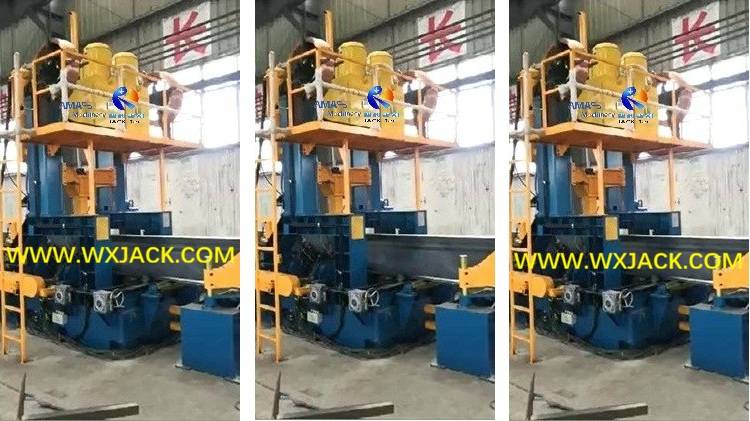

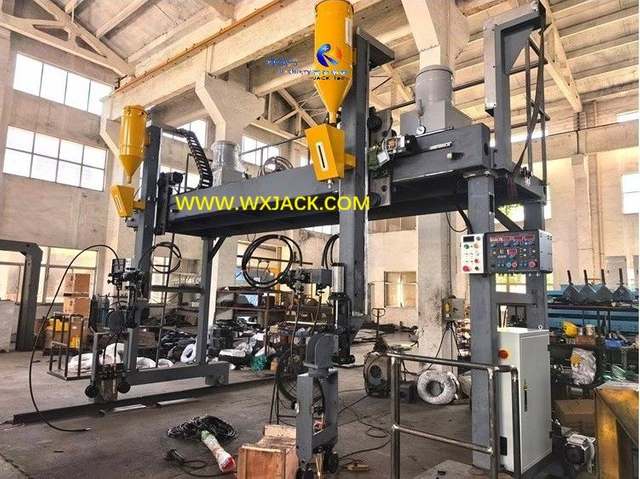

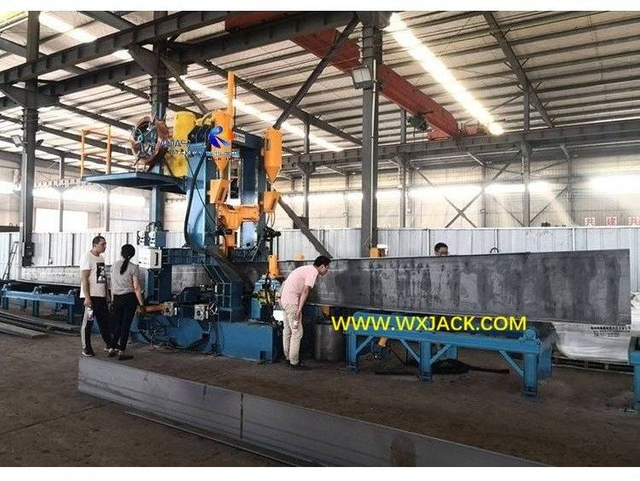

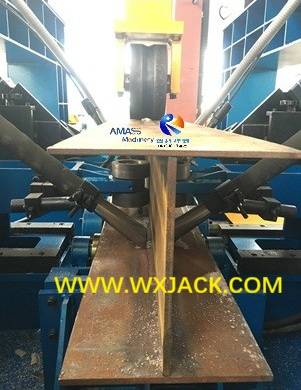

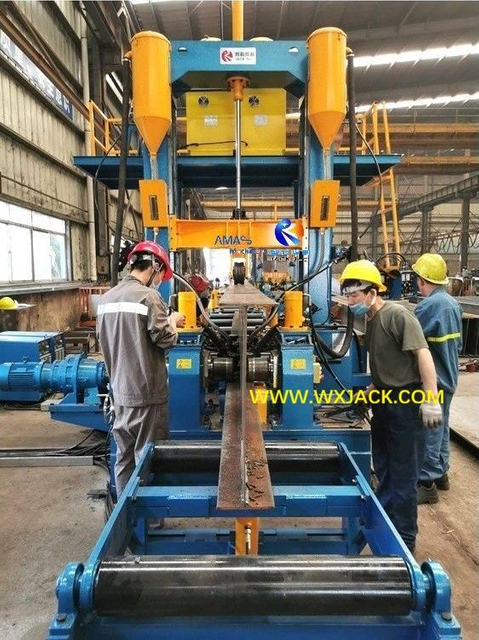

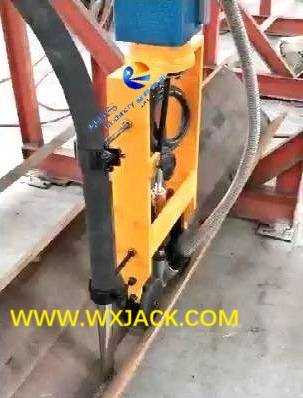

Fig3 H Beam SAW Welding MachineFig4 3 in 1 H Beam SAW Welding Machine 16
  H Beam Welding Production Line 3 in 1 H Beam SAW Welding Machine
  Automatic Line Semi-Automatic Line
 Web Height H 150- 1500/ 1800/ 2000mm 150- 1500/ 1800/ 2000/ 3000mm 100/ 150- 1000/ 1200/ 1500/ 1800/ 2000mm
 Web Thickness A 5- 32/ 60mm 5- 32/ 70mm 5- 32mm
 Flange Width B 200- 800/ 1000mm 150/ 200- 800mm
 Flange Thickness T 6- 40/50/60/70/80/ 100mm 3- 10/ 16/ 20/ 40mm
 H Beam Length L 4,000- 12,000/ 15,000mm
 H Beam Material Yield Strength 235/ 345/ 485MPa 235/ 345MPa
 Max. Weight of H Beam 20 Ton
 H Beam Turnover and Movement 60°/ 90° / 180° hydraulic Overturning Equipment; Moving and Elevating Cart; Conveyors Travel Crane; 180° hydraulic Overturning Equipment 90° Overturning Equipment；
Travel Crane
 H Beam Assembly Machine Z15/ Z18 / Z20 Z15/ Z18 / Z20/ Z30 Single equipment of
3 in 1 H Beam Machine
 H Beam SAW Welding Machine LHC, 4 sets LHA/ LHT, 1 to 2 sets
 H Beam Straightening Machine Motor drive HYJ40/ HYJ800;
Hydraulic drive YTJ40/ YTJ50/ YTJ60/ YTJ80
 SAW Welding Mode 45° fillet welding, single arc/ twin arc/ tandem arc 0° flat welding, single arc/ twin arc/ tandem arc


Machines of Wuxi JACK H Beam Welding Production Line, 3 in 1 H Beam SAW Welding Machine and Fabrication Line

1. Machines of Wuxi JACK Automatic and Semi-Automatic H Beam Welding Production Line:

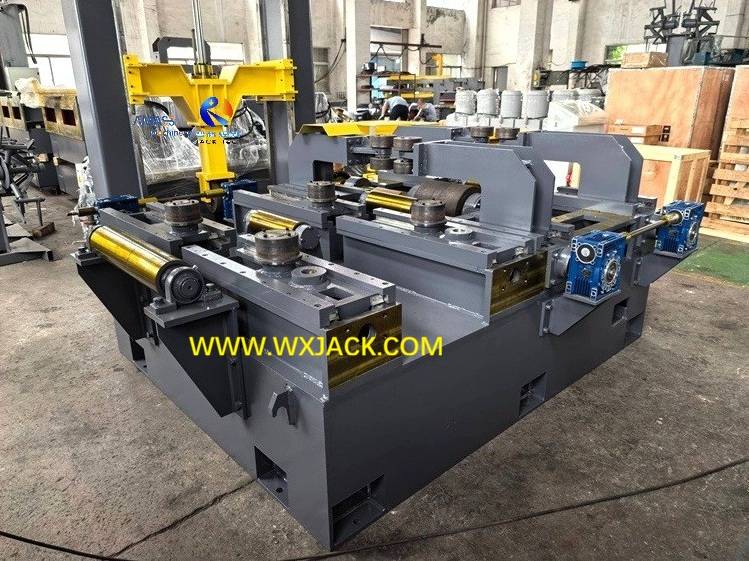

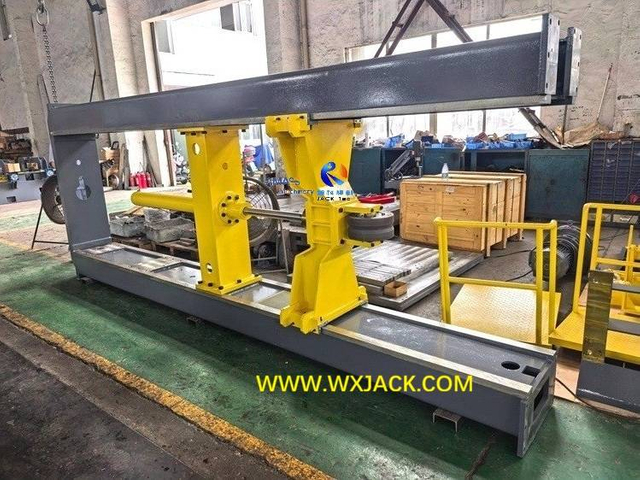

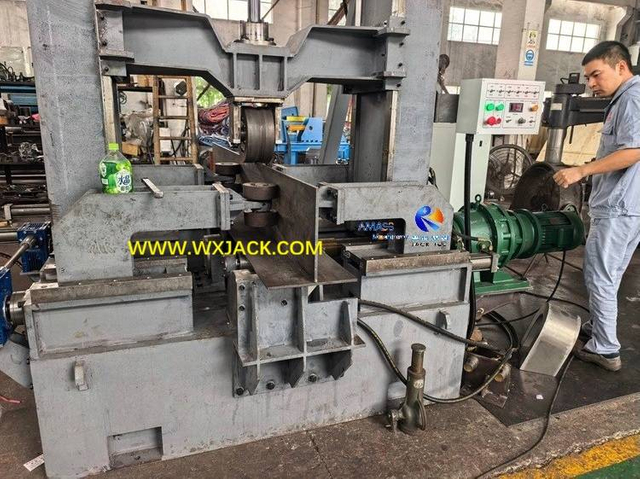

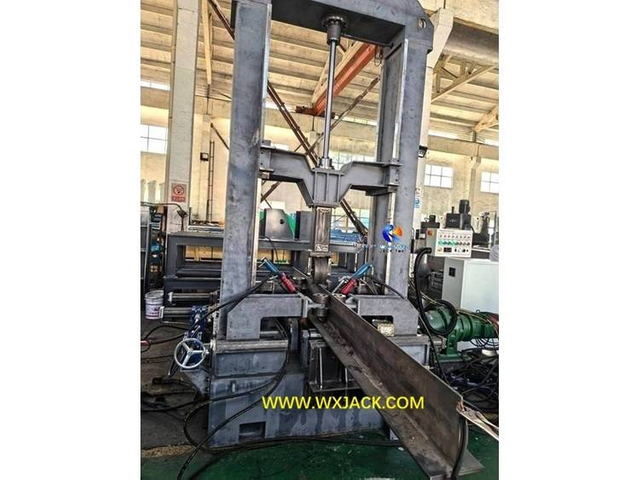

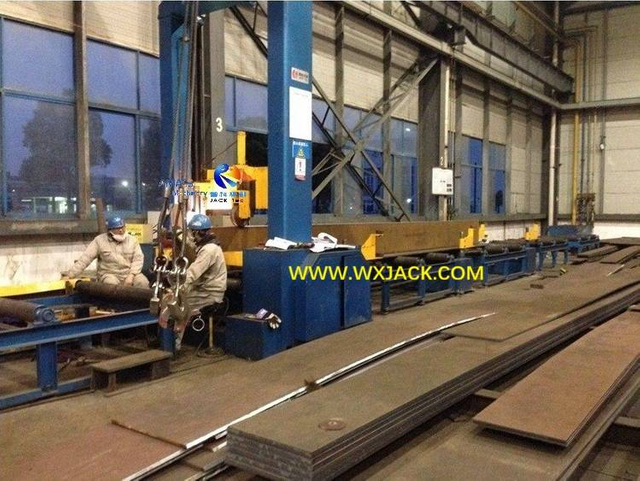

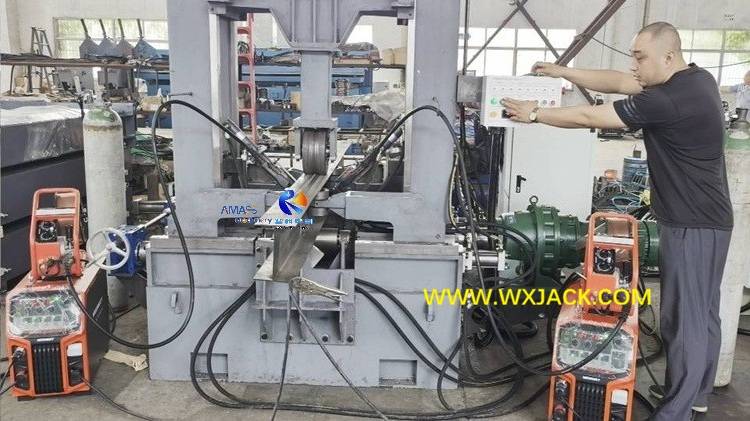

Z15 H Beam Assembly Machine, with automatic CO2 stitch welding

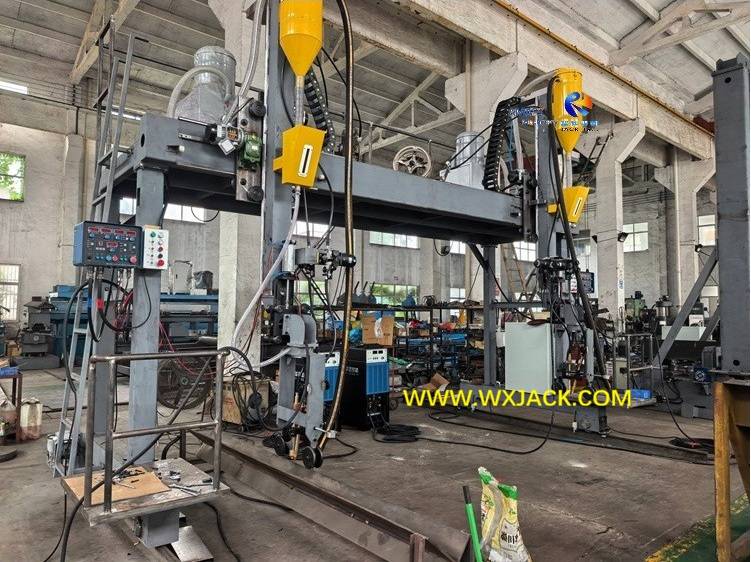

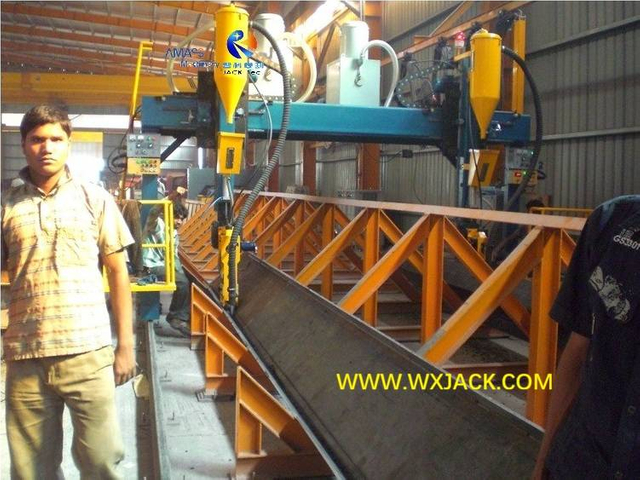

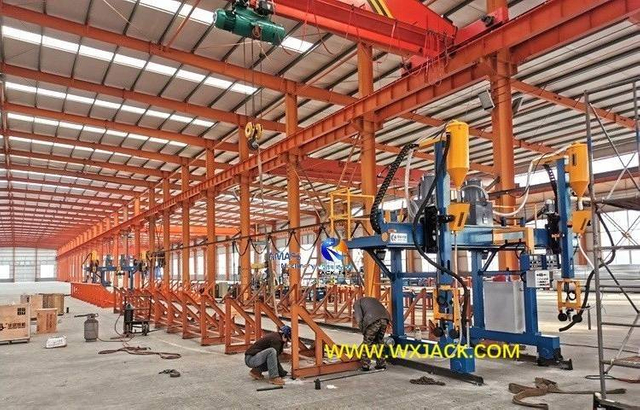

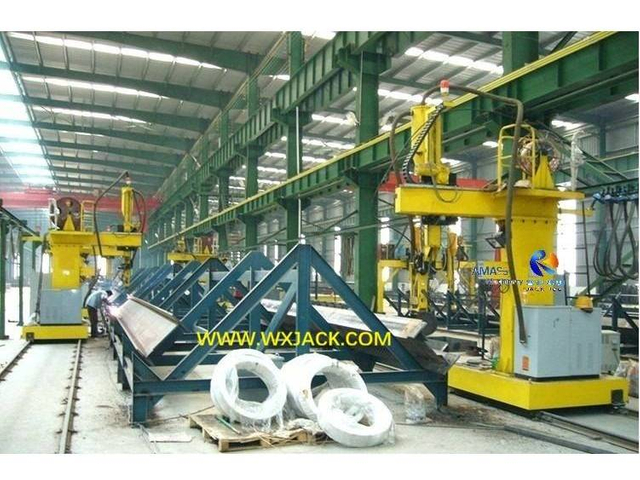

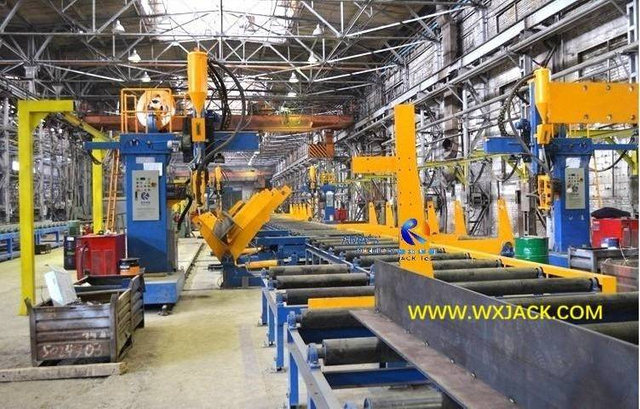

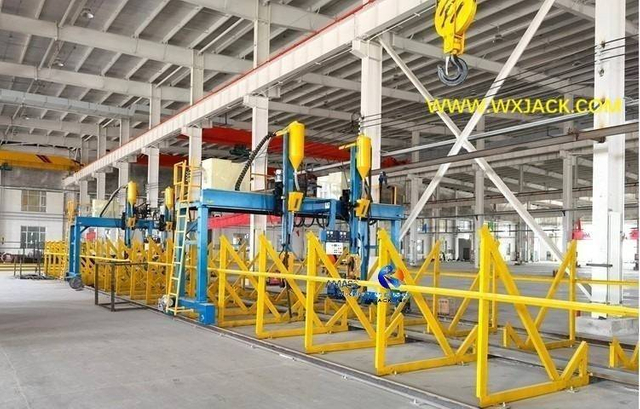

LHA H Beam SAW Welding Machine in semi-automatic line

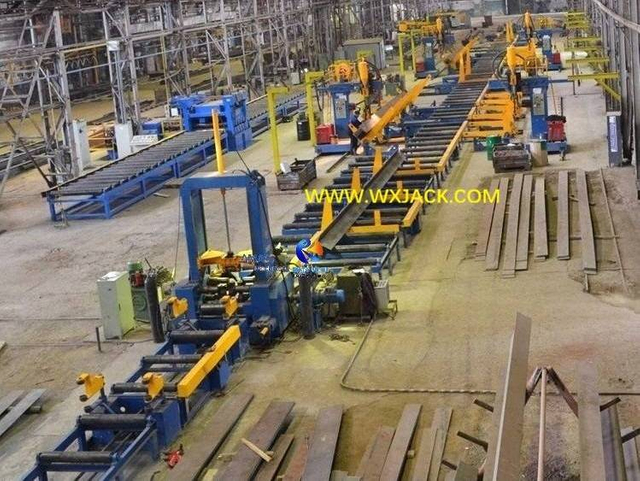

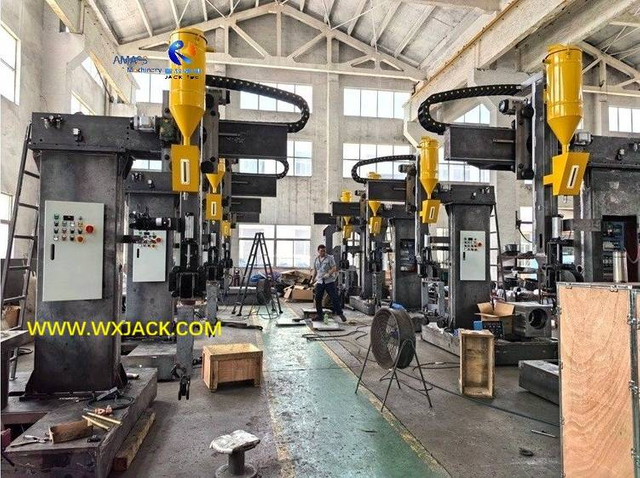

4 sets of LHC in automatic line

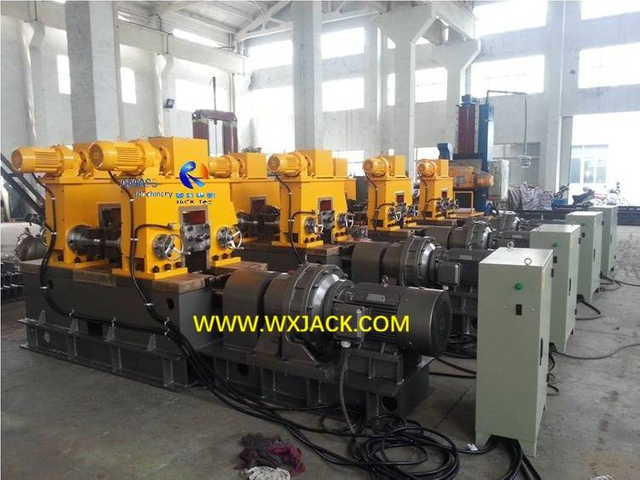

HYJ40/800 motor drive H Beam Straightening Machine

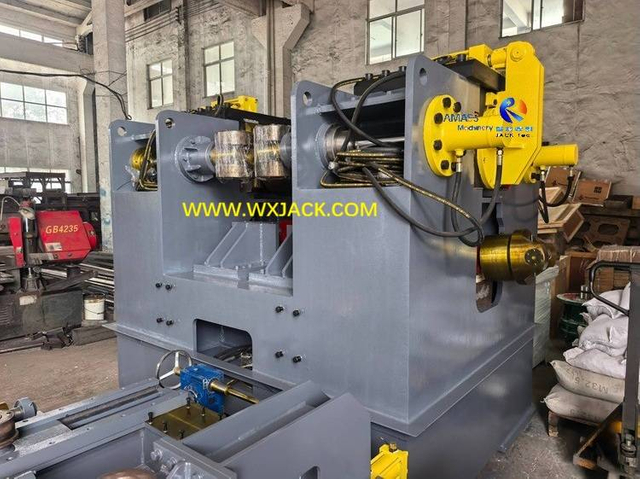

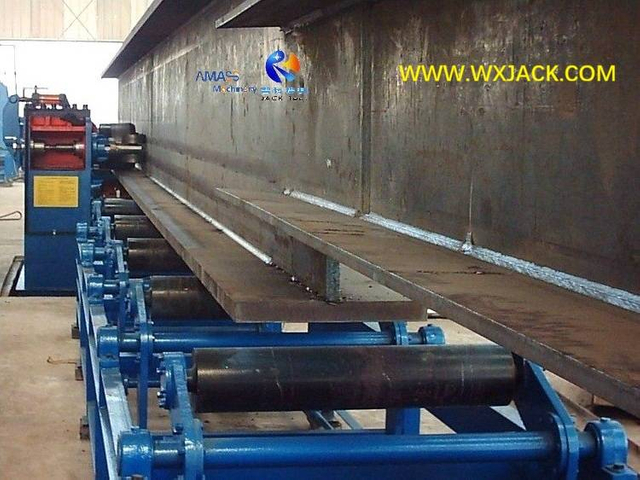

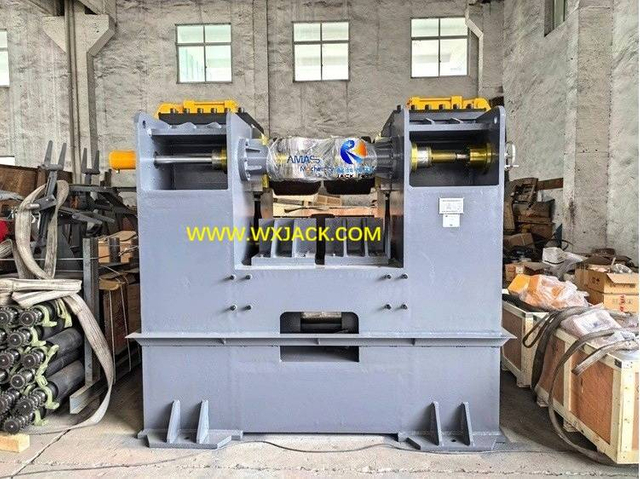

YTJ80 hydraulic drive H Beam Straightening Machine

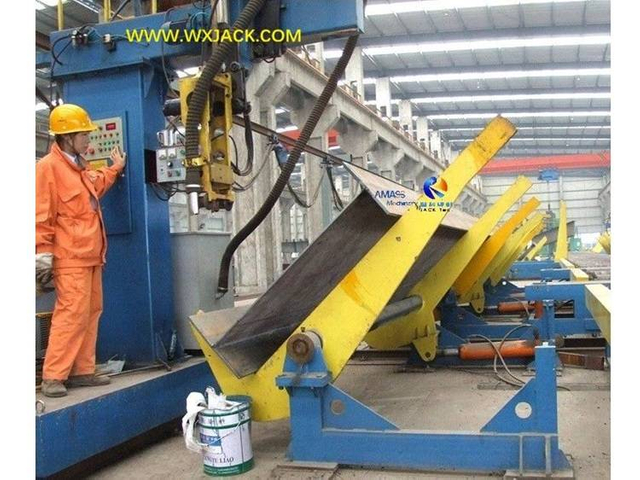

Hydraulic drive 60° Turnover Machine at SAW welding station of automatic line

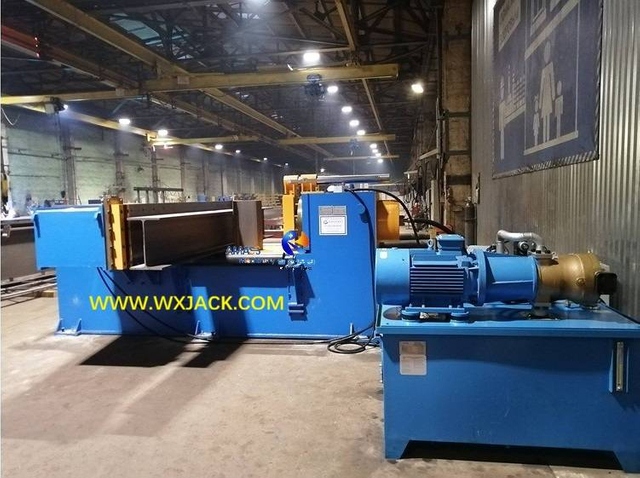

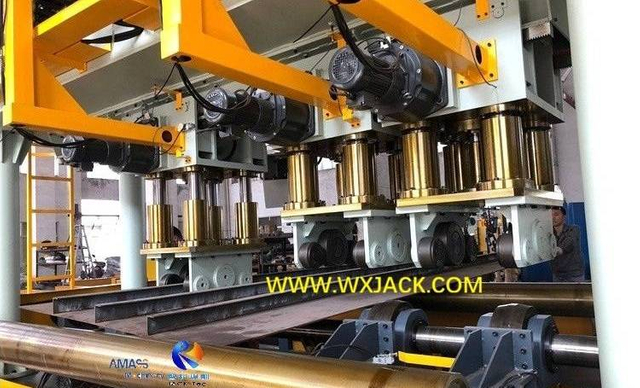

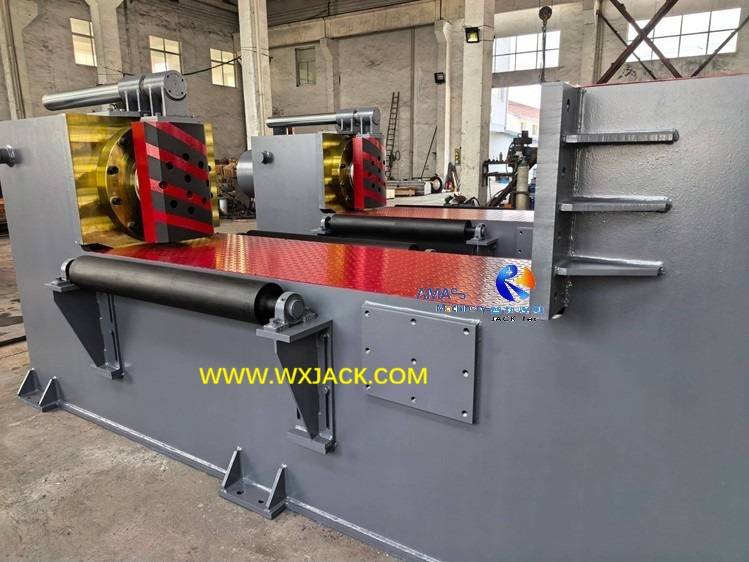

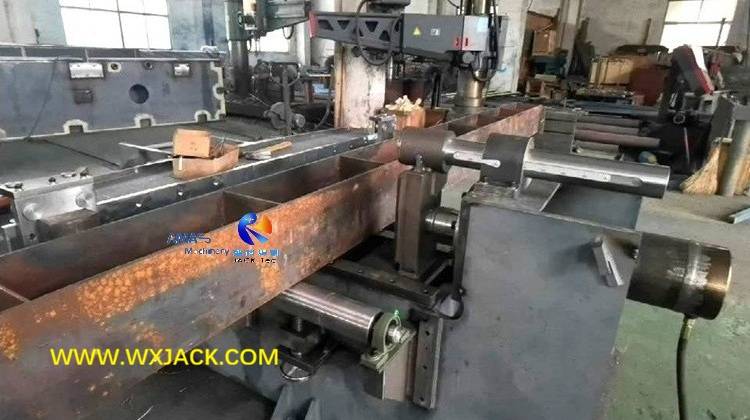

HJ300 BOX H Beam Horizontal Press Longitudinal Straightening Machine

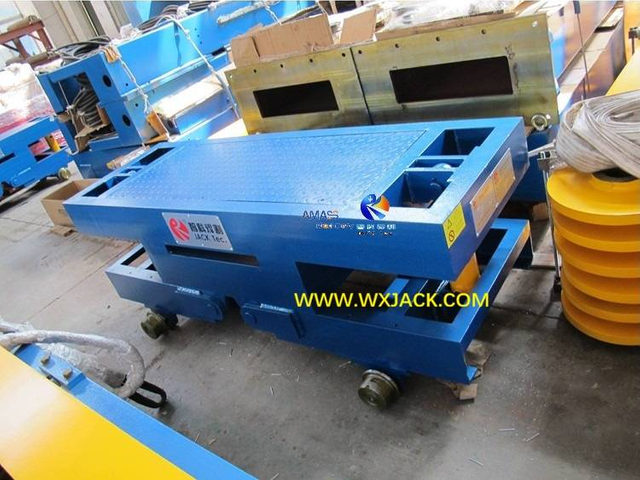

YGJ15/20 Hydraulic drive BOX H Beam Elevating and Travel Cart

2. 3 in 1 H Beam SAW Welding Machine and Fabrication Line:

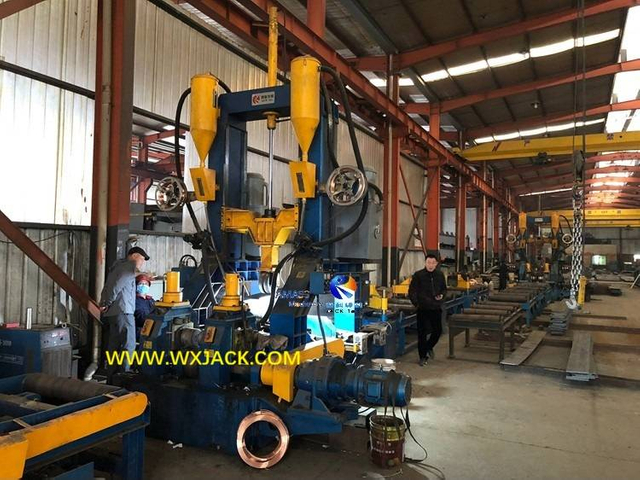

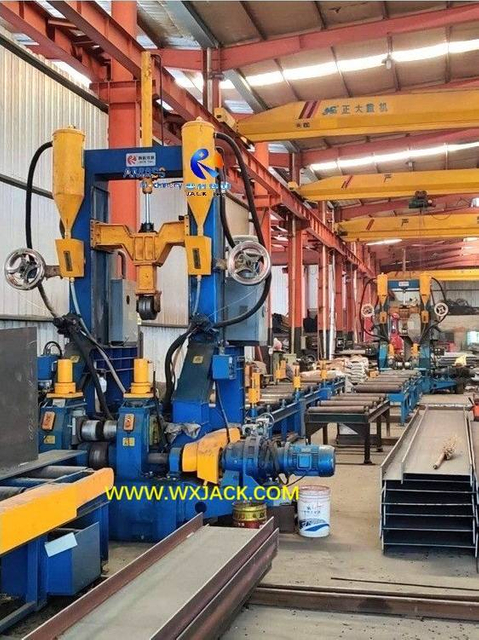

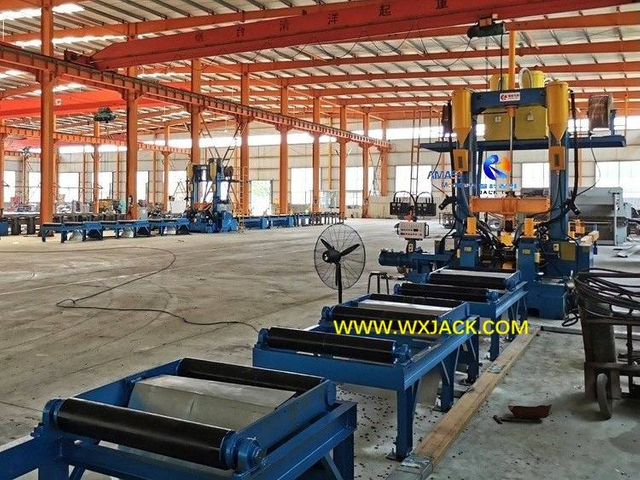

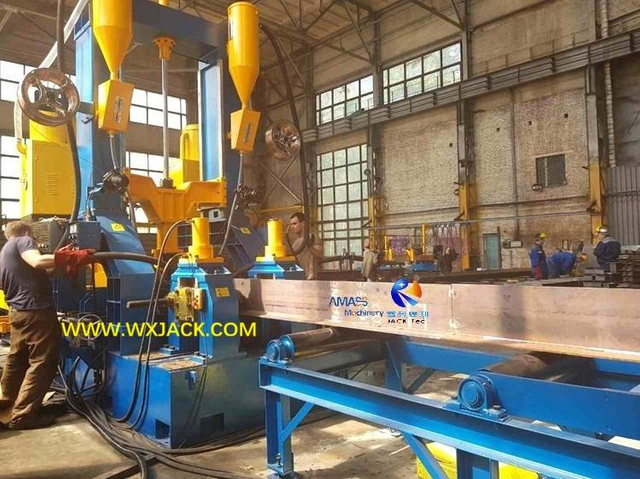

PHJ15 in operation at East European customer facility

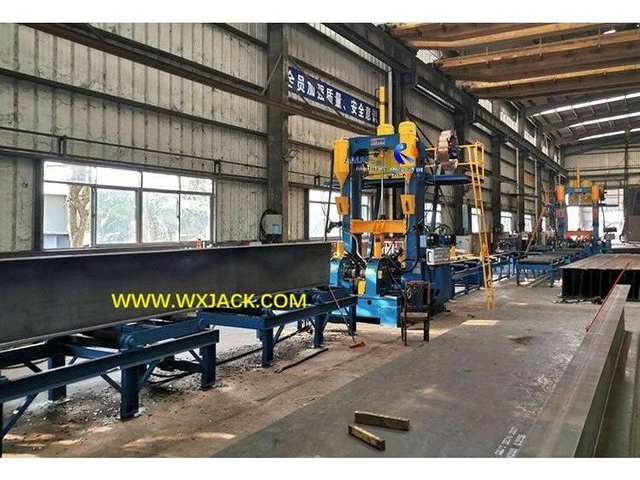

3 in 1 H Beam Fabrication Line composed of 2 sets of PHJ18 and hydraulic 90° Turnover Machine
PHJ20 (For the max. H Beam web height: 2,000mm) fabricates on tapered H Beam, less than 8°
2 sets of ZHJ15 being in installation at new workshop

Wuxi JACK Newly Produced H Beam Welding Production Line in Year 2025 and 2026

Market Trend: From January 2025 to September 2026, customer demand on H Beam Machine can be summarized as:
1) 3 in 1 H Beam Fabrication Machine gradually grows leveling off, after several years selling surge;
2) H Beam Welding Production Line has strongly grown market demand, including both automatic and semi-automatic lines, under the current trend of more diversified tailor-made large and heavy H Beam to be produced;
In this field, Wuxi JACK, the renowned Chinese H Beam Production Line Supplier, delivers satisfactory result:


1. Wuxi JACK Fully Automatic H Beam Welding Production Line in Year 2025 and 2026:

1) Business Brief:
a) From March to August 2025, Wuxi JACK produced and exported two and half automatic lines. Here, the “half” refers to no hydraulic H Beam Overturning Equipment, Elevating and Travel Cart, only keeps primary H Beam Machines on assembly/ SAW welding/ flange straightening;
b) In May and June 2026, Wuxi JACK manufactured and exported the 3rd automatic H Beam Welding Production Line to the same customer;
2) H Beam Specifications: (Fig.1)
 Fig1 H Beam Welding Production Line 2
a) Flange Width B：         150- 1000mm
b) Flange Thickness T： 6- 100mm
c) Web Height H：           200- 1500mm
d) Web Thickness A：    6- 60mm
e) H Beam Length L：    4000- 15000mm

3) Configuration of H Beam SAW Welding Machine:

a) 4 sets of LHC models in each automatic line, in the structure of motorized moving trolley with overhead extension boom;
b) Double drive on trolly movement, in the A.C. inverter controlled continuously adjustable SAW welding velocity;
c) Each set of LHC is equipped with ZD7-1600 D.C. and ZDE7-1200 A.C. SAW power source, delivering welding mode of Tandem Arc SAW, with Φ3.2mm – Φ5.0mm solid SAW wire;


4) Logistics Units in Automatic H Beam Welding Production Line:

a) Stationary hydraulic drive 90° Overturning Equipment at assembly station;
b) Motor drive moving hydraulic drive 60° Overturning Equipment at SAW welding station;
c) Motorized moving hydraulic drive 180° Overturning Equipment at flange straightening station;
d) YGJ15/20 Hydraulic drive H Beam elevating and travel carts among the 4 stations of SAW welding;
e) 240m length independent conveyors:
Z15 automatic H Beam Assembly Machine, with 350A MEGMEET MIG welding power source
12 sets (For 2 and half Automatic line) of LHC model H Beam SAW Welding Machine being produced in batch
YTJ80 hydraulic H Beam Straightening Machine, straightening on flange thickness of 100mm and 345MPa yield strength

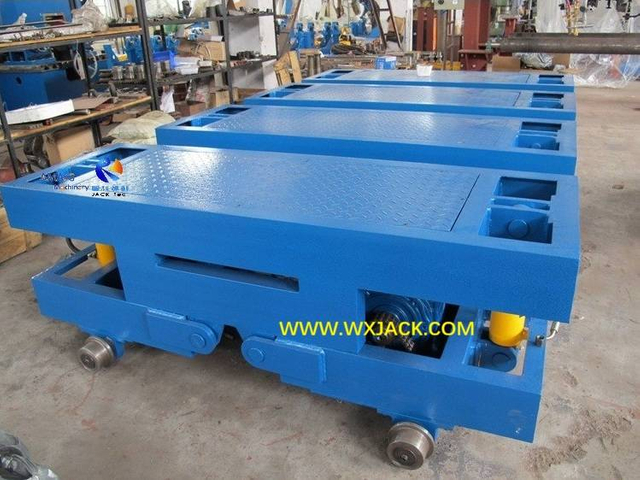

YGJ15/20 Hydraulic H Beam elevating travel cart

2. Wuxi JACK Semi-Automatic Large H Beam Welding Production Line in Year 2026:

1) H Beam Specification: Customer plans to produce welding H Beam of the max. 3,000mm web height, 80mm flange thickness, 1,000mm flange width;
2) In beginning of June 2026, customer selected Wuxi JACK as H Beam Production Line Supplier on this project;


3) Technical Brief on Semi-Automatic Large H Beam Welding Production Line:

a) H Beam Assembly Machine: Z30 model, capable of assembling on H Beam web with the max. height of 3,000mm; Flange and web assembly is automatic; CO2 tack welding is in manual mode, the corresponding MIG welding power source is not in supply range of machine;
b) H Beam SAW Welding Machine: LHA model, capable of carrying out SAW welding on H Beam with the max. web height of 2,000mm, flange thickness 80mm thickness. Adopted with (1600A D.C. plus 1200A A.C.) SAW tandem arc; Therefore, for welding on H Beam web height in the range of 2,000mm to 3,000mm, it should be operated manually;
c) Hydraulic H Beam Flange Straightening Machine, YTJ80 model, the largest model on flange straightening, with the heaviest capacity;
d) H Beam (0°- 45°- 60°- 90°- 180°) flipping and movement among stations is by means of overhead travel cranes, with loading capacity from 10 ton to 25 ton:
0 H Beam Welding Production Line 4
In the 2nd half of August 2026, customer engineers went to Wuxi JACK. At assembly workshop, customer engineers checked on the 3 sets of H Beam Machines on assembly/ SAW welding/ flange straightening
Painted upper gantry of Z30 H Beam Assembly Machine, special design on double stages of press beam position, based on H Beam web height

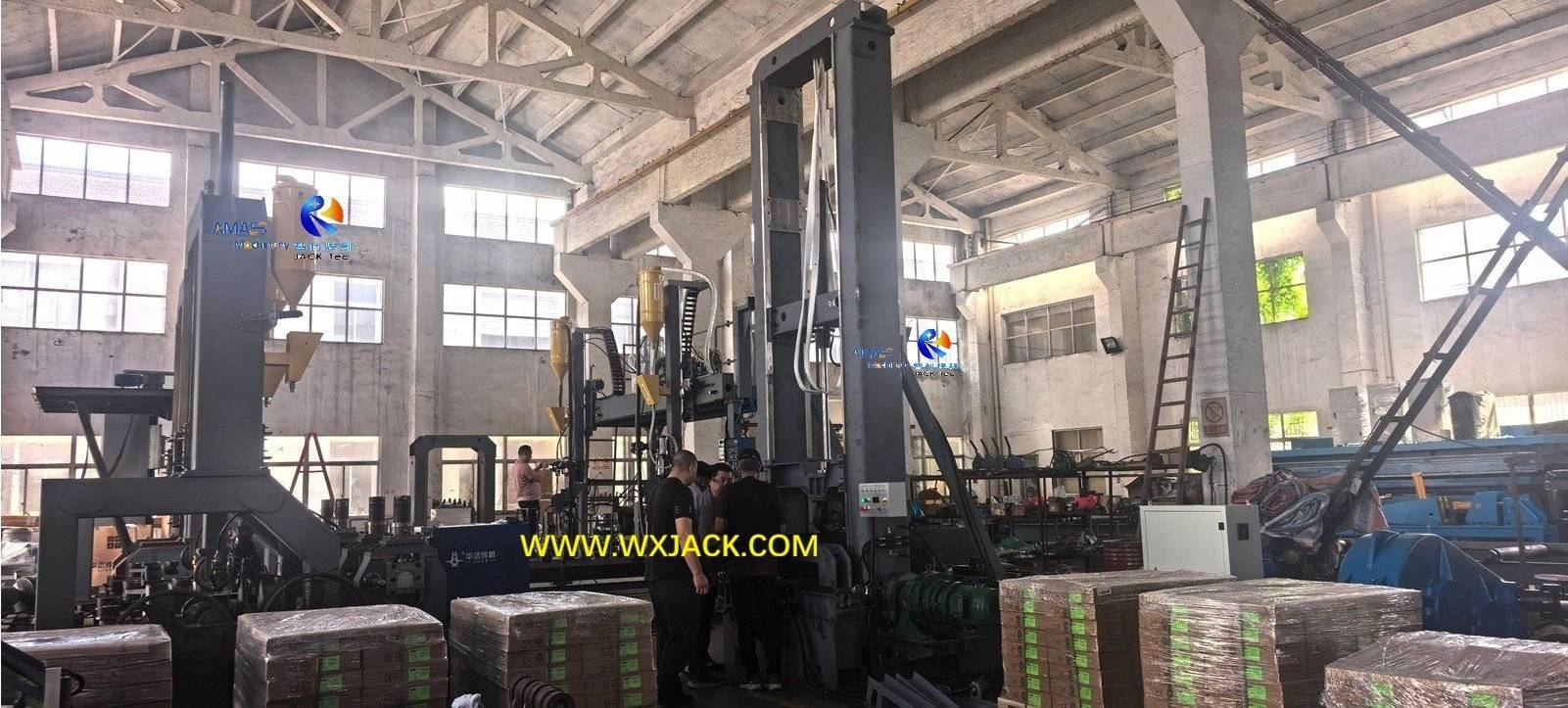

Wuxi JACK technician validates on base bed of Z30 H Beam Assembly Machine

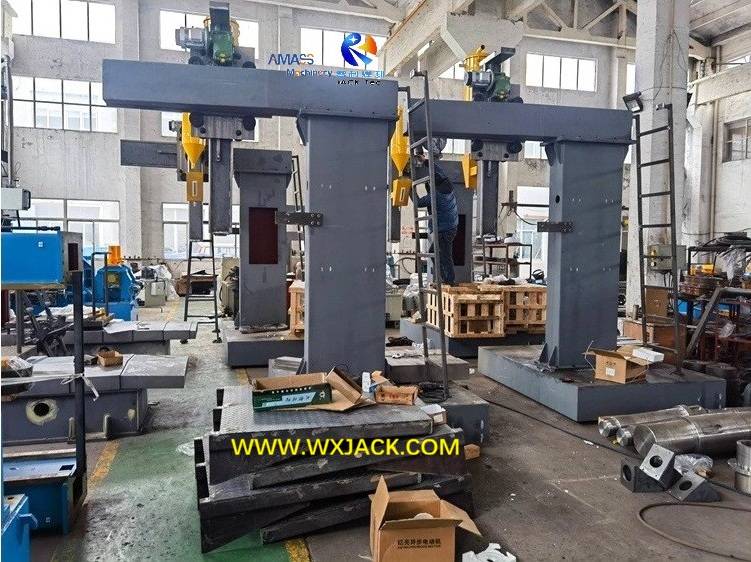

Assembled gantry frame LHA model H Beam SAW Welding Machine, being tested on tandem arc SAW
Assembled and painted main frame of YTJ80 hydraulic H Beam Straightening Machine

Videos of Wuxi JACK H Beam Machines on Assembly, SAW Welding, Straightening, Turnover, End Face Milling, Three in One H Beam SAW Welding Machine

Related Pages:
1) H Beam Assembly Machine;
2) H Beam SAW Welding Machine;
3) H Beam Straightening Machine;
4) Three in One H Beam SAW Welding Machine;
5) BOX H Beam CNC Control End Face Milling Machine;
6) Steel Structure BOX H Beam Turnover Flipping Machine

In sequence, below 8 videos demonstrates on Wuxi JACK H Beam Machines complete on task of: H Beam assembly→ SAW welding→ flange straightening→ longitudinal straightening→ 180° turnover and movement→ end face milling, and operation condition on single equipment of three in one assembly welding straightening:

Wuxi JACK Manufactures on I H Beam Welding Production Line

1 Automatic H Beam Assembly Machine 50

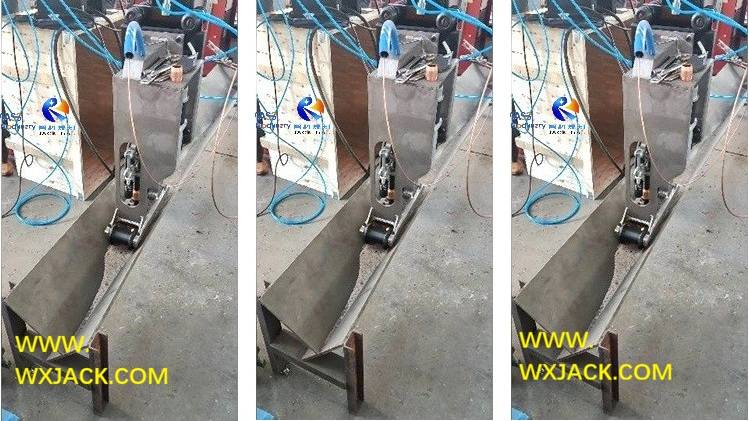

2 H Beam SAW Welding Machine 25

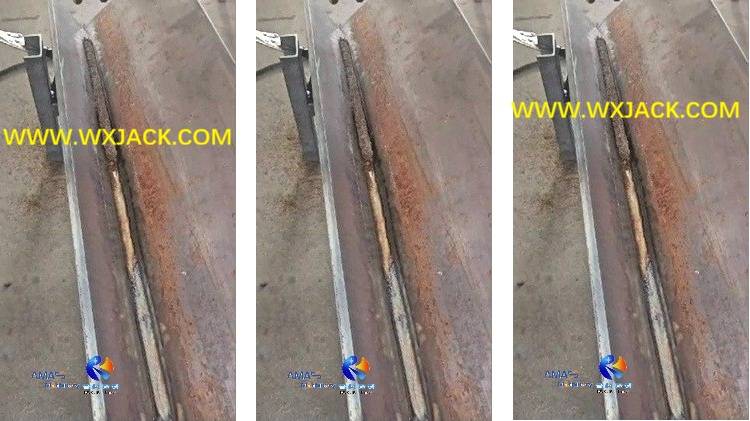

3 H Beam SAW Welding Machine 16

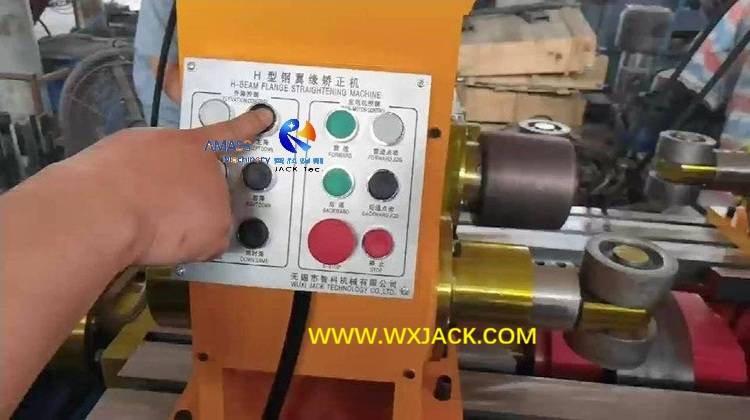

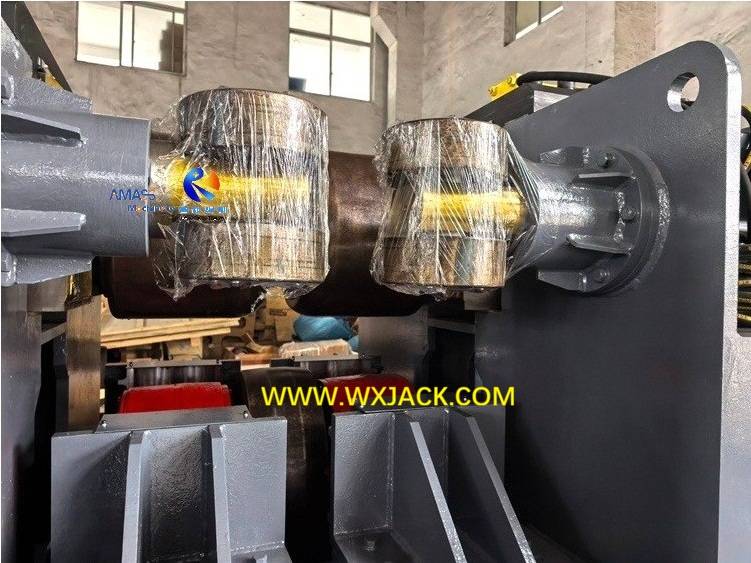

4 Hydraulic H Beam Straightening Machine 32

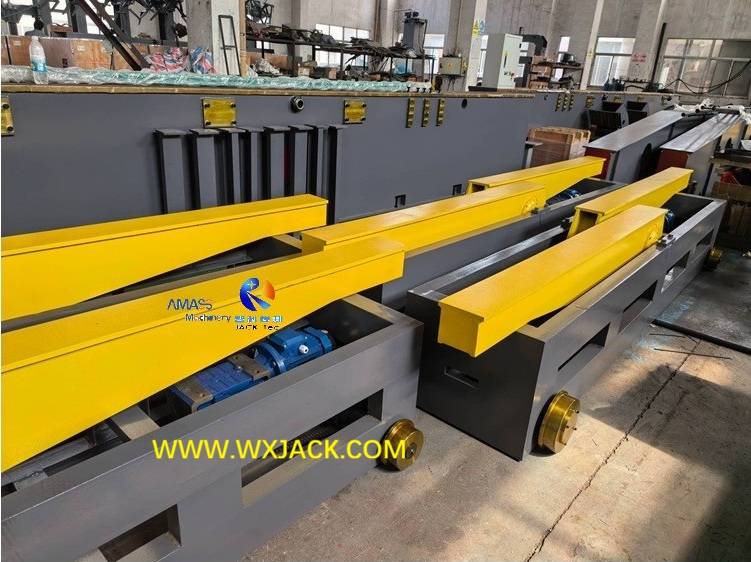

5 Motor Drive Moving Hydraulic Drive BOX H Beam 180° Overturning Machine 21
6 BOX H Beam Horizontal Press Longitudinal Straightening Machine 44

Wuxi JACK Composes Suitable I H Beam Welding Production Line for Customers

1. Wuxi JACK FMS H Beam Welding Production Line:

FMS, Flexible Manufacturing System, is popular trend over the past 2 decades in the field of manufacturing industry, on dealing with complicated tasks. Wuxi JACK introduce this concept, and put into practice on our turnkey project on welding H Beam production for customers:
1) Fully Automatic Line for Producing H Beam Up to 2,000mm Web Height:
a) If customer plans to produce conventional dimension H Beam, with web height up to 1,500mm/ 1,800mm/ 2,000mm;
b) Expects fully automation in their modern workshop;
c) Budget is sufficient,
Then we propose fully automatic line for customer;

2) Semi-Automatic Line for Producing Conventional Dimension H Beam:
a) One advantages of semi-automatic line is applicable for MGPP: Multi-Generation Progress Plan, that if customer has restricted budget,
b) Or want to set up the entire production line with several stages depending on business prospect,
c) Then purchasing individual H Beam Machines: Assembly, SAW welding, straightening, and compose it into highly effective production line, is a good choice;

3) Semi-Automatic Line for Producing Large and Heavy H Beam:
a) When customer plans to produce large H Beam, say, web height higher than 2,000mm, for example, 2,500mm or even 3,000mm height, then, automatic line is not applicable;
b) The more flexible semi-automatic should be considered. There will be more choices on model, design, quantity and layout of involved H Beam Machines;



4) Compact Fabrication Line composed of 2 sets of three in one H Beam SAW Welding Machine:

a) This is new fad over the past decade from 2010 to today 2026, that customer purchases 2 sets of 3 in 1 H Beam Machine, with one group of stationary hydraulic 90° turnover racks in between;
b) In this way, a highly effective fabrication line come into being, very useful on producing small to medium sized H Beam (Flange thickness ≦40mm, especially ≧5mm and ≦20mm):
Wuxi JACK automatic H Beam Welding Production Line
Wuxi JACK semi-automatic line, producing conventional size 1,500mm web height H Beam
In year 2026, special designed large semi-automatic line, for producing 3,000mm web height welding H Beam
Compact H Beam fabrication line, composed of 2 sets of ZHJ15 model three in one H Beam SAW Welding Machine

2. What Customers Care when Invest on H Beam Welding Production Line?

Let us go briefly on a real case in year 2026. Customer is a Bridget Construction company, and plans to build welding H Beam with the max. specifications of:
1) Flange thickness: 80mm for 485MPa yield strength, or 100mm for 345MPa yield strength;
2) Flange width: 1,000mm;
3) Web height and thickness: 2,800mm/ 70mm;
4) H Beam Length: 15m;
A really upper limit specification on welding H Beam production;

In the 2 months technical communication between customer and Wuxi JACK, numerous rounds of questions and answers were exchanged, covering major subjects of:
1) Equipment: What are proper models of each type of H Beam Machine? Technical capabilities and special points on assembly, CO2 tack welding, SAW welding, flange straightening;

2) Output and Machine Quantity:
a) To catch up with Bridge Construction project timeline, target throughput of this semi-automatic H Beam Welding Production Line should be able to produce 65 pieces of such large and heavy H Beam each month,
b) Under the operation arrangement of: Single shift, 5 working days each week;
c) So, what are necessary quantity of corresponding each type of H Beam Machine?

3) Line Layout:
a) Customer has confined workshop space: 48m length by 24m width;
b) For installing on such heavy and complicated production line, at least 100m length by 24m width workshop is necessary, to accommodate so much machines in the line, and have subsequent safe and smooth operation;
c) So, future expansion of workshop is a must for customer;



4) Put into Use on H Beam Welding Production Line:

Customer is new in the field of welding H Beam production. Therefore, lots of factors need to be considered:
a) People: How many operators are necessary to work on CNC plate cutting, H Beam assembly, SAW welding, and straightening? Their skill needed?
b) Utility: What is requirement on electricity, air breaker, foundation, compressed air, hydraulic oil... for each work station?
c) Machine Maintenance and Overhaul: What is proper service plan on each type of H Beam Machine, including daily check, regular service, and overhaul plan of every several years?

Put into Use on Wuxi JACK I H Beam Welding Production Line at Customer Site

WIP (Work in Process) Flipping and Transfer

Material flow among work stations defines basic difference between Automatic and Semi-Automatic production line:



1. Automatic I H Beam Welding Production Line:

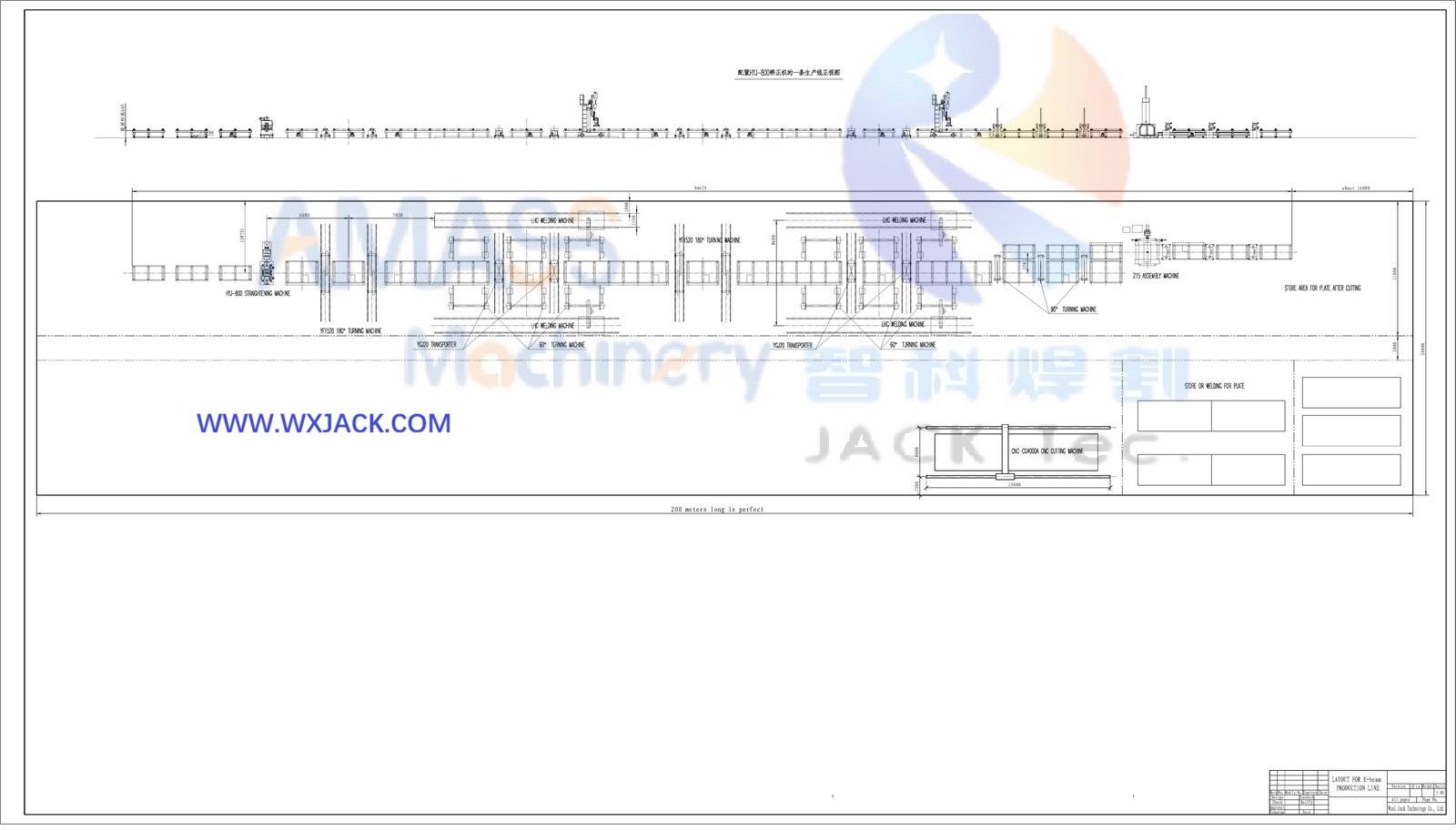

Layout of Wuxi JACK typical automatic H Beam Welding Production Line:

1 H Beam Production Line
Shown in the above layout,
1) Conveying cut plates from CNC Flame Cutting Machine onto H Beam Assembly Machine is by means of travel crane;
2) Assembled T Beam and then H Beam from I H Beam Assembly Machine: Stationary hydraulic 90° Overturning Equipment;

3) WIP at I H Beam SAW Welding Machine:

a) At each LHC H Beam SAW Welding Machine: Stationary hydraulic 60° Turnover Machine;
b) Among each set of LHC: YGJ15/20 hydraulic H Beam elevating travel cart;

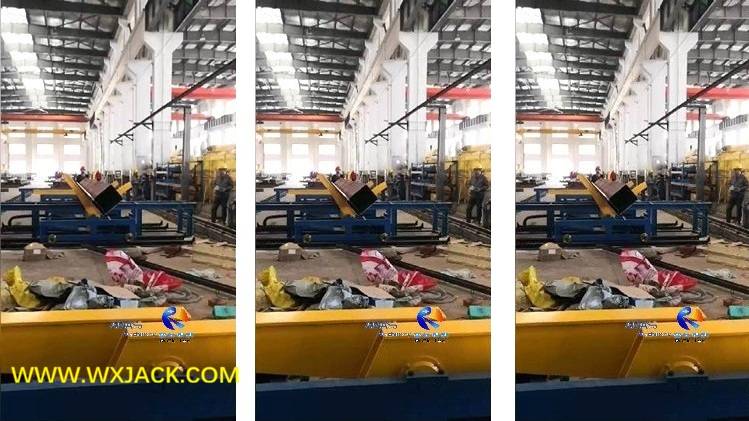

c) Between the 2 SAW zones (The 4 sets of LHC): Movable hydraulic 180° Turnover Machine;
4) H Beam Straightening Machine: Stationary hydraulic 180° Overturning Equipment;
5) To other stations in production line, including: H Beam End Face Milling Machine, H Beam Stiffener Welding Robot, Shot Blasting Machine, Painting Booth: By way of 120m- 240m independent conveyors;

In all, operators of automatic I H Beam Welding Production Line are relieved from hard and dangerous job of material handling. Their operation is more value-added than working in semi-automatic line, focusing on manufacture itself;

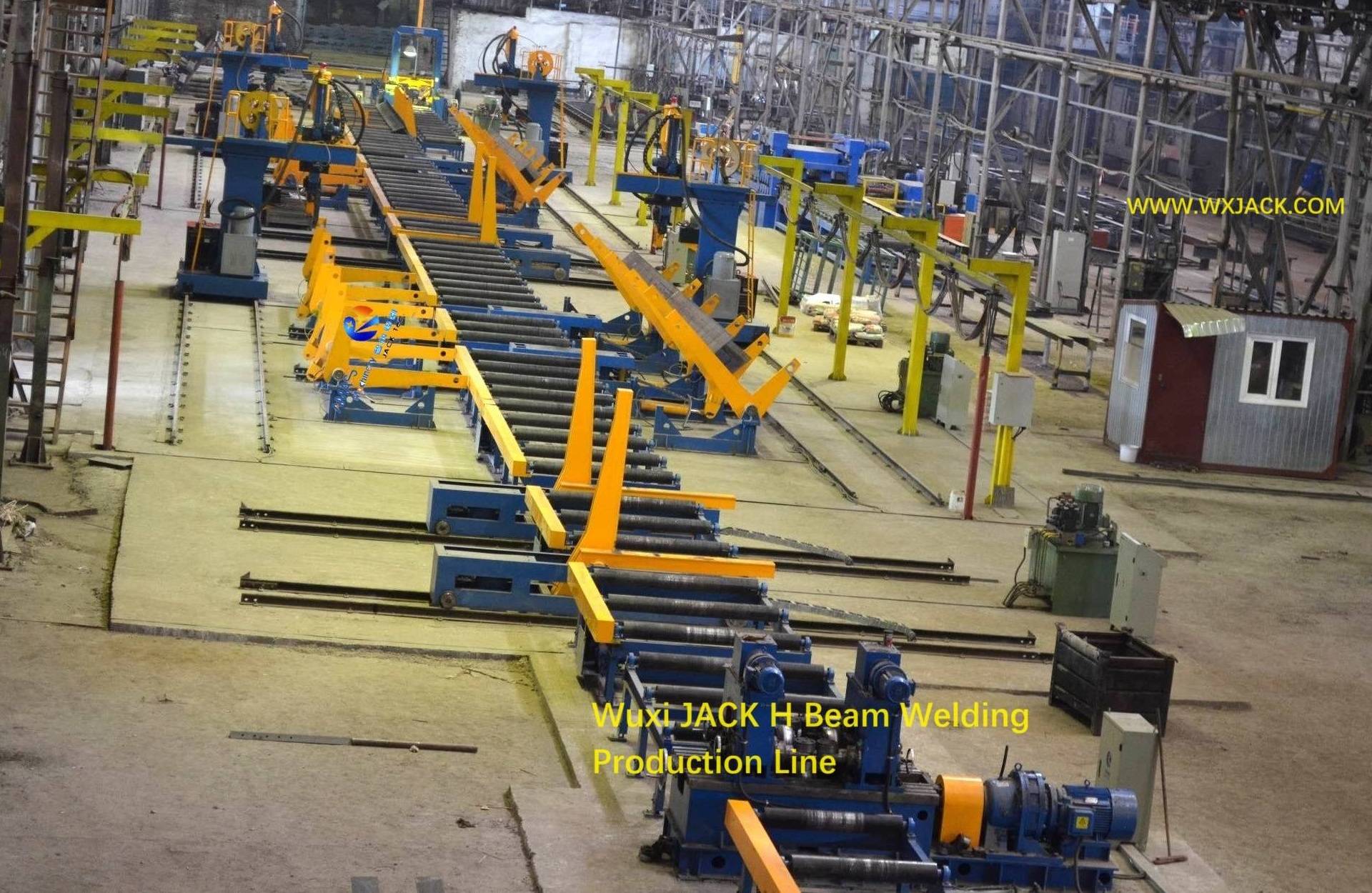

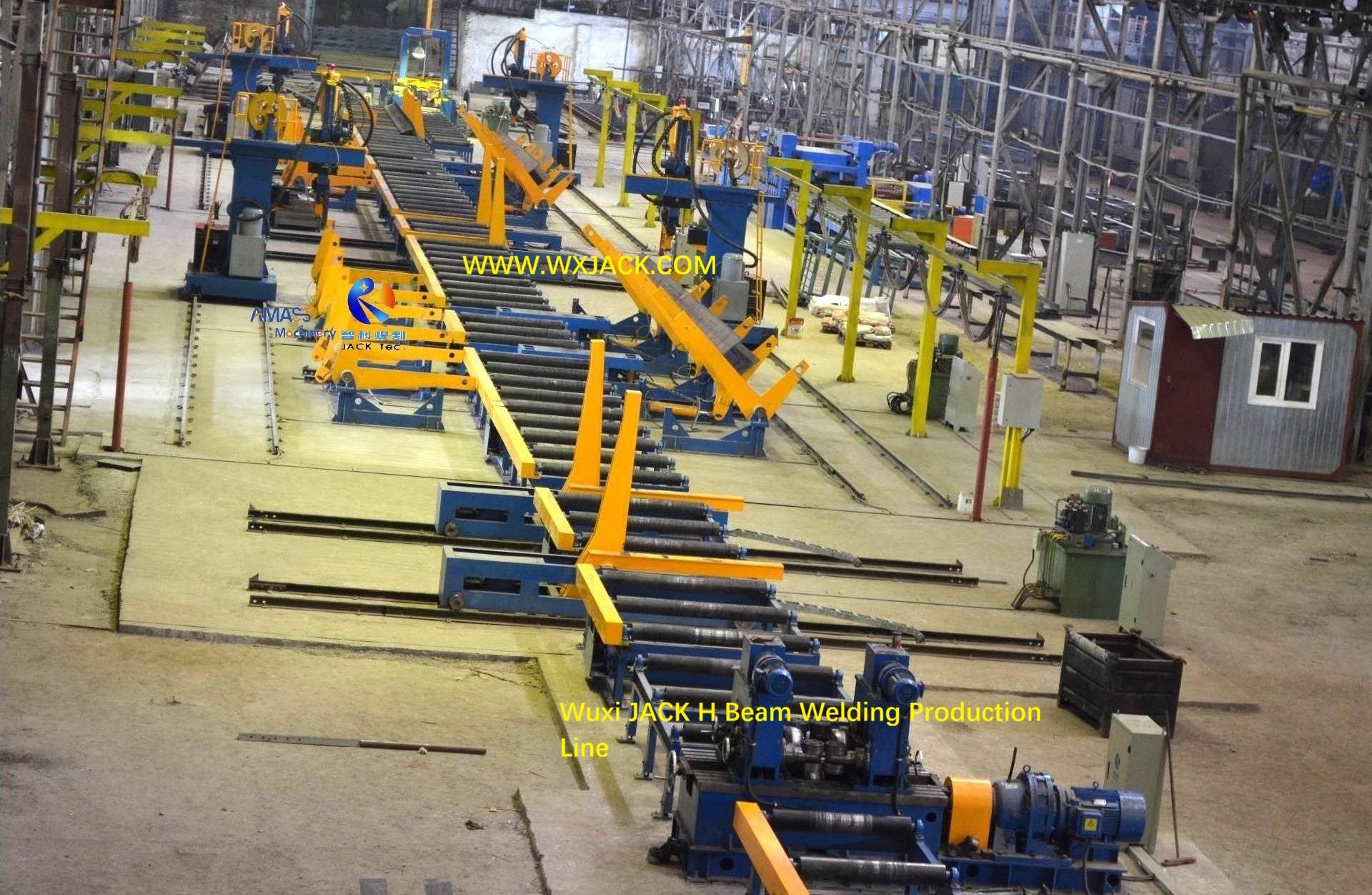

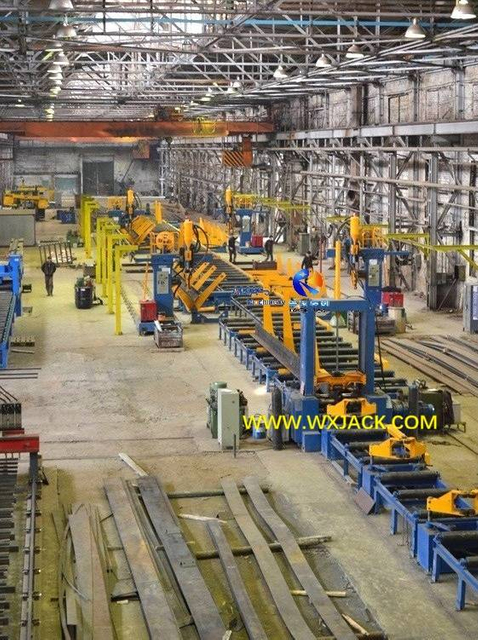

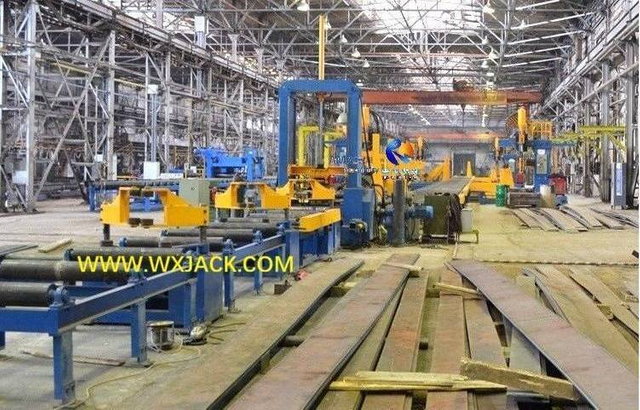

Operation site of Wuxi JACK automatic H Beam Welding Production Line: 1 set of Z15 model H Beam Assembly Machine (Left) with 90° flipping equipment, and 4 sets of LHC model H Beam SAW Welding Machine (right) with 60° flipping equipment:

2. Semi-Automatic I H Beam Welding Production Line:

1) Here, “Semi-Automatic” only refers to its ways of material flow among work stations in production line is implemented manually: Usually by means of travel crane. This is challenge on operators, in terms of operation safety and convenience;



2) Automatic Run of H Beam Machines in Semi-Automatic Line:

a) Meanwhile, most majority H Beam Machine in semi-automatic line work automatically;
b) The exception is CO2 tack welding in H Beam assembly: When fitting up H Beam with web height higher than 2,000mm, for example, 2,500mm height H Beam, manual CO2 welding is more practical than automatic tack welding;
c) Because for such large H Beam, its flange and web thickness are usually higher than 60mm, which should be paid special attention by operator on small current CO2 welding, to make sure fully fusion welding seam;

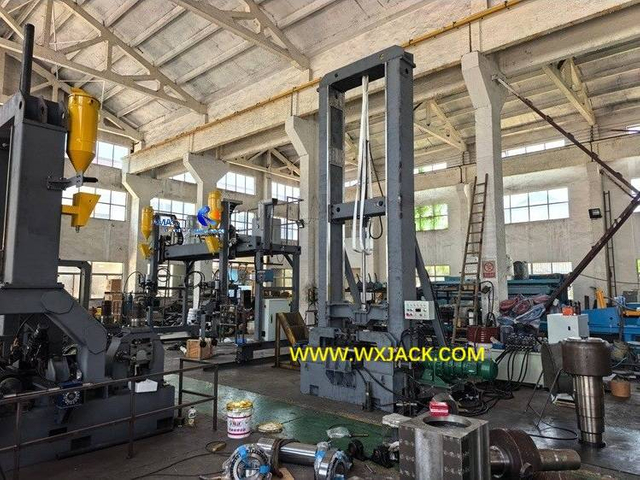

d) This is the case with Wuxi JACK Z30 H Beam Assembly Machine for an Iraq customer in year 2026: Customer plans on manual CO2 stitch welding, on their 3,000mm web height and 80mm flange thickness H Beam;



3) H Beam SAW Welding Machine:

a) Unlike in automatic line, which adopts with 4 sets of trolley column boom structure to forming into a streamline, in semi-automatic line, H Beam SAW Welding Machine is gantry frame structure, welding on 2 pieces of H Beam at the same time;

b) H Beam is laid onto stationary triangular racks during SAW welding, which are usually prepared by customers to save logistics cost. Because these racks are large and heavy, and easy to produce;
c) Double Productivity: Sometimes, customers ask on 2 sets of gantry frame machine being installed in a row, to double productivity. This embodies on flexibility of semi-automatic H Beam Welding Production Line:

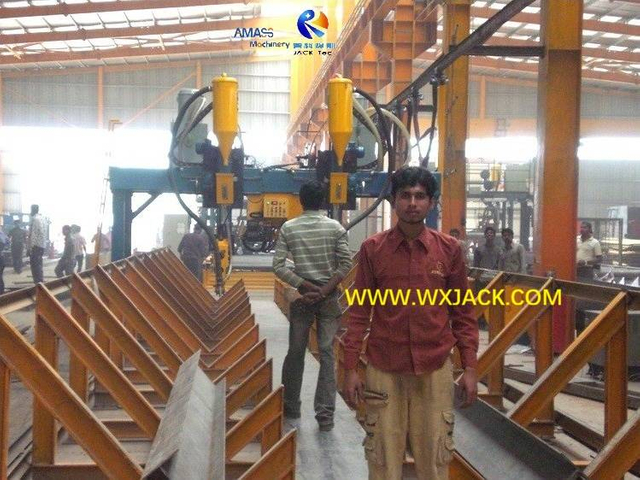

2 sets of Wuxi JACK LHA model gantry frame (Left) and LHT model open T frame (right) H Beam SAW Welding Machine being installed at customer workshop:

Related Equipment with Semi-Automatic I H Beam Welding Production Line

1. 1st Operation:
1) CNC-CG models CNC Oxygen Fuel Flame Cutting Machine: The 1st station in welding H Beam production, to cut out strip plates as flange and web of H Beam. The machine is usually equipped with several (Such as 9) pieces of flame strip cutting torches;
2) XBJ series Edge Milling Machine: Machining out welding grooves on edge of carbon steel plates, to acquire better fusion welding seams;

2. EOL (End of Line):
1) DX series H Beam End Face Milling Machine, for end face polishing on the finished fabrication BOX H Beam, Pipes, and any other steel structure members. This machine is widely used in Steel Structure and other related industry;

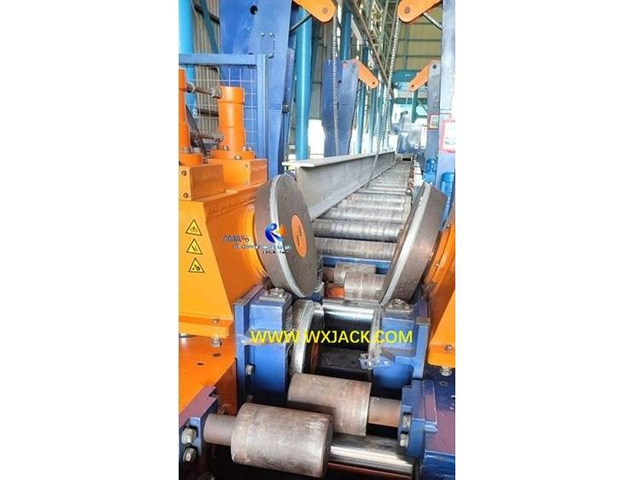

2) RH model H Beam Flange Edge Rounding Machine, trimming out R2.5mm round angles on the 4 corners of H Beam flanges, to raise painting capacity of H Beam in subsequent steel structure construction;
3) Welding Robot: Welds out stiffeners along finished H Beam, with varied position and dimensions;
4) Shot Blasting Machine: Clean out all surfaces of fabricated H Beam, removing dirt and debris.

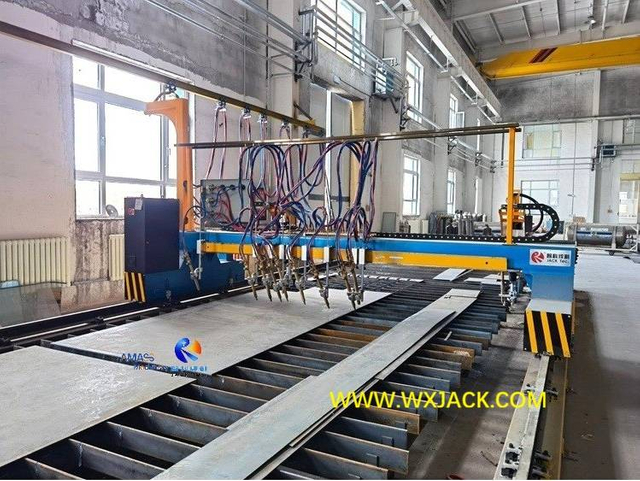

CNC-CG4000 CNC Strip Flame Cutting Machine

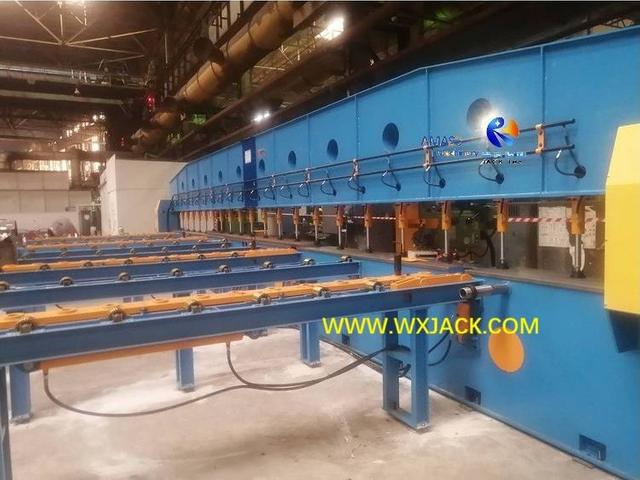

SXBJ-12 Double Heads Edge Milling Machine

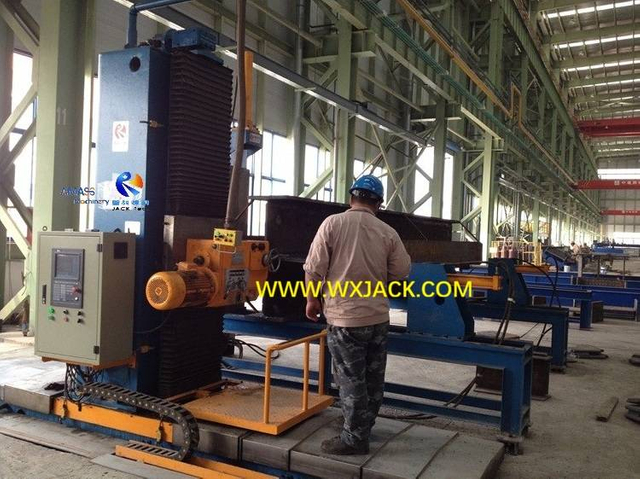

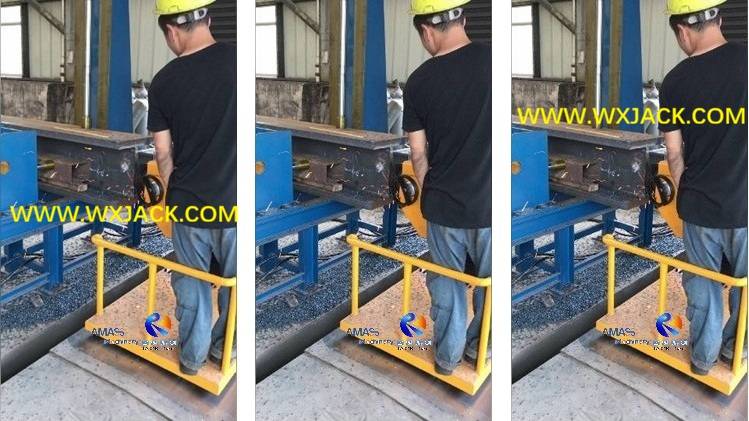

CNC-DX1520 CNC Control BOX H Beam End Face Milling Machine
HR800 H Beam Flange Edge Rounding Machine

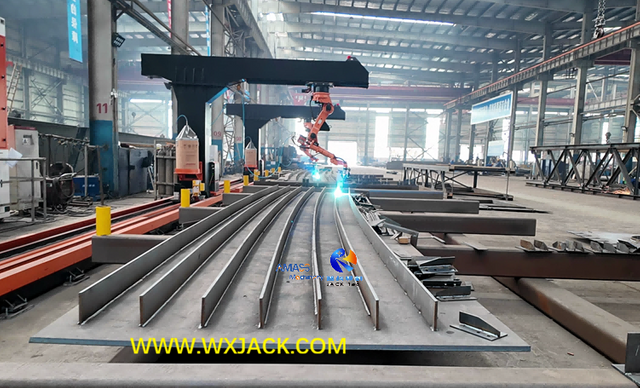

H Beam Stiffener Welding Robot

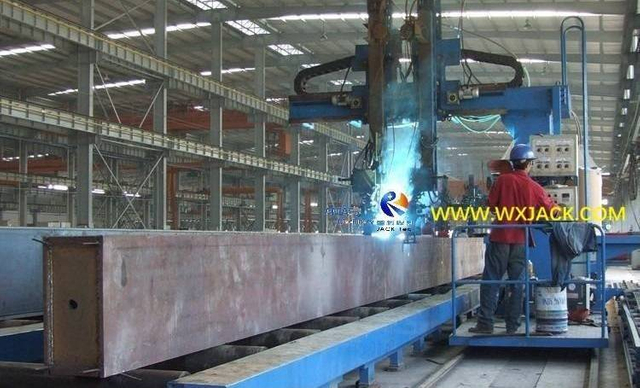

LHCE12 Boom type BOX Beam CO2 Back Welding Machine

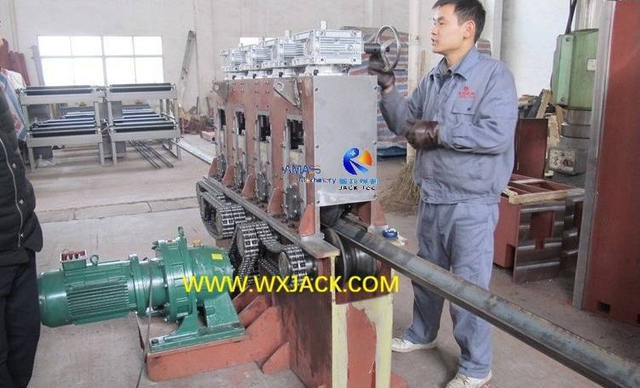

ASM63 Angle Steel Straightening Machine
J28 Stiffener Plate Unit Straightening Machine

FAQ on Wuxi JACK Semi-Automatic I H Beam Welding Production Line

  • Q Why does Semi-Automatic I H Beam Welding Production Line So Popular in Steel Structure Industry?

    A The reasons behind that can be listed as:
    1. 1) Saving total investment on machines and workshop;
    2. 2) Flexible planning on I/ H Beam production. The production line can be adjusted easily based on market demand;
    3. 3) It is convenient to relocate and introduce new machines and equipment, when process technology on T/ I/ H Beam production need to be changed.

  • Q Which Options are available for I H Beam SAW Welding Machine in Semi-Automatic I H Beam Welding Production Line?

    A There are 2 types of widely applied I H Beam SAW Welding Machine:
    1. 1) LHA series gantry moving structure. It has closed mechanical structure. So, based on max. web height of T/ I/ H Beam, there are 5 standard models to choose from: LHA4Z/ LHA5Z/ LHA55Z/ LHA4C/ LHA5C;
    2. 2) LHT model T frame open structure: One model can produce all sizes of T/ I/ H Beams.

  • Q Which Options are available for I H Beam Straightening Machine in Semi-Automatic I H Beam Welding Production Line?

    A There are 2 types of widely applied I H Beam Straightening Machine:
    1. 1) HYJ Series mechanical motorized type. Standard models: HYJ-40/ 800. Max. straightening capacity is 40mm for Q235 carbon steel, with 235MPa yield strength;
    2. 2) YTJ-40/ 50/ 60/ 80 heavy duty hydraulic drive type. Standard models: YTJ-40/ 50/ 60/ 80. Max. straightening capacity is 100mm for 345MPa yield strength, or 80mm for 485MPa yield strength.

  • Q Which Points Should be Considered when Put into Use Semi-Automatic I H Beam Welding Production Line?

    A
    1. 1) Layout of the entire production line, its utility availability;
    2. 2) Internal logistics unit, for turning and moving workpieces among stations. Mostly travel cranes of different tonnages;
    3. 3) Proper TPM (Total preventive maintenance) plan, to guarantee on reasonable daily service on machines and equipment;
    4. 4) Safety assurance and measures taken, to make sure security operation.

Other Products We Own besides I H Beam Welding Production Line

General Purpose Automatic Lengthwise ASM63 Angle Steel Straightening Machine
General Purpose Automatic Lengthwise ASM63 Angle Steel Straightening Machine
1. What can ASM63 do for Customer?
2. Why You need Angle Straightening Machine?
3. The Good Points of ASM series Machine:
4. Technical View on ASM63:
5. Technical Parameters of ASM63:
0
0
Z30 Heavy Duty Large I H Beam Assembly Machine
Z30 Heavy Duty Large I H Beam Assembly Machine
A. Specialty of Z30 Heavy duty model:  Purpose/  Max. Workpiece Size/ Features
B. Application and Major Specifications of Z30:  Task/ Technical Specifications of Z30
C. Working Style and Configuration of Z30:  2 Main Functions/ Assembly Form and Welding Mode and Style on 3,000mm Height Large T I H Beam/ Operation
D. Technical Features of Z30:  Workpiece Assembly Principle/ Composition of Assembly Unit/ Tack Welding
E. Three Working Modes of Machine: Manual/ Single Cycle/ Auto Cycle

0
0
Manual Assembling And Automatic Welding Z18 I Beam Assembly Machine
Manual Assembling And Automatic Welding Z18 I Beam Assembly Machine
A. Purpose of Z18:  Finished Workpiece/ Process Step / In Manual H Beam Production
B. Structure and Main Units:  Machine Composition/ Mechanical Main Body/ Machine Base Bed/ Motor Reducer/ Mechanical Transmission System
C. Mechanical Frame:  Top Gantry/ Downward Pressing Unit
D. CO2 Welding Power Supply:  Significance/ Two Options of CO2 Welding Power Supply/ HUAYUAN CO2 Power Supply
E. Technical Parameters of Z18
0
0
Z15/Z18/Z20 Conventional Size Automatic H Beam Assembly Machine with Tack Welding
Z15/Z18/Z20 Conventional Size Automatic H Beam Assembly Machine with Tack Welding
A. Application of Z15~ Z18 Automatic:  Function/ Operating Mode / Advantages
B. Technical View on Z15~ Z18 Automatic:  Machine Major Units/ Importance of High Precision for Automatic/ Work Principle/ Alignment of Flanges and Web
C. Electric Control System of Z15/Z18/Z20 Automatic:  PLC/ A.C. Inverter
D. Technical Parameters of Z15~ Z20 Automatic
0
0
LHA4Z/LHA5Z/LHA55Z Center Management I H Beam Gantry Welding Machine
LHA4Z/LHA5Z/LHA55Z Center Management I H Beam Gantry Welding Machine
A. Application Features of LHAZ Models Middle Operation:  Model Meaning/ 3 Models of LHAZ Models Middle Operation/ LHA4Z Comparison with LHA4C
B. Operation on LHAZ Series Middle Operation: Productivity / SAW Operation / Operation on Welding Seam
C. Technical View on LHAZ Models Middle Operation:  Welding Mode/ Operator Skill for Working on LHAZ/ Integration of Outsourced Units into LHAZ
D. Technical Parameters of LHA4Z/ LHA5Z/ LHA55Z Middle Operation
0
0
LHT T Frame BOX Beam H Beam SAW Welding Machine
LHT T Frame BOX Beam H Beam SAW Welding Machine
A. Usage and Application of LHT:  Function/ Machine Nomination/ Applicable Workpieces/ Application
B. T frame of LHT: Bear Weight of Main Components / Attain Rigidity and Strength in T Frame
C. Operation of LHT:  Welding Mode and Technology/ T Frame Movement along Rail
D. Function Units in LHT:  SAW Welding Flux Recovery Units/ Pneumatic System
E. Technical Parameters of LHT
0
0
YTJ60 Medium High duty Hydraulic H Beam Straightening Machine
YTJ60 Medium High duty Hydraulic H Beam Straightening Machine
A. The Task and Applicable Workpieces of YTJ-60 Hydraulic: Suitable Working Parts
B. The Advantages of YTJ-60:  Operation / Working Speed / Straightening Performance
C. Straightening Process Control of YTJ-60:  The Heaviest Straightening Capacity / Precondition /  Special Unit
D. Technical Parameters of YTJ-60:

0
0
Vertical Position YTJ40 Hydraulic I Beam Flange Straightening Machine
Vertical Position YTJ40 Hydraulic I Beam Flange Straightening Machine
1. Outline on Capability of YTJ-40 Hydraulic:
2. Straightening Principle of YTJ Series: Working Section / One Side Flange Straightening / The Whole Piece of H Beam Straightened/ Working Capacity
3. Technical Parameters of YTJ-40 Hydraulic:
0
0
High Efficiency Hydraulic Drive YTJ-50 I Beam Straightening Machine
High Efficiency Hydraulic Drive YTJ-50 I Beam Straightening Machine
1. Application of YTJ-50 Hydraulic:
2. Main units of the YTJ-50 Hydraulic:  Main Frame and Base / Front side and rear side conveyor / Straightening Roller unit / Hydraulic station / Bottom transmission unit / Motor reducer / Web clamp unit / Control board and Operation station
3. Technical Specification of YTJ-50:  Operation
4. Technical Parameters of YTJ-50 Hydraulic:
0
0
Heavy Duty Thick Thickness YTJ-80 I Beam Straightening Machine
Heavy Duty Thick Thickness YTJ-80 I Beam Straightening Machine
1. Highlight of YTJ-80 Heavy duty Machine: Personalized Specification
2. Operation of YTJ-80 and YTJ-60:
3. Technical Parameters of YTJ-80 Heavy duty:
0
0
Hydraulic Drive Lifting BOX H Beam Moving Machine
Hydraulic Drive Lifting BOX H Beam Moving Machine of Motor Drive Move
A. Application:
B. Technical Features and Operation:
C. Composition:
D. Supply Range:
E. Technical Parameters:

0
0
Steel Structure Beam Chain type Turnover Machine
High Safety Table Lifting Style Industrial Chain Type Flipping Equipment
A. Product Purpose:
B. Main Units and Operation:
C. Technical Parameters:
0
0

Blogs on Wuxi JACK I H Beam Welding Production Line

  • In 2025 Wuxi JACK Business Propsperity on Steel Structure H Beam Welding Production Equipment

    In 2025 Wuxi JACK Business Propsperity on Steel Structure H Beam Welding Production Equipment
    Brief Introduction on Orders of Wuxi JACK H Beam Welding Production Machine; Wuxi JACK Heavy duty Line of H Beam Welding Production Machine; Wuxi JACK Heavy duty H Beam Hydraulic Straightening Machine; ​Wuxi JACK Large Double Heads Edge Milling Machine; Wuxi JACK H Beam Hydraulic Overturning Machine; Wuxi JACK H Beam End Face Milling Machine Read More
  • Straightening Horizontal Press, The Featured Product of Wuxi JACK

    Straightening Horizontal Press, The Featured Product of Wuxi JACK
     Usage and Application of HJ Series Steel Structure BOX H Beam Straightening Horizontal Press;  Specialty of HJ Series Horizontal BOX H Beam Straightening Machine;  Advantages and Technical Features of Wuxi JACK HJ Series Steel Structure BOX H Beam Longitudinal Horizontal Press Straightening Machine Read More
  • Production of Super Large H Beam with Steel Structure Equipment

    Production of Super Large H Beam with Steel Structure Equipment
    The Largest Size of H Beam to be Manufactured in Heavy duty H Beam Building and Straightening Machine, and selected models; Z30 Large Size H Beam Assembly Machine: Design and Workmanship; LHC/ LHT Large Size H Beam Welding Machine: Technique and Performance; YTJ80 Heavy duty H Beam Straightening Machine: Structure and Capacity; Summary on Heavy duty Automatic H Beam Production Line Read More
Home

Home Products About Us R&D Customization FAQ Blog Contact Us

WUXI AMASS MACHINERY CO., LTD
WUXI JACK TECHNOLOGY CO., LTD
0510-83297829
English Language: 15852755799;
Chinese Language: 13621515089
support@WXJACK.com
No. 2, Ouyang Road, Luoshe Town, Wuxi City, Jiangsu Province, China
CONTACT US
© Wuxi AMASS Machinery Co., Ltd  2021 All Rights Reserved.
备案证书号：苏ICP备13045244号-1
