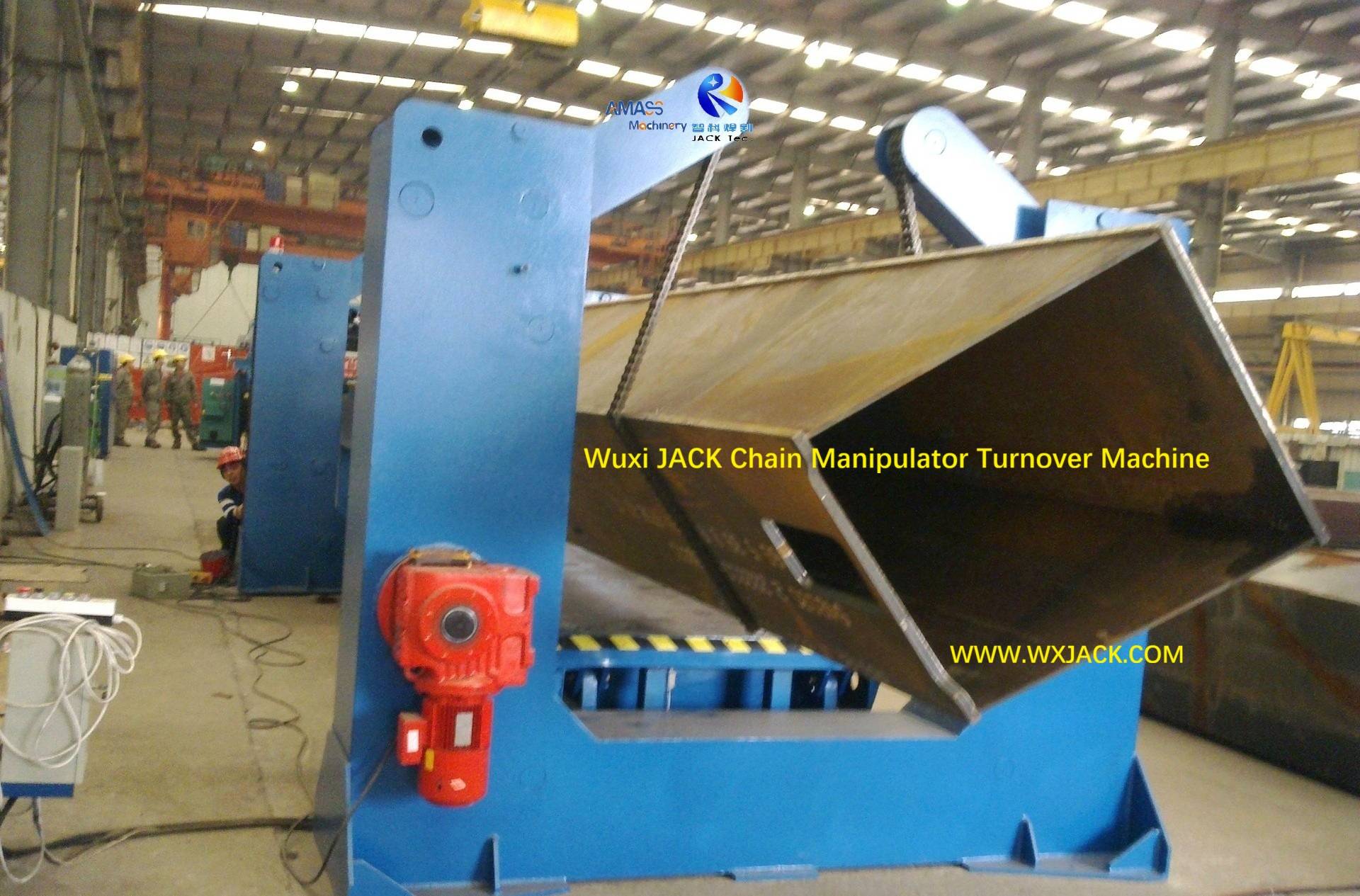

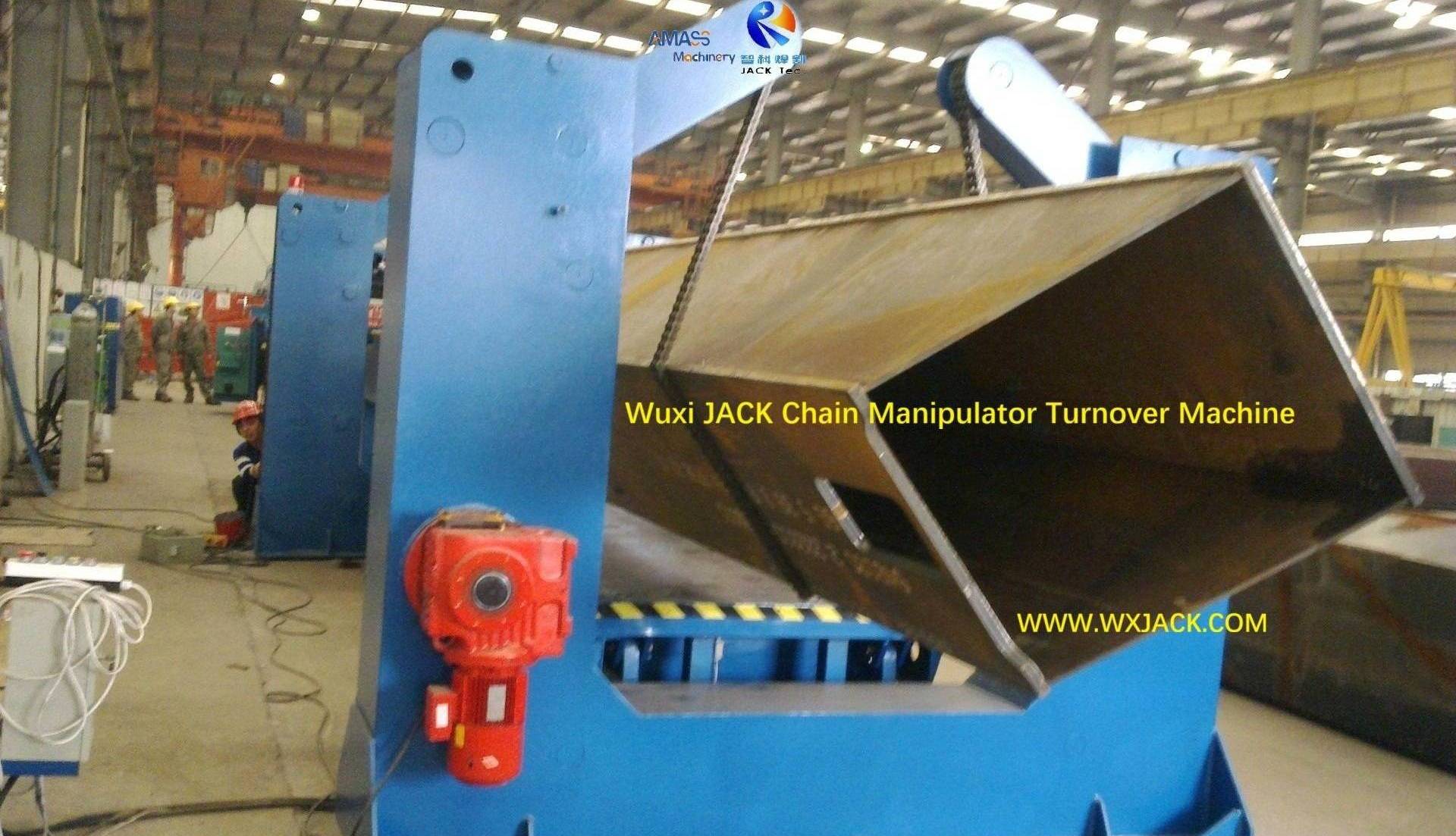

1 Chain Manipulator Turnover Machine 23

Wuxi JACK Steel Structure Beam Chain Turnover Machine,

Working as the Safest and Most Reliable Chain Manipulator for Customer!

Wide Variety and Loading Capacity of Wuxi JACK Chain Overturn Machine and Chain Conveyor

1. On Heavy and Large steel Structure Workpiece with Chain Flipping Machine:

Wuxi JACK designs and produces high quality and professional Chinese Chain Turnover Machine, working as indispensable assistant in the process of manufacture, guarantees on safe, reliable and labor saving way of workpieces position change, which is difficult and dangerous to be completed by human labor;

2. Function of Steel Structure Beam Chain Turnover Machine:

Flip, Hoist, Convey on workpieces:
1) 0° ~ 360° tilt or rotate;
2) Up and down movement within certain stroke;
3) Transport within certain distance;
In this way, carry workpiece (Steel structure Beams and plates) to next step of work station, and adjust orientation of workpiece to the best position, so as to have ideal welding/ assembly/ painting/ test performance. In this sense, Chain Overturn Machine can also be viewed as soft manipulator Welding Positioner;
3. Flexible Driving Source: Based on deadweight of workpieces, Wuxi JACK adopts with different types of driving mechanism for our steel structure Beam Chain Overturn Machine equipment: A.C. motor/ Hydraulic oil cylinder/ Electric hoist...;
4. Where Used: These varied designed structures and loading capacities of Chain Overturn Machine are necessary assistant equipment in various Steel Structure framework facility, for example:

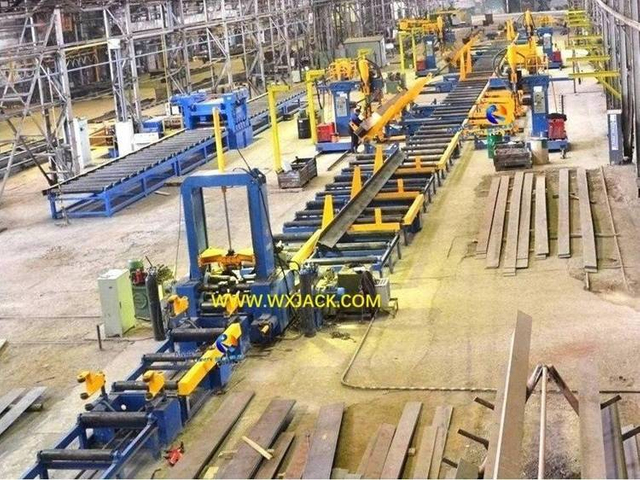

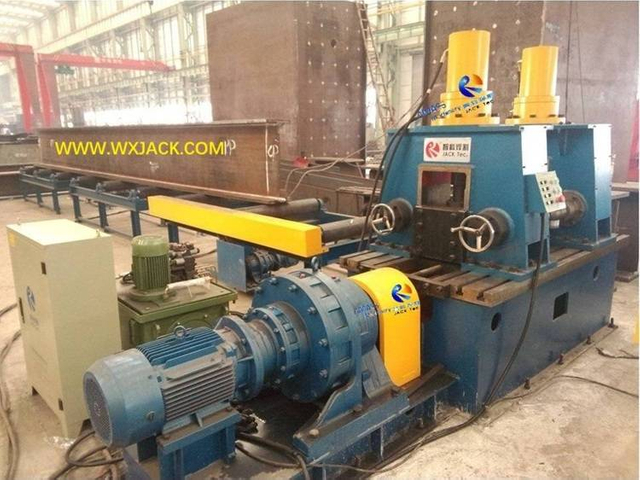

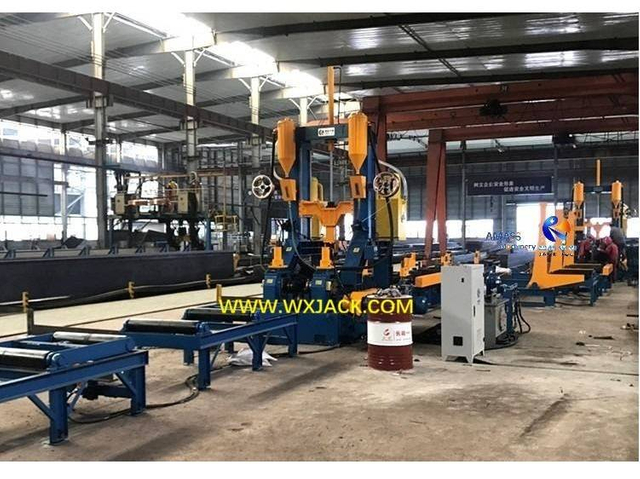

1) H Beam Production Line;

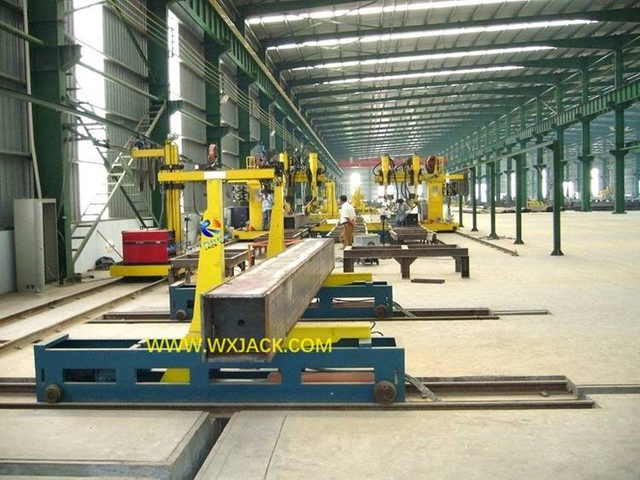

2) BOX Beam Production Line;
5. Applicable Workpieces for Chain Manipulator machine and Chain Conveyor can be any type and tonnage: Steel plate/ H Beam/ BOX Beam/ Steel structure framework workpieces... Accordingly, Wuxi JACK produced steel structure Beam Chain Flipping Machine has wide variety and loading capacity:
Chain Turnover Machine for Large BOX Beam of 2 Ton Loading Capacity
For Small Steel Structure Framework Beam of 1 Ton Loading Capacity
Chain Flipping Machine with Lifting function with 0° ~ 360° Rotation of 2 Ton Loading Capacity
Box Frame Structure with Electric Hoist of 1 Ton Loading Capacity
Chain Conveyor for Steel Plate/ H Beam/ BOX Beam, of 1 Ton Loading Capacity
Electric Hoist for Revolve, Hydraulic Drive for Elevation, of 2 Ton Loading Capacity
For Welding on Large Structural Parts, of 3 Ton Loading Capacity
Chain Overturn Machine Integrated onto Hydraulic drive Lifting Table, of 1.5 Ton Loading Capacity

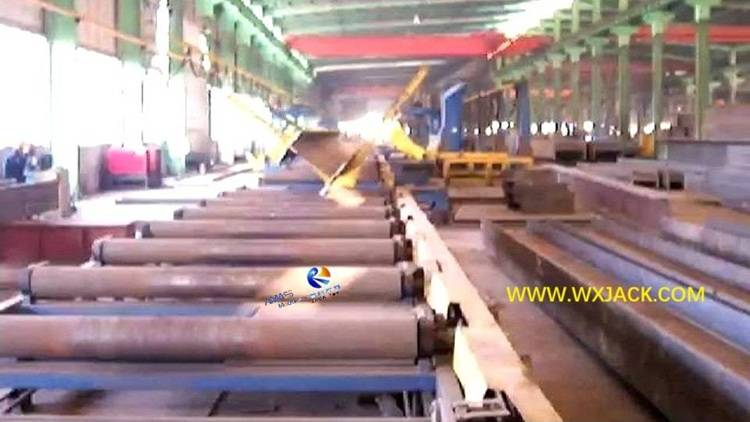

6. Steel Structure Flipping Rack Machine:

Besides, there is another branch of widely applied steel structure framework hard rack Turnover Machine, or hard arm Flipping Machine, which has series specifications of 60°/ 90°/ 180° overturning range, in the form of stationary or motorized moving, of various loading capacity:

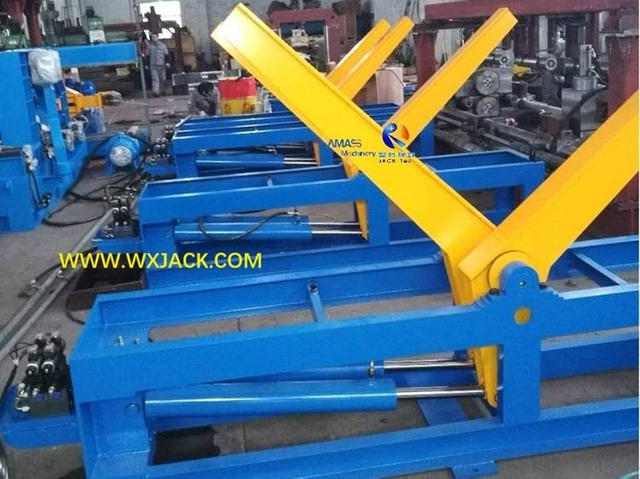

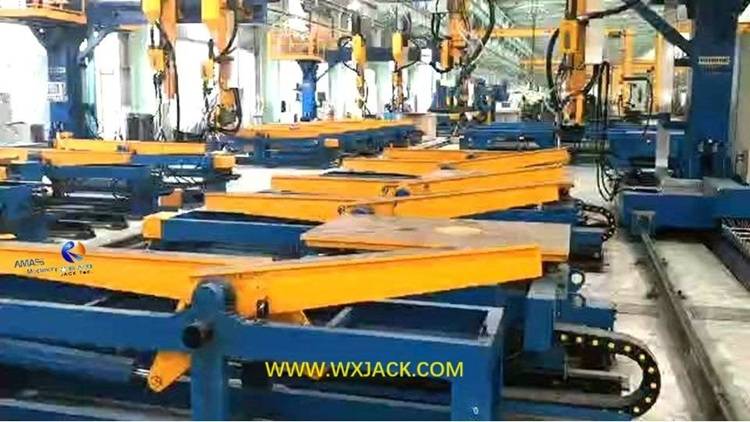

Stationary Steel Structure H Beam 60° Turnover Equipment

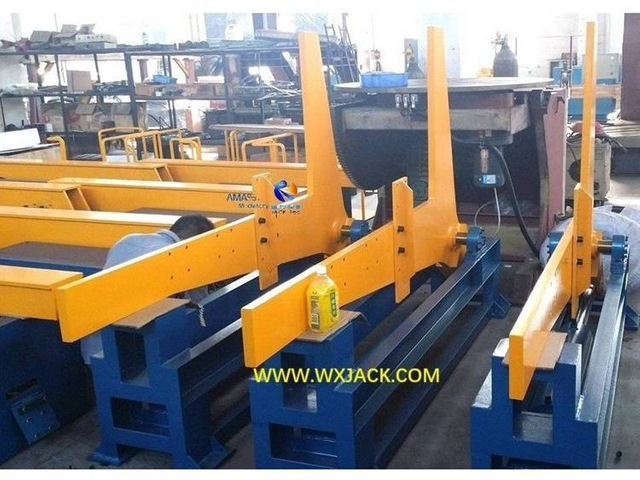

Stationary Steel Structure H Beam 90° Flipping Equipment

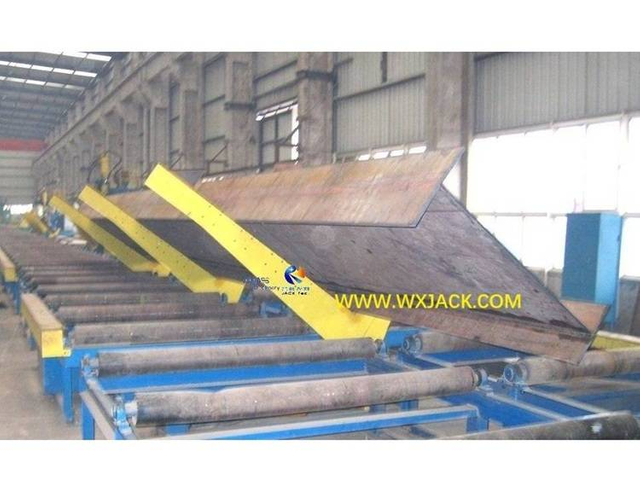

Motor drive Moving Steel Structure H Beam 180° Turnover Rack

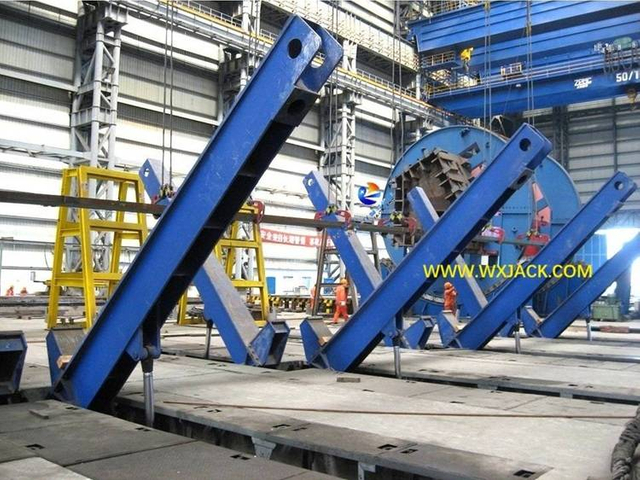

Steel Plate Flipping Rack Equipment

Working Videos of Wuxi JACK Steel Structure Beam Chain Flipping Machine

Technical Parameters of Wuxi JACK Steel Structure Beam Chain Turnover Machine

For more detailed introduction on this machine tool, please check ending section of this page:

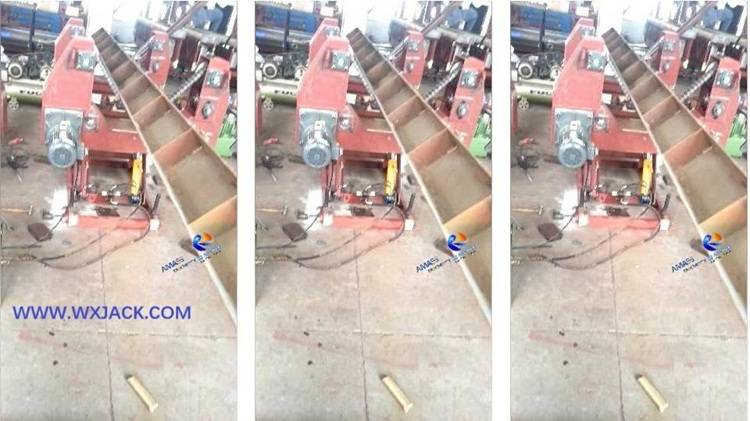

1. U Frame Chain Manipulator Equipment for Flipping Long BOX Beam:
2. Steel Structure Beam Overturning and Lifting Integrated Chain Flipping Machine:
3. Work Table Lifting type Chain Overturn Machine on Large and Long Steel Structure Beam:
4. Production Line Use Electric Hoist Type Chain Turnover Machine:

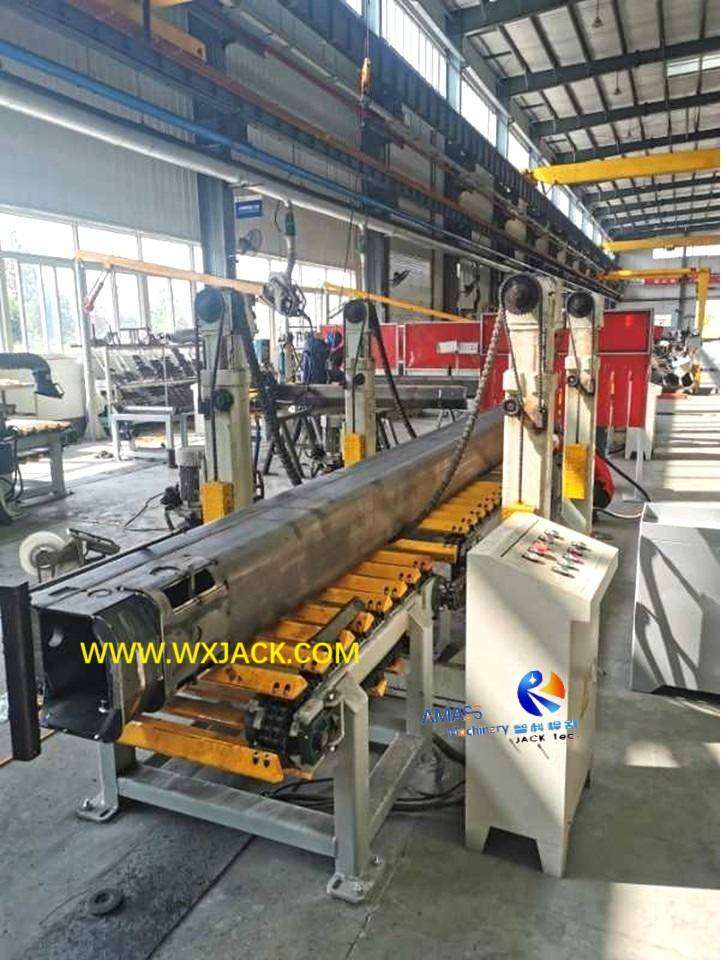

5. Steel Plate and BOX H Beam Chain Conveyor

Manipulating on Workpieces in Steel Structure Beam Chain Manipulator Machine

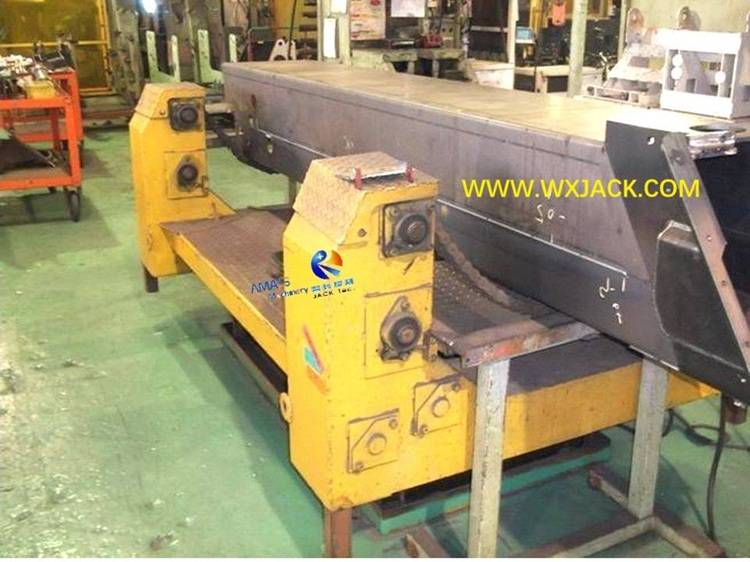

1 Steel Structure Beam Chain Flipping Machine 10 3

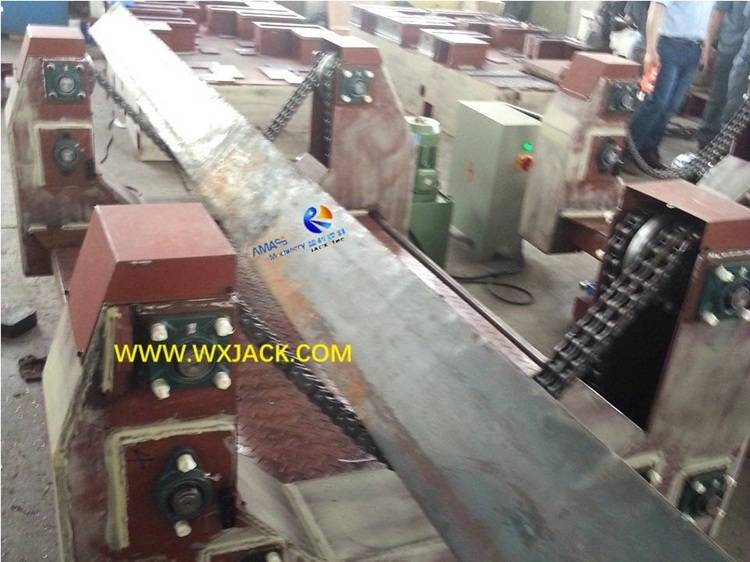

2 Steel Structure Beam Chain Overturning Machine 11 10

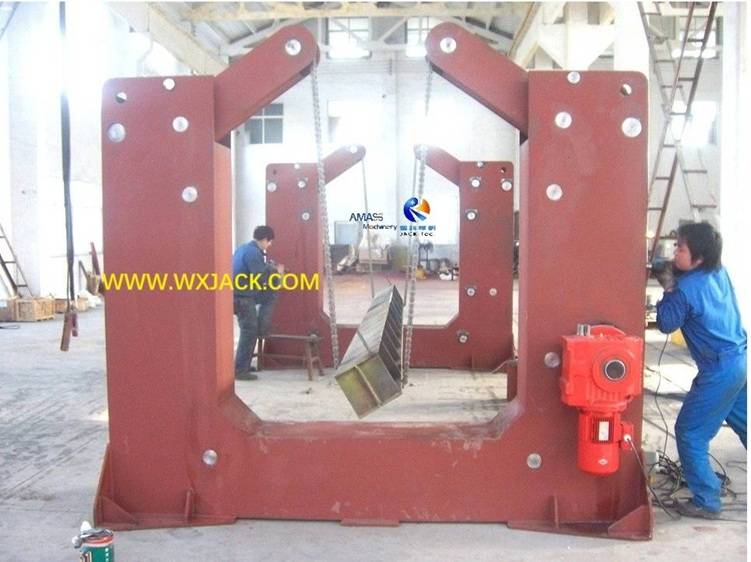

3 Steel Structure Beam Chain Manipulator Machine 11 4A 13 100_6618

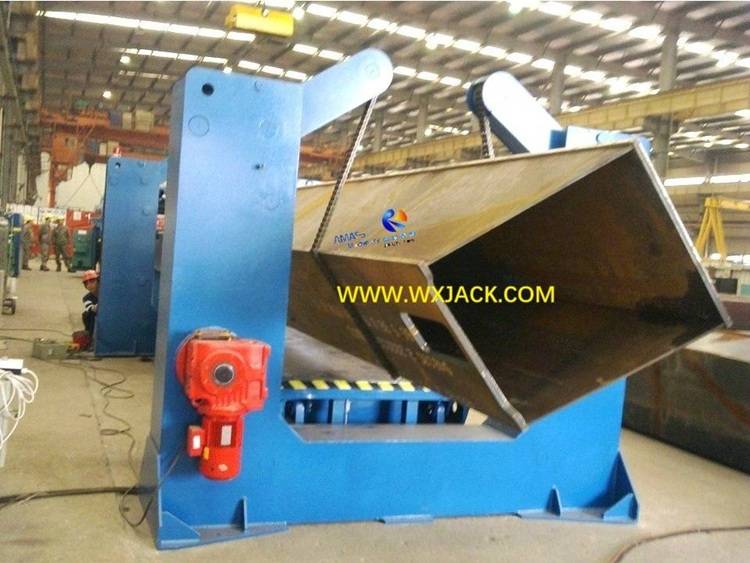

4 Steel Structure Beam Chain Flipping Machine 11 1

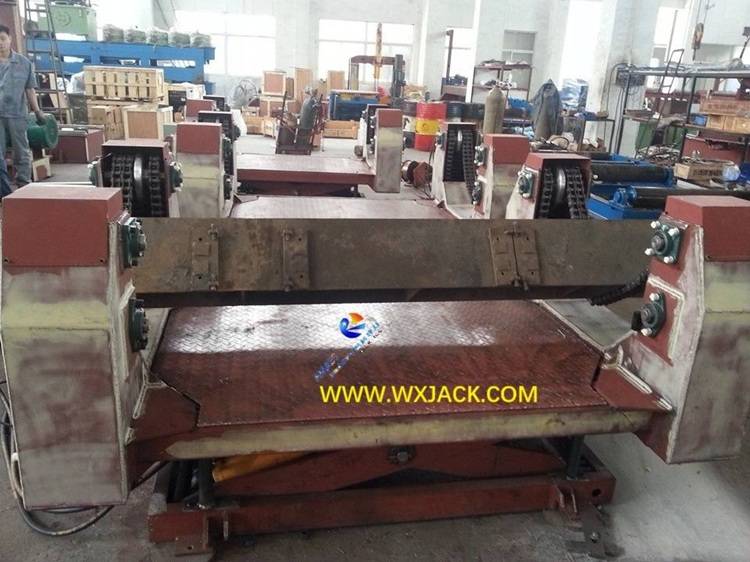

5 Steel Structure Beam Chain Overturning Machine 11 12

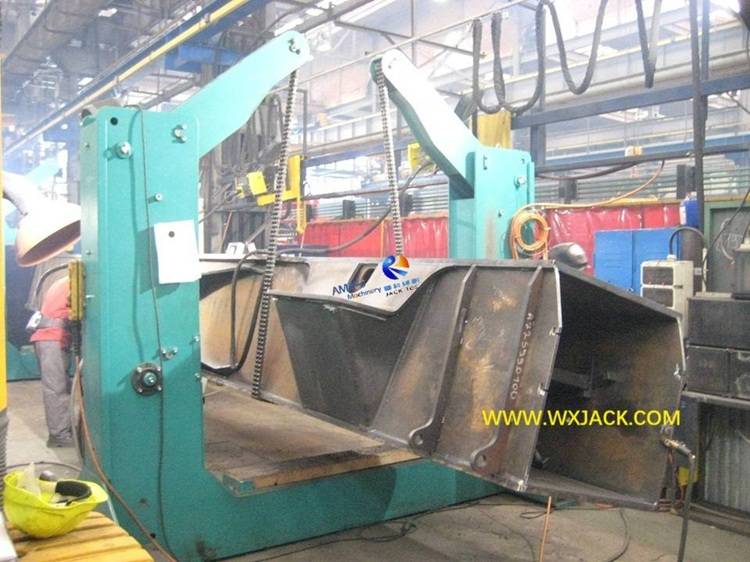

6 Steel Structure Beam Chain Manipulator Machine 11 2

The Purpose, Advantage and Significance of Steel Structure Beam Chain Overturn Machine

A. The Essential Role of Chain Manipulator Machine and Chain Conveyor:

1. Usage:
1) This is a kind of assistant manipulating equipment, being used for changing position and orientation of steel structure workpieces during transportation and operation, so that welding/ painting/ assembling/ test can be performed on these large size and heavy weight working parts in the most reasonable and comfortable way;
2) In other words, the Chain Flipping Machine equipment does not have functions of changing mechanical or chemical property of workpiece. But instead, getting workpieces to the best ergonomics condition and operation point;



2. The Workpiece Position Change on Workpieces with Chain Turnover Machine Include:

1) Raising up and lower down within certain stroke;
2) 0°~ 360° continuously rotation;
3) Transportation of workpieces throughout production line by means of Chain Conveyor;

3. Applicable Workpiece: Long length steel structure workpieces, with various sizes of cross section, and fairly heavy weight. In this respect, Chain Overturn Machine has similar function as Head and Tail Welding Positioner;
4. Unique Feature: The workpieces are supported and manipulated by means of rollers chains. This is where the product name of “Steel Structure Beam Chain Manipulator Machine” come from;
5. Product Family: Another kind of common used equipment for holding and flipping workpiece is hydraulic drive Overturning Rack. These hard arm Flipping Racks and Steel Structure Chain Flipping Machine are the two most important and frequently used types of Steel Structure assistant equipment;
1) Workpiece Rotation: A set of Wuxi JACK Chain Turnover Machine is flipping a piece of bulky and long column structure workpiece: (Fig.1)
Fig1 Large Structure Beam Chain Flipping Machine 11 2
2) Workpiece Sending Forward: Chain Conveyor, which is used for sending steel structure workpieces (Steel Plate and BOX H Beam) among different work stations: (Fig.2)
Fig2 Steel Beam Plate Chain type Steel Conveyor 6



B. Great Advantages of Steel Structure Beam Chain Turnover Machine:

1. Safe and Efficient Operation: Without additional fixture to be necessary, and with just hoisting workpiece onto roller chains for manipulation, manipulation with remote control pendant, the operation of the Chain Manipulator equipment tool is convenient and highly efficient;
2. Accommodating on Wide Range of Workpiece: Also because of roller chain acting, these machine tool for manipulation is flexible for sending and revolving workpieces of various types;
3. For quick understanding on these important Steel Structure Chain Turnover Machine, please review on report slides of “Summary on Wuxi JACK Steel Structure Overturning Equipment”.


C. The Importance of Steel Structure Beam Chain Flipping Machine:

Although working as assisting mechanism in any of the Steel Structure Beam production line and cell, these Chain Manipulator equipment and Chain Conveyor plays indispensable and important role, mainly on the aspects of:
1. Acquire safe and dependable working site for manipulating on steel structure workpieces, especially those large and heavy ones, which is dangerous/ time consuming, and impossible to be handled manually;
2. Realize high automation of production flow, in manageable and controllable way, boosting streamline and line balance rate;
3. Attain flexible process layout and design for arranging on site production.

Applicable Site and Technical Features of Steel Structure Beam Chain Flipping Machine

1. Suitable Application Scenario of Chain Manipulator Equipment:

Two primary applicating sites are:
1) Various types of Steel Structure Production Line: H Beam Production Line/ BOX Beam Production Line;
2) Individual working cell with manual or automatic fabrication operation on large steel Beams, especially welding operation;
For example,

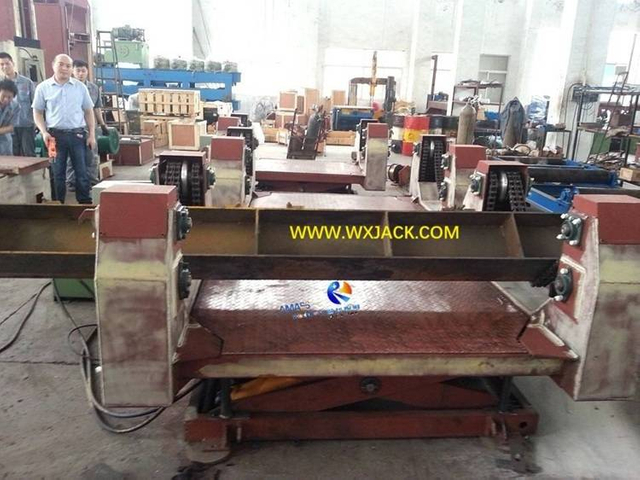

a) Chain Turnover Machine with hydraulic drive elevated worktable, designed and produced by Wuxi JACK for a Chinese production line in Engineering Machinery Plant: (Fig.3)
Fig3 Structure Beam Chain Manipulator Machine 10 5
b) Large Steel Structure Beam Chain Manipulator equipment, being applied in Individual Working Station: (Fig.4)
Fig4 Large Steel Structure Beam Chain Manipulator Machine 11 1



2. Technical Characteristics of Steel Structure Beam Chain Turnover Machine:

1) Basically Special made and Designed Case by Case:
There is seldom standard and one case apply for all type of Chain Manipulator equipment for customers, in the field of Steel Structure framework production. In practical application, due to the wide variety/ dimensions/ weight of steel structure workpieces and working environment, the corresponding Chain Flipping Machine tool are also usually tailor made;
2) Integrated Motion (Degree of Freedom) in a Single Set of Chain Overturn Machine:
As we mentioned earlier, for the purpose of getting the optimum position of workpieces, one set of Chain Turnover Machine may involve several types of motion, to fully manipulate on workpiece: Elevation, rotation, sending forward and retreat;
3) Operation in the Way of Remote Control:
For conveniently operating the large dimension of workpiece and related welding/fabrication/ processing equipment across wide scope in workshop, and to create working environment of safe operation, operation is implemented with remote control panel:

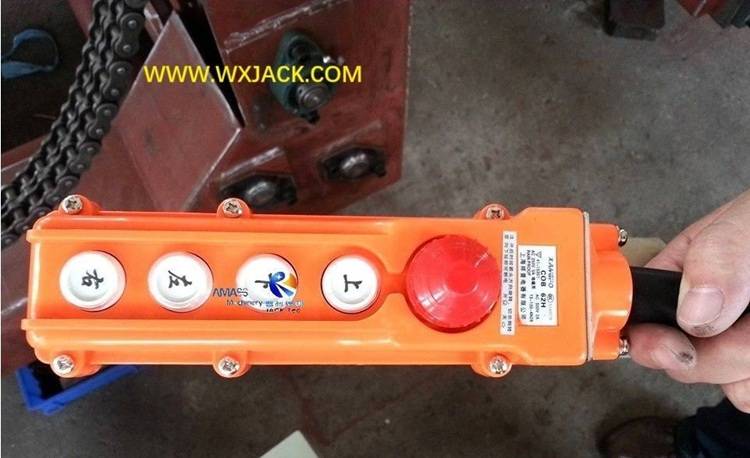

Hand held operating pendant for Wuxi JACK Chain Flipping Machine: (Fig.5)
Fig5 Large Steel Structure Beam Chain Manipulator Machine 10 8

4) Different Types of Motion Drive Source Adopted in Steel Structure Chain Turnover Machine:

a) Oil Cylinder for Driving Elevation on Heavy Workpieces: Because workpieces are usually large dimension and heavy weight steel structure Beams and Plates, majority of the Chain Manipulator equipment are adopted with hydraulic oil cylinder for lifting and lowering down workpieces, which promises heavy and sufficient driving force;
b) Electric Chain Hoists for Driving Elevation on Light to Medium Weight Workpieces: Fully guarantees on smooth regulation with sufficient driving force;
c) Motor Reducer for Driving Workpiece Rotation: Roller chains circulation, which leading workpiece into rotation, are usually driven with motor reducer;

5) Flexible Choice on the Most Suitable Mechanical Structure for Chain Flipping Machine:

To accommodate on varied working site/ process route/ Structural characteristics of workpiece, Steel Structure Beam Chain Turnover Machine come into diversified mechanical structure, and this is why it is always special made case by case:
a) Stationary U/ Box frame structure with electric hoists assembled overhead;
b) Flexible double worktable inside stationary gantry frame;
c) Scissor lifting work table structure with Chain Manipulator above the work table;
d) Elevating and movable worktable;
e) Flat type Chain Conveyor circulated with chain with low level, for easily loading workpiece and make sure balance...

6 Cases on Wuxi JACK Steel Structure Beam Chain Turnover Machine

As we mentioned at beginning of this page, the Chain Manipulator equipment usually comes in case by case tailor made. Here we just pick up 6 typical examples on Wuxi JACK developed for customers before, under different specific application scenario:
1. Stationary U Frame with electric hoists/ Chain/ oil cylinder, for single work station use;

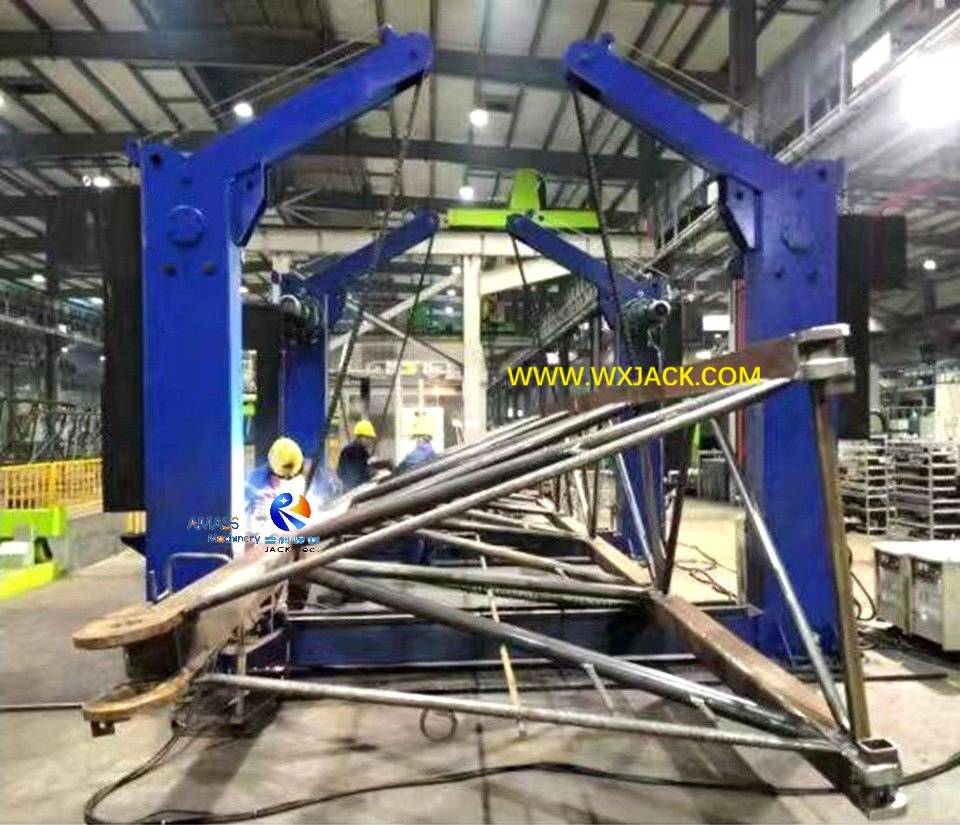

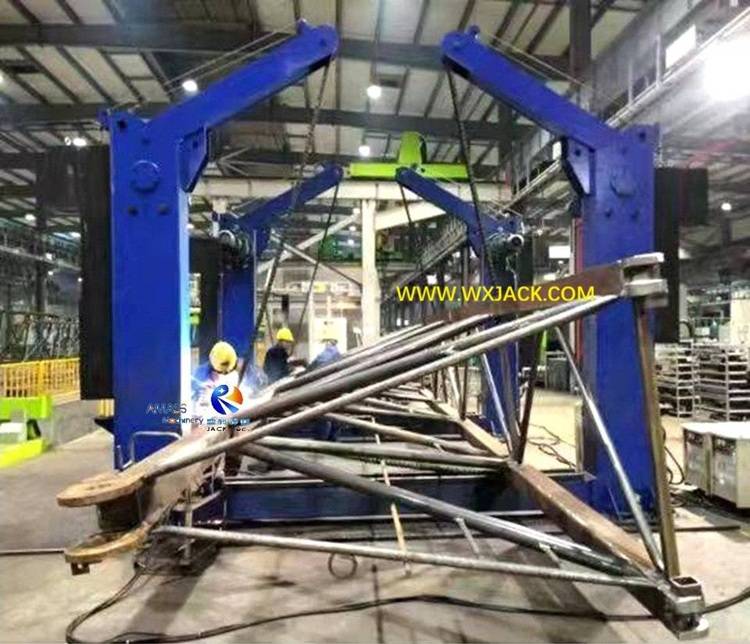

2. Integral lifting and rotation style, for Construction Machinery Production Line use;
3. Table lifting way inside solid BOX frame, for single work station use;

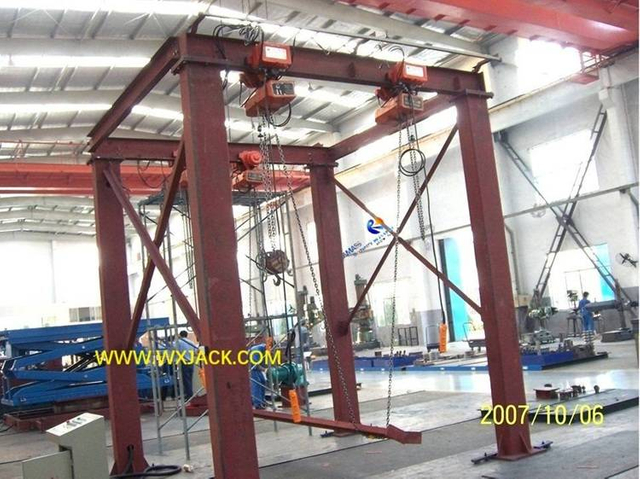

4. Annular chain type with large frame, for stream production line use;
5. Low structure steel Beam and plate Chain Conveyor, for Production Line use;

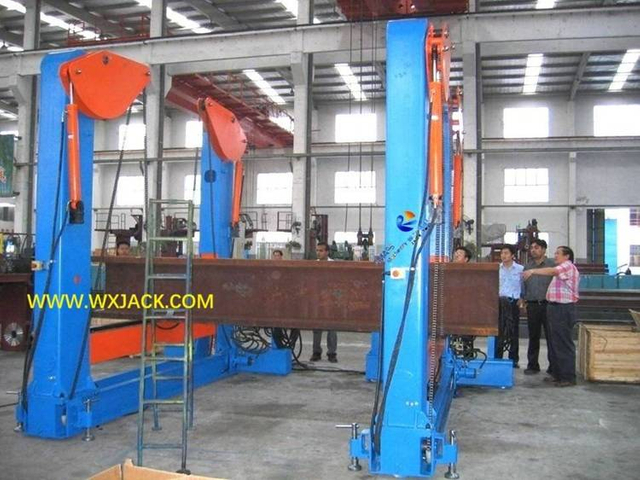

6. Column Lifting style, for steel structure production line use

These applicating cases of Wuxi JACK Chain Turnover Machine as introduction example on equipment, all have distinctive features in terms of structure, function and operation.

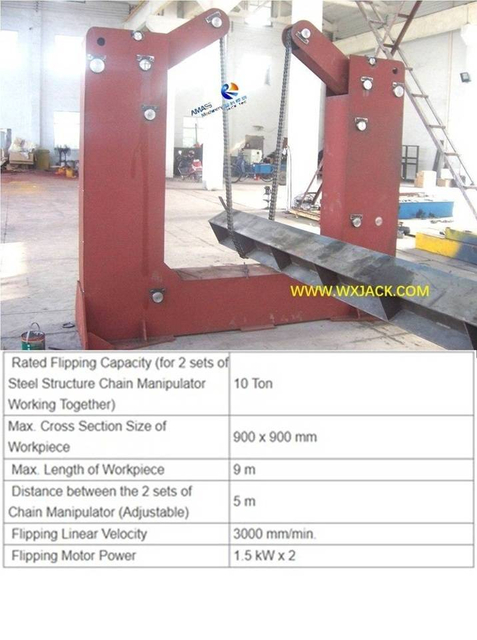

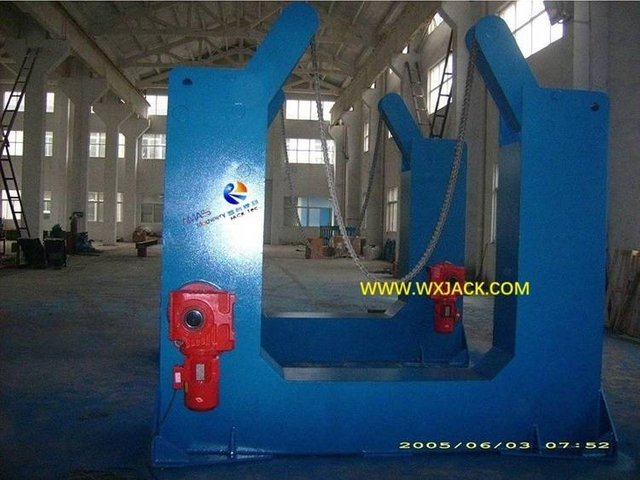

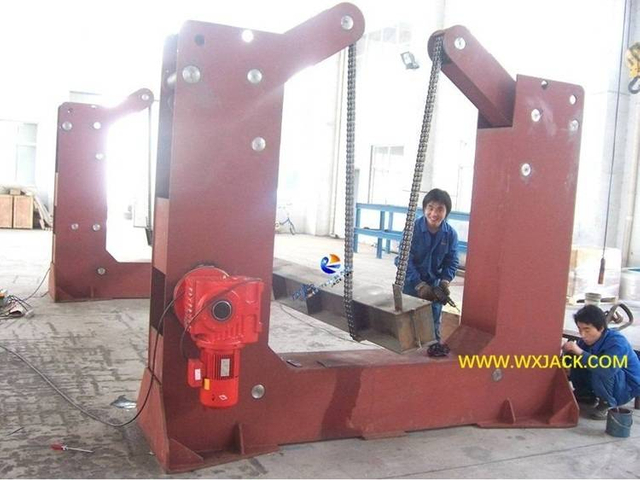

1. U Frame Steel Structure Beam Chain Manipulator Equipment

More >>

1. Working Features:
1) Usage and Site: This equipment tool can lift and lower down long steel Beam workpieces, and at the same time flip the long workpieces to any desired angular position. This equipment can be applied in any flexible arranged working stations;
2) Operating Manner: At working sites, usually two sets of the steel structure Beam Chain Manipulator equipment work as an integral group, to sufficiently fitting for long length of workpieces;
3) Installation: The mechanical U frames are firmly installed into workshop floor with anchor bolts. The distance between these two sets of U frames can be adjusted based on the max. length of workpiece;
4) Drive Way on Work Motion (Degree of Freedom) in Chain Manipulator Equipment:
a) Workpiece Elevation: Swing of rocking arms is driven with oil cylinders;
b) Workpiece Flip: Rotation of roller chains is driven with motor reducers.


2. Technical Parameters of U Frame Steel Structure Beam Chain Manipulator Equipment:

  Rated Flipping Capacity (With 2 sets of Steel Structure Beam Chain Turnover Machine Working Together)  10 Ton

 Max. Cross Section Size of

 Workpiece

 900 x 900 mm

  Max. Length of Workpiece

 9 m

  Distance between the 2 sets of

 the Equipment (Adjustable)

 5 m

  Turnover Linear Velocity

 3000 mm/min.
  Turnover Motor Power  1.5 kW x 2

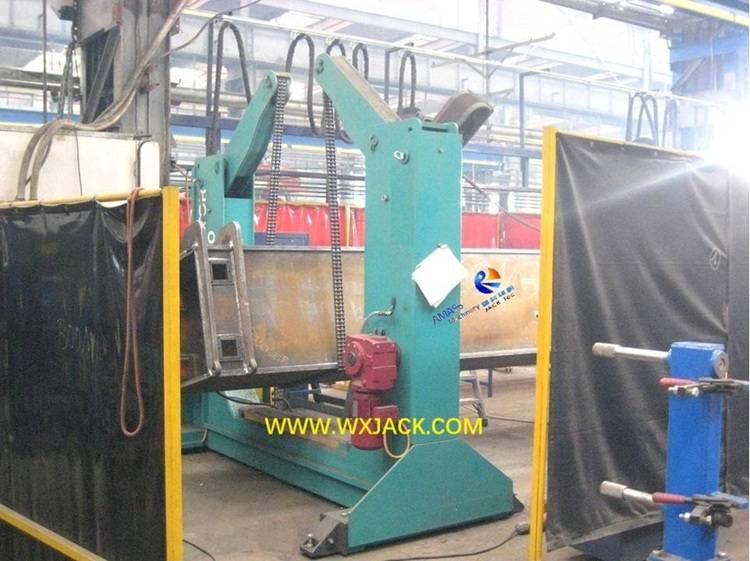

1 Steel Structure Beam Chain Manipulator Machine 11 2A

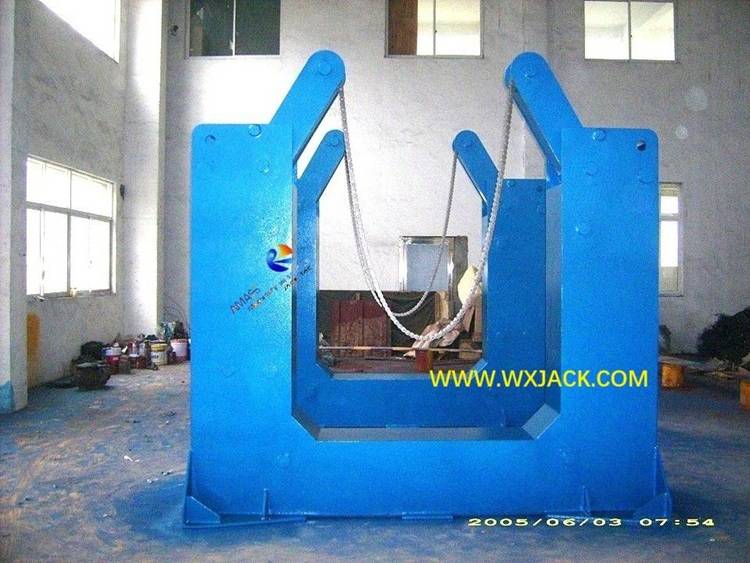

2 Steel Structure Beam Chain Manipulator Equipment 11 3A DSCI2655

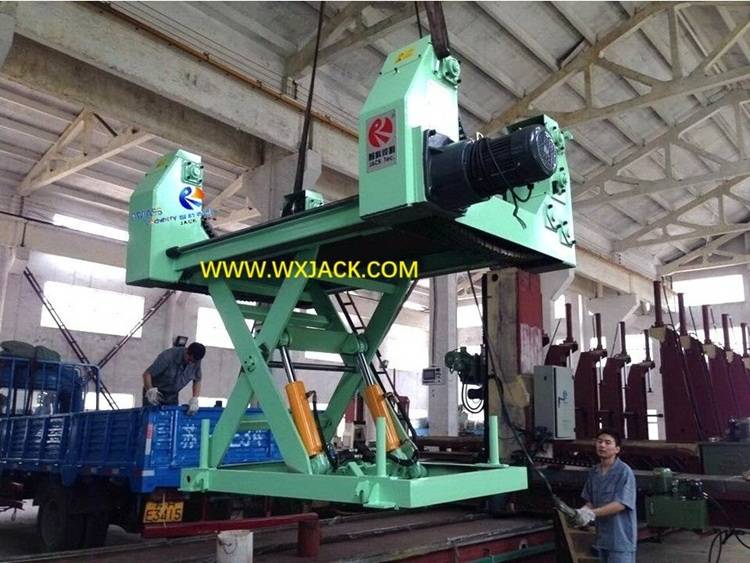

1 Steel Structure Beam Chain Flipping Machine 10 11

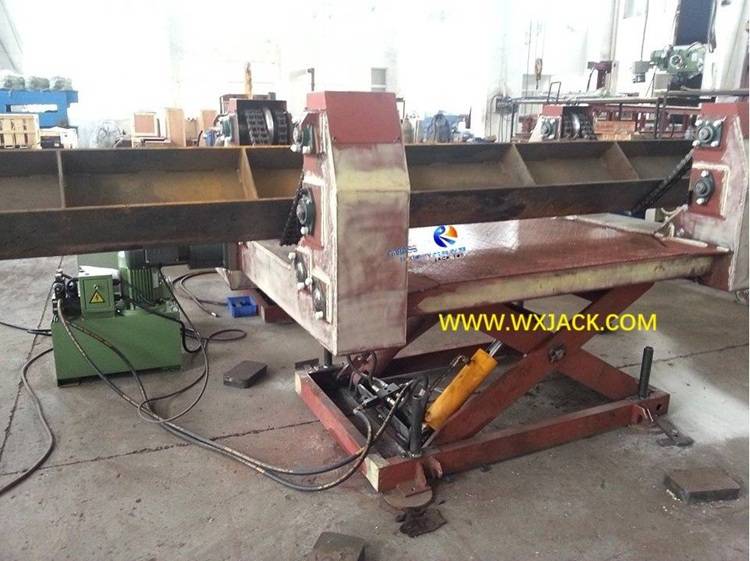

2 Steel Structure Beam Chain Overturning Machine 11 13

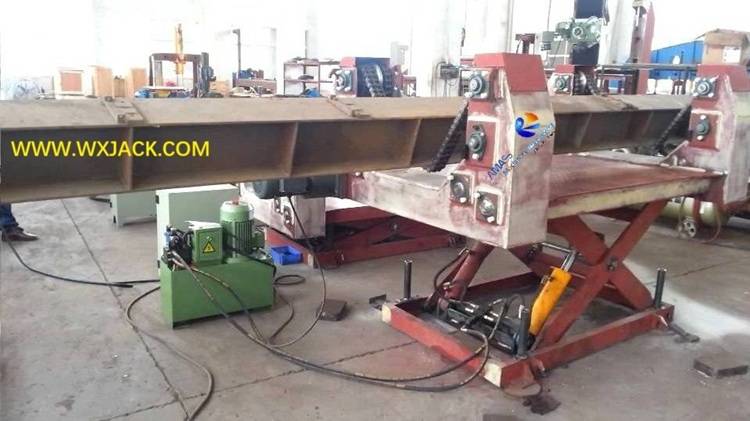

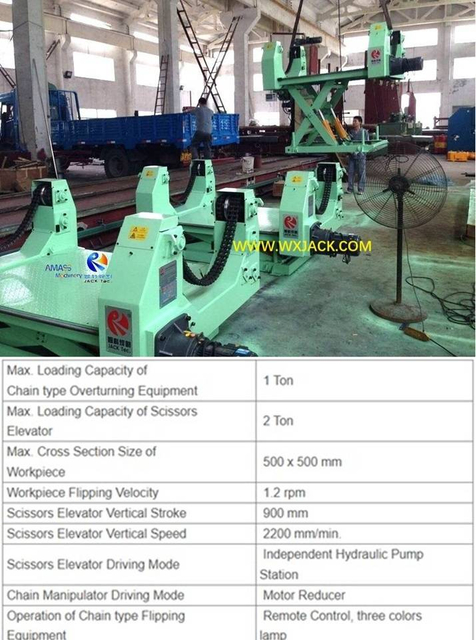

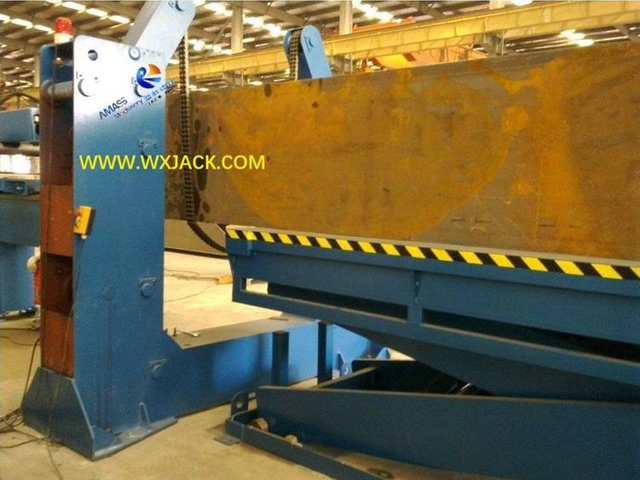

2. Integral Lifting Style Steel Structure Beam Chain Overturn Machine

More >>

1. Working Characteristics:

1) Structure and Function: This equipment can raise up steel structure Beam workpieces to determined higher level by means of its scissor lift in the bottom, and then overturn the working part to expected angle by means of chains at the top;

2) Working Site: This equipment mechanical mechanism is applied in Construction Machinery production line, for changing position and orientation of structure members during welding and assembly, to get the most ideal operating position for getting operator comfort and best welding quality;

3) Drive Way: Its bottom scissor lift is driven with oil cylinders. And rotation of top roller chains is driven with motor reducer.



2. Technical Parameters of Integral Lifting Style Chain Overturn Machine:

 Max. Loading Capacity of Steel Structure Beam Chain Overturn Machine   1 Ton
 Max. Loading Capacity of Scissors
 Elevator		   2 Ton
 Max. Cross Section Size of
 Workpiece		   500 x 500 mm
 Workpiece Rotating Velocity   1.2 rpm
 Scissors Elevator Elevation Stroke   900 mm
 Scissors Elevator Elevation Speed   2200 mm/min.
 Scissors Elevator Elevation Drive Mode   Independent Hydraulic Pump
 Station
 Workpiece Rotate Drive Mode   Motor Reducer
 Operation of the Steel Structure Beam Chain Conveyor Equipment   Remote Control, three colors
 lamp

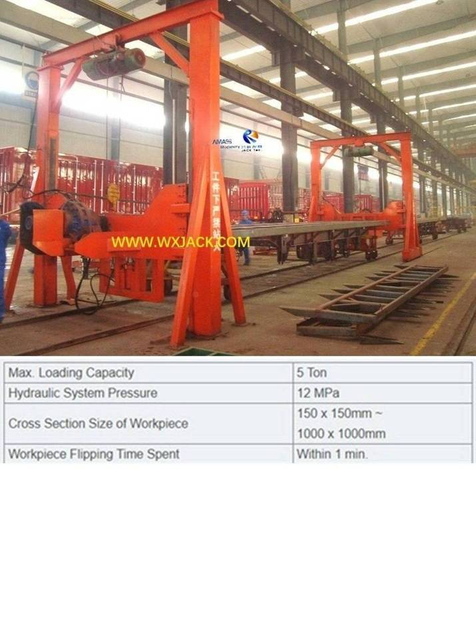

3. Table Lifting Form Steel BOX Beam Chain Flipping Machine

More >>

1. Outline on Working of the Equipment:
1) Structure: As shown in the righthand photo, this Chain Manipulator equipment is composed of 2 sets of individually installed large BOX gantry frame, with 2 sets of lifting working tables being installed in each of the gantry frame external upright columns. The 2 sets of working tables are connected by means of annular chains, which are driven with electric hoists being assembled on top of the BOX frame;
2) Function: During work, both ends of the workpiece will be loaded onto the 2 sets of working tables. With elevation of the 2 sets of working tables, height of the large and long workpiece BOX Beam will be adjusted to proper operating height. Besides, with rising off roller chains away from the 2 working tables, this steel structure Beam Chain Flipping Machine can also flip the large Beam to expected angular position;
3) Working Site: This equipment is applicable to be used in individually installed welding station.


2. Technical Parameters of Table Lifting Form Chain Flipping Machine:

 Max. Loading Capacity  5 Ton
 Hydraulic System Pressure  12 MPa
 Cross Section Size of Workpiece  150 x 150mm ~
 1000 x 1000mm
 Workpiece Flipping Time Spent  Within 1 min.

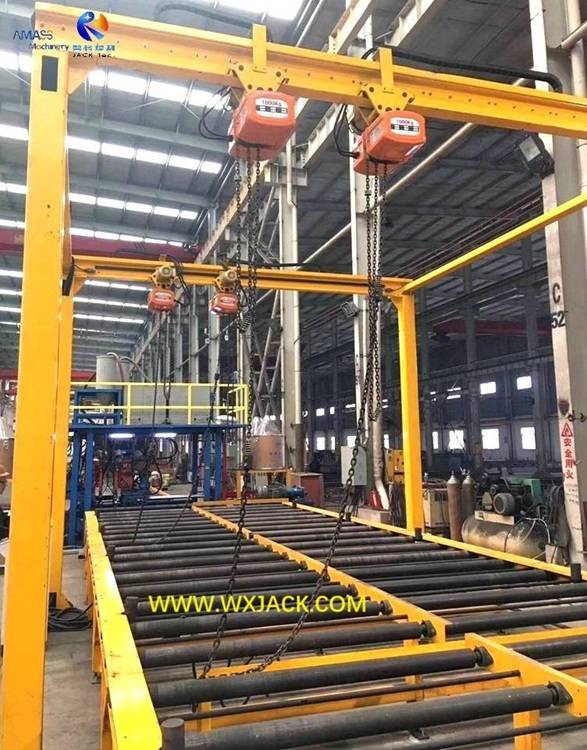

1 Electric Hoist Drive Chain Manipulator Equipment 8 2

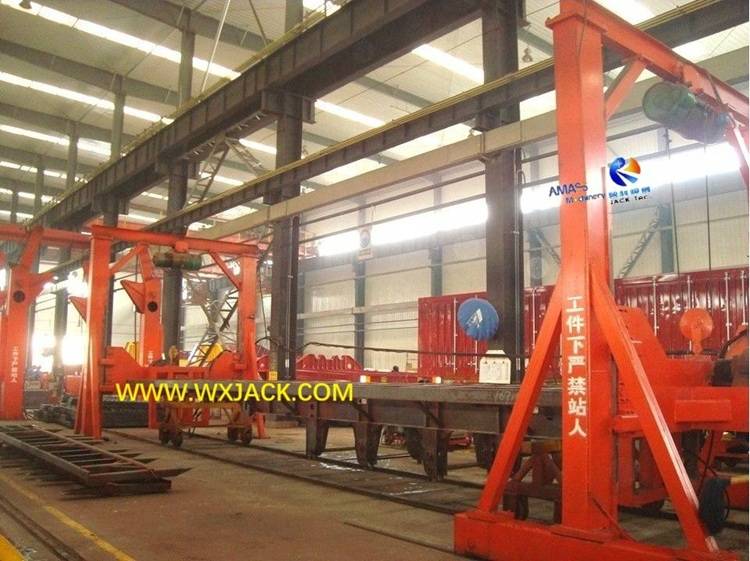

1 Steel Structure Beam Chain Flipping Machine 9 2
2 Steel Structure Beam Chain Manipulator Machine 10 8

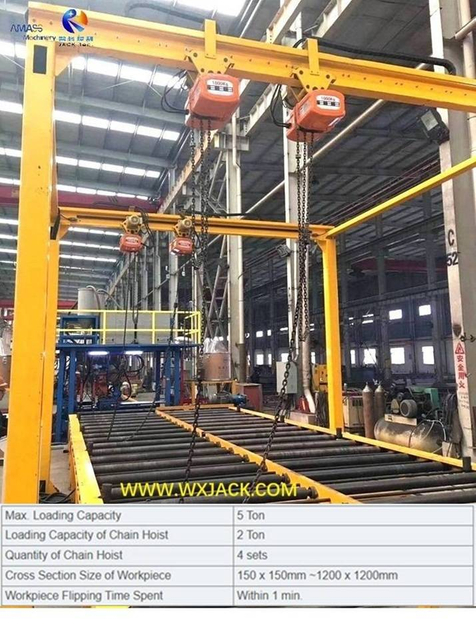

4. Electric Hoist Drive Chain Turnover Machine:

More >>

1. Technical Outline:
1) Usage and Structure: This equipment is used for flipping steel structure Beam workpiece in a production line, so as to welding/ assembling on both faces of large and heavy workpieces; The Chain Turnover Machine has structure of stationary BOX frame structure, integrated with conveyor of Production Line;
2) Working Site: This equipment is installed right above and encompass conveyor of the production line;
3) Operation: For getting position change, Steel Structure Beam workpiece is lifted by means of roller chains up into the air, got its angular position adjusted by means of annular chain rotation, and descended down onto surface of the Production Line conveyor again;
4) Drive Way: The entire Steel Structure workpiece position change: Rise, fall, overturn are all driven with overhead assembled 4 sets of electric chain hoists.


2. Technical Parameters of Electric Hoist Drive Chain Turnover Machine:

 Max. Loading Capacity  2 Ton
 Loading Capacity of Chain Hoist  500kg
 Quantity of Chain Hoist  4 sets
 Cross Section Size of Workpiece  150 x 150mm ~1200 x 1200mm
 Workpiece Flipping Time Spent  Within 1 min.

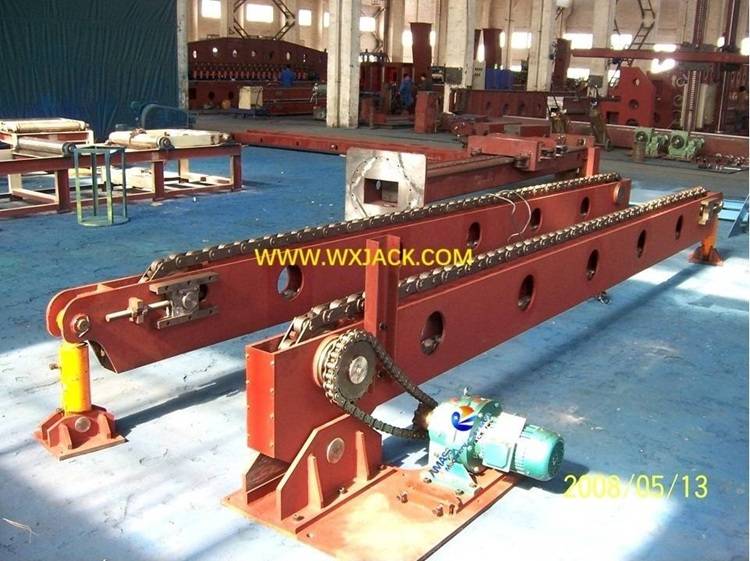

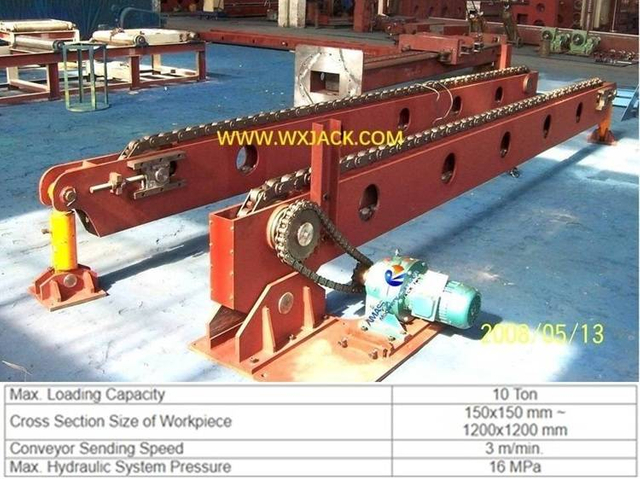

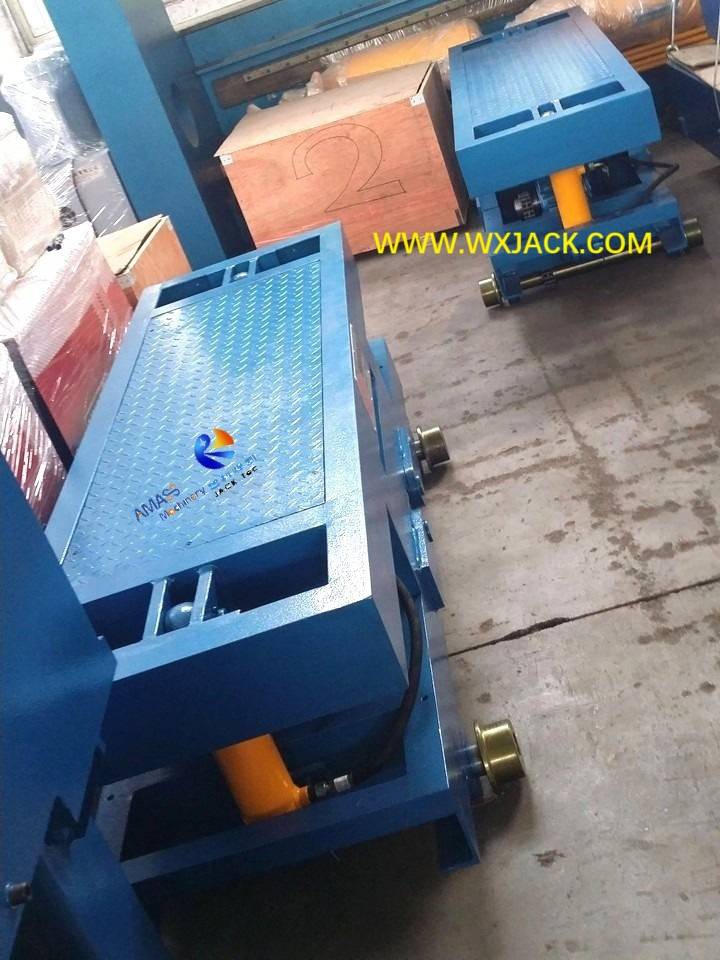

5. Steel Structure BOX H Beam Plate Chain Conveyor

More >>

1. Work Features:
1) Usage and Working Stations: This Chain Manipulator sends workpieces among different parallel work stations in steel structure production line; For example, between the 2 sets of H Beam Submerged Arc Welding Machines in H Beam Production Line
2) The workpieces are those large and heavy steel structure BOX H Beams and steel plates, which are very difficult/ dangerous/ labor consuming, if transported by operators;

2. Structure and Performance of BOX H Beam Chain Conveyor:

1) Structure: This equipment has mechanical main frame of horizontal supporting rack, with a row of plate link Chain Manipulator running in revolve circulation inside the equipment. There are hydraulic oil cylinders installed at both ends of the Chain Conveyor;
2) Work Principle: When it is necessary to transport large and heavy workpieces among working stations, the oil cylinders act, propping up workpiece to higher level, and sending workpiece forward, by means of circulating its annular chains in a row;
3) Then, oil cylinders work again, and the Chain Conveyor lowers down the workpiece to the original height level, to send it the target station;

3. Operation Manner in Steel Structure Beam Plate Chain Conveyor:

1) 2 Sets of Rack Work Together: One set of equipment has 2 sets of supporting racks operating in pair, holding and conveying workpiece forward;
2) Remote Pendant: To avoid accidental happens such as sudden falling down of heavy steel workpieces, which may smash onto operator, operation is by means of hand held remote pedant;
4. Advantages: The plate chain link of this equipment has high intensity, which is durable and wear resistance; The entire set of equipment has stable performance and good adaptability, which is high effectively and easy to operate;

5. Operating Steps in Hydraulic Drive Structure BOX H Beam Steel Chain Conveyor:

1) Step 1, Loading on Workpieces: First the 2 sets of supporting racks are descended down to its bottom position, and carry on workpiece from the first set of production line machine;
2) Step 2, Rising on Workpieces: Then, under action of hydraulic cylinders which are fit at terminal of supporting racks, the 2 sets of supporting racks rise up to the same height level of the second set of production line machine;
3) Step 3, Sending forward Workpiece: Meanwhile, driven with motor reducer, the plate link chains of this Chain Conveyor run in full round, conveying workpiece forward to the second set of production line machine;
4) Step 4, Workpiece onto the 2nd Set of Machine: Upon workpiece reaches at its destination, the 2 sets of supporting racks of Chain Conveyor descends down, and wait for the next round of operation;
6. Drive Way: Sending: Rotation and circulation of annular chain is driven with motor reducer; Elevation of workpiece is driven with oil cylinders.


7. Technical Parameters of Steel Structure BOX H Beam Plate Chain Conveyor:

 Max. Loading Capacity 10 Ton
 Cross Section Size of Workpiece 150x150 mm ~
1200x1200 mm
 Conveyor Sending Speed 3,000 mm/min.
 Max. Hydraulic System Pressure 16 MPa
1 Steel Plate Beam Chain Conveyor 6 1
2 Steel structure BOX H Beam Elevating Conveyor 7 2
1 Steel Structure Beam Chain type Flipping Equipment 12 1
2 Manipulator Chain Turnover Machine 11 15

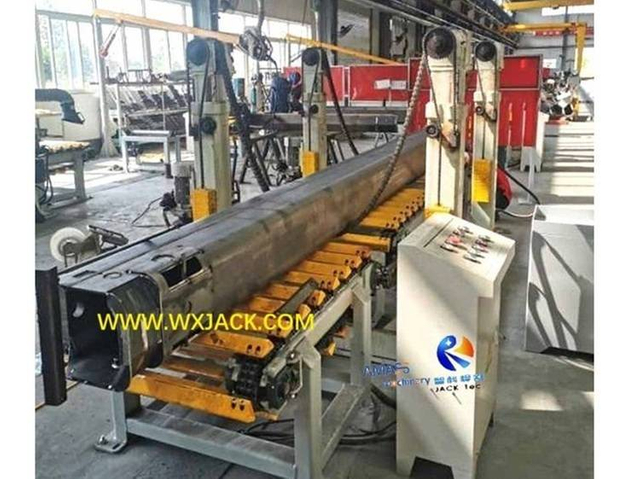

6. Column Lifting Style Chain Overturn Machine

1. Usage:
1) Function: This Chain Manipulator equipment is for flipping medium size long structure members to the required angle, during its transportation to next station in production line;
2) Workpiece: Small to medium size BOX Beams, of cross section height up to 800mm, length up to 5,000mm, thickness up to 8mm, and weight up to 3 Tons;

2. 2 Main Motions of Chain Turnover Machine:

1) Angle Adjustable: BOX Beam can be flipped, of forward or reverse ±180°;
2) Lift Adjustable: To send forward BOX Beam, chains can be raised with small stroke: Up to 300mm;
3) Where Used: This compact size Chain Overturn Machine is specifically designed and manufactured for small to medium size flexible arranged stream production line, in Steel Structure facilities;

3. Characteristics of Steel Structure Beam Chain Manipulator:

1) Work Station: This Chain Flipping Machine is installed at both sides of conveyor, through the entire production line worked in the process of workpiece sending. Which means, chain manipulators are deployed alongside workpiece conveyor;
2) Chains Disposition: During operation, for raising and turning over BOX Beam workpiece, chains act on workpieces; At the completion of operation, chains drop down below surface of production line conveyors, not hindering sending forward of BOX Beam to next operating station;
3) Telescopic Style Holding Columns--- Chains of this Chain Overturn Machine are arranged in closed loop, encircling the both sides arrays of holding columns, making the columns working as both holding unit and manipulating arms;
4) Durable Manipulating Element: As core units of the machine, rollers chains are of high strength and high toughness style, making sure high productivity;
5) Delicate Design: Design and structure of this Chain Flipping Machine boost high safety, reliable and stable operation;

4. Work Principle of Chain Turnover Machine:

1) Quantity of Holding Columns: For one set of equipment, there are totally 4 pieces of telescopic columns, which operate in 2 pairs;
2) When Not in Work: Workpiece BOX Beam lies on conveyor of Production Line; The upholding columns retract to its bottom position, and roller chains drops beneath top surface of conveyors;
3) During Work: For smoothly flipping workpiece, and with start of Chain Flipping Machine, its 4 pieces of upholding columns rise up synchronously, lifting workpiece off surface of conveyor;
4) Turning Over Action: Meanwhile, roller chains begin to revolve, leading workpiece into flipping;
5) Elevation Action: Until workpiece is turned to its target orientation, rollers chains stop revolve, and the 4 pieces of telescopic upholding columns retract and lower down to its bottom position, and lowering down workpiece back to conveyor again;
6) Integrated Control of this Chain Turnover Machine is integrated with that of the Production Line conveyor, with control board sitting alongside both sides of the conveyor, which is convenient and easy to operate;

5. Drive Form in Chain Overturn Machine:

1) Ascending and descending of the 4 pieces of upholding columns in is hydraulic drive;
2) Revolve of roller chains is motor reducer drive, which can be made in both directions of forward (CCW) and reverse (CCW);

6. Technical Parameters of Steel Structure Beam Chain Turnover Machine:

 Rated Flipping Capacity (With 4 sets of Upholding Columns Working Together) 3 Ton
 Cross Section Size of Workpiece 150 x 150 ~ 800 x 800 mm
 Max. Length of Workpiece Flexible, depends on conveyor length and on site columns installation
 Distance between 2 pairs of Upholding Columns Flexible
 Upholding Column Rising Up Drive Hydraulic Oil Cylinder
 Max. Hydraulic System Pressure 12 MPa
 Turning Over Linear Velocity Constant, 3000 mm/min.
 Turning Over Motor Power 1.2 kW x 2

FAQ on Manipulator Chain Turnover Machine

  • Q What are Consumables and Service Life of Manipulator Chain Overturn Machine and Chain Conveyor?

    A
    1. The major easy worn part is chains, which have many times friction and revolve during daily operation; The proper state of chains not only guarantee normal operation of the manipulator Chain Turnover Machine, but more importantly, safety assurance on operators and workshop utilities;
    2. So, Chain Manipulator need to be checked every shift before and after operation, and replace in time if necessary;
    3. Wuxi JACK adopts with high strength and durable chains for all of our Chain Manipulator. Customer had better also replace with high quality chains;
    4. Using properly, one set of manipulator Chain Flipping Machine has at least 10 years service life.

  • Q When Installing and Operating on Manipulator Chain Flipping Machine, what should be taken care?

    A
    1. The foremost is safety. Although when designing the equipment, Wuxi JACK has fully considered security running, as the owner of on site management, customer team need to identify and remove all potential hazards on running the equipment;
    2. Manipulator Chain Flipping Machine and Chain Conveyor work in rigorous environment. It deals with heavy steel workpieces every day. So, proper service is of vital importance, on making sure long term reliable performance of the equipment. Wuxi JACK provides guidance on proper operation of the Manipulator Chain Overturn Machine, and customer should set up and execute TPM (Total Preventive Maintenance Plan), utilizing experience.

  • Q When Purchasing Manipulator Chain Overturn Machine, what should be considered?

    A These are major points for attention:
    1. Workpiece type and dimension/ weight, especially the min. and max. length/ Cross section size;
    2. On site process technology and layout requirement, which kind of operation to fulfilled;
    3. Which machine and equipment to work with;
    4. The major tasks (Work motion) of the equipment;
    5. Budget level;
    These factors determine structure and loading capacity of the manipulator Chain Overturn Machine.

  • Q What are Major Strong Points of Manipulator Chain Turnover Machine?

    A
    1. Benefitting from flexible design and soft chain, the most important advantage of manipulator Chain Flipping Machine is its wide adaptability: Unlike overturning rack, which uses hard L arm as its manipulator, here the flexible Chain Manipulator can fit workpieces of varied cross section sizes and shapes;
    2. Application site of Chain Turnover Machine is also multiple: It can traditional production line, and also individual work station;
    3. Besides, on site layout of the equipment can also be adjusted with time going, when specifications of workpiece changed, or process technology goes different.

  • Q What Are Major Types and Specifications of Chain Manipulator Turnover Machine?

    A
    1. Manipulator Chain Overturn Machine comes in wide variety. The most obvious feature of it is special design: There is no identical standard products that can be replicated from one customer to another;
    2. General speaking, this equipment is suitable for steel structure workpieces of up 20m length, and 1 ton to 20 ton weight; Its Chain Manipulator can fulfil tasks of workpiece infinite revolve, and elevation;
    3. As to drive way, majority is with hydraulic oil cylinders; In the case of light duty, for manipulating several hundreds kilograms of workpiece, the drive source can be motor reducer.

  • Q What are Most Applicable Sites and Workpieces of Chain Manipulator Overturning Machine and Chain Conveyor?

    A
    1. This equipment is especially suitable for being applied in flexibly arranged working sites, not only sizes/ structure of workpieces, but also layout and work station arrangement of production line;
    2. The structure and sizes, especially cross section dimension and length of steel structure Beam can be varied in broad scope, from 100mm to 1.5m, and lengths also. Especially long workpieces fabrication. The cross section outline of workpiece can be different;
    3. When it is necessary to adjust on work station deployment on BOX H Beam and other steel structures, manipulator Chain Flipping Machine is a good choice for customers.

Wuxi JACK Other Superior Quality and the Best Selling Steel Structure Machinery:

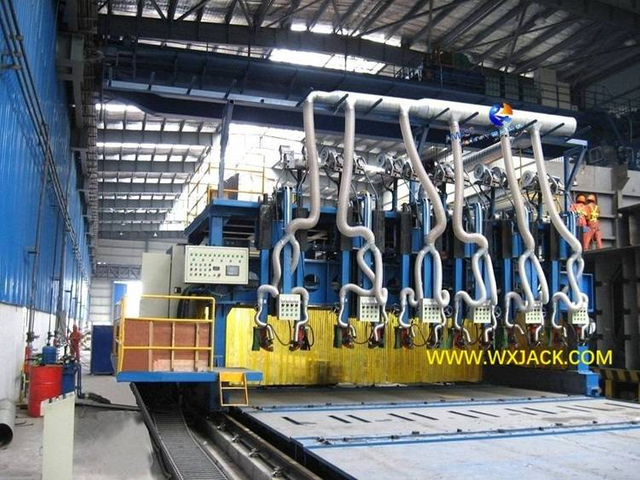

T Beam Production Line
HB1500 Automatic H Beam Production Line
HB1800 Automatic H Beam Production Line
BOX1200 Automatic BOX Beam Production Line

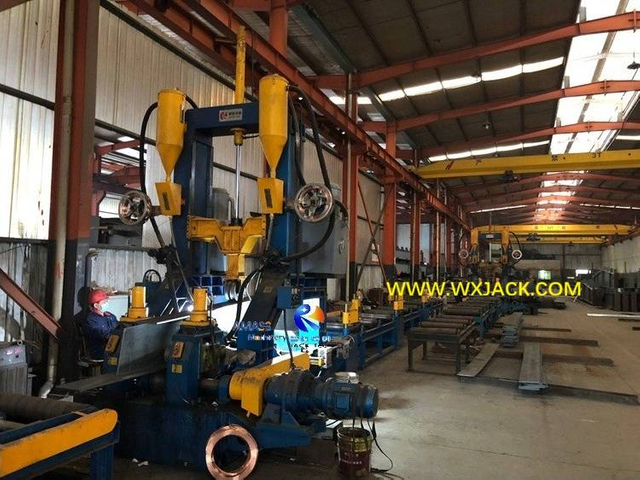

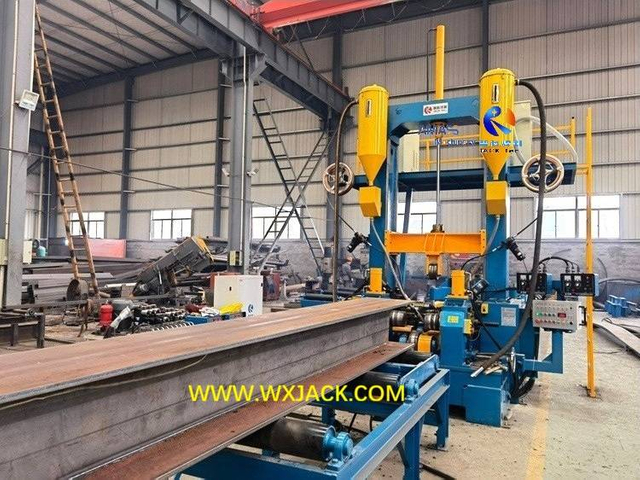

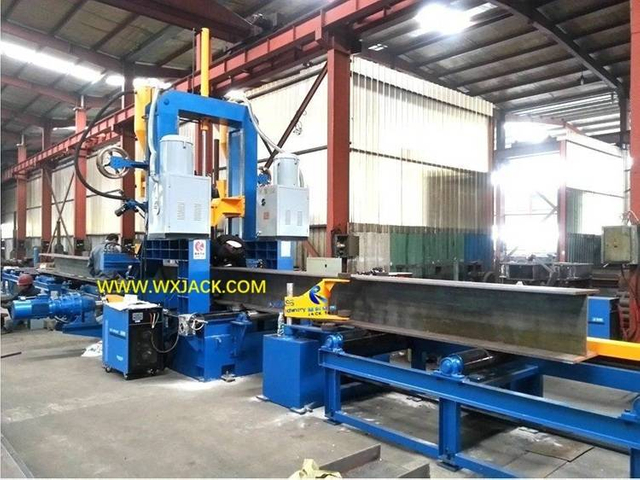

3 in 1 H Beam Assembly Welding Straightening Integral Machine (3 in 1 H Beam Fabrication Machine):

Single set of PHJ15
Single set of PHJ18
Single set of ZHJ15
PHJ15 Automatic H Beam Fabrication Line with 90° Rack Turnover Machine

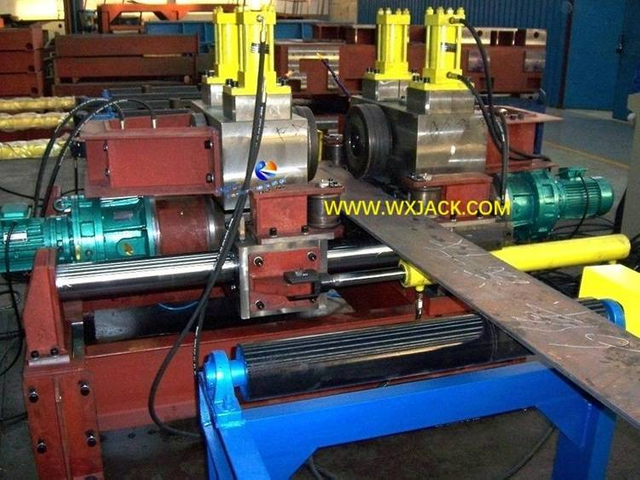

RH1000 Edge Rounding Machine

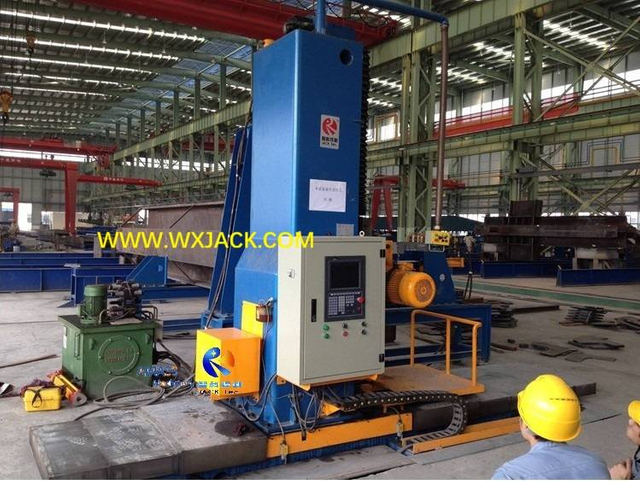

CNC-DX1520 Steel Structure Beam CNC End Face Milling Machine

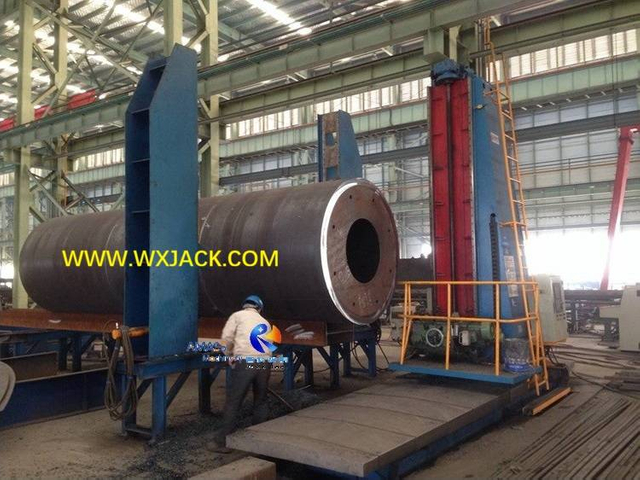

CNC-DX2020 Steel Structure Beam Pipe CNC End Face Milling Machine

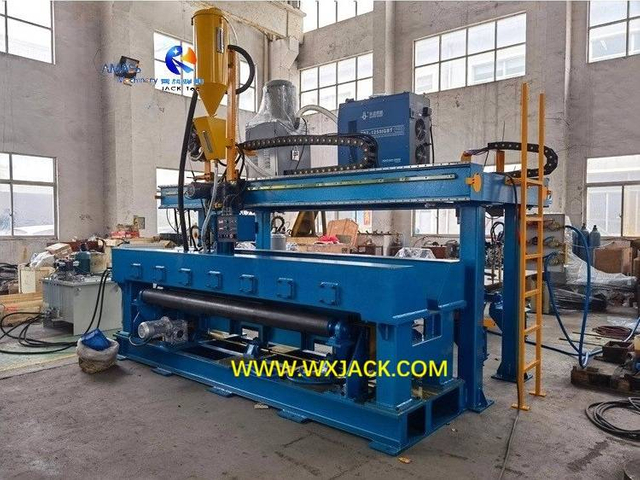

MP30 Plate Butt Joint Welding Machine

Other Products We Own besides Steel Structure Beam Chain Manipulator Equipment

General Purpose Automatic Lengthwise ASM63 Angle Steel Straightening Machine
General Purpose Automatic Lengthwise ASM63 Angle Steel Straightening Machine
1. What can ASM63 do for Customer?
2. Why You need Angle Straightening Machine?
3. The Good Points of ASM series Machine:
4. Technical View on ASM63:
5. Technical Parameters of ASM63:
0
0
Double Individual U Frame Chain Manipulator Overturning Machine on Steel Structure Beam
Double Individual U Frame Chain Manipulator Overturning Machine on Steel Structure Beam
1. Purpose of Equipment
2. Structure and Work Principle of Equipment
3. Operation Process in Equipment
4. Main Units and Supply Range of Equipment
5. Technical Parameters of Equipment
0
0
Symmetric Beam ZHJ18 Model 3 in 1 Vertical H Beam Welder Machine
Symmetric Beam ZHJ18 Model 3 in 1 Vertical H Beam Welder Machine
A. Product Brief on ZHJ18 Model:
B. Technical Comparison on PHJ Versus ZHJ Series:
C. Quality Control on PHJ and ZHJ Series 3 in 1 Machine:
D. Technical Parameters of ZHJ18:
0
0
Steel Column Member Use DX1520 End Face Milling Machine
Steel Column Member Use DX1520 End Face Milling Machine
A. Function and Application of DX1520:  Applicable Workpieces/ What Service can DX1520Provide for Customer?/ Milling Operation Control Type
B. Workpiece Clamping Table of DX1520:  Task of Workpiece Clamping Table/ Structure
C. Structure of DX1520:  Stationary Width Direction Bed/ Moving Upright Column/ Milling Head Carriage
D. Technical Parameters of DX1520
0
0
HMI Control Advanced Function SXBJ-12 Large Edge Milling Machine
HMI Control Advanced Function SXBJ-12 Large Edge Milling Machine
A. Function of SXBJ-12:
B. Structure and Main Units in SXBJ-12:
C. Workpiece Steel Plate Feeding System in SXBJ-12:
D. Electric Control System of SXBJ-12:
E. Technical Parameters of SXBJ-12:


0
0
MP20 To MP50 Sheet Metal Steel Plate Butt Joint Welding Machine
MP20 To MP50 Sheet Metal Steel Plate Butt Joint Welding Machine
A. Usage and Great Value of MP20 to MP50:  Usage/ Specification/ material of Metal Steel Plate/ Welding Mode/ Application Scenario/ Benefit on Productivity, Variable Cost, and Safe Operation
B. Main Function Units: General Layout / Flame Triple Cutting Torch/ SAW Butt Welding System / Copper Pad and Welding Base/ Welding Torch Unit
C. Technical Parameters of MP20 to MP50
0
0
6 And 7 Axis CNC-CP6/7-2000~3000/L CNC Large Pipe Cutting Machine
6 And 7 Axis CNC-CP6/7-2000~3000/L CNC Large Pipe Cutting Machine
A. Applicable Workpiece and Application of CNC-CP6/7-2000~3000/L:  Workpiece Sizes and Models/ Applied Industries/ Functions
B. Technical Characteristics of CNC-CP6/7-2000-3000/L:  The 6th V Axis and 7th W Axis/ Cutting Torch Swiveling Unit
C. Main Units of CNC-CP6/7-2000-3000/L:  Mechanical System/ Electric Control System
D. Operation on CNC-CP6/7-2000-3000/L:  Operation Station/ Generating Cutting Program/ Workpiece Supporting Tools
E. Technical Parameters of CNC-CP6/7-2000-3000/L
0
0
CNC-CG6000 To CNC-CG10000 Large Span CNC Shape Cutting Machine
CNC-CG6000 To CNC-CG10000 Large Span CNC Shape Cutting Machine
A. Scope and Operation Feature of Large Model:  Percentage of Conventional Versus Large Models/ Scope and Operation Features of Large Models
B. Usage and Great Value of Large Models:  Function/ Put into Use/ Double Drive/ Operation/ Benefits
C. Control and Drive Units of Large Models: CNC and Electric Control System/ Servo Drive System/ Cutting Torch Transverse Moving Unit
D. Mechanical Frame and Thermal Cutting Systems of Large Models:  Supplementary Cutting Function Units/ Mechanical Frame/ Oxygen fuel flame cutting gas circuit system/ Plasma Power Supply
E. Technical Parameters of CNC-CG6000 to CNC-CG10000 Large Models
0
0
ASM100 and ASM130 Medium Level Angle Steel Straightening Machine
ASM100 and ASM130 Medium Level Angle Steel Straightening Machine
Summary on ASM100 and ASM130:
1. Purpose of ASM100 and ASM130:
2. Top and Bottom Straightening Rollers, the Core Element in Guaranteeing Quality of ASM series:
3. Technical Parameters of ASM100 and ASM130:
0
0
RH1500 To RH3000 BOX Frame Structure Edge Rounding And Trimming Machine
RH1500 To RH3000 BOX Frame Structure Edge Rounding And Trimming Machine
A. Applicable Workpieces and Characteristic of RH1500 to RH3000:  Sheet Metal Width/ Structure/ The difference among models
B. Application Background of RH1500 to RH3000:  Business/ Benefits for Customers/ Working Site
C. Technical View on RH1500 to RH3000:  Central Working Unit / Operation
D. Process Control on RH1500 to RH3000:  Process Control Parameters / Tasks of Operator
E. Technical Parameters of RH1500 to RH3000
0
0

Steel Structure Beam Chain Overturn Machine Blogs

  • The Advantage of Angle Steel Straightening Machine for Customer

    The Advantage of Angle Steel Straightening Machine for Customer
    Advantage of ASM series Angle Steel Straightening Machine Progress of the ASM series Angle Steel Straightening Machine Prospect of the ASM series Angle Steel Straightening Machine Summary on Wuxi JACK Angle Steel Straightening Machine Read More
  • Technical Analysis on Steel Structure Overturning Equipment

    Technical Analysis on Steel Structure Overturning Equipment
    1. Brief on this Article on Steel Structure Overturning Equipment: 2. Demand on Steel Structure Flipping Equipment: 3. Classification on Steel Structure Overturning Equipment: 4. Characteristics and Design of Steel Structure Flipping Equipment: 5. Apply of Steel Structure Overturning Equipment: Read More
  • Edge Rounding machine and Stiffener Plate Straightening machine delivered for ZPMC

    Edge Rounding machine and Stiffener Plate Straightening machine delivered for ZPMC
    In early Apr. 2021, three sets of heavy-duty machine were shipped from Wuxi JACK Technology to a famous Chinese Port Machinery Group in Shanghai --- ZPMC (ZHENHUA Port Machinery Company). Constitutes and Application of the three machines:1 The three delivered machines include:1) One set of RH3 Read More
Home

Home Products About Us R&D Customization FAQ Blog Contact Us

WUXI AMASS MACHINERY CO., LTD
WUXI JACK TECHNOLOGY CO., LTD
0510-83297829
English Language: 15852755799;
Chinese Language: 13621515089
support@WXJACK.com
No. 2, Ouyang Road, Luoshe Town, Wuxi City, Jiangsu Province, China
CONTACT US
© Wuxi AMASS Machinery Co., Ltd  2021 All Rights Reserved.
备案证书号：苏ICP备13045244号-1
