A. The Subject of this Page on Wuxi JACK Hobbing Cutter:

1. This page is for overall introduction on Wuxi JACK Hobbing Cutter Shearing Machine, in the form of graphical text illustration, covering the topics of:

1) Function and Specification of this Wuxi JACK Small Plate Beveling Machine;
2) Technical Advantages and Fluent Operation of this Wuxi JACK Small Plate Edge Milling Equipment;
3) Centralized Display of several Wuxi JACK Hobbing Cutter Shearing Machine;
2. Our purpose is, with quick reviewing on this web page, customers and anyone who has interest on product family of Hobbing Cutter Edge Milling Machine, can have a general and comprehensive impression on it;
3. Source: This web page is complied on the basis of power point slides “Wuxi JACK Hobbing Cutter Shearing Machine”.





B. The Function and Usage of Hobbing Cutter Shearing Machine:

1. Task: Hobbing Cutter Shearing Machine is a kind of Small Plate Edge Milling Equipment, for the purpose of making grooving on edges of small metal plate, so as to make preparation on ensuing welding operation;
2. The related equipment with Hobbing Cutter Shearing Machine, which have same function of making beveling on metal plates, but work in different principle, with different mechanical structure and overall dimensions are:

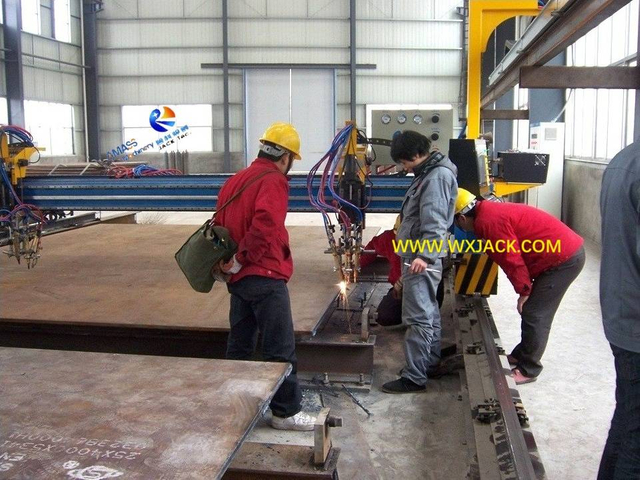

1) CG series Triple Flame Plate Cutting Machine;

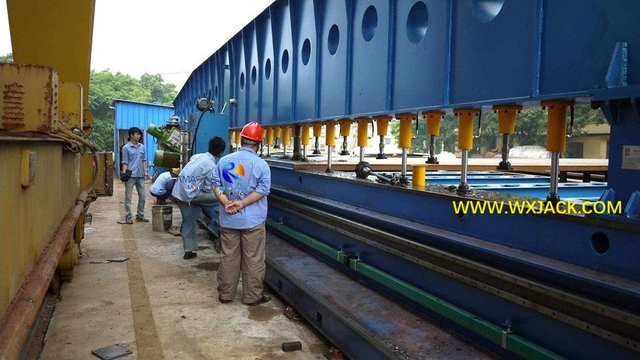

2) XBJ series Plate Edge Milling Machine;

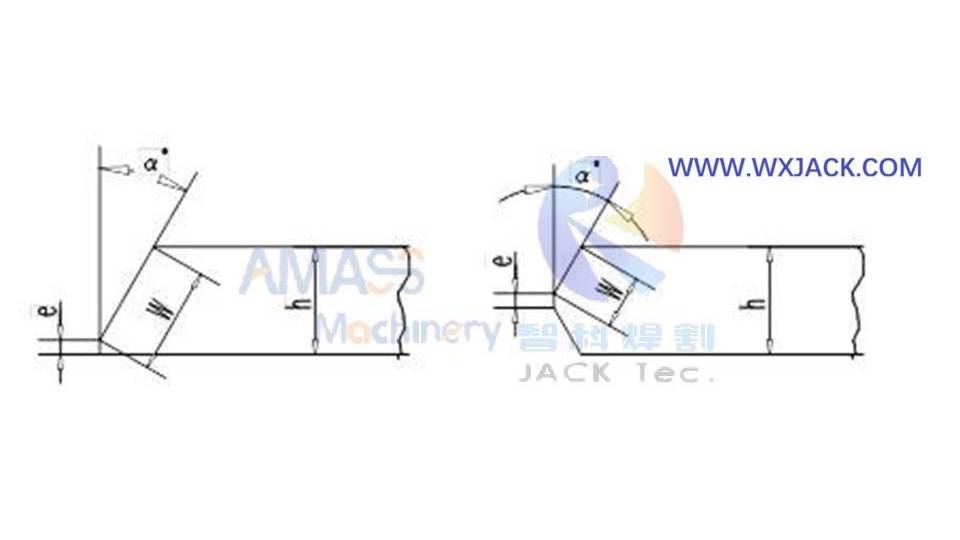

3. The illustration indication on workpiece metal plates parameters for GD20 Small Plate Beveling Machine: (Fig.1)

Fig1 Hobbing Cutter Shearing Machine 14

Here, the meaning of letters in the above sketch for the Hobbing Cutter Shearing Machine:


 --- Length of slant edge of finished beveling on workpiece metal plate;
 α --- Beveling angle of welding groove delivered from the Small Plate Edge Milling Equipment;
 e --- The minimum height of straight edge of welding groove on edge of metal plate;
 h --- Thickness of workpiece metal plate for the Small Plate Beveling Machine;

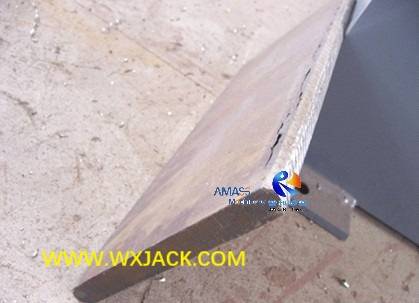

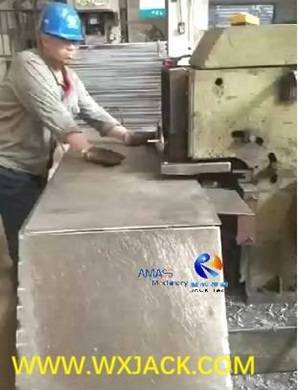

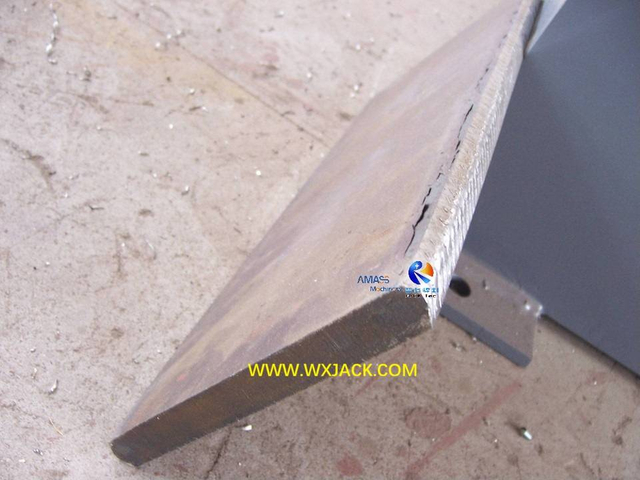

4. The Finished Beveled Steel Plate machined from Wuxi JACK GD20 Hobbing Cutter Small Plate Edge Milling Equipment: (Fig.2)

Fig2 Hobbing Cutter Shearing Machine 8











C. For Deep Down Exploration on Business and Technical Details of Wuxi JACK Hobbing Cutter Small Plate Beveling Machine, please visit thematic product pages of:

1. Welding Fixture;
2. CG series Plate Triple Flame Cutting Machine;
3. XBJ series Edge Milling Machine;
4. Gathering of Wuxi JACK Welding Machine

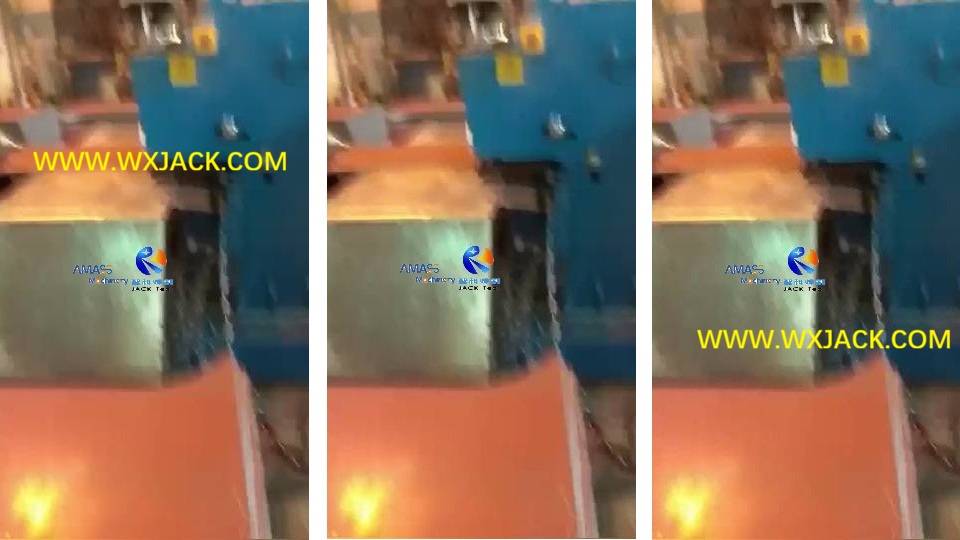

D. Working Videos of Wuxi JACK Hobbing Cutter Small Plate Edge Milling Equipment:

E. The General Introduction and Technical View on Wuxi JACK Hobbing Cutter Shearing Machine:

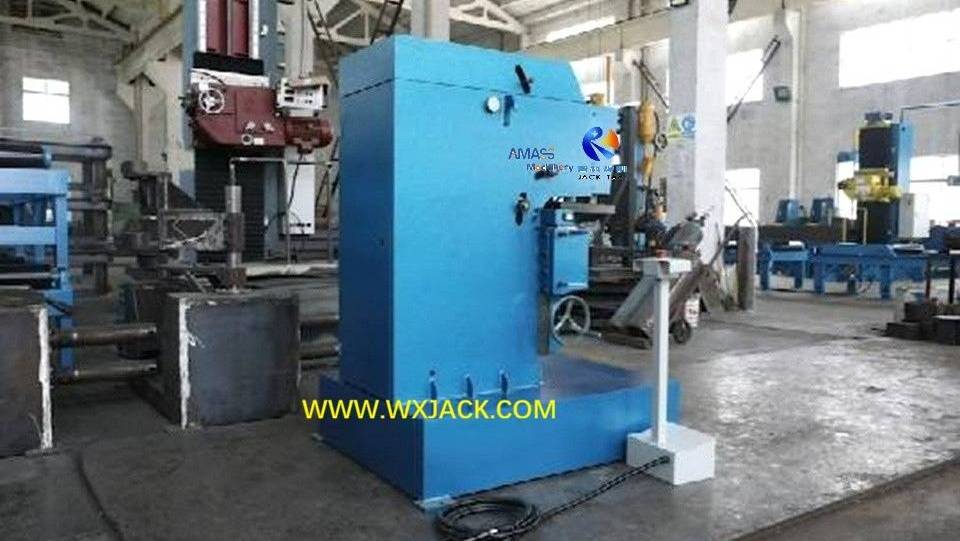

Slides 1: The Technical Details of Wuxi JACK GD20 Hobbing Cutter Small Plate Edge Milling Equipment Delivered to Customer:

This page of Slides is on superior beveling ability of Wuxi JACK Hobbing Cutter Small Plate Beveling Machine:

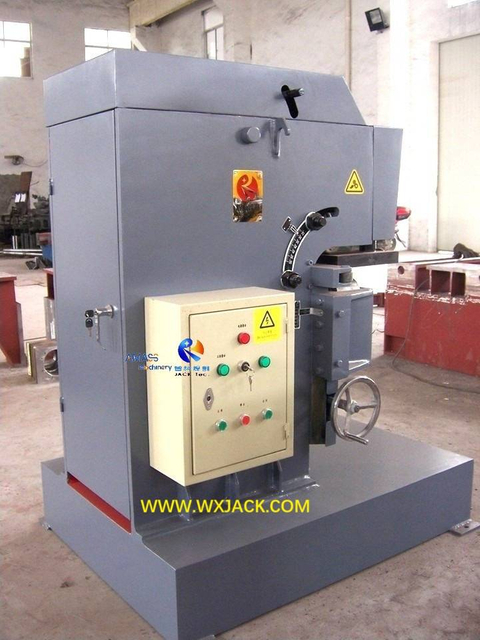

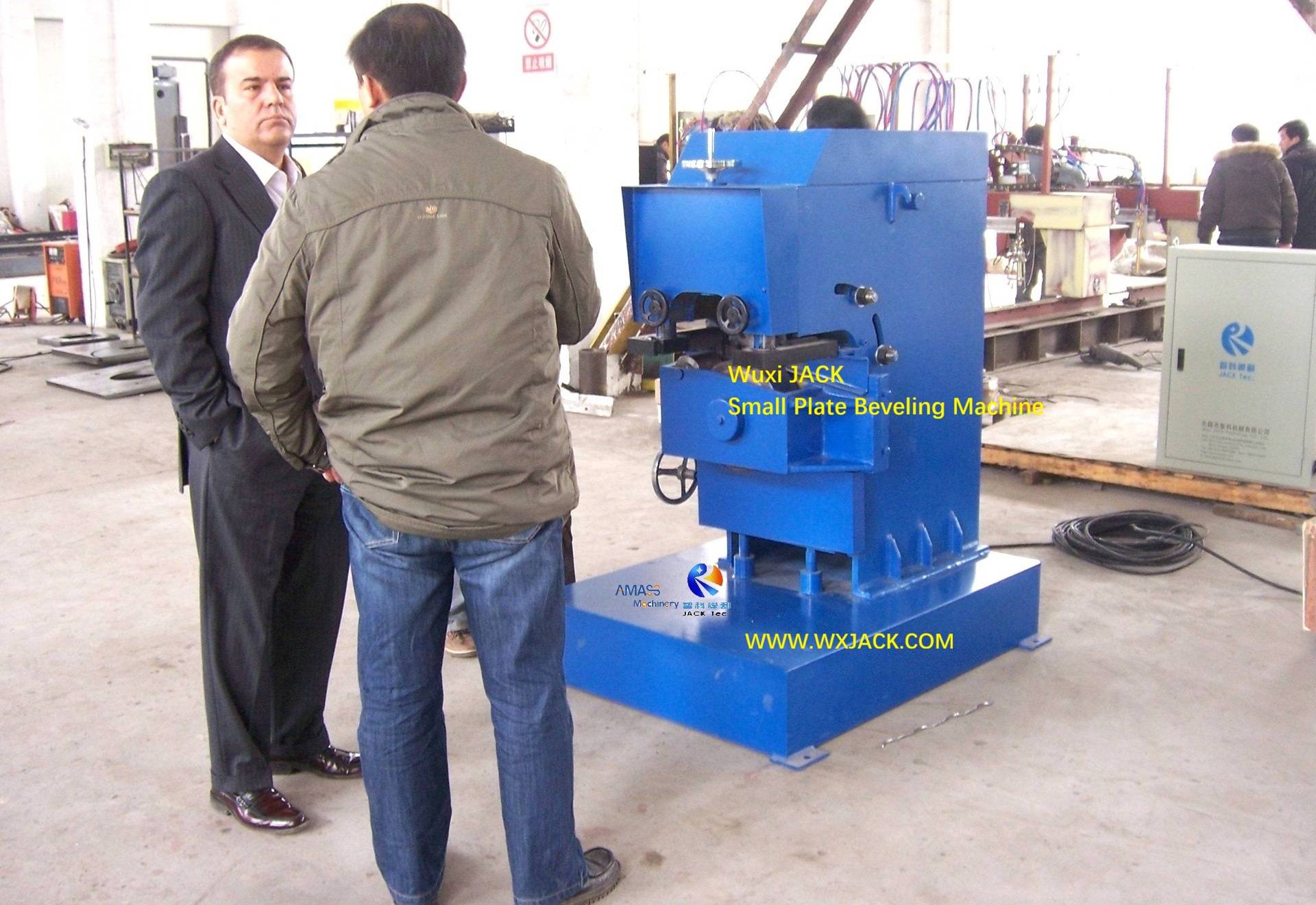

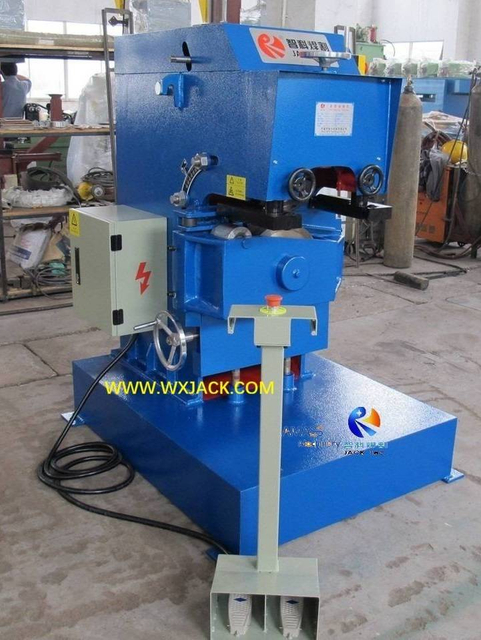

1. One Standard Model GD20 for All the Hobbing Cutter Shearing Machine:

1) Wuxi JACK produces one model for our Hobbing Cutter Shearing Machine: GD20;

2) This is because of its compact size of the main frame: 1240mm length x 940mm width x 1500mm height, which useful for transportation, installation and relocation;


2. Materials of Workpiece Metal Plate for the GD20 Small Plate Edge Milling Equipment:

1) Utilizing the high strength milling cutter, GD20 Hobbing Cutter Shearing Machine can be used for machining all kinds of metal plates:
2) Tensile strength from 400 δb N/mm2 for carbon steel, to 600 δb N/mm2 for 16Mn;


3. Finished Beveling Specifications from GD20 Hobbing Cutter Small Plate Beveling Machine:

1) Grooving angle ranges from 25° to 55°;
2) Max. thickness of working parts metal plates is 40mm;


4. Running of the GD20 Hobbing Cutter Shearing Machine:

1) Plate beveling working velocity is 3400 mm/min.;

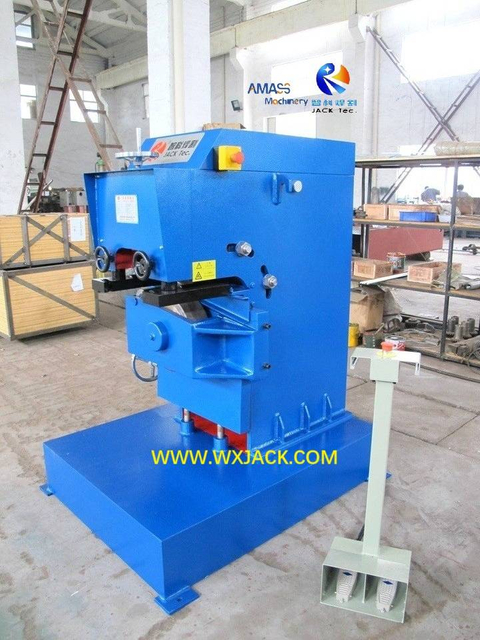

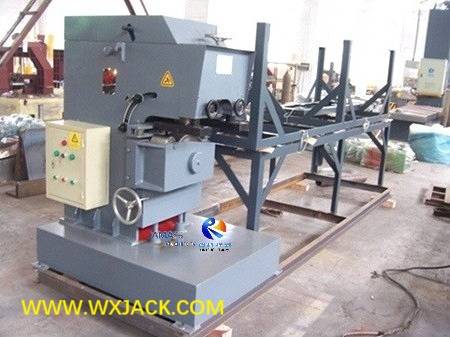

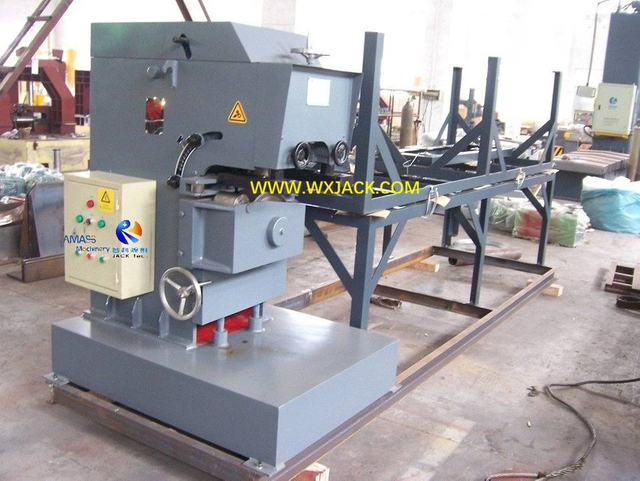

2) As shown in the left photo of page of Slides, there is a group of supporting racks, for holding the metal plates reliably and sending smoothly during operation of the Hobbing Cutter Small Plate Beveling Machine.

Slides 2: The User Friendly Operation and Precise Management of Wuxi JACK Hobbing Cutter Small Plate Beveling Machine:

This page of Slides is on convenient operation and accuracy of Wuxi JACK Hobbing Cutter Small Plate Edge Milling Equipment:

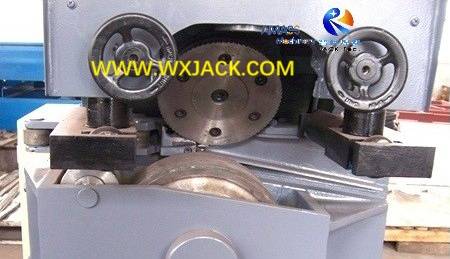

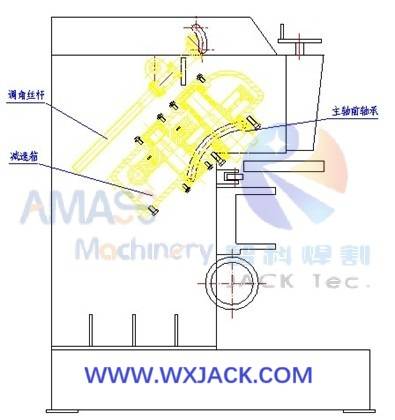

1. The Left Photo: Working Principle of GD20 Hobbing Cutter Shearing Machine:

1) Working zone is at middle of main frame of the GD20 Hobbing Cutter Small Plate Beveling Machine;

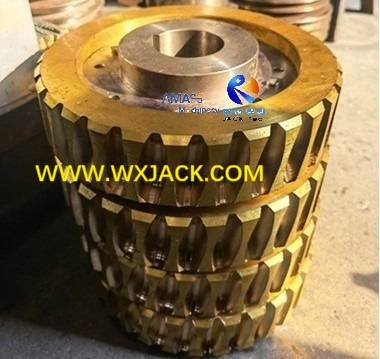

2) The large diameter milling cutter with rims of sawtooth is installed at upper middle position of the Hobbing Cutter working zone;

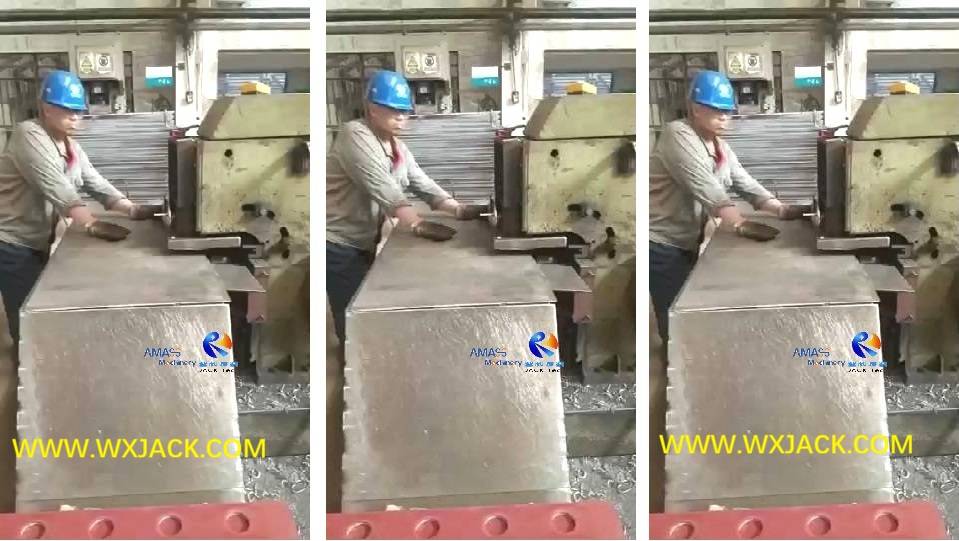

3) Beveling Operation: During running of the Small Plate Edge Milling Equipment, this milling cutter revolves in high speed revolution, performing edge milling on edges of small plate;
4) The feeding forward of workpiece metal plates through Hobbing Cutter Shearing Machine is realized by means of a piece of larger roller at the bottom, which, with its rotation, guiding the metal plates forward in the working speed of edge beveling;

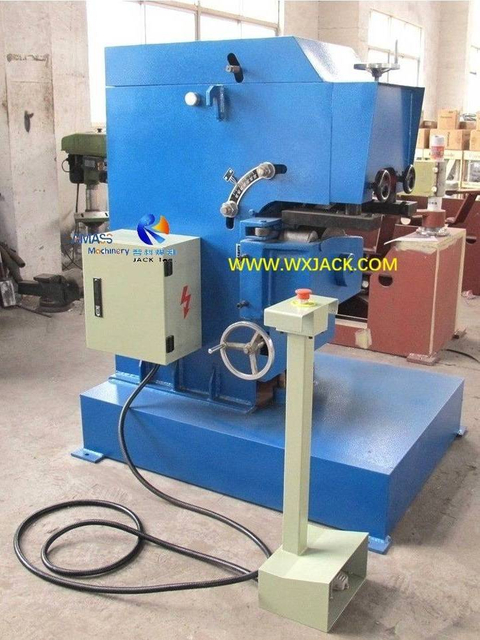

2. The Middle Photo: Convenient and Precise Operation of GD20 Hobbing Cutter Small Plate Beveling Machine:

1) Milling Angle Adjustment and Indication: This is adjusted by means of turning rod, which is installed on the wall board of the Hobbing Cutter, and indicated intuitively on the angle ruler, which is assembled on lateral side of wall board;
2) Adapting for Metal Plate Thickness: There are handwheels installed at both sides of Hobbing Cutter Shearing Machine working area, for adjusting vertical position of milling cutter, based on varied thickness of workpiece metal plate, being machined in the Hobbing Cutter Small Plate Beveling Machine at that moment;
3) Foot Pedal Switch is equipped with this GD20 Small Plate Edge Milling Equipment, which, not only helps operator changing his working position, but also helps relieving operators both hands, for the convenience of doing alternative operating jobs;



3. The Right Photo: The completed beveled workpiece steel plate, produced from the Wuxi JACK GD20 Hobbing Cutter Shearing Machine.

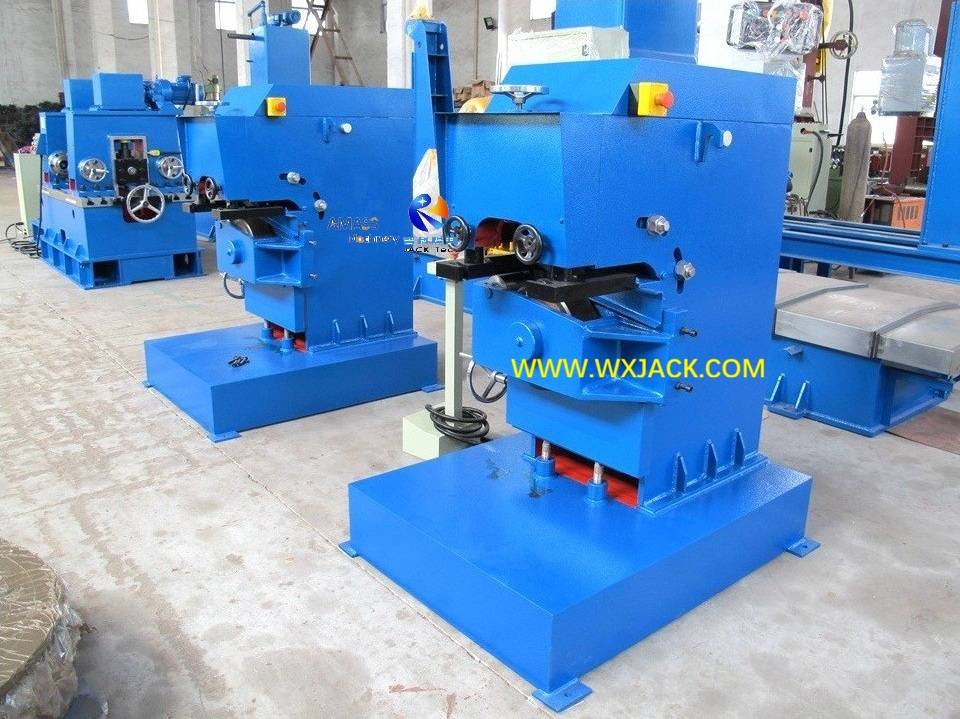

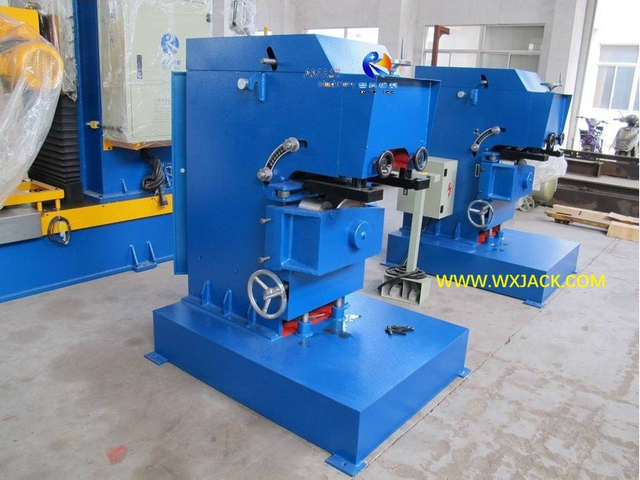

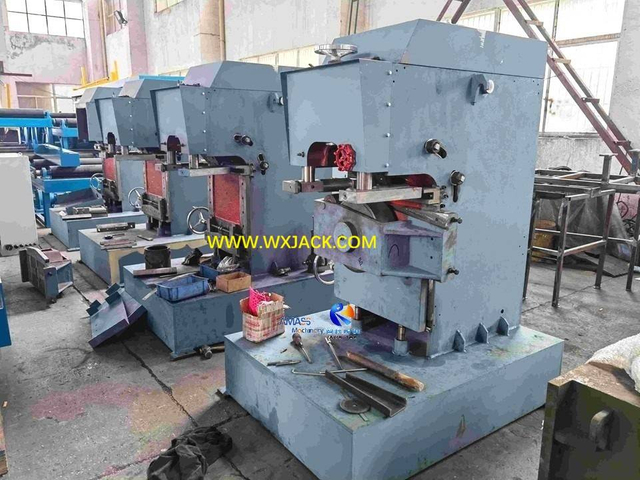

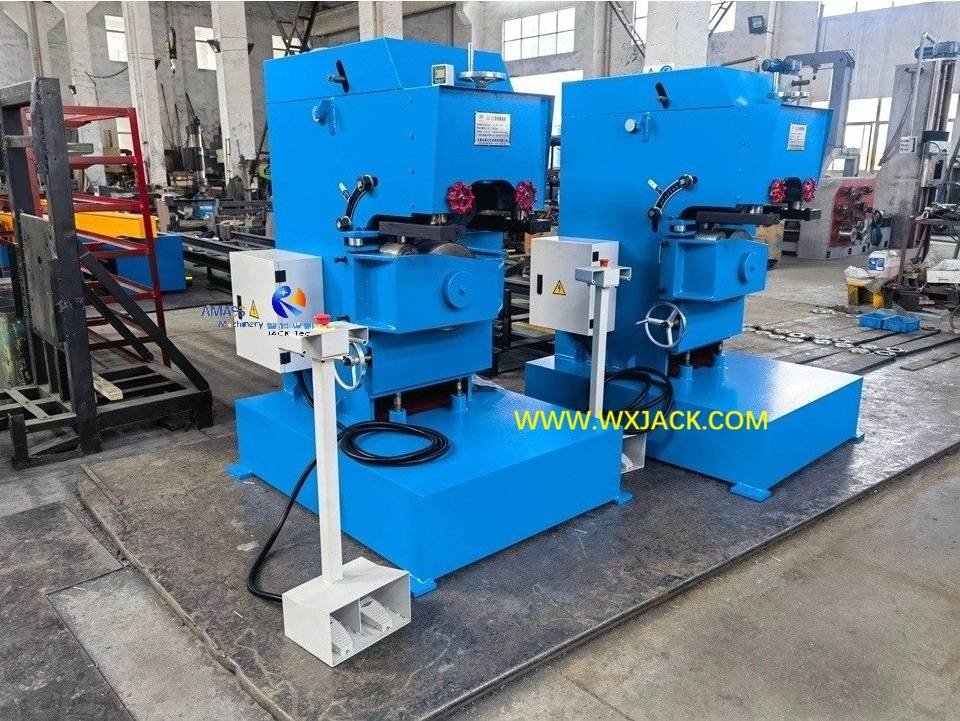

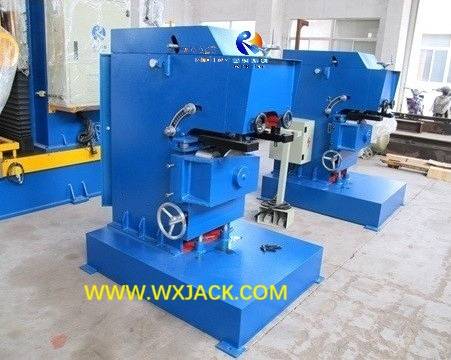

Slides 3 and 4: The Centralized Display on Business Cases of Wuxi JACK Hobbing Cutter Small Plate Beveling Machine:

These 2 pages of Slides are on integrated presentation of Wuxi JACK Hobbing Cutter Shearing Machine:


1) GD20 Hobbing Cutter Small Plate Edge Milling Equipment is featured product of Wuxi JACK;
2) We have delivered numerous large volume of GD20 Hobbing Cutter Shearing Machine to Chinese and Overseas customers in the past decade.



H Beam Production Line
01

CNC Plate Cutting Machine
02

Edge Milling Machine
03

Other series of Products We Own besides Hobbing Cutter Small Plate Beveling Machine

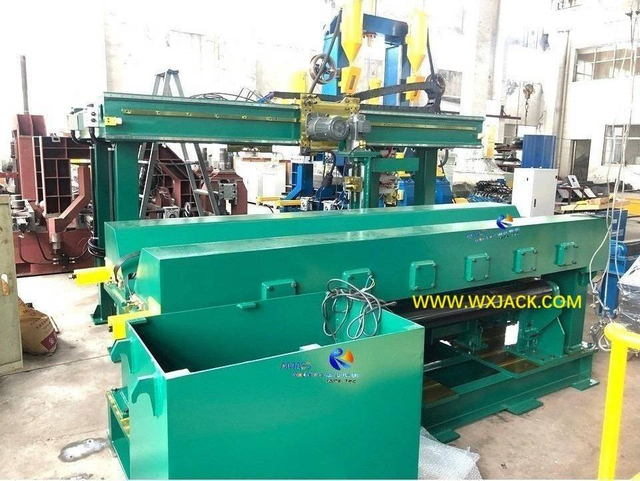

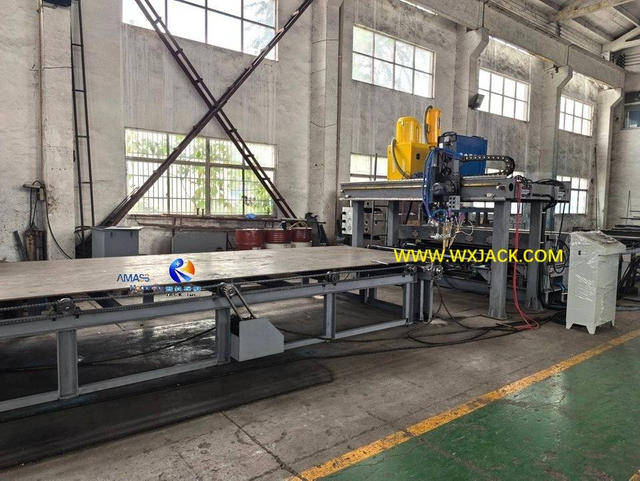

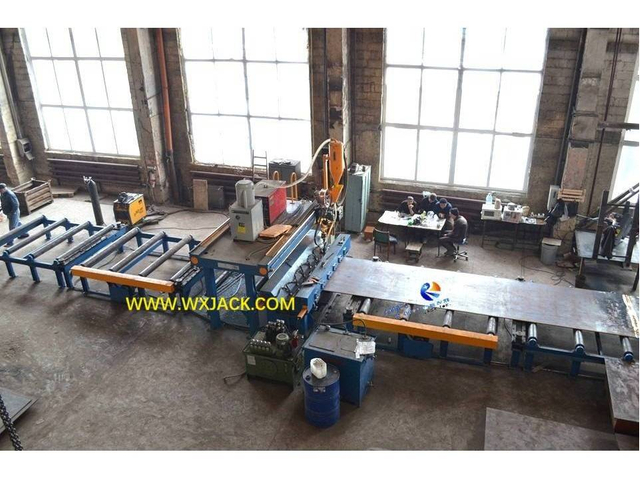

1. Application of MP20 Plate Butt Joint Welding Machine:
2. Structure and Working Principle of MP Series Plate Butt Welding Joint Machine:
3. Technical Parameters of MP20 Plate Butt Weld Joining Machine:

0
0
1. Application of DX1520 H Beam End Face Milling Machine:
2. Function Briefs of DX1520 H Beam End Face Milling Machine for Steel Structure Member:  Precise Linear Guiderails of both directions for Precision Guarantee / Working Speed Control / Working Tool of Powerful Milling Head/ Operation / Workpiece Clamp
3. Technical Parameters of DX1520 H Beam End Face Milling Machine:
0
0
1. What can ASM63 Angle Steel Straightening Machine do for Customer?
2. Why You need Angle Straightening Machine?
3. The Good Points of ASM series Angle Steel Straightening Machine:
4. Technical View on ASM63 Angle Steel Straightening Machine:
5. Technical Parameters of ASM63 Angle Steel Straightening Machine:
0
0
A. Uniqueness of 7 Axis 3000/12 Heavy duty Oxy-fuel Plasma CNC Pipe Cutting Machine:
B. The Challenge on Developing Mature 7 Axis 3000/12 Heavy duty Oxy-fuel Plasma CNC Pipe Intersection Cutting Machine:
C. The 7 Axis of CNC in Heavy duty Oxy-fuel Plasma CNC Pipe Intersection Cutting Machine:
D. User Friendly Design in Wuxi JACK Heavy duty Oxy-fuel Plasma CNC Pipe Cutting Machine:
E. Technical Parameters of 7 Axis 3000/12 Heavy duty Oxy-fuel Plasma CNC Pipe Intersection Cutting Machine:
0
0
1. The Definition and Characteristic of HB series Universal Welding Positioner:
2. Technical Features of the HB series Universal Rotary Welding Positioner:
3. Technical Parameters of the HB series Single Welding Turning Table Welding Positioner:
0
0

Hobbing Cutter Shearing Machine Blogs

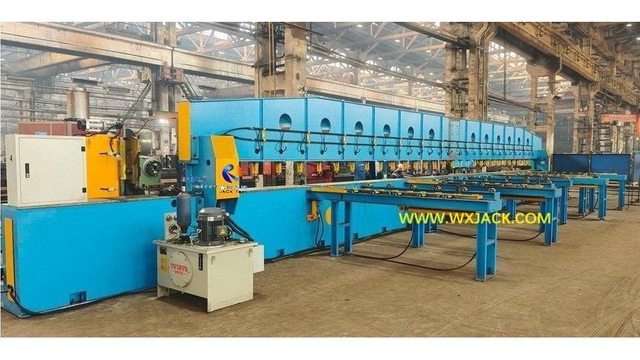

  • A Set of SXBJ-3 Edge Milling Machine Made Shipment to Russia
