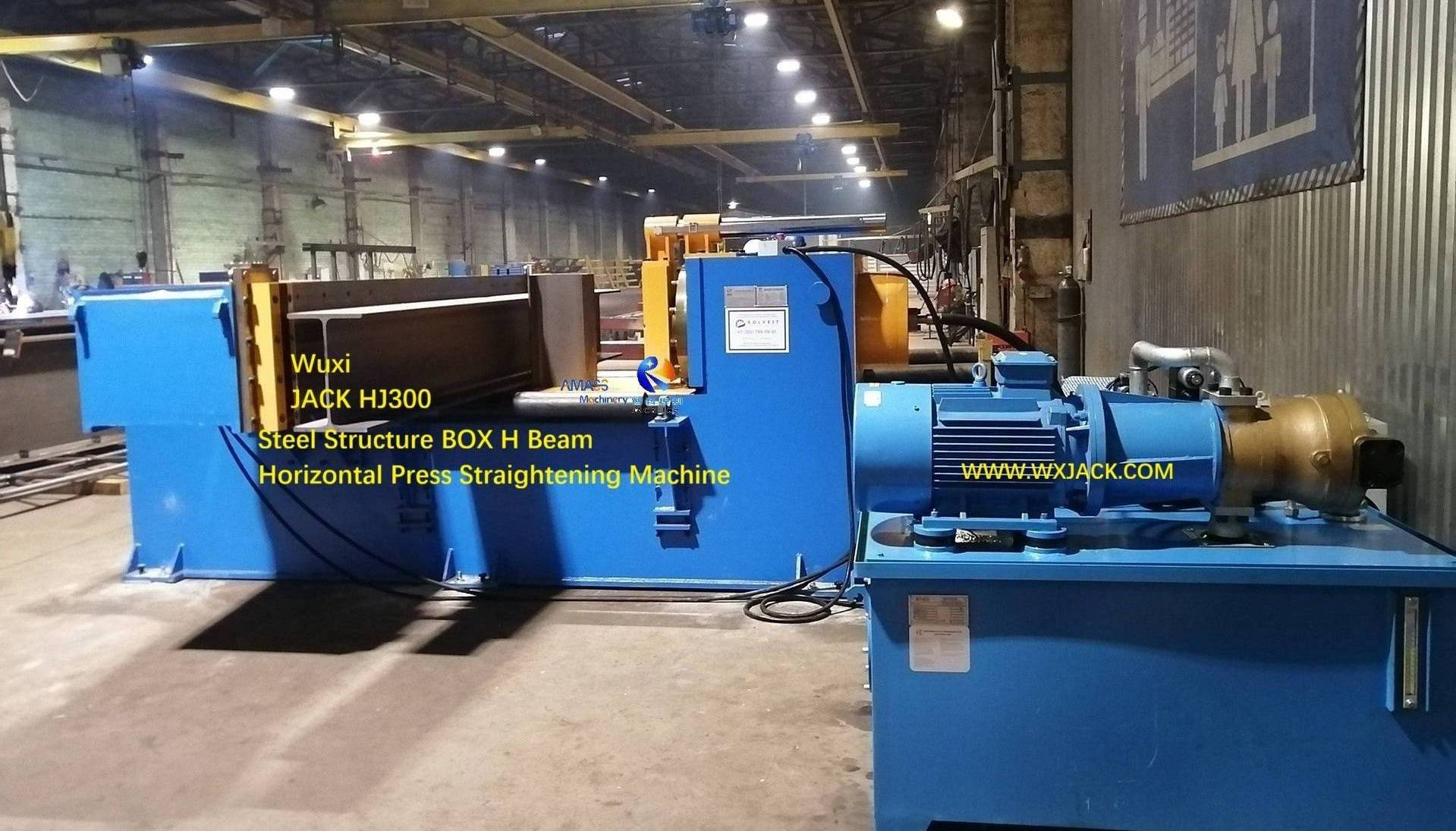

Steel BOX H Beam Horizontal Press Straightening Machine 7

Wuxi JACK Steel BOX H Beam Horizontal Press Straightening Machine,

Correcting Longitudinal Deform of Workpieces with Solid Force and High Efficiency

Suitable Workpieces of BOX H Beam Longitudinal Straightening Machine

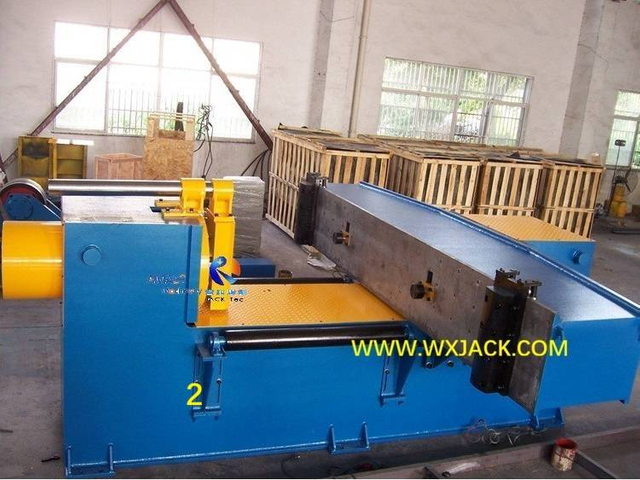

As part of product team H Beam Straightening Machine, steel Beam Lengthways Straightening Machine focuses on longitudinal deform along the entire length of working parts, including but not limited to: H Beam/ BOX Beam/ Section Steel/ Pipe/ Any elongated steel structure:

Length direction winding H Beam to be straightened in steel BOX H Beam Lengthways Straightening Machine: (Fig.1)

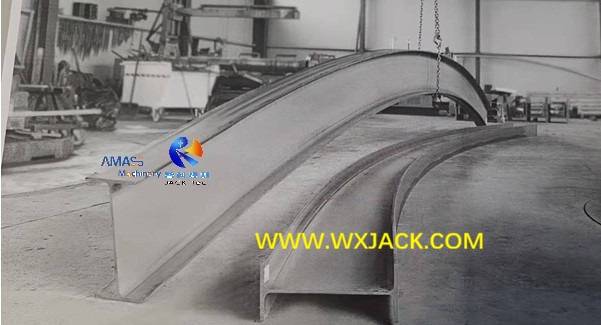

Fig1 Steel BOX H Beam Horizontal Press Straightening Machine 1

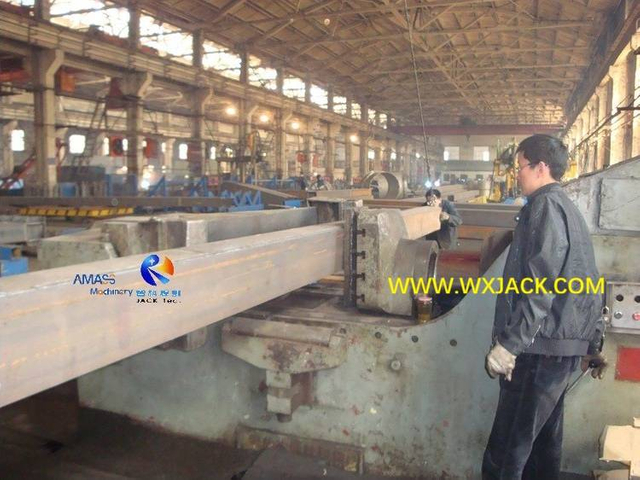

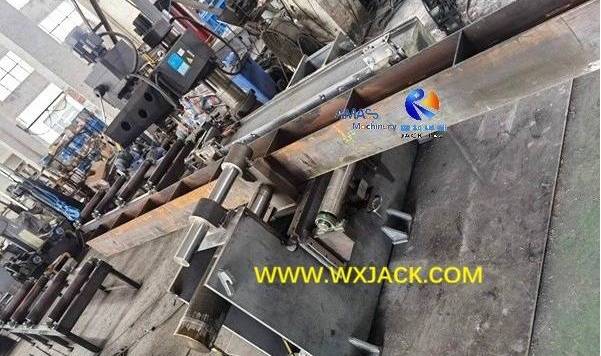

Straightening BOX Beam in HJ20 Steel BOX H Beam Longitudinal Straightening Machine: (Fig.2)

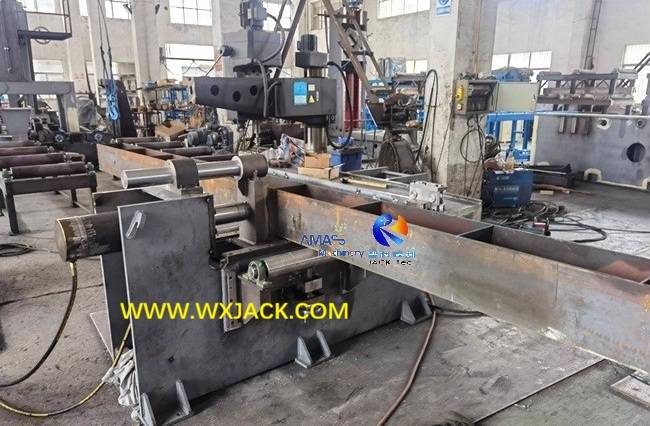

Fig2 Steel BOX H Beam Longitudinal Straightening Machine 18



Common Selected Models of Wuxi JACK HJ Series Steel BOX H Beam Horizontal Press Straightening Machine

In essence, steel Beam Lengthways Straightening Machine is kind of press equipment acting along horizontal direction of workpieces. So, its models are determined on the basis of output pressing force in the unit of tonnage;
The 4 standard specifications of the machine are: 20 Ton (HJ20), 100 Ton (HJ100), 200 Ton (HJ200), 300 Ton (HJ300). Besides, any rated output straightening force from 20 Ton to 300 Ton also available for the machine, such as 250 Ton (HJ250) model steel BOX H Beam Longitudinal Straightening Machine:
HJ20
HJ100
HJ200
HJ300
HJ20
HJ250
HJ300
HJ250

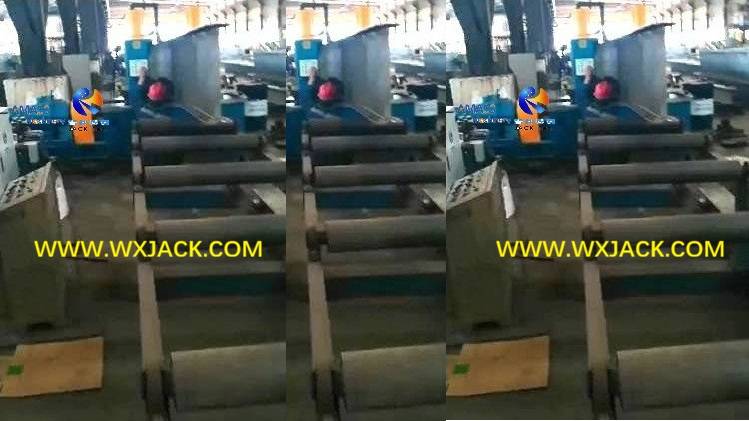

Operating Videos of Wuxi JACK Steel BOX H Beam Lengthways Straightening Machine

Model Selection on Wuxi JACK HJ Series Steel Structure BOX H Beam Horizontal Press Straightening Machine

1. Specification Reference on Steel BOX H Beam Longitudinal Straightening Machine:

1) Different from H Beam flange Straightening Machine, which model gives direct indication on straightening capability of available material tensile strength and thickness of H Beam flange;
2) For HJ series BOX H Beam Lengthways Straightening Machine, model and related specification are determined mainly on the basis of machine max. output straightening force in the unit of tonnage;

2. Wuxi JACK Empirical Data on Model Selection on HJ Models Steel BOX H Beam Horizontal Press Straightening Machine:

As reference, below is rule of thumb on applicable specifications of H Beam, that corresponds with frequently selected standard models of the Beam Longitudinal Straightening Machine: (Other types of workpieces, such as BOX Beam/ Pipe/ Section steels are similar referenced)

Model of Steel BOX H
Beam Longitudinal Straightening Machine		 Max. Output
Pressing Force		 Max. Applicable Welding H Beam Specification
Web Height Web Thickness Flange Width Flange Thickness
HJ20 20 Ton 400 10 200 12
HJ100 100 Ton 500 12 400 20
HJ200 200 Ton 600 30 500 35
HJ300 300 Ton 800 32 600 40



Technical Parameters of Wuxi JACK Steel BOX H Beam Longitudinal Straightening Machine

Steel BOX H Beam Longitudinal Straightening Machine 19

1. The standard models of the Horizontal Press Straightening Machine are: HJ20/ HJ100/ HJ200/ and HJ300, which are nominated on the basis of the max. generated pressing force for straightening. Any other specific rated force within the scope (20 Ton ~ 300 Ton) can also be developed for customer;



2. Technical Specifications of HJ Series Steel Structure BOX H Beam Horizontal Press Straightening Machine:

  Standard Model of Steel H Beam Horizontal Press Straightening Machine  HJ20 / HJ100/ HJ200 / HJ300
 Max. Output Pressing Force  20/ 100/ 200/ 300 Ton

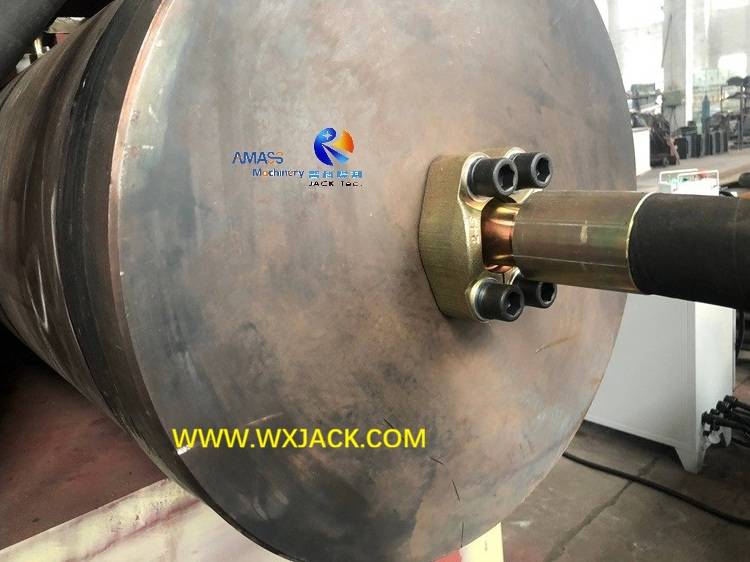

  Oil Cylinder Diameter  400 mm
  Rod Diameter  320 mm
  Oil Cylinder and Pressing Head Stroke   700~ 800 mm
  Hydraulic Driving Motor   3/ 7.5/ 11/ 22 kW
  Rated Pressure of Hydraulic System   25 MPa
 Max. Pressure of Hydraulic System  32 MPa

Order to Delivery Value Chain of Steel Structure BOX H Beam Horizontal Press Straightening Machine

1 Steel BOX H Beam Horizontal Press Straightening Machine 38
2 Steel BOX H Beam Horizontal Press Straightening Machine 37
3 Steel BOX H Beam Horizontal Press Straightening Machine 6
4 Steel BOX H Beam Longitudinal Straightening Machine 14
5 Steel BOX H Beam Longitudinal Straightening Machine 33
6 Steel BOX H Beam Longitudinal Straightening Machine 31

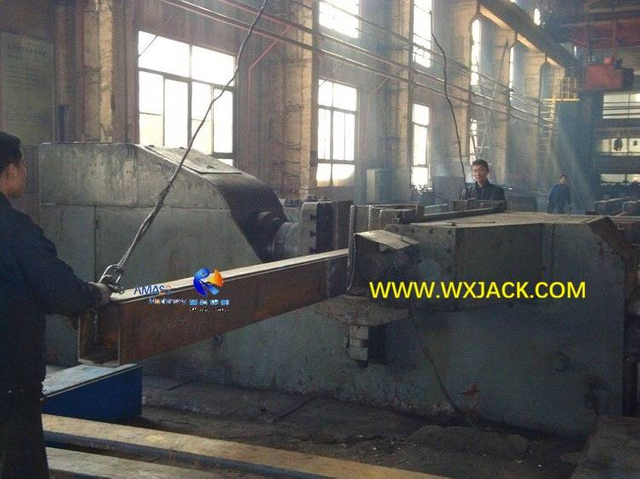

7 Steel BOX H Beam Lengthways Straightening Machine 35
8 Steel BOX H Beam Lengthways Straightening Machine 36

Technical Brief on Steel BOX H Beam Lengthways Straightening Machine

A. What Can Steel BOX H Beam Longitudinal Straightening Machine Contribute for Customers:

1. Deformation Generated on Steel Beam: At the completion of welding BOX/ I / H Beam fabrication, there are 2 major types of deformation generated on the workpieces during welding, which are caused from SAW/ GMAW welding heat input: Flange up bend deformation, and entire length direction deflection;
2. Straightening Process: These flange and longitudinal deformations should be corrected by means of related equipment of H Beam Straightening Machine, so that steel structure workpieces BOX/ I / H Beams can be eligible for next step processing:

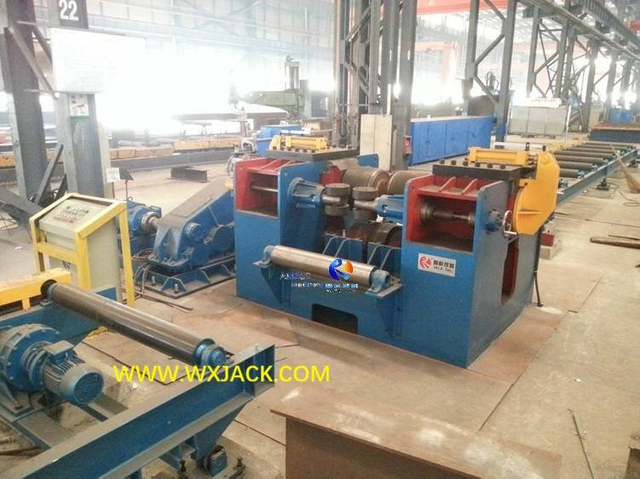

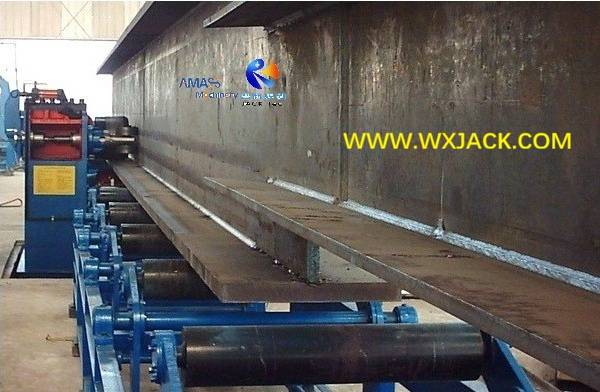

1) H Beam Flange Straightening Machine for straightening on flange deformation: (Fig.1)

Fig1 H Beam Straightening Machine 24

2) BOX Beam lengthways straightening in steel Beam Longitudinal Straightening Machine: (Fig.2)

Fig2 Steel BOX H Beam Longitudinal Straightening Machine 33

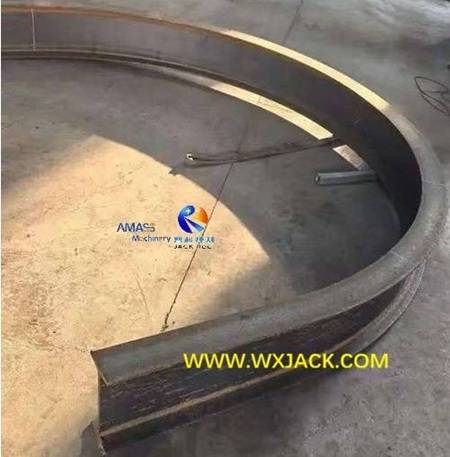

2. All Metal Structures Applicable for Steel BOX H Beam Longitudinal Straightening Machine:

1) Besides H Beam and BOX Beam, this lateral acting form steel Beam Horizontal Press Straightening Machine can be used for straightening on all kinds of structure members, with long length and small cross section size, of square/ rectangular /circular cross section;
2) The typical types of working parts include: H Beam/ Section Steel/ BOX Beam/ Cross Beam / Pipe/ Structure member, etc.;
3) Application: In All, steel BOX H Beam Longitudinal Straightening Machine is a kind of very important Steel Structure Straightening Machine, being applied extensively in Steel Structure and related industries.


B. Working Way and Advantages of Wuxi JACK Steel Structure BOX H Beam Horizontal Press Straightening Machine:

1. Operation Manner of Steel BOX H Beam Longitudinal Straightening Machine:

1) Workpiece Location: During work, working part is laid on straightening pressing unit of the Beam Lengthways Straightening Machine, in perpendicular direction with respect to straightening unit. Longitudinal direction deformation will be got straightened segment by segment along whole length of workpiece;
2) Straightening Force and Acting Direction: Lengthways straightening action is performed under the drive of hydraulic oil cylinder, in the direction perpendicular to length direction of longitudinal body of workpiece;

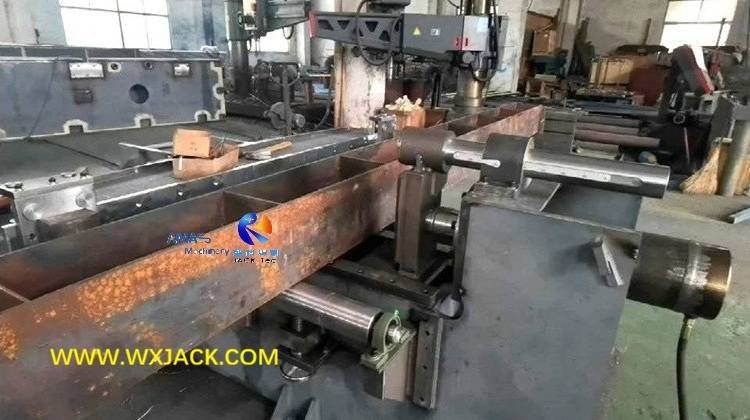

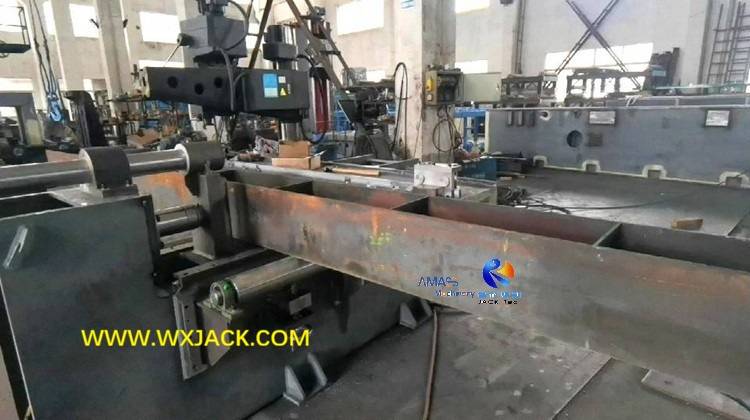

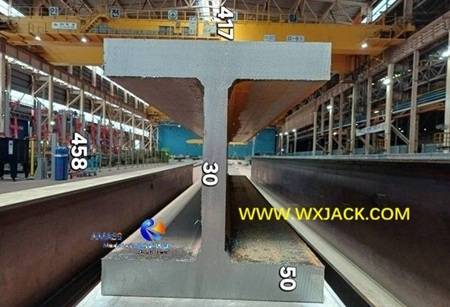

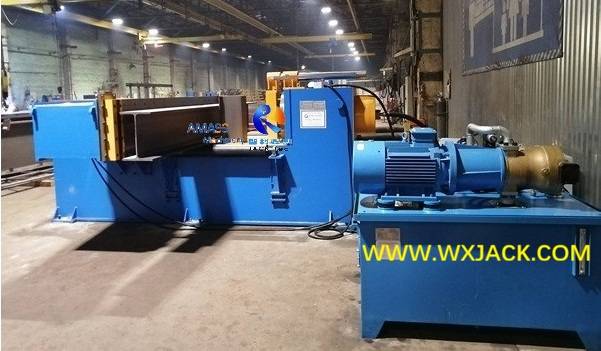

2. H Beam being straightened in Wuxi JACK HJ100 BOX H Beam Longitudinal Straightening Machine: (Fig.3)

Fig3 Steel BOX H Beam Horizontal Press Straightening Machine 7

3. Strong Points of Wuxi JACK Steel BOX H Beam Lengthways Straightening Machine:

1) Universal Use: Suitable on all kinds of elongated steel structure working parts;
2) Reliability: Heavy and reliable straightening force, driven with hydraulic oil cylinder;
3) Quality: Precise and manageable straightening stroke control by means of mechanism;
4) Safe, easy and intuitive operation;
5) High productivity;
4. Summary on general advantages of this machine is demonstrated in Slides page “Review on Wuxi JACK BOX I H Beam Straightening Machine”.

Straightening Principle of Steel Structure BOX H Beam Horizontal Press Straightening Machine

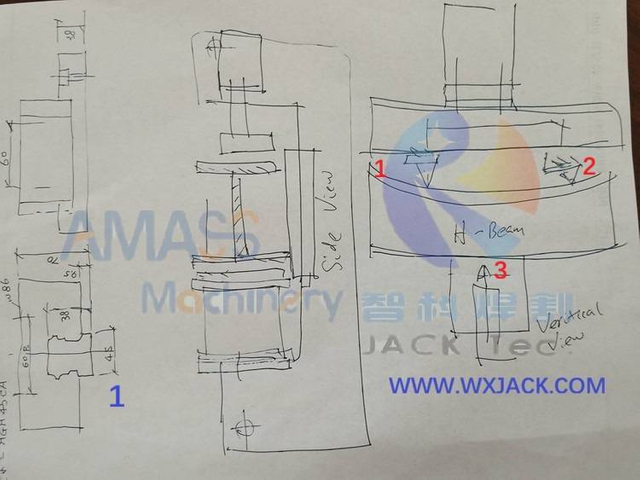

Design sketch on straightening unit working way of steel Beam BOX H Beam Horizontal Press Straightening Machine: (Fig.1)

Fig1 Steel H Beam Horizontal Press Straightening Machine 103
The below 1st handwriting sketch gives illustration on how does the HJ series steel BOX H Beam Longitudinal Straightening Machine straighten on a piece of H Beam along its lengthways direction. You can check it together with the below 2nd to 4th physical photos of the machine mechanical main frame:
1. Straightening Form: The workpiece is straightened in the steel BOX H Beam Longitudinal Straightening Machine segment by segment. Each segment of the workpiece for straightening has adjustable length of 1500 mm to 2000 mm;
2. 3 Points Acting Straightening Theory: The H Beam is pressed against pressing beam of the Horizontal Press Straightening Machine, under the working way of 3 points acting: Point 1 and Point 2 (Please check the 1st sketch and 2nd photo) as subject force points;
3. Straightening Acting Point: The opposing side of the H Beam is pressed on Point 3 (As indicated in the 1st sketch and 2nd / 3rd photos) by means of a piece of pressing head, which is in turn driven with a piece of oil cylinder guided with gloss bushing;
4. Summary on Longitudinal Straightening: In other words, during operation of the steel BOX H Beam Longitudinal Straightening Machine, point 1 and point 2 are fixed positioning points for firmly holding on H Beam, and point 3 is for acting and applying straightening force within the stroke of 700 mm;
5. Straightening Theory: In this respect, we can say that steel BOX H Beam Lengthways Straightening Machine works in the principle of "Three Points Subjected to Force";
6. Workpiece Release: The 2 pieces of ejectors with 1335 mm distance apart (Shown in the 2nd photo, point 4 and 5) are for pushing the workpiece away from the pressing beam, every time at the completion of lateral acting straightening. In this way, the workpiece is straightened along its length direction segment by segment, until the entire piece going thru straightening unit of the steel structure BOX H Beam Horizontal Press Straightening Machine, and acquire longitudinal straightened workpiece (H Beam here);
7. Workpiece Sending Way: Upon completion of current segment straightening, the H Beam can be pushed forward by hand, and proceed on the next segment of straightening. This explains the reason that, for HJ series steel BOX H Beam Longitudinal Straightening Machine, both input and output conveyors are manual acting type, without motor drive.

Putting into Use on Wuxi JACK Steel Structure BOX H Beam Longitudinal Straightening Machine

Operating on Wuxi JACK steel BOX H Beam Horizontal Press Straightening Machine is relatively plain and convenient:

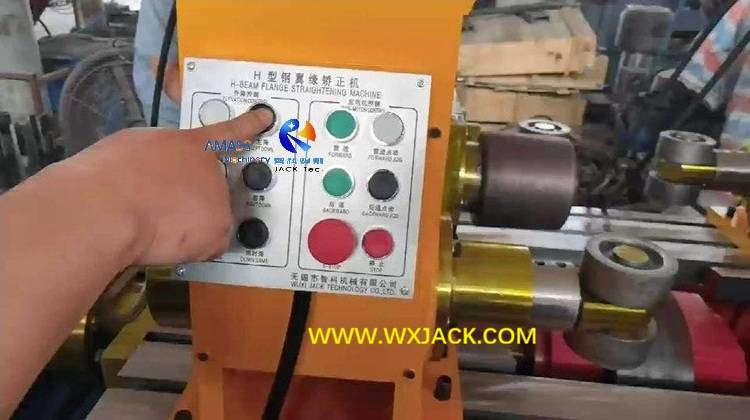

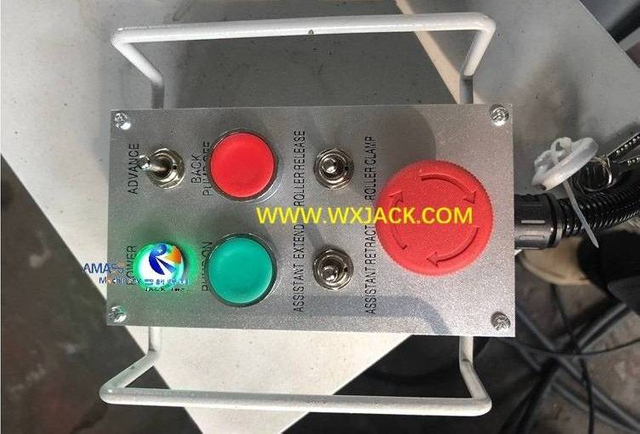

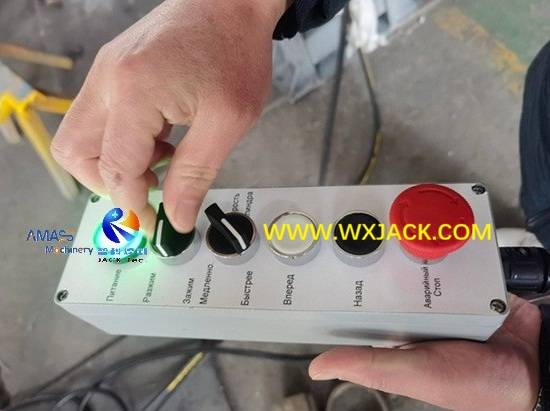

1. The 1st Photo: Operating Pendant of the BOX H Beam Lengthways Straightening Machine:

1) Cable of the machine operating pendant has sufficient redundant length, thus allowing the pendant can be taken flexibly within certain working zone;
2) During work, operator takes this operating pendant for managing and monitoring on straightening process. He/ she can go to any proper location within certain area to select proper location, acquiring optimum operating status;
3) Al the related actions, the workpiece (H Beam) clamp/ pressing head forward and retreating can all be managed conveniently with this pendant;

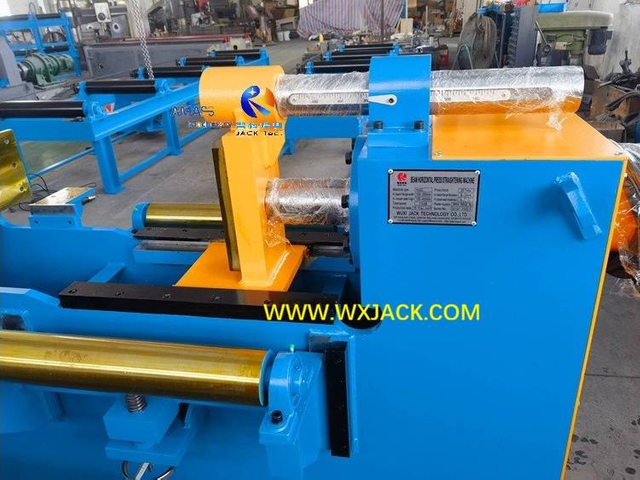

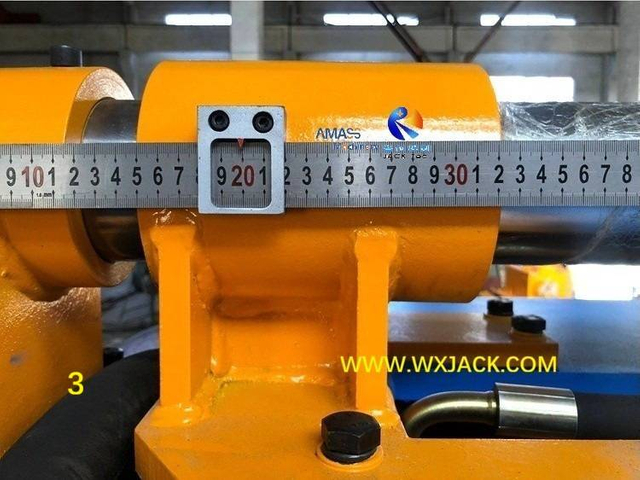

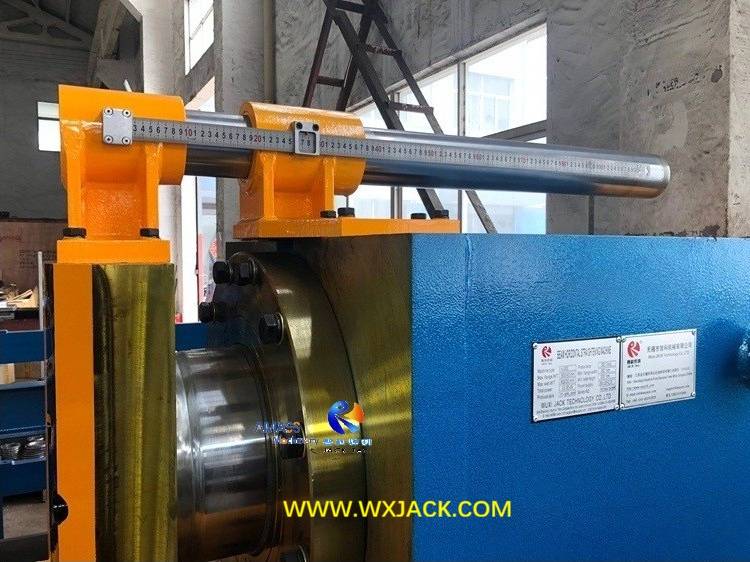

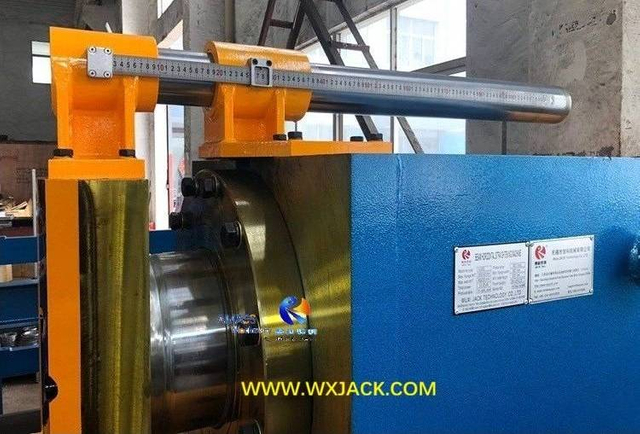

2. The 2nd Photo: Precise Straightening Stroke Management in the Steel BOX H Beam Horizontal Press Straightening Machine:

1) To precisely control forward stroke of the pressing head, which is the most critical process control parameter of operating the steel BOX H Beam Longitudinal Straightening Machine, there is a piece of indicating ruler being installed right above the pressing head and oil cylinder;
2) During straightening operation, the indicating index moves to the related indication on the ruler, corresponding to actual straightening stroke of pressing head at that moment, thus acquiring correct negative feedback on straightening stroke control;

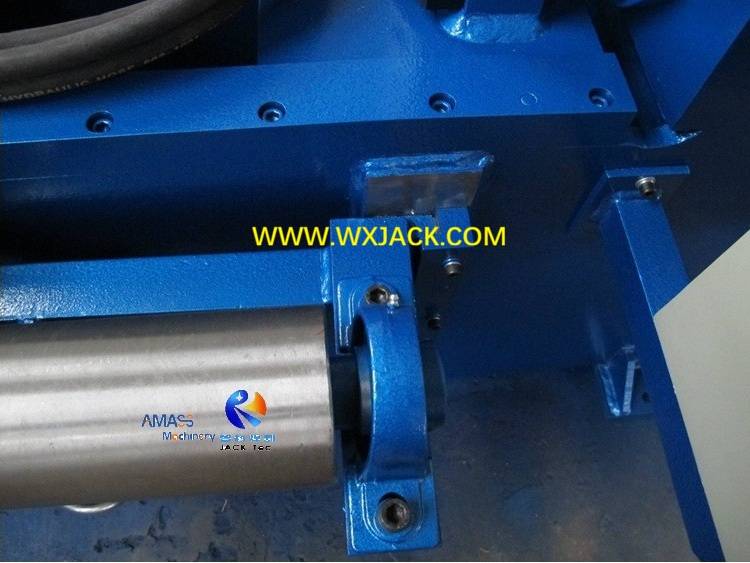

3. The 3rd Photo: Catering on Different Specifications of Workpieces in Steel BOX H Beam Longitudinal Straightening Machine:

1) Depending on specifications of workpiece to be straightened, the distance between the 2 pressure subject points: Point 1 and point 2 can be adjusted within the range of around 1500 mm to 2000 mm;
2) This depends on exact design of the steel BOX H Beam Longitudinal Straightening Machine for every customer. Here it just serves as a rough guide on operating the machine properly. In all, the pressure subject points 1 and 2 can be adjusted along guiding slot of the pressing beam flexibly, and secured firmly when finished position adjustment;

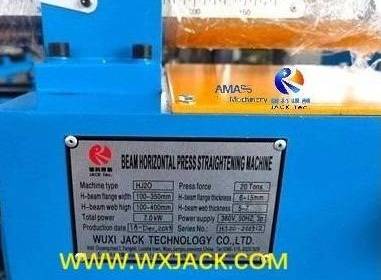

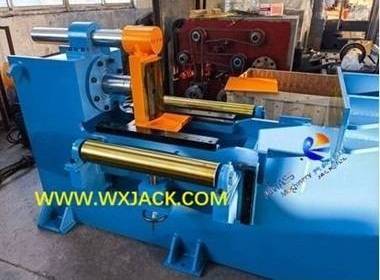

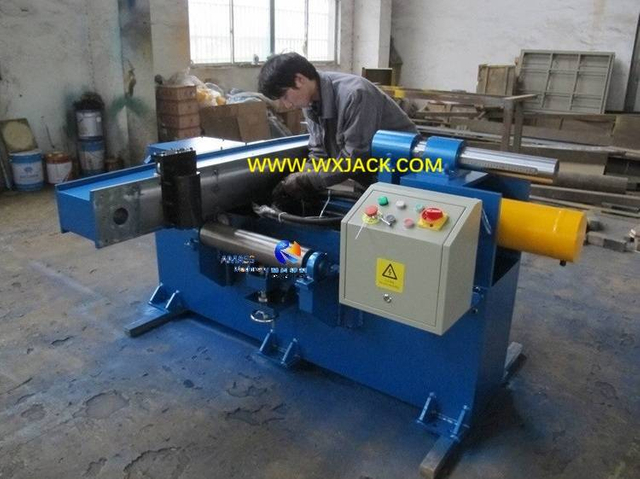

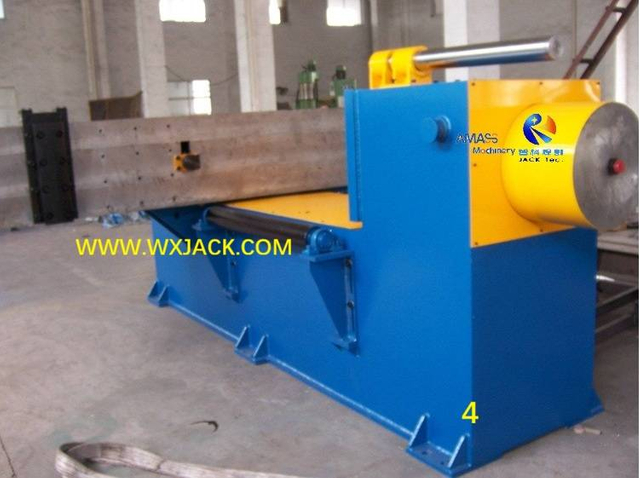

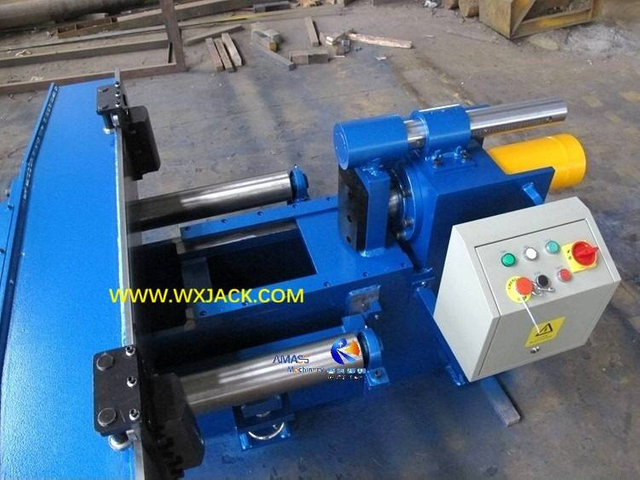

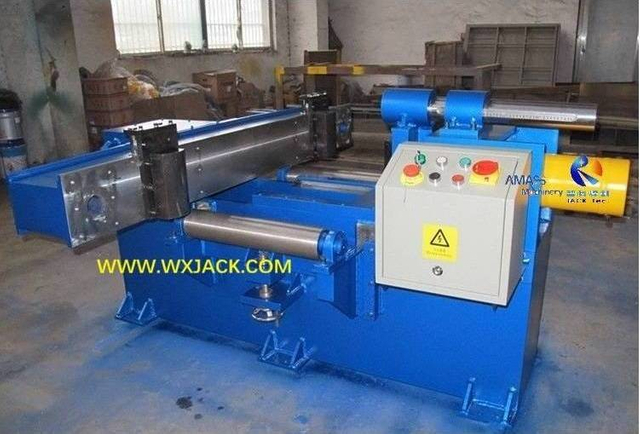

4. The 4th Photo: Small Model HJ20 Steel BOX H Beam Horizontal Press Straightening Machine:

1) Integral Design: For compact size HJ20 model, its electric control board and operating panel are integrated onto mechanical main frame of the machine;

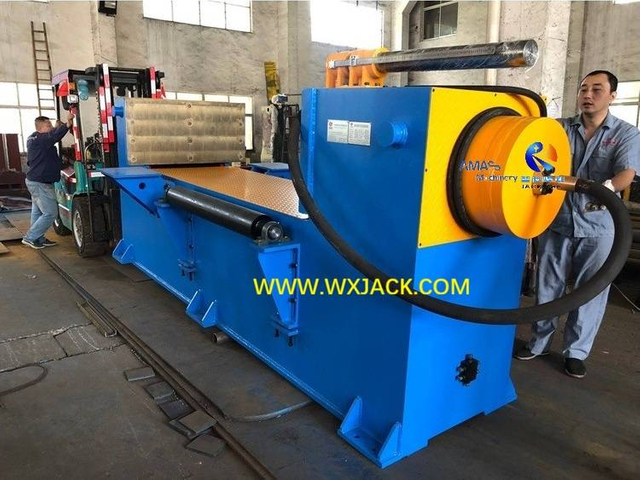

2) Split Design: The larger models (HJ100 / HJ200, and HJ300) steel BOX H Beam Longitudinal Straightening Machine usually have split type overall structure: Installation of control board and operating panel are separated from mechanical main frame (Including straightening unit) of the machine.

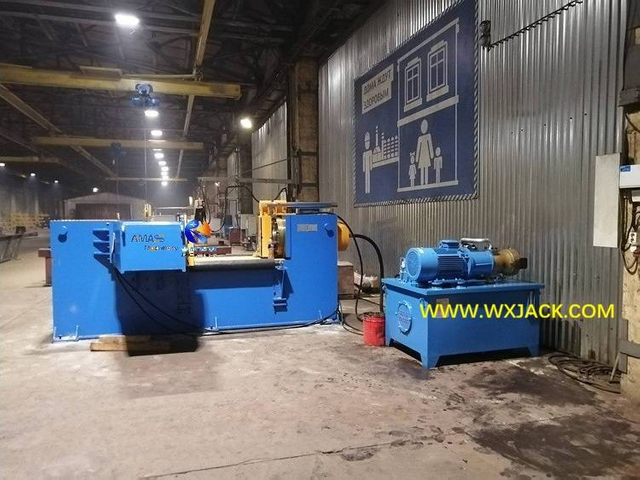

Installing Wuxi JACK Steel Structure BOX H Beam Horizontal Press Straightening Machine at Customer Facility

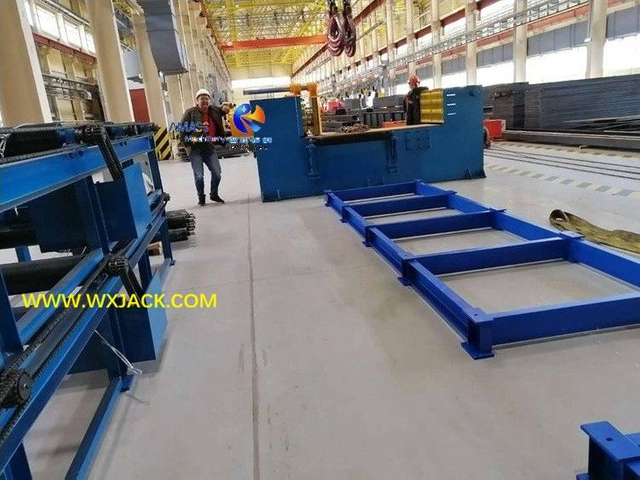

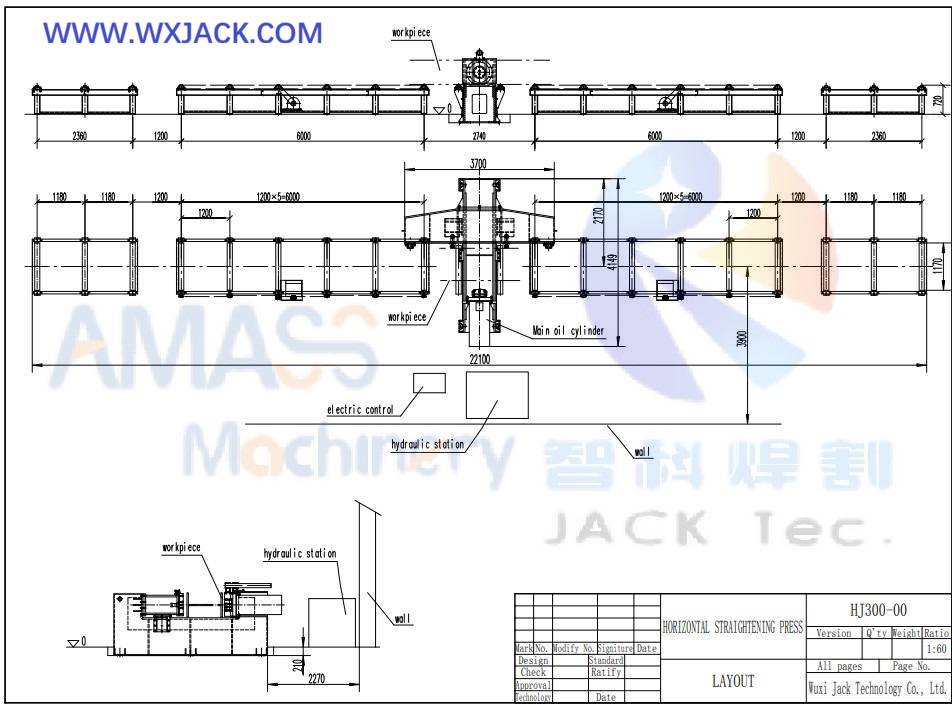

1. Layout of HJ Series Steel BOX H Beam Longitudinal Straightening Machine:

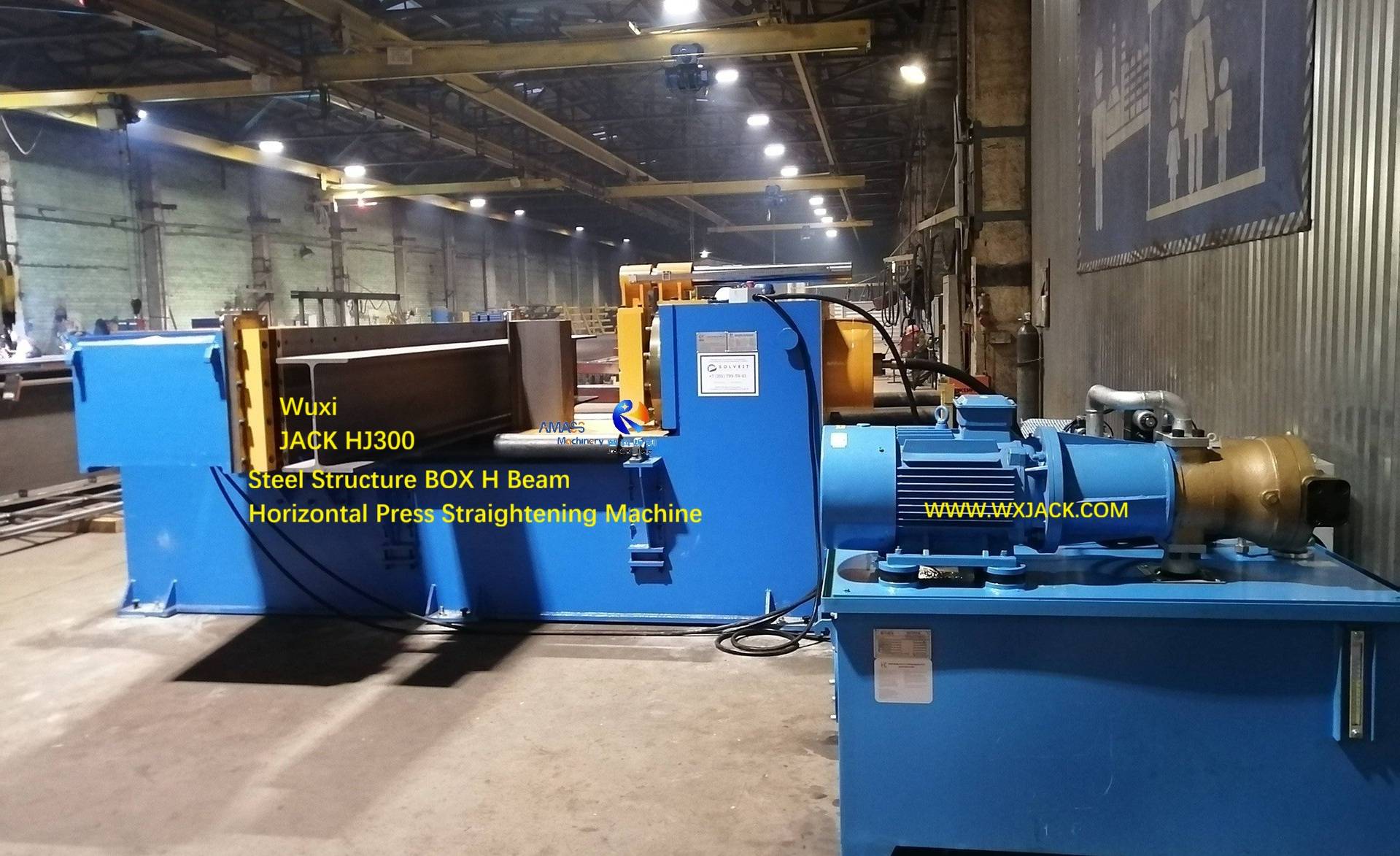

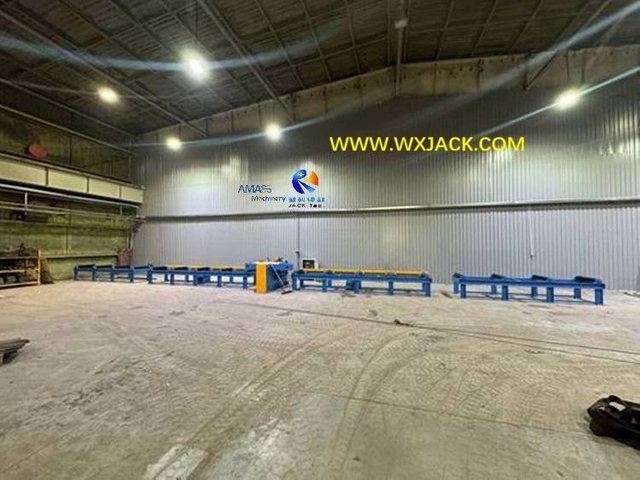

Below is on site arrangement of Wuxi JACK HJ300 (Max. 300 Ton straightening force) steel BOX H Beam Lengthways Straightening Machine:
We can see that:
1) Total length of the HJ300 model machine is slight longer than 22m;
2) The suggested width for installing HJ300 model machine land occupation is 7m;

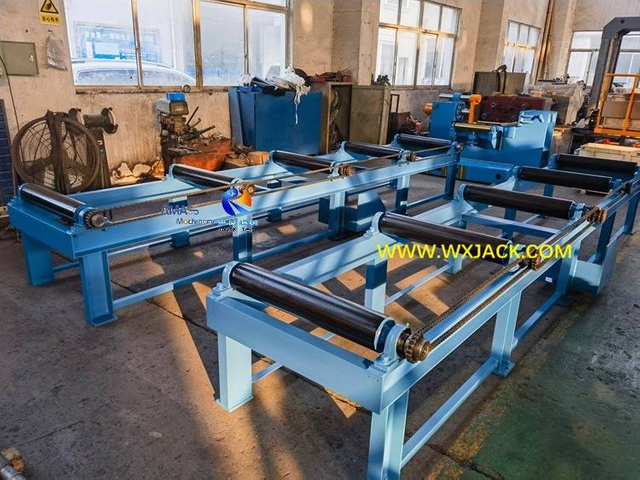

3) Height of input and output conveyors top surface of HJ300 model machine is 720 mm;
4) Hydraulic station and control board of the HJ300 steel BOX H Beam Horizontal Press Straightening Machine should be put alongside its mechanical main body, or straightening working table;
5) Height of straightening unit in the HJ300 steel BOX H Beam Longitudinal Straightening Machine is around 1400 mm, applicable for operating height of adult operator. This conforms to national ergonomics standard.
Steel BOX H Beam Horizontal Press Straightening Machine A

2. Main Units of HJ Series Steel BOX H Beam Horizontal Press Straightening Machine:

A set of Wuxi JACK HJ model machine is mainly composed of:

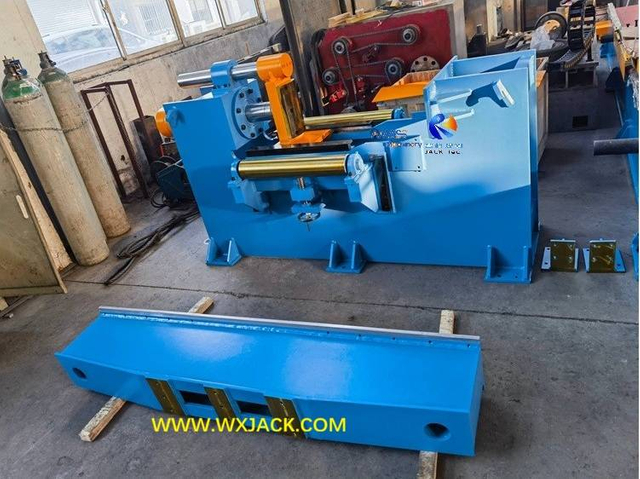

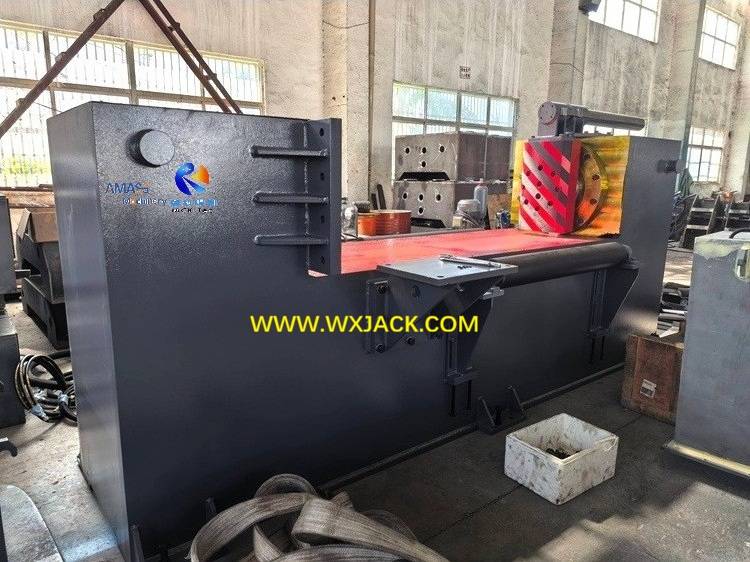

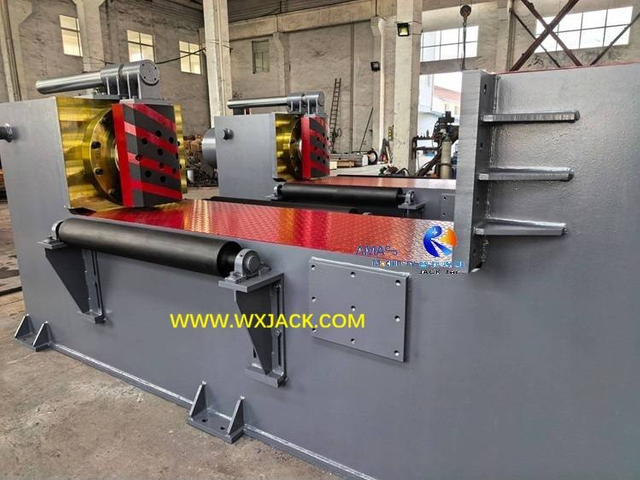

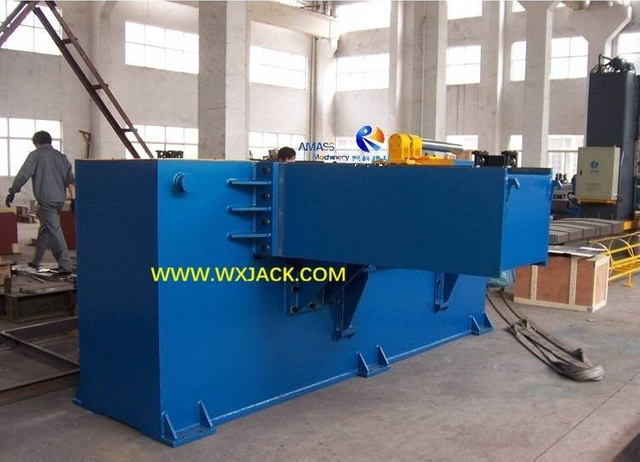

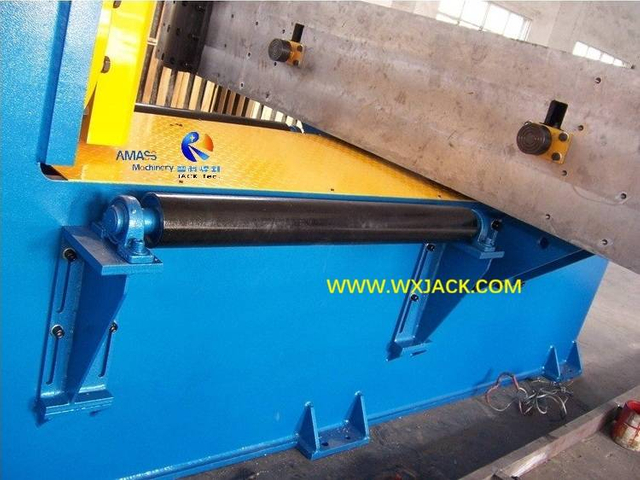

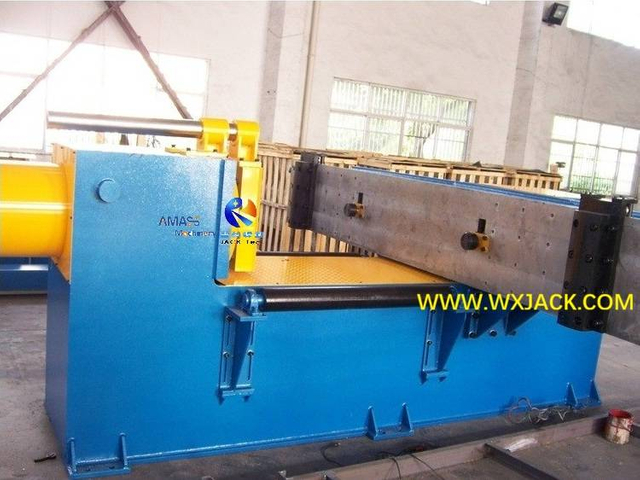

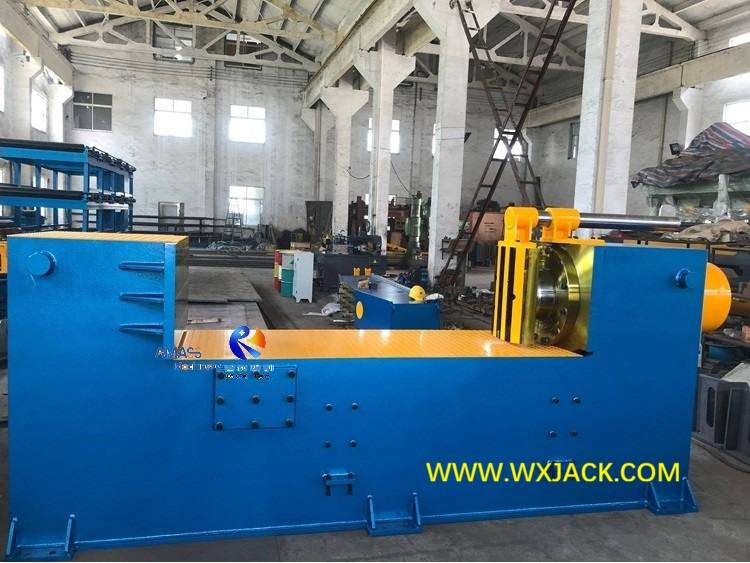

1) The 1st Photo: Mechanical Main Frame of the Steel BOX H Beam Lengthways Straightening Machine:

a) This is also central working table of the HJ machine;
b) During work, workpiece is laid along its longitudinal direction, go through the mechanical main frame of the machine by manual labor push;
c) Mechanical main frame of the machine can be further disassembled into pressing head (The above 3rd photo) and pressing beam (The above 4th photo);

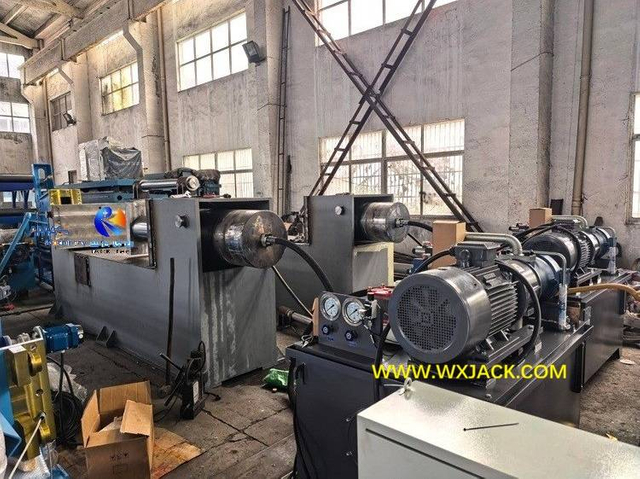

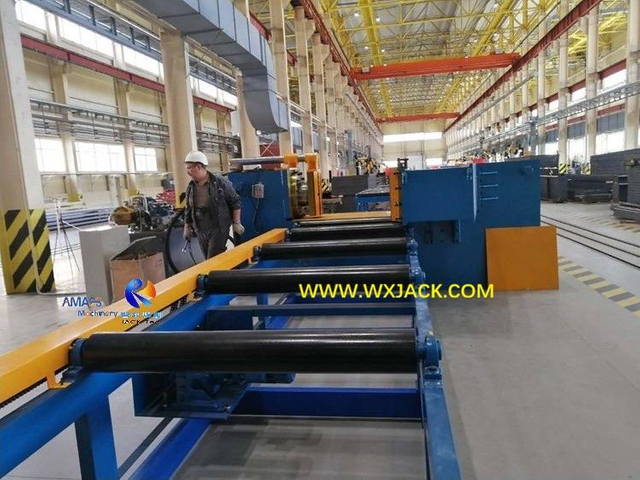

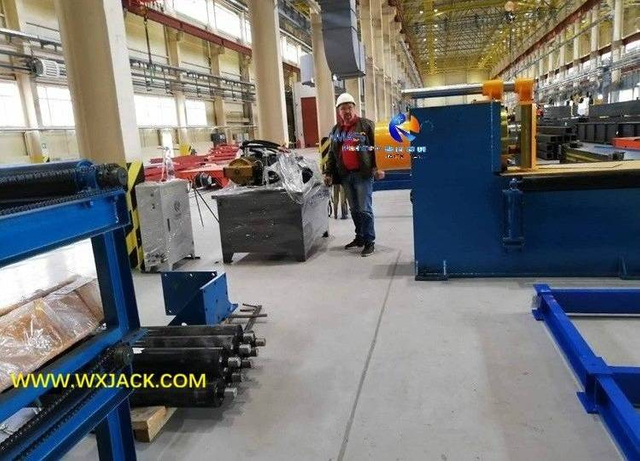

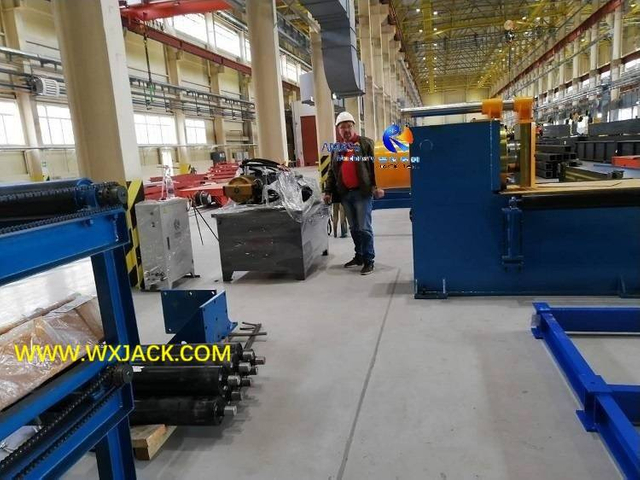

2) The 2nd Photo: General Arrangement of Steel BOX H Beam Lengthways Straightening Machine:

This reflects on the actual on-site arrangement of the Wuxi JACK HJ300 machine: Straightening working worktable, input and output conveyor, hydraulic pump station, and electric control board of the machine;

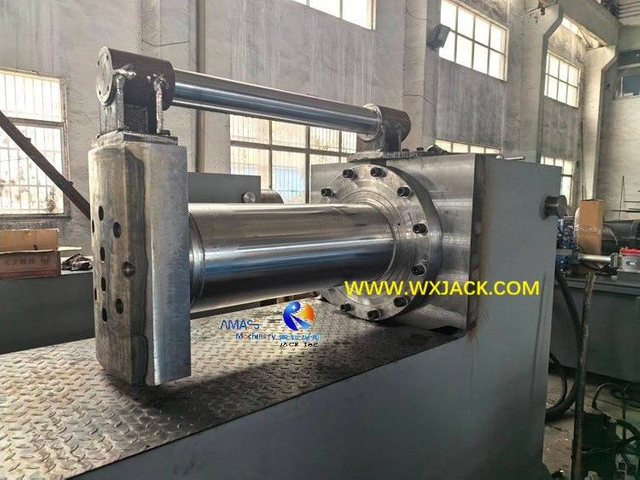

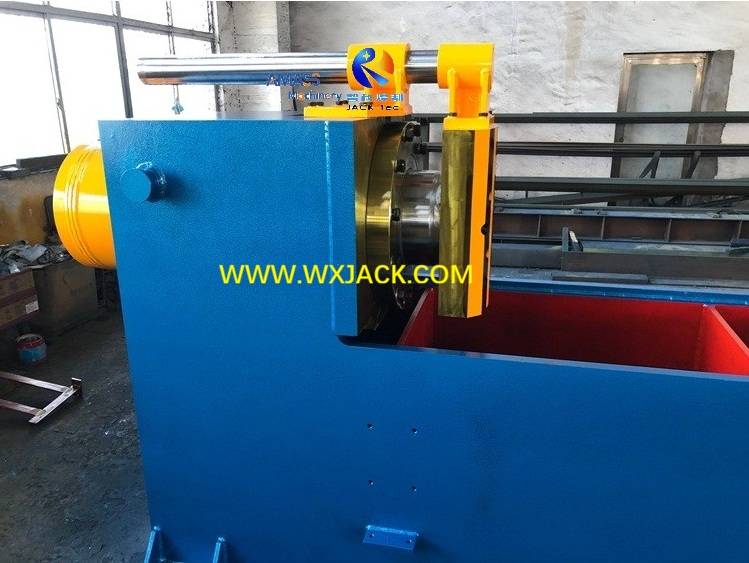

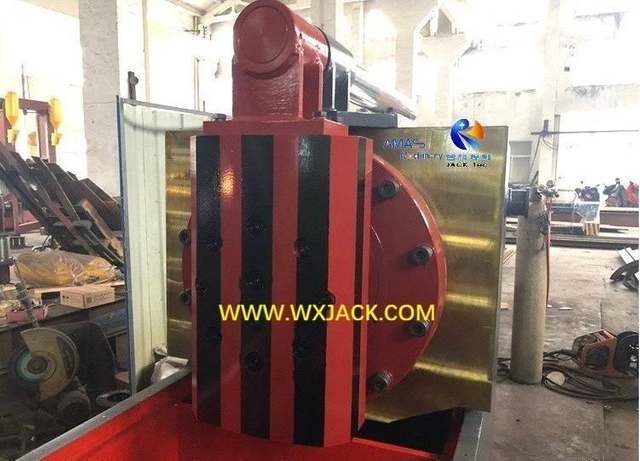

3) The 3rd Photo: Straightening Purpose Acting Pressing Head of Steel BOX H Beam Longitudinal Straightening Machine:

a) Working Way: This is the moving element in straightening working unit of the Horizontal Press Straightening Machine;
b) Color Control for Security: It is painted into eye catching red and black staggered stripe pattern, for getting safe operation purpose;
c) Precision and Reliability: Driven with oil cylinder, the forward and backward movement of pressing head is guided with precisely machined bushing, and measured with ruler;
d) Raw Material and Workmanship: The pressing head is made of 35 molybdenum alloy material, and went thru advanced heat treatment, guaranteeing on sufficient strength and toughness of the pressing head, to sustain repeat straightening job on daily basis. This promises long term consistent and reliable performance of the HJ machine;
e) Service Life: This pressing head has the same service life as that of the entire steel BOX H Beam Longitudinal Straightening Machine itself. In other words, it is not consumables of the machine if maintained properly;

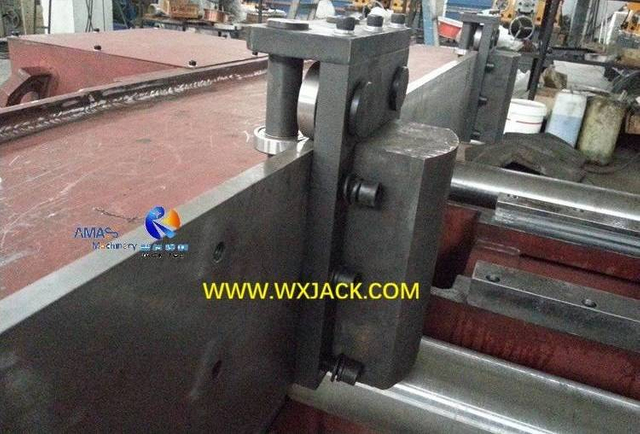

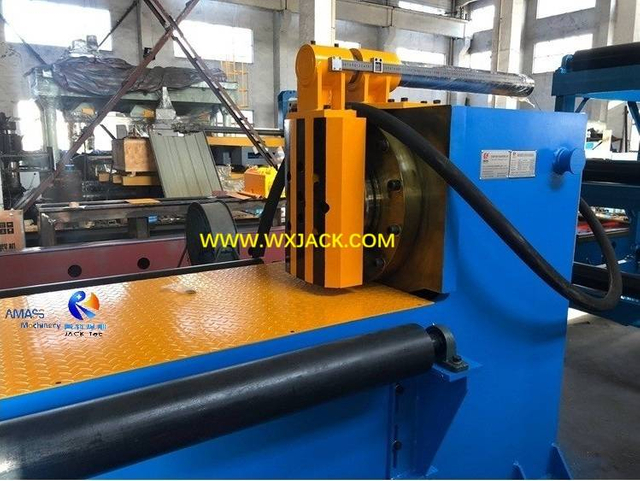

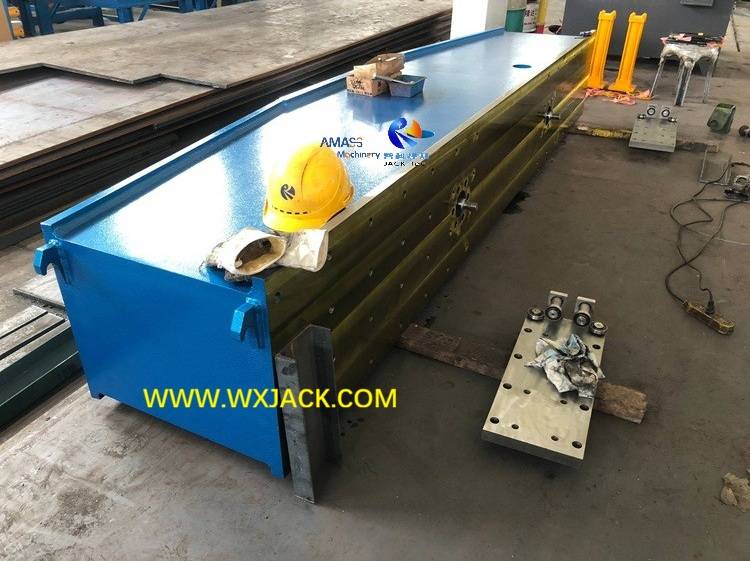

4) The 4th Photo: Fixed Pressing Mechanical Beam of the Steel BOX H Beam Horizontal Press Straightening Machine:

a) This is the fixed element in working unit of the steel BOX H Beam Longitudinal Straightening Machine;
b) The 2 pieces of positioning pressure subject points (Point 1 and 2), as well as the pieces of workpiece ejectors are installed on its internal surface.

Application and Related Equipment of Steel BOX H Beam Longitudinal Straightening Machine

1. Application of Steel Beam Horizontal Press Straightening Machine:

1) Application: This machine does not have as extensive application as Flange H Beam Straightening Machine, which is a requisite equipment in I H Beam Production Line;
2) Large Volume Use: On the other hand, this steel structure BOX H Beam Longitudinal Straightening Machine is not confined to H Beam Production Line use. This heavy force Horizontal Press Straightening Machine can be used as general purpose press machine, working on straightening lengthways deformation of all working parts with long length and regular cross section: BOX Beam/ Pipe/ Section steel/ Long structure working parts... So, HJ models machine can be applied in all Steel Structure production lines, such as BOX Beam Production Line, and Pipe production facility, etc.;

2. Related Equipment with Steel Structure BOX H Beam Lengthways Straightening Machine:

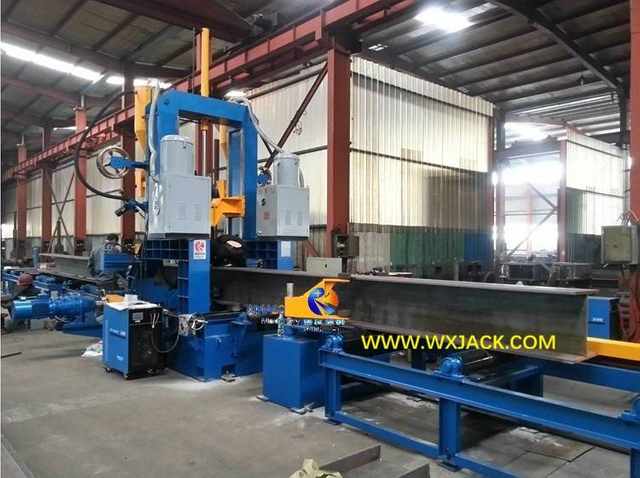

1) For Welding H Beam Production: PHJ and ZHJ series 3 in 1 H Beam Fabrication Machine (3 in 1 H Beam Assembly Welding Straightening Integral Machine), this newly developed H Beam machine produces light to medium duty welding H Beam with single set of equipment. Under majority conditions, the finished fabricated H Beam need to be straightened along its length direction with HJ machine;
2) For Post Fabrication End Face Machining: DX series steel structure pipe BOX H Beam End Face Milling Machine. These 2 machines (DX series and HJ series steel Beam Longitudinal Straightening Machine) are 2 important equipment in steel structure production field, and have the similar wide range of applicable workpieces;

3. Other Important and Often Applied Steel Structure Straightening Equipment besides Horizontal Press Straightening Machine:

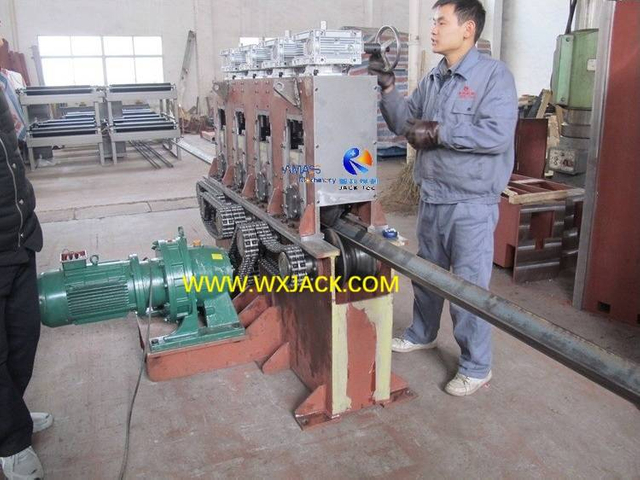

1) ASM series Angle Steel Straightening Machine: For straightening on Angle Steels with side thickness from 3mm to 20mm, along its longitudinal way;
2) Ribbed Plate Unit Straightening Machine: This is often used in large project site of Port Machinery/ Shipbuilding/ Bridge Construction, etc.

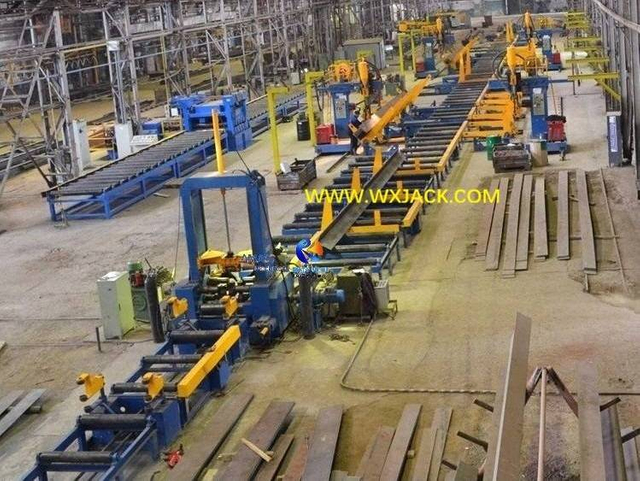

HB1500 automatic H Beam Production Line

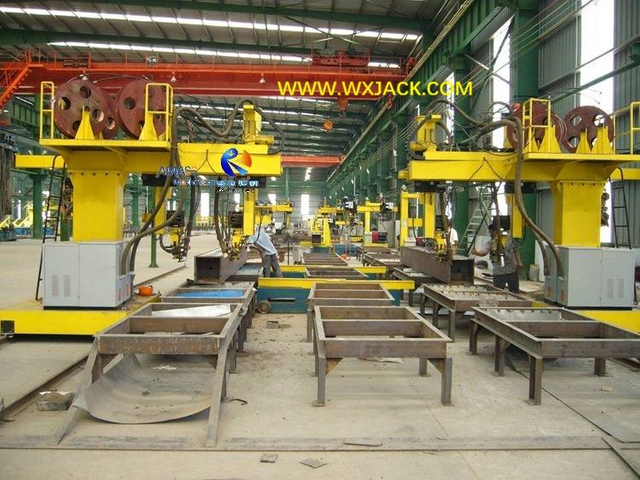

BOX1500 BOX Beam Production Line

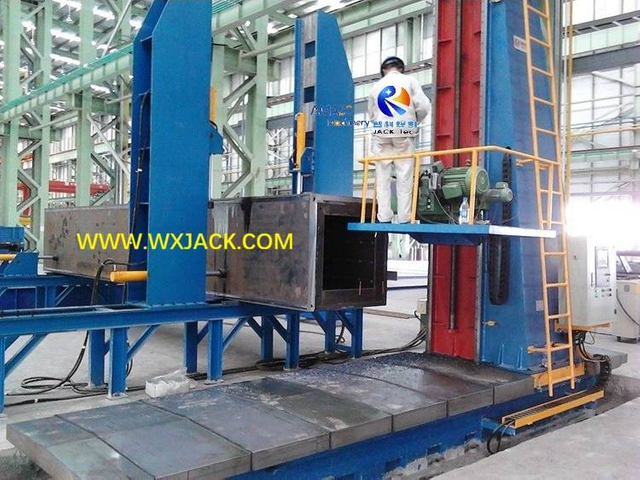

CNC-DX3030 Steel Structure BOX Beam CNC End Face Milling Machine
YTJ-80 hydraulic drive H Beam Straightening Machine
ASM100 Angle Steel Straightening Machine
YTJ-80 hydraulic drive H Beam Straightening Machine
J20 Stiffener Plate Unit Straightening Machine

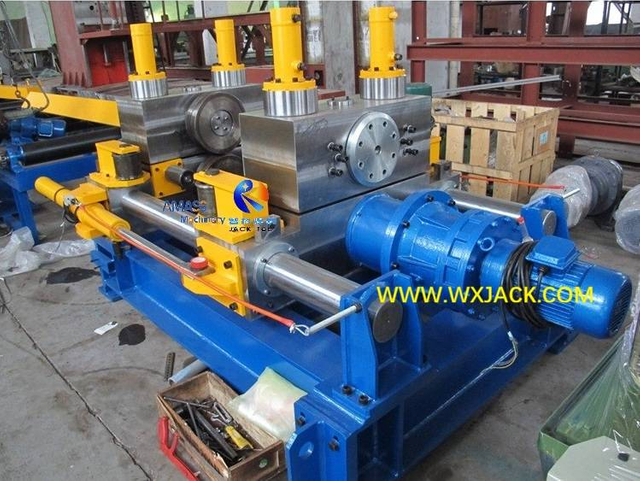

RH1000 Strip Plate Edge Rounding Machine

FAQ on Wuxi JACK Steel Structure BOX H Beam Horizontal Press Straightening Machine

  • Q What is Usage and Application Range of BOX H Beam Longitudinal Straightening Machine?

    A
    1. 1) This is a kind of special design and niche product of steel structure H Beam Straightening Machine;
    2. 2) It is used for making workpiece BOX/ H Beam/ Section Steel growing straight, along the entire length of whole piece;
    3. 3) This BOX H Beam Longitudinal Straightening Machine has very wide applicating range: All kinds of long length and regular cross section shape workpieces: H/ BOX Beam/ Section Steels/ Welding Structure Members... can all be straightened with this machine.


  • Q What are Advantages of Wuxi JACK BOX H Beam Longitudinal Straightening Machine?

    A
    1. 1) BOX H Beam Longitudinal Straightening Machine is featured product of Wuxi JACK;
    2. 2) Currently in industry, very seldom company has real ability and experience on developing and delivering this machine for customers, and Wuxi JACK is one of them;
    3. 3) Wuxi JACK BOX H Beam Longitudinal Straightening Machine has strong points of: Full range of specifications and models/ Heavy and reliable straightening capability/ Safe operation/ User friendly and ergonomics operation.

  • Q What is Working Theory of Wuxi JACK Steel Structure BOX H Beam Horizontal Press Straightening Machine?

    A
    1. 1) This H Beam Straightening Machine is in fact a kind of Pressing Machine. Its performance is weighted on the basis of Max. output straightening pressing tonnage;
    2. 2) Workpiece BOX H Beam is straightened segment by segment, and pushed forward manually;
    3. 3) Each segment of workpiece is straightened under principle of “3 points subjected by force”.

  • Q How to Select Proper Model of Steel Structure BOX H Beam Horizontal Press Straightening Machine?

    A
    1. 1) Wuxi JACK has rule of thumb (Empirical data), rendering recommended thickness of workpiece for each rated straightening force;
    2. 2) Customer can select proper model of BOX H Beam Longitudinal Straightening Machine based on max. straightening force of the machine necessary;
    3. 3) For example, if required the most heavy straightening force is 240 Ton, then HJ-300 model should be selected.

Steel BOX H Beam Longitudinal Straightening Machine
01

BOX H Beam Horizontal Press Straightening Machine
02

Steel BOX H Beam Horizontal Press Straightening Machine
03

Other Series of Products We Own besides Steel BOX H Beam Longitudinal Straightening Machine

MP20 Automatic Plate Butt Joining Machine with Triple Cutting
MP20 Automatic Plate Butt Joining Machine with Triple Cutting
1. Application of MP20 Plate Butt Joint Welding Machine:
2. Structure and Working Principle of MP Series Plate Butt Welding Joint Machine:
3. Technical Parameters of MP20 Plate Butt Weld Joining Machine:

0
0
DX1520 H Beam End Face Milling Machine for Steel Structure
DX1520 H Beam End Face Milling Machine for Steel Structure
1. Application of DX1520 H Beam End Face Milling Machine:
2. Function Briefs of DX1520 H Beam End Face Milling Machine for Steel Structure Member:  Precise Linear Guiderails of both directions for Precision Guarantee / Working Speed Control / Working Tool of Powerful Milling Head/ Operation / Workpiece Clamp
3. Technical Parameters of DX1520 H Beam End Face Milling Machine:
0
0
General Purpose Automatic Lengthwise ASM63 Angle Steel Straightening Machine
General Purpose Automatic Lengthwise ASM63 Angle Steel Straightening Machine
1. What can ASM63 Angle Steel Straightening Machine do for Customer?
2. Why You need Angle Straightening Machine?
3. The Good Points of ASM series Angle Steel Straightening Machine:
4. Technical View on ASM63 Angle Steel Straightening Machine:
5. Technical Parameters of ASM63 Angle Steel Straightening Machine:
0
0
7-Axis 3000/12 Flame And Plasma Large Scale CNC Pipe Cutting Machine
7-Axis 3000/12 Flame And Plasma Large Scale CNC Pipe Cutting Machine
A. Uniqueness of 7 Axis 3000/12 Heavy duty Oxy-fuel Plasma CNC Pipe Cutting Machine:
B. The Challenge on Developing Mature 7 Axis 3000/12 Heavy duty Oxy-fuel Plasma CNC Pipe Intersection Cutting Machine:
C. The 7 Axis of CNC in Heavy duty Oxy-fuel Plasma CNC Pipe Intersection Cutting Machine:
D. User Friendly Design in Wuxi JACK Heavy duty Oxy-fuel Plasma CNC Pipe Cutting Machine:
E. Technical Parameters of 7 Axis 3000/12 Heavy duty Oxy-fuel Plasma CNC Pipe Intersection Cutting Machine:
0
0

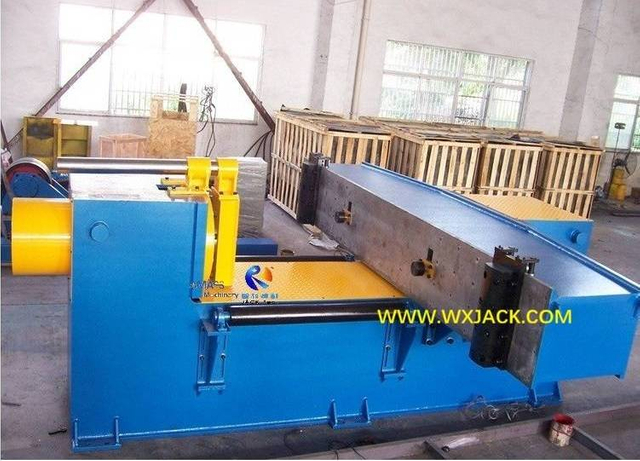

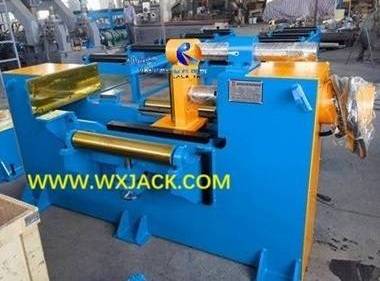

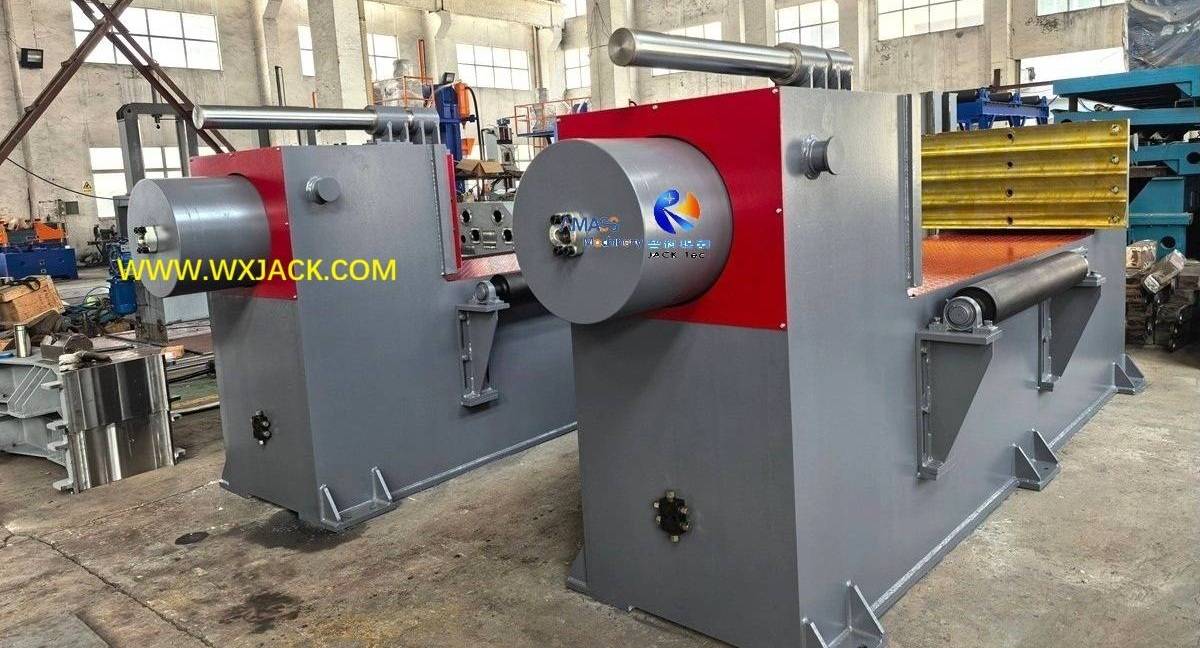

Steel Structure BOX H Beam Horizontal Press Straightening Machine Blogs

  • What is development history of the Integral Function H Beam Welding Machine?

    What is development history of the Integral Function H Beam Welding Machine?
    Develop History of 3 in 1 H Beam Fabrication Machine; Basic Function of Integral Function 3 in 1 H Beam Welding Machine; Composition of 3 in 1 H Beam Steel Structure Fabrication Machine; Upgrade on 3 in 1 H Beam Assembly Weld Straighten Integral Machine; Summary on Superiority of Wuxi JACK 3 in 1 H Beam Fabrication Machine Read More
  • Hoist and Installation of H Beam Assembly Weld Straighten Integral Machine

    Hoist and Installation of H Beam Assembly Weld Straighten Integral Machine
    Hoist of the Pull Through H Beam Welder 3 in 1 H Beam Fabrication Machine; Mechanical System Installation of the 3 in 1 Integral Function H Beam Welding Machine: Electric System Installation and SAW Power Supply of the 3 in 1 H Beam Fabrication Machine Postscript on Proper Starting on the 3 in 1 Integral Function H Beam Welding Machine: Read More
  • Data Sheet and List of H Beam Production Line Equipment

    Data Sheet and List of H Beam Production Line Equipment
    H Beam Production Line; H Beam Assembly Machine; H Beam Submerged Arc Welding Machine; H Beam Straightening Machine 60°/ 90°/ 180° Hydraulic Steel Structure Overturning Equipment Read More
Home

Home Products About Us R&D Customization FAQ Blog Contact Us

WUXI AMASS MACHINERY CO., LTD
WUXI JACK TECHNOLOGY CO., LTD
0510-83297829
English Language: 15852755799;
Chinese Language: 13621515089
support@WXJACK.com
No. 2, Ouyang Road, Luoshe Town, Wuxi City, Jiangsu Province, China
CONTACT US
© Wuxi AMASS Machinery Co., Ltd  2021 All Rights Reserved.
备案证书号：苏ICP备13045244号-1
