Subject of This Blog on H Beam 3 in 1 Assembly Weld Straighten Integral Machine:
1) Importance of the Machine: H Beam, or named I Beam, is the most extensively used working parts in all kinds of steel structure construction and building up. Correspondingly, 3 in 1 H Beam Fabrication Machine is the principal equipment applied in this field;
2) Wide Variety of the Machine: This Steel Structure Fabrication Machine has undergone rapid growth and diversified development, on this structure, configuration, and personalized functions. Today, when customers plan to purchase H Beam Assembly Weld Straighten Integral Machine, there are many factors need to be considered, before confirming the final design on the equipment;
3) Topics Covered: In this short blog, let us have a brief review on Integral Function 3 in 1 H Beam Welding Machine, covering below topics of:
Develop History of 3 in 1 H Beam Fabrication Machine;
Basic Function of Integral Function 3 in 1 H Beam Welding Machine;
Composition of 3 in 1 H Beam Steel Structure Fabrication Machine;
Upgrade on 3 in 1 H Beam Assembly Weld Straighten Integral Machine;
Summary on Superiority of Wuxi JACK 3 in 1 H Beam Fabrication Machine
A. Develop History of 3 in 1 H Beam Fabrication Machine:
1. Nomenclature: There are many different names with this popular product, nominated from different perspectives, which we list at title of each segment in this blog, so you can see its rich connotation;
2. Starting Point of H Beam Steel Structure Fabrication Machine:
1) This product was initiated in the year of around 2000;
2) Its purpose is to replace traditional H Beam Production Line, combining the original 3 machines for assembling, welding, and straightening into one single equipment;
3) The consequent merits are countless: Saving investment/ Utility/ Floor occupation/ Raising efficiency... You name it.
B. Basic Functions of Integral Function 3 in 1 H Beam Welding Machine:

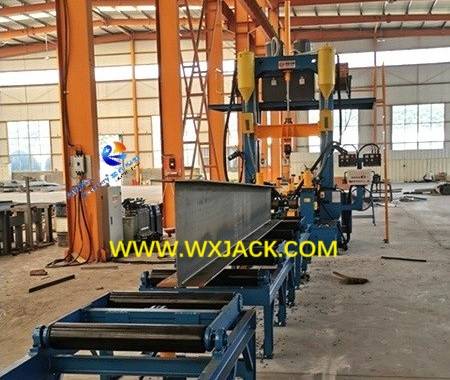

1. Workpiece: H Beam 3 in 1 Assembly Weld Straighten Integral Machine outputs welding T Beam/ H Beam in varied specifications, from 200mm to 2000mm height: (Fig.1)
2. Wide Application: H Beams and also various steel frameworks have actually been taken into usage in building and construction, docks, bridges, autos and other markets, catalyzing the continuous upgrading and substitute of steel framework devices;
3. Functions Integrated: We should always seek easier, smarter, and also a lot more affordable high grade 3 in 1 H Beam Fabrication Machine. Therefore, in the past, the functions of several special tools were integrated into one, and also it became the initial solution of 3 in 1 H Beam Assembly Weld Straighten Integral Machine, as well as progressing integrated device.
C. Composition of 3 in 1 H Beam Steel Structure Fabrication Machine:
1. 3 Working Cells Combined in PHJ and ZHJ series H Beam Steel Structure Fabrication Machine:
1) The equipment is completed by three tools of setting up the device, gantry welding as well as correcting the alignment of equipment;
2) These working groups correspond with the conventional H Beam Assembly and Tack Welding Machine, H Beam Submerged Arc Welding Machine, H Beam Straightening Machine, which are executed in one device;
3) Vertical View: From top to bottom, combined assembling/ welding/ straightening elements in Wuxi JACK 3 in 1 H Beam Fabrication Machine: (Fig.2)
2. The Strong Points of Such Structure in 3 in 1 H Beam Assembly Weld Straighten Integral Machine:
1) It substantially boosts manufacturing efficiency, lowers devices expenses, and also conserves tools installment space;
2) Integral Function 3 in 1 H Beam Welding Machine can be independent manufacturing operation, however also has numerous devices with a collection of procedure procedures;
3) In a word, this H Beam 3 in 1 Assembly Weld Straighten Integral Machine is a production device, for fulfilling efficient production of H shaped steel and T shaped steel;
3. Working Mechanism in 3 in 1 H Beam Fabrication Machine:
1) In order to simplify the procedure, the H Beam 3 in 1 Assembly Weld Straighten Integral Machine is a smooth assembly line;
2) Yet there is only one tool in each production phase, and the production timetable of various procedures is different, which causes the total work effectiveness low;
3) In conventional H Beam Production Line, the normal production speed of H Beam will certainly not go beyond 0.6 meters per min.;
4) This kind of manufacturing rate has little result in little batch production, but for a lot of companies that wish to seek production performance, this speed cannot satisfy the distribution date of routine orders, which directly minimizes the efficiency of the business;
5) On the contrary, in PHJ and ZHJ series Integral Function 3 in 1 H Beam Welding Machine, the original unbalanced production route can be simplified into a single points, and working productivity is greatly raised;

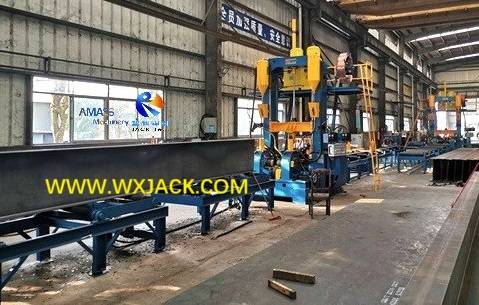

6) The high fluent production brought with Wuxi JACK 3 in 1 H Beam Steel Structure Fabrication Machine: (Fig.3)
D. Upgrade on 3 in 1 H Beam Assembly Weld Straighten Integral Machine:
1. Improvement on H Beam Production Benefitting from H Beam 3 in 1 Assembly Weld Straighten Integral Machine:
The introduction of the 3 in 1 H Beam Fabrication Machine has basically resolved this embarrassing situation:
1) Using sophisticated scientific research and innovation to solve the backwards hands on operation, the three process web links of assembly, welding, and also improvement are finished by one device;
2) In this way, it considerably reduces the intermediate lifting procedure treatments, which not only just conserves time, enhances efficiency, but likewise decreases threats in the procedure process improve the security guarantee;
3) You can see the 3 in 1 H Beam Assembly Weld Straighten Integral Machine is really a revolutionary equipment for steel structure industry;
2. Improvement on Welding Technique in Integral Function 3 in 1 H Beam Welding Machine:

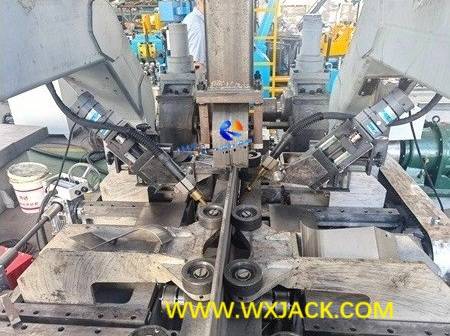

1) At the same time, as a result of the double sided welding process, welding on both sides of the flange at the same time, the work surface delivered from this 3 in 1 H Beam Fabrication Machine is heated equally as well balanced;
2) It not only ensures the welding quality: More deeper penetration, but likewise makes it much easier to eliminate the interior stress and also guarantee the exact size of the workpiece;
3) For this Integral Function 3 in 1 H Beam Welding Machine, the H Beam Assembly Weld Straighten Integral Machine is picked up to change the combination of setting up the device, gantry welding, as well as correcting the alignment of the maker;
4) As a conclusion, 3 in 1 H Beam Steel Structure Fabrication Machine lowers intricacy, boosts work performance and result, reduces functional threats throughout the job, and also conserves the floor space in the workshop can now be described as the optimum devices option;

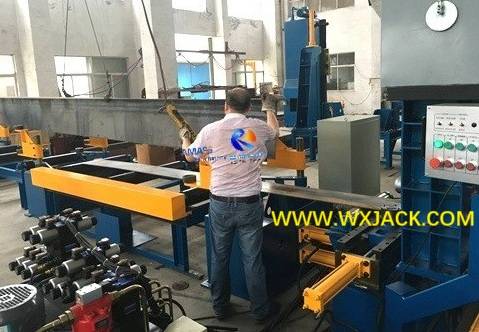

5) The smooth operation in Wuxi JACK ZHJ15 H Beam 3 in 1 Assembly Weld Straighten Integral Machine: (Fig.4)
E. Summary on Superiority of Wuxi JACK 3 in 1 H Beam Fabrication Machine:
1. What Value for Customers from Integral Function 3 in 1 H Beam Welding Machine?
1) In modern workshops and factories, faced with high leas, numerous firms have actually chosen small handling websites to decrease expenditures;
2) Nevertheless, the minimum control plant location such as the setup as well as use equipment is not ideal in practice, so you can pick up from the devices. Find instructions and think;
3) Based on the observation of the present actual scenario, the layout of the H Beam Steel Structure Fabrication Machine has superb qualities in regards to form layout;
4) It adopts the column design principle of the box body to assemble, bond and correct the steel flanges and webs. The integration can reduce the area constraints to a certain extent, as well as guarantee the free procedure throughout usage;
2. Wuxi JACK Superiority: Wuxi JACK is only supplier in the market, having full line of product in 3 in 1 H Beam Fabrication Machine: PHJ series and ZHJ series, as well as any special made models.
