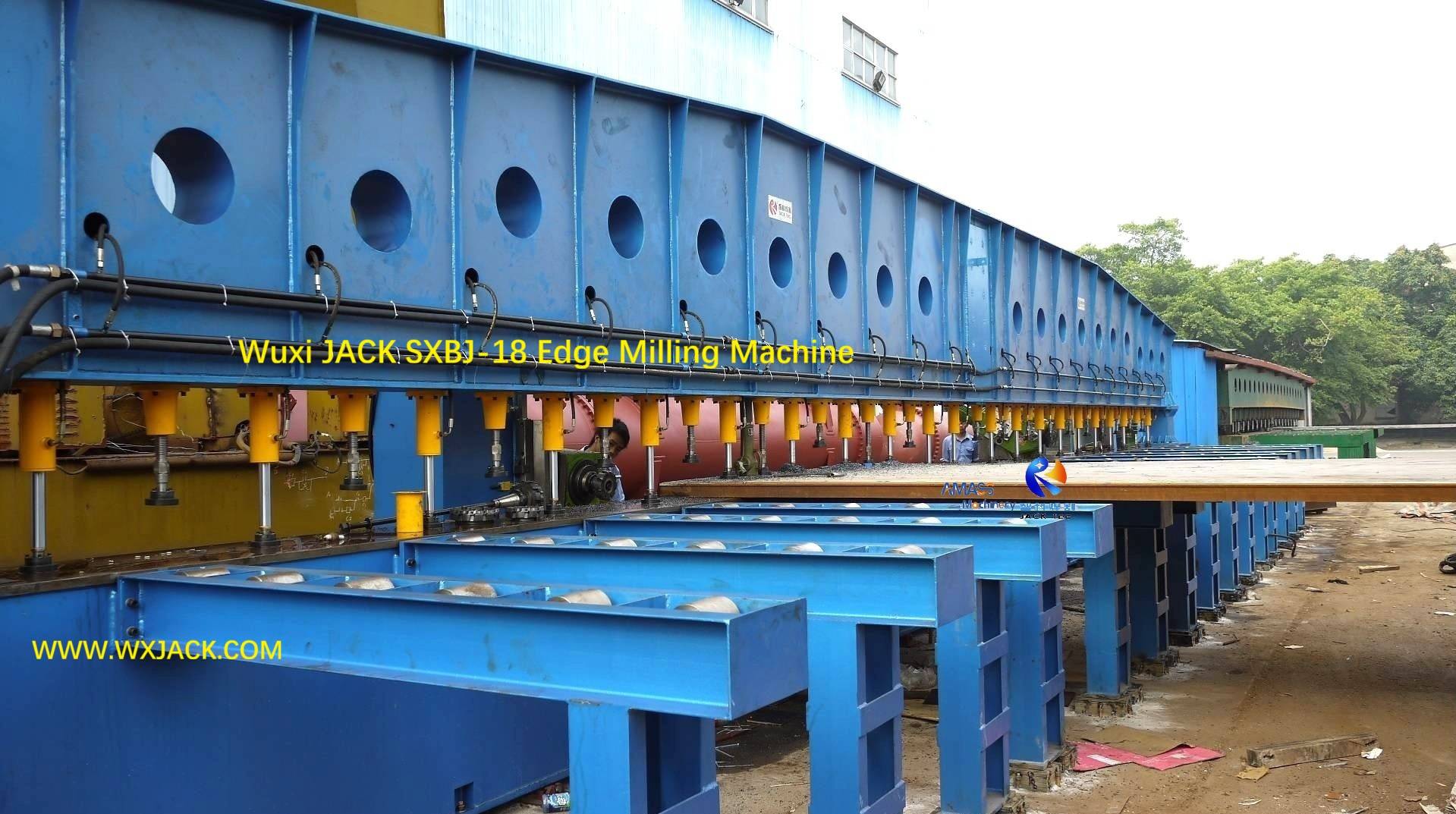

1 Sheet Metal Steel Plate Edge End Milling Machine 183

Video of Wuxi JACK Standard and Special Made Sheet Metal End Milling Machine

Navigation Bar on “Video of Standard and Special Made Plate End Milling Machine”

Usage and Application of Sheet Metal End Milling Machine

A. Working Natures of Sheet Metal Plate Edge Milling Machine:

1. Task: Plate End Milling Machine is a kind of general purpose equipment, which aims on various materials and sizes of sheet metal plate, to have edge milling on end faces of workpieces, so that straight and or slant grooves can be acquired from the Plate Edge Milling Machine;
2. Outcome: The finished grooves delivered from Plate End Milling Machine, can be in the angle from 0° to 45°, or up to 60°, or even possibly extended to 90°, in the form of positive angle for upper edge beveling, and negative angle for lower edge beveling;

3. Photo View on Workpieces of Sheet Metal End Milling Machine:


1) Finished Workpiece 1: The finished 0° straight end groove produced from Wuxi JACK Sheet Metal End Milling Machine: (Fig.1)

Fig1 Sheet Metal Steel Plate Edge Milling Machine 24



2) Finished Workpiece 2: The finished 45° and -45° upper, straight and lower end grooves, produced from Wuxi JACK Sheet Metal Plate Edge Milling Machine: (Fig.2)

Fig2 Sheet Metal Steel Plate Edge End Milling Machine 102 IMG_20220104_130058



3) Sketch on 6 Common Seen Finished Grooves, available from Sheet Metal Plate End Milling Machine: (Fig.3)

Fig3 Edge Milling Machine









B. The Interlinked 4 Internet Pages Focusing on Sheet Metal Plate End Milling Machine:




C. The Disparity between Standard and Special Made Plate Edge Milling Machine:

1. Standard conventional general purpose Plate End Milling Machine has capabilities of:


1) Effective Stroke: Fulfilling edge milling operation within the stroke range of 3,000mm to 18,000mm;
2) Plate Thickness: Make beveling on sheet metal plate in the thickness range of 6mm to 100mm;
3) Chamfering Angle: The completed groove angle from the Plate Edge Milling Machine in the scope of 0° to 60° for single head models, together with -45° to 0° in double heads models of Sheet Metal End Milling Machine;

2. Additional Functions of Special Made Plate End Milling Machine:

On the basis of that, Special Made Edge Milling Machine has series of additional advanced functions, to make personalized demands from customers. Such as:
1) Safe and Labor Saving Workpiece Handling: Wuxi JACK exclusively owned, hydraulic drive pushing and pulling working units;

Wuxi JACK unique owned oil cylinder driving steel plate loading and unloading brackets, applied in Plate Edge Milling Machine: (Fig.4)

Fig4 Sheet Metal Steel Plate Edge Milling Machine 93- IMG_0186

2) Precise and Accurate Milling Angle Management: This is realized by means of HMI (Human machine interface) and its touch screen, to be embedded into electric control system of the Plate End Milling Machine;

The HMI Touch Screen assembled into control board door of Wuxi JACK SXBJ-125 Sheet Metal End Milling Machine: (Fig.5)

Fig5 Sheet Metal Steel Plate End Milling Machine 164

3) Wider Range of Milling Angle: 0° to 80°, or even 0° to 90° angle milling;

The 0° to 80° milling head equipped with Wuxi JACK special made Plate Edge Milling Machine: (Fig.6)

Fig6 Sheet Metal Steel Plate End Milling Machine 9

4) Automatic and Precise Feeding of Milling Head and Facer Blade: On the basis of manual labor of turning forward and backward milling head carriage, the Z axis movement stroke is managed and display with counter.

The blue color counter for controlling and displaying feeding and retreating stroke of milling carriage, in Wuxi JACK Plate End Milling Machine: (Fig.7)

Fig7 Sheet Metal Steel Plate Edge Milling Machine 114 IMG_20220103_093737



D. The Related Another 3 Web Pages Reflecting Running Videos of Product Plate End Milling Machine:

1. Operating Videos of Sheet Metal Plate Edge Milling Machine;
2. Running Videos of General Purpose Plate Edge Milling Machine;
3. Operating Videos of Double Heads Long Stroke Sheet Metal End Milling Machine;

4. Working Videos of Advanced Function Sheet Metal Plate End Milling Machine

Videos of Edge Milling Operations in Sheet Metal Plate Edge Milling Machine



The green color milling head is this set of Sheet Metal End Milling Machine has power of 9.3kW, which is produced in Chinese TAIWAN. The being machined groove here is 30° top edge. The max. thickness of plate that can be edge milled here is 200mm. It is a set of special made Plate Edge Milling Machine. You can observe its low noise level during edge milling operation.



In this video, a set of XBJ-6 single head Sheet Metal End Milling Machine was being commissioned at Wuxi JACK assembly workshop. The test piece is a 60mm thick carbon steel plate. The edge milling operation in process was 0° straight end face edge milling. To give protection on the facer blade, there is transparent plastic film covering the facer blade. You can observe its superior quality smooth surface finished end face milling.



The edge milling working velocity in this video is 420 mm/min. to 440 mm/min, which was shown in digital display in the operating pendant of the Plate End Milling Machine. The operating pendant was being hand held by the operator. The working speed of the Plate Edge Milling Machine is also adjusted by means of the operating pendant, by turning its speed knob.




The Sheet Metal End Milling Machine in this video is a set of double heads long stroke SXBJ-18, which has the longest edge milling stroke of 18,000mm, equipped with 2 pieces of milling heads. In the close distance, the milling head responsible for bottom edge beveling was making -45° groove, on edge of steel plate. You can observe its superior smooth surface of finished part; In the further distance, you can find the other piece of milling head of the Plate Edge Milling Machine, which was in idle status in the video. That milling head is for making straight and top end faces of beveling, so, it has relative higher installation orientation, in this set of double heads long stroke Sheet Metal Plate Edge Milling Machine.




Videos of Production, Installation and Commissioning on Sheet Metal Plate End Milling Machine

This video clips 5 episodes during assembling and testing stage on Sheet Metal End Milling Machine, at Wuxi JACK assembling workshop: From appearance of milling head carriage, control board, to mechanical base bed of the Plate Edge Milling Machine, its assembled high precision linear guiderail and racks; Idle running of the facer blade before official running of the edge milling operation in the Plate End Milling Machine, to the final episode of the high efficiency and standard level of bottom edge beveling, to be performed in the Plate End Milling Machine.
This short video has clear demonstration on idle running of the facer blade, from shooting angle of front face. Subsequent to that is official edge milling operation in the Plate End Milling Machine. The facer blade in this video is the high end product in the market, which delivers above average level quality and quality of beveling in the Plate Edge Milling Machine. The angle of facer blade in this video, is for performing bottom edge -45° chamfering in the Sheet Metal Edge Milling Machine.
This video was taken during final assembling stage of the Sheet Metal End Milling Machine. The video first focuses on the blue color counter, for managing and displaying feeding and retreating stroke of the milling carriage, before and after edge milling operation of the Plate End Milling Machine. The 2nd half of the video focuses on long strength mechanical main base bed of the SXBJ-15 double heads long stroke Plate Edge Milling Machine. You can identify double stage linear guiderails of Wuxi JACK Sheet Metal Edge Milling Machine; Transverse transmission rack; And electric cable slides. These high quality units guarantee high standard consistent running of the Plate Edge Milling Machine.
This video was also taken at Wuxi JACK assembling workshop, during final assembly and testing stage of the Sheet Metal End Milling Machine. It indicates hoisting/ securing and tilting of the milling head, onto mechanical working table of the Plate Edge Milling Machine. All the securing steps during assembling of Plate End Milling Machine are controlled by means of definite torque and dedicated assembling tools.

Videos of Exterior Look, Operation and Status of Sheet Metal Plate Edge Milling Machine

Milling head is core working unit in any set of Sheet Metal Plate End Milling Machine.



The 3 main actions of milling heads implemented in sequence in the Plate Edge Milling Machine are:

1) 0° straight face end milling;
2) 0° ~ 45°/ 60°/ 90° top edge milling;
3) -45° ~ 0° bottom edge milling;
Let us have a brief view on performance of milling head in Wuxi JACK Sheet Metal Plate End Milling Machine as below:
This short video was taken on a set of exported to Russia SXBJ-12 long stroke Sheet Metal Plate Edge Milling Machine. The shooting angle was from rear side of the Plate End Milling Machine, all the way to its front side. By that stage, the mechanical downward pressing beam was still not assembled onto working table. So, the testing piece steel plate was being clamped by means of temporary fixture. As you can identify from the video, the edge milling working speed of the Plate Edge Milling Machine at that moment was 410mm/min. You can also find the Wuxi JACK exclusively owned workpiece handling system being installed at that time.
This video was taken on 2 main selections of milling head adopted in Wuxi JACK Sheet Metal Plate End Milling Machine: The first episode is on Chinese mainland produced milling head, HENGBEI brand; The second episode is on Chinese TAIWAN produced milling head, E-LONG brand. Both the 2 types of milling heads were carrying out 0° straight edge end milling in the Sheet Metal Plate Edge Milling Machine. In the early stage of Plate End Milling Machine, Chinese TAIWAN made milling head took the majority; Nowadays, Chinese mainland produced milling heads gradually takes majority in Sheet Metal End Plate Milling Machine, benefitting from its progressive quality level, and friendly price.
If you view this video clearly, especially its bottom section of the video screen, the milling head in this set of Wuxi JACK special made Sheet Metal Edge Plate Milling Machine was making 90° flat surface end milling, which is a rather unique and tailor made edge milling angle, for operation of the Plate End Milling Machine. Currently in the market, only very small percentage of suppliers in the industry has genuine ability of delivering such novelty angle of edge milling, in the Sheet Metal End Milling Machine.
This video can be named as “Static status of milling heads in Sheet Metal Plate Edge Milling Machine”. You can check the assembled 2 sets of milling head carriages at rear side of the Plate End Milling Machine: The green color 7.5kW high power milling head, the white color independently control board, the ammeter... Both 2 sets of milling head in this set of special made Plate Edge Milling Machine have ability of fulfilling -45° ~ 45° angle grooving, which is rather precious in the application field of Sheet Metal End Milling Machine.

Videos of Advanced Function and Its Units in Wuxi JACK Sheet Metal Plate End Milling Machine






This 49 seconds video is the typical scenario of commissioning on advanced function of Wuxi JACK Sheet Metal End Milling Machine: As shown in the video, operator keyed in target tilting angle of milling head, by way of touch screen of HMI (Human machine interface): 79°. Then, you can find that, the milling head is revolved to that angle under motor drive in the Plate Edge Milling Machine. The hardware metal angular ruler alongside the milling head: To the angle of 79°. You can also find, the limit switch installed on the milling head, the clicking sound when milling head is tilted to its target angle. And finally, the digital display showing the arrived angle of milling head in the Plate End Milling Machine: 78.15°.

This video reflects 2 main supporting units equipped in Wuxi JACK advanced function Sheet Metal End Milling Machine, especially the first episode: You can find the painted blue and yellow color steel plate loading brackets, with a piece of large size steel plate laid on its top. By means of this Wuxi JACK unique owned hydraulic drive pushing and pulling brackets, the workpiece steel plate can be handled into and out of the Sheet Metal Plate Edge Milling Machine, in the manner of safe, automatic and highly effective operation; The 2nd episode is on hydraulic drive workpiece clamping jacks, installed beneath pressing beam of the Sheet Metal Plate Edge Milling Machine.



Videos of Wuxi JACK Sheet Metal Plate Edge Milling Machine Working at Customer Site

This video integrates 2 scenarios of working period of Wuxi JACK Sheet Metal End Milling Machine running at customer site. The first episode is a set of SXBJ-6 exported to Vietnam Plate Edge Milling Machine, focusing on its 30° upper edge end milling; The second episode is on a set of SXBJ-16 double head long stroke Plate End Milling Machine at a Chinese Petrochemical customer plant, focusing on the entire length of its working table and finished grooves.
This 26 seconds video integrates 4 scenarios during installation and commissioning on Wuxi JACK Sheet Metal End Milling Machine at customer site: First, moving the milling head carriage to its initial edge milling stroke; Second, performing 0° straight end milling on lateral face of steel plate; Third, tilt the milling upward 45° for implementing upper edge milling in the Sheet Metal Plate Edge Milling Machine; Fourth, carrying out upper edge milling operation, the most often adopted job in the Plate End Milling Machine.
