Manipulator Welding Column and Boom 65 IMAG1178

Wuxi JACK Welding Column and Boom,

Professional and Versatile Manipulator Welding Machine on Cylindrical Workpiece Fabrication

Function and Models of Wuxi JACK Column and Boom Welding Console Manipulator

1. Usage: With concise and regular structure of cross shaped mechanical frame, this widely applied welding equipment has varied configurations in terms of sizes and welding units. It is essential machine tool in the field of pipe/ tank/ pressure vessel fabrication, especially internal and external longitudinal welding seam;

2. Welding Modes and Workpiece Materials of Manipulator Welding Column and Boom:

1) Single arc or tandem arc (Twin arc, or double filler) SAW (Submerged arc welding) on carbon steel;
2) Built up welding (strip cladding)/ narrow width welding on carbon steel, stainless steel;
3) CO₂ welding/ GMAW/ TIG... on stainless steel, alloy steel;
4) Pulse welding on Al;
5) P (Plasma) +T (Tungsten) on Stainless steel, Carbon steel, Titanium, Zirconium, and Alloy;
6) Other process technology: Assembly/ Painting/ Test/ Oxygen fuel flame cutting...
3. Model and Size:
Wuxi JACK provides full scope of size on column boom Welding Console Manipulator:
1) From LHZ2020 (The max. horizontal stroke 2,000mm by the max. vertical stroke 2,000mm),
2) To LHZ8080 (The max. horizontal stroke 8,000mm by the max. vertical stroke 8,000mm):

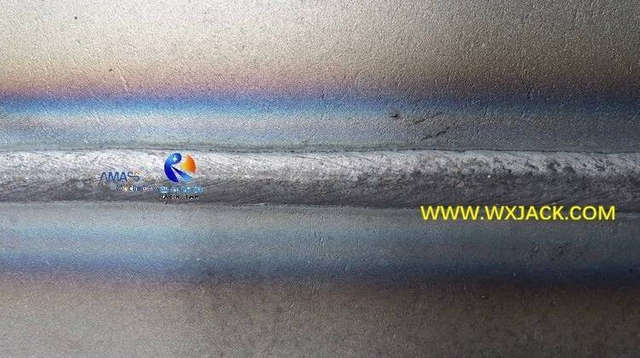

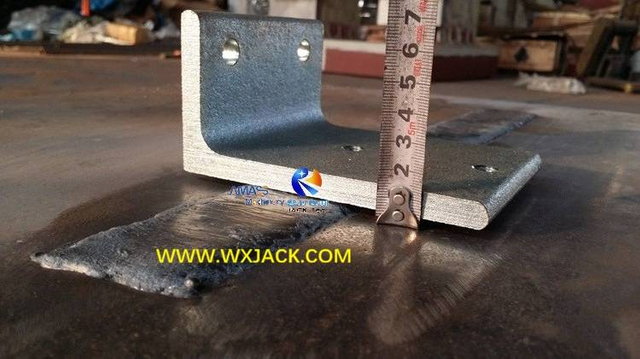

4. Welding Seams Finished from Wuxi JACK Column Boom Manipulator Welding Machine:

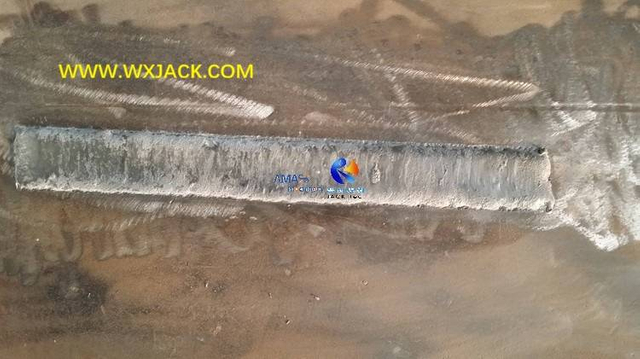

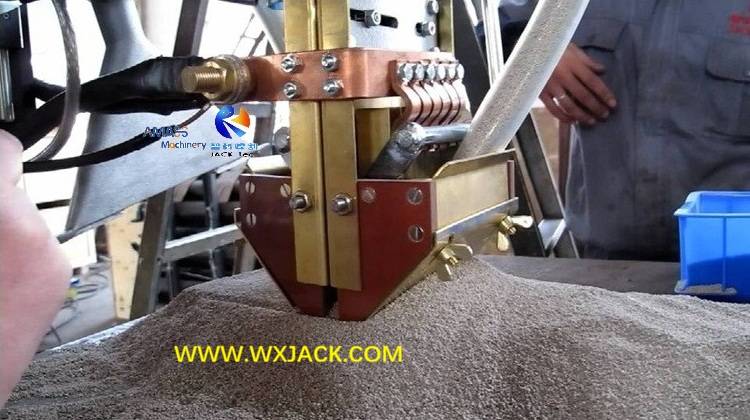

Single arc SAW strip cladding

Single arc SAW built up welding

Single Arc SAW Welding

5. Different Models of Wuxi JACK Column Boom Welding Console Manipulator:

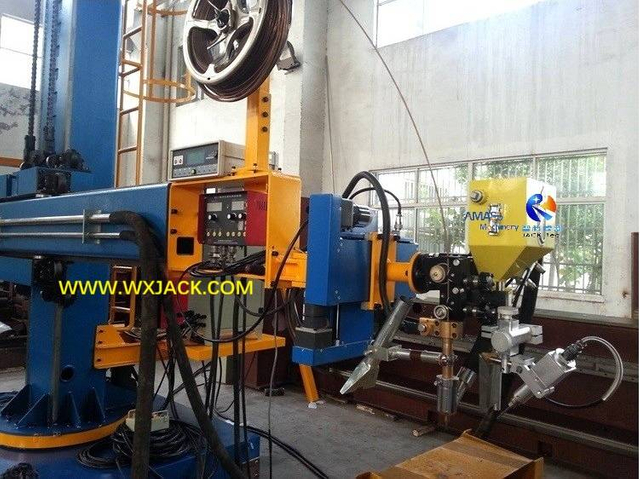

LHZ5050 in assembly at Wuxi JACK, with ESAB SAW strap cladding

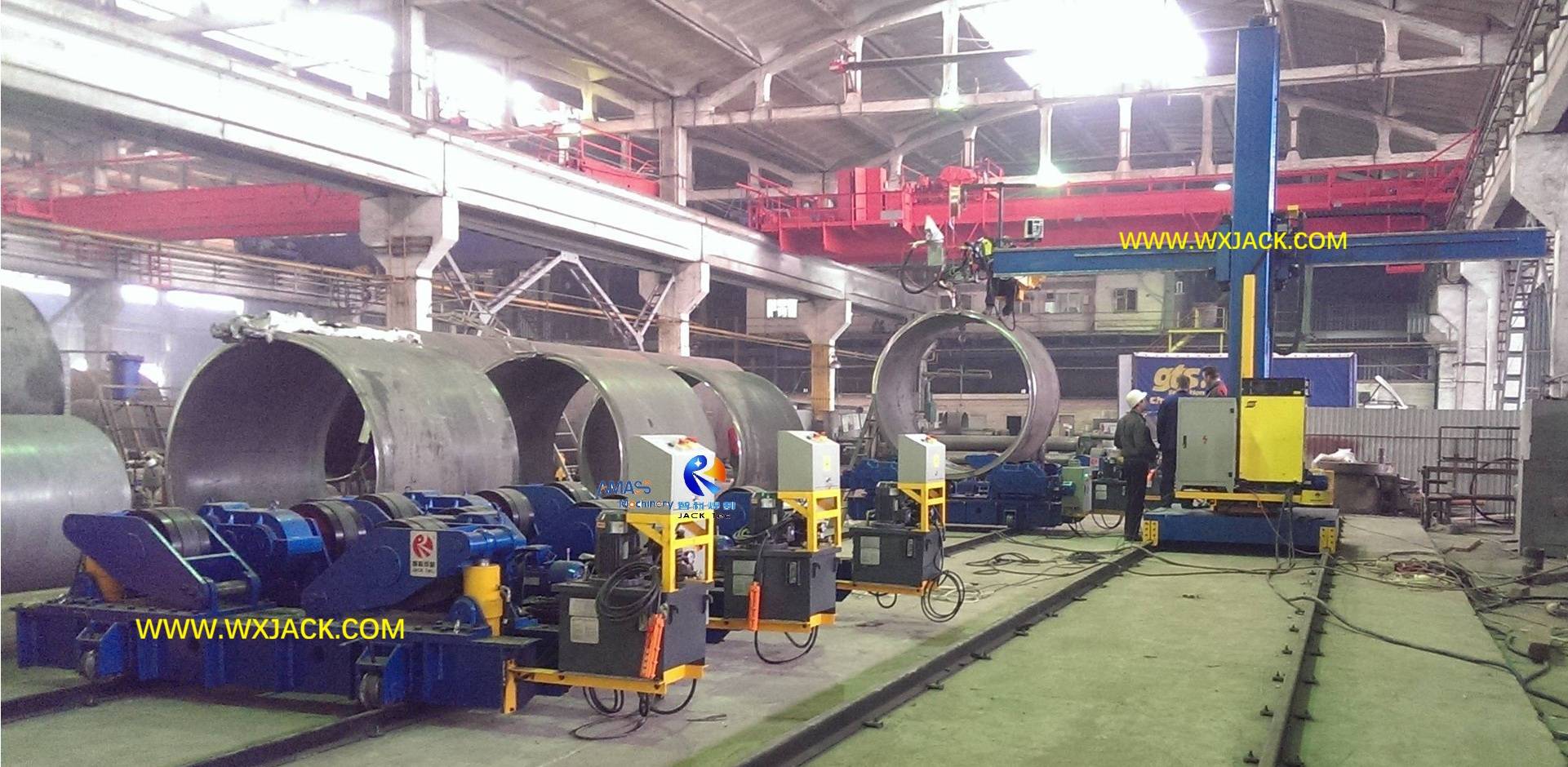

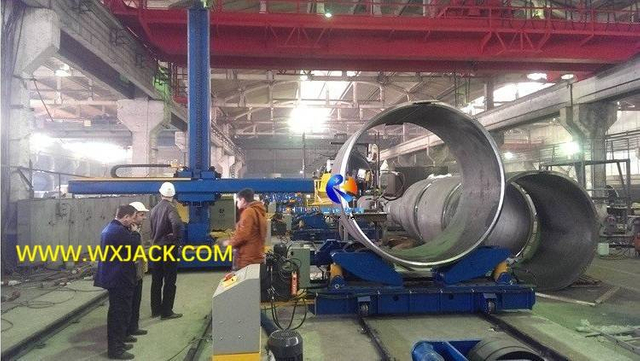

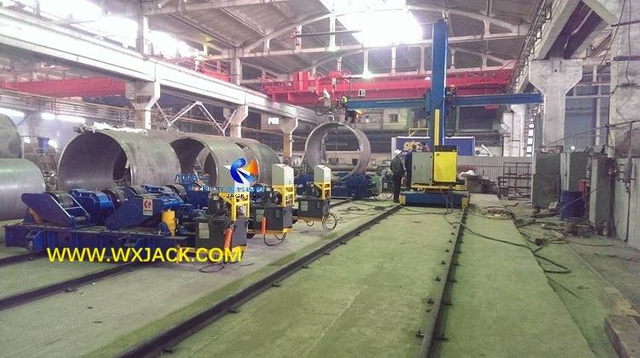

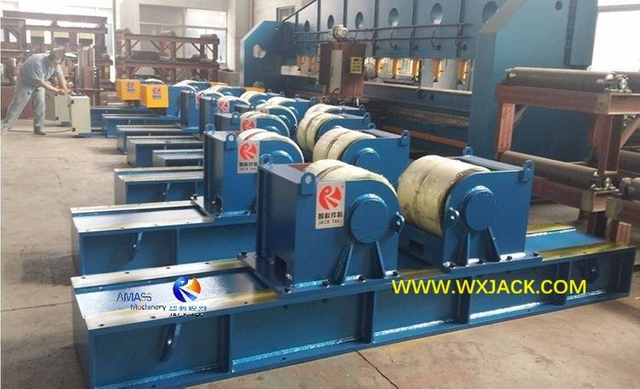

LHZ5050 at customer workshop, working with HLK80 Welding Rotator Roller Bed

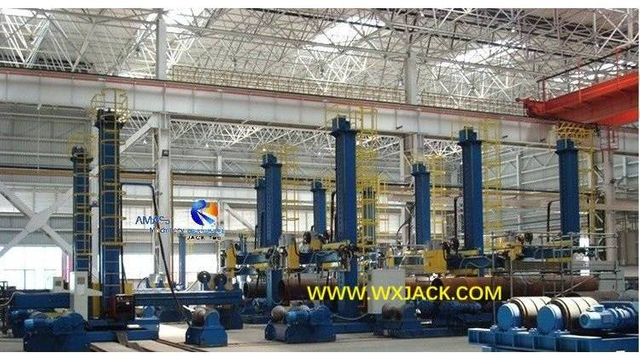

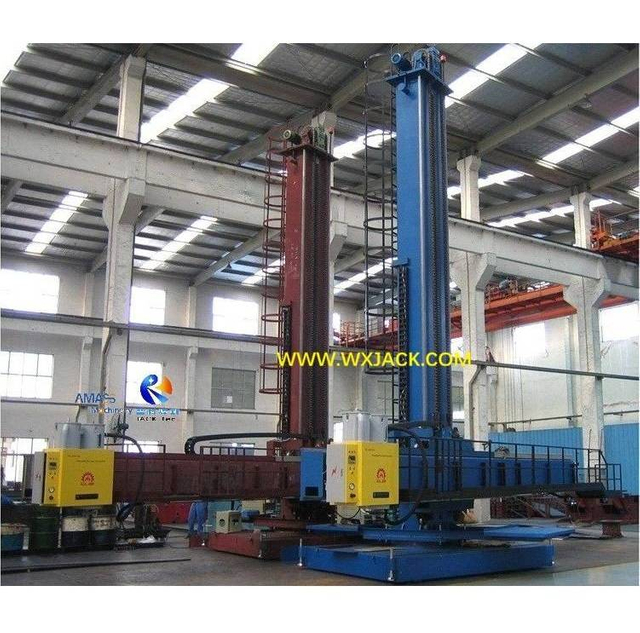

Group of large models manipulator Welding Column and Boom and Welding Rotators

LHZ5050 and Welding Roller Beds on large tanks group production

LHZ3030 for FAT (Factory acceptance test) at Wuxi JACK

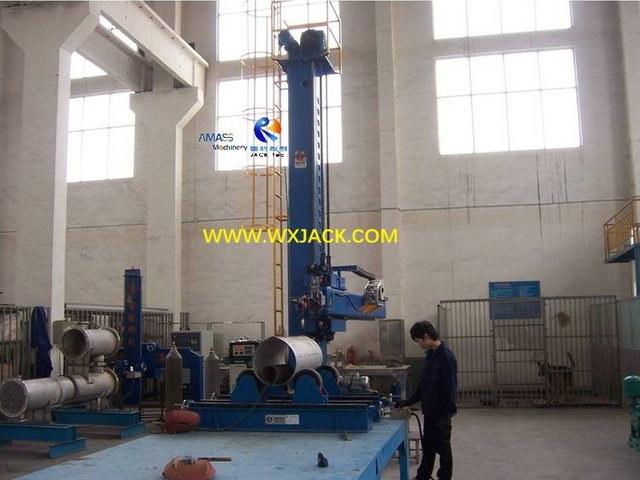

LHZ3030, with 500A GMAW, for welding small thickness pipes

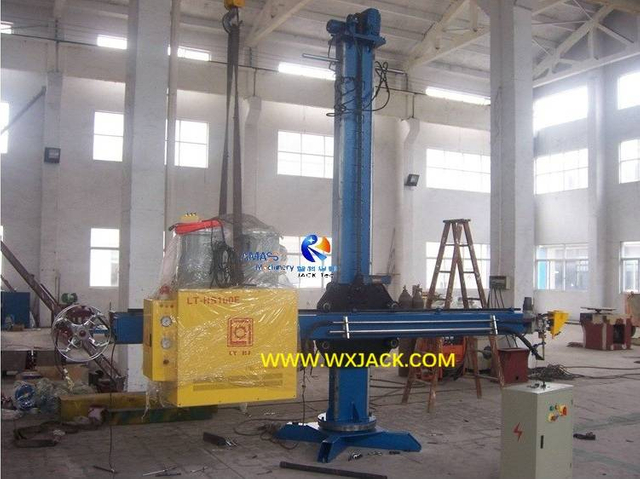

LHZ4055, with 1000A SAW power source

Light duty LHZ2530, ready for delivery

LHZ4055 builds on large tanks

LHZ2530 in operation at customer facility

2 sets of heavy duty LHZ6060

Working site of LHZ4040 at customer workshop

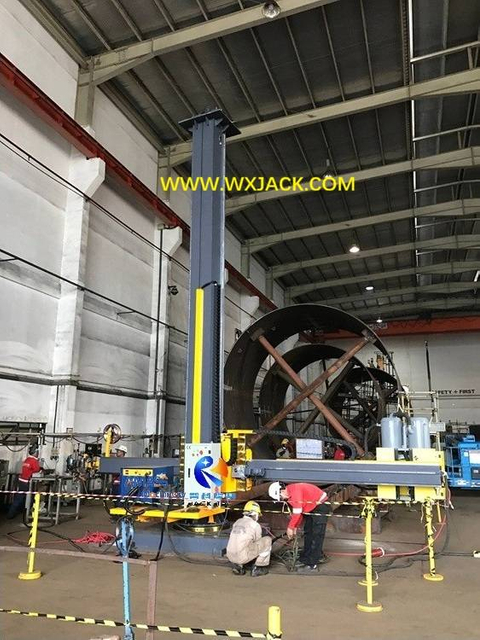

Operation site of LHZ6050 at Indonesia

Customer have acceptance on LHZ4055 at Wuxi JACK

Installation on LHZ6060

Make delivery on LHZ6060 from Wuxi JACK

6. Running and Commissioning Moment of Wuxi JACK Column Boom Manipulator Welding Machine:

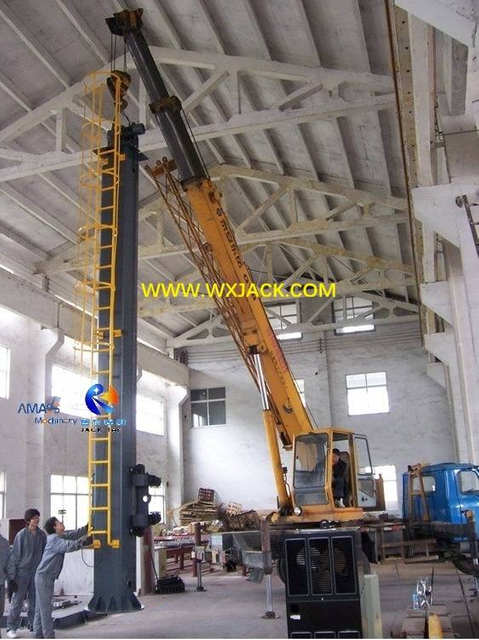

Wuxi JACK technician assembles on cross slides pivot onto column

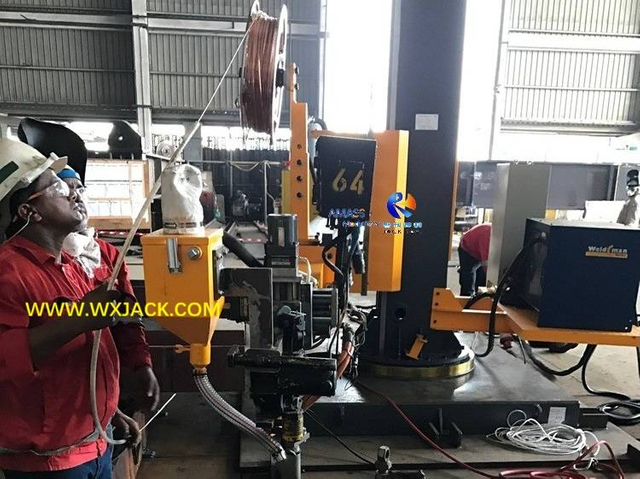

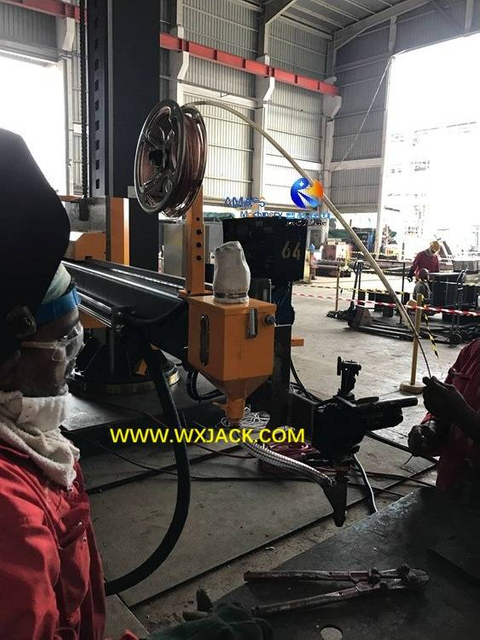

At Indonesian customer facility, adjusting on welding process parameters

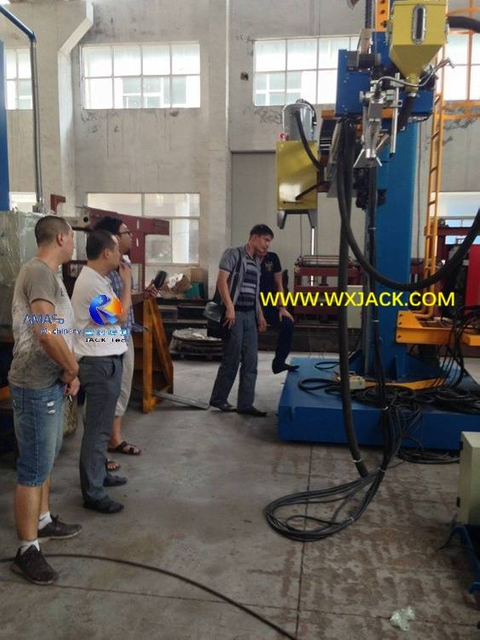

Wuxi JACK engineers and technicians discuss on SAW welding

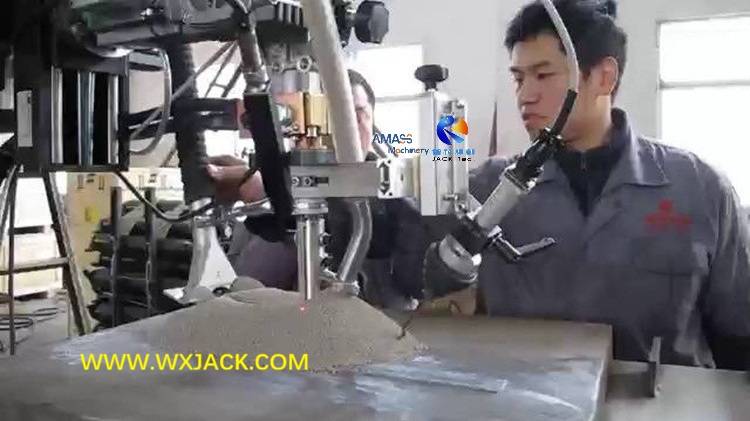

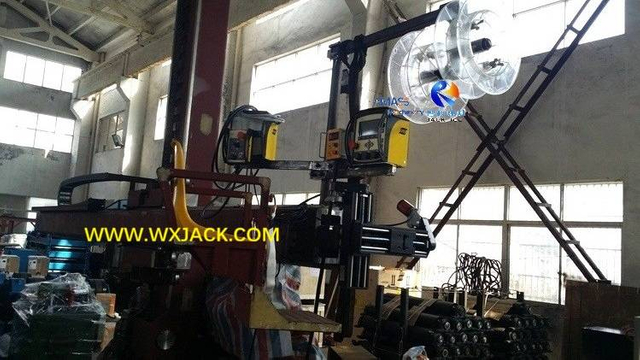

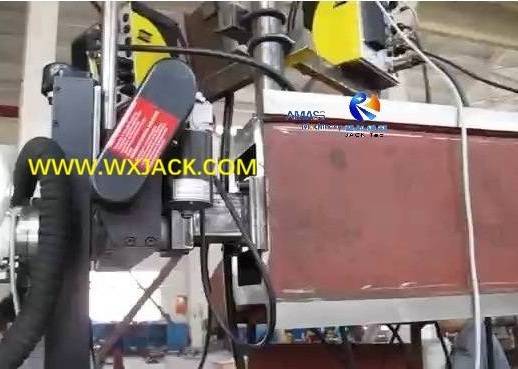

At Wuxi JACK workshop, try on ESAB SAW strap cladding

Wuxi JACK Manipulator Welding Column and Boom in Year 2025 and 2026

LHZ5560 Column Boom Welding Console Manipulator in February 2026:

1. Customer is a middle east company, their project involves medium to heavy industrial duty pressure vessel production;

2. Major Technical Request on LHZ5560 Manipulator Welding Machine from Customer:

1) Column height: 750 – 6250mm;
2) Boom extension length:   6000mm
3) Column rotation angle and mechanism: (0°- 360°), motor drive
4) Maximum welding torch carrying capacity: (250- 300) kg
5) Welding: Tandem arc SAW, 2 pieces of 4mm solid wires feeding
6) Workpiece diameters: Φ1,800mm – Φ5,300mm
7) Workpiece wall thickness: 10 – 100mm
8) Workpiece material grade:   Carbon steel S355J / S355
9) Welding head movement axes:   Vertical and horizontal, guided with high precision cross slides
10) Welding torch alignment system: Laser alignment
11) Visual sensor or camera assisted system
12) Welding Console Manipulator start and data logging via operator remote pendant;
In all, structural robustness and SAW operational reliability are key factors;

3. Part of Technical Clarification on LHZ5560 Manipulator Welding Column and Boom from Wuxi JACK:

1) Maximum allowable welding head load at boom end: Heavy duty, 300kg;
2) Safety factor used in structural design: Both boom and column are with rectangular guide rails; The structure consists of a plate welded to the front of the bent C shaped part;
3) Welding torch package: Includes wire feeder, SAW flux hopper, oscillator, cable and hose;
4) Duty cycle for SAW operation:   100%;
5) Column revolve mechanism in Welding Console Manipulator:   Motor drive revolve, with cross roll bearing at bottom for support;
6) Maximum boom tip deflection under full rated load: ≦40mm;
7) Column and boom guide system specification:   Guided with heavy loading bearing and roller;
8) Duplex and stainless steel tank production: Depends on welding technology on different material

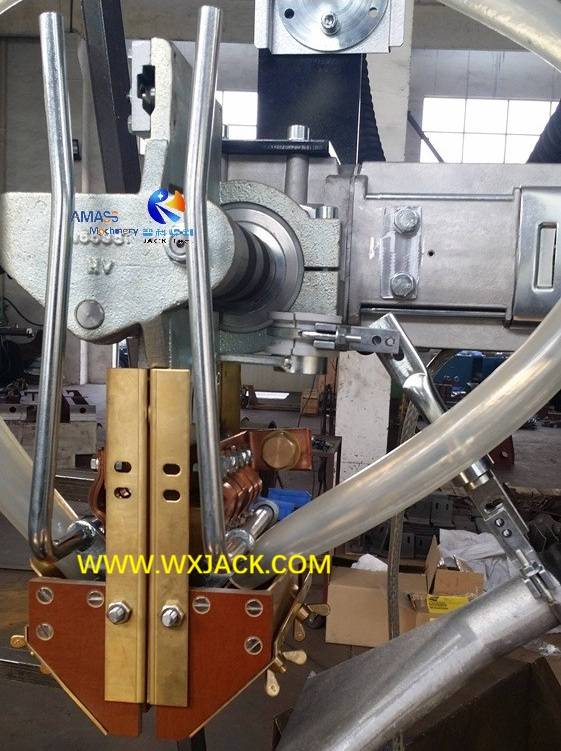

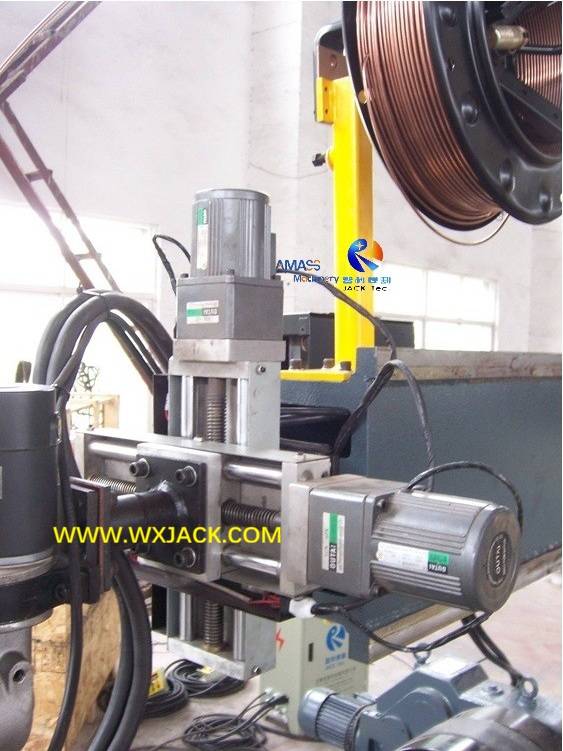

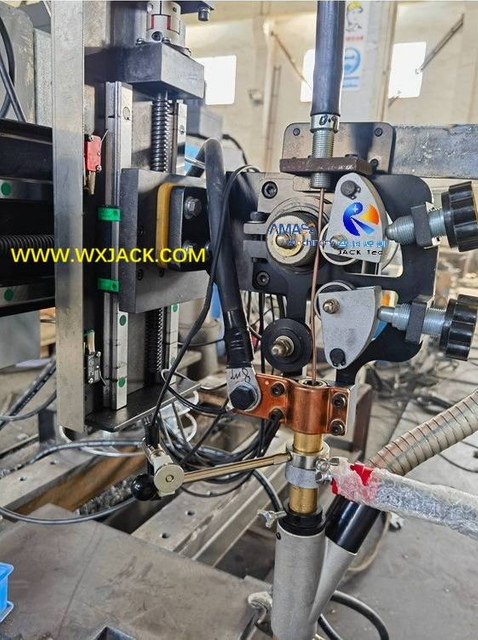

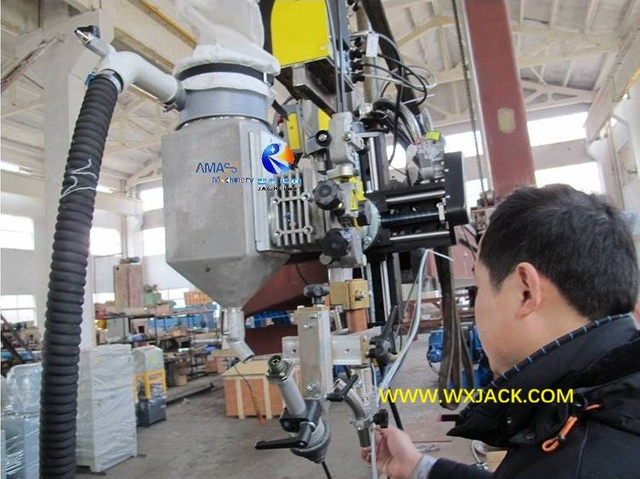

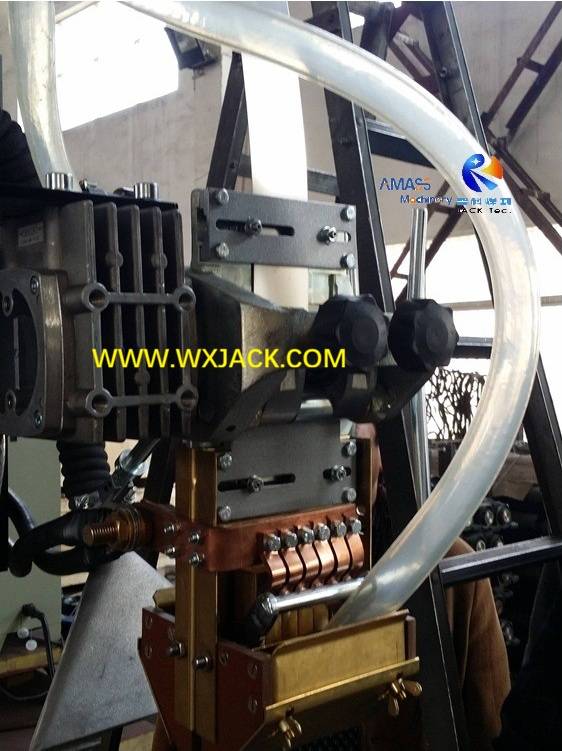

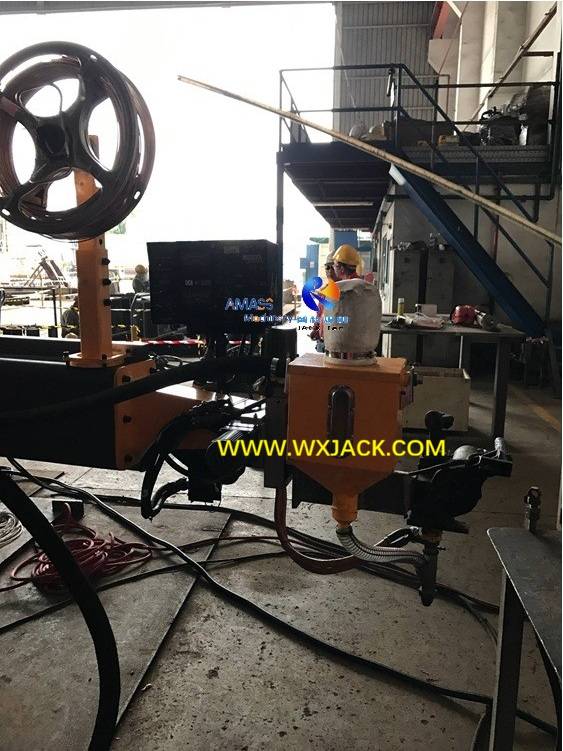

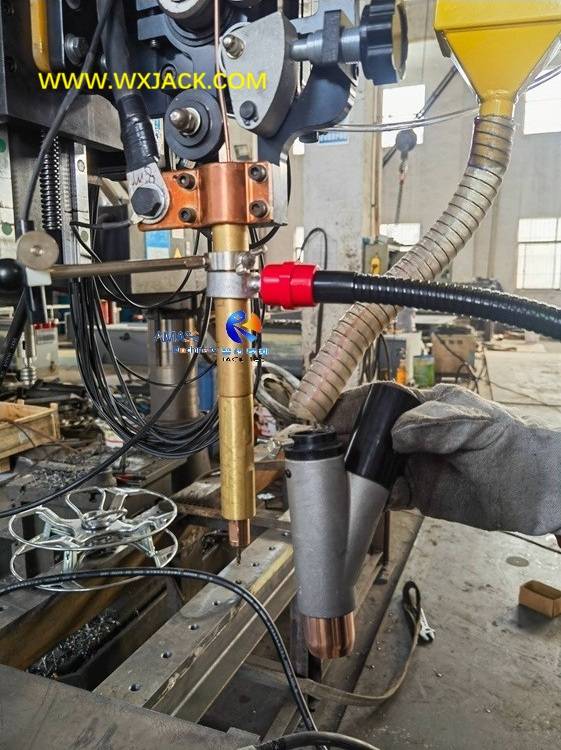

Welding torch mechanism, wire strainer and feeder, cross slides

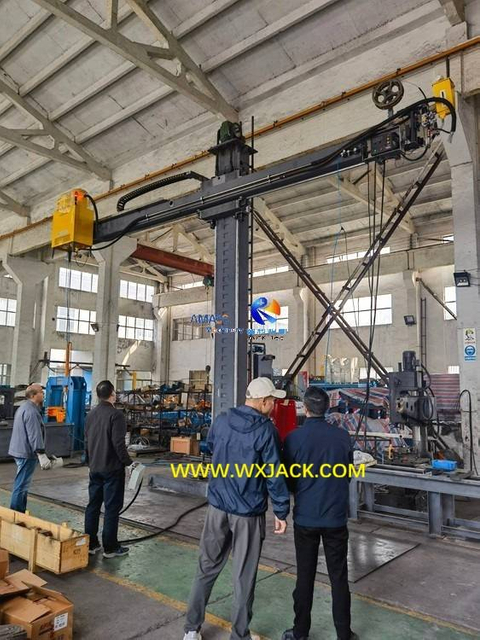

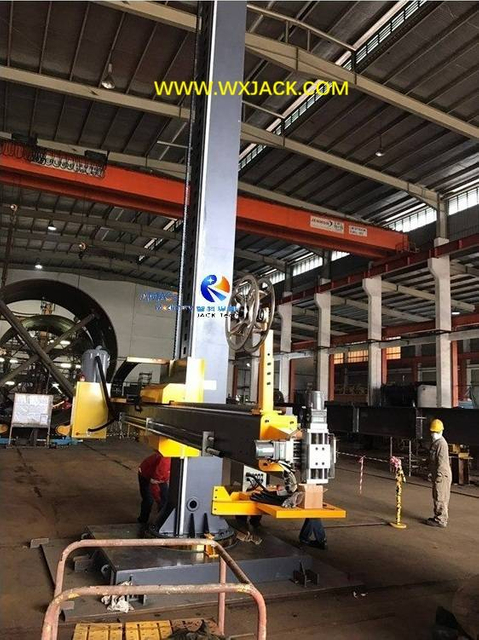

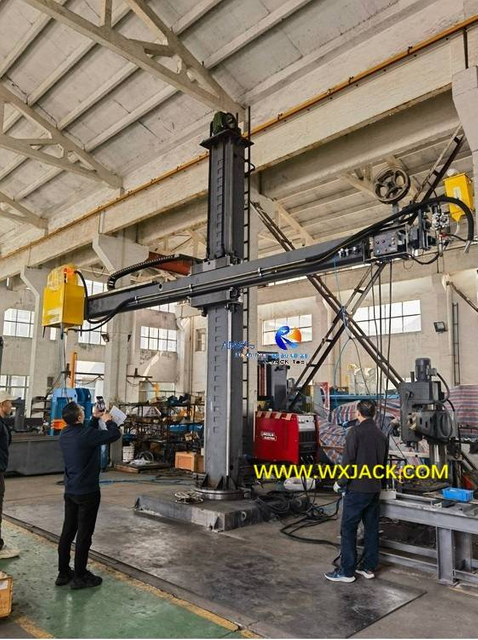

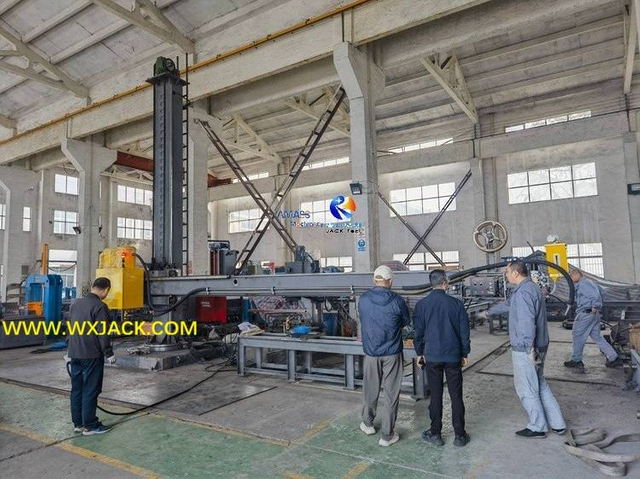

The erected LHZ5560 manipulator Welding Column and Boom at Wuxi JACK workshop

At customer facility, operator observes on welding head

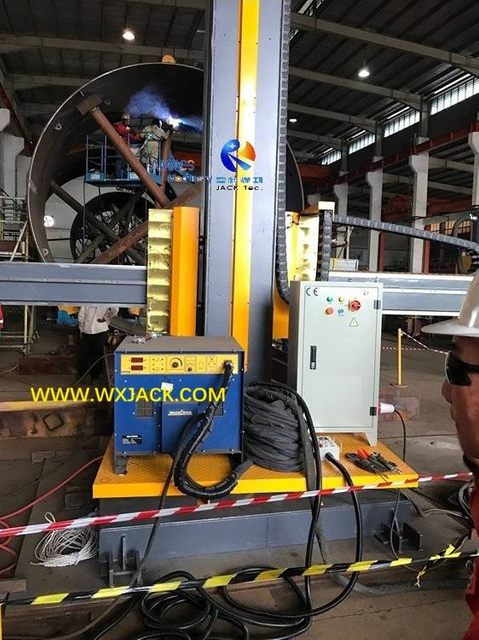

Working site, base bed, and workpiece (large tank) in the background

Operating Videos of Wuxi JACK Manipulator Welding Column and Boom

Related product pages on videos and introduction on Welding Console Manipulator:
1. Manipulator Welding Machine;
2. Welding Center;
3. Introduction on Wuxi JACK Welding Column and Boom

Technical Specifications of Wuxi JACK Column Boom Manipulator Welding Machine

1. Models Implication: LHZ series Welding Column and Boom manipulator equipment is nominated on basis of: The max. stroke of welding torch moving along height and width direction:
1) For Example, LHZ3040 model refers to:
a) X Axis: The max. up and down moving stroke of boom and welding torch is 3000mm, which determines on the max. diameter of workpiece tanks;
b) Y Axis: The max. horizontal moving stroke of boom and welding torch is 4000mm, which corresponds with the max. length of current segment of tanks;

2. Supplementary Degree of Freedom with Manipulator Welding Column and Boom:

1) Stationary base, or with moving trolley:
This means that, the entire set of welding machinery is:
a) Either stationary, which means working scope of the Welding Console Manipulator is confined to the 360° swing of its boom;
b) Or, has motor drive trolley, which helps the welding equipment capable of moving within certain distance, for example, 20m length with 2,000mm rails spacing, thus enlarging its operating zone;
2) Upright Column: Either fixed (No revolve), or more often seen, can be revolved 0° -360°. The revolve can be turned by manual operation, or under motor drive.

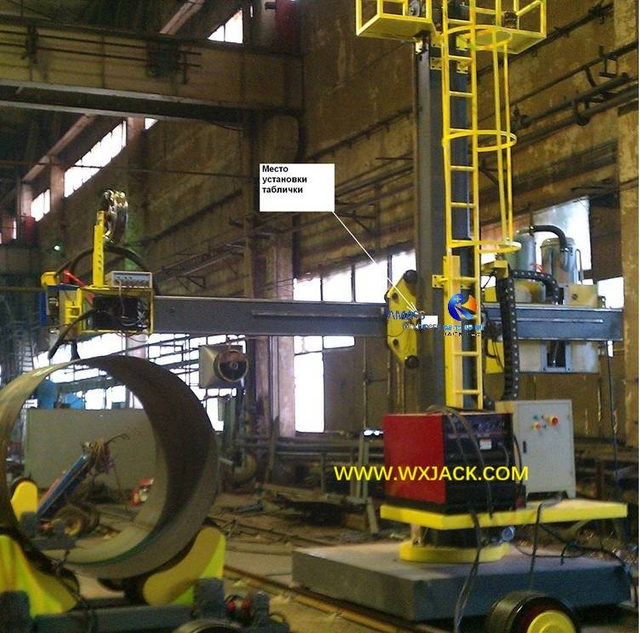

3. Technical Parameters of Wuxi JACK LHZ5050 Column Boom Welding Console Manipulator in March 2026:

As example, this set of LHZ5050 was produced for an East European customer, with parameters as below:

No.	Parameters	Value	Note
1	Boom vertical stroke	5000mm
2	Boom horizontal stroke	5000mm
3	Welding the workpiece diameter	Φ1000- Φ4500mm
4	Boom horizontal speed	120- 1200mm/min
5	Adjustment of boom horizontal speed	VFD
6	Boom horizontal speed	1000mm/min.	Constant
7	Boom horizontal travel transmission	gear and rack
8	Boom vertical travel transmission	chain and sprocket
9	Cross slides stroke	Vertical and horizontal 300mm
10	Welding power	LAF1601
11	Welding wire feeder	A6S twin wire ratio 156:1
12	Welding control panel	PEH type
13	Welding seam auto tracking device	GMH type
14	Saddle for worker	One set
15	Video camera	One set	China made
16	Flux recovery unit	One set
17	Machine type	Trolley and turning column

LHZ2525

LHZ3030

LHZ5050

LHZ4055

Welding Modes in Wuxi JACK Column Boom Welding Console Manipulator

4 Manipulator Welding Column and Boom 12 100_7291

5 Manipulator Welding Column and Boom 23 100_9665

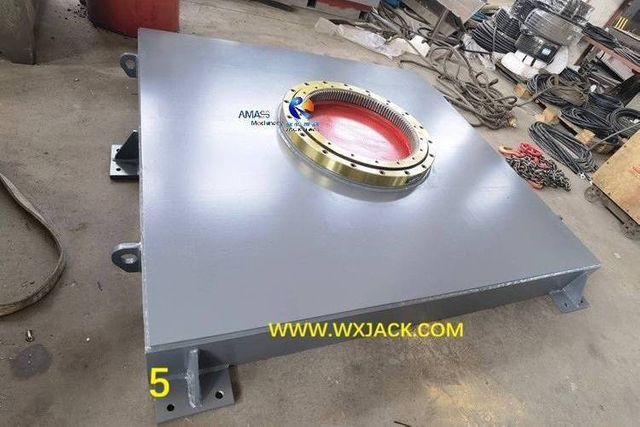

6 Manipulator Welding Column and Boom 30 _20221107155234

Welding Technologies with Welding Column and Boom

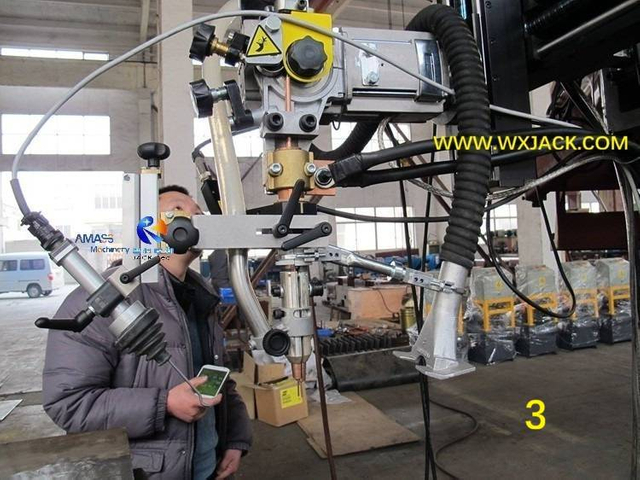

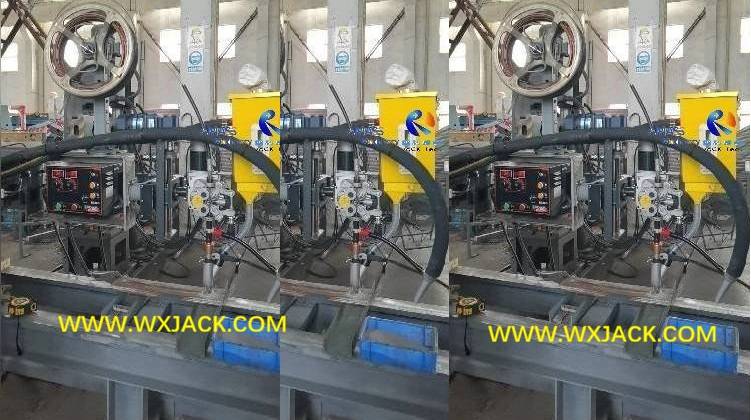

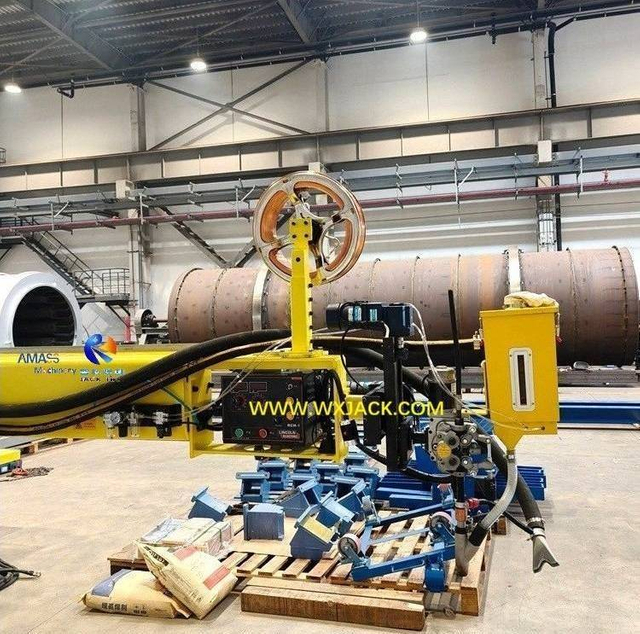

The Lefthand Scrolling Photos: Different welding head units of Wuxi JACK column boom Manipulator Welding Machine

1. SAW (Submerged Arc Welding):
1) Single arc: 1000A; Tandem arc: (1200A A.C. plus 1600A D.C.) power sources, with flux, on carbon steel;
2) Applicable for medium to large wall thickness pipes, from 6mm to 60mm or thicker;
2. CO₂GMAW (Gas Metal Arc Welding):
1) Small current (Up to 500A, working current of 350A), for welding on thin wall pipes, made of carbon steel or non-ferrous metal, from 2mm to 10mm thickness;
2) Application: GMAW welding has high impact value (IK), which is often applied in Pharmaceutical, or Vehicle industries;
3. Strip Cladding (Built-up welding):
1) For building up a layer of anti-corrosion on surface of workpieces. So, strip cladding is also named as built-up welding;
2) Applicable Welding Modes: In manipulator Welding Column and Boom, strip cladding can be in the welding modes of SAW or ESW (Electroslag) welding;
4. Plasma Welding（PAW）+Argon Arc Welding (TIG):
1) Being used on welding materials of Stainless steel, Carbon steel, Titanium, Zirconium, and Alloy. This welding gun has the characteristics of automatic tungsten electrode centering, good cooling effect, good arc compression effect, stable arc, etc.;
2) Double torch hybrid welding: Plasma welding with deep penetration; TIG welding with broad cover face

Function and Broad Use of Column Boom Manipulator Welding Machine

1. Work Principle: Welding Console Manipulator gets its name from overall structure and appearance: A set of solid and flexible mechanical erected cross frame, assembled from horizontal boom and upright column, joint with heavy duty and high precision cross roll (Saddle), for fulfilling longitudinal and horizontal welding operations on cylindrical working parts: Vessels/ tanks/ pipes...;

2. Operating Way of Manipulator Welding Column and Boom:

1) Structure Feature: This column boom welding equipment operates as a type of manipulator for managing on welding operation, without additional welding fixtures for fixing on workpieces;
2) Operation Manner: Need to works with other common seen Welding Equipment: Welding Rotator or Welding Positioner, to be composed into general purpose Welding Center:

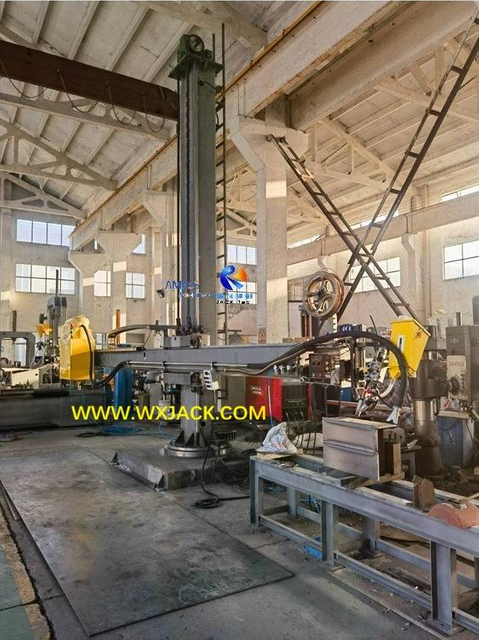

3) Design sketch on Wuxi JACK LHZ3030 model Manipulator Welding Machine, work together with HGZ10 self-adjust automatic Welding Roller Support: (Fig.1)

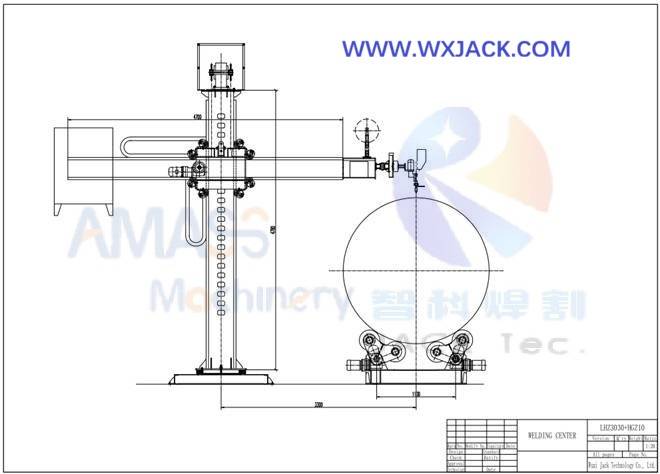

Fig1 Manipulator Welding Column and Boom 36

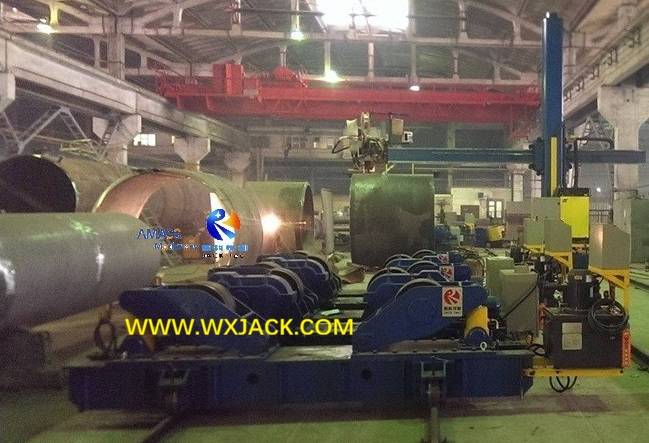

4) Large Welding Center: Wuxi JACK LHZ6060 model implements on external longitudinal seam welding on oil pipelines at East European customer site, working with groups of HLK80 bolt adjust Welding Rotator, of hydraulic drive lifting Welding Roller Bed: (Fig.2)

Fig2 Column Boom Welding Console Manipulator 66 WC0505

3. Major Welding Operations in Column Boom Manipulator Welding Machine:

1) Longitudinal Seam Welding: By means of leftward and rightward movement of horizontal boom, longitudinal seam welding is implemented on external and internal wall of workpieces. The corresponding welding speed is managed and displayed with horizontal boom drive systems;
2) Circumferential Seam Welding: When horizontal boom and its front end assembled welding mechanism keeps in stationary, and by means of workpiece revolve on Welding Turning Roll, circumferential seam welding can be fabricated on both internal and external wall of workpieces. The corresponding welding speed is managed and displayed with welding turning roll drive systems;
3) Internal or External Welding: Working head (Horizontal boom) of manipulator Welding Column and Boom can either “crawl on” external wall of tanks, or extends into internal wall of tanks, acquiring on both positions of accurate welding on workpieces;
4) Flexible Operation Mode: Nearly all the common adopted welding units in tank fabrication: SAW/ GMAW/ Strip Cladding/ TIG/ Pulse/ P+ T... can be equipped. Besides, some customers ask on flame cutting torch to be installed at front end of boom, to make the equipment more versatile;

4. Put into Use on Column Boom Welding Console Manipulator:

1) Operation Hand: The horizontal boom acts as operating manipulator. Correspondingly, welding system: Welding torch/ Welding wire feeder/ Welding control console... are installed at front end of the horizontal boom:

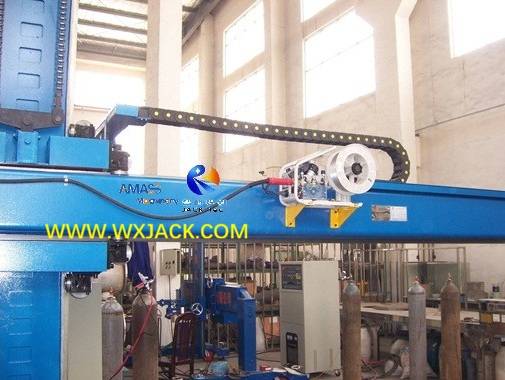

2) Welding function system being installed at front end of horizontal boom: (Fig.3)

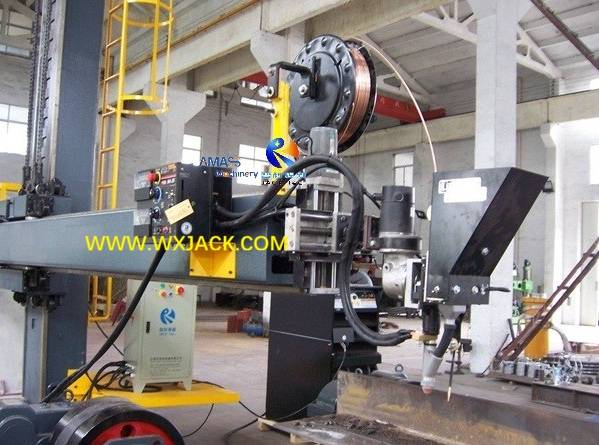

Fig3 Column Boom Manipulator Welding Machine 31

5. Cross Slides (Saddle) Role in Operation of Manipulator Welding Column and Boom:

The movement of horizontal boom includes:
1) X axis, along horizontal direction --- Corresponds with adjustable welding velocity of longitudinal seam welding;
2) Y axis, along vertical direction --- Corresponds with different diameters of workpieces;
The above main work movement is guided with delicate design high precision cross slides (Saddle):

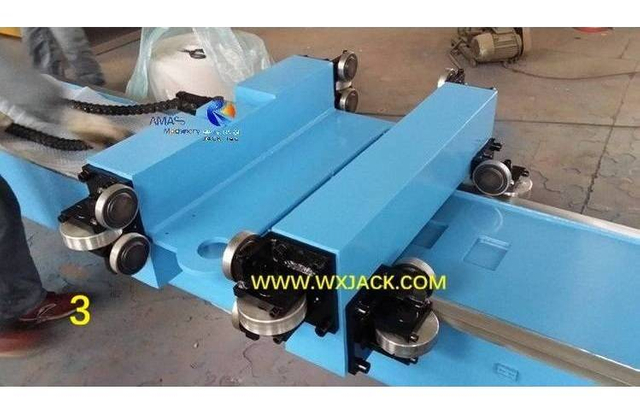

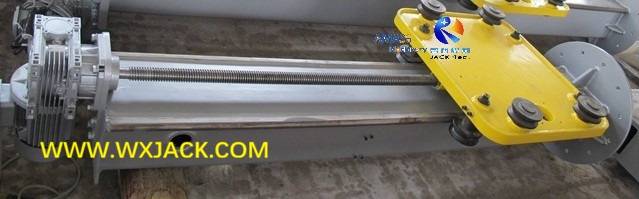

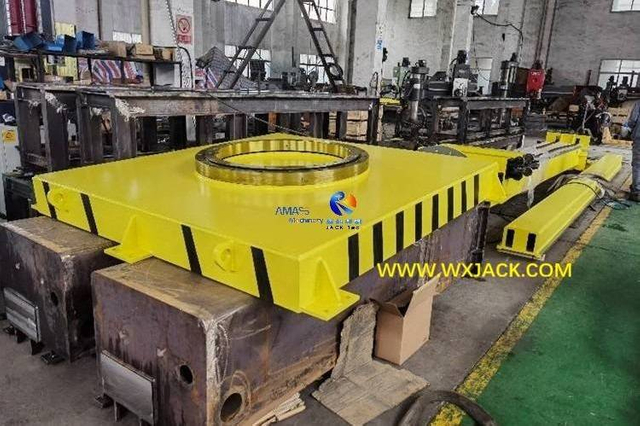

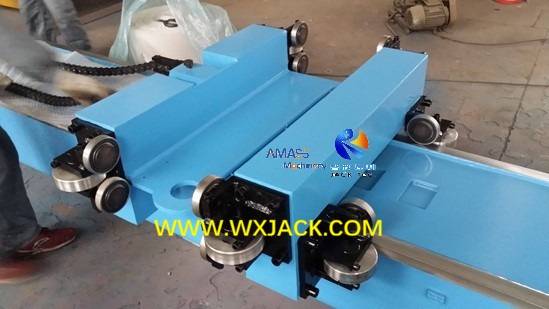

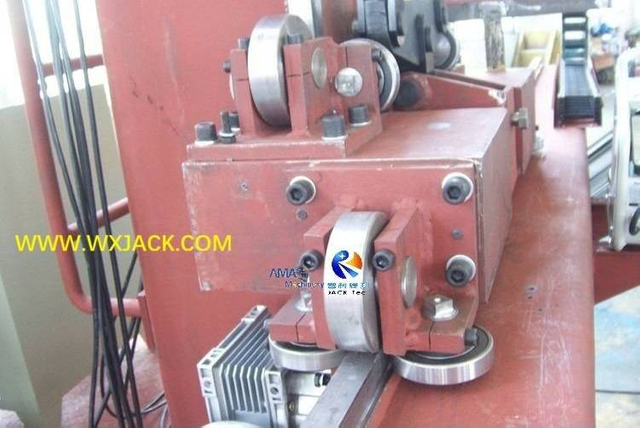

1) Heavy duty cross slides (saddle) of Wuxi JACK large manipulator Welding Column and Boom: (Fig.4)

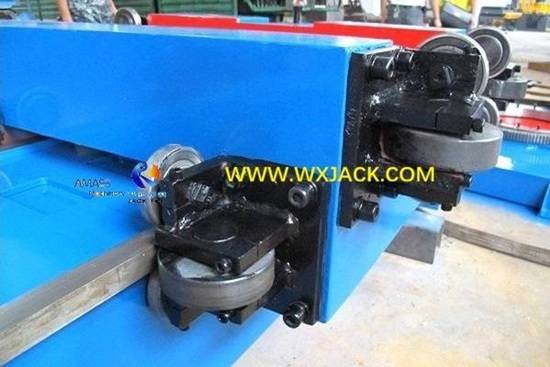

Fig4 Manipulator Welding Column and Boom 13

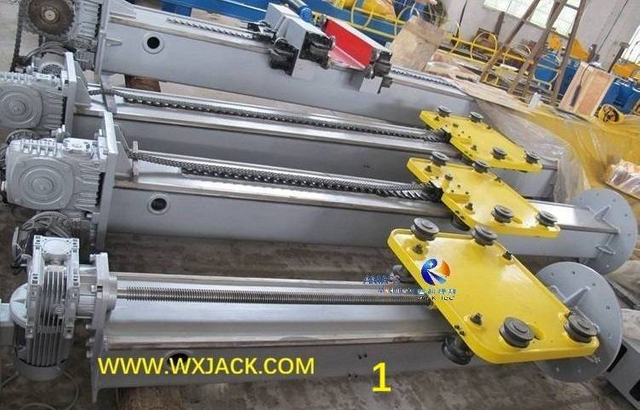

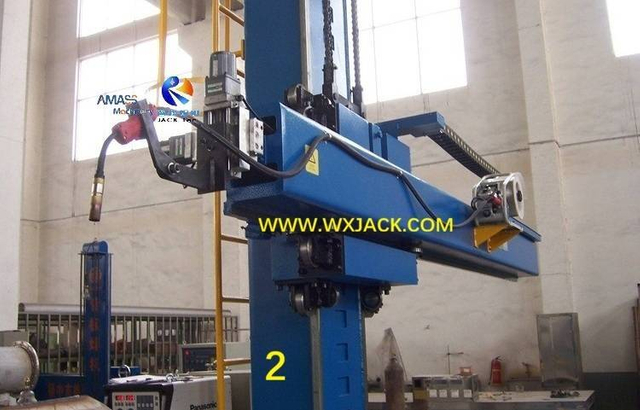

2) Cross slides (saddle) being assembled into erected Wuxi JACK medium duty Manipulator Welding Machine: (Fig.5)

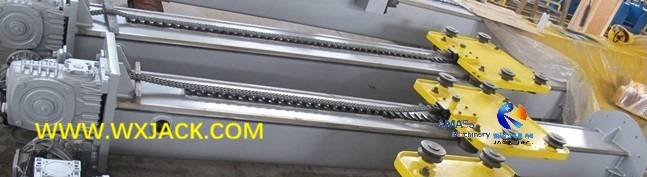

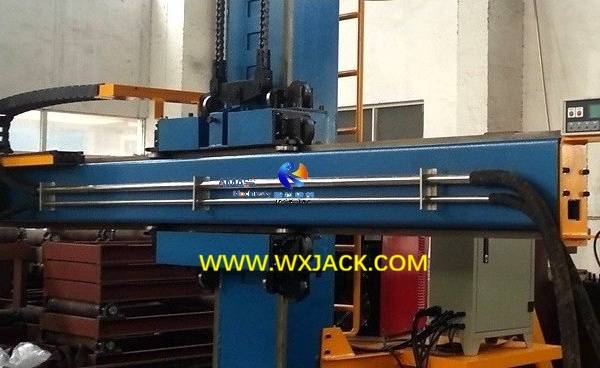

Fig5 Column and Boom Welding Manipulator 14

Strong and Durable Mechanical Property of Wuxi JACK Column Boom Welding Console Manipulator

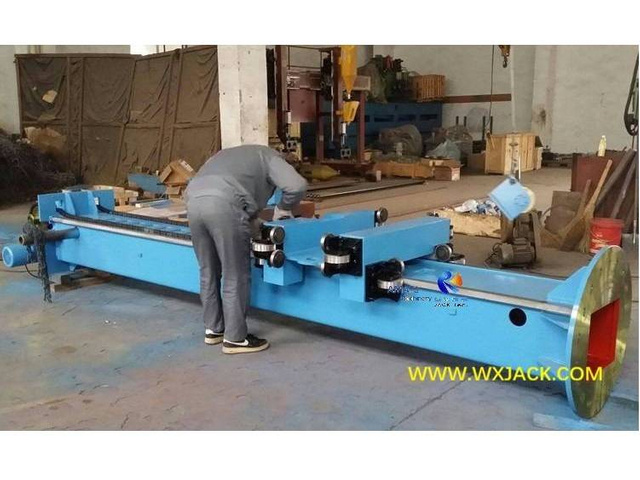

Prepare on delivery package of exported LHZ4060 model at Wuxi JACK workshop: (Fig.1)

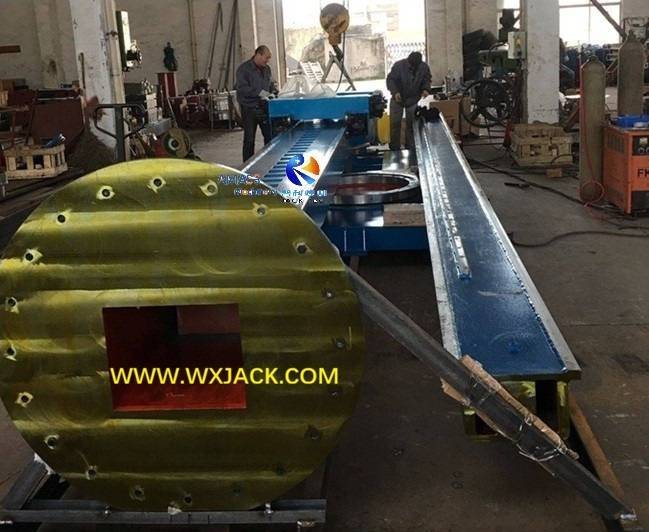

Fig1 Manipulator Welding Column and Boom 49A LHZ4060

Mechanical frames play key role on guaranteeing high standard and persistent operation of this welding equipment:
1) Horizontal boom and upright column: Rigidity, robustness, and strength;
2) Cross slides (pivot): Delicate and ingenious design;
3) Drive and transmission system: High power, smooth, flexible;

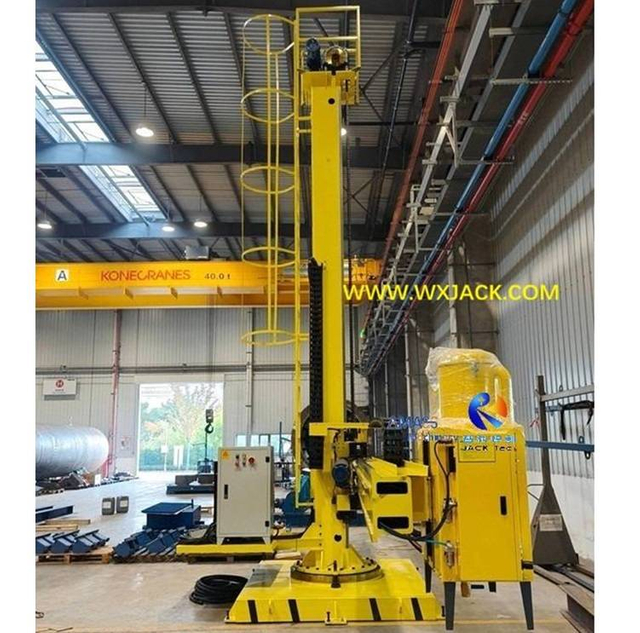

Structure of Wuxi JACK LHZ5050 Manipulator Welding Column and Boom in Year 2026:

Below is technical request from customer on this Column Boom Welding Console Manipulator in March 2026:
1. The contact type electric tracer is for automatic tracing along the welding seam;

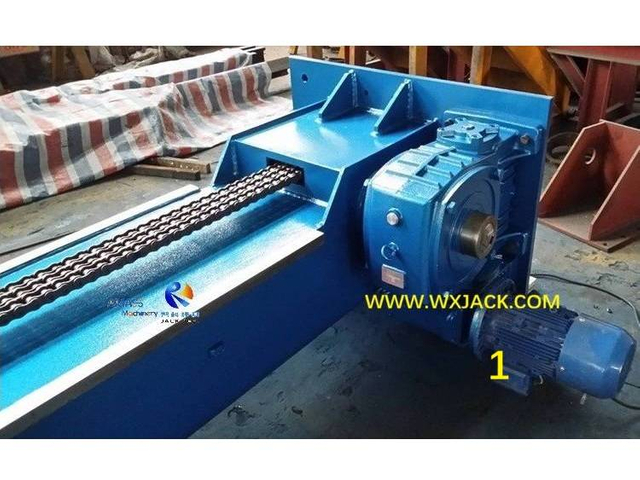

2. Drive: Vertical movement reduction gear is mounted at the upper section of the column, which drives boom up and down thru the transmission of chain sprocket coupler, so as to adjust welding position;
3. Maintenance platform is at top end of the column, which guarantees personnel safety
during service of the reduction gear. Also staircase on the column is equipped with guardrail for safety purpose;
4. An array of safety holes on the column are for preventing column from sudden falling
down under the condition of accidental break of chain;

5. Assembly Way of Manipulator Welding Column and Boom:

1) The bottom section of column is fixed onto base by means of cross roll bearing, making boom revolving horizontally, performing fixture and welding of multiple workpiece at multiple position;
2) Boom is jointed together with column thru cross slides (saddle), fulfilling the ability of both vertical and horizontal adjustment;
3) Cross slider for controlling position of welding gun is at front end of boom, while wire spool is at the rear end of boom. By way of contact tube, wire is feed to welding gun;

6. Electric Control in Column Boom Welding Console Manipulator:

1) Boom travel speed, which is welding gun speed, also the welding speed, is various frequency drive (VFD), which is controlled with A.C. inverter. With the transmission of gear rack coupler, boom travel features in high precision and accurate positioning;
2) Boom travel is driven with inverter motor, of which speed is controlled continuously,
extensive, smooth and reliable. Boom travel speed has digital display and emergence stop button. Remote control pendant is equipped for realizing main functions remotely, easy and
convenient;
3) Transverse and longitudinal cable will go throng the drag chain for good protection and safe use. Column and boom structure parts will be treated by anneal treatment after welding to release the stress.

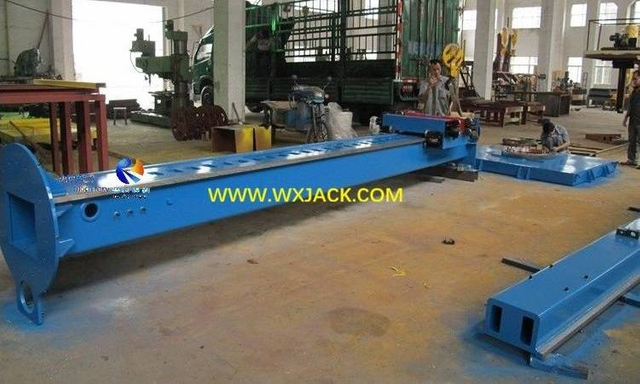

A. Horizontal Boom and Upright Column of Wuxi JACK Manipulator Welding Column and Boom:

1. Importance: Composing main frame of this column boom Manipulator Welding Machine, its intensity and strength directly determine on robustness, stability and reliability of operation, especially the core index of boom deflection management;

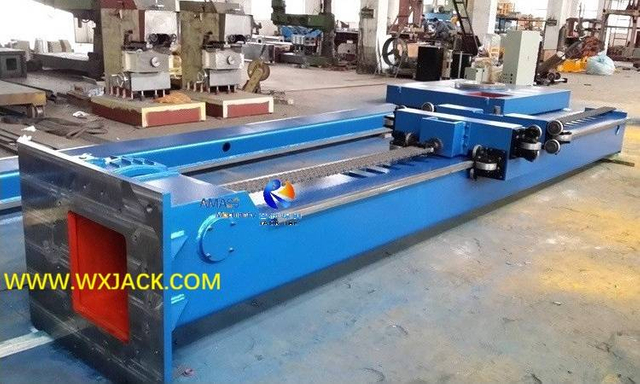

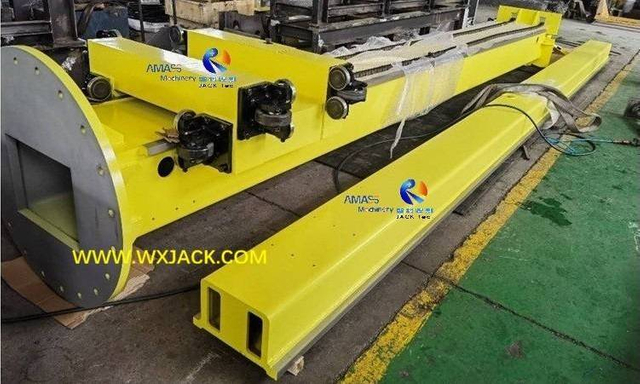

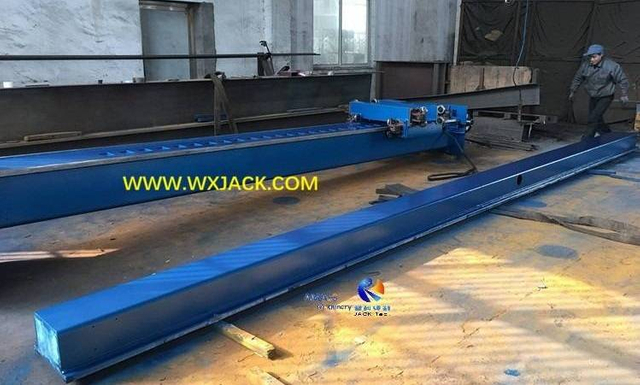

2. Cross Section Design and Craftsmanship: The horizontal boom and upright column all have rectangular cross section, which are fabricated from high strength large thickness steel plates;
3. Superior and Consistent Quality: In Wuxi JACK Welding Console Manipulator, process technology on manufacturing horizontal boom and upright column is the foremost factor;

4. General Process Technology on Fabricating Mechanical Frame of Welding Column and Boom:

1) 1^st Operation Cut Off: First cut the steel plates into shape and size, with CNC Flame Plasma Cutting Machine;
2) Bending into Structured Part: Then bend the cut out steel plates into shape by means of different tonnage Press Brake;
3) Fabrication: Next fabricate the cut and bent steel structure plates into final shape of rectangular column;
4) Heat Treatment: Finally, carry out advanced and strict heat treatment (Annealing) on fabricated assemblies, to have stress relief and raise mechanical property of entire frame;
5. Guidance and Transmission: The heavy duty linear guide rail/ gear and rack/ pivot cross slides, are all assembled onto horizontal boom and upright column.

B. Ingenious Design and High Rigidity Cross Slides (Saddle) of Manipulator Welding Column and Boom:

1. Key Role of Cross Slides (Saddle) in Operation of Column Boom Welding Console Manipulator:

1) Function: During welding, horizontal boom movement with respect to upright column, in the direction of horizontal X axis and vertical Y axis, carries welding torch movement accordingly. Such both direction movement is guided and transmitted with cross slides (Saddle), which is assembled at intersection point of horizontal boom and upright column:
2) Up and Down Movement: With elevation of horizontal boom, the welding torch height level can be managed, based on size and diameter of workpieces;
3) Leftward and Rightward Movement: By means of horizontal extending and retreating of horizontal boom, the operating reach of welding torch can be controlled;
4) Welding Speed: When performing on longitudinal seam welding, horizontal movement of boom equals to movement of welding torch. For this reason, horizontal boom leftward and rightward speed is working welding speed in manipulator Welding Column and Boom, which is controlled with A.C. inverter, and displayed in digital manner in real time on operating panel;

2. Different Structures of Cross Slides (Saddle) in Wuxi JACK Column Boom Manipulator Welding Machine:

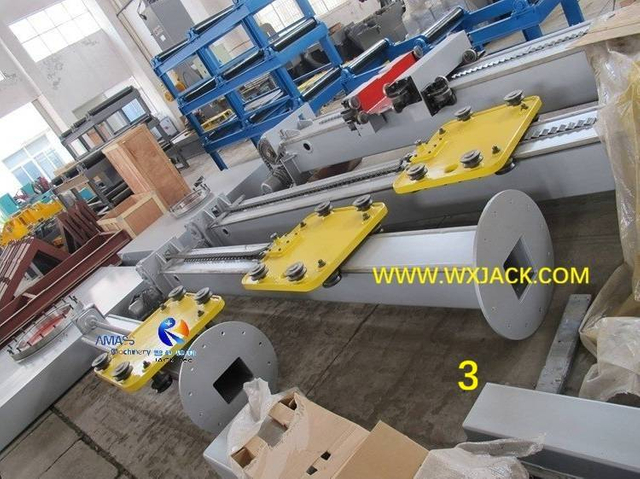

1) Task and Working Force: As shown in the above 4 photos, movement of horizontal boom along X and Y axis are driven with rolling friction force, instead of gliding friction force. This means, contact surface between 2 moving surfaces is guided with rolling rollers in cross slides, instead of direct touch and sliding force;

2) Light Versus Medium and Heavy duty Column Boom Welding Console Manipulator:

The cross slides (saddle) structure in different loading capacities of manipulator Welding Column and Boom are different:
a) The above 1^st photo shows the cross slides (saddle) in light duty models welding equipment;
b) The above 2^nd, 3^rd and 4^th photos show the cross slides (saddle) in medium and heavy duty welding equipment;
3) Cross slides (saddle) of Wuxi JACK light duty manipulator Welding Column and Boom: (Fig.2)

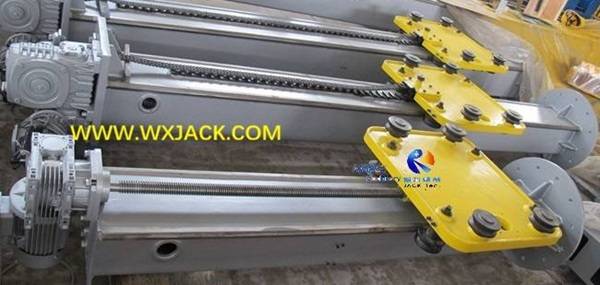

Fig2 Manipulator Welding Column and Boom 2 IMG_1392

In small to medium duty models, horizontal boom movement along X and Y axis are guided with 4 pieces of guiding rollers, which are installed at 4 corners of the cross slides (saddle) respectively:
4) Cross slides (saddle) of Wuxi JACK medium and heavy duty large column boom Welding Console Manipulator：(Fig.3)

Fig3 Manipulator Welding Column and Boom 42 IMG_0676

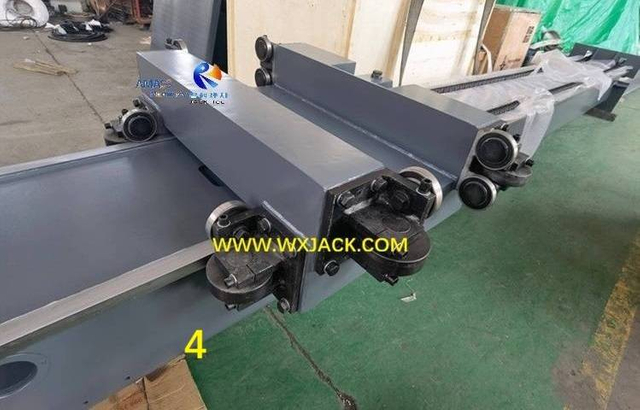

Horizontal boom movement along X and Y axis are guided with 4 groups of guiding rollers: Each group of guiding rollers has 3 pieces, assembled at the 4 corners of the cross slides (saddle), encircling the guiding rail.

C. Drive and Transmission Systems of Wuxi JACK Column Boom Welding Console Manipulator:

It has strong points of: High power, smooth, flexible and stable:

1. Drive and Transmission Mechanisms in Wuxi JACK Column Boom Manipulator Welding Machine:

Work Mode:
1) High Power A.C. Motor: as shown in the above 1^st photo, for driving the horizontal boom up and down movement. This driving motor is installed at top of the upright column;
2) Constraint on Large Models: Sometimes, to reduce total height of the entire welding equipment, especially those large models, this drive motor is installed at bottom of the upright column, inside its mechanical base bed. This also helps lowering down gravity center of the large Welding Console Manipulator;

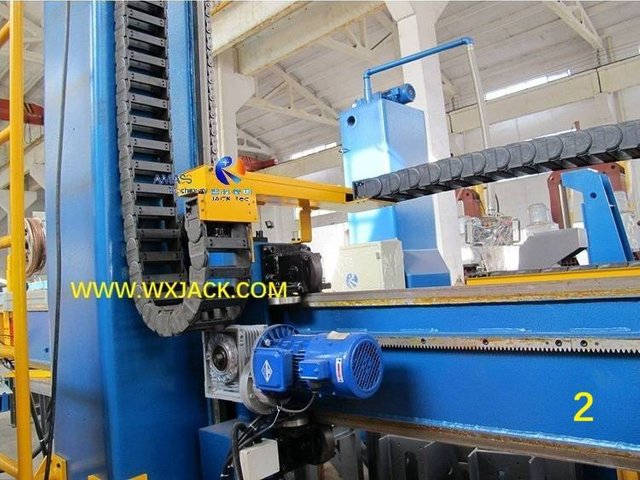

3) Precise Worm Gear and Motor Reducer, as shown in the above 2^nd photo, for driving and transmitting horizontal boom movement along X and Y axis;

4) Up and Down Transmission Mechanism in Wuxi JACK Manipulator Welding Column and Boom:

Shown in the above 3^rd photo:
a) Wuxi JACK light duty column boom Welding Console Manipulator adopts with leadscrew as transmission mechanism for its horizontal boom up and down movement: (Fig.4)

Fig4 Column and Boom Welding Manipulator 2 IMG_1392

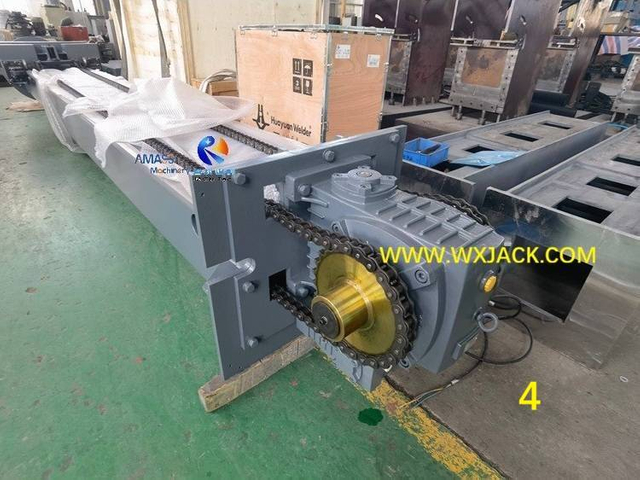

b) Wuxi JACK medium and heavy duty manipulator Welding Column and Boom adopts with chain and sprocket, as transmission mechanism for guiding its horizontal boom up and down movement: (Fig.5)

Fig5 Column and Boom Welding Manipulator 2 IMG_1392

2. Horizontal Boom Linear Movement and Upright Column Revolve in Welding Console Manipulator:

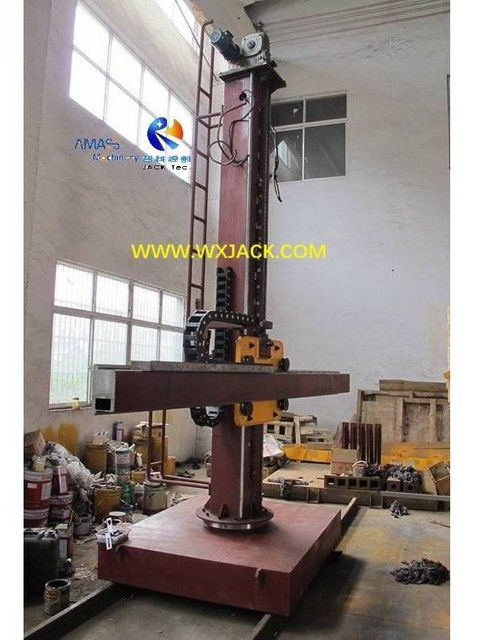

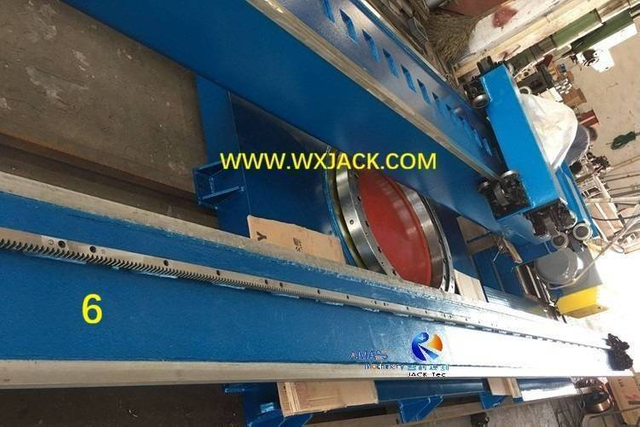

1) High Precision Cross Roll Bearing as shown in the above 5^th photo, for guiding and transmitting the upright column 0° -360° revolve. This cross roll bearing is a piece of advanced machined and heat treated circular bearing, combined with circular rack;
2) Heavy duty High Precision Rectangular Linear Guiderail and Racks: Guiding and transmitting units for fulfilling linear movement of horizontal boom, as shown in the above 6^th photo: The movement is guided with precise heavy duty rectangular cross section linear guiderail, and transmitted with high precision rack;
3) The Assembled Cross Slides: The central guiding and transferring unit for guiding horizontal boom along X and Y axis movement.

Operation on Wuxi JACK Column Boom Manipulator Welding Machine

1. Safety Assurance in Wuxi JACK Column Boom Manipulator Welding Machine:

1) Protecting Horizontal Boom from Sudden Falling Down:

Shown in the above 1^st photo:
a) The biggest safety hidden risk during operation of manipulator Welding Column and Boom, is sudden falling down of horizontal boom when it is at high level position, which will do great harm on personnel working on site, and prime condition of utility and facility;
b) To avoid this potential risk from happening, there is a row of rectangular holes being cut in the upright column. During work, if ever chains break off and lead to sudden falling of the horizontal boom, the rachet safety pins will be ejected out immediately, and plugged into rectangular holes, thus firmly locking the horizontal boom into that position. This is marked in yellow frame in the above 1^st photo;

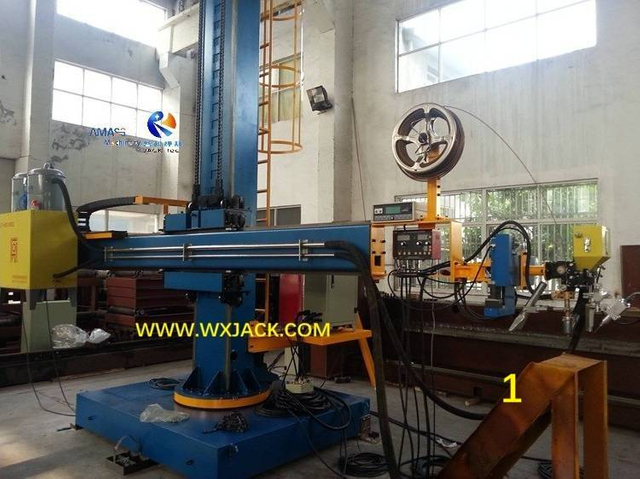

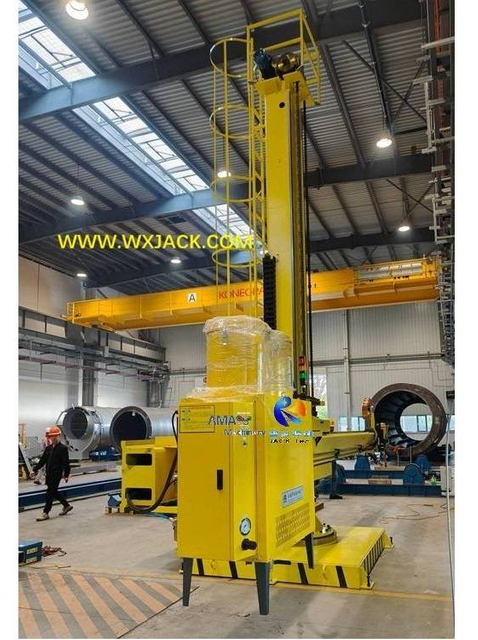

c) The climbing ladder alongside the upright column in Welding Console Manipulator is surrounded with protection rails, as shown in orange frame in the above 1st photo;
2) Brake Motor: The driving motor for horizontal boom elevation is braking type. This gives double assurance on protecting the horizontal boom from unexpected falling down.

2. Convenient and User Friendly Operation of Wuxi JACK Column Boom Welding Console Manipulator:

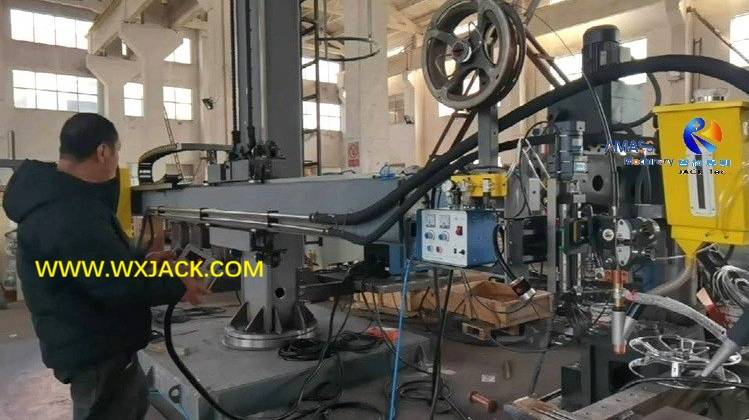

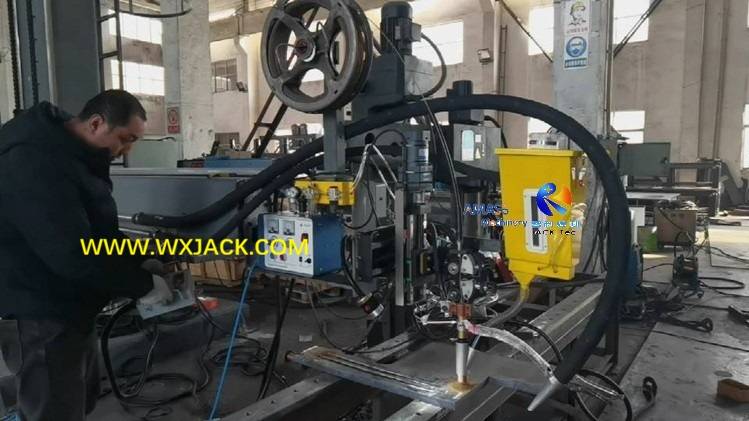

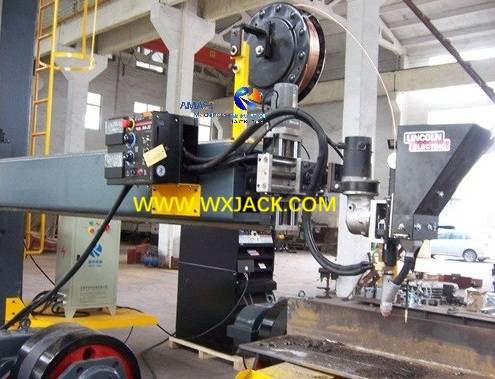

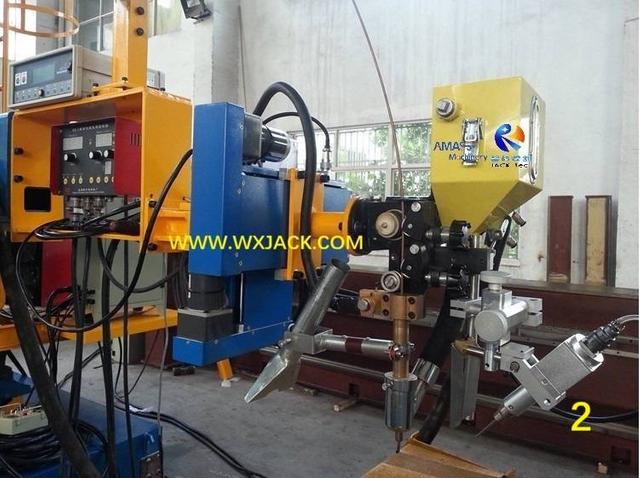

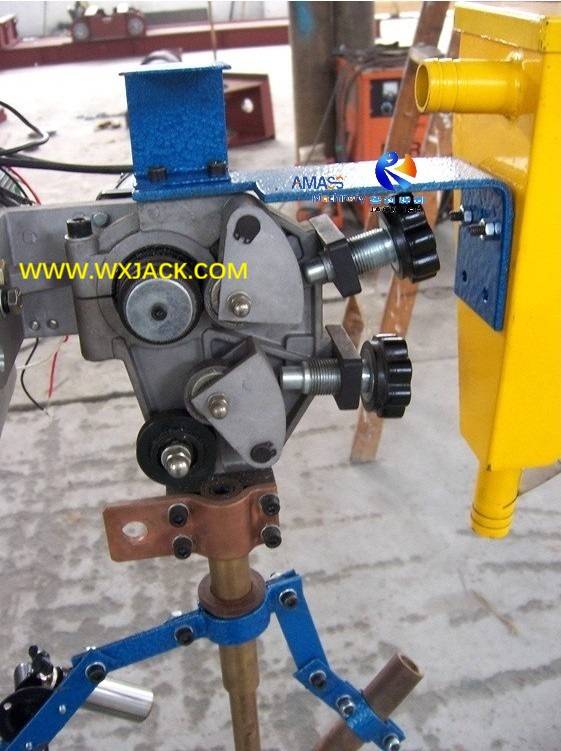

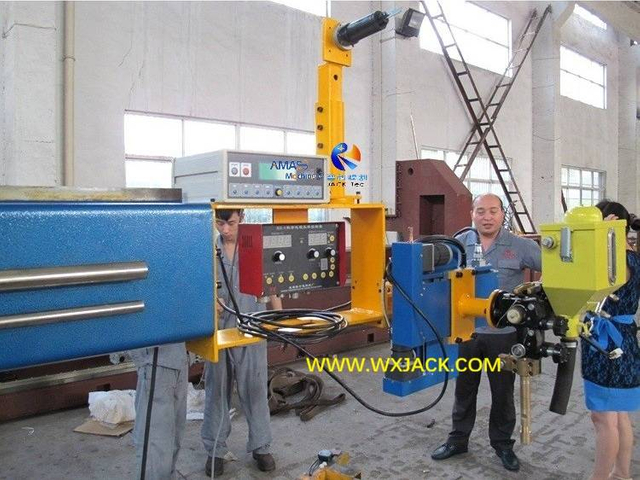

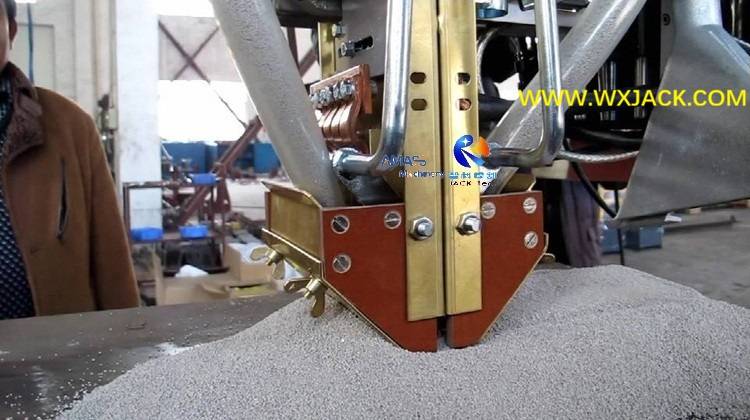

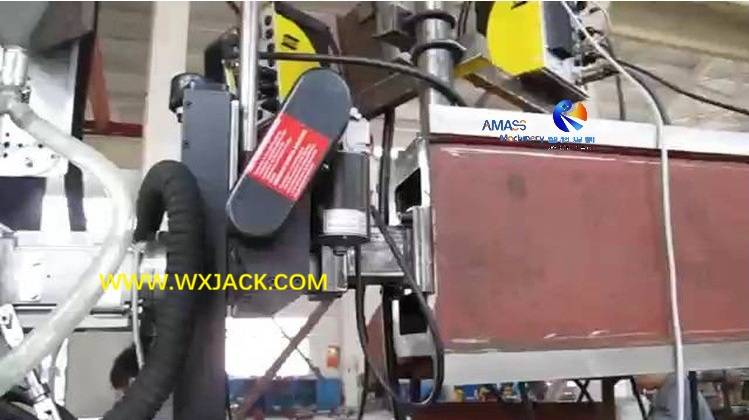

1) Operating point Welding Heads of different configurations: The above 2^nd (SAW) and 3^rd photos (Strap cladding) show welding heads of different welding technology;
2) Welding Modes: It can be any common seen available welding modes. The control console of welding power source/ Welding seam tracker/ Welding wire feeder are all installed on front end of the horizontal boom, so as to acquire on easy management and monitor on high standard running by operators;
3) Meanwhile, strict control on deflection of boom is of vital importance. During technical communicate before final purchase, boom deflection management is one of the aspects which customer care the most. It greatly affects on stability and precision of welding operation;

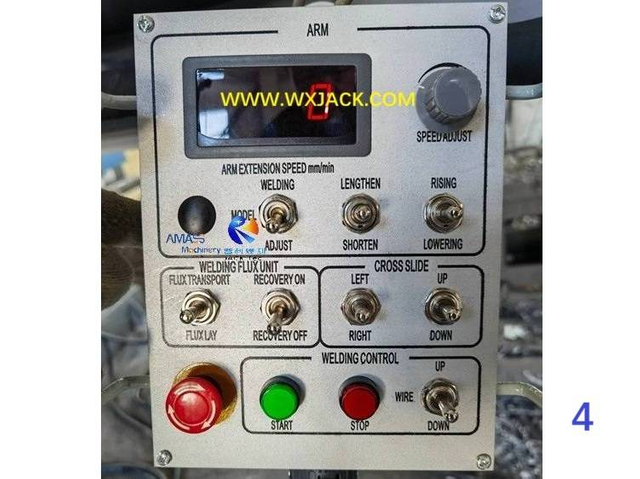

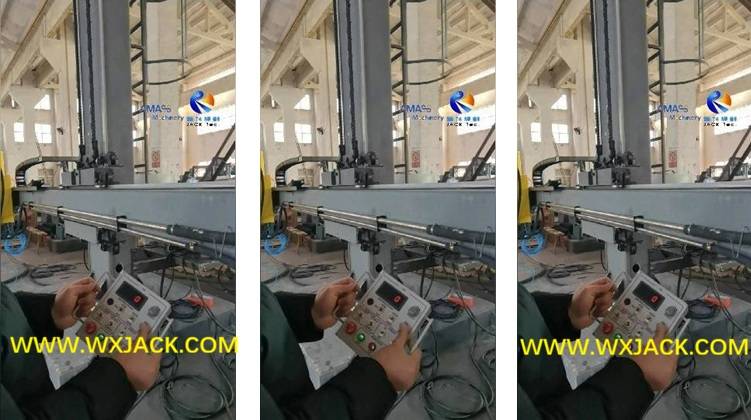

4) Hand held Remote Operating Pendant: As shown in the above 4^th photo. This operating pendant helps operator managing on operation conveniently, so as to have flexible operating positions at various practical working sites.

Wuxi JACK Welding Rotator (Roller Bed) and Welding Positioner (Turntable)

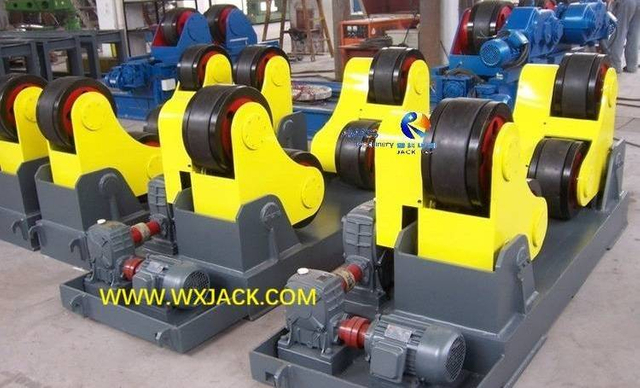

Welding Rotator, Roller Bed, Turning Roll:

HGZ20 Self-Adjust Automatic Welding Rotator, stationary, 20ton loading capacity

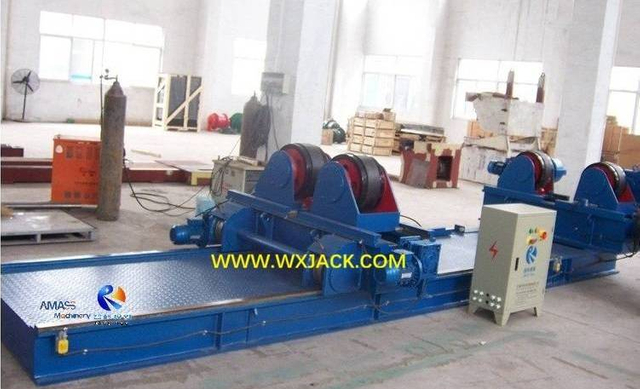

HGK60 Leadscrew Adjust Welding Roller Bed, motorized movable

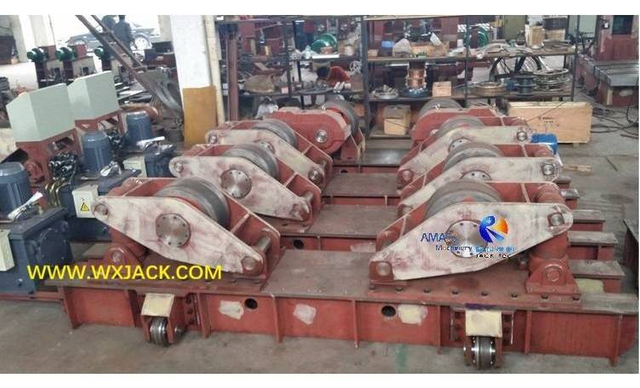

HLK80 Bolt Adjust Welding Turning Roll, hydraulic drive lift Roller Bed

HLK100 Bolt Adjust Welding Rotator, stationary

Welding Positioner Turntable:

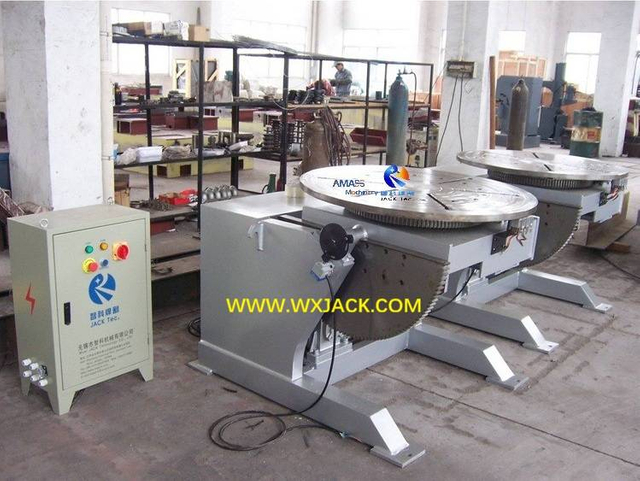

HB12, 2 axis conventional type, Welding Turning Table (0° -360°) rotating and (0° -120°) tilt, 1.2 ton loading capacity

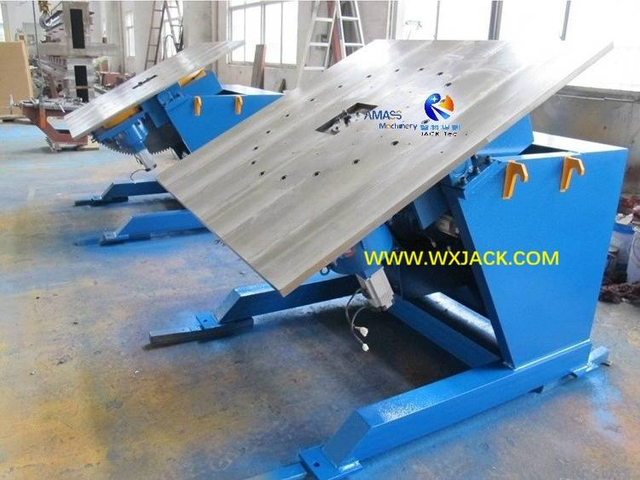

HB2, Servo Drive Welding Positioner, special design turning table

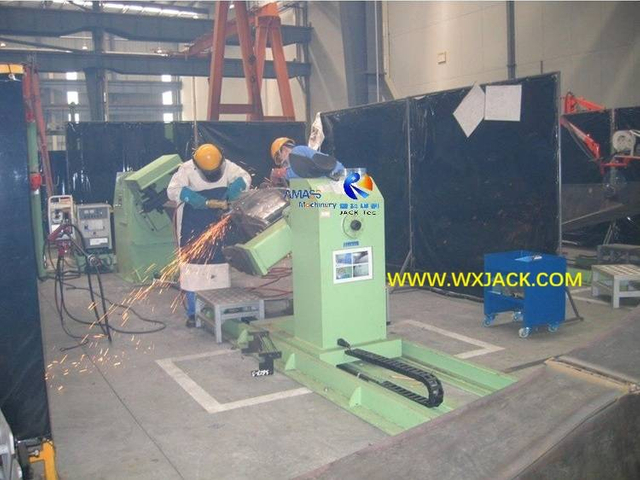

HTW1, Head and Tail Double Columns Welding Positioner, 1 ton loading capacity

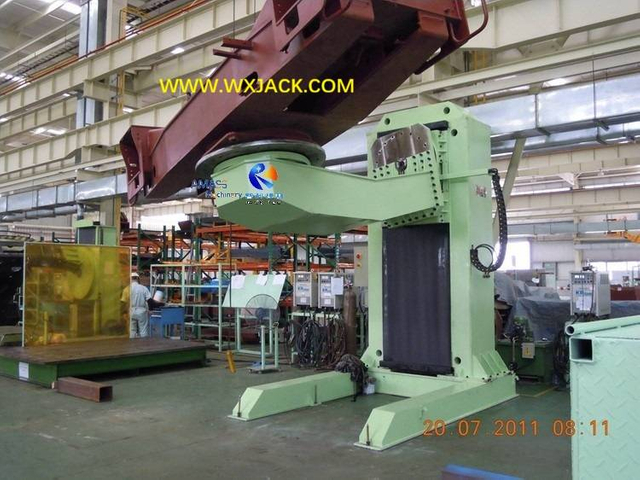

LBS3, L type Welding Positioner of Hydraulic drive Lifting Turntable, 3 ton loading capacity

Wuxi JACK Other Product besides Manipulator Welding Column and Boom

General Purpose Automatic Lengthwise ASM63 Angle Steel Straightening Machine

Fit Up Full PHJ ZHJ H Beam Assembly Welding Straightening Integral Machine

Symmetric Beam ZHJ18 Model 3 in 1 Vertical H Beam Welder Machine

Steel Column Member Use DX1520 End Face Milling Machine

Medium Large DX3030 Steel Structure End Face Milling Machine

HMI Control Advanced Function SXBJ-12 Large Edge Milling Machine

Pair Heads SXBJ-18 Large Size Plate Edge Milling Machine

HMI Operation MP23 Plate Flat Butt Joint Welding Machine

MP20 To MP50 Sheet Metal Steel Plate Butt Joint Welding Machine

6 And 7 Axis CNC-CP6/7-2000~3000/L CNC Large Pipe Cutting Machine

5 Axis CNC-CP5-1400/L Classical Medium Size CNC Pipe Cutting Machine

High Power Motor Drive ASM160 and ASM200 Rolled Angle Straightening Machine

Middle Size 1800mm Height Semi-Automatic Welded H Beam Production Machine Line

Blogs on Wuxi JACK Column Boom Welding Console Manipulator

The Variation in Configuration of Welding Manipulator And Proper Selection
Variety and Optional Configurations of Welding Manipulator; How to Make Proper Choice on Specific Models of Welding Column and Boom Read More
Technical Features And Business Prospects of Welding Column And Boom
 Business Application of the Cross Slides Welding Column and Boom;  Technical Issues from Perspective of Designing on the Cross Slides Welding Manipulator;  Safety Issues when Putting into Use of the Cross Slides Automatic Pipe Welding Equipment;  Summary on Wuxi JACK Cross Slides Welding Column and Boom Read More
Application of Facing and Milling Center in Steel Structure Industry
What is Steel Structure Milling and Facing Center? Why there is Demand on Steel Structure Milling and Facing Center? Constitutes and Technical Overview of Steel Structure Milling and Facing Center Application Case of Steel Structure Milling and Facing Center by Wuxi JACK Read More

Wuxi JACK Welding Column and Boom,

Professional and Versatile Manipulator Welding Machine on Cylindrical Workpiece Fabrication

Function and Models of Wuxi JACK Column and Boom Welding Console Manipulator

2. Welding Modes and Workpiece Materials of Manipulator Welding Column and Boom:

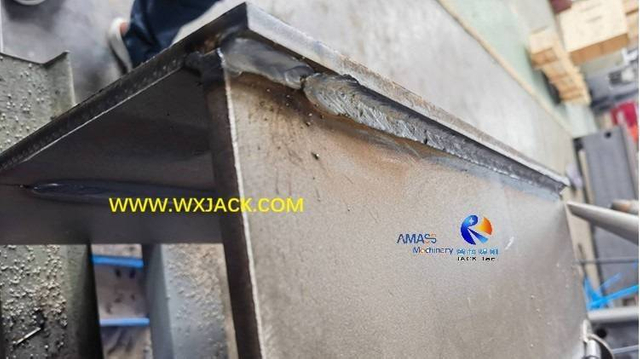

4. Welding Seams Finished from Wuxi JACK Column Boom Manipulator Welding Machine:

5. Different Models of Wuxi JACK Column Boom Welding Console Manipulator:

6. Running and Commissioning Moment of Wuxi JACK Column Boom Manipulator Welding Machine:

Wuxi JACK Manipulator Welding Column and Boom in Year 2025 and 2026

LHZ5560 Column Boom Welding Console Manipulator in February 2026:

2. Major Technical Request on LHZ5560 Manipulator Welding Machine from Customer:

3. Part of Technical Clarification on LHZ5560 Manipulator Welding Column and Boom from Wuxi JACK:

Operating Videos of Wuxi JACK Manipulator Welding Column and Boom

Technical Specifications of Wuxi JACK Column Boom Manipulator Welding Machine

2. Supplementary Degree of Freedom with Manipulator Welding Column and Boom:

3. Technical Parameters of Wuxi JACK LHZ5050 Column Boom Welding Console Manipulator in March 2026:

Welding Modes in Wuxi JACK Column Boom Welding Console Manipulator

Wuxi JACK Cross Slides Welding Manipulator

Welding Technologies with Welding Column and Boom

Function and Broad Use of Column Boom Manipulator Welding Machine

2. Operating Way of Manipulator Welding Column and Boom:

3. Major Welding Operations in Column Boom Manipulator Welding Machine:

4. Put into Use on Column Boom Welding Console Manipulator:

5. Cross Slides (Saddle) Role in Operation of Manipulator Welding Column and Boom:

Strong and Durable Mechanical Property of Wuxi JACK Column Boom Welding Console Manipulator

Structure of Wuxi JACK LHZ5050 Manipulator Welding Column and Boom in Year 2026:

5. Assembly Way of Manipulator Welding Column and Boom:

6. Electric Control in Column Boom Welding Console Manipulator:

A. Horizontal Boom and Upright Column of Wuxi JACK Manipulator Welding Column and Boom:

4. General Process Technology on Fabricating Mechanical Frame of Welding Column and Boom:

B. Ingenious Design and High Rigidity Cross Slides (Saddle) of Manipulator Welding Column and Boom:

1. Key Role of Cross Slides (Saddle) in Operation of Column Boom Welding Console Manipulator:

2. Different Structures of Cross Slides (Saddle) in Wuxi JACK Column Boom Manipulator Welding Machine:

2) Light Versus Medium and Heavy duty Column Boom Welding Console Manipulator:

C. Drive and Transmission Systems of Wuxi JACK Column Boom Welding Console Manipulator:

1. Drive and Transmission Mechanisms in Wuxi JACK Column Boom Manipulator Welding Machine:

4) Up and Down Transmission Mechanism in Wuxi JACK Manipulator Welding Column and Boom:

2. Horizontal Boom Linear Movement and Upright Column Revolve in Welding Console Manipulator:

Operation on Wuxi JACK Column Boom Manipulator Welding Machine

1. Safety Assurance in Wuxi JACK Column Boom Manipulator Welding Machine:

1) Protecting Horizontal Boom from Sudden Falling Down:

2. Convenient and User Friendly Operation of Wuxi JACK Column Boom Welding Console Manipulator:

Wuxi JACK Welding Rotator (Roller Bed) and Welding Positioner (Turntable)

Wuxi JACK Other Product besides Manipulator Welding Column and Boom

Blogs on Wuxi JACK Column Boom Welding Console Manipulator
