Wuxi JACK CNC Flame Cutting Machine,

Provide Reliable, Efficient, Cost Effective Sheet Metal CNC Flame Cutter for Customer!

Wide Application of Wuxi JACK CNC Oxygen Fuel Cutting Machine

1. Strong Points: As the earliest developed 1st generation thermal gas flame CNC Cutting Machine, the four most salient exclusive advantages of CNC Flame Cutting Machine are:
1) Cost Effectiveness: The most reasonable machine investment and running cost;
2) Cutting on 50mm+ Thickness Steel Plate: The only type of machine with such capability;
3) Easy Installation, Service and Operation: With the most “simple” structure and configuration, CNC Flame Cutter machine involves the least job in daily operation;
4) Various Forms of Cutting available: Besides CNC control shape profile control, flame cutting can also be applied in strip cutting for H Beam fabrication, and triple cutting for plate edge beveling, which are irreplaceable compared with other types of thermal cutting;
2. Machine Models: With these benefits, Wuxi JACK flame CNC Oxygen Fuel Cutting Machine sees wide application in different industries, especially heavy machinery and construction, with models from CNC-CG3000 (The cutting rail span 3,000mm) to CNC-CG10000, the most common seen are CNC-CG4000 and CNC-CG5000:

3. Various Models of Wuxi JACK Oxygen Fuel CNC Flame Cutting Machine Works at Customer Facility:

CNC-CG5000, with 2 pieces of triple cutting torch

CNC-CG4000, with 2 pieces of CNC control single shape cutting torch, and 8 pieces of strip cutting torch

CNC-CG4000, with 2 pieces of CNC control profile shape cutting torch

CNC-CG6000, with 3 pieces of CNC control triple cutting torch

Inquire

CNC-CG3500, with 2 pieces of CNC control shape cutting torch

CNC-CG4000, with 2 pieces of CNC control shape cutting torch, and 8 pieces of strip cutting torch

CNC-CG3000, with 1 piece of CNC control shape cutting torch

Inquire

Machine Complex: 2 sets of CNC-CG4000 share the same parallel of 30m length cutting rails

CNC-CG3000, with 1 piece of CNC control shape cutting torch, and 4 pieces of strip cutting torch

CNC-CG8000, with 6 pieces of CNC control triple cutting torch

CNC-CG6000, with 2 pieces of CNC control profile shape cutting torch

Inquire

4. Different Models of Wuxi JACK Thermal Gas CNC Flame Cutter Machine being Manufactured at Workshop:

Make Wiring on CNC-CG4000 before Performance Testing

Trial on Oxygen Fuel Cutting in CNC-CG4000 Model Machine

Final Visual Check on CNC-CG6000 with Triple Cutting before Machine Delivery

2 sets of Finished CNC-CG4000 Ready for Shipment

Inquire

Working Videos of Wuxi JACK Plasma, Drilling and Oxygen Fuel Flame CNC Cutting Machine

Related pages on videos and introduction on CNC Flame Cutter Machine:
1) CNC Strip Plate Cutting Machine;
2) CNC Plasma Cutting Machine;
3) Complex of Thermal Gas CNC Cutting Machine;
4) Overview on Wuxi JACK Flame Plasma Drilling CNC Cutting Machine;
5) CNC Drilling and Cutting Machine

Technical Parameters of Wuxi JACK CNC Flame Cutting Machine

Below are technical specifications of 3 major types of Wuxi JACK CNC Flame Cutter Machine. For more detailed introduction, please check ending section of this page:

1. CNC Oxygen Fuel Cutting Machine:

2. Oxygen Fuel Flame Strip Cutting Machine:

3. Oxygen Fuel Flame Triple Cutting Machine:

Technical Control Points of CNC Flame Cutter Machine

2 CNC Triple Flame Plasma Cutting Machine 15

Technical Features of CNC Flame Cutting Machine

The lefthand scrolling photos: The critical control points during manufacture and operating on Flame CNC Oxygen Fuel Cutting Machine

Factors determining cutting quality from flame cutting:

1. Cutting Precision: Flame cutting has the same cutting precision as other types of thermal gas cutting: Plasma cutting and laser cutting. The difference only lies in roughness of cutting kerf;
2. Production Process Technology: CNC Flame Cutting Machine has the same order to deliver value chain with other types of CNC Cutting Machine: Mechanical structure / CNC control system/ Drive and transmission unit/ Outsourced parts. The difference only lies in specific cutting technology;
3. Cutting Torch Movement in along X and Y axis are driven with servo motor, controlled with servo driver, and guided with heavy duty precise linear guiderail;
4. CNC Control Cutting Torch Height Controller: Capacitance type height controller is adopted onto CNC control flame cutting torch. Comparatively, in plasma cutting, torch height controller is arc voltage type;
5. Auto Ignitor on Flame Cutting Torch: This unit helps efficient and automatic ignition of Oxygen and Acetylene cutting gas for flame cutting, in safe and reliable way.

Application Form of CNC Oxygen Fuel Cutting Machine

In practical application, the exact applicating form of CNC Flame Cutting Machine varies, which can be designed and manufactured based on customer condition and requirement:

1. “Standard” Configuration CNC Flame Cutter Machine:

The above 1^st and 2^nd Photos:
1) CNC Cutting Torch: 2 sets, being installed at the front side of horizontal gantry beam, for high efficient cutting out profile shape parts in identical or mirror symmetry;
2) Strip Cutting Torch: 6 ~9 sets, which are installed at rear side of CNC Cutting Machine mechanical gantry beam, for cutting out strip plates in batch;
3) Advantages: Standard configuration CNC Flame Cutting Machine can meet majority of customer demand. So, it is the basic form of machine;
4) Application: This account for the largest branch selling volume of machine. The “Standard” model is CNC-CG4000, which can cut steel plate with the max. width of 3,200mm;

2. Profile Shape Cutting Only CNC Flame Cutting Machine:

The above 3^rd photo:
1) Configuration: The strip cutting torches are removed from the machine, and leave CNC control profile torches only;
2) Application: No or seldom requirement on strip cutting. The CNC Oxygen Fuel Cutting Machine is used for profile shape cutting only;
3) Quantity of CNC Control Cutting Torch: Usually there are 2 pieces in CNC-CG4000 model machine; Or 3 to 4 pieces in large span (CNC-CG5000 or plus) model machine; Or 1 piece in small span (CNC-CG3000) model machine;

3. Triple Cutting Torch Added, or Sole Purpose Triple CNC Oxygen Fuel Cutting Machine:

The above 4^th Photo:
1) Control and Applicating Form: The sole purpose Triple CNC Flame Cutting Machine does not need CNC control single cut; Or, in some cases, the machine will be added with 1 or 2 sets of triple cutting torches;
2) Triple Torch Installation Position: Usually triple cutting torches are installed at the lateral position of machine mechanical gantry beam: The right most or left most, for the purpose of cutting out edge beveling on edges of steel plate;
3) Integrated Function: With configuration of triple/ strip cutting torches, the CNC Flame Cutting Machine is upgraded into a three in one multi-function machine.

Thermal Cutting Technology in Oxygen Fuel Flame CNC Cutting Machine

Outline: Compared with other types of CNC Cutting Machine, cutting technology in CNC Flame Cutting Machine is relatively simple and quicker to command. On the other hand, there are still some critical points in the cutting technology:

1. Three Way Cutting Gas Arrangement and Individual Regulating Pressure in CNC Oxygen Fuel Cutting Machine:

Shown in the above 1^st and 2^nd photos:
1) Arrangement: For all the Oxygen fuel cutting torches of CNC Flame Cutter Machine, be it CNC control/ Strip/ Triple cutting torch, there are always three ways of cutting gas deployment: Blue color preheating Oxygen; Blue color cutting Oxygen; Red color Acetylene or Propane;

2) Recommended Gas Pressure in CNC Flame Cutting Machine:

a) Preheating Oxygen in the range of 0.5~ 1 MPa;
b) Cutting Oxygen in the range of 1.0~ 1.2 MPa;
c) Acetylene or Propane cutting gas around 0.25 MPa;
3) Preheating for Ignition: To start on flame cutting in the machine, first turn on gas line of preheating oxygen. The duration of preheating depends on the Max. thickness of steel plate for cutting: The thicker the plate, the longer the duration of preheating;

2. Cutting Torch Height Controller and Auto Ignitor in CNC Flame Cutting Machine:

Shown in the above 3^rd and 4^th Photos:
1) Capacitor Type Height Controller for CNC Control Cutting Torch: The cutting torch height controller is installed at top half of cutting torch; Its induction ring is assembled at bottom of the cutting torch, surrounding cutting tip;
2) Auto ignitor is installed alongside the induction ring in the flame cutting torch;
3) Trial Run: Before official Oxygen fuel flame cutting in the machine, operator needs to key in process control parameters of the cutting torch into its CNC controller: Cutting speed and other process control, and validate on effectiveness of automatic ignitor.

Wide Application and Strong Points of CNC Flame Cutting Machine

A. Function and Usage of Oxygen Fuel CNC Flame Cutter Machine:

1. Capability: Flame CNC Oxygen Fuel Cutting Machine cuts out any regular or special profile shape working parts on carbon steel plate with wide range of thickness, from 3mm to 200mm:

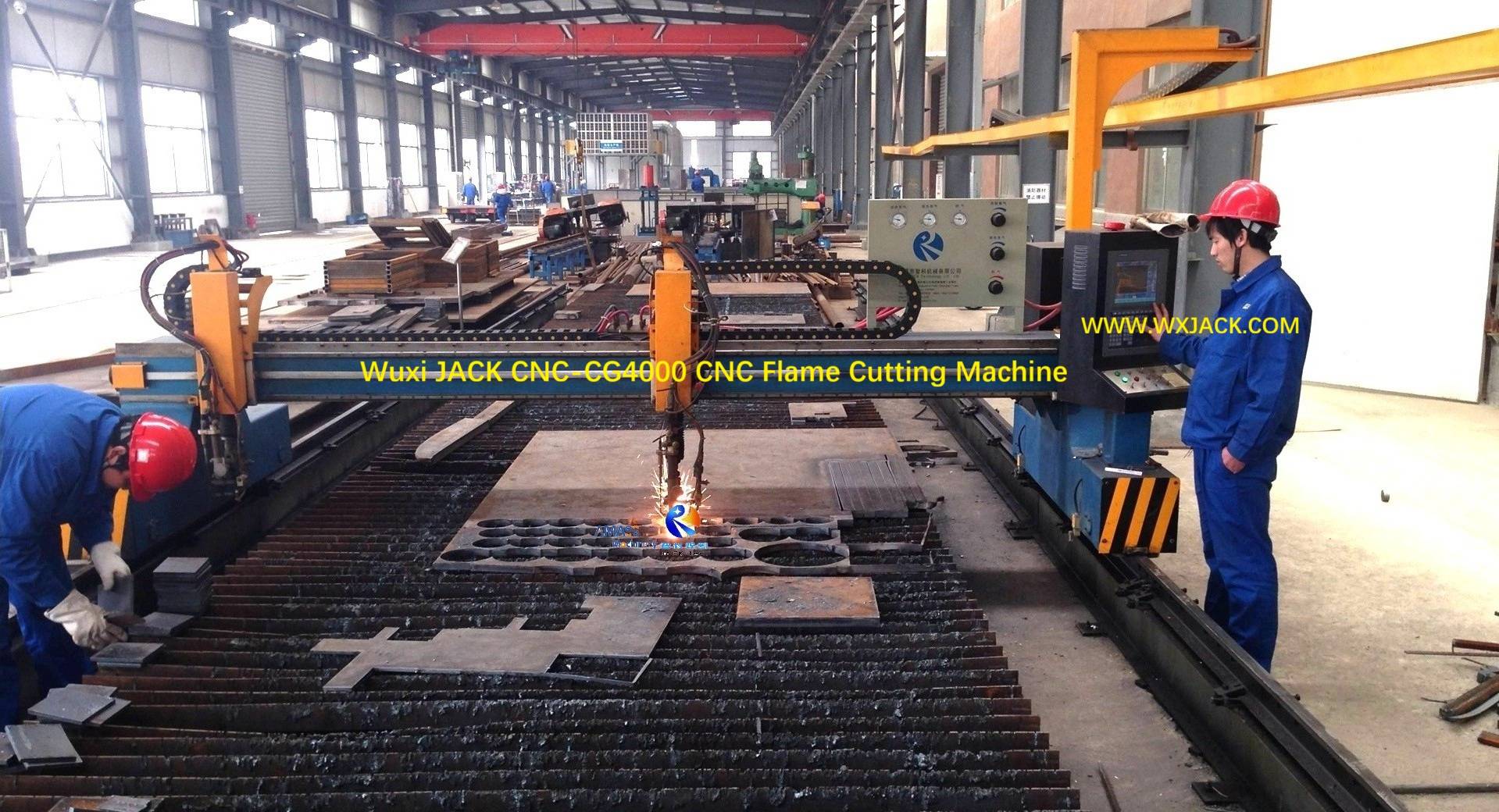

A set of Wuxi JACK CNC-CG4000 model CNC Oxygen Fuel Cutting Machine and its carbon steel plate in cutting: (Fig.1)

2. Important Position: Oxygen Fuel CNC Flame Cutting Machine is the first generation of CNC-CG series sheet metal plate CNC Cutting Machine, and still in wide use nowadays;

3. Unique Capabilities and Huge Benefits of Flame CNC Oxygen Fuel Cutting Machine:

1) Thick Plate Cutting: When plate thickness is thicker than 50mm, CNC Flame Cutting Machine is the only branch of CNC Cutting Machine that can fulfil the task. The max. cutting capacity of the machine can be 150mm to 200mm thickness plate;
2) Flexible Configured Cutting Torch of in the Machine:
Flame cutting torch has variations on its form:
a) CNC control cutting torch: Controlled with CNC, for performing shape profile cutting. Usually 1 or 2 pieces workpieces can be cut out at the same time. When cutting 2 pieces, it can be either identical, or mirror opposite 2 finished workpieces;
b) Strip flame cutting torch: Controlled with A.C. relay or CNC, for carrying out slit cutting. Usually several pieces of strip plates can be cut simultaneously, and width of each piece of strip plate can be varied, by adjusting on distance of 2 adjacent strip cutting torches;
c) Triple flame cutting torch: Controlled with A.C. relay or CNC, for accomplishing bevel cutting on edges of steel plate. This is used in butt welding of sheet metal plates, when thickness higher than 15mm, to get full fusion on welded seams;
This helps making CNC Flame Cutting Machine becoming comprehensive applied and vital important 1st Operation equipment:
CNC control cutting torch/ Strip cutting torch/ Triple cutting torch, equipped in Wuxi JACK different models of Oxygen fuel flame CNC Cutting Machine: (Fig.2)

Fig2 CNC Flame Plasma Cutting Machine 51

3) Cater for Customer Configuration: Quantity of cutting torch in the machine can be determined based on customer demand;

4) Cost Effectiveness of CNC Flame Cutting Machine:

a) Budget on purchasing CNC Flame Cutter Machine is at the lowest level compared with other types of thermal gas CNC Cutting Machine: Plasma cutting machine, laser cutting machine, etc.;
b) Daily running cost of CNC Oxygen Fuel Cutting Machine is also at the minimum level: There is no any consumables involved in every running of Oxygen fuel flame cutting;
5) Convenient and User Friendly Operation: Operator skill on CNC Flame Cutting Machine is lesser than other types of CNC Cutting Machine. Operators do not need to grasp on knowledge and skill on managing and servicing on complicated plasma power supply and laser generator, in case of plasma cutting and laser cutting;
6) Environment Friendly: Compared with Plasma CNC Cutting Machine, the cutting fume, noise, and light generated from CNC Flame Cutting Machine are far more less, and hence far less negative impact on working surroundings and working staff;
Summing up, even with rapid development of plasma/ laser/ water jet plate CNC Cutting Machine, CNC Flame Cutter Machine still has its unique and irreplaceable position in the field of 1^st operation in manufacturing industry.

B. Technical Specifications and Working Sites of Oxygen Fuel Flame CNC Cutting Machine:

1. Cutting Media: CNC Flame Cutting Machine utilizes Oxygen fuel and Acetylene (Or Propane) as its thermal cutting media. The On and Off, together with pressure regulating on thermal cutting gas is managed with central regulating controller and gas panel:
Oxygen and fuel cutting gas circuit control and regulating panel of Wuxi JACK CNC Flame Cutting Machine: (Fig.3)

2. Suitable Operating Conditions of CNC Flame Cutting Machine:

1) Material: Carbon steel is the main material of sheet metal plates for Oxygen fuel cutting;
2) Thickness: Medium to thick thickness plates take major percentage of working parts in CNC Flame Cutting Machine: 3mm to 50mm to 100mm to 150mm to 200mm;
3) Saving Budget and Cost: If process technology is feasible, customer can greatly increase profit by operating on CNC Oxygen Fuel Cutting Machine at their facility, compared with investing on plasma cutting machine and laser cutting machine;
4) With Optional Drilling Function: Sometimes according to customer requirement, CNC Flame Plasma Cutting Machine can be added with mechanical drilling function, composing the machine a set of integrated function CNC Plate Drilling and Cutting Machine;
3. Summary on product family of thermal gas CNC Cutting Machine is illustrated in slides web page of “Overview on Wuxi JACK CNC Flame Plasma Cutting Machine”.

Category and Technical Parameters of Wuxi JACK CNC Flame Cutter Machine

There are three general types of Oxygen fuel flame CNC Cutting Machine in use:
1. CNC Flame Cutting Machine;
2. Oxygen Fuel Flame Strip Cutting Machine;
3. Oxygen Fuel Flame Triple Cutting Machine;

Flexible Configuration: In practical application, the above 3 types of CNC Oxygen Fuel Cutting Machine can be either combined into single set of multi-function machine, or configured flexibly:

1. CNC Flame Cutting Machine

1. Technical Specifications:

1) Max. Valid Cutting Width: From 2,200mm (CNC-CG3000 model) to 9,200mm (CNC-CG10000 model);
2) Cutting Thickness: From 3mm to 3 specifications of 100mm, 150mm, 200mm;
3) Cutting Length: Standard configuration is 13,200mm (With 15m length cutting rails length);
4) Cutting Program: There are 4 major sources of cutting program: Embedded library; Simple program G code compiled on site; Tailor made complicated external file; Machine imbedded nesting software.

2. Technical Parameters of CNC Flame Cutting Machine:

Standard Model of CNC Flame Cutting Machine	CNC-CG3000 ~ CNC-CG10000
Valid Cutting Rail Span	3,000 ~ 10,000 mm
Valid Range of Plate Width	80 ~ (2200~ 9200) mm
Standard Length of Cutting Rail	15,000 mm (Can be Special Made)
Max. Length of Steel Plate	13,000 mm
Drive Mode for Gantry Movement	Single / Double Servo Drive
Flame Cutting Gas	Oxygen and Acetylene/ Propane
Quantity of CNC Cutting torch	Standard is 1 ~ 2 sets
Quantity of Strip Cutting Torch	Standard is 9 sets
Max. Flame Cutting Thickness (Single torch straight cutting)	150 mm (Special made for 200 mm)
Flame Cutting Speed Range	100 ~1000 mm/min. Servo Drive control Depending on Thickness
Gantry Idle Running Speed	Constant 6000 mm/min.
Cutting Kerf Roughness	Ra 12.5~25
Finished Cutting Precision	±0.5mm/1000mm

2. Strip Oxygen Fuel CNC Flame Cutter Machine:

1. Technical Specifications of Strip Oxygen Fuel CNC Flame Cutter Machine:

1) Characteristics: Strip cutting is the earliest stage product of CNC Flame Cutting Machine. It has the lowest purchase budget and running cost. Cutting process of torches is controlled with A.C. relays, instead of CNC controller. Correspondingly, this machine has the lowest manufacturing cost and selling price;
2) Purpose: This configuration of machine is indispensable in the field of H Beam/ T Beam product, to cut out strip plates of different widths from steel plate;
3) Quantity of Strip Cutting Torch: The quantity of strip cutting torch in machine is determined by customer. Default configuration is 8 to 9 pieces for 3,200mm cutting span;
4) Operation: Interval between any two pieces of adjacent strip torches, which corresponds with width of cut out strip board (Flange and web of H Beam), can be adjusted freely by hand. Such interval can be varied among strip torches in one set of the strip Oxygen Fuel Flame Cutting Machine;
5) Function: Of all the strip cutting torches, one piece of the cutting torch is for horizontal direction cutting, to cut out finished length of strip plates; And the remaining torches are for simultaneous longitudinal way cutting, to cut out finished width of strip plates;
6) Standard Model: Standard model of machine is CG-4000, the machine has gantry rail span of 4000mm and the Max. cutting width of 3,200mm.

2. Technical Parameters of Strip Oxygen Fuel CNC Flame Cutter Machine:

Model of Strip Oxygen Fuel CNC Flame Cutter Machine	CG4000
Cutting Rail Span	4,000 mm
Effective Cutting Width Range	80 ~ 3,200 mm
Standard Cutting Rail Length	15,000 mm
Max. Cutting Length	13,000 mm
Electric Control Manner	A.C. Relay
Drive for Gantry Movement	Single Drive (For 5,000mm and wider rail span should be double drive)
Quantity of Strip Cutting Torches	9 sets
Min. to Max. Single Cutting Thickness	6 ~ 150 mm (Special made for 200mm)
Min. to Max. Cutting Speed	100 ~ 1000 mm/ min. A.C. inverter control

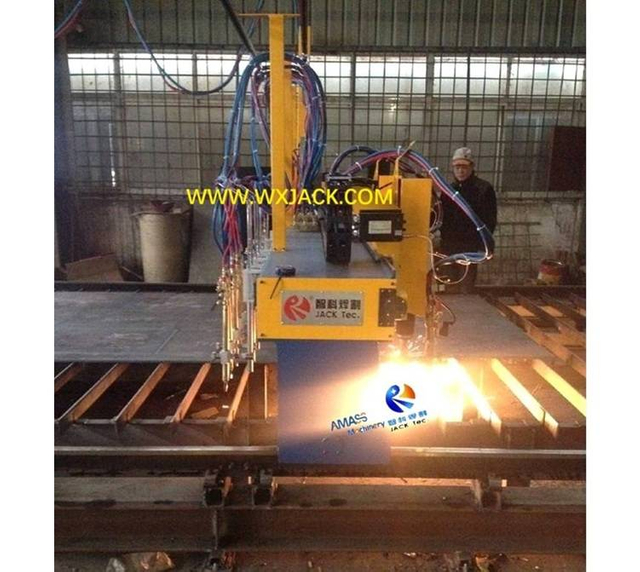

1 Strip Oxygen Fuel Flame Cutting Machine 49

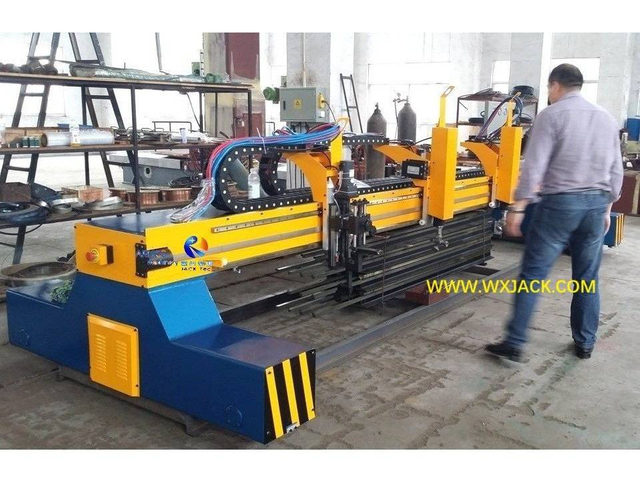

2 Strip Oxygen Fuel Flame Cutting Machine 33

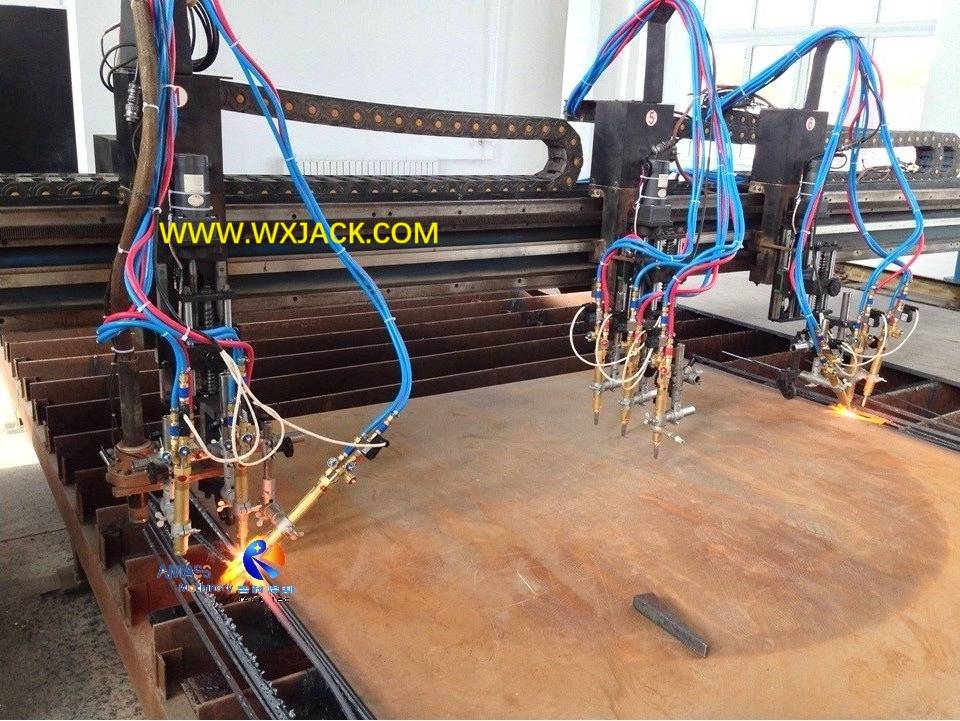

1 Triple Oxygen Fuel Flame Cutting Machine 48

2 Triple Oxygen Fuel Flame Cutting Machine 10

3. Triple Oxygen Fuel Flame CNC Cutting Machine:

1. Technical Specifications of Triple Oxygen Fuel Flame CNC Cutting Machine:

1) Function: Triple flame cutting is niche product in family of thermal gas CNC Flame Cutting Machine, for cutting out slant welding groove on edges of carbon steel plate. It has similar function as Edge Milling Machine;
2) “Simple” Electric Control and Lower Producing Cost: Same as Strip Cutting Machine, the sole purpose Triple Cutting Machine does not need CNC controller and servo drive system, greatly reducing manufacturing cost of the machine;
3) Cutting Torch in Triple Oxygen Fuel Flame Cutting Machine is more complicated than that of single cutting CNC Flame Cutting Machine and Strip Cutting Machine: There are 3 pieces of single cutting torches in 1 group of triple cutting torch. Any one of the 3 single cutting torches can be applied individually;
4) In Practical Use, sole purpose Triple Cutting Machine is lesser seen than integrated function strip/ triple and CNC Flame Cutting Machine.

2. Technical Parameters of Triple Oxygen Fuel Flame CNC Cutting Machine:

Models of Triple Oxygen Fuel Flame CNC Cutting Machine	CG3000/ 4000/ 5000
Flame Cutting Rail Span	3,000/ 4,000 / 5,000 mm
Valid Max. Cutting Width	2,200/ 3,200/ 4,200 mm
Flame Cutting Railway Length/ Max. Steel Plate Length	15,000/ 13,000 mm
Drive for Gantry Movement	Double Drive
Min. to Max. Plate Beveling Thickness	16 ~ 80 mm
Min. to Max. Single Cutting Thickness	6 ~ 150 mm (Special made for 200mm)
Min. to Max. Beveling and Cutting Speed	100 ~ 1000 mm/ min. VFD Drive
Triple Cutting Torch Quantity	1~ 3 pieces
Type of Bevels Cut from Triple Flame	X/ Y/ K/ V grooves

Application Range and Related Equipment of CNC Oxygen Fuel Cutting Machine

1. 1^st Operation Plate Cut: As the indispensable machine tool in beginning process technology, CNC-CG4000 CNC Flame Cutting Machine with strip cutting is the 1st set of core equipment in Steel Structure production line:
1) H Beam Production Line;
2) T Beam Production Line;
3) BOX Beam Production Line;
4) Port Machinery Facility with Stiffener Plate Element Straightening Machine;
2. Similar Function Equipment: Triple Oxygen Fuel Flame Cutting Machine has similar function as Edge Milling Machine;
3. Reverse Equipment: Thermal gas CNC Flame Cutting Machine cut out steel plates into smaller sections, while Plate Butt Joint Welding Machine joint steel plates into larger ones by means of melt-thru butt welding.

Wuxi JACK Other Top Quality Welding and Cutting Machinery

Z15 Model H Beam Assembly Machine

Thin Wall Pipe Longitudinal Seam Welding Machine

LHG Model Lamp Post Gantry Welding Machine

ZHJ15 Model 3 in 1 I H Beam Assembly Welding Straightening Machine

XBJ-9 Model Single Head Edge Milling Machine

SXBJ-18 Model Double Heads Edge Milling Machine

MP25 Model Plate Flat Butt Welding Machine with Flame Triple Cutting

DX1520 Model BOX H Beam End Face Milling Machine

Other Series of Products We Own besides CNC Flame Cutting Machine

MP20 Automatic Plate Butt Joining Machine with Triple Cutting

DX1520 H Beam End Face Milling Machine for Steel Structure

General Purpose Automatic Lengthwise ASM63 Angle Steel Straightening Machine

7-Axis 3000/12 Flame And Plasma Large Scale CNC Pipe Cutting Machine

HB-series Single Table Top Universal Welding Positioner with Chuck

Oxygen Fuel CNC Flame Cutter Machine Blogs

Working Theory of CNC Plate Cutting Machine And Its Operation
What is CNC Plate Cutting Machine? Technical Features of Sheet Metal CNC Flame Cutting Machine; Technical Features of Sheet Metal CNC Plasma Cutting Machine; How to Select Proper Model and Configuration of Sheet Metal CNC Flame Plasma Cutting Machine; Summary on Wuxi JACK Sheet Metal CNC Strip Plate Cutting Machine Read More
How To Find Excellent Operator of CNC Plate Cutting Machine
Influence of Operator Ability on Affecting Performance of Flame and Plasma CNC Cutting Machine; General Requisite Skills on Operator of CNC Flame Plasma Cutting Machine; Who is Excellent Operator of CNC Flame Cutting Machine? How to Become Excellent Operator of CNC Plasma Cutting Machine? Summary on Operator of Plasma and Flame CNC Plate Cutting Machine Read More
Technical Features of Wuxi JACK CNC Flame Plate Cutting Machine
Category and Configuration of Oxygen Fuel CNC Flame Plate Cutting Machine: Technical Views and Advantages of Oxygen Fuel CNC Flame Cutting Machine: Process Technology of Oxygen Fuel CNC Plate Flame Cutting Machine: Summary on Oxygen Fuel CNC Plate Cutting Machine: Read More
