1 BOX Beam Production Line 1

Wuxi JACK BOX Beam Welding Production Line

A. Subject of this Page on Wuxi JACK BOX Beam Welding Production Machines:

1. This page is for brief review on Wuxi JACK BOX Beam SAW Welding Machine and other types of welding: Electroslag welding, CO2 back welding, equipment on assembly, end face milling, Workpiece (From raw material to WIP U Beam, to finished workpieces of BOX Beam) send and flip, in the form of intuitive graphical slides, covering topics of:
1) Advantages of our machines;
2) Specifications of finished workpiece (Welding BOX Beam);
3) Major process technology route of BOX Beam Welding Production Line;
4) General layout of our machine line group on BOX Beam assembly, welding production;
5) Major machines and its usage in the process technology on BOX Beam welding and production;
6) FAQ (Frequently asked questions) on Wuxi JACK BOX Beam Welding Production Line;
2. Our Goal: By checking this web page, customers and anyone who have interest on Wuxi JACK BOX Beam Welding Production Line, can have a plain and quick review on this important type of Steel Structure production machine group, after 5- 10 minutes of reviewing on the slides;
3. Function of Production Line: This is a kind of very important Steel Structure production machine group, for producing common seen sized welding BOX Beam, in the height from 300mm to 1200mm, and 1500mm; BOX Beam is a kind of important steel structure component, for building up High Rises, and various large scale heavy duty Steel Structure Construction;

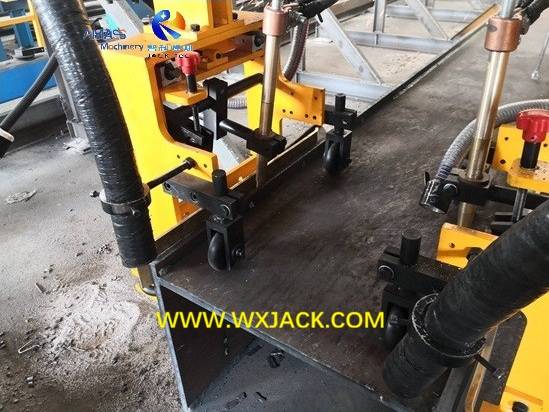

Wuxi JACK BOX Beam SAW Welding Machine has tandem arc submerged arc welding on BOX Beam: (Fig.1)

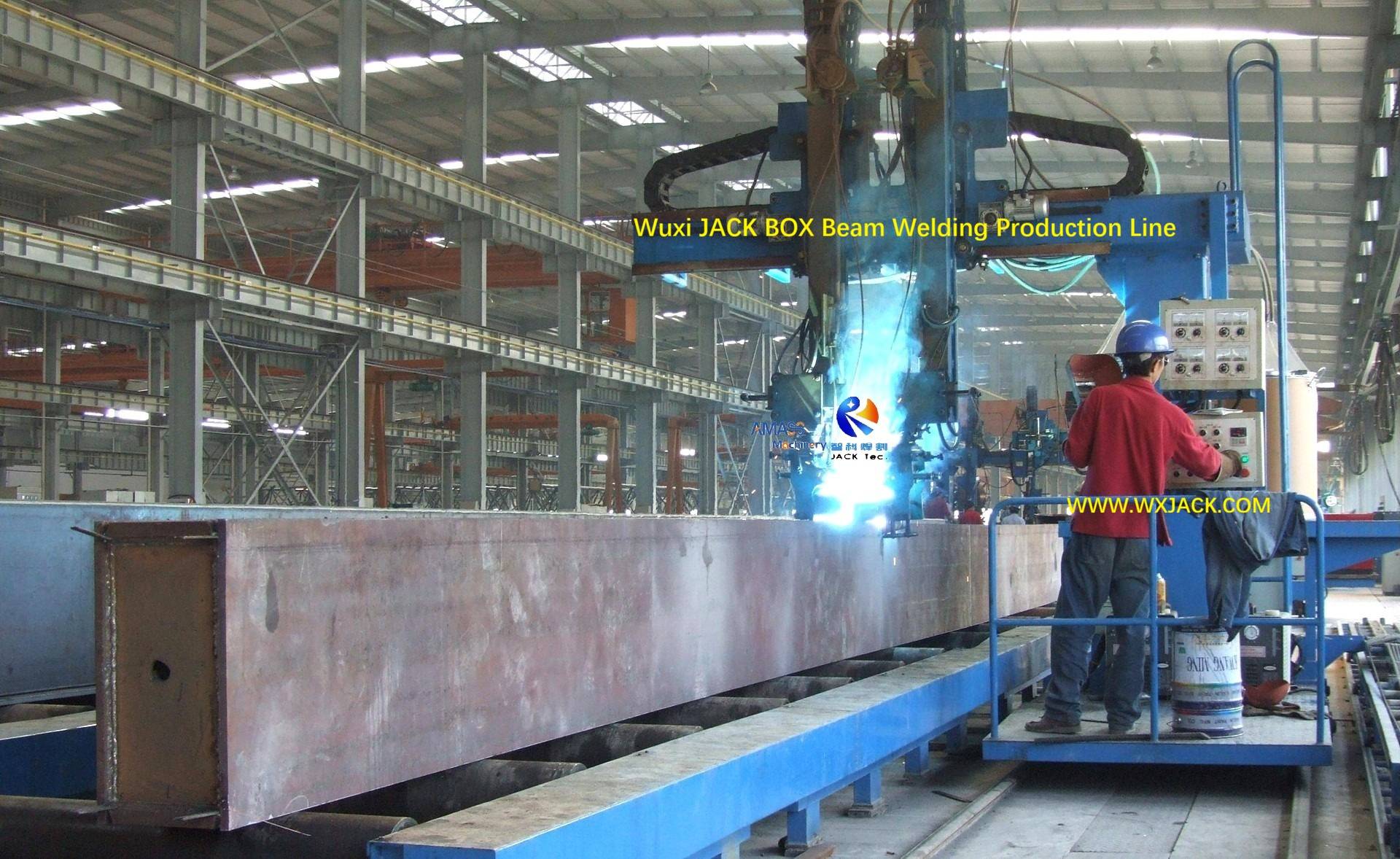

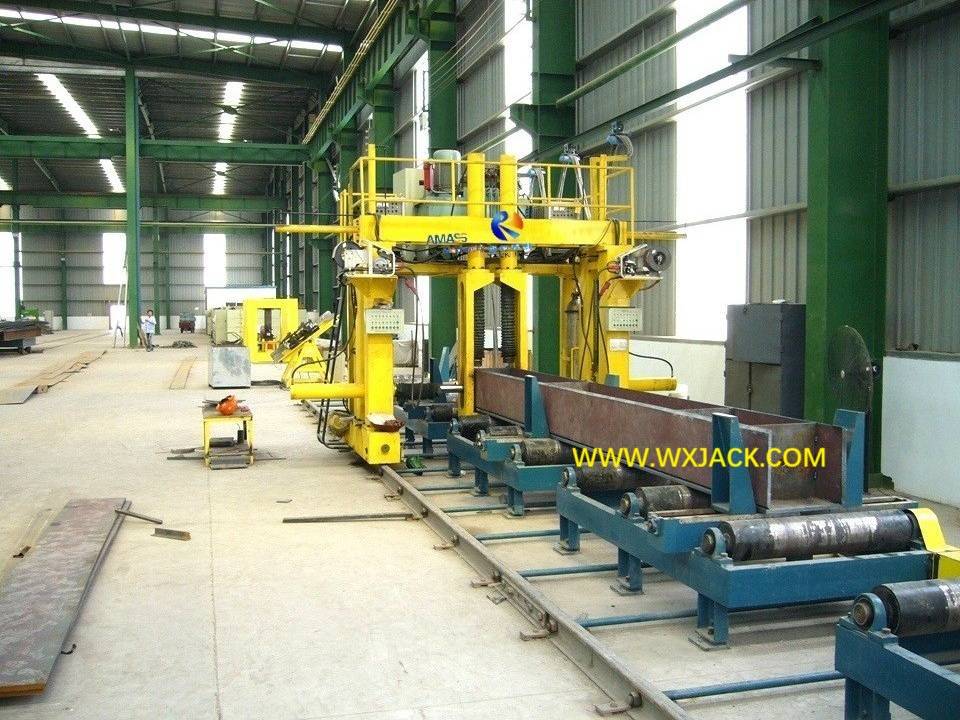

Fig1 BOX Beam Production Line 1

B. General Introduction and Technical View on Wuxi JACK BOX SAW Beam Welding Machine and Other Equipment:

Slides 1: The Turn Key Project of Wuxi JACK BOX Beam Welding Production Line Delivered to Customer

This page of Slides is on general review on advantages of Wuxi JACK line:
The photo in this page of slides was taken from the LHC model column boom structure machine on BOX Beam submerged arc welding. As can be seen from the photo:

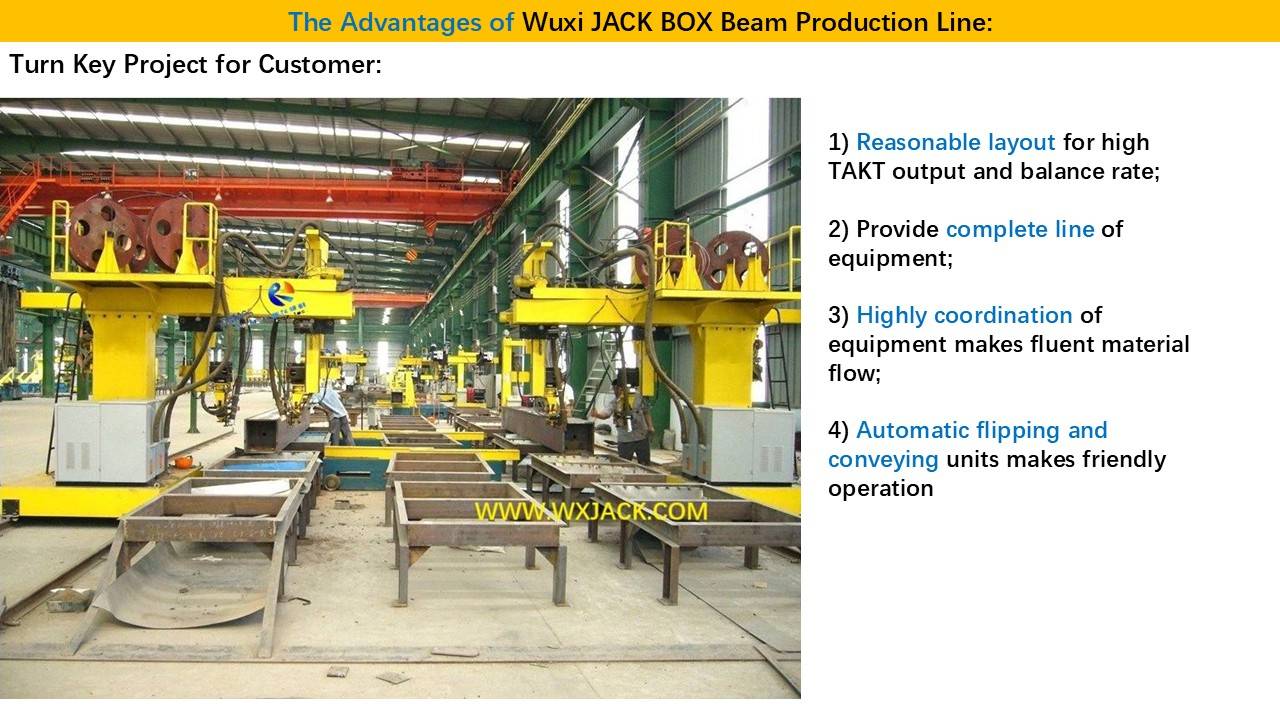

1. Production Efficiency of Wuxi JACK BOX SAW Beam Welding Machine:

1) Layout of Wuxi JACK the production line delivers production of welding BOX Beam in high efficiency streamline style;
2) The cycle time and TAKT of the entire production line can be adjusted flexibly, based on customer demand on throughput;
3) Balance Rate: Under whatever output, balance rate of the welding production line can be maintained at least 90%;
4) Output of this production line is over 12000 ton per year under the arrangement of single shift;



2. Operation of Wuxi JACK BOX Beam Welding Production Machine:

1) The material flow of WIP (Work in process) through the entire welding production line is fluent, reducing WIP stock to the minimum level;
2) The flipping and transportation of workpieces among each work station, is completed with hydraulic drive automatic moving 180° Overturning Equipment and Steel Conveyor, with advantages of automatic, safe, consistent and controllable;
3) Multiple welding modes at different work station of BOX Beam production, deliver the optimum welding performance, with the most reasonable cost;



3. Delivery of Wuxi JACK BOX Beam Welding Production Line to Customers:

1) This is turnkey project for customers. Wuxi JACK engineering team will be responsible for the entire Order to Delivery value chain of machine order: From design and validation, to production and test, to customer acceptance and painting, to machines installation at customer facility, to final hand over to customer;
2) Besides machines delivery, Wuxi JACK engineers will also:
a) Propose layout of the BOX Beam Welding Production Line and confirm with customer;
b) Propose to customer process technology on manufacturing welding BOX Beam, and merge it with machines layout;
3) We not only produce all the major BOX Beam Welding Production Machines involved, but also many other support machines of the production line, such as:
a) CNC Flame Plasma Cutting Machine;
b) Steel Plate Edge Milling Machine;
c) H BOX Beam End Face Milling;
d) Hydraulic drive BOX Beam 180° Turnover Machine

1 BOX Beam Production Line

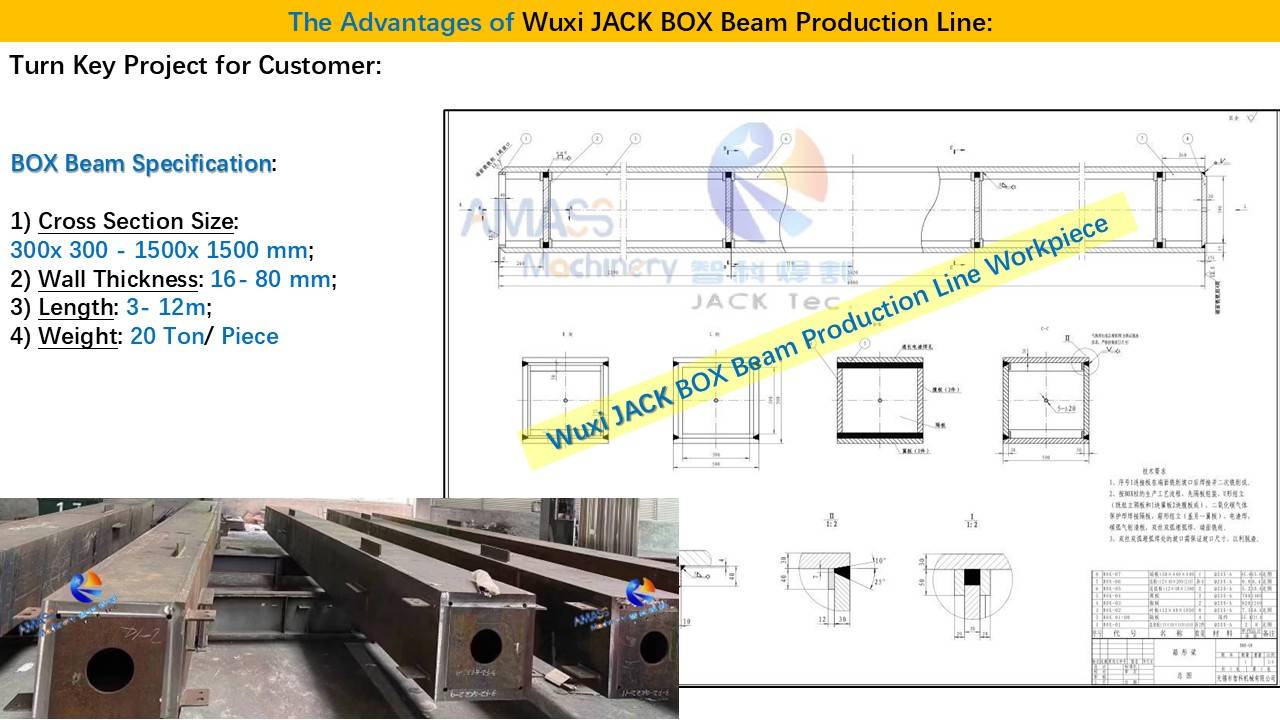

Slides 2: The Finished Workpiece Produced from Wuxi JACK BOX Beam Welding Production Line

1. What can Wuxi JACK BOX SAW Beam Welding Machine Produce?

This page of slides gives design sketch and main specifications of welding BOX Beam produced from our BOX SAW Beam Welding Machine:
1) Cross section of welding BOX Beam is from 300mm x 300mm to 1500mm x 1500mm;
2) Length of welding BOX Beam is from 3m to 12m;
3) Max. weight of single piece of welding BOX Beam can be up to 20 Ton/ piece;
4) Wall thickness of welding BOX Beam is from 16mm to 80mm;
2. So, this is a genuine sense of heavy duty steel structure Production Line. The welding operation involved is also heavy type: Tandem arc or even triple arc submerged arc welding;
3. Design sketch on the welding BOX Beam in this page of Slides also gives detailed information on distribution, types and dimensions of welding seams on it.

2 BOX Beam Production Line

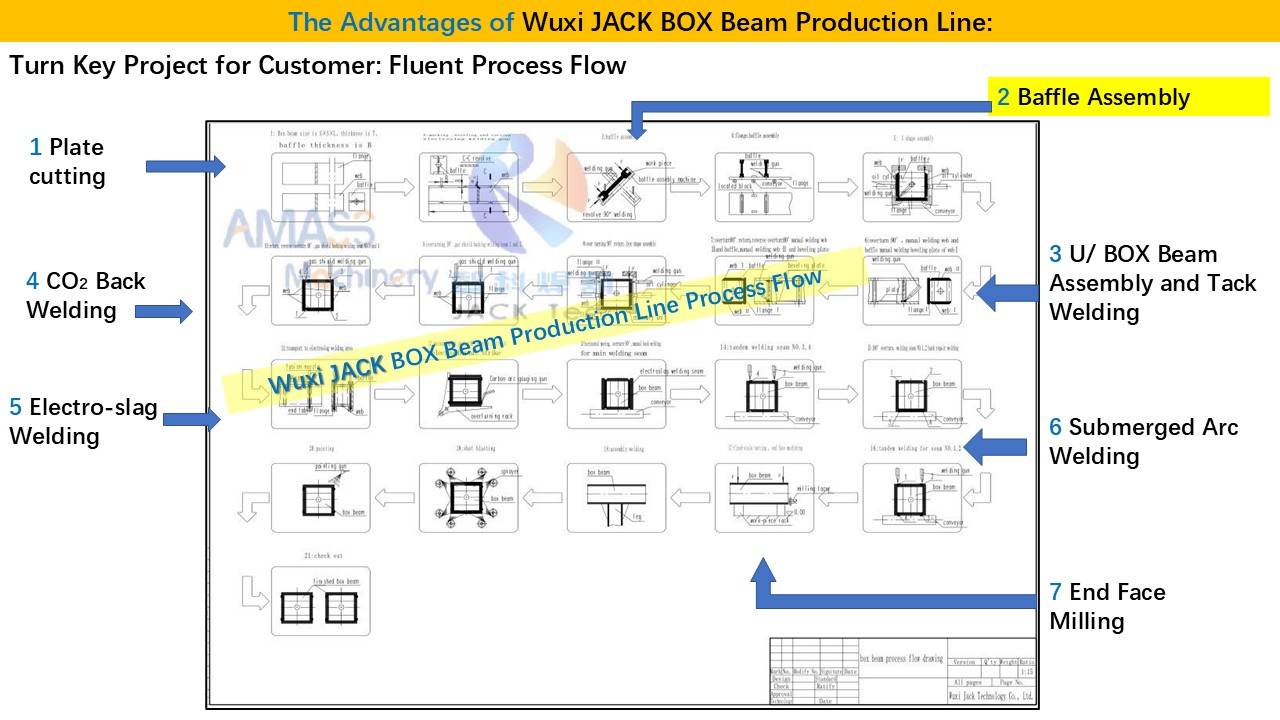

Slides 3: Major Process Technology of Wuxi JACK BOX Beam Welding Production Line

This page of Slides illustrates on the main working stations in the production line, which can be generalized into 7 major steps of:
1. The 1st Operation: Steel Plate Cut into BOX Beam plates and baffles:
Just like H Beam Production Line, this station is installed with CNC Strip Plate Cutting Machine, for cutting out strip plates, being used as raw materials for making welding BOX Beam;

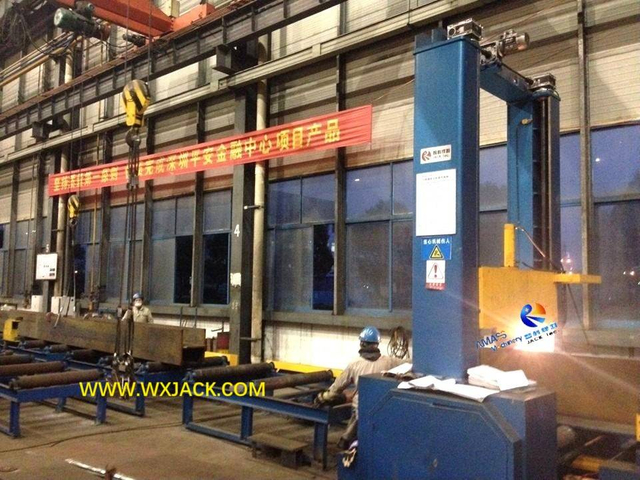

2. Baffle Assembly and Tack Welding with GZ12 Model BOX Beam Welding Production Machine:
This is the first step of assembly, from strip plates to half finished baffle plates assembling unit;
3. U Beam BOX Beam Assembly and Tack Welding with UBZ12 Model Machine:
This is the finished step of assembly in the line, from baffle plate unit, to U Beam, then to BOX Beam, together with stitched welding;

4. CO2 Back Welding on the Assembled BOX Beam:

1) This is the first step of welding carried out in BOX Beam Welding Production Line, for performing CO2 back welding on assembled BOX Beam;
2) Its function is similar to H Beam Assembly Machine, which builds up initial structure of BOX Beam, before subsequent finished welding;

5. Internal Electroslag Welding on Baffle Plates:

1) The specialty and challenge of electroslag welding here is, the baffle plates have already being placed and stacked inside the BOX Beam, so its welding can not be fulfilled with conventional welding mode. Instead, it is accomplished by means of special type welding consumables, either nozzle or wire, to be melted and integrated with BOX Beam during process;
2) Electroslag welding on baffle plates is the second step of welding in the BOX Beam Welding Production Line. It strengthens the entire piece of BOX Beam, by means of solidifying several pieces of baffle plates;

6. Finished SAW (Submerged Arc Welding) of BOX Beam SAW Welding Machine:

1) This is the final step in BOX Beam welding, which has high welding current and working velocity. The welding operation is rather heavy, of tandem arc or triple arc welding;
2) Workpieces output can be viewed as rough finished workpieces of BOX Beam, just need end face milling and painting;
7. BOX Beam End Face Milling at EOL (End of Production Line):
The machine of this work station is same as that of H Beam Production Line: The DX Series steel structure BOX H Beam End Face Milling Machine.

3 BOX Beam Production Line

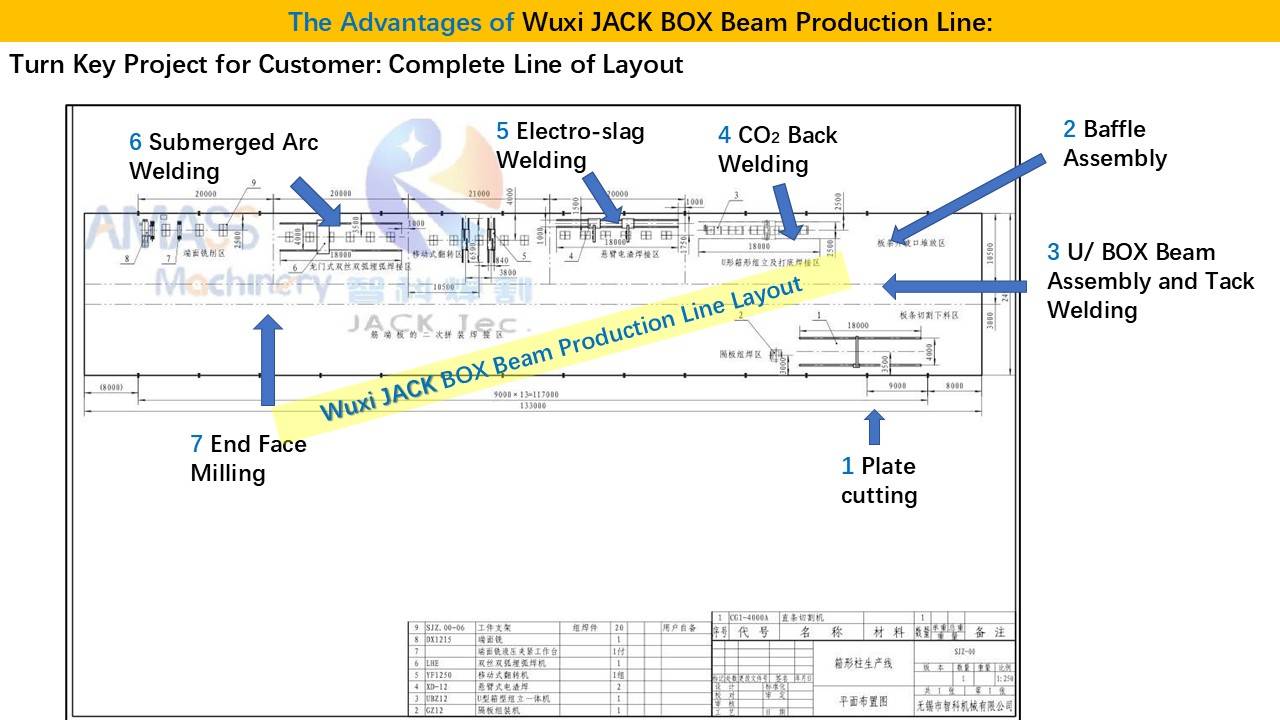

Slides 4: The General Layout View of Wuxi JACK BOX Beam Welding Production Line

This page of Slides gives layout sketch and land occupation of our steel structure production line:


1. Area of BOX Beam Welding Production Line:

1) The workshop floor for installation and laying of all the primary BOX Beam Welding Production Machines is 3200m2: 133m length by 24m width;
2) The 24m width workshop is divided into two bays, with 3m width foot walk in the middle;
2. Material Handling:
1) The steel plate onto CNC Flame Cutting Machine and finished plates off the machine is by means of overhead travel crane;
2) For all the following working stations, the workpiece (Baffle plates, U Beam, BOX Beam) movement and transfer is by means of Steel Structure Conveyor and other automatic equipment;

3. Arrangement of BOX Beam Welding Production Machines:

1) The 1st set of machine: CNC-CG4000 CNC Strip Plate Cutting Machine is installed individually, followed with UZ12 Baffle Plate Assembly Machine;
2) The remaining 5 types of machine, from assembly to Overturning Equipment to BOX Beam SAW Welding Machine, are deployed in sequence at the other bay of the workshop;
4. The workpiece manufacture and flow through the entire production line is fulfilled automatically.

4 BOX Beam Production Line

Slides 5: Major BOX Beam Welding Production Machines in Sequence of Process Route

1. The 1st Set of Machine: CNC-CG4000 CNC Strip Plate Cutting Machine:

1) Same as H Beam Production Line, BOX Beam Welding Production Line also starts with steel plate cutting for raw material preparation;
2) The “standard” (Common seen) model is CNC-CG4000, which has cutting width of 3200mm.

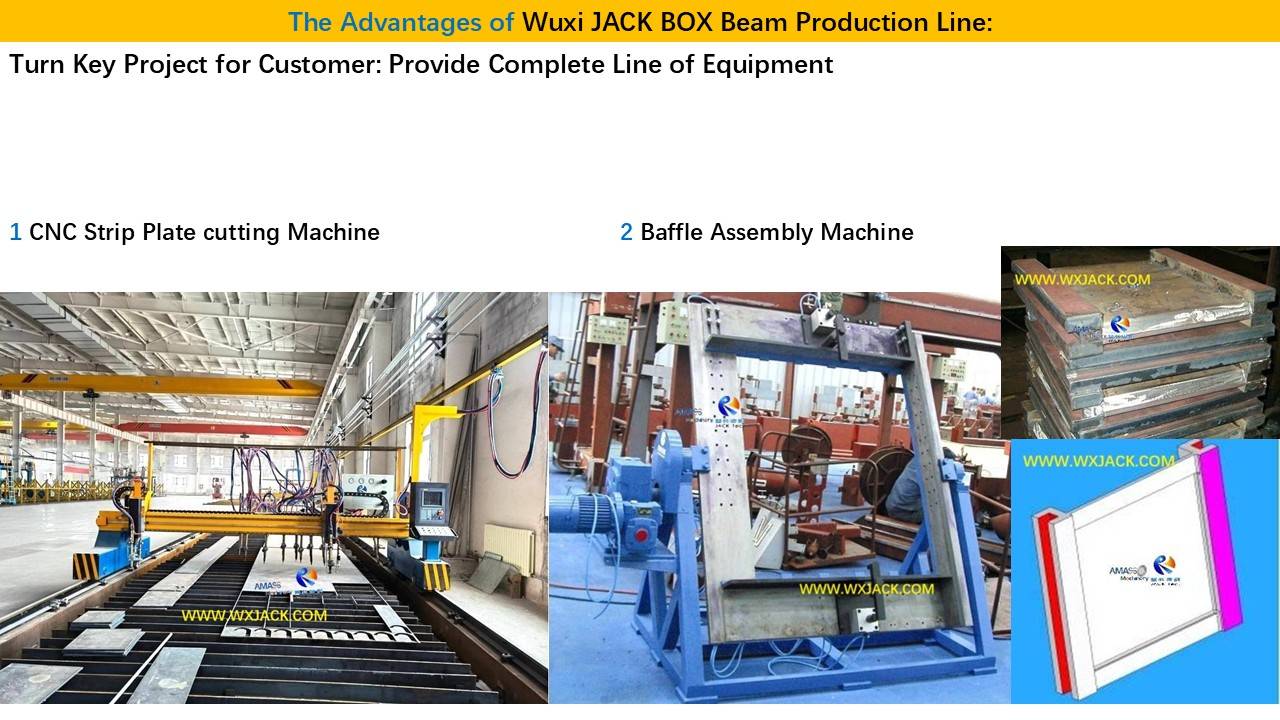

2. The 2nd set of BOX Beam Welding Production Machine: GZ12 Baffle Plate Assembly Machine:

1) As shown in the photo of this slides, the GZ12 Baffle Assembly Machine is in essence a kind of semi-automatic operated fitting up and welding fixture;
2) Design sketch and photo of assembled baffles are also pasted in this Slides: A piece of square or rectangular plate will be strengthened with 2 pieces of stiffeners at the lateral, forming into a small plate unit.

5 BOX Beam Production Line

Slides 6: The U Beam and BOX Beam Assembly in Wuxi JACK BOX Beam Welding Production Line

Continued with the previous Slides,

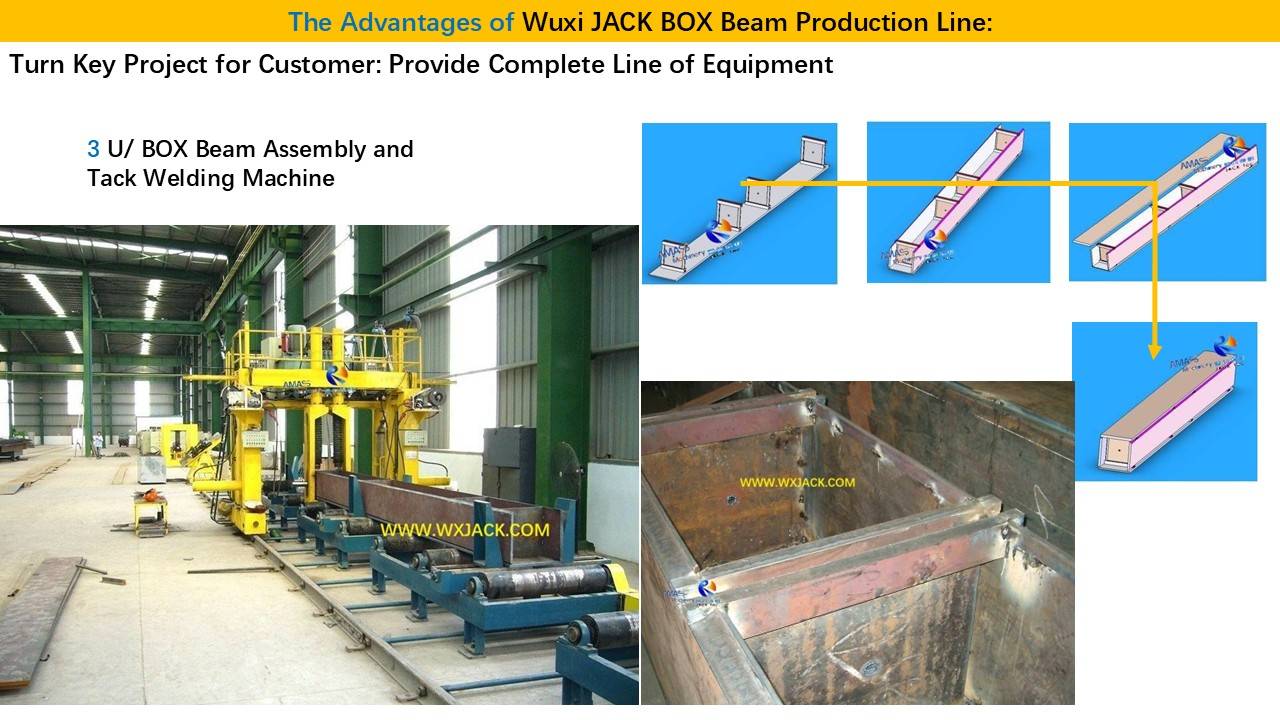

3. The 3rd set of BOX Beam Welding Production Machine: UBZ12 U Beam BOX Beam Assembly Machine:

1) The raw material of this assembly machine is a piece of long plate unit: 4 pieces of erected and upright baffle plates are welded onto base plate of BOX Beam, in the right angle of 90°, in same interval with each other;
2) With this machine, the 4 pieces of baffle plates will be assembled and tack welded together with 4 pieces of side plates, to make the workpiece first turned into U Beam, then into BOX Beam;
3) The illustration on U Beam BOX Beam assembly steps implemented in BOX Beam Welding Production Line, and finished BOX Beam are pasted in right side of this page of slides.

6 BOX Beam Production Line

Slides 7: The CO2 Back Welding and 180° Overturning in Wuxi JACK BOX Beam Welding Production Line

This page of Slides is on the CO2 Back Welding and logistics unit:

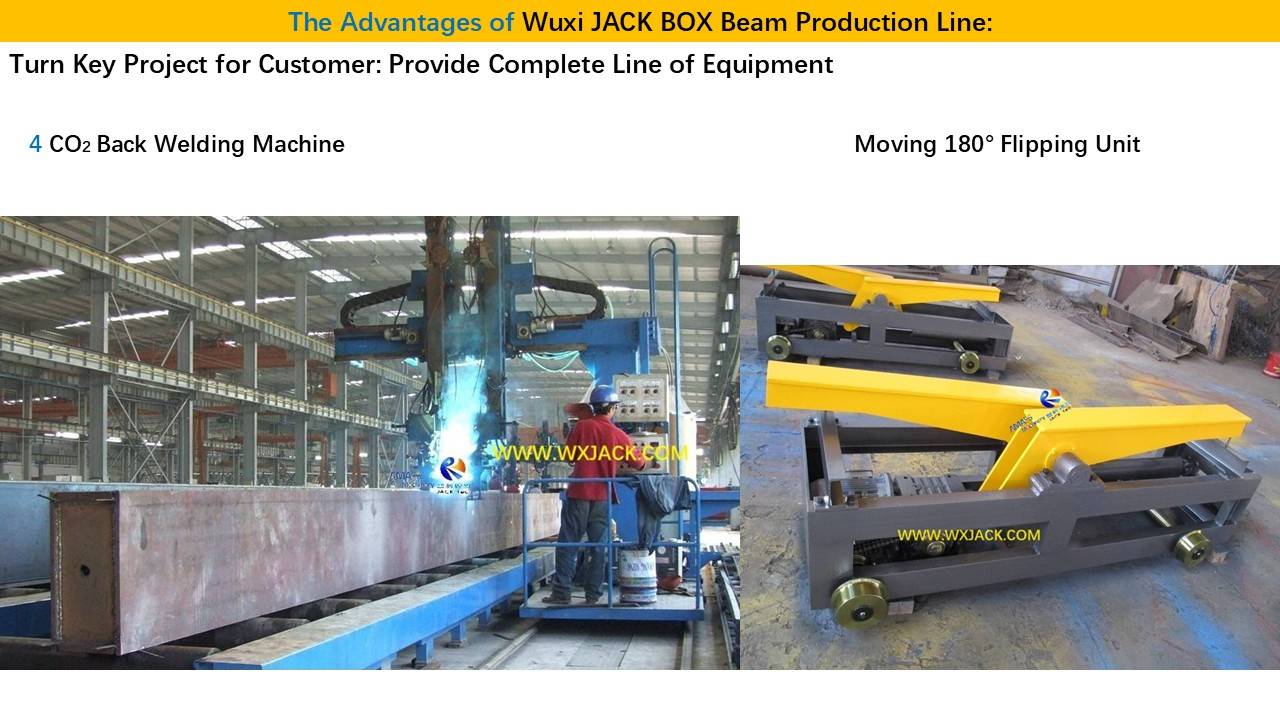

4. The 4th set of BOX Beam Welding Production Machine: BOX Beam CO2 Back Welding Machine:

1) Task: According to BOX Beam production process technology, after its assembly, the BOX Beam needs to be back welded by means of CO2 gas shielded welding;
2) Working Mode: In this set of CO2 Back Welding Machine, BOX Beam is laid on its sending conveyor, and trolley moves in welding speed, performing CO2 Back welding at the same time;
3) Operator Protection: As shown in the lefthand photo, operator needs to put on welding helmet and goggle, to protect his eyes, against the harmful strong arc light generated from CO2 welding, strong fumes in the process;


5. The 5th Type of BOX Beam Welding Production Machine: Motor Drive Moving Hydraulic Drive BOX Beam 180° Turnover Machine:

1) Considering the large size and heavy weight of BOX Beam, its flipping and conveying is rather dangerous, suppose manipulated by operators. Instead, this job should be completed by means of automatic running hydraulic drive flipping equipment;
2) These logistics units not only relieve operators from dangerous and toilful job of workpiece turning, but also improves automation degree of the production line;
3) Wuxi JACK designs and produces various types and specifications of hydraulic drive 60°/ 90°/ 180° Overturning Equipment, Steel Conveyor, and Chain type Overturning Equipment, which are indispensable equipment being applied in all types of Steel Structure Production Line.

7 BOX Beam Production Line

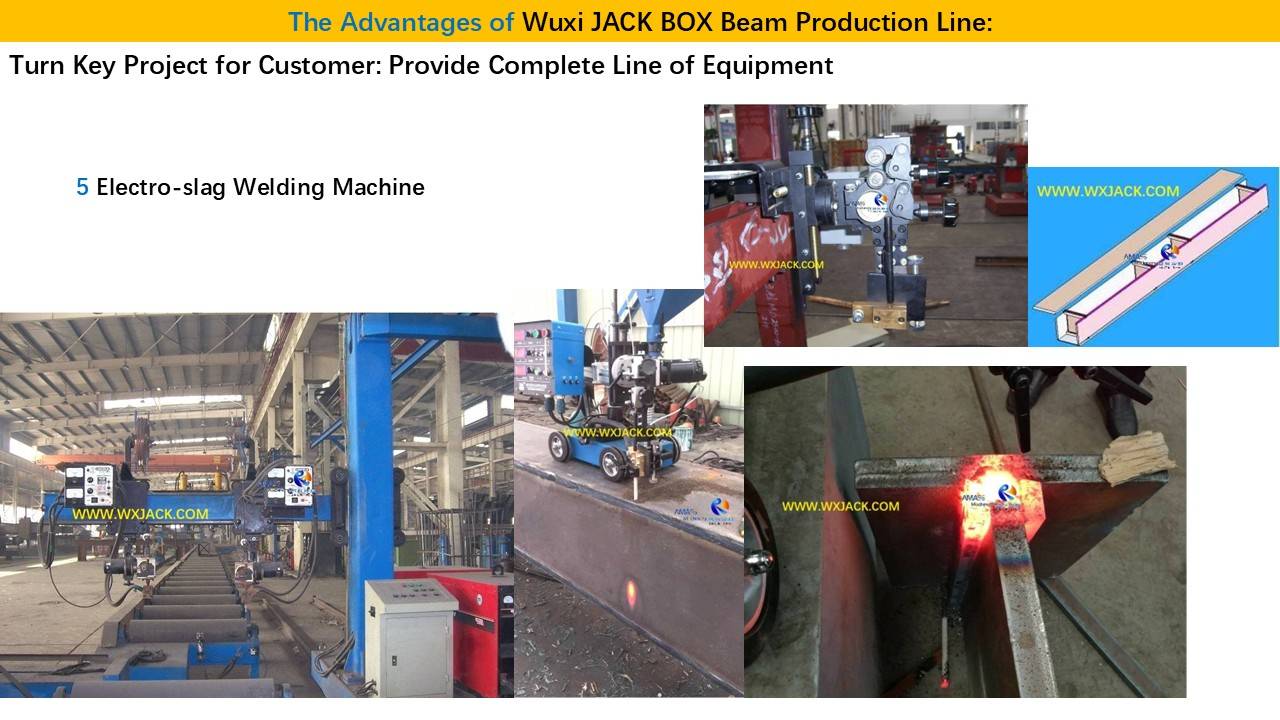

Slides 8: The Electroslag Welding in Wuxi JACK BOX Beam Welding Production Line

6. The 6th Set of BOX Beam Welding Production Machine: BOX Beam Electroslag Welding:

1) Position in the Production Process Technology: Electroslag welding is the second type of welding operation performed in BOX Beam welding stations, following CO2 back welding, and preceding SAW finished welding;

2) Function: This step is for welding the internal baffle plates inside the assembled BOX Beam, which is difficult to access directly by means of conventional welding method;
3) Classification: For being applied in BOX Beam Welding Production Line, there are two types of BOX Beam electroslag welding technology: The consuming wire type and electrode type. Of which, currently, the consuming wire type electroslag welding has wider application and takes main stream, benefitting from its advantages of easy operation and lower cost;

4) Workpiece: This page of Slides indicates on Wuxi JACK BOX Beam Electroslag Welding Machine:

a) Operates at customer workshop;
b) 2 types of electroslag welding torch unit and its moving trolley, and operation on assembled BOX Beam;
c) Explode sketch on baffle plates electroslag welding inside the assembled BOX Beam;
d) Close distance on baffle plates electroslag welding in Wuxi JACK welding machine.

8 BOX Beam Production Line

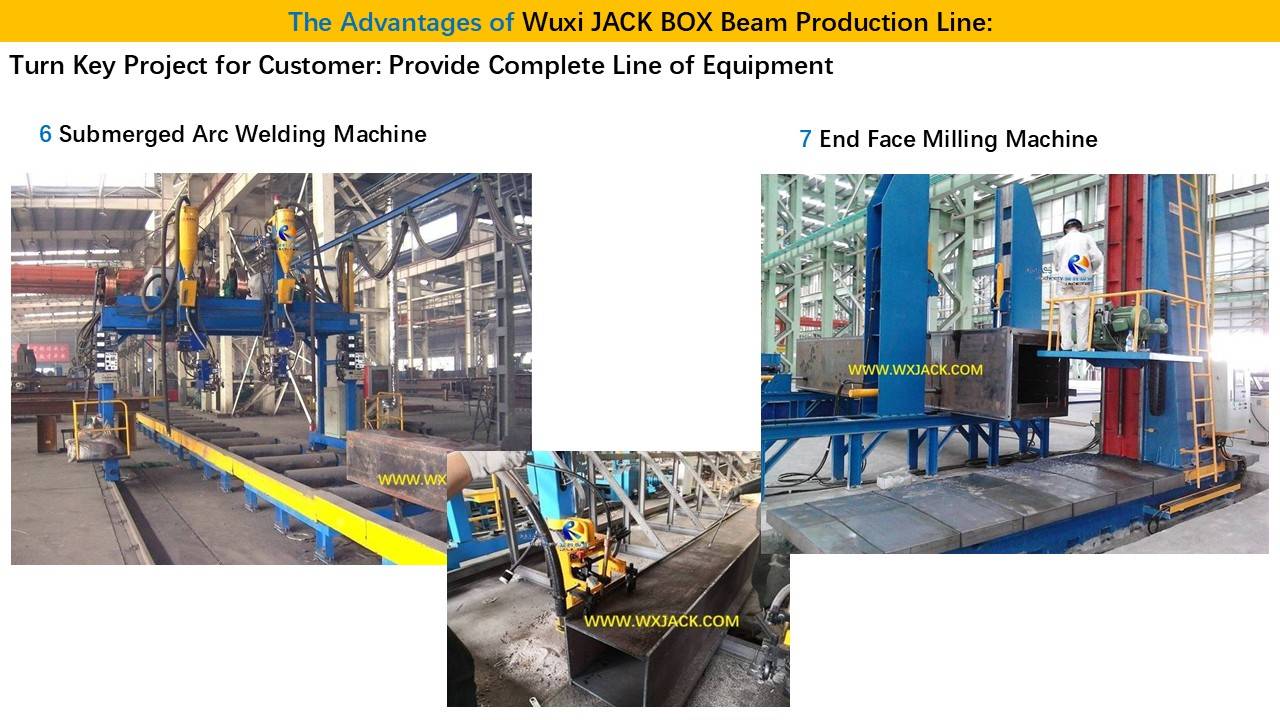

Slides 9: Wuxi JACK BOX SAW Beam Welding Machine and End Face Milling

This page of slides is on the final 2 types of core BOX Beam Welding Production Machine:

7. The 7th Set: BOX SAW Beam Welding Machine:

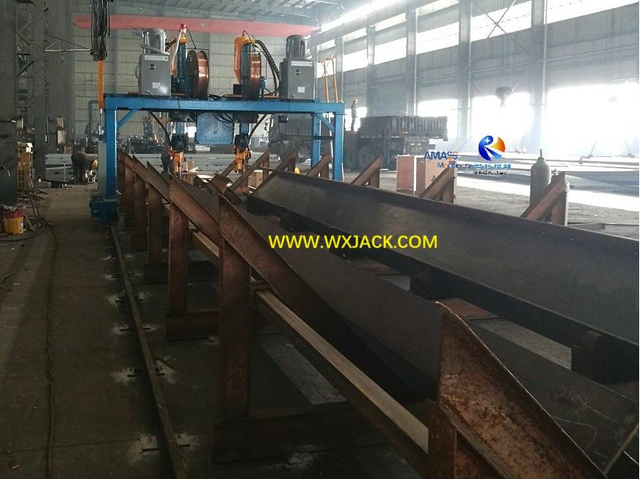

1) Same as H Beam Production Line, SAW finished welding is 3rd step of welding, also the final one in process technology of welding BOX Beam production;

2) There are 2 types of structure BOX Beam SAW Welding Machine:

a) LHE model Closed frame Gantry moving structure, similar to LHA/ LHT in the case of H Beam production;
b) LHC model Open frame moving Trolley structure, same as LHC in automatic H Beam Production Line;
For which customers can make choice based on their condition and preference;

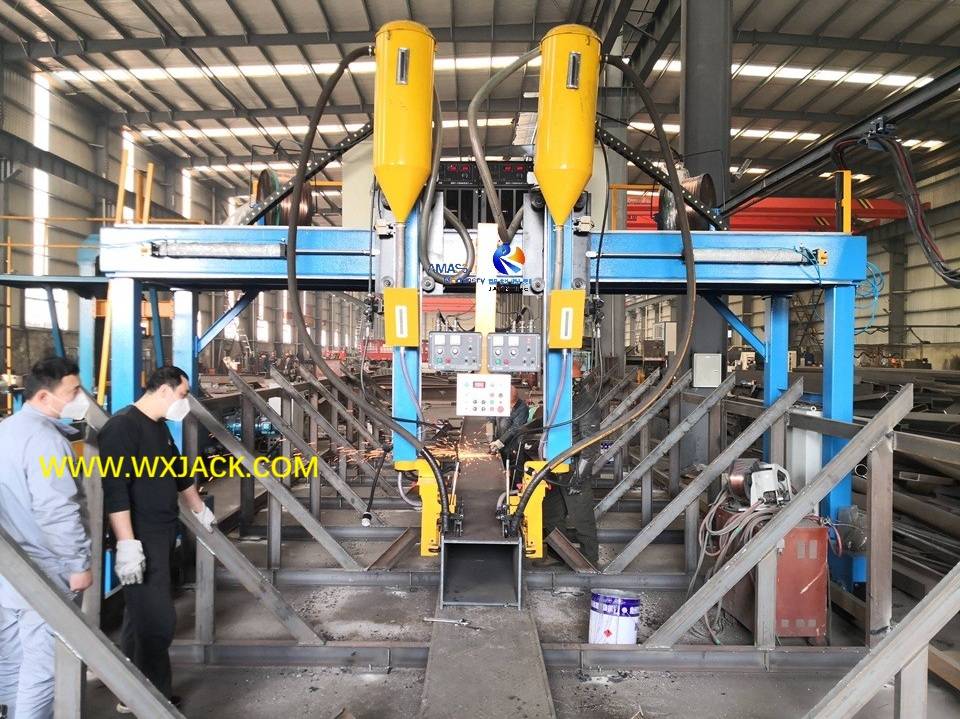

3) The photo in this page of Slides presents the LHE model closed frame Gantry moving structure BOX SAW Beam Welding Machine.


8. The 8th set of BOX Beam Welding Production Machine: BOX Beam End Face Milling Machine at EOL Station:

1) The right photo in this page of Slides is on a set of Wuxi JACK DX2040 model BOX Beam End Face Milling Machine, which is the last one important machine in BOX Beam Welding Production Line;
2) This machine is not confined to BOX Beam production use. Instead, it can be applied in all types of Steel Structure Production Line: H Beam Production Line, T Beam Production Line, etc.;
3) Equipped with CNC controller, the CNC control Beam End Face Milling Machine can also be used for polishing any kind of special shape structure members and pipes, etc.

9 BOX Beam Production Line

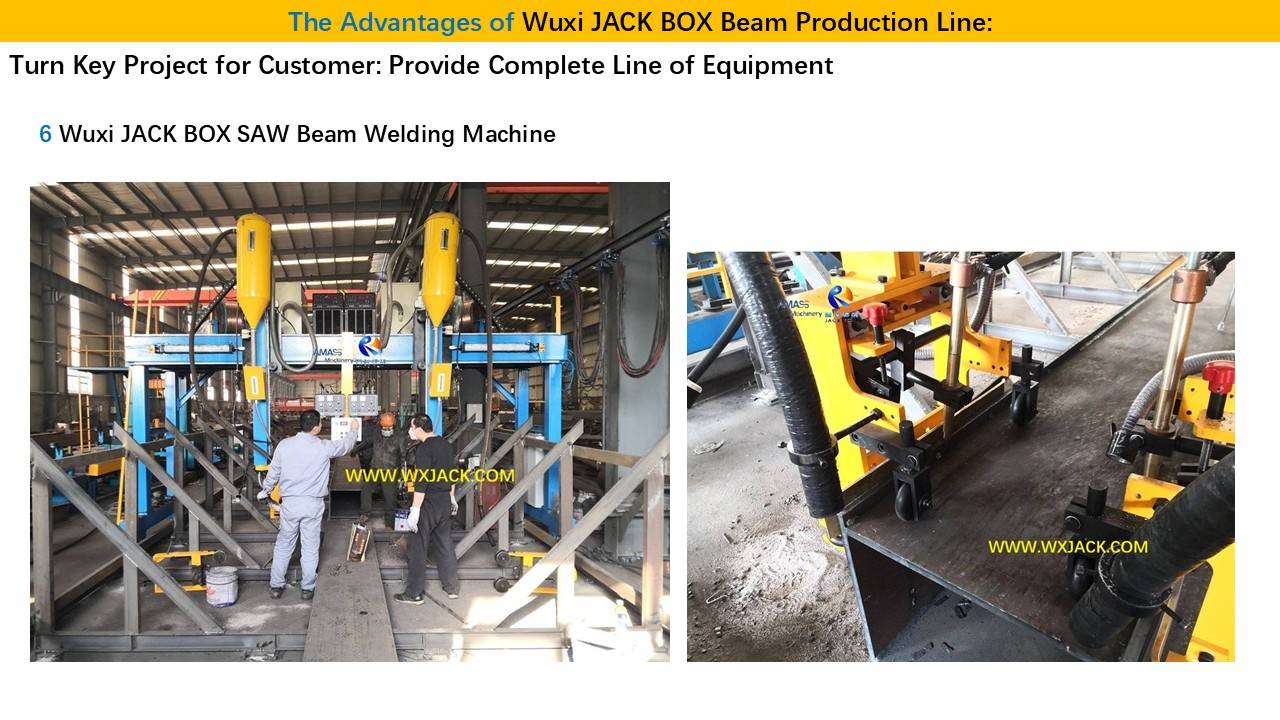

Slides 10: Wuxi JACK BOX SAW Beam Welding Machine

This page of Slides demonstrates on Wuxi JACK LHE15 model gantry frame structure BOX SAW Beam Welding Machine, which is being installed and commissioned by Wuxi JACK engineers, and close distance view on test on tandem arc SAW on BOX Beam:
10 BOX SAW Beam Welding Machine

FAQ on Wuxi JACK BOX Beam Welding Production Line

Below are some typical frequently asked questions on our BOX Beam Welding Production Line from customers, from year 2009 to today May 2026:

  • Q Besides the above listed BOX Beam Welding Production Machine, what are other machines, equipment and tools necessary prepare, for kicking off BOX Beam Welding Production Line?

    A There are totally 35 stations in complete set of BOX Beam Welding Production Line. Besides the machines listed above, below are other necessary BOX Beam Welding Production Machines:
    1. 1) Lineation table for confirming on positions of baffle plates, and hole cutting;
    2. 2) Edge Milling Machine: For cutting out 0° - ±45° welding grooves on main plates of BOX Beam;
    3. 3) Welding seam test: Ultrasonic testing machine;
    4. 4) Clearing on electroslag welding gate and riser: Carbon gouge;
    5. 5) BOX Beam Longitudinal Straightening: Horizontal Press Straightening Machine;
    6. 6) BOX Beam surface clean: Shot Blasting Machine

  • Q What are Total Power of Machines in BOX Beam Welding Production Line, especially large current heavy duty BOX SAW Beam Welding Machine?

    A
    1. 1. The set up of entire BOX Beam Welding Production Line definitely involves careful prepare on workshop utility, especially electricity capacity. In all, installing all the major BOX Beam Welding Production Machines being introduced in this page need total power of:
    1. 1) Either 2 sets of 800KVA transformer for tandem arc (9KW＋240KVA×2, 63A＋250A×4 air breaker) BOX SAW Beam Welding Machine;
    2. 2) Or 2 sets of 1000KVA transformer for triple arc (9KW＋385KVA×2, 63A＋250A×6 air breaker) BOX SAW Beam Welding Machine;
    1. 2. Wuxi JACK engineers will give customer detailed list of electricity capacity and necessary air breaker for each set of BOX Beam Welding Production Machine, before customer prepare on the workshop of our BOX Beam Welding Production Line;
    2. 3. For example, for installing one set of UBZ12/ UBZ15 model U Beam BOX Beam Assembly and Tack Welding Machine, it needs electricity capacity of 15.4KW+25.6KVA, and air breaker of 63A×3.

  • Q Which Brands Wuxi JACK select, on various welding power supplies being equipped with our BOX Beam Welding Production Line, especially the core equipment of BOX SAW Beam Welding Machine?

    A
    1. 1) 20 years ago, in the year before 2010, the various modes of welding power supplies were usually selected from overseas famous brand, to make sure quality and performance on BOX Beam welding at different stations. For example, American Lincoln (DC1000A plus AC1200A in the condition of tandem arc SAW) for our BOX SAW Beam Welding Machine, and Japan OTC SESNET-WT for BOX Beam electroslag welding;
    2. 2) Over the past 10- 15 years, with the rapid development of Chinese suppliers technique on welding, nowadays by year 2026, all the welding power supplies in our Wuxi JACK production line, especially the most important one BOX SAW Beam Welding Machine, can be sourced from Chinese top grade professional suppliers: HUAYUAN, AOTAI, under different customer requirement and practical condition. These Chinese welding power supplies have stable and top grade performance, and much reasonable price than overseas brands, which promise more benefits and profits for customers.

  • Q How Many Operators are Necessary for Building Up and Running on Wuxi JACK BOX Beam Welding Production Line?

    A
    1. 1) Compared with H Beam production, BOX Beam production is obviously more complicated, with more work stations and machine involved;
    2. 2) Depending on customer budget and MGPP (Multiple Generation Product Plan) and layout, there are 12 to 35 types and sets of BOX Beam Welding Production Machines, which need to be installed and operated. Correspondingly, each machine needs one to two veteran operators to work on;
    3. 3) Summing up, the single shift of welding BOX Beam production needs 20 to 60 operators working on, excluding logistic team for material replenish and convey;
    4. 4) Operators work on different station entails related skills. For example, for working on the most important BOX SAW Beam Welding Machine, operator should be familiar with managing on automatic machines; Welding experience on adjusting welding wires, welding torches, judging welding quality, etc.;
    5. 5) Besides, there should be also a team of profession service, to make sure fluent operation of the entire BOX Beam Welding Production Line. By means of TPM (Total Preventive Management), to make sure these machines have as short shutdown as possible. And in case of malfunction happens, to overhaul the machine, and resume operation with the quickest response.

Wuxi JACK Other Steel Structure Production Line and Machines besides BOX SAW Beam Welding Machine

1. Machines and Equipment of H Beam Production Line:
Z18 model I H Beam Assembly and Tack Welding Machine

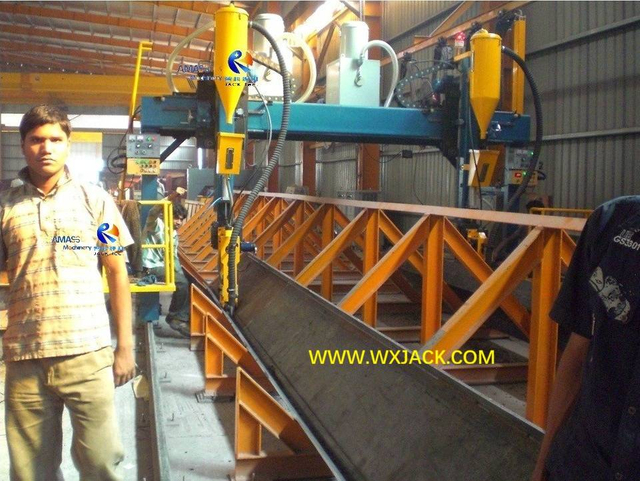

LHA5Z model center operate I H Beam SAW Welding Machine
LHA5C model lateral operate I H Beam SAW Welding Machine

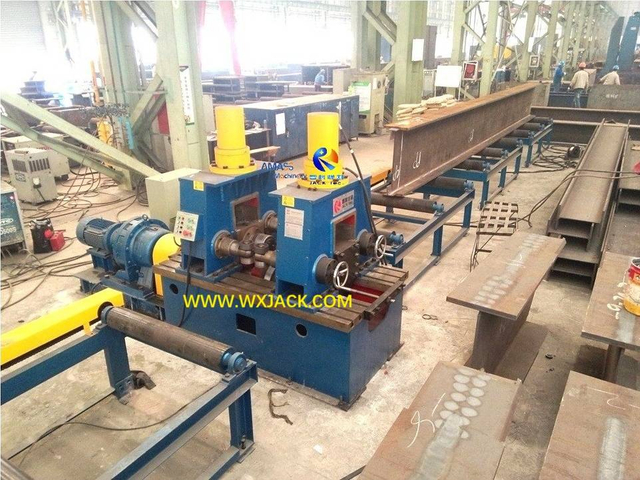

YTJ60 model Hydraulic Drive H Beam Straightening Machine
2. Other Important Steel Structure Machinery:

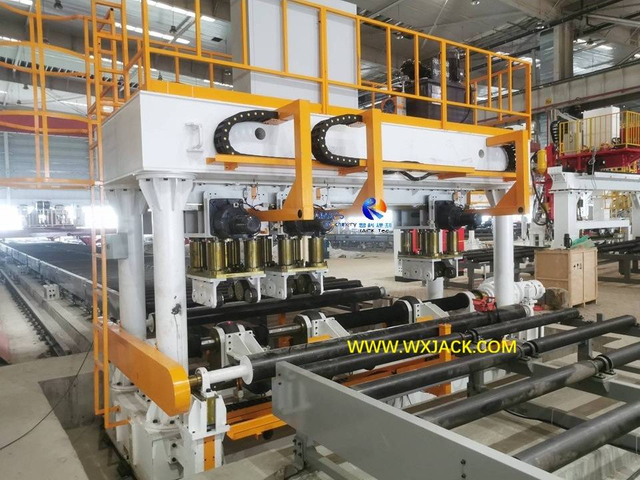

J20 model Stiffener Plate Unit Straightening Machine

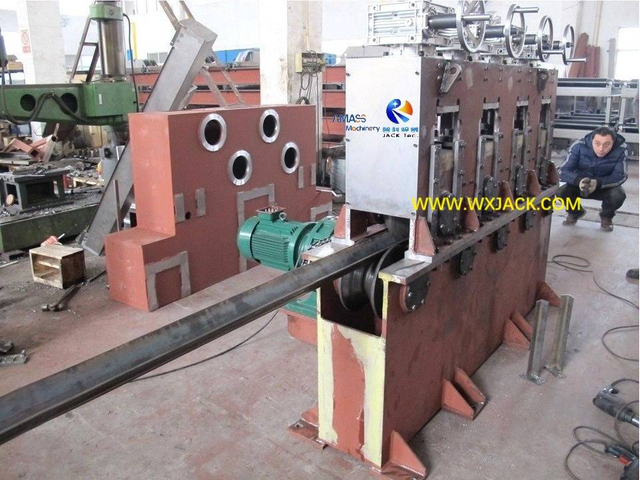

ASM63 model Angle Steel Straightening Machine

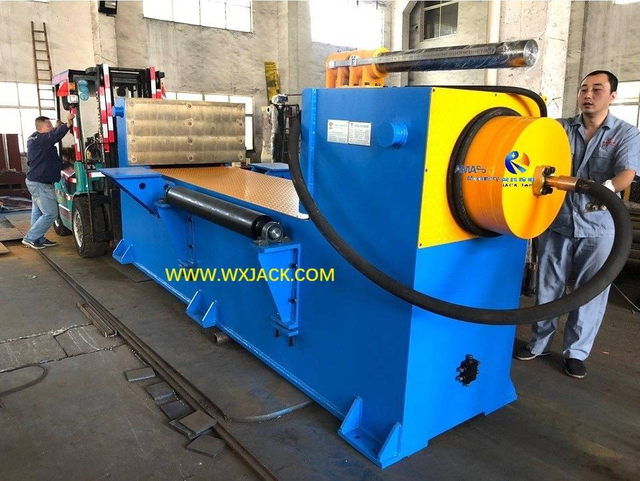

HJ300 model I H BOX Beam Horizontal Press Straightening Machine

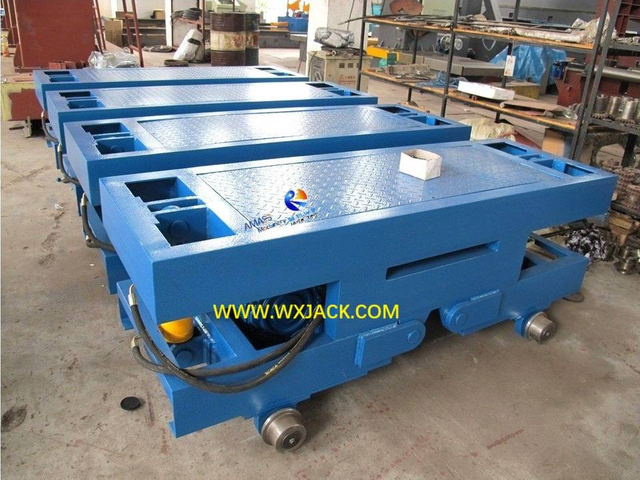

Steel Structure I H BOX Beam Convey and Lifting Machine
3. Welding and Milling Machines, Steel Structure BOX H Beam End Face Milling Machine:

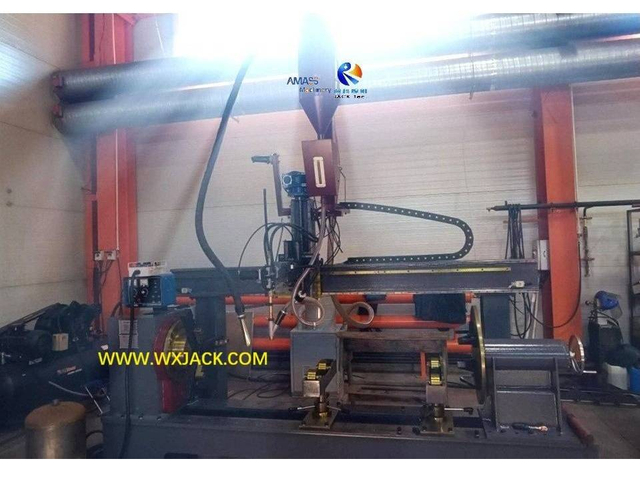

LH50 model Pipe Flange Circumferential Welding Machine

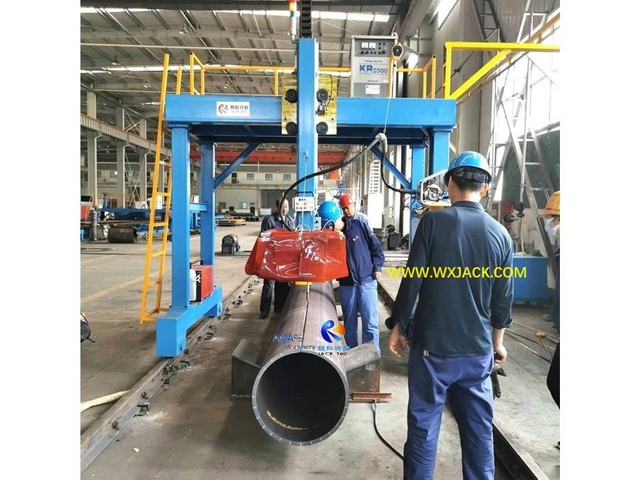

LHD1500 model Gantry Frame Moving Pipe Longitudinal Welding Machine

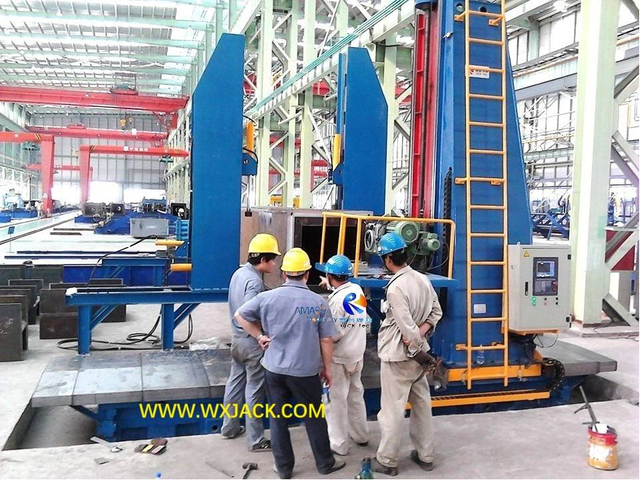

CNC-DX2525 model CNC control BOX Beam End Face Milling Machine

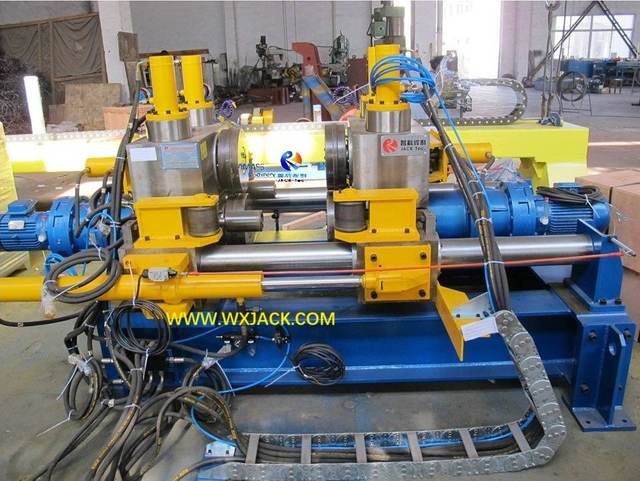

RH1000 model Steel Plate and H Beam Edge Rounding Machine
BOX Beam Production Line
01

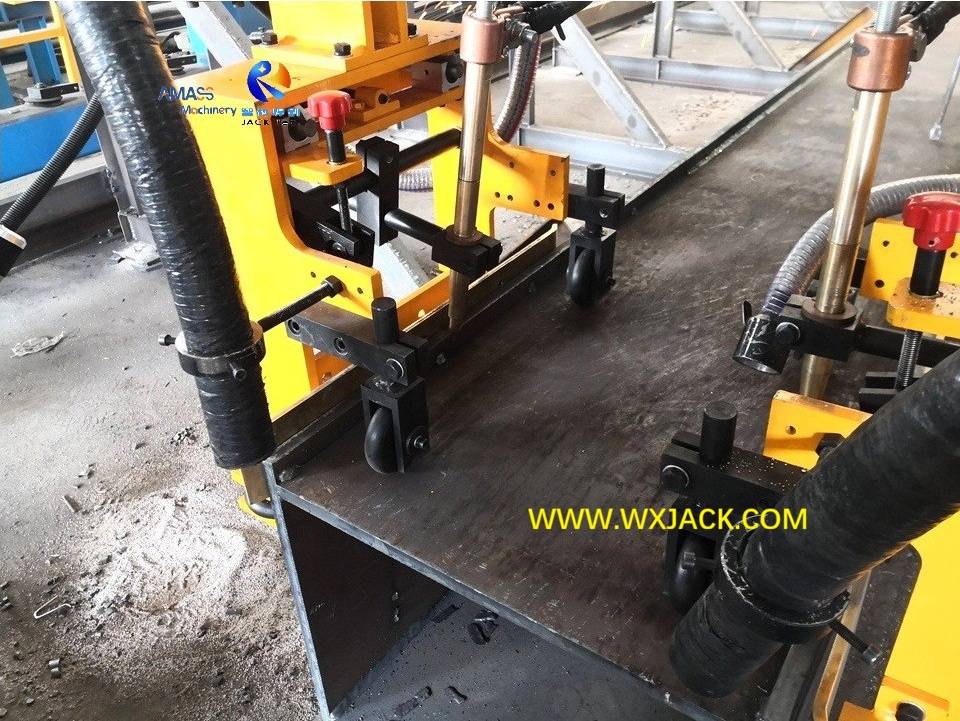

BOX SAW Beam Welding Machine
02

BOX SAW Beam Welding Machine
03

Other Series of Products We Own besides BOX Beam Welding Production Line

General Purpose Automatic Lengthwise ASM63 Angle Steel Straightening Machine
General Purpose Automatic Lengthwise ASM63 Angle Steel Straightening Machine
1. What can ASM63 do for Customer?
2. Why You need Angle Straightening Machine?
3. The Good Points of ASM series Machine:
4. Technical View on ASM63:
5. Technical Parameters of ASM63:
0
0
Symmetric Beam ZHJ18 Model 3 in 1 Vertical H Beam Welder Machine
Symmetric Beam ZHJ18 Model 3 in 1 Vertical H Beam Welder Machine
A. Product Brief on ZHJ18 Model:
B. Technical Comparison on PHJ Versus ZHJ Series:
C. Quality Control on PHJ and ZHJ Series 3 in 1 Machine:
D. Technical Parameters of ZHJ18:
0
0
DX1530 Welding Structure Member End Facing Machine for Long Parts
DX1530 Welding Structure Member End Facing Machine for Long Parts
A. Scope and Wide Use of DX15xx and DX12xx Models Conventional Siz:  Conventional Models of machine/ Usage  / Background
B. Structure and Work Principle of Conventional Models:  Overall Structure/ Work Principle/ Milling Working Speed Control and Display
C. Main Units of Conventional Models:  HIWIN Heavy duty Ball Bearing Precise Guiderail/ Operating panel / Protection on Guiderail/ Mechanical main frame/ Milling Head / Lubrication/ milling cutter head
D. Technical Parameters of DX12xx and DX15xx Standard Models

0
0
Medium Large DX3030 Steel Structure End Face Milling Machine
Medium Large DX3030 Steel Structure End Face Milling Machine
1. General Introduction on DX3030:
2. Constructure of DX3030: Machine body / Horizontal Bed / Upright Column / End Face Milling Carriage / Operating Standing
3. Technical Parameters of DX3030:

0
0
HMI Control Advanced Function SXBJ-12 Large Edge Milling Machine
HMI Control Advanced Function SXBJ-12 Large Edge Milling Machine
A. Function of SXBJ-12:
B. Structure and Main Units in SXBJ-12:
C. Workpiece Steel Plate Feeding System in SXBJ-12:
D. Electric Control System of SXBJ-12:
E. Technical Parameters of SXBJ-12:


0
0
Iron Hand Assistant SXBJ-4 Double Heads Edge Milling Machine
Iron Hand Assistant SXBJ-4 Double Heads Edge Milling Machine
A. The Uniqueness and Usage of Iron Hand Assistant SXBJ-4:
B. General Working Steps of Manipulator Acting SXBJ-4:
C. Technical Parameters of Manipulator Assisting SXBJ-4:
0
0
HMI Operation MP23 Plate Flat Butt Joint Welding Machine
HMI Operation MP23 Plate Flat Butt Joint Welding Machine
A. Specialty and Function of MP23: Operation Way / Function
B. Structure, Main Function Cells, and Working Principle of MP23:  Main Units/  Work Principle
C. Advanced Technique and Operation of MP23:  The critical core technique/ Critical Units/  Double Layer Welding Flux/ Workpiece Clamp/ Operation
D. Mechanical Features of MP23:  Main Body/ Plates Clamp during Butt Welding/ Input and Output Conveyors
E. Technical Parameters of MP23
0
0
MP20 To MP50 Sheet Metal Steel Plate Butt Joint Welding Machine
MP20 To MP50 Sheet Metal Steel Plate Butt Joint Welding Machine
A. Usage and Great Value of MP20 to MP50:  Usage/ Specification/ material of Metal Steel Plate/ Welding Mode/ Application Scenario/ Benefit on Productivity, Variable Cost, and Safe Operation
B. Main Function Units: General Layout / Flame Triple Cutting Torch/ SAW Butt Welding System / Copper Pad and Welding Base/ Welding Torch Unit
C. Technical Parameters of MP20 to MP50
0
0
5 Axis CNC-CP5-1400/L Classical Medium Size CNC Pipe Cutting Machine
5 Axis CNC-CP5-1400/L Classical Medium Size CNC Pipe Cutting Machine
A. Extensive Use of CNC-CP5-1400/L:  Function and Workpiece Specifications/ Wide Application
B. Great Value of CNC-CP5-1400/L:  Breakthrough on Pipe Cutting Operation: Before versus After
C. Technical View on CNC-CP5-1400/L:  The 5 Axis of Cutting Torch/ Specifications of 5 Axis / Operation
D. Major Configuration of 5 Axis CNC-CP5-1400/L:  General layout/  Cutting Torch/ Thermal Gas Cutting System / Pipe Fixture
E. Superiority of Control Technique in Wuxi JACK CNC-CP5-1400/L:
F. Technical Parameters of CNC-CP5-1400/L
0
0
Middle Size 1800mm Height Semi-Automatic Welded H Beam Production Machine Line
Middle Size 1800mm Height Semi-Automatic Welded H Beam Production Machine Line
A. Application of HB1800:
B. Usage and Advantages of HB1800:
C. Machine Tools Constitutes in semi-Automatic Line:
D. Technical Parameters of HB1800:
0
0
Z30 Heavy Duty Large I H Beam Assembly Machine
Z30 Heavy Duty Large I H Beam Assembly Machine
A. Specialty of Z30 Heavy duty model:  Purpose/  Max. Workpiece Size/ Features
B. Application and Major Specifications of Z30:  Task/ Technical Specifications of Z30
C. Working Style and Configuration of Z30:  2 Main Functions/ Assembly Form and Welding Mode and Style on 3,000mm Height Large T I H Beam/ Operation
D. Technical Features of Z30:  Workpiece Assembly Principle/ Composition of Assembly Unit/ Tack Welding
E. Three Working Modes of Machine: Manual/ Single Cycle/ Auto Cycle

0
0
Manual Assembling And Automatic Welding Z18 I Beam Assembly Machine
Manual Assembling And Automatic Welding Z18 I Beam Assembly Machine
A. Purpose of Z18:  Finished Workpiece/ Process Step / In Manual H Beam Production
B. Structure and Main Units:  Machine Composition/ Mechanical Main Body/ Machine Base Bed/ Motor Reducer/ Mechanical Transmission System
C. Mechanical Frame:  Top Gantry/ Downward Pressing Unit
D. CO2 Welding Power Supply:  Significance/ Two Options of CO2 Welding Power Supply/ HUAYUAN CO2 Power Supply
E. Technical Parameters of Z18
0
0
LHA Gantry Type H Beam Submerged Arc Welding Machine
LHA Gantry Type H Beam Submerged Arc Welding Machine
A. Application and Characteristic of LHA:  Extensive Use/ In process technology/ Function/ Large Using Volume
 B. Structure and Disparity in LHA:  Quantity of Welding Torch/ LHAZ Center Control Versus LHAC Side Control
C. Supply Range of LHA:  Mechanical Main Body/ Gantry Moving Parallel Rail/ SAW Welding Systems / Electric Control System/  Piping System/ Spare parts
D. Interlock Operation in LHAC Side Control:  Why Need Interlock
E. Technical Parameters of LHA Series
0
0
LHA4Z/LHA5Z/LHA55Z Center Management I H Beam Gantry Welding Machine
LHA4Z/LHA5Z/LHA55Z Center Management I H Beam Gantry Welding Machine
A. Application Features of LHAZ Models Middle Operation:  Model Meaning/ 3 Models of LHAZ Models Middle Operation/ LHA4Z Comparison with LHA4C
B. Operation on LHAZ Series Middle Operation: Productivity / SAW Operation / Operation on Welding Seam
C. Technical View on LHAZ Models Middle Operation:  Welding Mode/ Operator Skill for Working on LHAZ/ Integration of Outsourced Units into LHAZ
D. Technical Parameters of LHA4Z/ LHA5Z/ LHA55Z Middle Operation
0
0
High Efficiency Hydraulic Drive YTJ-50 I Beam Straightening Machine
High Efficiency Hydraulic Drive YTJ-50 I Beam Straightening Machine
1. Application of YTJ-50 Hydraulic:
2. Main units of the YTJ-50 Hydraulic:  Main Frame and Base / Front side and rear side conveyor / Straightening Roller unit / Hydraulic station / Bottom transmission unit / Motor reducer / Web clamp unit / Control board and Operation station
3. Technical Specification of YTJ-50:  Operation
4. Technical Parameters of YTJ-50 Hydraulic:
0
0
Heavy Duty Thick Thickness YTJ-80 I Beam Straightening Machine
Heavy Duty Thick Thickness YTJ-80 I Beam Straightening Machine
1. Highlight of YTJ-80 Heavy duty Machine: Personalized Specification
2. Operation of YTJ-80 and YTJ-60:
3. Technical Parameters of YTJ-80 Heavy duty:
0
0
Steel Structure Beam Chain Turnover Manipulator
RT20 Hydraulic Drive Beam Steel Structure Chain Rotator Equipment
A. Usage and Application of RT20:
B. Advantages of RT Series:
C. Technical Parameters of RT20:
D. Performance and Feature:
E. Operation:
F. Range of Supply on Wuxi JACK RT20:
0
0
Hydraulic Drive Lifting BOX H Beam Moving Machine
Hydraulic Drive Lifting BOX H Beam Moving Machine of Motor Drive Move
A. Application:
B. Technical Features and Operation:
C. Composition:
D. Supply Range:
E. Technical Parameters:

0
0
HGZ80 Multi-functional Simple Operating Self Adjusting Welding Roller Carrier
HGZ80 Multi-functional Simple Operating Self Adjusting Welding Roller Carrier
1. The Usage of HGZ80 Multi-functional Self Adjusting:
2. Operation of HGZ80:
3. Arrangement of HGZ80:
4. Benefit of HGZ80:
5. Technical Parameters of HGZ80:
0
0
HGZ Roller Bed Adjusting High Quality Self Adjustable Welding Rotator
HGZ Roller Bed Adjusting High Quality Self Adjustable Welding Rotator
1. What is Bed Adjusting type Self Adjusting Welding Rotator?
2. Usage
3. Technical Parameters of HGZ Series:
0
0
HGK High Efficiency Universal Adjustable Welding Rotator by Leadscrew
HGK High Efficiency Universal Adjustable Welding Rotator by Leadscrew
1. Specialty and Characteristic of HGK Series Adjusting by Leadscrew:
2. Brief on HGK Series Adjustable by Leadscrew:
3. Difference between HGK Series Leadscrew Adjusting and HGZ Series Self Adjustable:
4. Classification on HGK Series Adjustable by Leadscrew:
5. Technical Parameters:


0
0

Blogs on Wuxi JACK BOX Beam Welding Production Line

  • The Introduction on Wuxi JACK ASM Series Angle Steel Straightening Machine

    The Introduction on Wuxi JACK ASM Series Angle Steel Straightening Machine
    Application and Current Status of Rolled Angle Straightening Machine; Function of and Operation on Angle Iron Straightening Machine; Working Principle of Angle Bar Straightening Machine; Technical Features of L Steel Straightening Machine; Wuxi JACK Leading Edges on Angle Iron Straightening Machine; Summary on Wuxi JACK Angle Steel Straightening Machine Read More
  • The Advantage of Angle Steel Straightening Machine for Customer

    The Advantage of Angle Steel Straightening Machine for Customer
    Advantage of ASM series Angle Steel Straightening Machine Progress of the ASM series Angle Steel Straightening Machine Prospect of the ASM series Angle Steel Straightening Machine Summary on Wuxi JACK Angle Steel Straightening Machine Read More
  • ASM series High Speed Automatic Angle Steel Straightening Machine sees Rapid Growth

    ASM series High Speed Automatic Angle Steel Straightening Machine sees Rapid Growth
    Usage of the ASM series machine Background on Development of the ASM series machine Downside of the Manual Job on Straightening Angle Steel without the machine Inception of the ASM series machine made by Wuxi JACK Rapid Growth of ASM series machine Summary on Angle Steel Straightening Machine Read More
Home

Home Products About Us R&D Customization FAQ Blog Contact Us

WUXI AMASS MACHINERY CO., LTD
WUXI JACK TECHNOLOGY CO., LTD
0510-83297829
English Language: 15852755799;
Chinese Language: 13621515089
support@WXJACK.com
No. 2, Ouyang Road, Luoshe Town, Wuxi City, Jiangsu Province, China
CONTACT US
© Wuxi AMASS Machinery Co., Ltd  2021 All Rights Reserved.
备案证书号：苏ICP备13045244号-1
