1.2Ton L Type Hydraulic Elevating And Electric Revolving Welding Positioner with Chuck

1.      The Application of LBS12 L type Lifting and Revolving Welding Positioner:

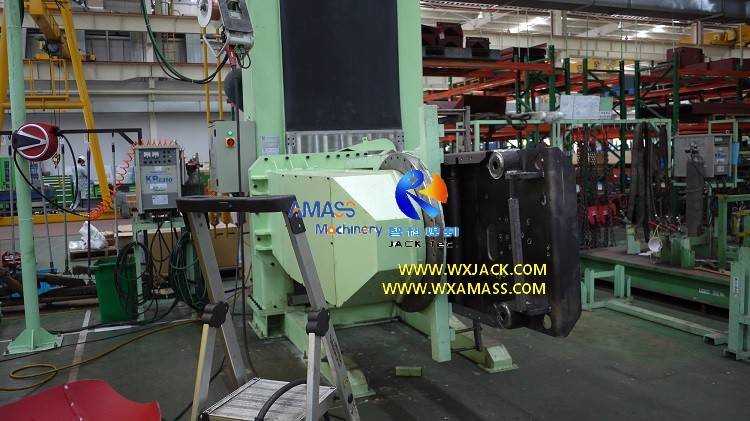

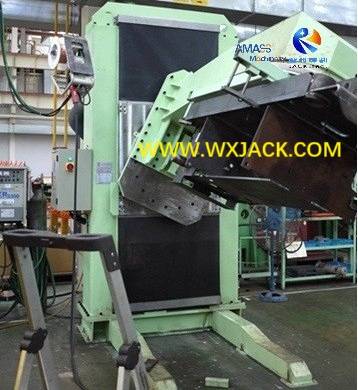

1)      The attached photos on the LBS12 elevating and revolving L type Welding Positioner were taken at workshop of an Engineering Machinery Facility, for welding medium sized structure members: (Fig.1)

2)      This LBS12 1.2Ton loading capacity of Welding turntable Elevating Welding Positioner is the twin product of the former section of LBS10 1Ton. As explained in the product section of “LBS series L type Elevating and Revolving Welding Positioner”, such group of products are frequently custom made, which means only a certain number types of workpieces are applicable for any set of the specific L type Revolving and Lifting Welding Positioner.

2.      Criterion on Selecting LBS series L type Revolving and Elevating Welding Positioner:

In manufacturing industry, when making selection on equipment and machine tools, including this L type Welding Positioner, two often used adjectives are:

1)      Universal, or General Purpose, or All Purpose of the L type Welding Positioner:

a)       These words are all have the same meaning of One Equipment Fitting for All Workpiece. Such as the Universal Single Table Top Welding Positioner we presented at the beginning of this product family;

b)      This type of Welding Turntable is usually applied for working site of large variety in workpiece type, no matter whether it is small or large in workpiece quantity;

2)      Special Made, or Custom Made of the L type Elevating Welding Positioner:

One of the typical examples is LBS models of L type Lifting and Revolving Welding Positioner:

a)       Any one of these L type Welding Positioner are often used for specific few types of workpieces, but in large volume, as in the case of automatic workpiece flow production stream line in a Construction Machinery facility;

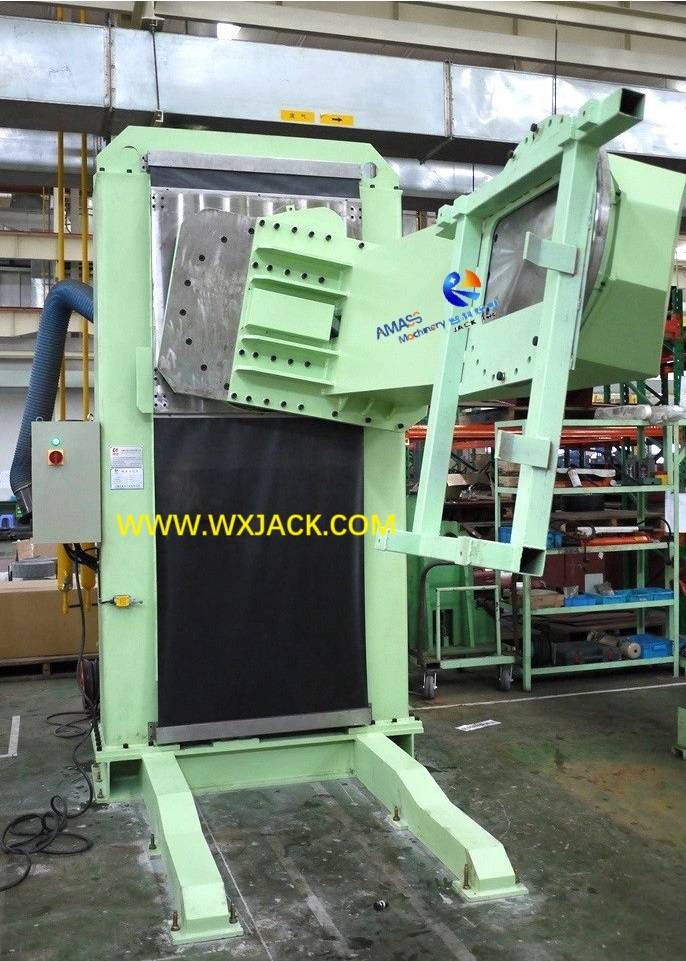

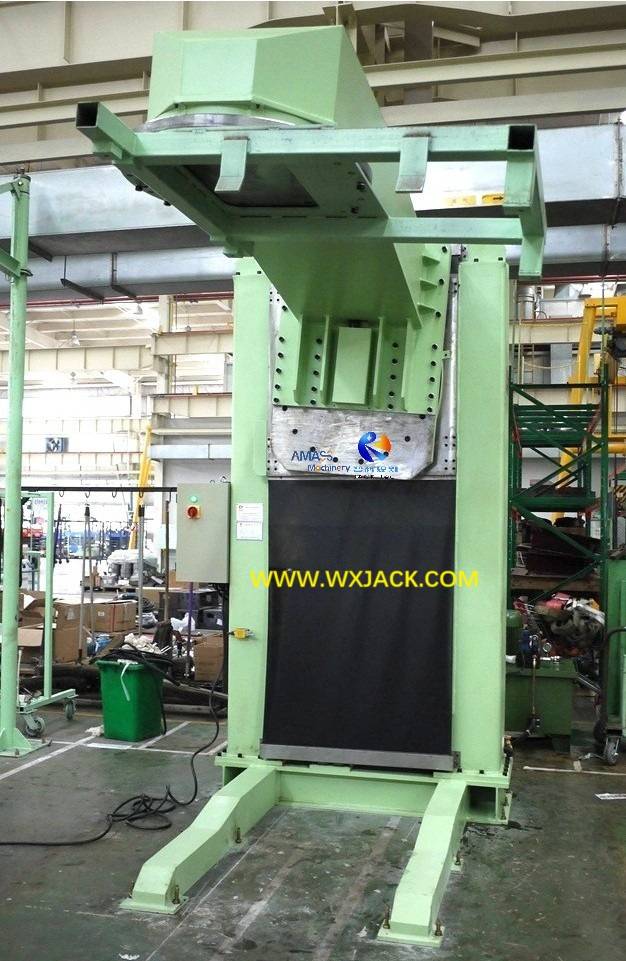

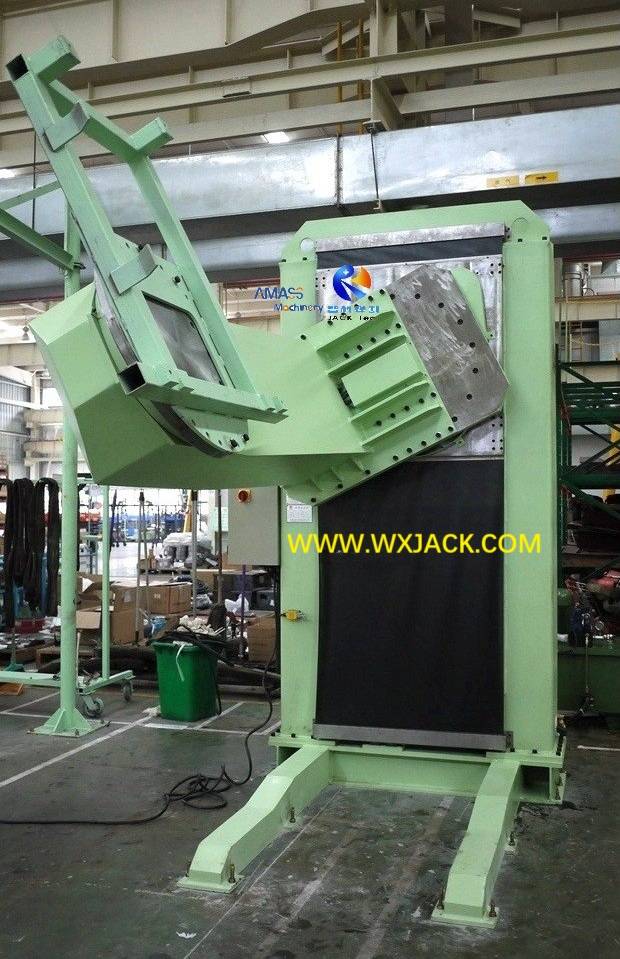

b)      With the change of fitting fixtures, or chucks, different kinds of workpiece can be fit onto the L type Welding Positioner. So, the equipment has the full name of L type Elevating and Revolving Welding Positioner: (Fig.2, 3)

3)      The above mentioned definition and classification on the L type Elevating Welding Positioner, as well as the remaining equipment and machine tools are not in the absolute sense, just as a reference.

3.      Specifications of the LBS12 L type Lifting and Revolving Welding Positioner:

1)      L Arm Revolve along Vertical Plane in the L type Welding Positioner:

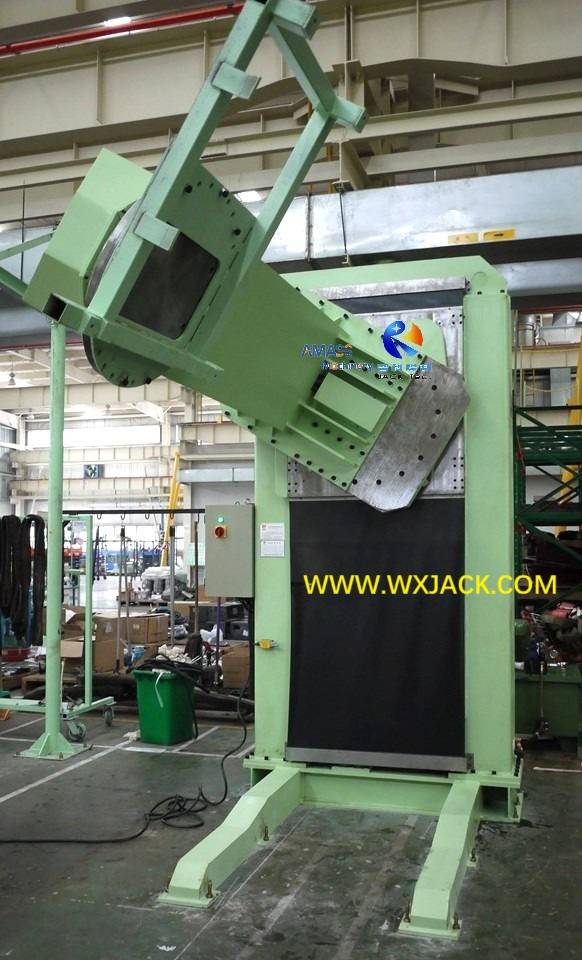

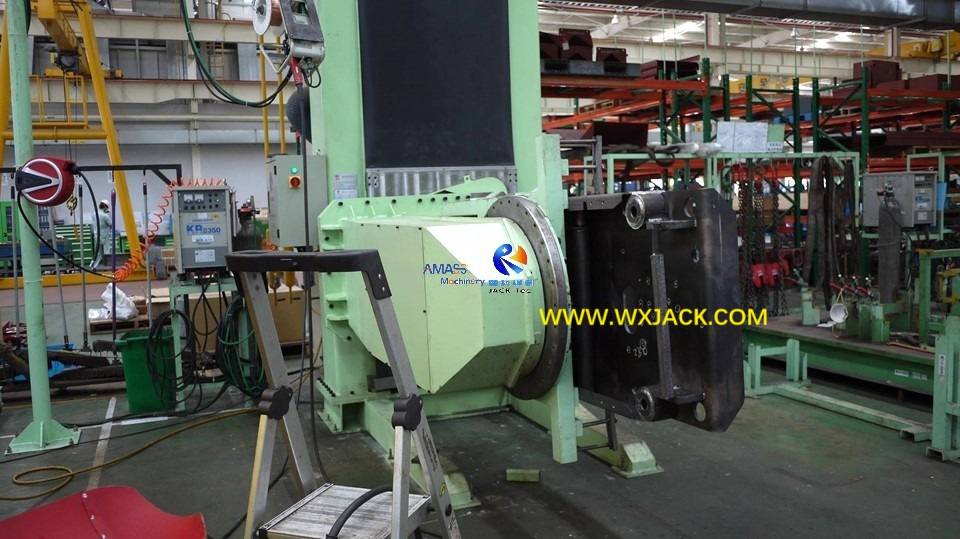

a)       In this L type Elevating and Revolving Welding Positioner, rotating linear velocity of L arm around the axis in the column within the upright plane has the constant value of 2r.p.m., within the extent of 0°~360°: (Fig.4)

b)      This is standard specification for the L type Welding Positioner, and can be special made;

2)      Revolving Speed of Welding turntable in the L type Welding Positioner:

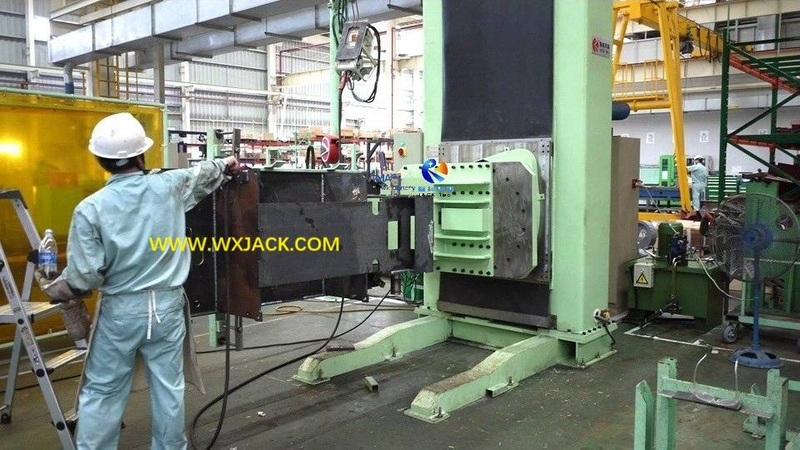

a)       This is also the revolve of workpiece on the Welding turntable, along the surface of front extension of L arm, whatever the real time position of the L arm: Whether it is at its bottom position, or being turned in the air: (Fig.5)

b)      This revolving speed of the Welding turntable is adjustable with inverter. The exact speed range is determined by customer, with revolve scope of 0°~360°.

3)      We will probe more topic into this LBS series of L type Lifting and Revolving Welding Positioner with chuck in the next segments of LBS20 2Ton and LBS30 3Ton L type Elevating Welding Positioner;

4)      Complement on the L type Welding Positioner:

The LBS12 L type Elevating Welding Positioner in this product section is single work table. There are also double table top structure of L type Welding Positioner. For detail, please check product section of “Double Table Top L type Elevating Welding Positioner with Chuck”.

4.      Technical Parameters of LBS12 L type Elevating and Revolving Welding Positioner:

Below are technical specifications of LBS12 L type Revolving and Elevating Welding Positioner:
