1) 2 sets of PHJ or ZHJ model 3 in 1 H Beam Fabrication Machine;
2) 1 group of hydraulic drive 90° Overturning Equipment, which includes 3 sets of 90° Overturning Racks;

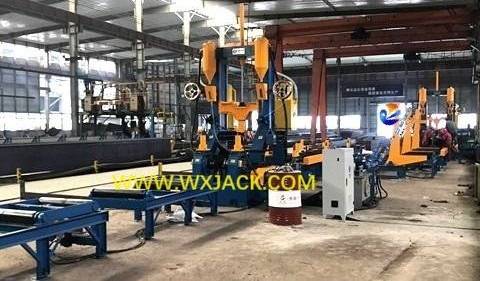

1) Shown in the above photo, the 2 sets of PHJ/ ZHJ H Beam 3 in 1 Assembly Welding Straightening Integral Machine are installed in staggered straight line;

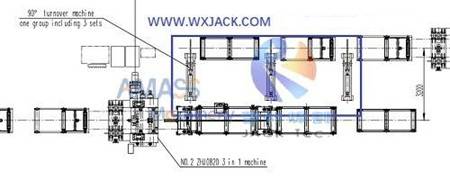

2) The centerline of the 2 sets of H Beam Steel Fabrication Machine equals to swing range of rocking arm, in the hydraulic drive 90° Overturning Equipment;
3) The 90° Overturning Equipment is situated between the 2 sets of 3 in 1 H Beam Fabrication Machine, in between output roller table of the 1st set Steel Fabrication Machine, together with input roller table of the 2nd set Steel Fabrication Machine;

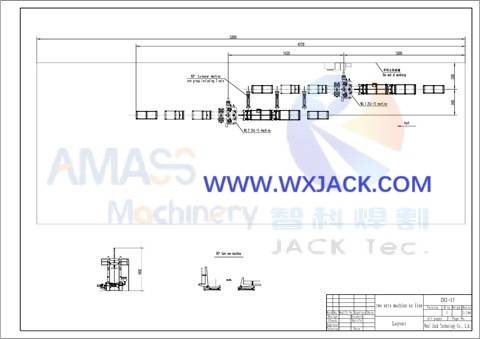

1. Main Equipment: To raise H Beam fabrication efficiency, technical proposal of this product proposes 2 sets of PHJ or ZHJ model 3 in 1 H Beam Fabrication Machine, supplemented with 1 group of Hydraulic drive 90° Overturning Equipment installed in the middle. Please check the above layout;
1) The 1st set of PHJ or ZHJ model Beam Steel Fabrication Machine fabricates the 1st piece of web and flange, into ⊥ beam, or named T Beam;

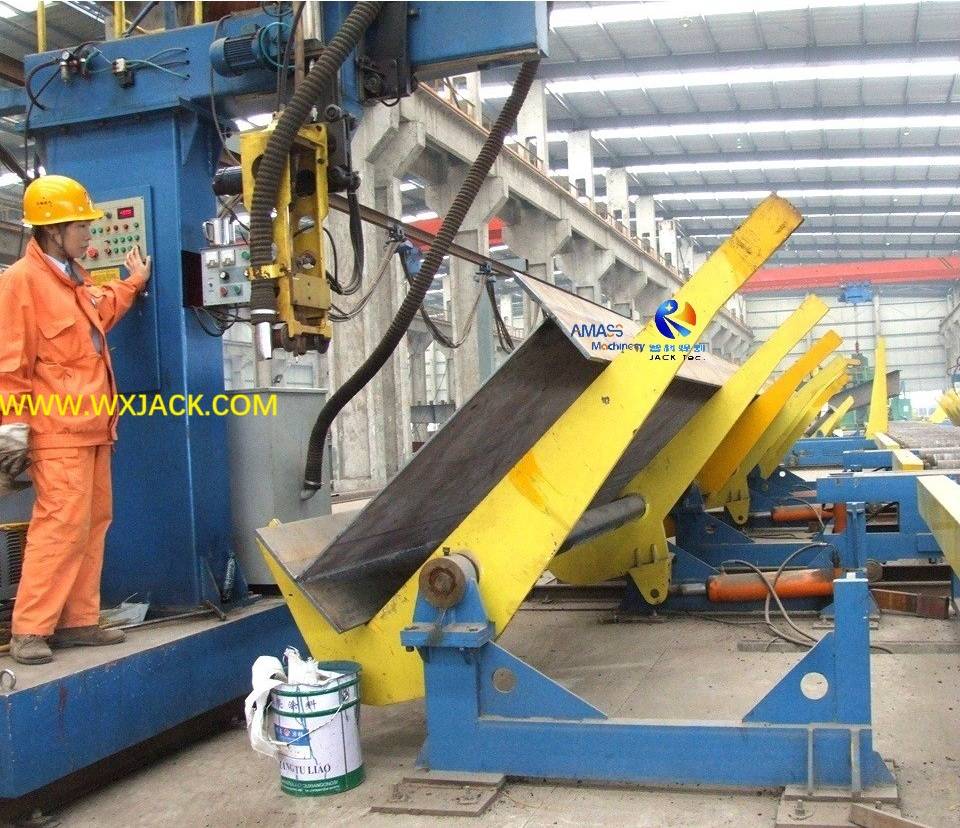

2) Then, the ⊥ beam is flipped 90° in the hydraulic drive overturning equipment;
3) Then the WIP workpiece is sent to the 2nd set of PHJ or ZHJ model 3 in 1 H Beam Fabrication Machine, and fabricated with the 2nd piece of flange;
4) In this respect, this product is new version of more versatile and powerful H Beam Production Line;
2) As indicated in the above photo, there is a set of CNC Plate Cutting Machine ahead of the PHJ or ZHJ model 3 in 1 H Beam Steel Fabrication Machine;
3) The CNC Plate Cutting Machine is for providing raw materials flange and web to the 1st set of 3 in 1 H Beam Fabrication Machine;
1) At the working zone of this complex H Beam Steel Structure Production Line, the flange and web will be first made into welding T Beam;
3) And adding on the 2nd piece of web, making WIP (Working In Process) into the finished H Beam;
Compared with conventional heavy duty H Beam Steel Structure Production Line, this compact H Beam Steel Structure Production Line has below values for customers:
1) Saving workshop land area, from standard 120m length, shortened to 43m length;
2) From 24m width, shrink to 16m width;
3) Flexibility in arrangement and finished working parts by customers;
4) Huge saving investment over 50% for customers.
1) The entire complex of the H Beam Steel Fabrication Machine should be installed as reference from workshop wall or column array;
2) This is for getting the shortest distance of routing utility conduits in workshop: Electric cables, gas, water, etc.;
3) The interval between centerline of the 1st set of 3 in 1 H Beam Assembly Welding Straightening Integral Machine, with respect to wall/ column array, should be at least 3300mm;
4) This is for getting sufficiency room for putting hydraulic pump stations and electric control board of the 3 in 1 H Beam Fabrication Machine, as well as people walking passage;
1) Every set of the H Beam Steel Structure Production Line has input and output conveyors;
2) Each group of the conveyors is composed of 3 segments of roller table respectively, in 11m total length;
3) Summing up, 1 set of PHJ/ZHJ H Beam 3 in 1 Assembly Welding Straightening Integral Machine occupies around 25m length workshop floor;
1) The 3 pieces of 90° Overturning Rack are located in stagger, in between the 3 pieces of roller table of the output conveyor of the 1st set of 3 in 1 H Beam Fabrication Machine, with that of the 2nd set of 3 in 1 H Beam Fabrication Machine;
Technical Parameter | H Beam Steel Structure Production Line |
Configuration | 2 sets of ZHJ or PHJ model 3 in 1 H Beam Fabrication Machine; 1 group of 90° Overturning Equipment |
Working Site Land Occupation | 43m Length x 16m Width x 5.3m Height |
Web Size of Finished H Beam | Height: 200 ∼ 1500/ 1800/ 2000 mm; Thickness: 5 ∼ 30 mm |
Flange Size of Finished H Beam | Width: 200 ∼ 800 mm; Thickness: 6 ∼ 40 mm |
Workpiece (Welding H Beam) Length | 3000 ∼ 15000 mm (At customer demand) |
Working Speed of Assembly/ Welding and Straightening | 200∼1200 mm/min.; Working speed 500~700mm/min. for 10~12mm thickness workpiece; Stepless, inverter control, VFD |
Welding Seam | One Pass of max. size 8~12 mm |
Workpiece Cross Section | Symmetric and Asymmetric Section Shape Welding H Beam/ I Beam/ T Beam |
Input and Output Conveyor of The 3 in 1 H Beam Fabrication Machine | 10~11m length with 3 segments of roller table; One is driving type, two are idle type |
Driving Mode | Flange and Web Alignment Rollers/ Straightening/ Output conveyor elevation: Hydraulic cylinder |
Welding Mode | Single Arc or Twin Arc SAW at fillet flat position |
Hydraulic System Specification | Pressure: 6~ 8 MPa; Driving Power: 4.4kW |
Main Driving Motor | 5.5kW |
Flange and web Assembling Working Mode | 2 Types of choice: Mixed hydraulic and manual adjustment; Or fully automatic |
