What is usage of H Beam Straightening Machine?

1) As its name suggests, H Beam Straightening Machine is for correcting deformation on steel structure workpieces, which happened after SAW (Submerged arc welding)/ storage/ transportation, etc.; 2) The 2 main types of deformation are H Beam flange up bend / longitudinal horizontal deflection.

H Beam Straightening Machine and H Beam Flange Straightening Machine refer to the same equipment or not?

1) Under over 70% application conditions, the answer is yes: When mentioning H Beam Straightening Machine, people usually refer to H Beam Flange Straightening Machine; 2) Meanwhile, there is a kind of hydraulic drive equipment: H Beam Horizontal Press Straightening Machine, which is also widely applied, for straightening deflection along length direction of various steel structure working parts.

What is general and max. straightening capacity of Wuxi JACK H Beam Flange Straightening Machine?

1) We produce full line of H Beam Flange Straightening Machine to meet customer requirement: Motor drive mechanical style, for straightening H Beam flange with thickness up to 40mm, Q235 carbon steel, tensile strength 370~ 510 MPa; 2) And hydraulic oil cylinder drive, for straightening H Beam flange with thickness up to 80mm, Q345 carbon steel, tensile strength 600 MPa.

Which Parameters are important for H Beam Flange Straightening Machine, and which do not so matter?

When selecting H Beam Straightening Machine, the most important specifications are: 1) Max. flange thickness; 2) Tensile strength of workpiece material; 3) Structure of working parts cross section; The straightening working velocity is not so important. Because H Beam Straightening Machine straightens workpiece much quicker than H Beam Assembly Machine and H Beam SAW Welding Machine.

Wuxi JACK I H Beam Straightening Machine,

Straightening Out All Kinds of Steel Structure Workpieces Deformations with Heavy Force and Reliable Performance

Applicable Workpieces of Steel Structure BOX I H Beam Straightening Machine

As one of the best steel structure equipment companies in China, Wuxi JACK is the only Chinese H Beam Straightening Machine Supplier, with capability and rich experience on providing complete line of H Beam Straightening Machine for customers:
1. Application Scenario: H Beam Straightening Machine straightens 2 types of deformation after conditions of: SAW welding / Long distance transportation/ Long term storage of workpieces:
1) H Beam flange upward tilt --- Flange H Beam Straightening Machine, this is necessary and indispensable equipment in H Beam Production Line;
2) Steel structure parts longitudinal flexion --- Steel BOX H Beam Lengthwise Straightening Machine;

1 H Beam Straightening Machine 24 2 Steel BOX H Beam Lengthwise Straightening Machine 1

2. Applicable Scenario:

1) Flange H Beam Straightening Machine:

For H Beam made of:
a) Carbon steel Q235: Tensile strength 370~ 510 MPa, thickness 6mm ~ 40mm: HYJ series
b) Carbon steel Q345: Tensile strength 510~ 600 MPa, thickness 6mm ~ 80mm: YTJ series

2) Steel BOX H Beam Lengthwise Straightening Machine:

For all the types of steel structure workpieces with long length and small cross section size: H Beam/ BOX Beam/ Section steel/ Pipe/ Structure parts...

Major Type and The Best Selling Models of I H Beam Straightening Machine and Steel Beam Lengthwise Straightening Machine

1. Flange H Beam Straightening Machine:

Wuxi JACK provides with equipment for H Beam flange straightening, based on different variations of:
1) H Beam orientation: Upright standing/ Horizontal lying;
2) Straightening Force Drive Source: Hydraulic oil cylinder / A.C. motor:

HYJ800 H Beam upright orientated motor drive

HYJ40 H Beam upright orientated motor drive

YTJ80 H Beam upright orientated hydraulic drive

YTJ50 H Beam upright orientated hydraulic drive

Inquire

WJ40 H Beam horizontal orientated hydraulic drive

YTJ60 H Beam upright orientated hydraulic drive

YTJ80 H Beam upright orientated hydraulic drive

YTJ60 H Beam upright orientated hydraulic drive

Inquire

2. Steel Beam Lengthwise Straightening Machine:

This niche equipment demonstrates Wuxi JACK capability as excellent Chinese H Beam Straightening Machine Supplier. Because very few company in Chinese industry has real technical capability and business achievement:

HJ20

HJ100

HJ200

HJ300

Inquire

Working Videos of Wuxi JACK Flange H Beam Straightening Machine and Steel Beam Lengthwise Straightening Machine

Technical Parameters of Wuxi JACK Flange H Beam Straightening Machine and Steel Beam Lengthwise Straightening Machine

Steel Structure BOX H Beam Straightening Machine
For Straightening on H Beam Flange Deformation		Steel BOX H Beam Lengthwise Straightening Machine
HYJ series	Motor drive straightening; For H Beam flange Max. thickness 40mm; Q235 carbon steel, tensile strength 370~ 510 Mpa; H Beam in upright standing position	Applicable workpieces: All steel structure parts with long length and small cross section size
	HYJ800: Straightening speed: 17,000mm/min.	For straightening on longitudinal deformation along the entire length of workpieces
	HYJ40: Straightening speed: 8,000mm/min.	Hydraulic oil cylinder lateral drive
YTJ series	Hydraulic drive straightening; For H Beam flange Max. thickness 40/ 50/ 60/ 80mm; Q345 carbon steel, tensile strength 510~ 600 Mpa; H Beam in upright standing position	Output driving force: 20 Ton (HJ20); 100 Ton (HJ100) 200 Ton (HJ200); 300 Ton (HJ300)
	YTJ40/50/60/80: For max. H Beam flange thickness 40/ 50/ 60/ 80mm;	Other name: Steel Beam Horizontal Press Straightening Machine Steel Beam Longitudinal Straightening Machine
	YTJ40/50/60: Straightening speed: 9,000mm/min.
	YTJ80: Straightening speed: 6,300mm/min.
WJ series	Hydraulic drive straightening; For H Beam flange Max. thickness 25/ 40mm (WJ25/ WJ40); Q235 carbon steel, tensile strength 370~ 510 Mpa; H Beam in horizontal standing position 2 pieces of H Beam to straightened simultaneously

Technical Introduction on Steel Structure I H Beam Straightening Machine

A. Function: Steel structure I H Beam Straightening Machine is for straightening H Beam flange upward tilt deformation, or entire length curve after submerged arc welding/ transportation/ storage;
B. Working Station: I H Beam Straightening Machine is the 3rd set of basic core equipment in H Beam Production Line, following H Beam Assembly Machine and H Beam SAW Welding Machine;

C. 2 Main Types of Steel Structure I H Beam Straightening Machine:

1. Flange I H Beam Straightening Machine:

1) When: After the large current SAW (Submerged arc welding) performed at the previous station H Beam SAW Welding Machine;
2) What: Flanges of fabricated H Beam will have upward tilting deformation due to the effect of heat input, happening at cross section of H Beam flange;
3) Which: This should be straightened to guarantee on straightness of H Beam flange, shown in below photo:
4) Working moment of Wuxi JACK HYJ-800 model H Beam upright orientated motor drive Flange I H Beam Straightening Machine: (Fig.1)

2. Steel BOX H Beam Lengthwise Straightening Machine:

1) Besides H Beam flange deformation, there is also certain degree of winding along the entire length of H Beam/ other types of workpieces;
2) This should be straightened with steel Beam Lengthwise Straightening Machine. The working parts is not confined to H Beam. Shown in below photo:
3) BOX Beam being straightened in steel Beam Lengthwise Straightening Machine: (Fig.2)

Fig2 BOX H Beam Horizontal Press Straightening Machine 19

D. Straightening Capacity of Wuxi JACK Flange I H Beam Straightening Machine:

1. Max. H Beam Flange Thickness: Based on driving mode (A.C. motor or hydraulic oil cylinder) and specific models of the machine, the maximum H Beam flange thickness available for being straightened can be up to:
40mm/ 50mm/ 60mm, and 80mm, corresponding to YTJ40/ YTJ50/ YTJ60/ YTJ80 models of the flange I H Beam Straightening Machine;
2. Carbon Steel Grades and Tensile Strength: The above H Beam flange thickness corresponds with Chinese grades of:
1) Q235, tensile strength in the range of: 370~ 510 MPa, applicable for HYJ series motor drive HYJ800 and HYJ40 models;
2) Q345, tensile strength in the range of: 510~ 600 MPa, applicable for YTJ series hydraulic oil drive YTJ40/ YTJ50/ YTJ60/ YTJ80 models;
3. For quick understanding this superior products of us, please visit thematic web page of “Review on Wuxi JACK I H Beam Straightening Machine”.

Classification on Wuxi JACK I H Beam Straightening Machine and Steel Beam Lengthwise Straightening Machine

Our complete line of models and designs distinguishes us as top grade Chinese H Beam Straightening Machine Supplier from other companies. The product family is differentiated in the form of:
1) H Beam orientation: Upright (HYJ and YTJ series) versus horizontal (WJ series);
2) Driving mode: A.C. motor drive (HYJ series) versus hydraulic oil cylinder drive (YTJ, WJ, HJ series);
3) Specific working principle of straightening;

1. Flange I H Beam Straightening Machine:

Wide Use: In practical application, this is mainstream of the machine. Which means, when people talking about “I H Beam Straightening Machine”, they usually imply on H Beam flange straightening equipment, unless otherwise specifically denote;
Classified based on H Beam Orientation: There are two main types of machine structure: For H Beam in upright or horizontal orientation, of which H Beam upright standing structure is major type. Please check below sketch:
Upright and horizontal oriented H Beam in Flange I H Beam Straightening Machine: (Fig.3,4)

2. 2 Types of Straightening Drive Modes in Flange I H Beam Straightening Machine:

The upright orientated flange I H Beam Straightening Machine can be further divided into 2 types of:
1) Motor drive straightening HYJ series, which has medium driving force, with the max. straightening force for 40mm H Beam flange thickness, made of Q235 grade carbon steel;

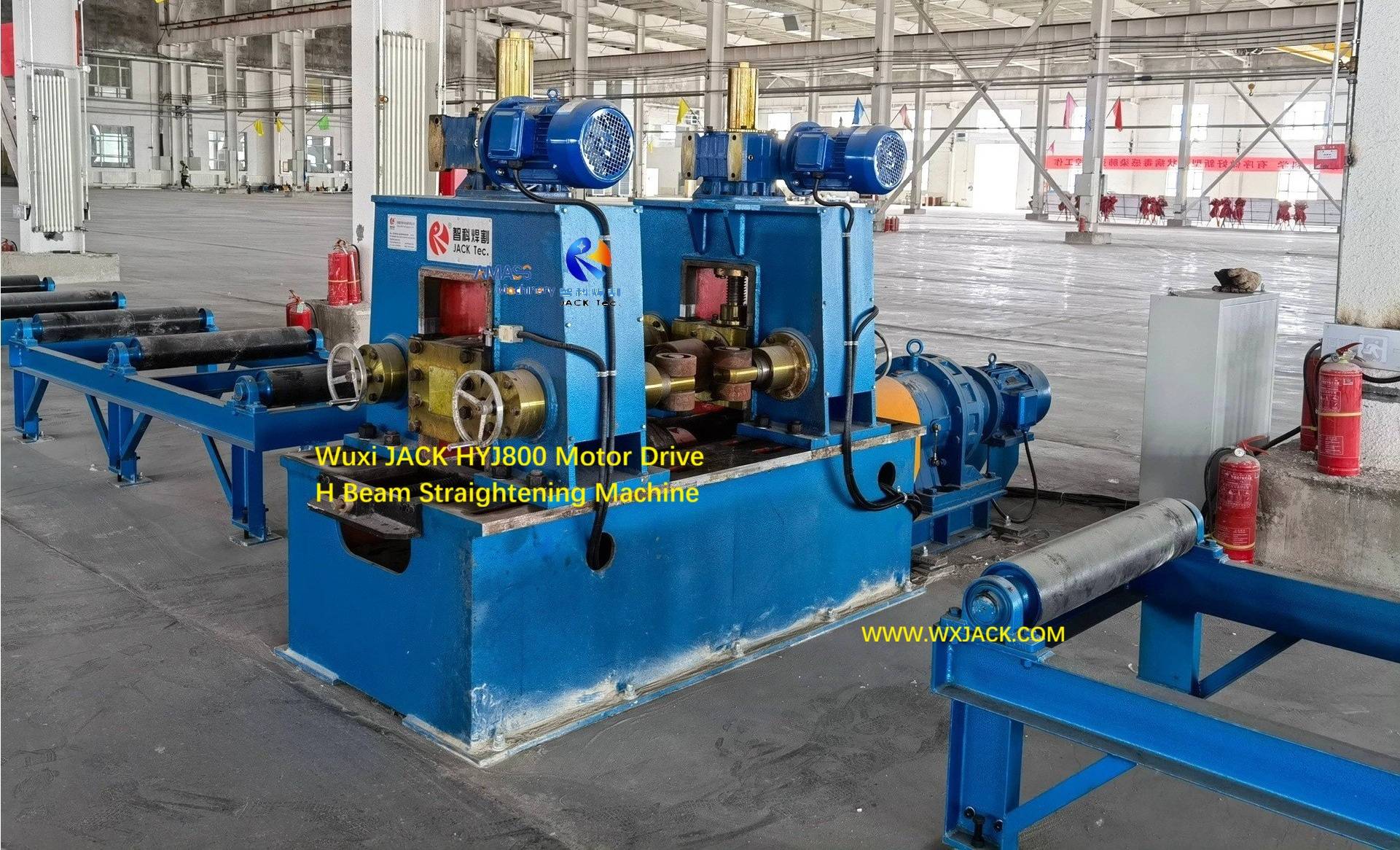

Wuxi JACK HYJ-800 model motor drive upright orientated flange I H Beam Straightening Machine: (Fig.5)

2) Hydraulic drive straightening YTJ series, which has heavy duty driving force, with the max. straightening force for H Beam flange 80mm thickness, made of Q345 grade carbon steel;
Wuxi JACK YTJ-60 model Hydraulic drive upright orientated flange I H Beam Straightening Machine: (Fig.6)

3. H Beam horizontal orientated structure, has H Beam orientated in flat “Lying” position during straightening:
Wuxi JACK WJ25 model horizontal flange I H Beam Straightening Machine: (Fig.7)

4. Steel BOX H Beam Lengthwise Straightening Machine:

1) Extensive Scope of Suitable Workpieces: This niche machine can be used for straightening on not only H Beam, but also BOX Beam/ Section Steel, and other kinds of steel structure members. It is used for straightening on integral length of the working parts:
2) BOX Beam being pressed and straightened in Wuxi JACK HJ300 model I H Beam Lengthwise Straightening Machine: (Fig.8)

Fig8 Steel BOX H Beam Lengthwise Straightening Machine 3

Structure and Composition of I H Beam Straightening Machine and Steel Beam Lengthwise Straightening Machine

2 Steel BOX H Beam Horizontal Press Straightening Machine 10

4 Steel BOX H Beam Horizontal Press Straightening Machine 14

6 Hydraulic H Beam Straightening Machine 15

7 Mechanical H Beam Straightening Machine 18

Main Units of I H Beam Straightening Machine

The lefthand scrolling photos: Function elements, assemblies, and units of Wuxi JACK I H Beam Straightening Machine

One set of the machine is mainly composed of:

1. Mechanical Main Frame of I H Beam Straightening Machine:

Include:
1) Straightening Mechanism, this is composed of three pieces of high strength solid straightening rollers, and its driving and guiding units. Of which, the two pieces of smaller straightening rollers are assembled in the upper position in symmetry, and the larger straightening roller is in the bottom position;

2) Two Upper Straightening Rollers Distance Adjusting Mechanism:

a) This is for accommodating on different width of H Beam flange to be straightened;
b) Adjustment on straightening rollers span is in the way of manual turning handwheel;

3) Shaft Box in I H Beam Straightening Machine:

a) This is the mounting base for the 2 pieces of upper straightening rollers, and sliding channel of straightening drive force transmission;
b) There are 2 pieces of shaft boxes in one set of the machine;

4) Mechanical Machine Base Bed of Flange I H Beam Straightening Machine:

a) This consists of slotting table for adjusting on distance between the 2 pieces of upper position straightening rollers at bottom;
b) All the above mentioned working elements of the machine are installed on this mechanical base bed.

2. Straightening Force Drive Unit in Flange I H Beam Straightening Machine:

1) In mechanical motor drive structure HYJ series, this unit is 2 sets of 1.5kW A.C. motor;
2) In hydraulic drive structure YTJ and HJ series, this unit is 2 pieces of custom made oil cylinders;
3) Either the A.C. motors or oil cylinders are installed right above the shaft boxes.

3. Input and Output Conveyors of I H Beam Straightening Machine:

Both conveyors are idle type: After H Beam is hoisted onto input conveyor of the machine, the sending forward of the H Beam during straightening operation is driven with A.C. cycloidal motor, which is installed on lateral side of the machine mechanical main frame.

Classification on and Main Specification of Wuxi JACK I H Beam Straightening Machine

As professional Chinese H Beam Straightening Machine Supplier, Wuxi JACK supplies steel structure straightening equipment for customers, based on:
1) Types of steel structure workpieces deformation for straightening;
2) Workpiece orientation during straightening;
3) Drive mode on straightening,

Wuxi JACK I H Beam Straightening Machine can be Classified into 4 main types of:

1) HYJ series motor drive acting upright orientated structure;
2) YTJ series hydraulic drive acting upright orientated structure;
3) WJ series hydraulic drive acting horizontal orientated structure;
4) HJ series hydraulic drive acting steel BOX I H Beam Lengthwise Straightening Machine

1. HYJ Motor Drive Upright Flange H Beam Straightening Machine:

1) Wide Use: HYJ series takes majority application of the machine: Over 60% in practical use. This benefits from its cost effectiveness (Lower price than other series), and can meet on majority applicating requirement;

2) Straightening Capacity of Motor Drive Flange I H Beam Straightening Machine:

a) Applicable Straightening Material: Chinese Q235 carbon steel, with tensile strength of 370~ 510MPa;
b) Max. Straightening Thickness: 40mm;
3) Standard Models: HYJ-40 and HYJ-800. The difference between the two models is straightening speed: 17m/min. versus 9m/min.

Technical Parameters of HYJ Motor Drive Upright Flange I H Beam Straightening Machine:

Model of Mechanical Motor Drive I H Beam Straightening Machine	HYJ40/ HYJ800
Straightening Power Source	A.C. motor
Straightening Material	Q235, Tensile strength 370~510MPa
Flange Thickness (s)	6 ~ 40 mm
Flange Width (b)	200 ~ 800 mm
Web Thickness (a)	≤40 mm
Web Height (h)	200 ~ 1,500 mm
H Beam Length	4,000 ~ 12,000 mm
Straighten Speed	≈9000/ 17000 mm/min.
Main Motor Power	7.5/ 22 kW

HYJ800 model

2 H Beam Straightening Machine 7- IMG_0675

HYJ40 model

YTJ80 model

2. YTJ Hydraulic Drive Upright Flange H Beam Straightening Machine:

1) Heavy duty: YTJ series hydraulic drive models has over 2 times straightening capacity in terms of H Beam tensile strength and flange thickness, compared with HYJ motor drive models;

2) Straightening Capacity of Hydraulic Oil Cylinder Drive Flange I H Beam Straightening Machine:

a) Applicable Straightening Material: Chinese Q345 carbon steel, with tensile strength of 510~ 600MPa;
b) Max. Straightening Thickness: From 40mm up to 80mm;
3) 4 Standard Models: YTJ-40/ YTJ-50/ YTJ-60, and YTJ-80, differed based on the largest straightening H Beam flange thickness: 40mm/ 50mm/ 60mm/ 80mm respectively.

Technical Parameters of YTJ Series Hydraulic Drive Upright Flange I H Beam Straightening Machine:

Models of Hydraulic Drive Acting Flange I H Beam Straightening Machine	YTJ40/ 50/ 60/ 80
Straightening Power Source	Hydraulic Pump station
H Beam Material Tensile Strength	510~600MPa
H Beam Flange Thickness (s)	6 ~ 40/ 50/ 60/ 80 mm
Flange Width (b)	YTJ40/50/60: 200 ~ 800 mm; YTJ80: 300 ~ 1200 mm
Web Thickness (a)	≤40 / 50/ 60/ 60 mm
Web Height (h)	YTJ40/50/60: ≈ 9000 mm/ min.; YTJ80: ≈ 6300 mm/ min.
Straightening Speed	YTJ40/50/60: 200 ~ 1500 mm; YTJ80: 500 ~ 2500 mm

3. WJ Horizontal Flange H Beam Straightening Machine:

1) Workpiece Orientation: H Beam lying flat, instead of standing upright on conveyor of the machine;
2) Double Straightening Efficiency: 2 pieces of H Beam can be straightened at the same time in the machine, instead of 1 piece in HYJ and YTJ series;

3) Analysis on Business Application of WJ Horizontal Flange I H Beam Straightening Machine:

For selling volume, WJ series horizontal models take much less percentage than HYJ and YTJ series upright models. The reasons are:
a) Higher Price: It has double times straightening efficiency compared with HYJ and YTJ series upright model, and hence 40%~ 50% higher quotation;
b) Requirement on Straightening Efficiency: Straightening speed of HYJ and YTJ models is already much quicker than assembly and welding working stations of H Beam Production Line. So, 2 times straightening efficiency is not a plus for selecting proper model of I H Beam Straightening Machine;
4) Straightening Capacity of WJ series horizontal models is lighter than YTJ series hydraulic drive upright models: Up to 40mm H Beam thickness for Q235 material;
5) 2 Standard Models: WJ25 and WJ40

Technical Parameters of WJ Horizontal Flange I H Beam Straightening Machine:

Models of Horizontal Press Acting Steel BOX H Beam Lengthwise Straightening Machine	WJ25/ WJ40
Straightening Speed	6000 mm/min.
Straightening Drive Motor	7.5kW* 2 sets / 15kW* 2 sets
Straightening Drive Torque	5600N.m. * 2 sets / 11000N.m. * 2 sets
Hydraulic Pressure	16 MPa
Roller Lift type	By motor and reducer
Hydraulic Station Power	7.5 kW
Input Roller Table Power	2.2kW * 2 sets
Output Roller Table Power	2.2kW * 2 sets

WJ40 model

WJ25 model

1 Steel BOX H Beam Horizontal Press Straightening Machine 7

HJ300 model

2 Steel BOX H Beam Longitudinal Straightening Machine 7

HJ100 model

4. Steel Beam Lengthwise Straightening Machine:

1) Suitable for All Steel Structure Parts: Not only H Beam, but also BOX Beam/ Section Steels, and any other long length structure members with square / rectangular/ circular cross section can be straightened in the machine.
2) Workpiece Position: During work, workpiece lay in horizontal position in the machine;
3) Straightening Way: In essence, steel BOX I H Beam Lengthwise Straightening Machine is a hydraulic drive Press. This is the reason that, models of machines is distinguished on the max. straightening force delivered, instead of workpiece specifications;
4) Straightening Capacity: Meanwhile, there is rule of thumb on operating the machine, indicating on the relationship between machine output straightening force and related H Beam flange thickness;
5) 4 Standard Models: HJ20/ HJ100/ HJ200/ HJ300

Technical Parameters of HJ Steel BOX I H Beam Lengthwise Straightening Machine:

Model of Steel BOX I H Beam Lengthwise Straightening Machine	HJ20/ HJ100/ HJ200 /HJ300
Max. Tonnage of Press	20/ 100/ 200 / 300 Ton
Applicable Workpiece	Welding H Beam/ BOX Beam/ Section Steel/ Structure Member
Straightening Speed	No Continuous Speed, Step by Step
H Beam Flange Width	200/ 400/ 500/ 600 mm
H Beam Web Height	400 / 500/ 600/ 800 mm
H Beam Web Thickness	10 / 12/ 30/ 32 mm
H Beam Flange Thickness	12 / 20/ 35/ 40 mm

Application and Related Equipment of Steel Structure I H Beam Straightening Machine

1. Flange H Beam Straightening Machine: Being applied in H Beam Production Line, at EOL (End of line) position;
2. Steel Beam Lengthwise Straightening Machine：With more wider use, suitable for all steel structure fabricating sites/ Civil Engineering/ Pipeline and tanks/ BOX Beam Production Line...;

3. Related Equipment with I H Beam Straightening Machine:

1) CNC Flame Cutting Machine;
2) H Beam Assembly and Tack Welding Machine;
3) H Beam SAW Welding Machine;
4) Steel structure BOX H Beam End Face Milling Machine;
5) Angle Steel Straightening Machine;
6) Ribbed Plate Straightening Machine

CNC-CG4000 CNC Flame Cutting Machine

HB1500 automatic H Beam Production Line

BOX1200 Box Beam Production Line

Z15 H Beam Assembly and Tack Welding Machine

ASM100 Angle Steel Straightening Machine

DX1520 H Beam End Face Milling Machine

J20 Ribbed Plate Straightening Machine

LHZ3x3 Welding Manipulator Welding Column and Boom

FAQ on Wuxi JACK Steel Structure BOX I H Beam Straightening Machine

Q What is usage of H Beam Straightening Machine?
A
1. 1) As its name suggests, H Beam Straightening Machine is for correcting deformation on steel structure workpieces, which happened after SAW (Submerged arc welding)/ storage/ transportation, etc.;
2. 2) The 2 main types of deformation are H Beam flange up bend / longitudinal horizontal deflection.
Q H Beam Straightening Machine and H Beam Flange Straightening Machine refer to the same equipment or not?
A
1. 1) Under over 70% application conditions, the answer is yes: When mentioning H Beam Straightening Machine, people usually refer to H Beam Flange Straightening Machine;
2. 2) Meanwhile, there is a kind of hydraulic drive equipment: H Beam Horizontal Press Straightening Machine, which is also widely applied, for straightening deflection along length direction of various steel structure working parts.
Q What is general and max. straightening capacity of Wuxi JACK H Beam Flange Straightening Machine?
A
1. 1) We produce full line of H Beam Flange Straightening Machine to meet customer requirement: Motor drive mechanical style, for straightening H Beam flange with thickness up to 40mm, Q235 carbon steel, tensile strength 370~ 510 MPa;
2. 2) And hydraulic oil cylinder drive, for straightening H Beam flange with thickness up to 80mm, Q345 carbon steel, tensile strength 600 MPa.
Q Which Parameters are important for H Beam Flange Straightening Machine, and which do not so matter?
A When selecting H Beam Straightening Machine, the most important specifications are:
1. 1) Max. flange thickness;
2. 2) Tensile strength of workpiece material;
3. 3) Structure of working parts cross section;
The straightening working velocity is not so important. Because H Beam Straightening Machine straightens workpiece much quicker than H Beam Assembly Machine and H Beam SAW Welding Machine.

Other Products We Own besides H Beam Straightening Machine

MP20 Automatic Plate Butt Joining Machine with Triple Cutting

DX1520 H Beam End Face Milling Machine for Steel Structure

General Purpose Automatic Lengthwise ASM63 Angle Steel Straightening Machine

7-Axis 3000/12 Flame And Plasma Large Scale CNC Pipe Cutting Machine

Steel Structure BOX I H Beam Straightening Machine Blogs

Data Sheet and List of H Beam Production Line Equipment
H Beam Production Line; H Beam Assembly Machine; H Beam Submerged Arc Welding Machine; H Beam Straightening Machine 60°/ 90°/ 180° Hydraulic Steel Structure Overturning Equipment Read More
The Advantage of Angle Steel Straightening Machine for Customer
Advantage of ASM series Angle Steel Straightening Machine Progress of the ASM series Angle Steel Straightening Machine Prospect of the ASM series Angle Steel Straightening Machine Summary on Wuxi JACK Angle Steel Straightening Machine Read More
ASM series High Speed Automatic Angle Steel Straightening Machine sees Rapid Growth
Usage of the ASM series machine Background on Development of the ASM series machine Downside of the Manual Job on Straightening Angle Steel without the machine Inception of the ASM series machine made by Wuxi JACK Rapid Growth of ASM series machine Summary on Angle Steel Straightening Machine Read More

H Beam Flange Straightening Machine

Wuxi JACK I H Beam Straightening Machine,

Straightening Out All Kinds of Steel Structure Workpieces Deformations with Heavy Force and Reliable Performance

Applicable Workpieces of Steel Structure BOX I H Beam Straightening Machine

1) Flange H Beam Straightening Machine:

2) Steel BOX H Beam Lengthwise Straightening Machine:

Major Type and The Best Selling Models of I H Beam Straightening Machine and Steel Beam Lengthwise Straightening Machine

1. Flange H Beam Straightening Machine:

2. Steel Beam Lengthwise Straightening Machine:

Working Videos of Wuxi JACK Flange H Beam Straightening Machine and Steel Beam Lengthwise Straightening Machine

Technical Parameters of Wuxi JACK Flange H Beam Straightening Machine and Steel Beam Lengthwise Straightening Machine

Technical Introduction on Steel Structure I H Beam Straightening Machine

C. 2 Main Types of Steel Structure I H Beam Straightening Machine:

1. Flange I H Beam Straightening Machine:

2. Steel BOX H Beam Lengthwise Straightening Machine:

D. Straightening Capacity of Wuxi JACK Flange I H Beam Straightening Machine:

Classification on Wuxi JACK I H Beam Straightening Machine and Steel Beam Lengthwise Straightening Machine

1. Flange I H Beam Straightening Machine:

2. 2 Types of Straightening Drive Modes in Flange I H Beam Straightening Machine:

4. Steel BOX H Beam Lengthwise Straightening Machine:

Structure and Composition of I H Beam Straightening Machine and Steel Beam Lengthwise Straightening Machine

Main Units of I H Beam Straightening Machine

1. Mechanical Main Frame of I H Beam Straightening Machine:

2) Two Upper Straightening Rollers Distance Adjusting Mechanism:

3) Shaft Box in I H Beam Straightening Machine:

4) Mechanical Machine Base Bed of Flange I H Beam Straightening Machine:

2. Straightening Force Drive Unit in Flange I H Beam Straightening Machine:

3. Input and Output Conveyors of I H Beam Straightening Machine:

Classification on and Main Specification of Wuxi JACK I H Beam Straightening Machine

Wuxi JACK I H Beam Straightening Machine can be Classified into 4 main types of:

1. HYJ Motor Drive Upright Flange H Beam Straightening Machine:

2) Straightening Capacity of Motor Drive Flange I H Beam Straightening Machine:

Technical Parameters of HYJ Motor Drive Upright Flange I H Beam Straightening Machine:

2. YTJ Hydraulic Drive Upright Flange H Beam Straightening Machine:

2) Straightening Capacity of Hydraulic Oil Cylinder Drive Flange I H Beam Straightening Machine:

Technical Parameters of YTJ Series Hydraulic Drive Upright Flange I H Beam Straightening Machine:

3. WJ Horizontal Flange H Beam Straightening Machine:

3) Analysis on Business Application of WJ Horizontal Flange I H Beam Straightening Machine:

Technical Parameters of WJ Horizontal Flange I H Beam Straightening Machine:

4. Steel Beam Lengthwise Straightening Machine:

Technical Parameters of HJ Steel BOX I H Beam Lengthwise Straightening Machine:

Application and Related Equipment of Steel Structure I H Beam Straightening Machine

FAQ on Wuxi JACK Steel Structure BOX I H Beam Straightening Machine

Q What is usage of H Beam Straightening Machine?

Q H Beam Straightening Machine and H Beam Flange Straightening Machine refer to the same equipment or not?

Q What is general and max. straightening capacity of Wuxi JACK H Beam Flange Straightening Machine?

Q Which Parameters are important for H Beam Flange Straightening Machine, and which do not so matter?

Other Products We Own besides H Beam Straightening Machine

Steel Structure BOX I H Beam Straightening Machine Blogs
