The Function and Application of Stiffened Plate Straightening Machine

1. The Industries and Constructions for Use of Stiffened Plate Straightening Machine:

1) In industries of Bridge Crane, Bridge Construction, Port Machinery, etc., one of the heavily used important working parts are large section Beam Plate Element, which usually has cross section sizes of: Height 1000mm ~ 1500 mm, Width 1500mm ~ 3000 mm, in the total Length of 20m to 30m;
2) These large section Beam Plate Elements are fabricated from stiffening plates, or ribbed plates, which is made up of one piece of large size steel plate, and welded with 1~ 3 pieces of stiffeners in parallel on its top;

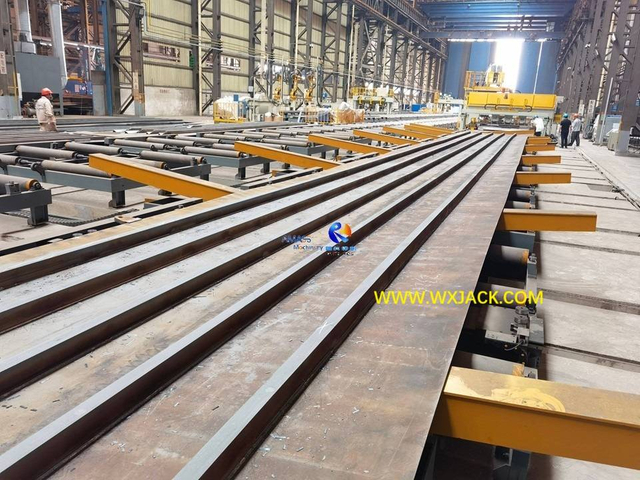

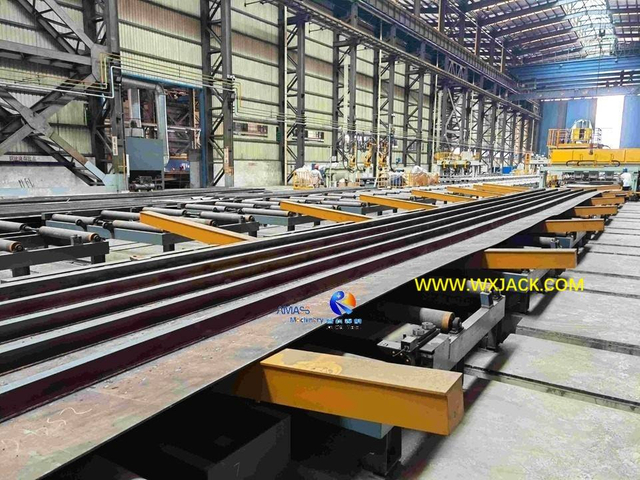

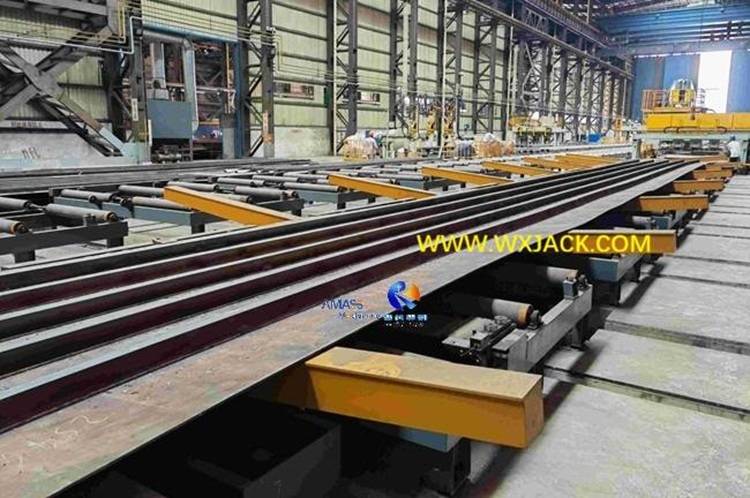

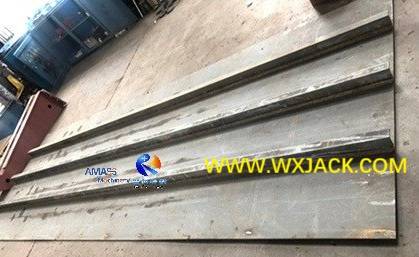

A piece of Rib Plate that got straightened by means of Ribbed Plate Straightening Machine:

Fig1 Ribbed Plate Straightening Machine 23- 微信图片_20210902135341

3) When producing stiffener plates, after the stiffeners are welded onto the steel plate, the formed stiffener plate usually got certain degree of deformation because of welding. The J series Stiffened Plate Straightening Machine, or called Ribbed Plate Straightening Machine, is for flattening these welded and deformed stiffener plates:

2. The Main Purpose and Advantage of Stiffening Plate Straightening Machine:

1) Correspondingly, Ribbed Plate Straightening Machine is applied following rib plate welding station, for straightening the rib plate deformed from welding;

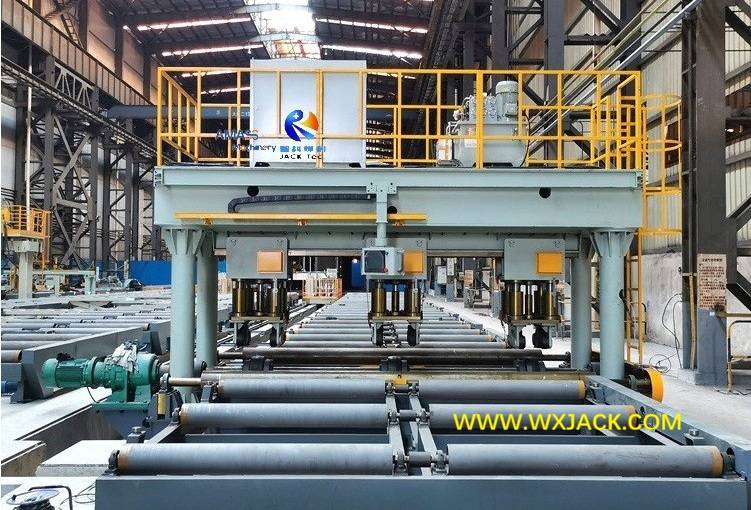

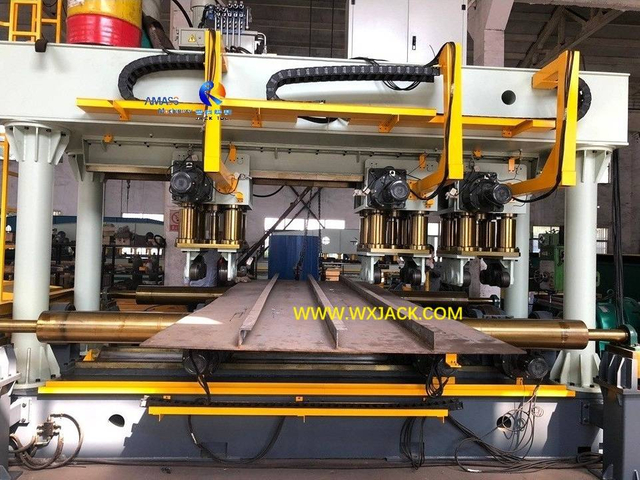

A set of Wuxi JACK Ribbed Plate Straightening Machine and its Workpiece of Stiffener Plate:

Fig2 Stiffening Plate Straightening Machine - IMG_3318

2) Besides, by means of straightening process, rib plates can have its stress relieved, which strengthen the integral strength of large section Beam Plate Element produced;
3) The specifications of stiffener plate applicable for Ribbed Plate Straightening Machine: Width 1000 mm ~ 3000 mm, thickness 8 mm ~ 28 mm; Length 20m ~ 30m;

4) For quick understanding, please check summary slides of “_{Wuxi JACK Stiffened Plate Straightening Machine}”.

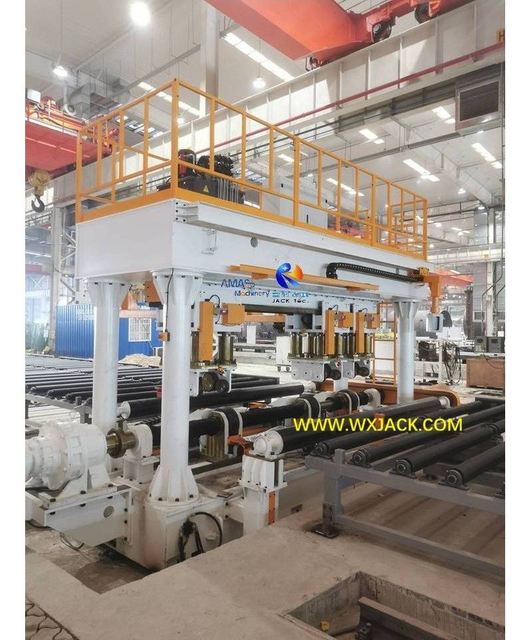

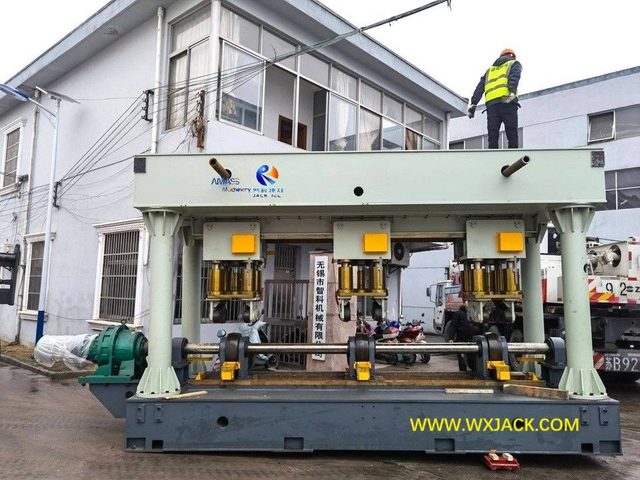

Different Models of Wuxi JACK J Series Stiffening Plate Straightening Machine in Production, Commissioning and at Customer Site

Main Working Units of Ribbed Plate Straightening Machine

1 Stiffened Plate Straightening Machine 12- 微信图片_20210831171232

2 Stiffening Plate Straightening Machine 4- IMG_2614(20180321-225158)

3 Rib Plate Straightening Machine 30-微信图片_20210904083406

4 Ribbed Plate Straightening Machine 18- 微信图片_20210902135253

5 Stiffened Plate Straightening Machine 31- 微信图片_20210904083413

6 Stiffening Plate Straightening Machine 32- 微信图片_20210904083420

7 Rib Plate Straightening Machine 9- 微信图片_20210831171209

8 Stiffened Plate Straightening Machine 33- 微信图片_20210904083427

Working Elements of Ribbed Plate Straightening Machine

Want to check Wuxi JACK Ribbed Plate Straightening Machine are Composed of What Parts, Assemblies, and Working Units? Please check the lefthand scrolling photos

For straightening a piece of stiffener plate effectively, J series Stiffening Plate Straightening Machine utilizes its function cells of:

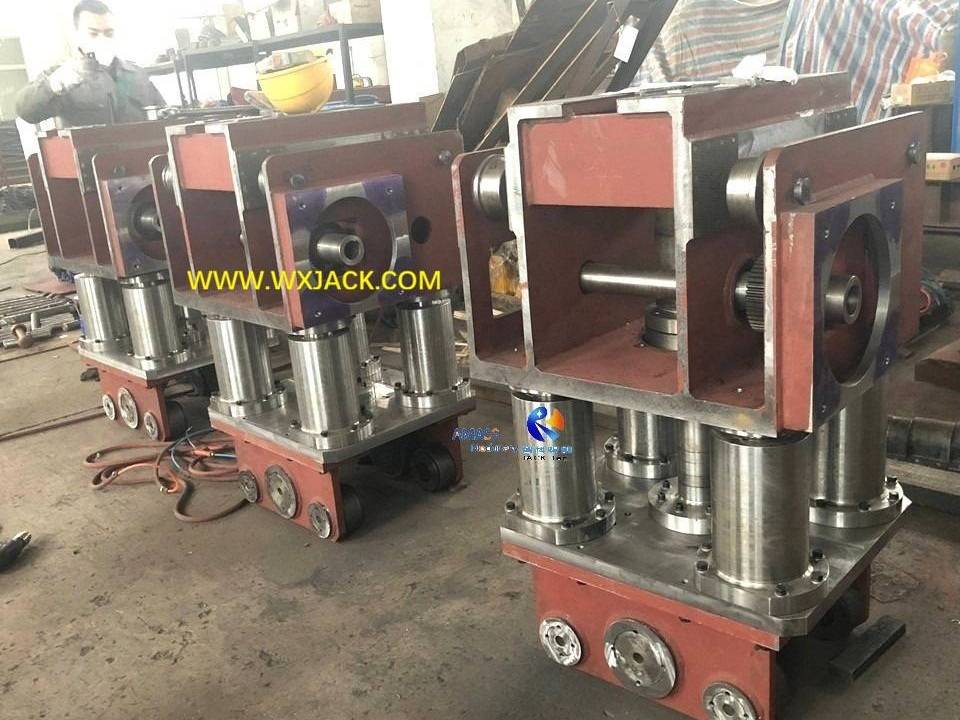

1. Straightening units: There are 3 sets of straightening groups in one set of the J Series Ribbed Plate Straightening Machine. one set of the straightening group consists of top downward straightening section and bottom fixed straightening roller;
2. Straightening unit Transverse Moving unit: In J series Ribbed Plate Straightening Machine, each set of the straightening unit can be moved horizontally, to accommodate different positions of stiffeners on steel plate;
3. Bottom Support Rollers: During operation of the Stiffened Plate Straightening Machine, the bottom supporting rollers have 2 functions: Hold the workpiece of stiffener plate, and send it forward during straightening period, under the drive of A.C. motor.

Models and Technical Parameters of J Series Ribbed Plate Straightening Machine

1. Outline on Technical Specifications of J series Stiffening Plate Straightening Machine:

1) There are 2 standard models of J series Stiffened Plate Straightening Machine: J20 and J28, which are distinguished based on max. thickness of rib plate that can be straightened: 20mm and 28mm. For detailed introduction on performances, hydraulic systems, safety mechanisms, etc. of the Stiffening Plate Straightening Machine, please check corresponding production sections;
2) The stiffeners interval on stiffener plate can be in the range of 225~ 700 mm/min.;
3) In J series Stiffened Plate Straightening Machine, straightening job is driven with hydraulic oil cylinder; The traveling through forward of stiffener plate is driven with A.C. motor.

2. Technical Parameters of J series Stiffening Plate Straightening Machine:

Model of Stiffening Plate Straightening Machine	J20 / J28
Workpiece Width	1000 ~ 3000mm
Straightening Thickness	8 ~ 20/ 28 mm
Quantity of Straightening unit	3 sets
Top Straightening Roller Transverse Stroke	4000 mm
Min. Span of Top Straightening Roller	700 mm
Range of Interval of Stiffeners	225 ~ 700 mm
Surface Height of Input and Output Conveyor	600 mm
Hydraulic System Rated Pressure	25 MPa
Max. Pressure of Solitary Straightening unit	30 Ton
Specification of Bottom Straightening Roller	High Pressure Oil Cylinder D125/d70-S200
Straightening Speed	6000 mm/min.
Vertical Stroke of Supporting Rollers	40 mm

Operation of J series Stiffened Plate Straightening Machine

1. Operating Mechanism in J series Stiffening Plate Straightening Machine:

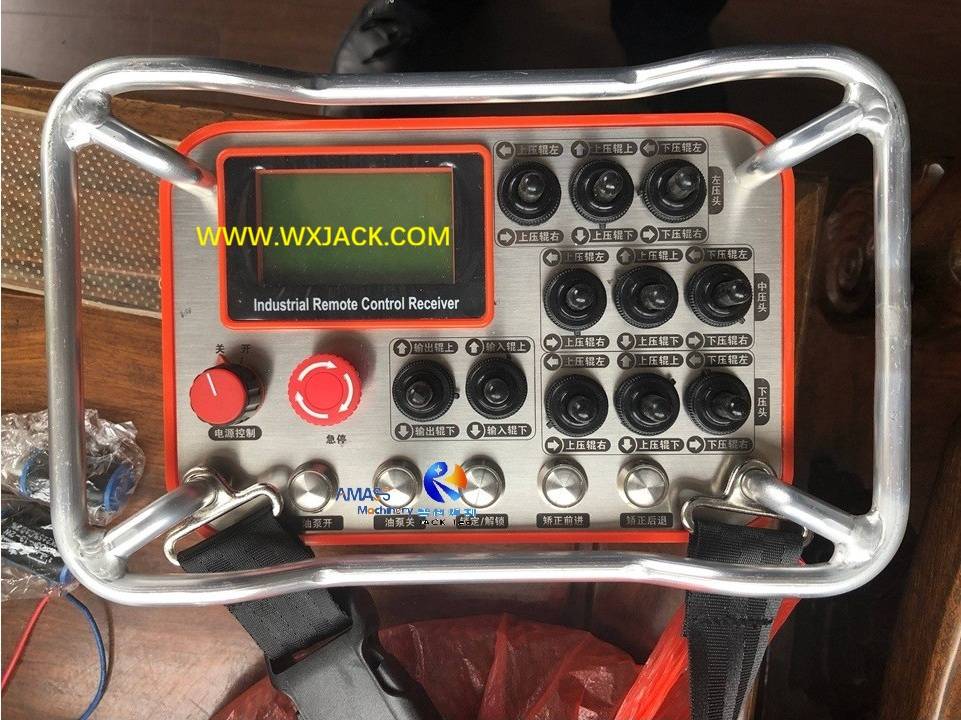

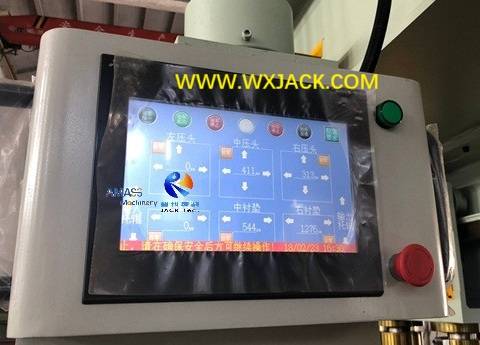

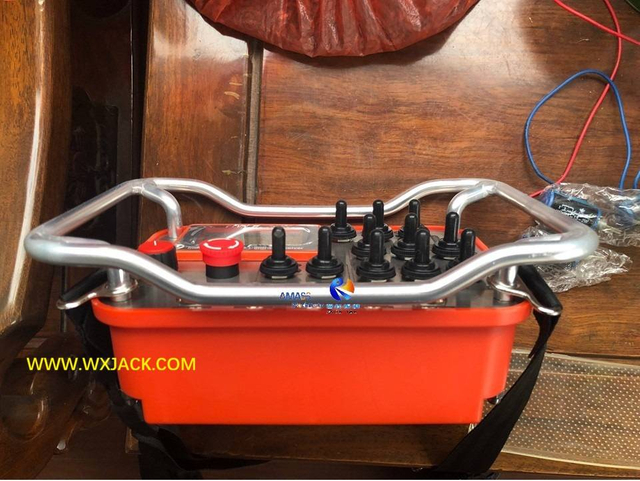

1) The 1^st Photo: For the purpose of convenient and flexible operation, the running of J series Ribbed Plate Straightening Machine is operated by means of remote pendant. This helps operator can stand at any position which is convenient for operation and observance;

2) To the best and most precise degree of straightening effect in the Ribbed Plate Straightening Machine, the manipulation of the 3 sets of straightening units is realized individually: Each of motion for each of the straightening rollers, in each of the straightening groups;
3) Checking from the previous listed parameters, straightening speed in J series Stiffened Plate Straightening Machine is constant: 6000 mm/min..

2. Transverse Position Adjustment of Straightening Unit in J series Ribbed Plate Straightening Machine:

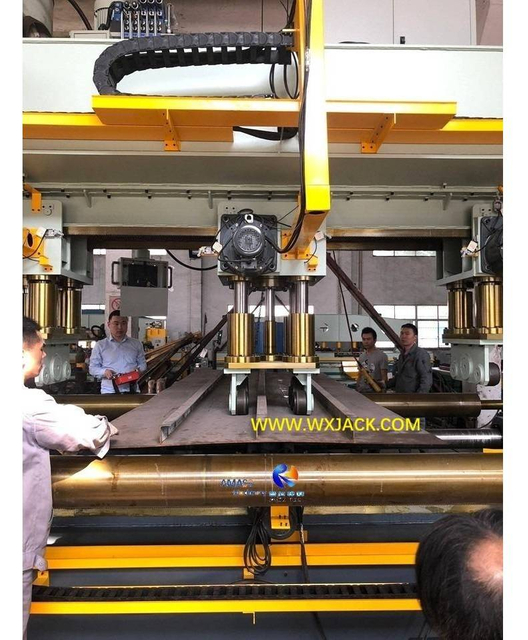

1) The 2^nd Photo: There are 3 sets of straightening units in one set of the J series Ribbed Plate Straightening Machine. As we know, rib intervals on ribbed plate can be in the range of 225 ~ 700mm, this is for catering for different applicating conditions at different customers;
2) Correspondingly, the 3 sets of straightening units can be moved leftward and rightward along overhead horizontal beam of the main frame, in J series Stiffening Plate Straightening Machine, based on stiffeners distribution condition on workpiece;

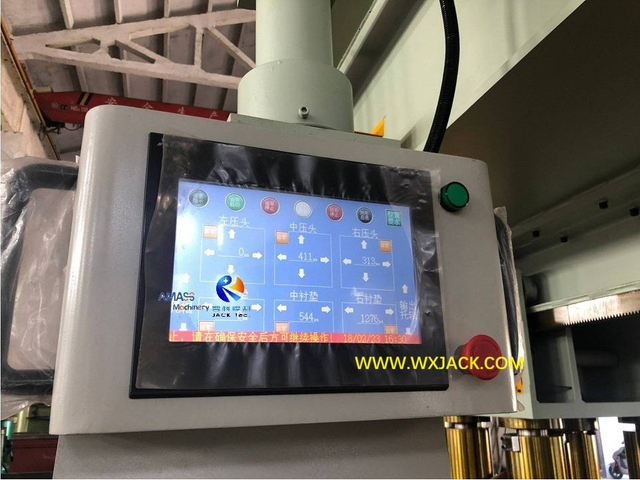

3) The transverse position change and monitor of straightening units is one of the technical core points in control system of the J series Ribbed Plate Straightening Machine: It is controlled with PLC (Programmable logic controller), detected with encoder, and driven with A.C. motor.

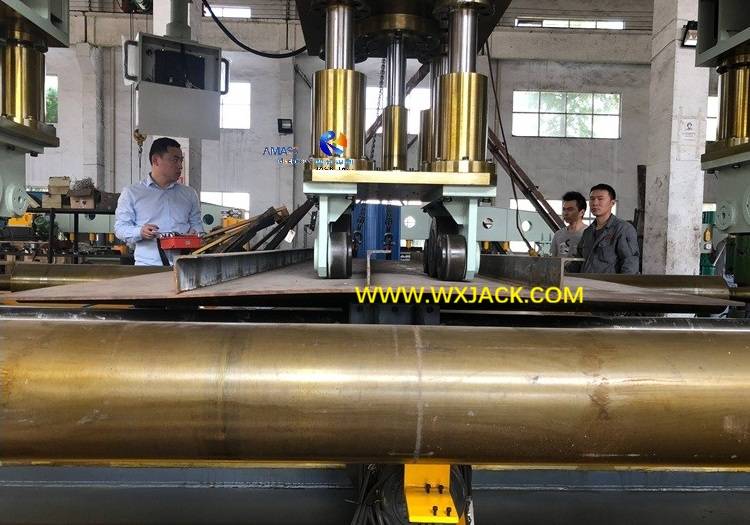

3. Straightening Volume Management in J Series Stiffened Plate Straightening Machine:

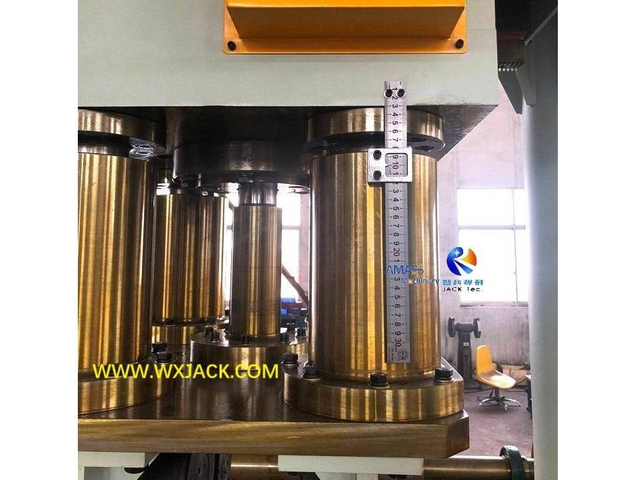

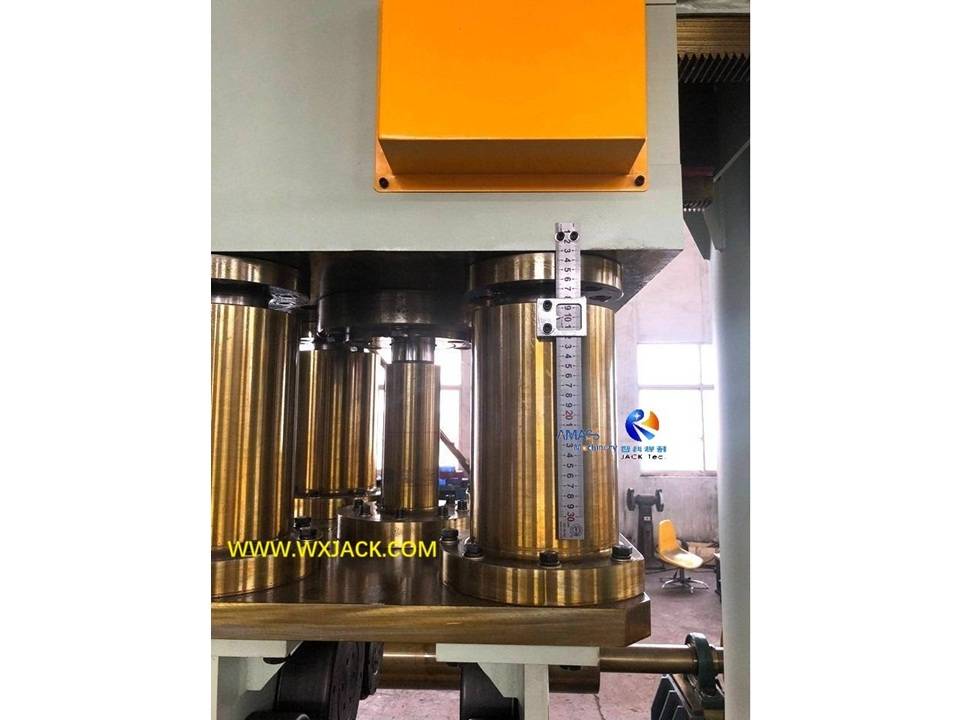

1) The 3^rd Photo: There is indicating ruler assembled on lateral side of top downward straightening section in each of the straightening unit, giving actual downward stroke of the rollers at that time, during operation of the Stiffening Plate Straightening Machine;
2) The downward movement of the straightening rollers are driven with hydraulic oil cylinder, and manipulated by means of toggle switch on remote pendant of the J series Ribbed Plate Straightening Machine.

4. Straightening Step in J Series Ribbed Plate Straightening Machine:

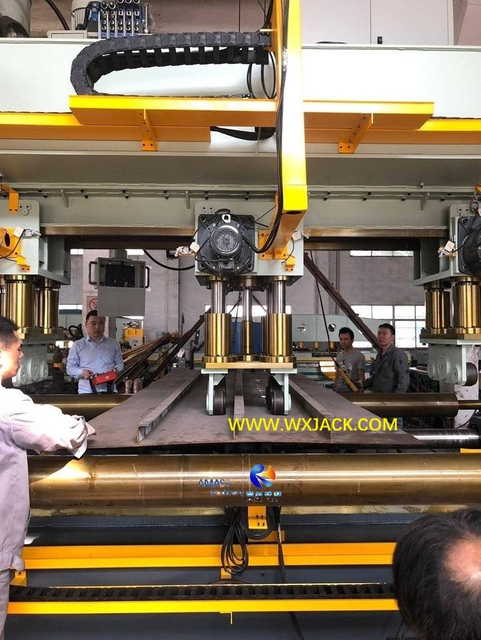

1) The 4^th Photo: Another precondition for proper straightening in J series Stiffened Plate Straightening Machine is, in each set of the straightening group, center line of top downward and bottom stationary straightening rollers should be colinear, this is guaranteed by means of working of PLC and encoder;

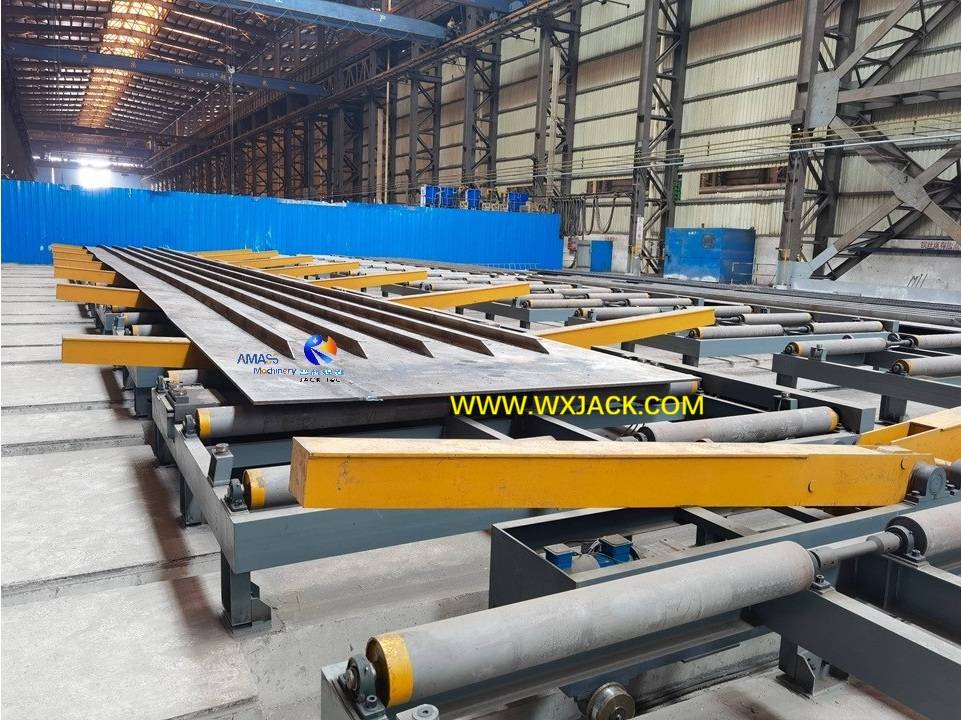

2) The total length of stiffener plate can be as long as 20m ~ 30m. With its traveling through main frame of the J series Stiffening Plate Straightening Machine, the complete piece of the stiffener plate got straightened.

Structure and Working Principle of Ribbed Plate Straightening Machine

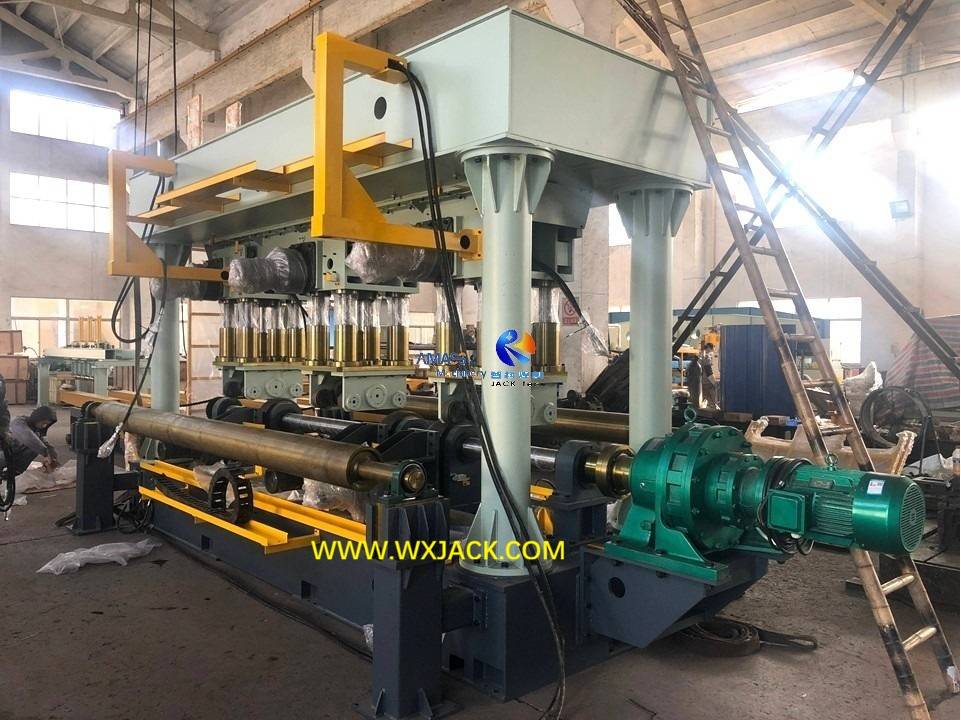

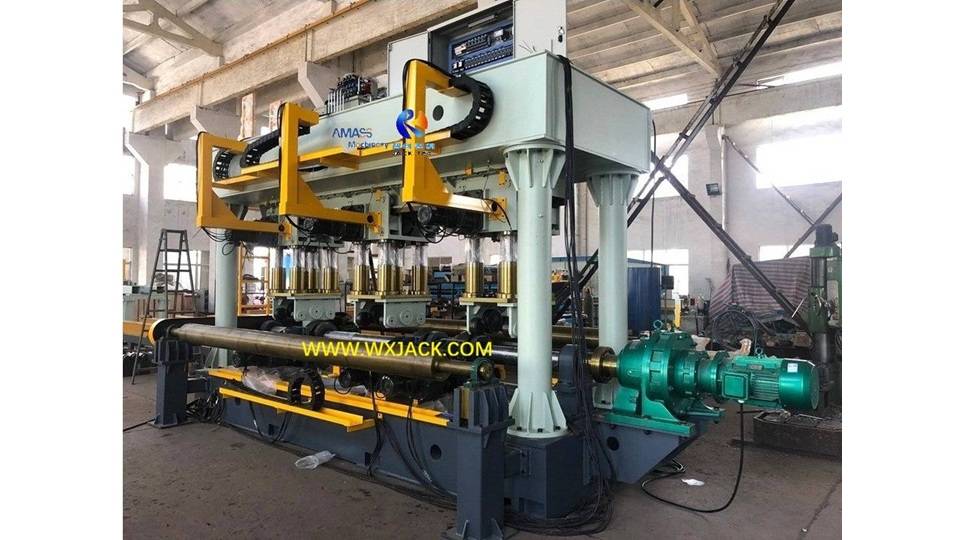

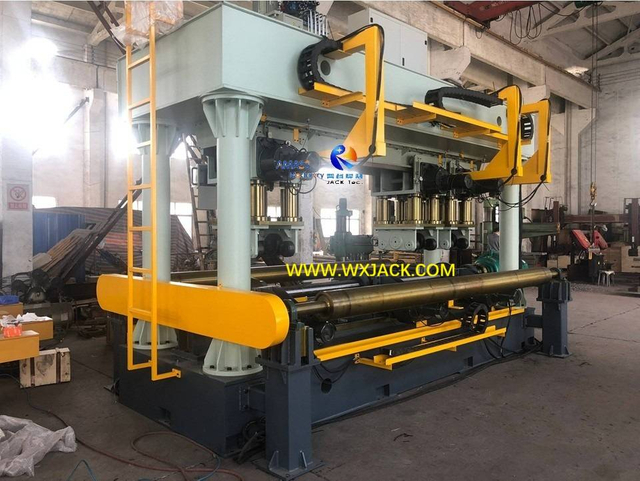

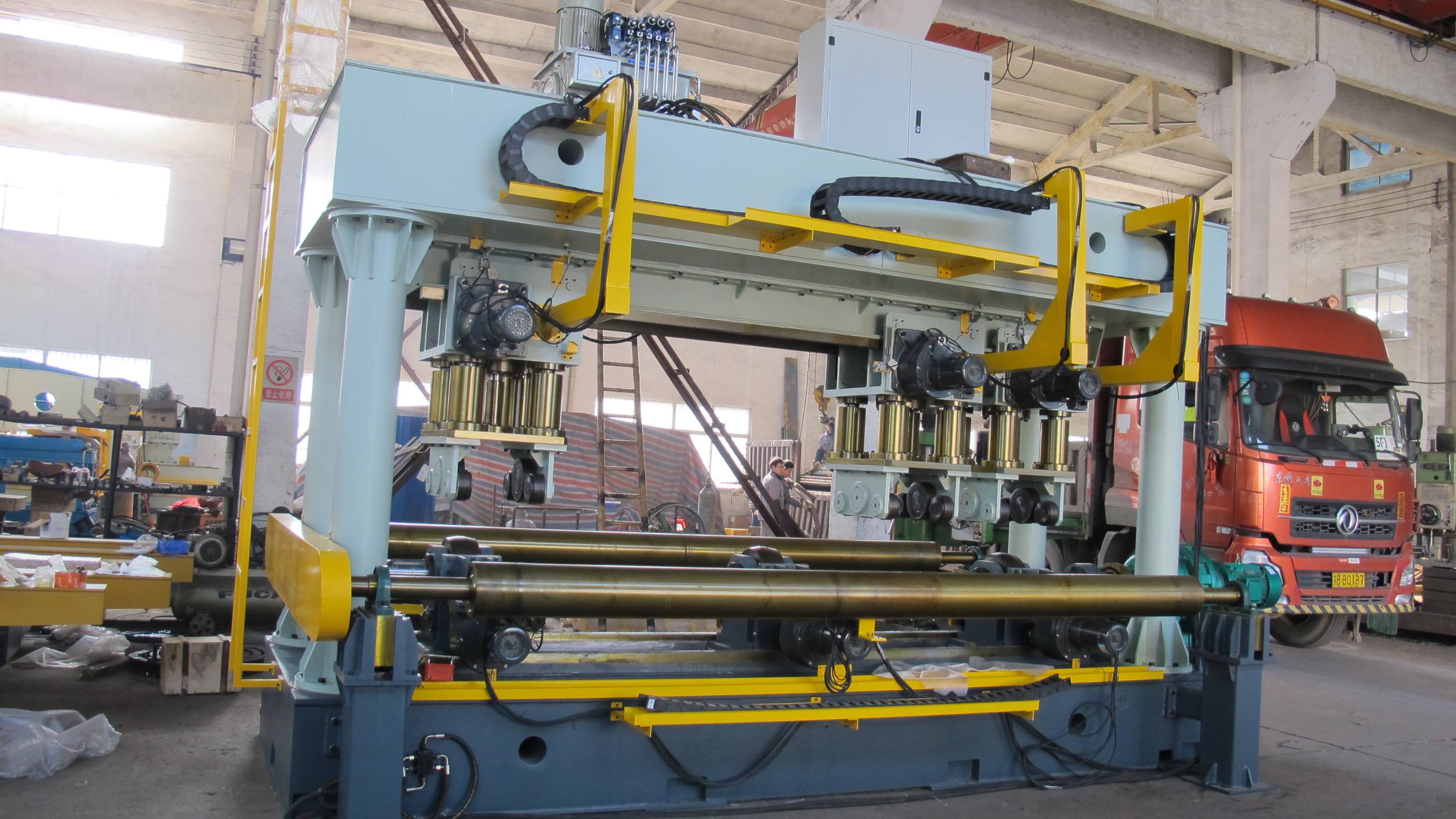

1. Integral Constructure of the Stiffened Plate Straightening Machine:

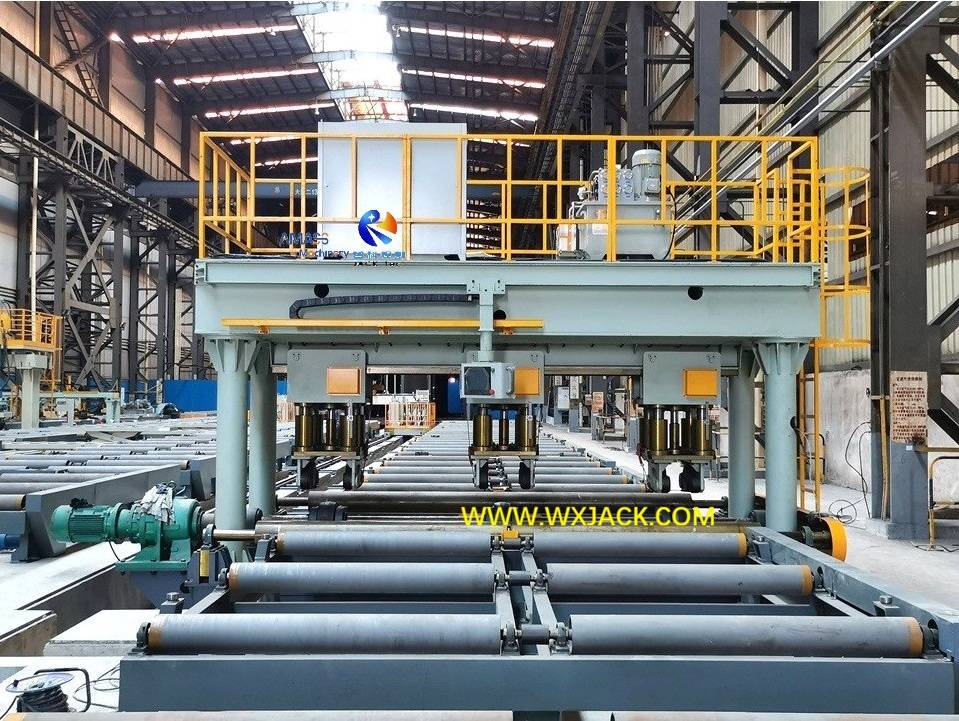

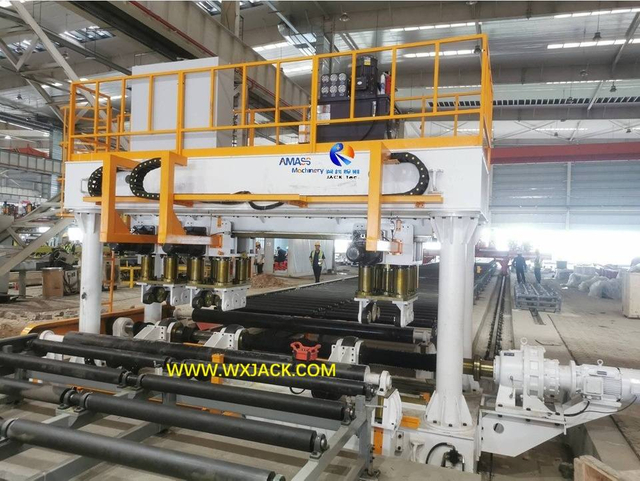

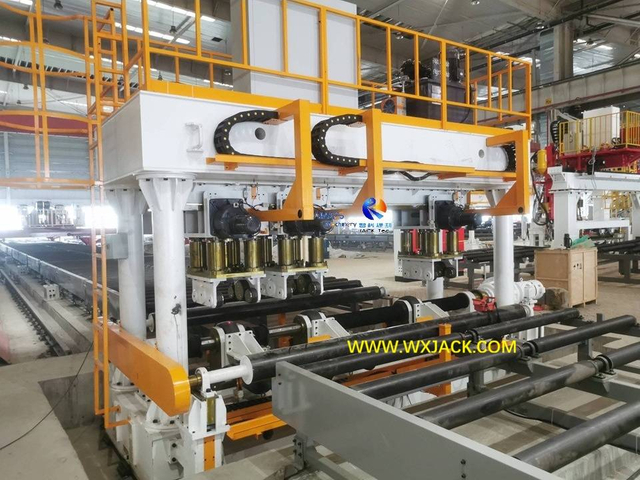

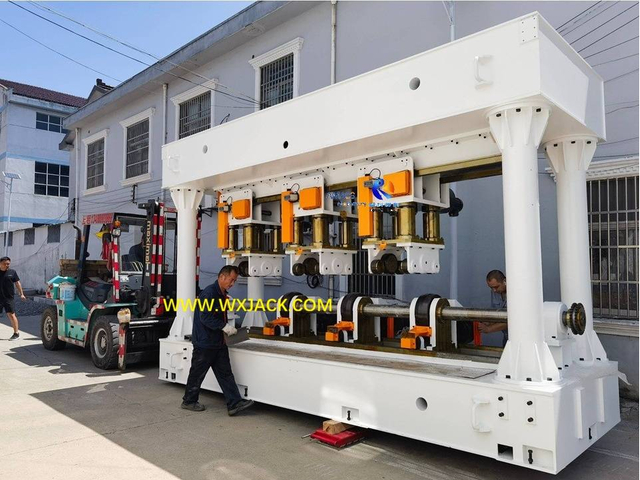

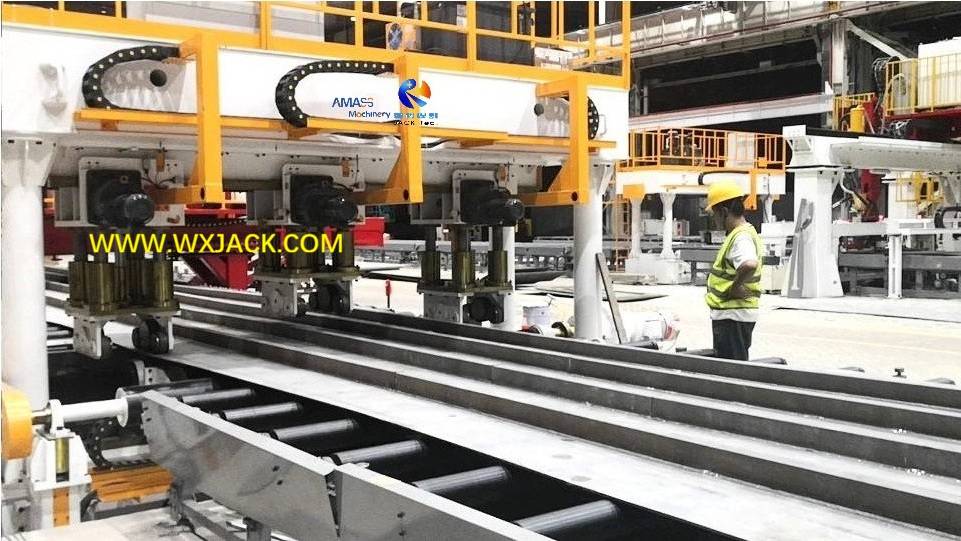

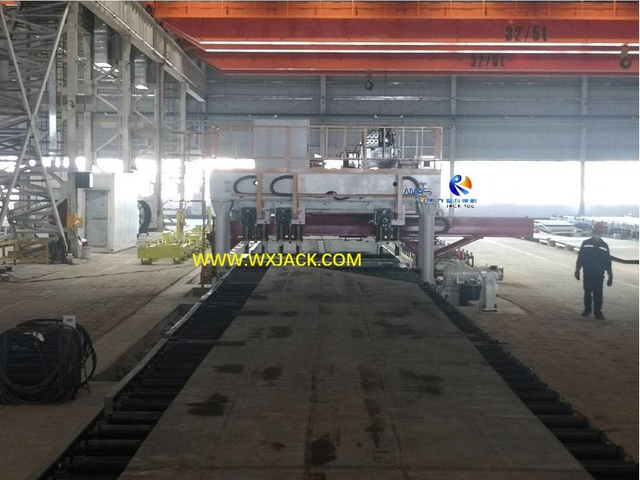

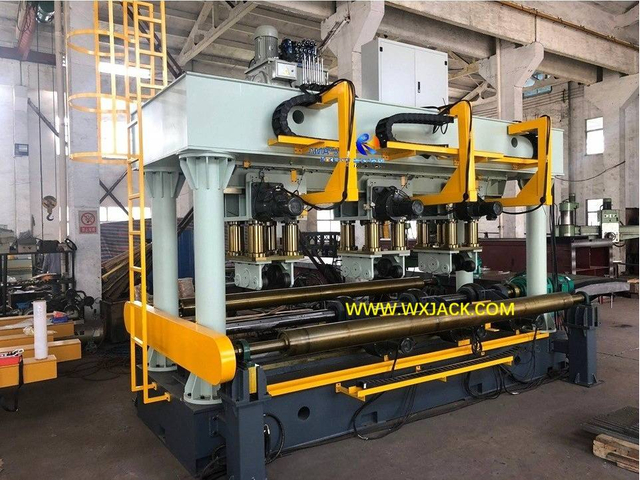

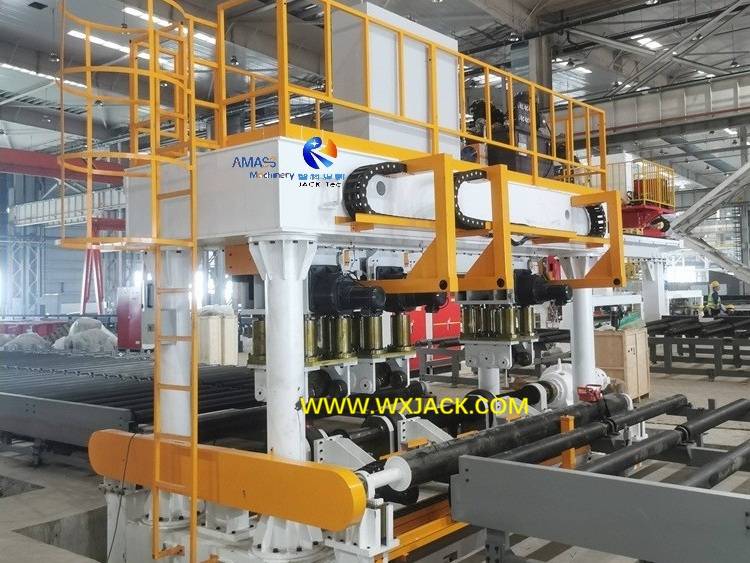

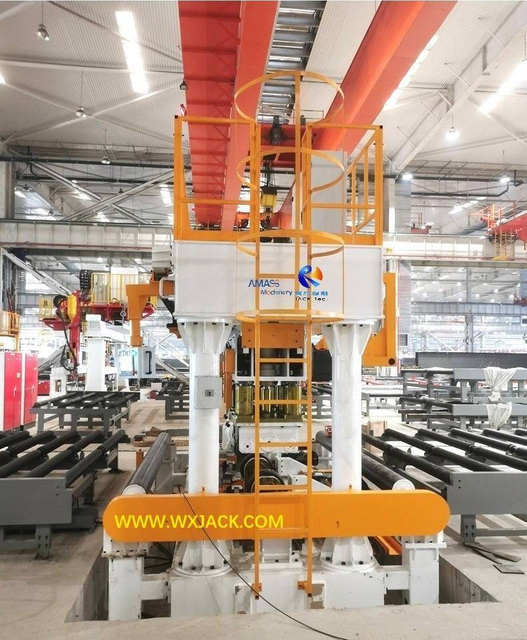

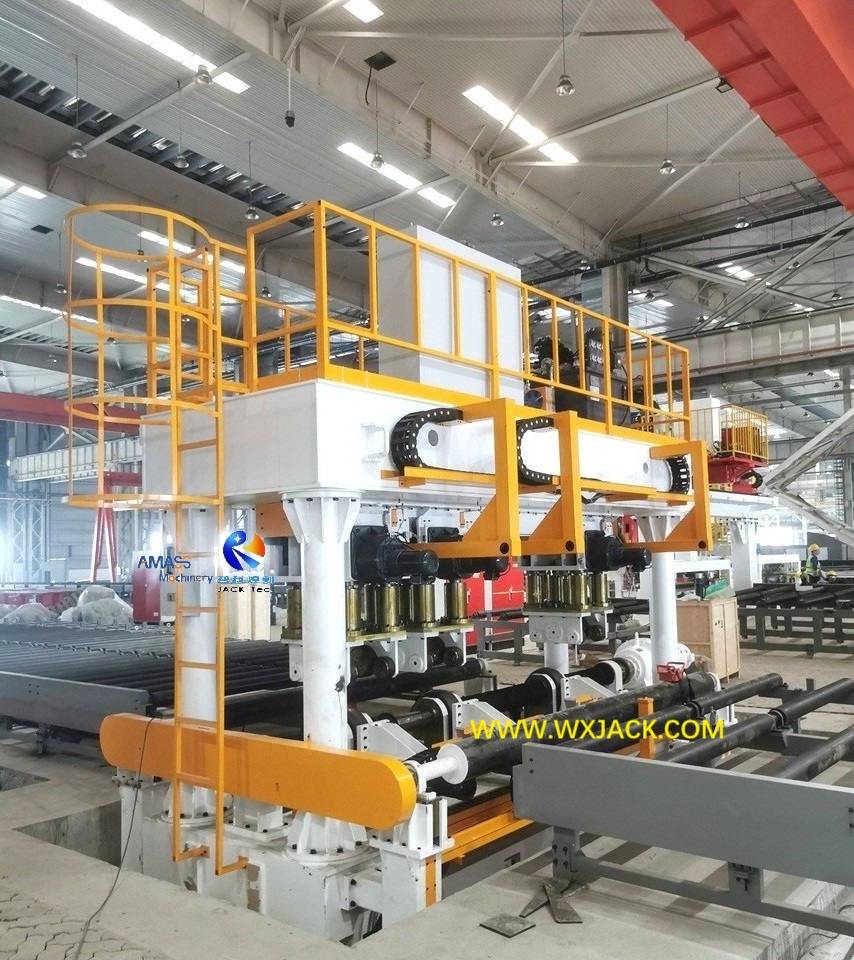

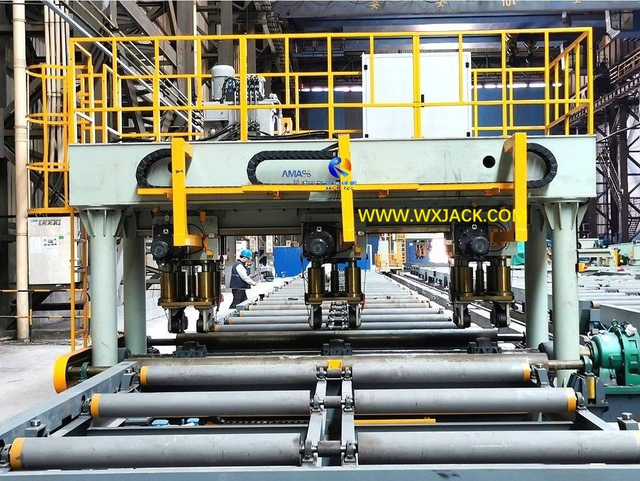

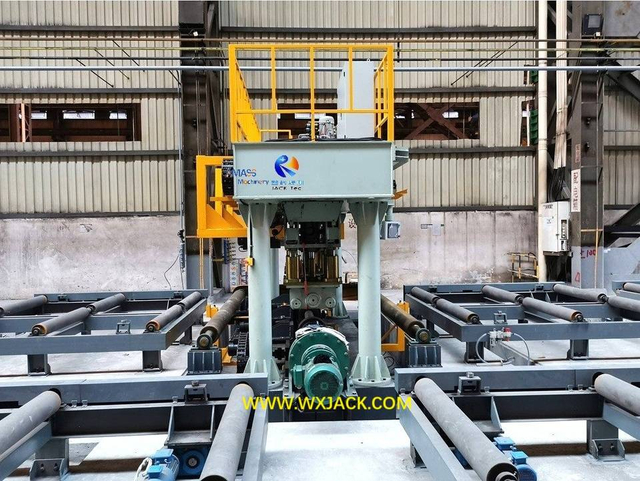

1) The 1^st and 2^nd Photo: One set of the J series Ribbed Plate Straightening Machine can be divided into 3 general groups of main frame, input conveyor, and output conveyor;
2) Main frame is in the structure of solid base box frame. It is the central working zone of the Stiffening Plate Straightening Machine;
3) Support Rollers: As can be seen from the 1^st and 2^nd photo, there is 1 piece of front support roller and 1 piece of rear support roller, distributed at inlet and outlet of main frame respectively. These support rollers have 40mm vertical stroke, in form of 20mm higher and 20mm lower than top surface of conveyor roller respectively. This is for ease of loading in stiffener plate, before official running of the Stiffened Plate Straightening Machine;

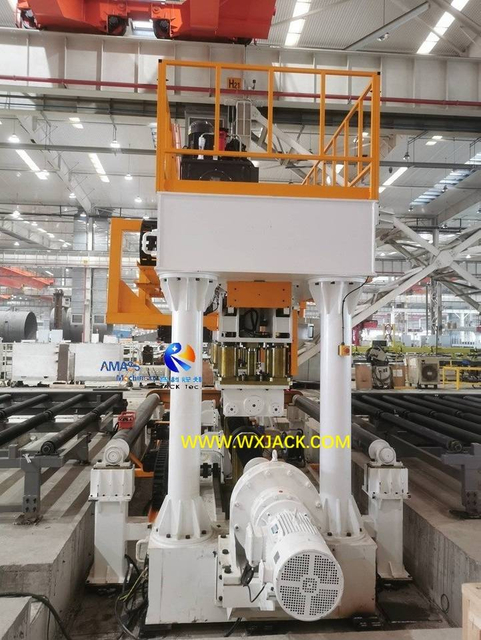

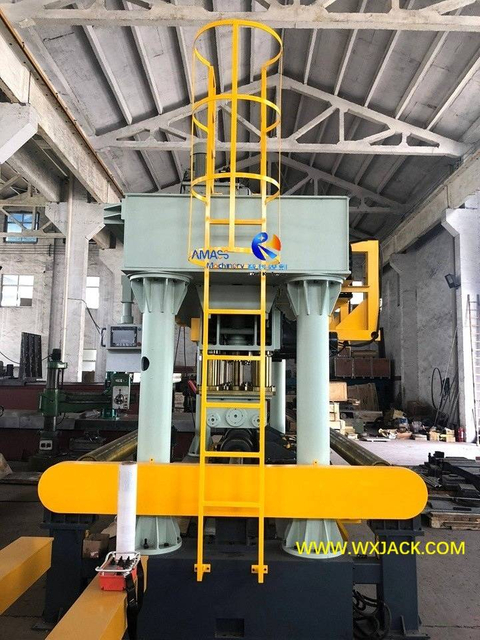

4) Control boards and hydraulic pump station of the Stiffening Plate Straightening Machine are located at overhead platform of main frame. Personnel can climb onto by way of lateral ladders.

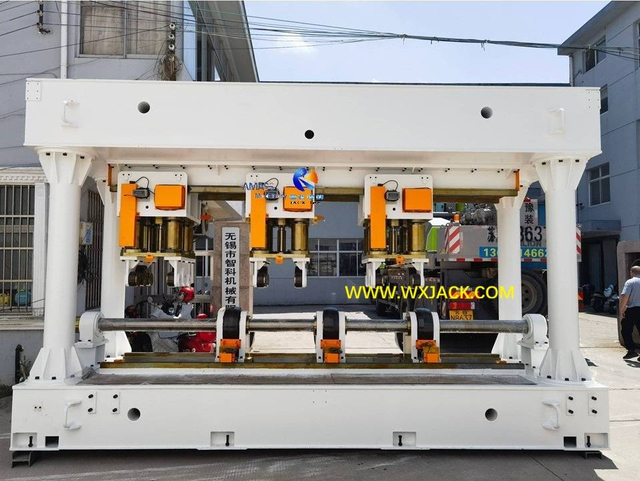

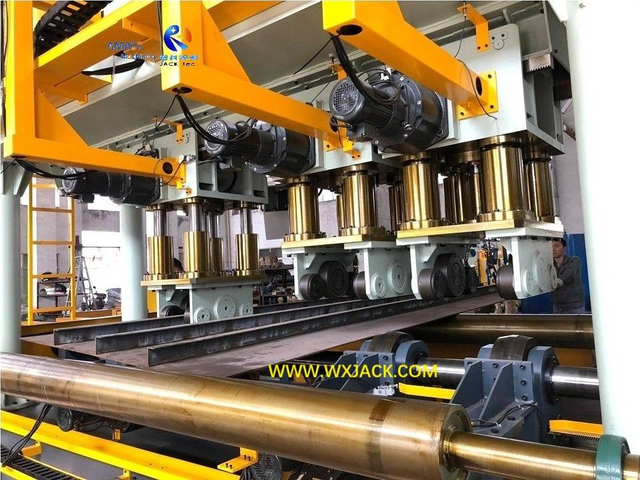

2. Straightening Units of J series Stiffened Plate Straightening Machine:

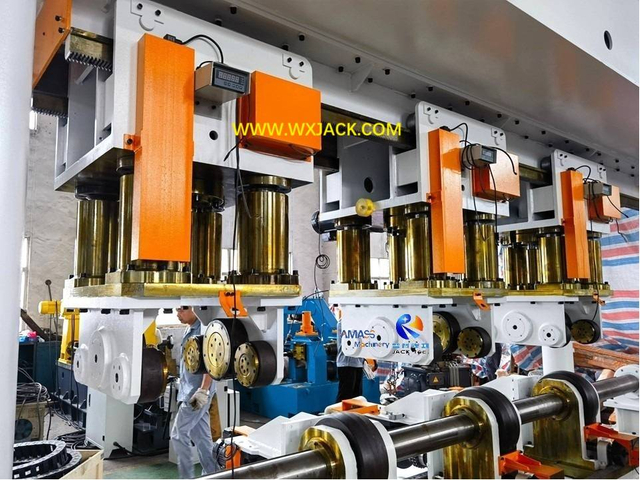

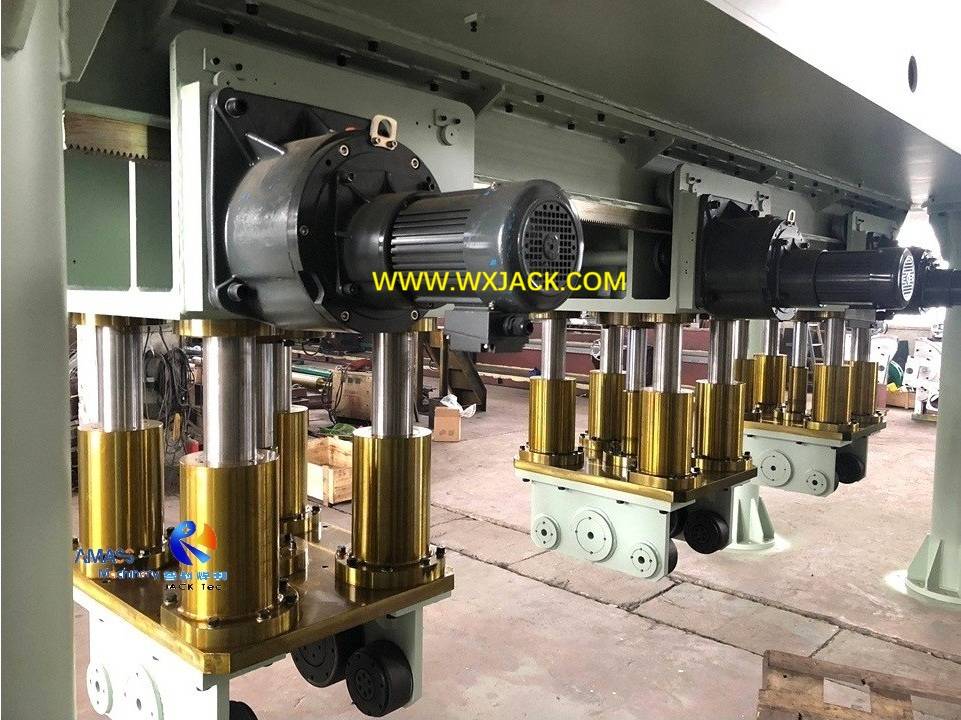

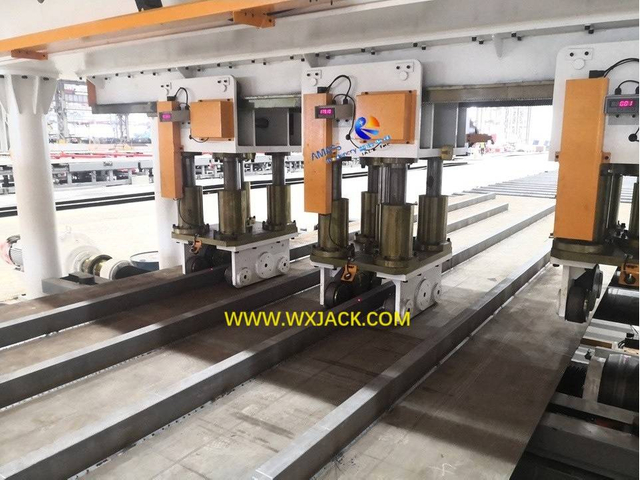

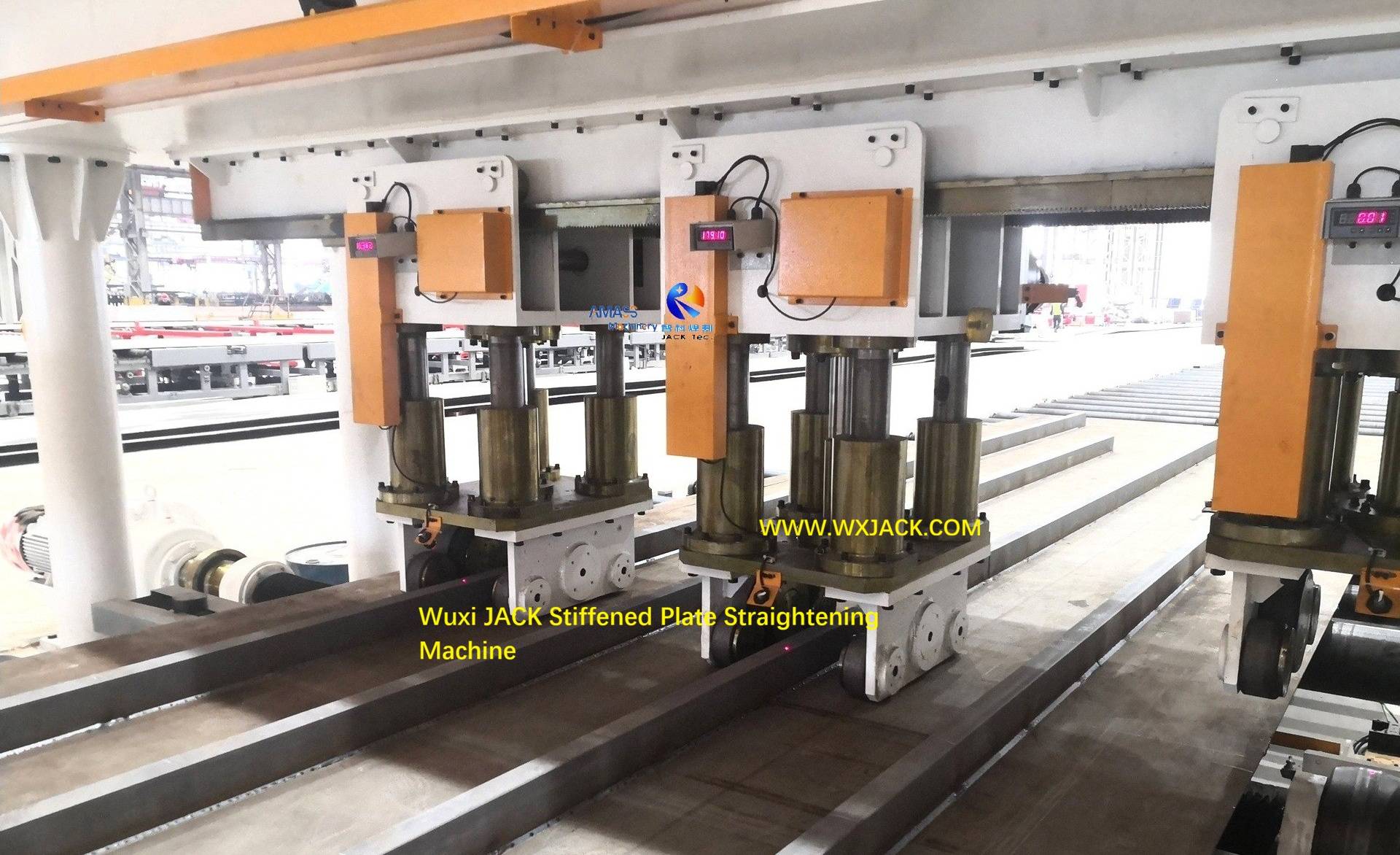

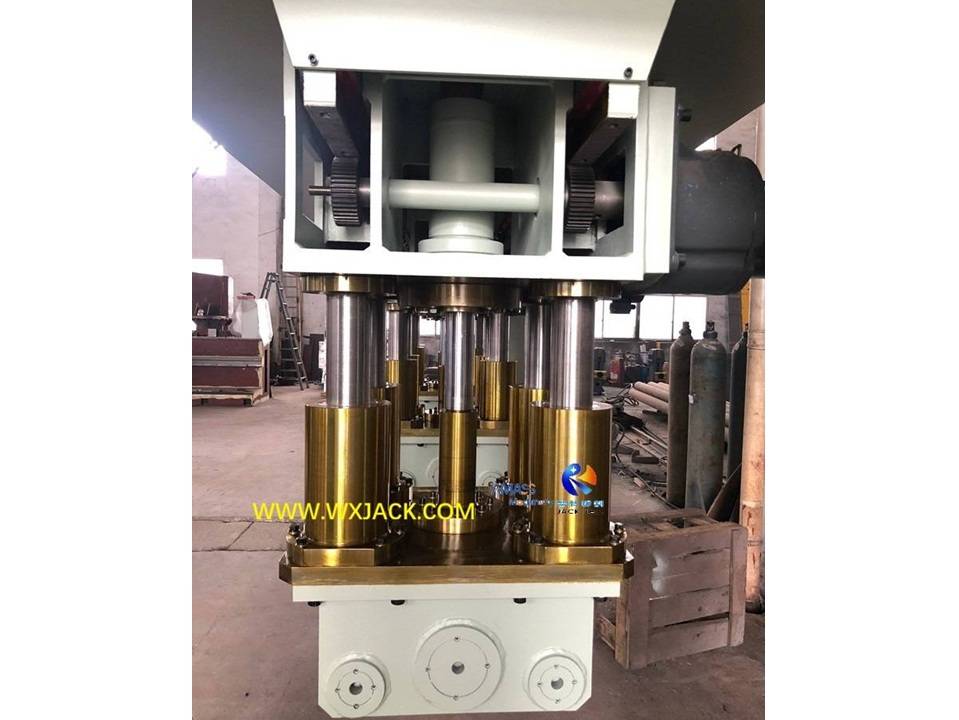

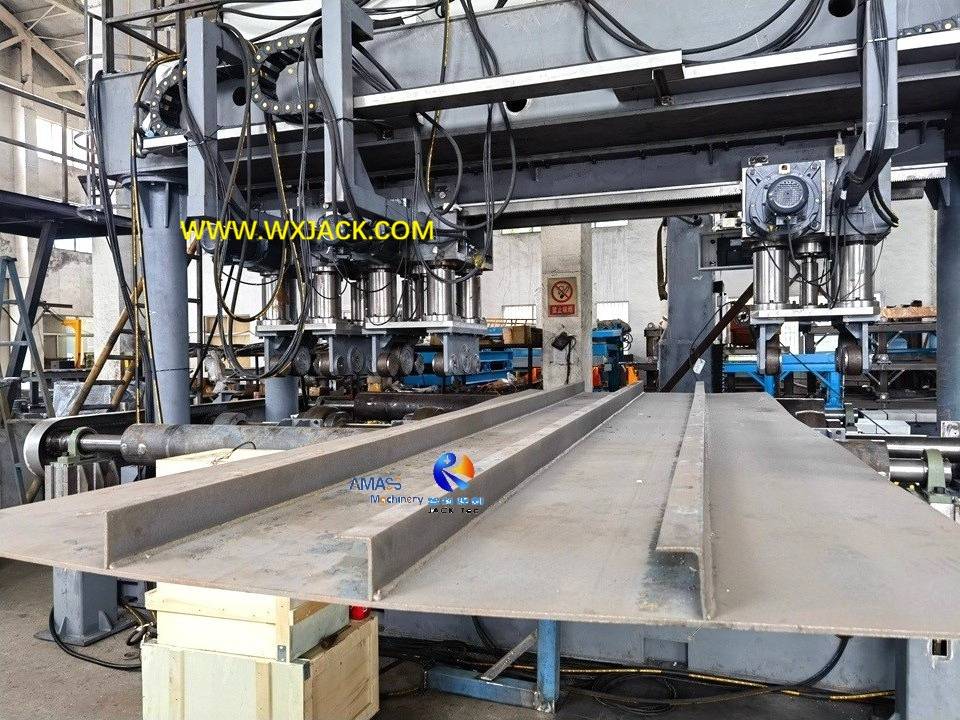

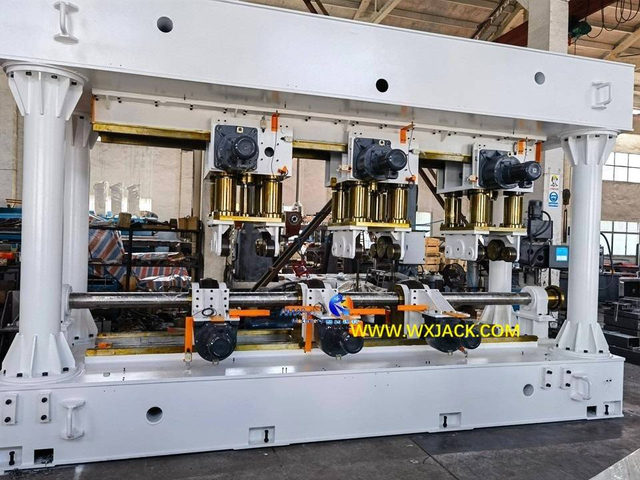

1) The 3^rd and 4^th Photos: The 3 sets of straightening units are assembled onto overhead horizontal beam of the main frame;
2) For adapting to specific types of rib plate to be processed in the J series Ribbed Plate Straightening Machine, transverse movement of the straightening units is guided with precise linear guiderail, transmitted with gear and rack, controlled with PLC and encoder, protected with proximity switch, and driven with A.C. motor;

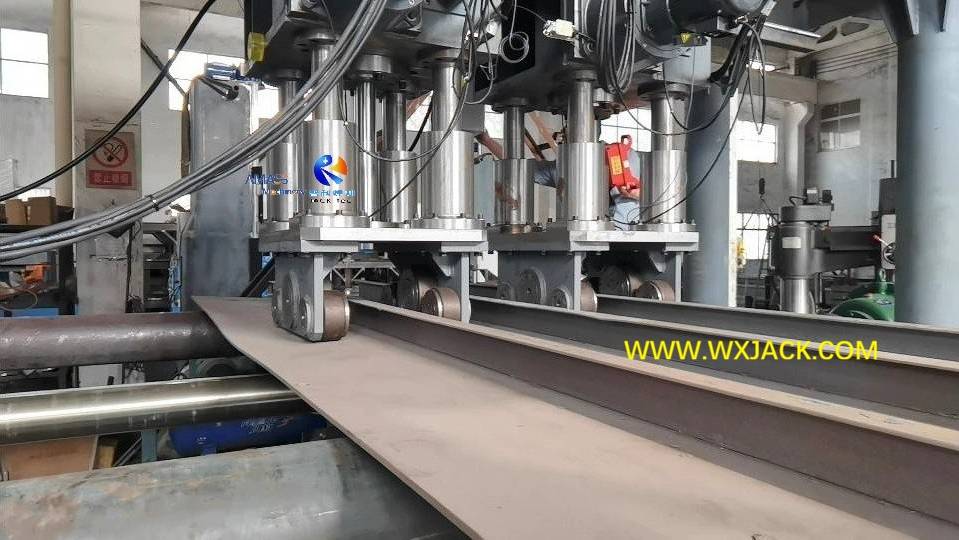

3) For each set of the straightening unit in the J series Ribbed Plate Straightening Machine, there are 2 pairs of straightening rollers installed facing each other: The 3 pieces of top downward rollers (1 piece of main larger roller in the middle, and 2 pieces of slave rollers at both sides), as well as 1 piece of bottom stationary roller (Only revolve, no vertical movement). Such design makes sure firm and reliable straightening job in the J series Stiffened Plate Straightening Machine;

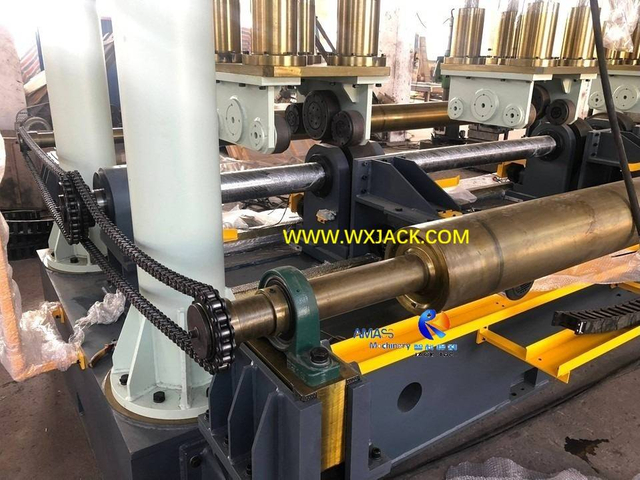

4) The 4^th Photo: The 3 pieces of bottom stationary straightening rollers are connected into an integral cell by means of a rotating shaft. During working of the J series Stiffening Plate Straightening Machine, the in-phase running of the 3 bottom rollers are transmitted with chains and sprockets.

3. Driving Mode in J series Stiffening Plate Straightening Machine:

In a nutshell, the 2 main jobs during operation of the Stiffening Plate Straightening Machine: Vertical straightening is driven by means of hydraulic oil cylinder, and horizontal conveying of stiffener plate is by means of high power motor reducer.

Application and Related Equipment of H Beam Longitudinal Straightening Machine

1. J series Stiffened Plate Straightening Machine is applied in large scale and heavy duty building site in Bridge, High Rise Buildings, Cranes, Port Machinery, etc., in the way of production line use equipment, as shown in the photos of this page;

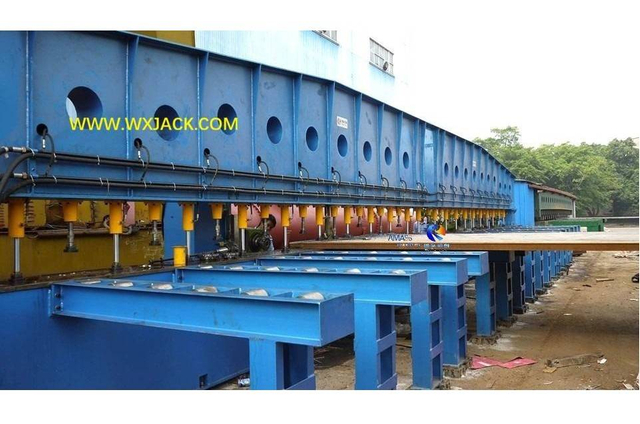

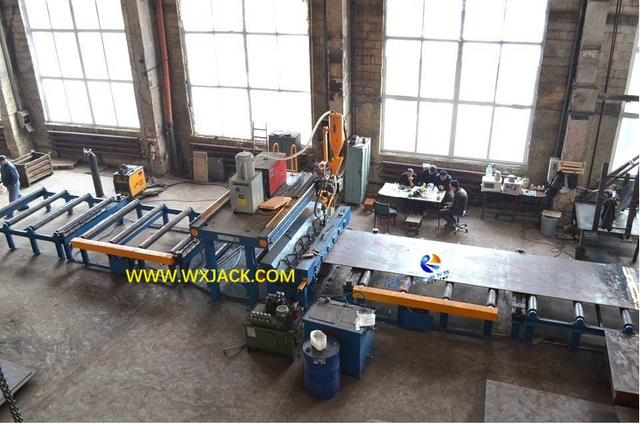

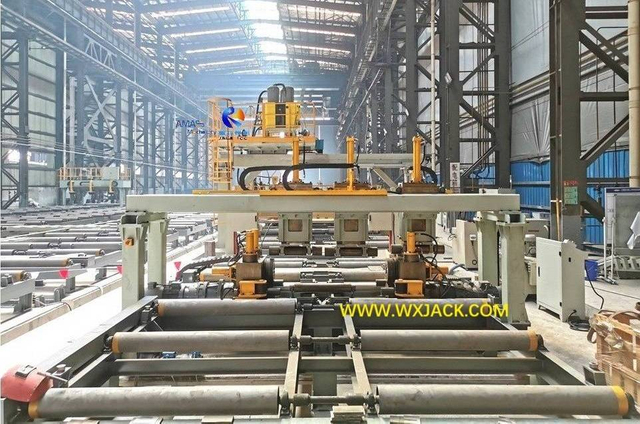

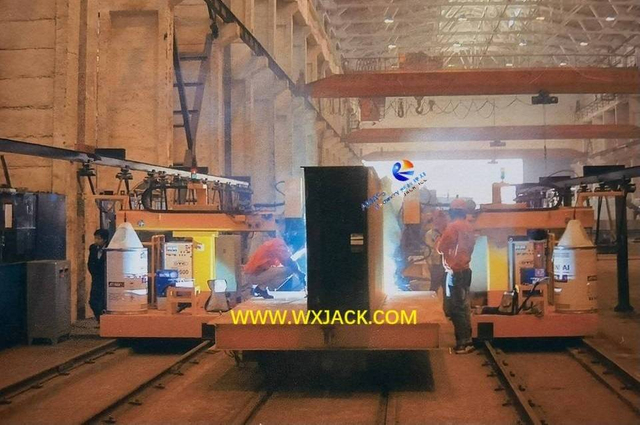

2. Other equipment working together with the J series Stiffening Plate Straightening Machine can be: Large Size Long Stroke Edge Milling Machine, or Special Design Heavy duty Edge Milling Machine, and Wide Plate Edge Rounding Machine, and Plate Butt Joint Welding Machine, and Girder Longitudinal Welding Machine for BOX Beam, as well as various types of Special Made Welding Machine, etc.
