A. The Subject of this Page on Wuxi JACK Steel Structure Overturning Equipment:

1. This page is for overall and general reviewing on Wuxi JACK Steel Structure Overturning Equipment, in the form of graphical introduction, covering products and topics of:

1) Stationary and Moving 60°/ 90°/ 180° Steel Structure Overturning Equipment;
2) Wide variety of Chain type Overturning Equipment, or called Steel Structure Chain Manipulator;
3) Steel Structure Conveyor, for transporting steel plates and steel structure members;
4) Advantages and technical performance of Wuxi JACK product family of Steel Structure Overturning Equipment;

2. Goal: We hope that, with short time reviewing on this page, customers and any one who has interest on Steel Structure Overturning Equipment can have a quick understanding on these important products;
3. Origin: This web page is originated from PPT Slides “Summary on Wuxi JACK Steel Structure Overturning Equipment”.







B. The Function and Usage of Steel Structure Overturning Equipment, Steel Structure Chain Manipulator, and Steel Structure Conveyor:

1. Task: The product family of Steel Structure Overturning Equipment can be attributed as heavy duty logistics unit in heavy duty industries, for changing orientation and position of various types of heavy weight and large size steel structure members;
2. Importance: These Steel Structure Overturning Equipment are indispensable working mechanisms deployed in all kinds of steel structure production line: H Beam Production Line; BOX Beam Production Line; T Beam Production Line... etc.;

3. Groups of Wuxi JACK Moving 180° Steel Structure Overturning Equipment Installed in automatic H Beam Production Line at customer facility: (Fig.1)

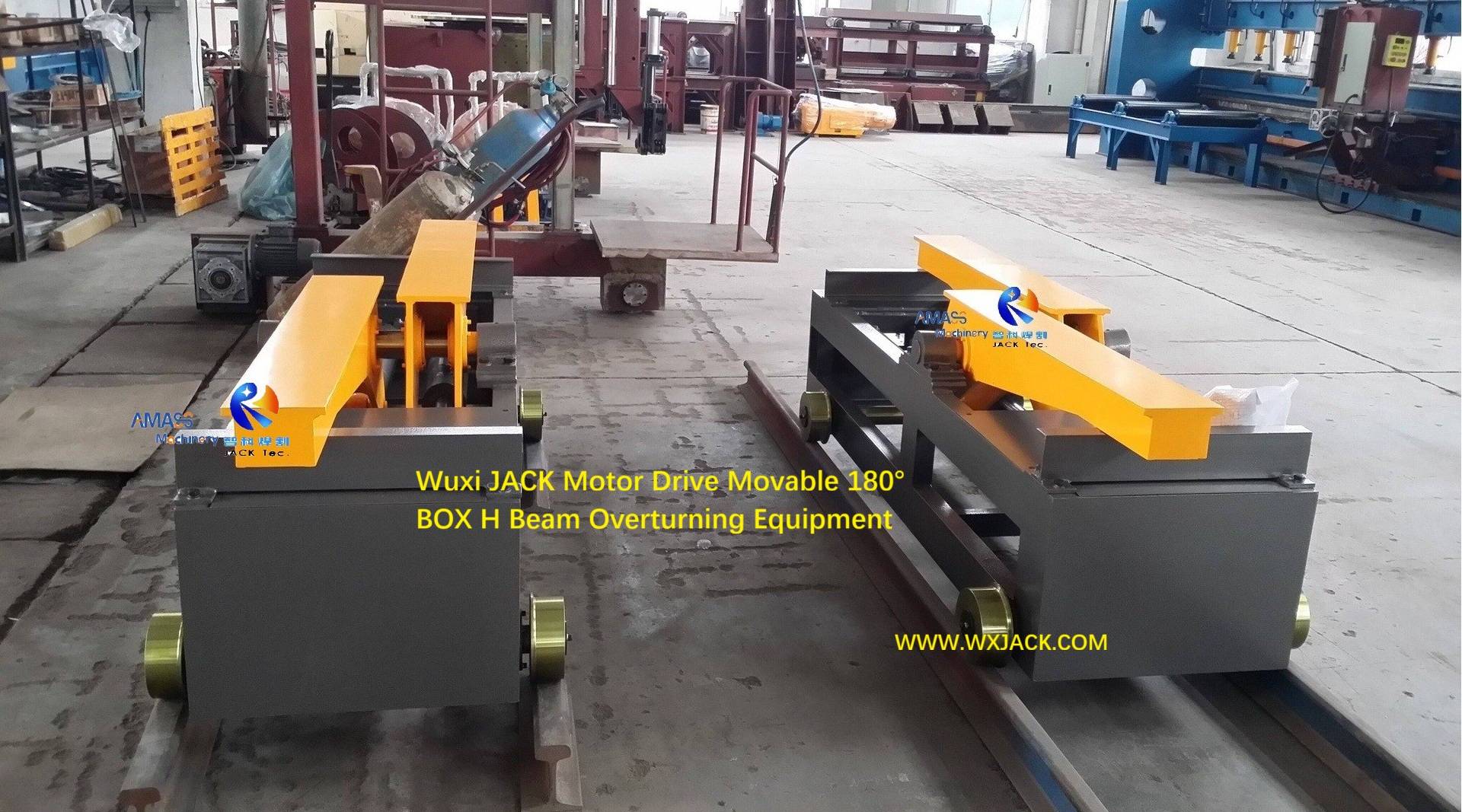

Fig1- 180° Steel Structure Overturning Equipment

4. Integral Style Lifting and Revolving Chain type Overturning Equipment being Commissioning at Wuxi JACK Workshop: (Fig.2)

Fig2 Steel Structure Chain Manipulator







C. Related Product Pages with Steel Structure Overturning Equipment:

For Deep Down Exploration on Business and Technical Details of Wuxi JACK Steel Structure Overturning Equipment and Steel Structure Chain Manipulator, as well as its applied scenario, please visit thematic product pages of:


1. Steel Structure Overturning Equipment;
2. Steel Structure Chain Manipulator;
3. BOX Beam Production Line;
4. H Beam Production Line;
5. T Beam Production Line;
6. Steel Structure Production Line and Machine



D. The General Introduction and Technical View on Wuxi JACK Steel Structure Overturning Equipment:

Slides 1: The Complete Line and Models of Wuxi JACK Steel Structure Overturning Equipment and Steel Structure Conveyor Delivered to Customer:

This page of Slides is on product scope of Wuxi JACK L Arm Rack type, Chain type Overturning Equipment, and Steel Structure Conveyor:



From 12 photos pasted on this page of Slides, you can identify rich assortment of Steel Structure Overturning Equipment designed and produced by Wuxi JACK for customers:
1. The fixed style and moving style, hydraulic drive 60°/ 90°/ 180° Steel Structure Overturning Equipment;
2. Hydraulic drive, motor drive, electric hoist drive Steel Structure Chain Manipulator, of different structures and dimensions;
3. Working Motion: These Steel Structure Overturning Equipment has capability of delivering actions of: Elevating, moving, and flipping workpieces;
4. The workpieces applicable for these Chain type Overturning Equipment and Steel Structure Conveyor include: Steel Plate/ H Beam/ BOX Beam/ Steel Structure Members...
5. Technical Proposal: Customers just need to give Wuxi JACK the structure/ size/ type of workpieces, and its action necessary, we can develop the corresponding tailor made Steel Structure Overturning Equipment.

Slides 2: The Usages and Advantages of Wuxi JACK Steel Structure Overturning Equipment and Chain type Overturning Equipment:

This page of Slides is on benefits of Wuxi JACK Steel Structure Overturning Equipment:



1. Applicable Workpieces: From left to right, the 3 photos of Slides page demonstrate different workpieces being manipulated in 3 types of Wuxi JACK Chain type Overturning Equipment and Steel Structure Overturning Equipment: Medium size structure member, large size column structure, and welding H Beam;
2. Challenge on Job: As can be seen from these photos, these steel structure members have large size, heavy weight, and irregular shapes, which poses great threat and challenge on manipulation of these workpieces for customers;
3. Safety and Ergonomics: With the help of these Steel Structure Overturning Equipment and Chain type Overturning Equipment, operators can be relieved from dangerous and hard work, making manipulation job controllable in consistent manner, during relocation of these complicated workpieces;
4. Production Efficiency: Operators can focus on more value added job, and cycle time of production line can be reduced accordingly.



Slides 3 The Performance and Technical Specialties of Wuxi JACK 60°/ 90°/ 180° L Arm Steel Structure Overturning Equipment:

This page of Slides is on technical capability of Wuxi JACK Steel Structure Overturning Equipment:




1. Driving Force: Considering the heavy weight of workpieces, hydraulic oil cylinders are utilized, this guarantees reliable action of the Steel Structure Overturning Equipment;
2. 60°/ 90°/ 180° Angle Available for Choice: Depending on different working stations at different production lines, 60°/ 90°/ 180° specifications of turning range are optional for choice;
3. Precise and Reliable Turning Process Control: With assembled angle ruler, limit switches, and encoders, both accurate and reliable swing of workpiece can be realized, during working of these Steel Structure Overturning Equipment.

The numbers marked in the 3 photos on this page of Slides corresponds with the corresponding item number in text description.

Slides 4: Continued: The Performance and Technical Specialties of Wuxi JACK 60°/ 90°/ 180° L Arm Steel Structure Overturning Equipment:

This page of Slides is continuation on technical capability of Wuxi JACK Steel Structure Overturning Equipment:



4. Small Rack for Firmly Holding the Different Sizes of Workpieces onto the Steel Structure Overturning Equipment:

1) As you can find from the left photo of this page, there is a small rack on each piece of the L Arm;

2) The fitting position of these small racks can be changed by changing securing position of its securing bolts, accommodating various sizes of workpieces;


5. Turing Action of L Arm in Steel Structure Overturning Equipment:

1) There are 2 to 4 pieces of L Arm in each set of the Steel Structure Overturning Equipment;
2) Each of the L Arm is driven with 1 piece of oil cylinder respectively;
3) Depending on application demand, these L Arms can be turned in phase for swing long length workpieces, or revolve individually for turning short workpieces, which are laid onto L Arms of the Steel Structure Overturning Equipment ;



6. Flipping Precision of L Arms in Steel Structure Overturning Equipment:

1) Synchronous accuracy of L Arms turning can be controlled within the range of ≦3°;
2) Synchronous accuracy of L Arms stopping can be controlled within the range of ≦1°;
7. These hydraulic drive 60°/ 90°/ 180° Steel Structure Overturning Equipment can be either in stationary form, or movable along rails.


The numbers marked in the 3 photos on this page of Slides corresponds with the corresponding item number in text description.

Slides 5: The Strong Capacity of Wuxi JACK Plate Steel Structure Overturning Equipment and Steel Structure Conveyor:

This page of Slides gives photos of two types of special made Wuxi JACK plate Steel Structure Overturning Equipment and Steel Structure Conveyor:




1. The left photo is on a group of Steel Structure Overturning Equipment, for up to 180° flipping of steel plate, with weight up to 150 Ton;
2. The right photo is on a kind of circulating chain type Steel Structure Conveyor for conveying structure members, with the max. loading capacity of 10 Ton.

Slides 6: The Versatile Functions of Wuxi JACK Chain type Overturning Equipment:

This page of Slides is on the Electric Hoist Drive of Steel Structure Chain Manipulator:



Chain type Overturning Equipment is another kind of important and widely applied logistics unit. As can be seen from photos of this page of Slides,
1. Structure: There are 4 pieces of electric hoists installed at the overhead beams, in 1 set of Chain type Overturning Equipment, which drive chains for its circulation;
2. Workpieces Placement: Steel Structure Members of various structures and dimensions are put onto these chains;
3. Working Principle: By means of circulation of these chains, the workpieces can be revolved 360°, and got descended and ascended at the same time;
4. Loading capacity of the Steel Structure Chain Manipulator is designated by customer.




Slides 7: The More Diversified Designed Structures of Wuxi JACK Chain type Overturning Equipment:

This page of Slides is on the more variations of Steel Structure Chain Manipulator:


The 2 photos of this page of Slides gives 2 examples on tailor made Chain type Overturning Equipment produced by Wuxi JACK for customers:

1. The Left One Photo of Steel Structure Chain Manipulator:

1) Workpiece Elevation: There are 2 sets of elevating working benches at both sides of its box frame, which are driven with hydraulic cylinders for its elevation. This is for the purpose of lifting up and lowering down workpieces;
2) Workpiece Revolve: Besides, there are 2 rows of circulating chains installed at both sides of the Chain type Overturning Equipment, which are driven with 4 pieces of hydraulic drive chain hoist installed overhead. This is for the purpose of flipping workpiece within the range of 0° ~ 360°.



2. The Right One Photo of Chain type Overturning Equipment:

1) Application Site: This is another kind of tailor made integrating style Steel Structure Chain Manipulator, developed by Wuxi JACK for an Engineering Machinery Company, for being deployed in their production line;
2) Workpiece Rise: There is hydraulic drive scissor lift installed at the bottom of this Chain type Overturning Equipment, for raising up workpiece within designated stroke;
3) Workpiece Revolve: On the top of this Steel Structure Chain Manipulator, there are 2 rows of circulating chains, for flopping workpieces 0° ~ 360°.



Slides 8 and 9: Continued: The More Diversified Designed Structures of Wuxi JACK Chain type Overturning Equipment:

These 2 pages of Slides are on the continued introduction on more variations of Steel Structure Chain Manipulator:


A. The 4 pieces of photos in these 2 pages of Slides demonstrate another 4 types of special made Chain type Overturning Equipment;

B. As can be seen from these 4 photos, advantages and technical properties of Steel Structure Chain Manipulator can be summarized as:

1. Wide Adaption: Flexible design of structures, which accommodates with different structures and tonnages of workpieces;

2. The 2 main working actions of these Chain type Overturning Equipment are:

1) 0° ~ 360° revolving workpieces;
2) Raising up and lowering down workpieces;
3) Loading tonnage of Steel Structure Chain Manipulator can be special made, from several hundreds kg to 3~5 Ton;
3. These Chain type Overturning Equipment can be either applied as individual working unit, or part of automatic production line.
H Beam Production Line
01

CNC Plate Cutting Machine
02

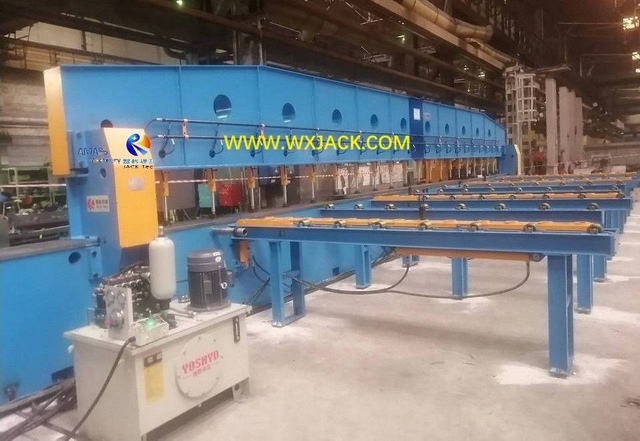

Edge Milling Machine
03

Other series of Products We Own besides Steel Structure Overturning Equipment

1. Application of MP20 Plate Butt Joint Welding Machine:
2. Structure and Working Principle of MP Series Plate Butt Welding Joint Machine:
3. Technical Parameters of MP20 Plate Butt Weld Joining Machine:

0
0
1. Application of DX1520 H Beam End Face Milling Machine:
2. Function Briefs of DX1520 H Beam End Face Milling Machine for Steel Structure Member:  Precise Linear Guiderails of both directions for Precision Guarantee / Working Speed Control / Working Tool of Powerful Milling Head/ Operation / Workpiece Clamp
3. Technical Parameters of DX1520 H Beam End Face Milling Machine:
0
0

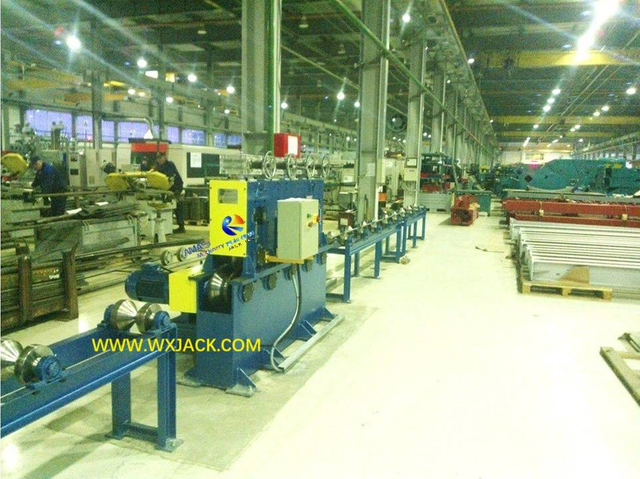

1. What can ASM63 Angle Steel Straightening Machine do for Customer?
