3 Integral Function H Beam Welding Machine 49

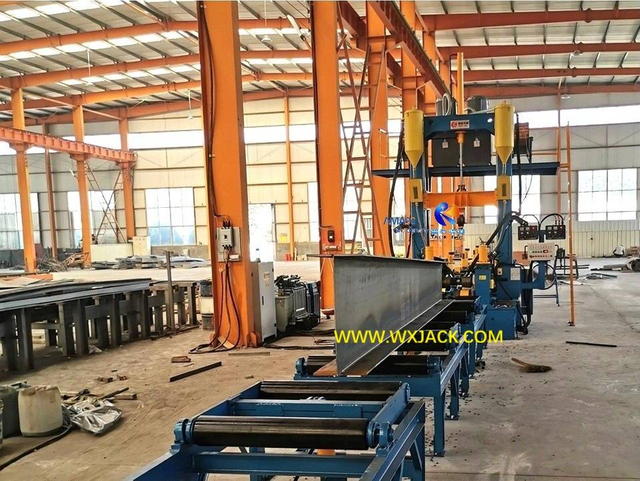

Wuxi JACK Integral Function H Beam Welding Machine,

the Best Return on Investment Welding 3 in 1 H Beam Machine for Steel Structure Customers

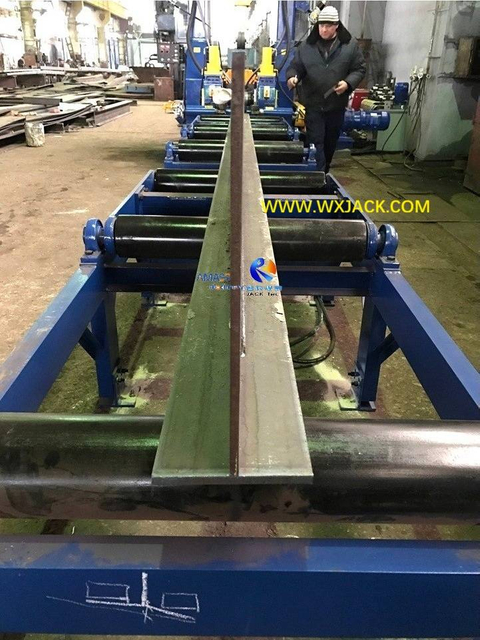

T I H Shaped Metal Frames Fabricated from Wuxi JACK Assembly Welding Straightening H Beam 3 in 1 Production Machine

Wuxi JACK three in one Integral Function H Beam Welding Machine integrates functions of workpiece assembly and straightening with welding, thus capable of manufacturing widely used steel structure T I H Beams with one equipment:

Optional Welding Modes of Wuxi JACK Three in One Integral Function H Beam Welding Machine

Twin Arc SAW (Double Welding Wire Feeder)
Single Arc SAW
(Submerged Arc Welding)
Single Arc SAW and Single Wire CO2 GMAW (Two Pairs of Welding Torches)
Single Wire CO2 GMAW
(Emit Strong Welding Light)

2 Series and Common Models of Wuxi JACK Assembly Welding Straightening 3 in 1 H Beam Machine

Wuxi JACK owns 2 groups of three in one Integral Function H Beam Welding Machine, in time sequence of development are:
1) PHJ model: In view from cross section of H Beam, web joint with flanges on middle point (Symmetric, “standard” type) or with certain deviation (Asymmetric, “special” type), both kinds of welding I H Beams;
2) ZHJ model: Symmetric cross shaped H Beam. Finished H Beam can be slightly smaller, than produced from PHJ models assembly welding straightening H Beam 3 in 1 Production Machine. For example, max. 750mm flanged width, versus 800mm.

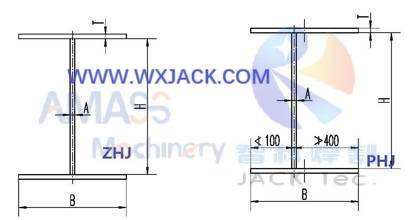

Shown as below: (Fig.1)

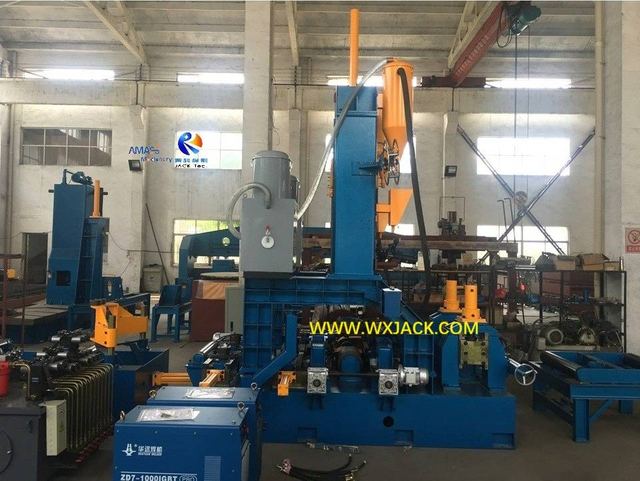

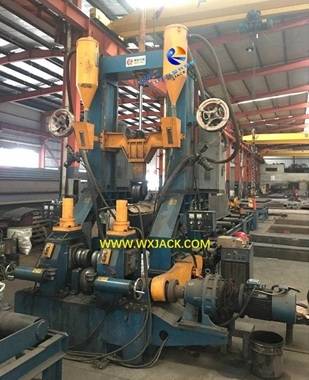

0 3 in1 H Beam Assembly Welding Straightening Machine C

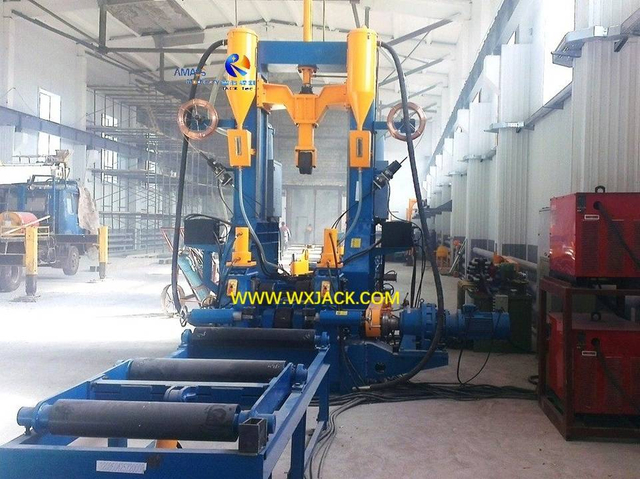

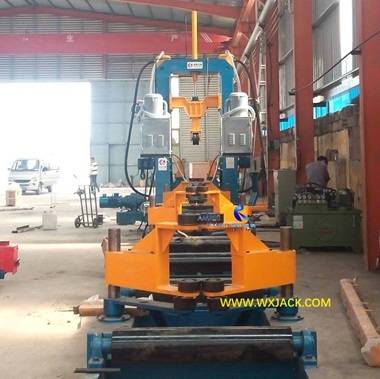

The figure in machine model refers to the Max. height of H Beam that be produced. For example: PHJ15 means H Beam height can be up to 1,500mm:

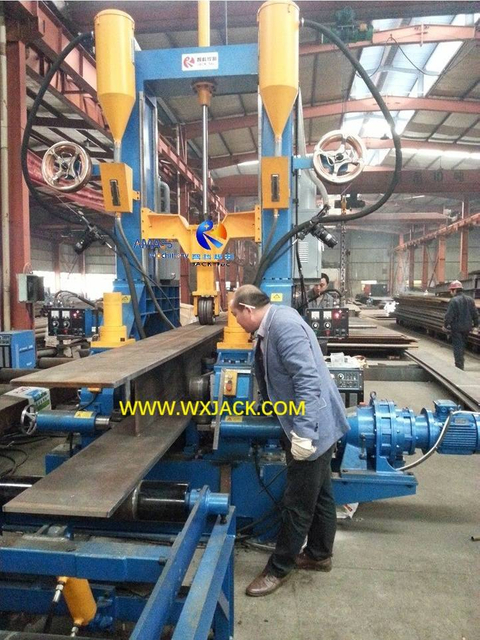

Wuxi engineer gave training on operators of PHJ15
PHJ18 in Bangladesh in Year 2016
ZHJ15 in Operation, operator just sit and watch
ZHJ18 and its produced H Beam

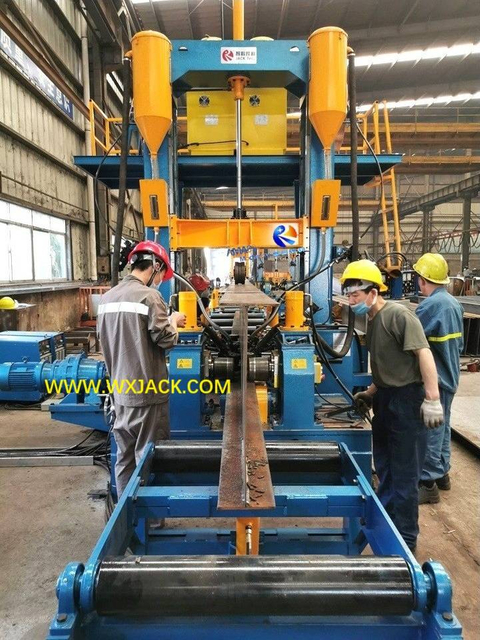

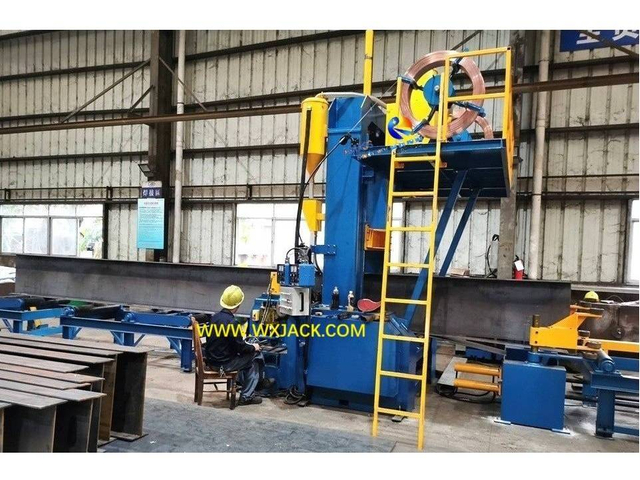

Operator monitors on PHJ15 work with sitting
PHJ20 welds on variable section H Beam (Web height changes along its longitudinal way)

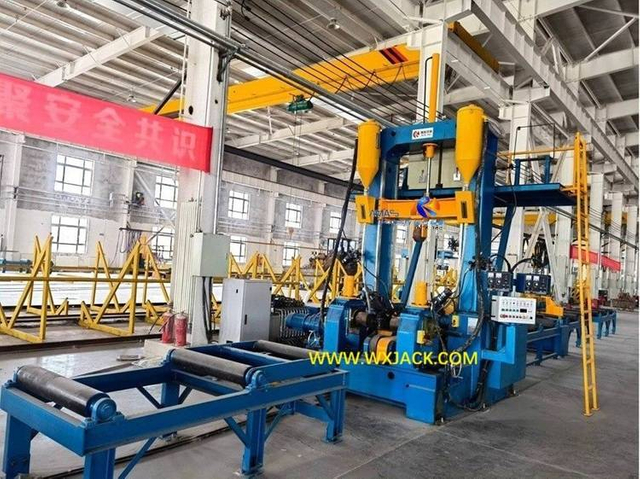

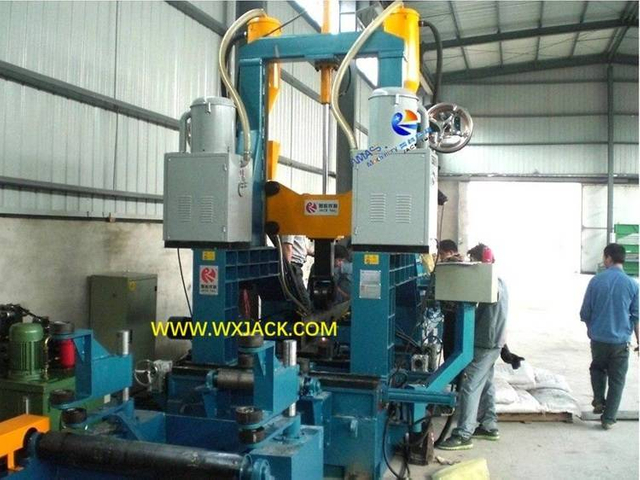

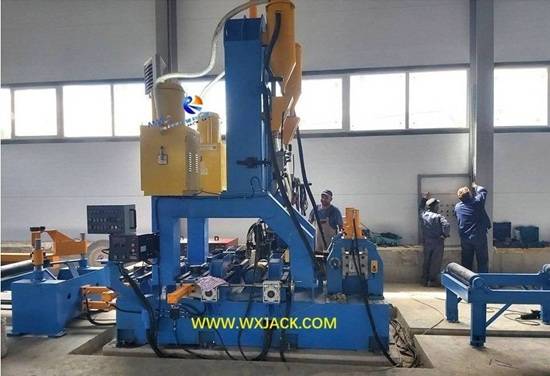

PHJ12 in Installation at new workshop
ZHJ18 just finished installation

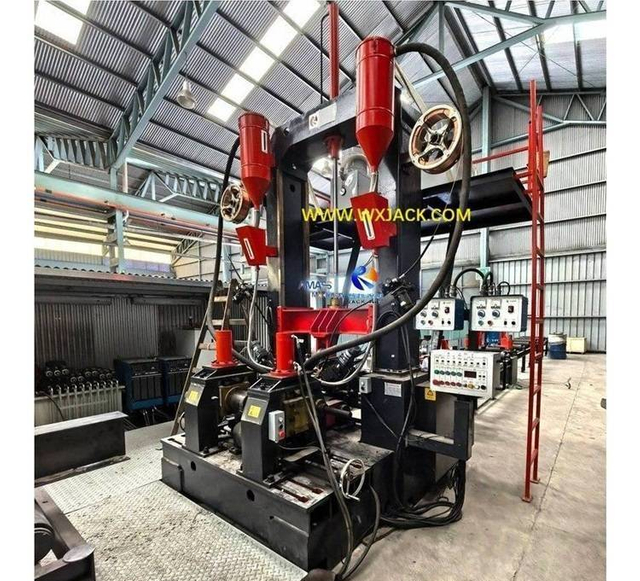

PHJ15 and its fabricated H Beam in vertical

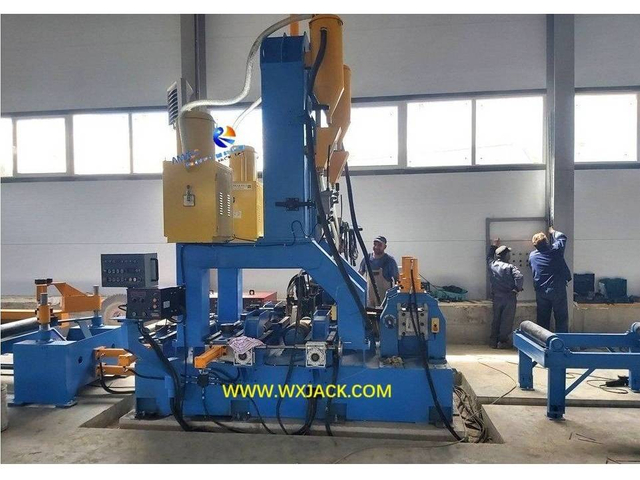

PHJ18 work at East Europe

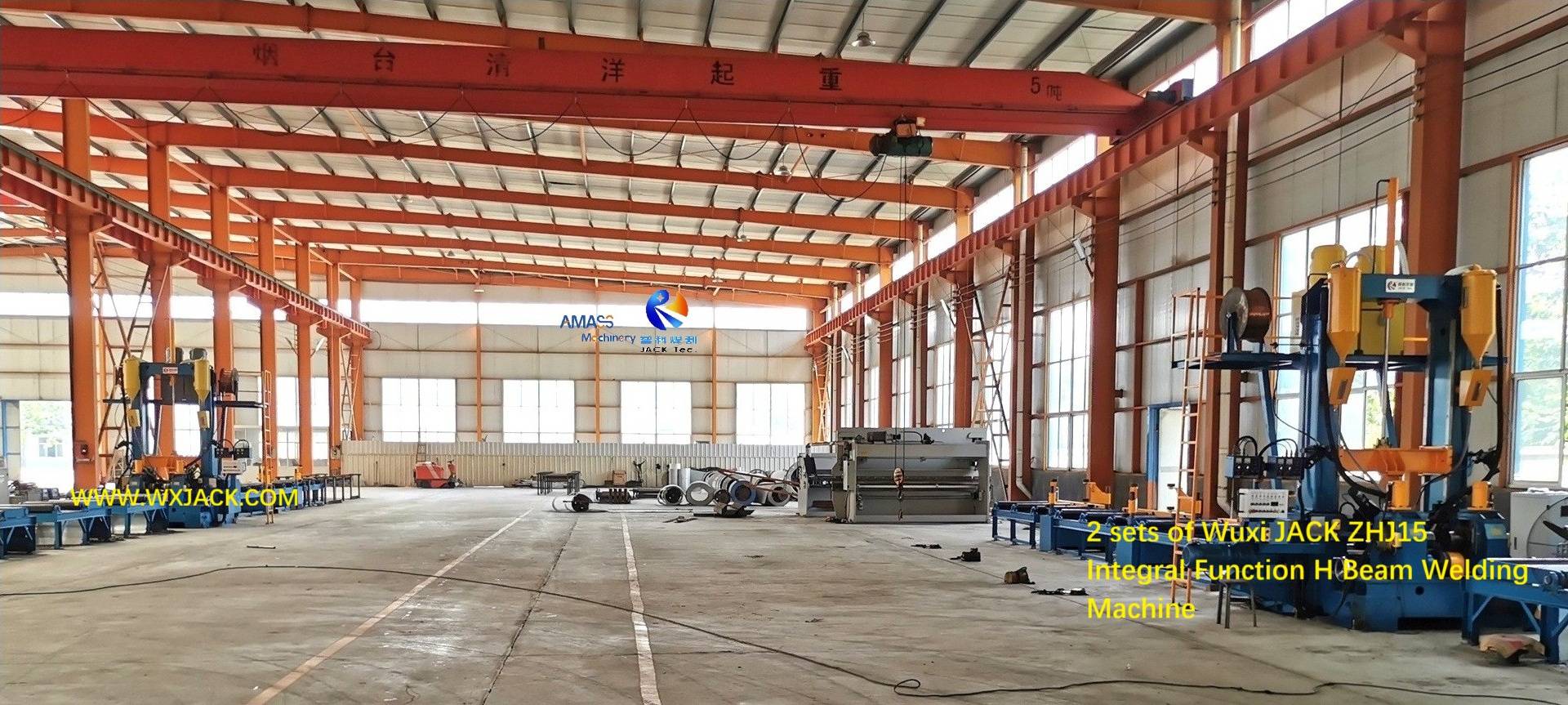

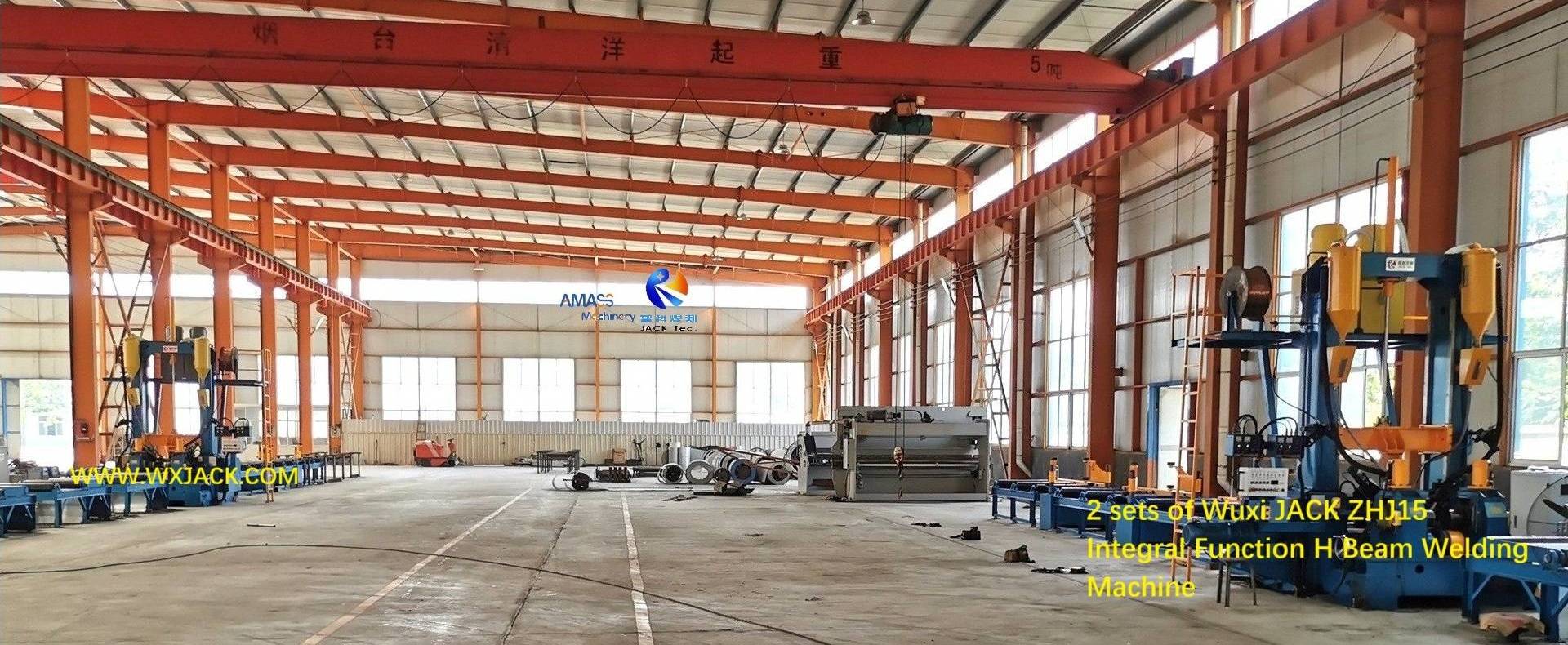

2 sets of ZHJ15 work in Chinese Facility, the other set is smaller in behind
Wuxi JACK Engineer watches on PHJ18 working at customer plant

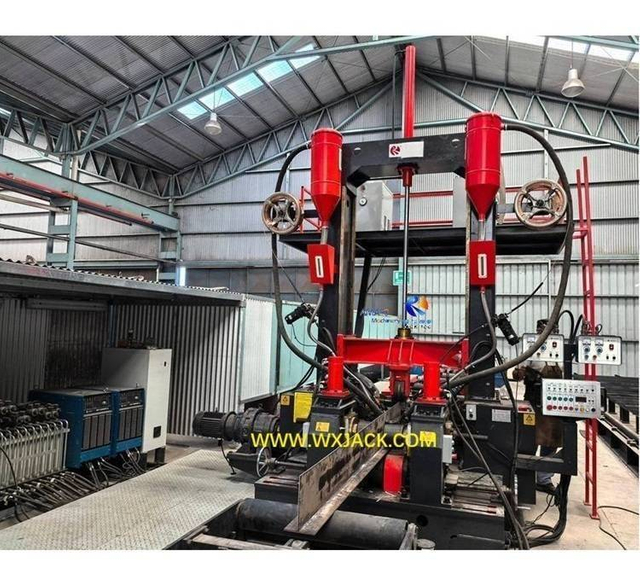

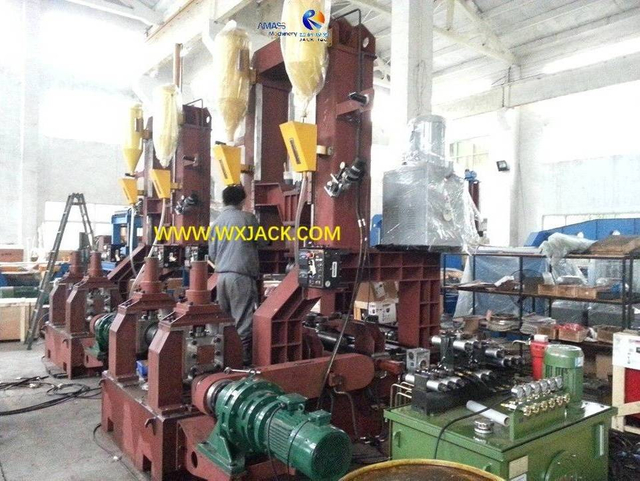

Batch Production on 3 in 1 Integral Function H Beam Welding Machine at Wuxi JACK Facility

Every year we have steady large orders on welding 3 in 1 H Beam Machine from domestic and overseas clients, thanks to advanced design and superior quality of our machines, and customer trust. Accordingly, we have opportunity to produce the machine in batch, and deliver to customers with:
1) The most reasonable price;
2) Steady, controllable high performance;
3) The shortest lead time;
From customers perspective, various models of Wuxi JACK assembly welding straightening H Beam 3 in 1 Production Machine can be purchased with ideal service, benefitting from lean production management:

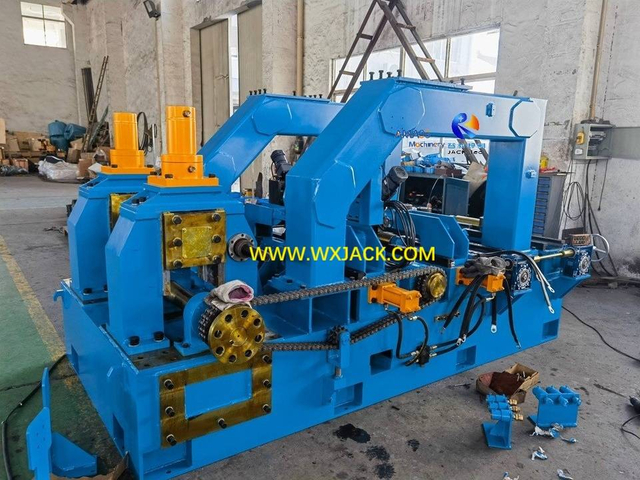

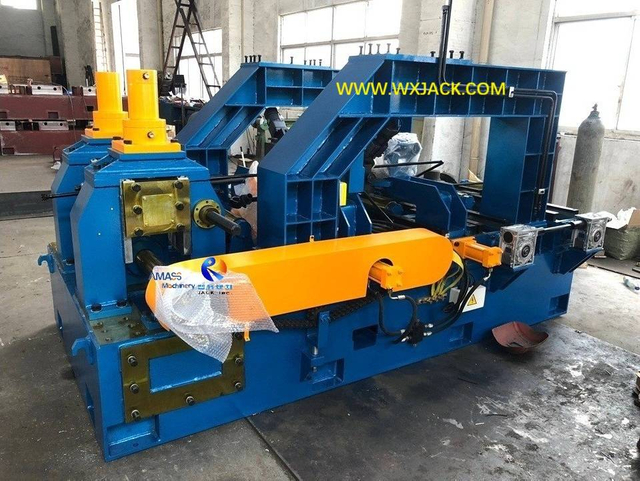

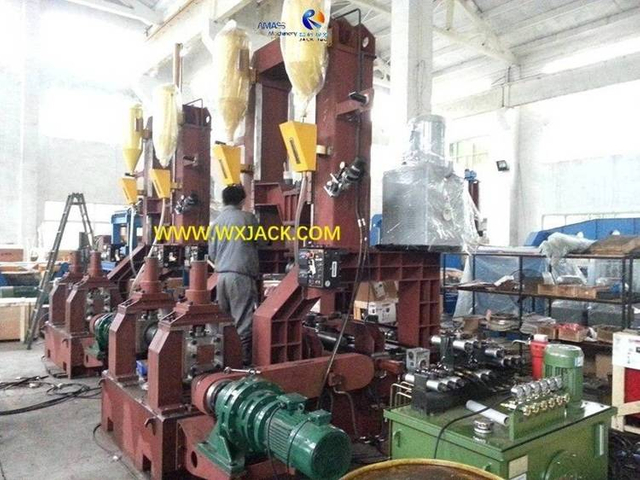

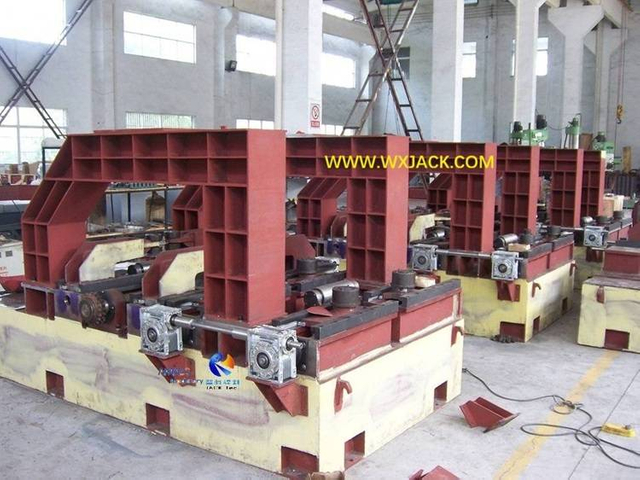

Base bed of 4 sets of PHJ models machines
6 sets of ZHJ models machines
4 sets of PHJ models machines

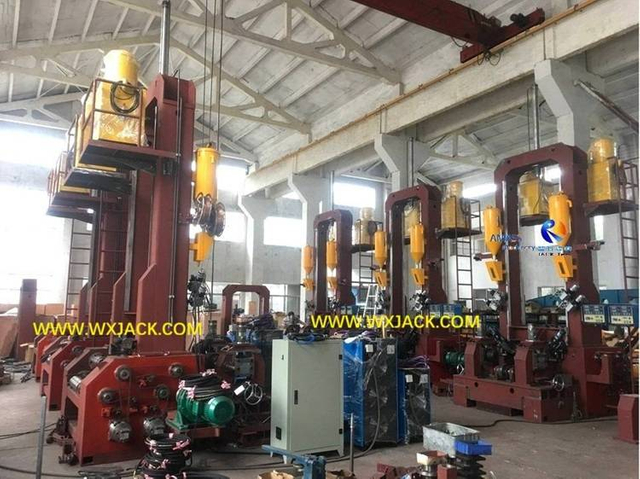

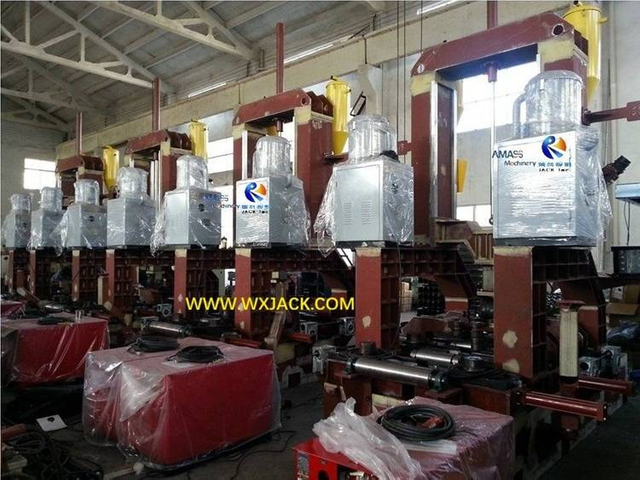

2 sets of PHJ20 in assembly

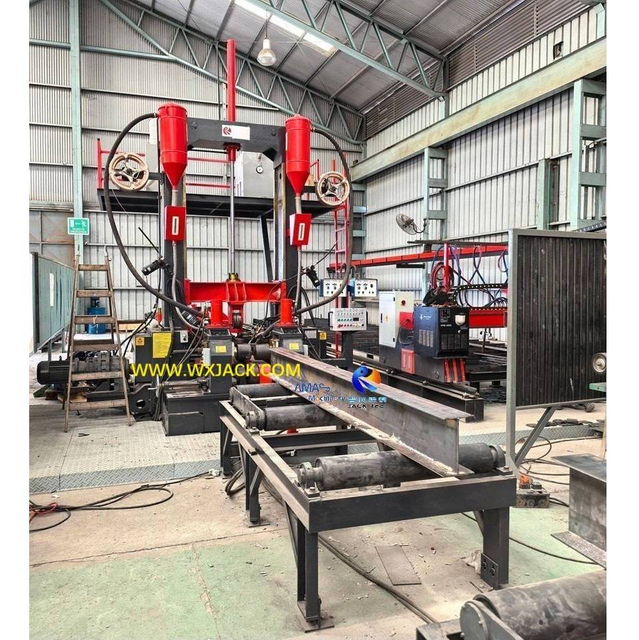

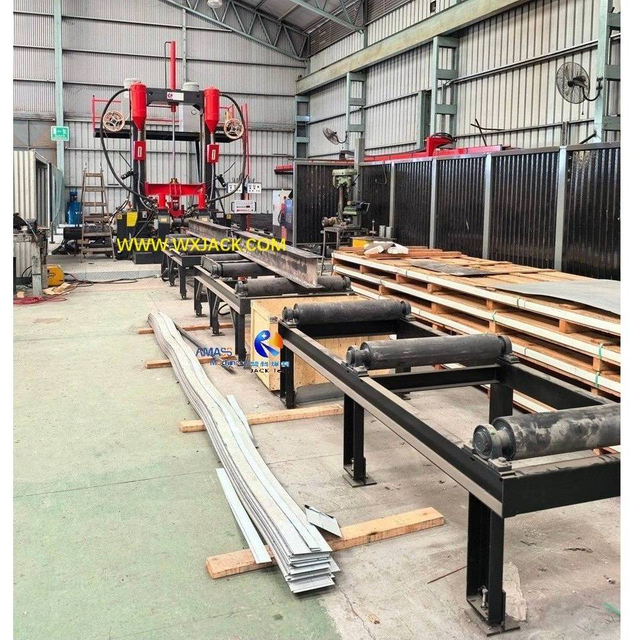

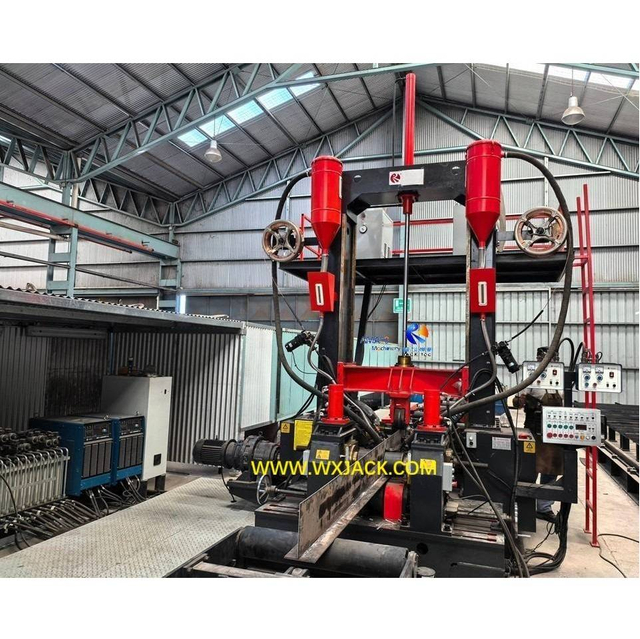

In November 2025, a set of Wuxi JACK ZHJ15 model assembly welding straightening 3 in 1 H Beam Machine, together with a set of CNC-CG3500 CNC Plasma Flame Cutting Machine, put into operation at Rosario Argentina steel structure plant:

Brief Specifications of Wuxi JACK Assembly Welding Straightening 3 in 1 H Beam Machine

Below are major technical parameters of our PHJ and ZHJ models assembly welding straightening H Beam 3 in 1 Production Machine. Specific design and model depend on customer requirement and choice. Our engineers give the most appropriate model during communication with customers:

Integral Function H Beam Welding Machine

Videos on of Wuxi JACK Three in One Integral Function H Beam Welding Machine

Leading Technical Advantages of Wuxi JACK Assembly Welding Straightening H Beam 3 in 1 Production Machine

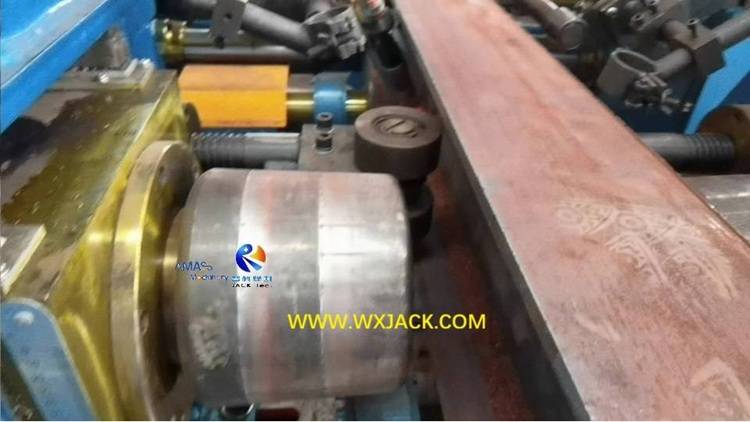

In Wuxi JACK welding 3 in 1 H Beam Machine, every step for producing welding T H Beam:
1) Flange and web fitting up --- Assembly;
2) SAW or CO2 gas shielded welding --- Fabrication;

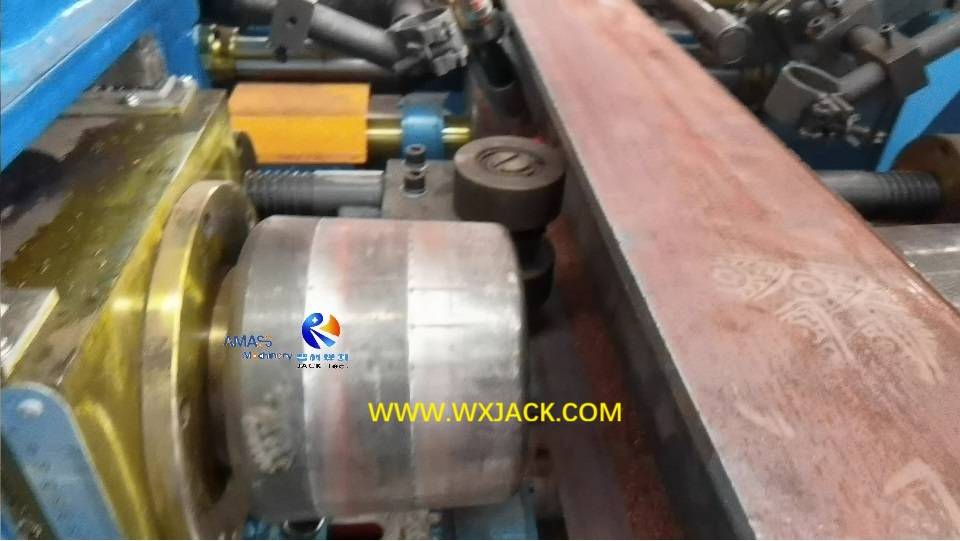

3) Deformed H Beam flange flattened after welding --- Straightening;
All have unique and advanced technique:


3 Axis Direction Control on Position of Welding Torch, in Wuxi JACK 3 in 1 Integral Function H Beam Welding Machine:

1. Necessity of Welding Position Control in Assembly Welding Straightening 3 in 1 H Beam Machine:

1) Varied Sizes of T H Beam: For every model of machine, its accommodating sizes of H Beam web height/ Flange width/ plate thickness change within certain scope. Which means, within each shift of operation, the T I H Beams for production may have its sizes varied in large extent;
2) Every time H Beam sizes change, welding torches need to be moved along 3 directions before welding:
a) X axis horizontal;
b) Y axis vertical;
c) 45° oblique angle,
So as to maintain welding torch always to be positioned at welding seam accurately;

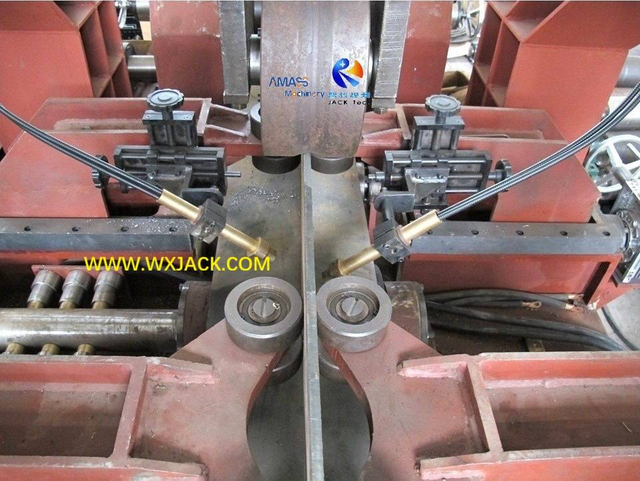

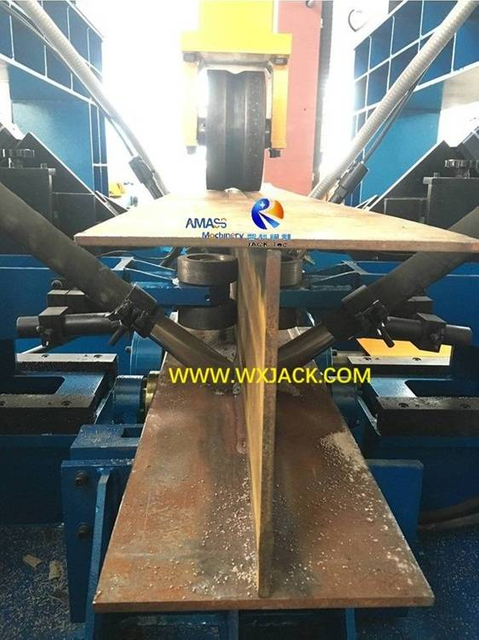

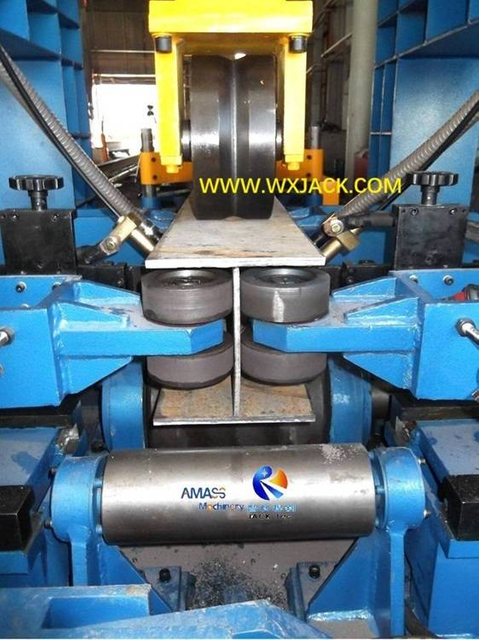

3) Always Aiming on Welding Seam Precisely: In Wuxi JACK produced three in one Integral Function H Beam Welding Machine, our welding torch mechanism has excellent capability on flexible and convenient modulation on its position, benefitting from ingenious design and delicate workmanship of this mechanism;
4) Protection on H Beam and Machine Assembly: Besides, when feeding in and sending out T I H Beam into and out of machine central function units, the two sets of welding torches should be moved away, to leave sufficient space for workpiece movement, so as to avoid collision with each other. This can give the best protection on both workpiece and function units of welding 3 in 1 H Beam Machine itself;

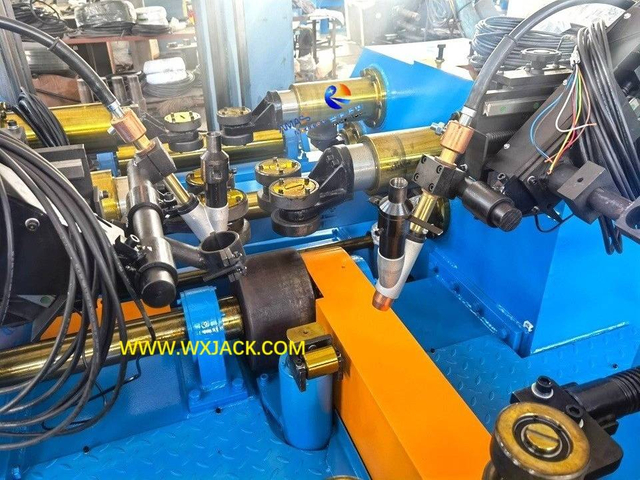

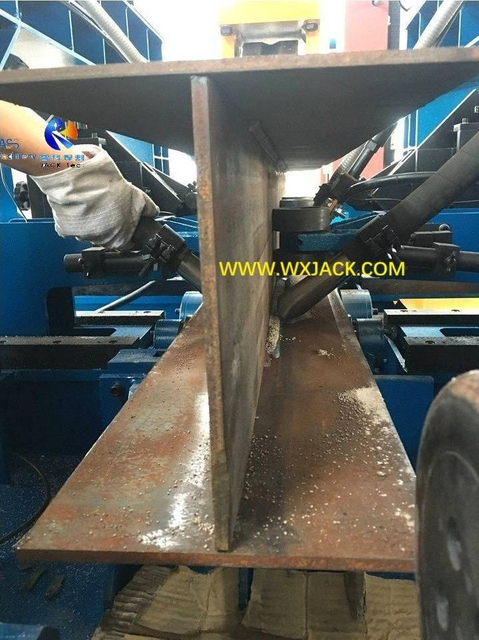

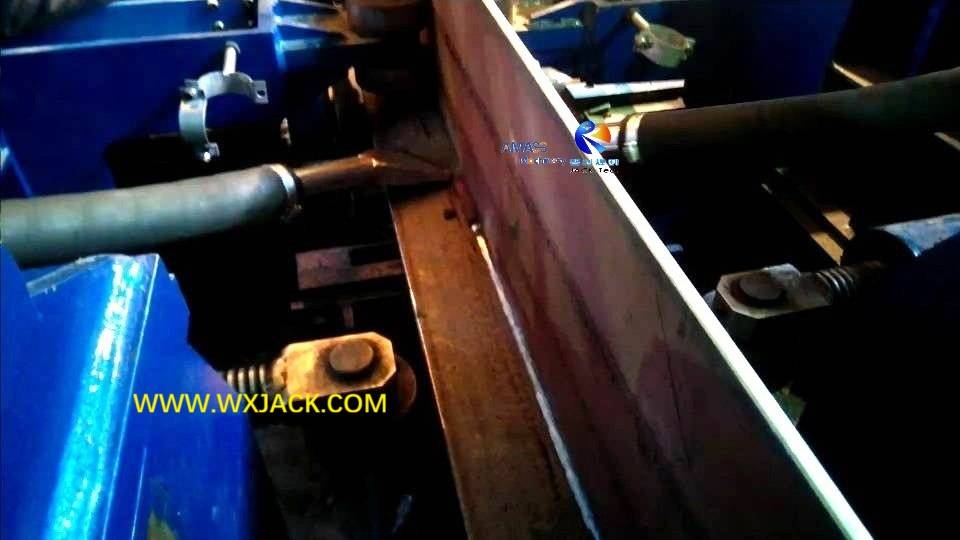

2. Welding Torch Position Change in Wuxi JACK 3 in 1 Integral Function H Beam Welding Machine:

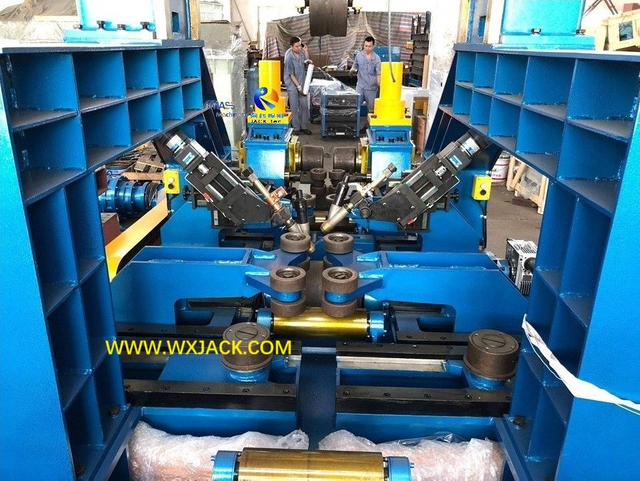

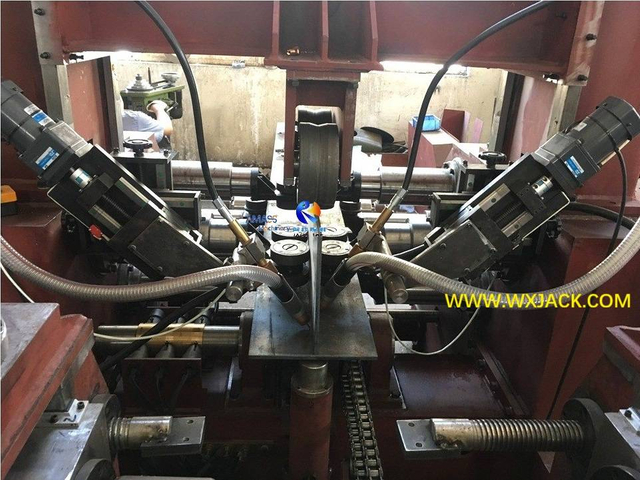

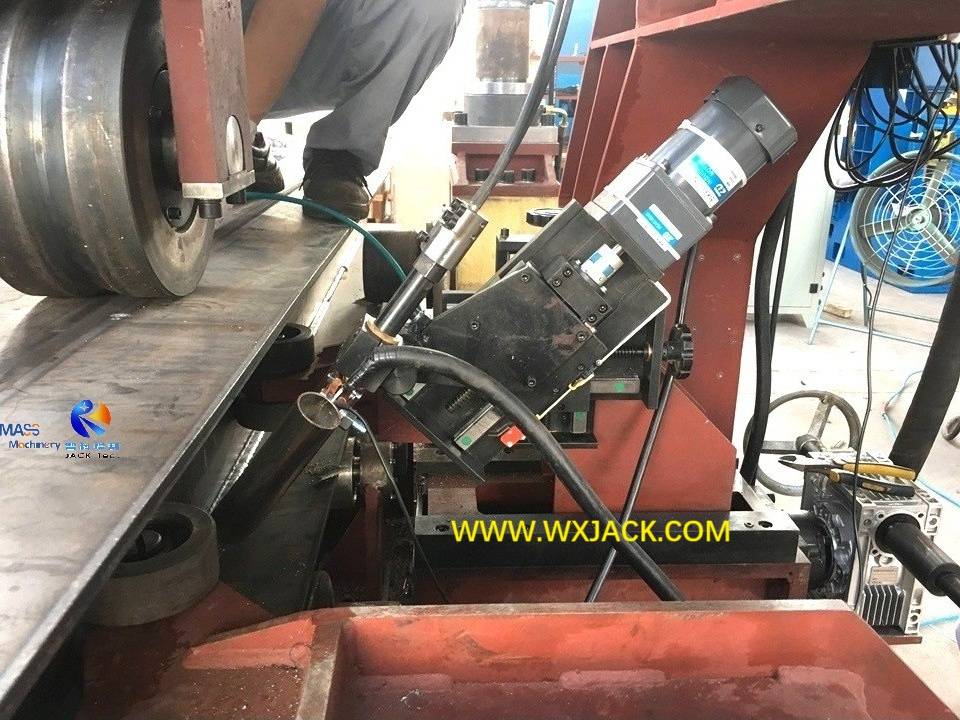

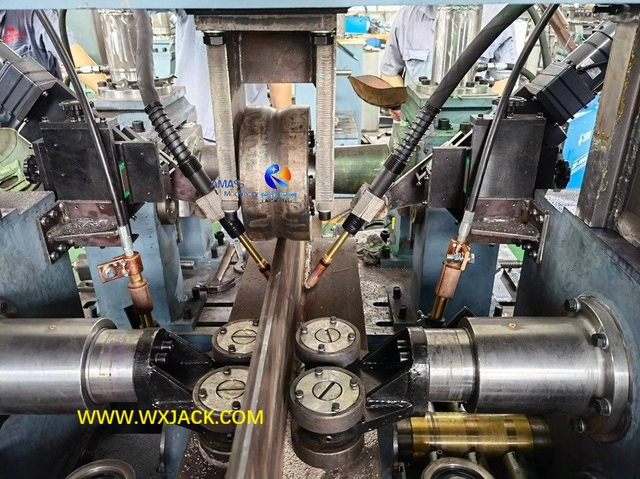

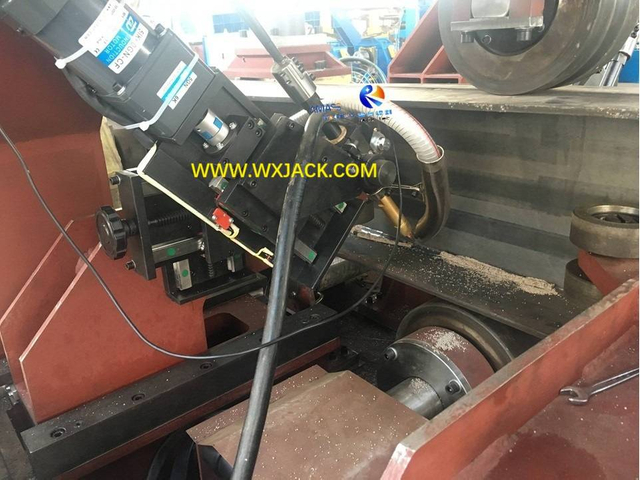

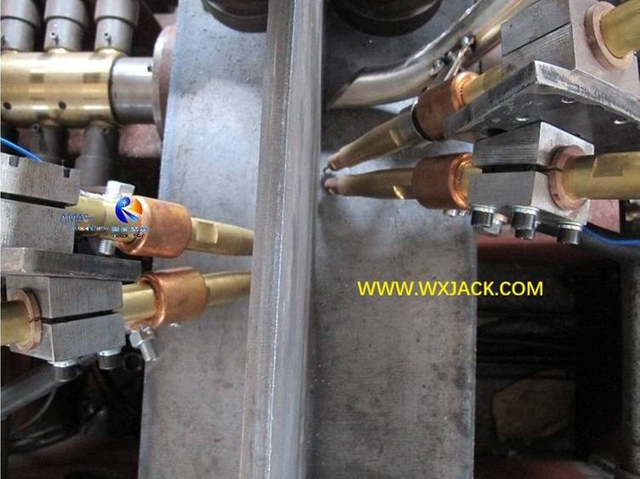

Shown from the above photos, in Wuxi JACK manufactured assembly welding straightening H Beam 3 in 1 Production Machine, under motor drive, the welding torches can be adjusted along spatial directions of:
1) Move up and down along vertical direction;
2) Move forward and backward in horizontal direction;
3) Move along slant trace in the 45° slant axis;
In this way, all the adjustment on welding torch position can be managed in precise inching mode. This Wuxi JACK uniquely applied function is really important for guaranteeing on welding quality on H Beam production.



Exclusively Owned Technical Know How of Wuxi JACK Assembly Welding Straightening 3 in 1 H Beam Machine:

1. Making Sure Satisfactory Performance of Three in One Integral Function H Beam Welding Machine:

1) Detail determines success or failure. This Wuxi JACK exclusively owned function unit, embodies fineness of our product design and manufacture level, experience gained over years, as long term professional producer of assembly welding straightening H Beam 3 in 1 Production Machine;
2) Over the past decade, by working with hundreds of customers, and focusing on continuous improvement on our machines, we have embedded unique and ingenious technical know how in every detail of our machine;



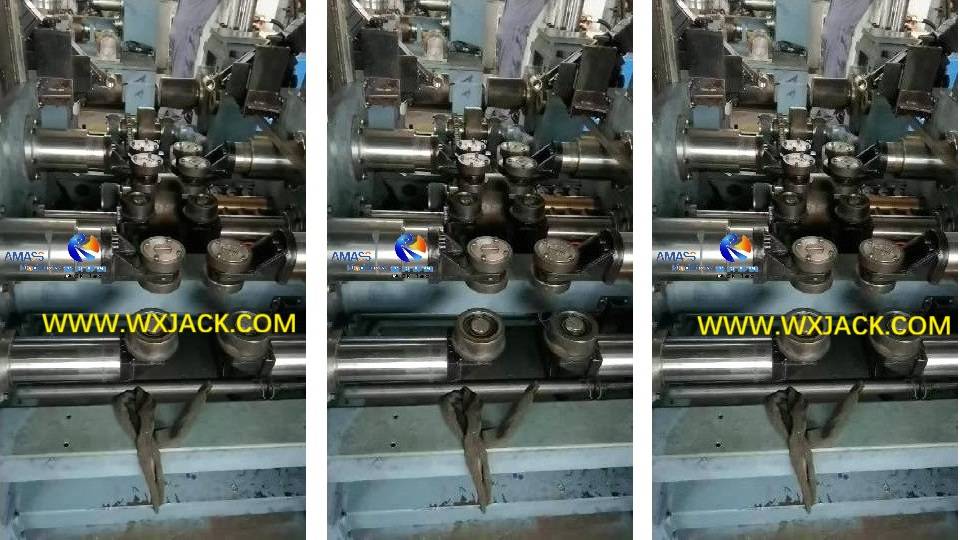

2. Wuxi JACK Exclusive Unit for Assembly on Small Thickness Flange with Welding H Beam 3 in 1 Production Machine:

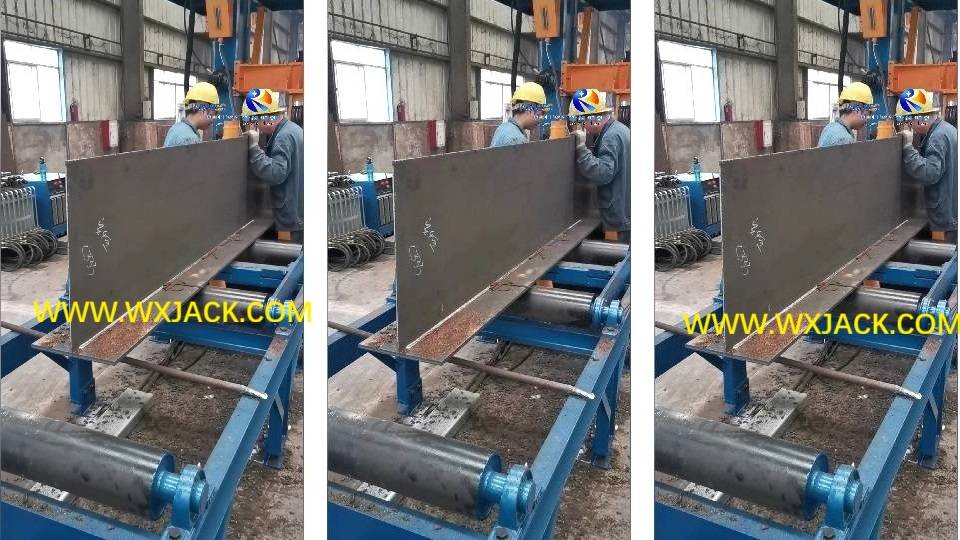

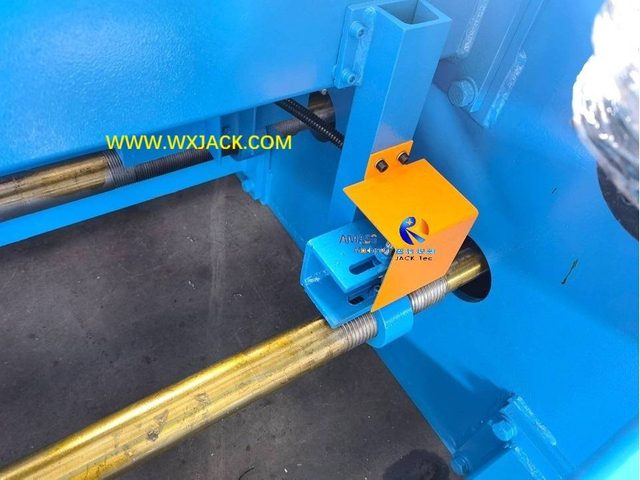

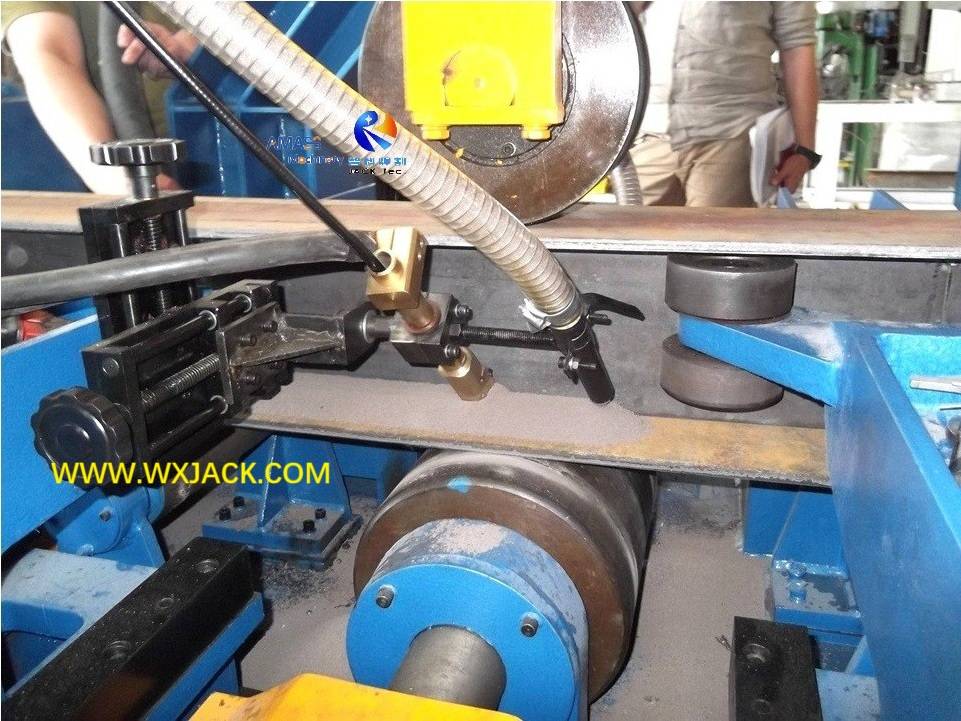

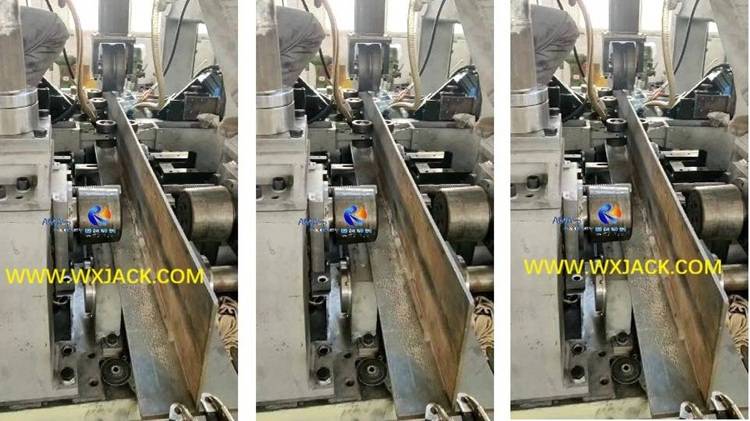

The above photos show detection and uplift unit for assembling on long and thin flange with web during H Beam fabrication:
1) Problem Solving: During fitting up long length small thickness web and flange, if flange thickness is only 5 ~ 6mm (Which is often appeared in practical use), these long thin parts are prone to drop down due to its softness, during being fed into the machine. This will lead to inaccurate assembly effect into first T Beam and then H Beam;
2) To prevent this issue from happening, we have introduced this delicate detecting and uplifting unit, for accurately assembly on small thickness long length flange and web first into T Beam and then into H Beam, guaranteeing on precise alignment and assembly on all kinds of workpieces. This further promises on 100% assembly accuracy and finished I H Beam quality, delivered from Wuxi JACK assembly welding straightening H Beam 3 in 1 Production Machine.

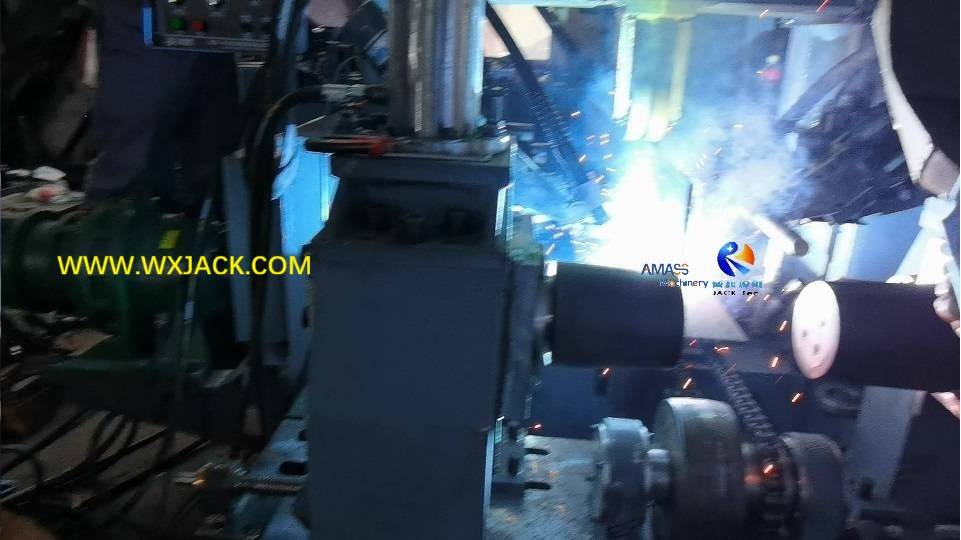

Welding Technique and Operation in Wuxi JACK Three in One Integral Function H Beam Welding Machine

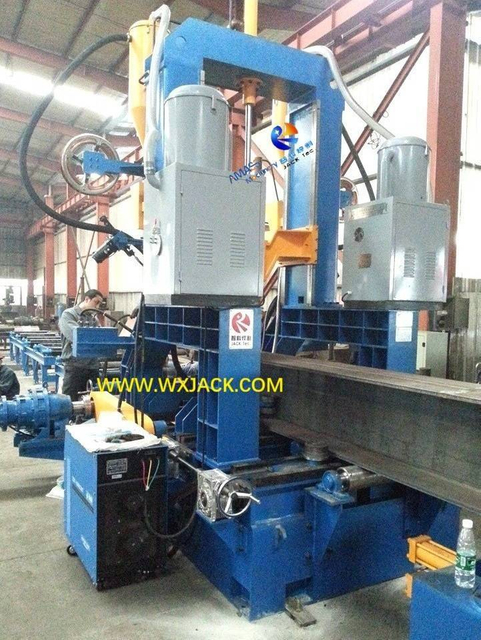

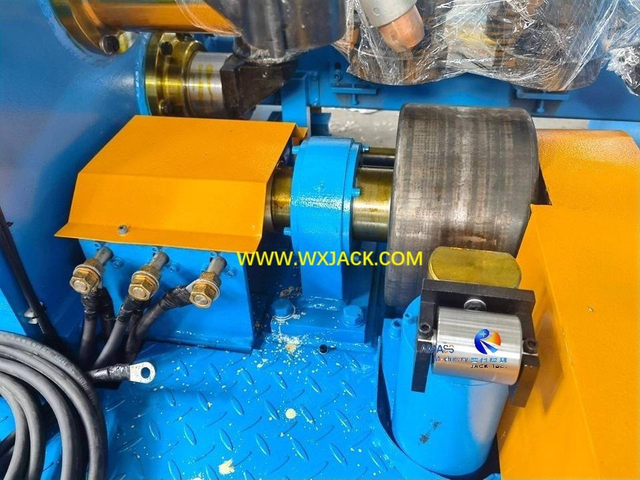

1 Three in One Integral Function H Beam Welding Machine 29

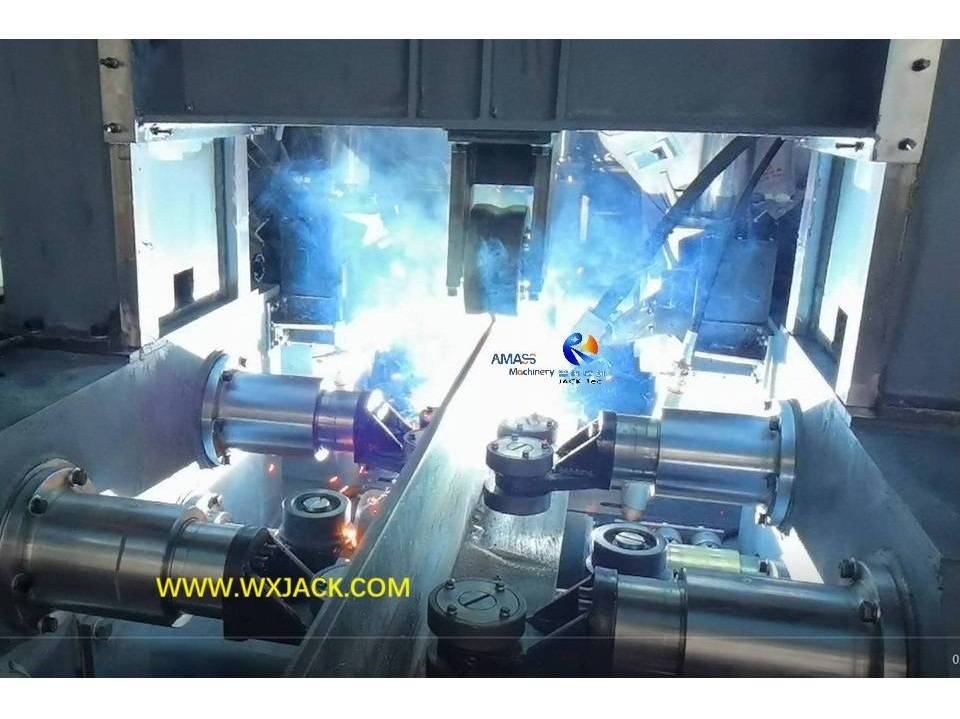

2 Three in One Integral Function H Beam Welding Machine 105

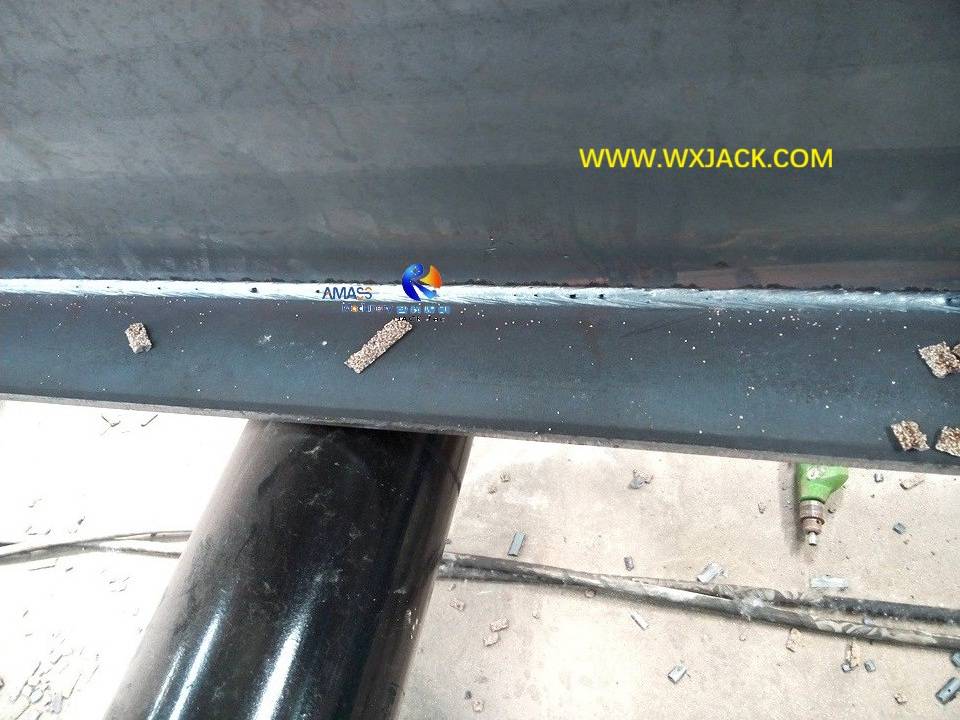

3 Assembly Welding Straightening H Beam 3 in 1 Production Machine 20
4 Assembly Welding Straightening H Beam 3 in 1 Production Machine 60
5 Three in One H Beam Welding Machine 14

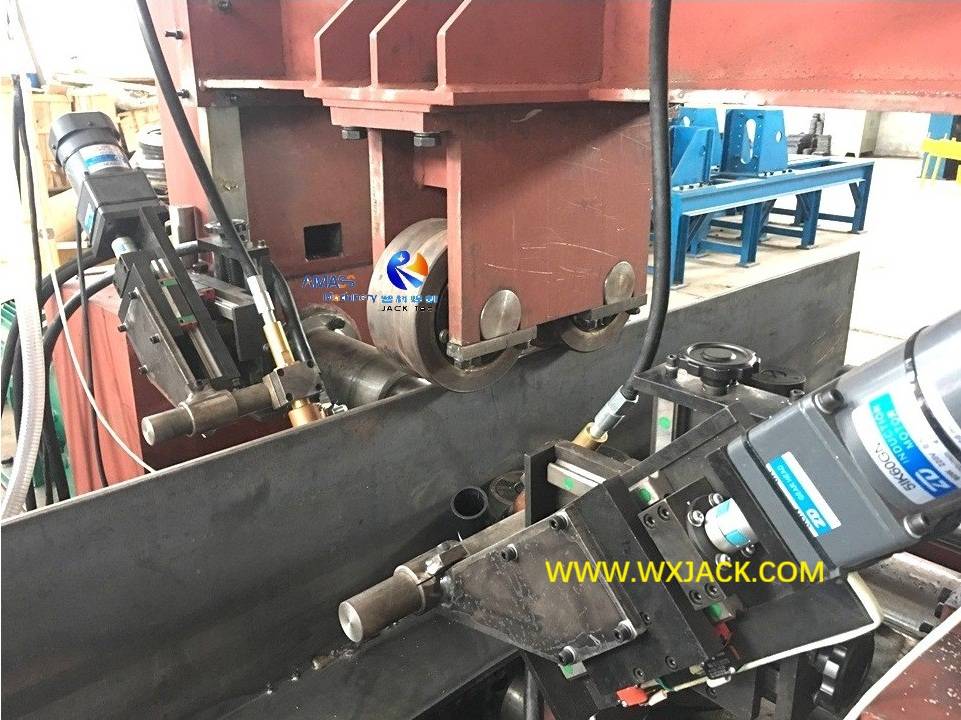

6 Three in One H Beam Welding Machine 148 IMG_1444
7 3 in 1 Integral Function H Beam Welding Machine 114 IMG_6908

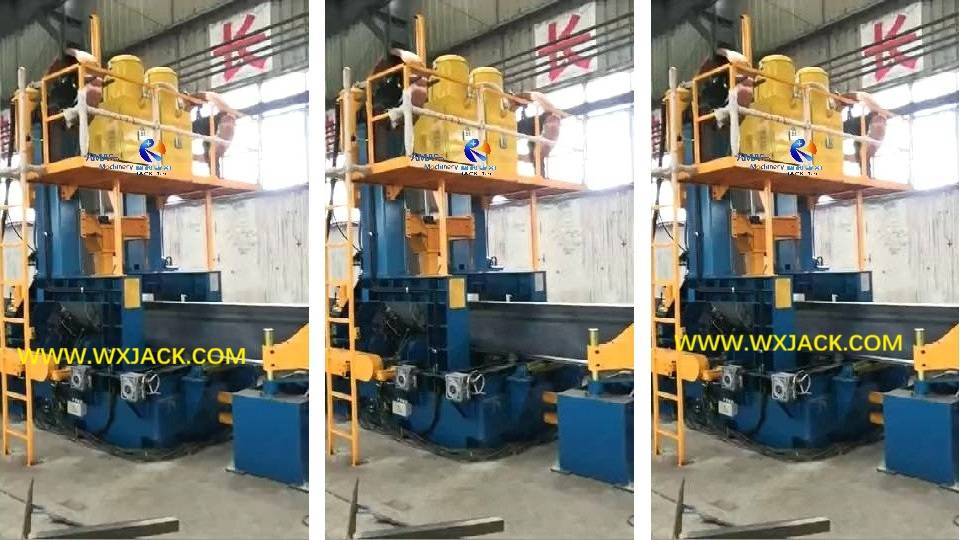

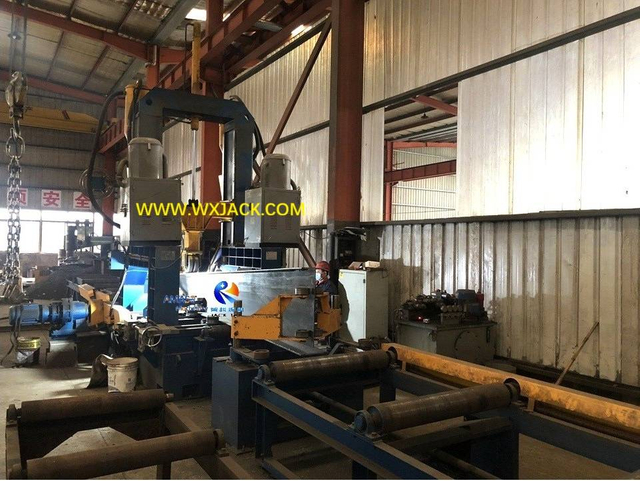

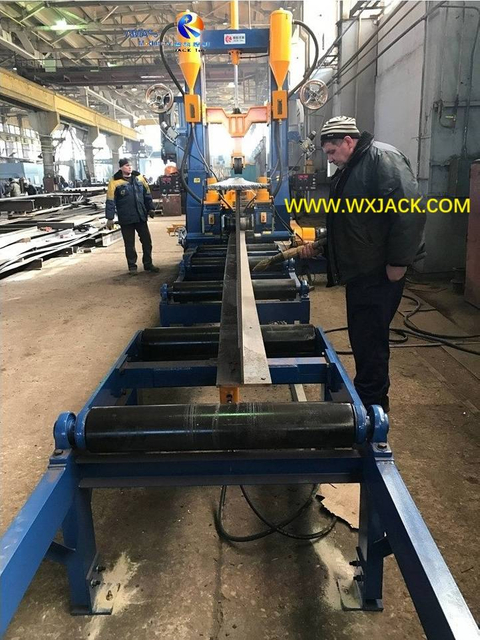

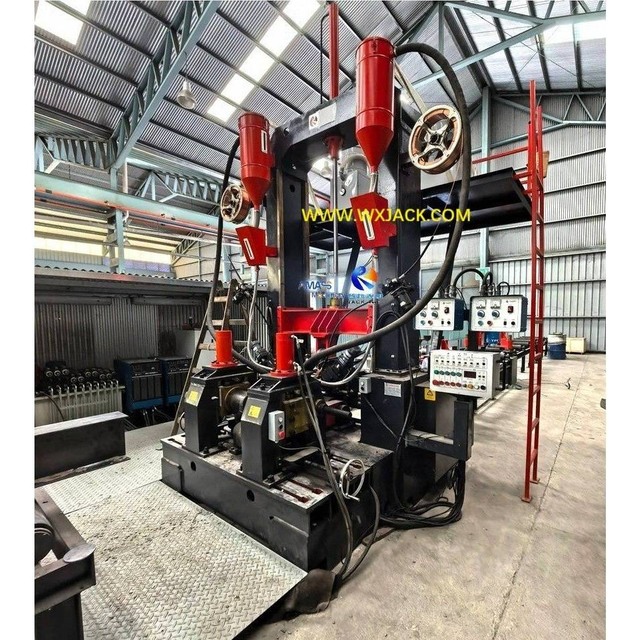

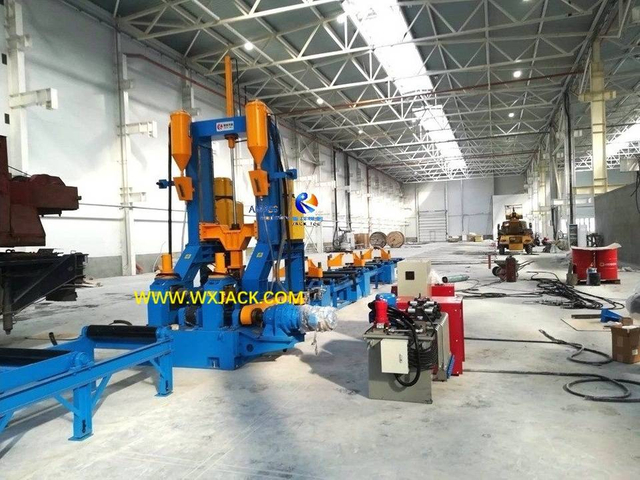

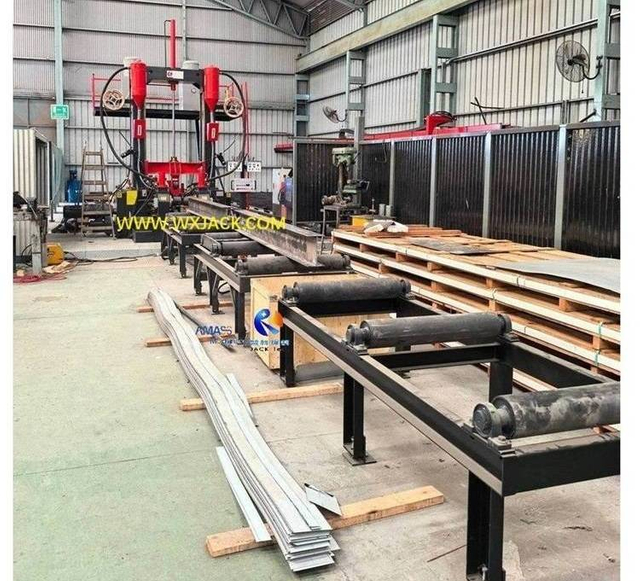

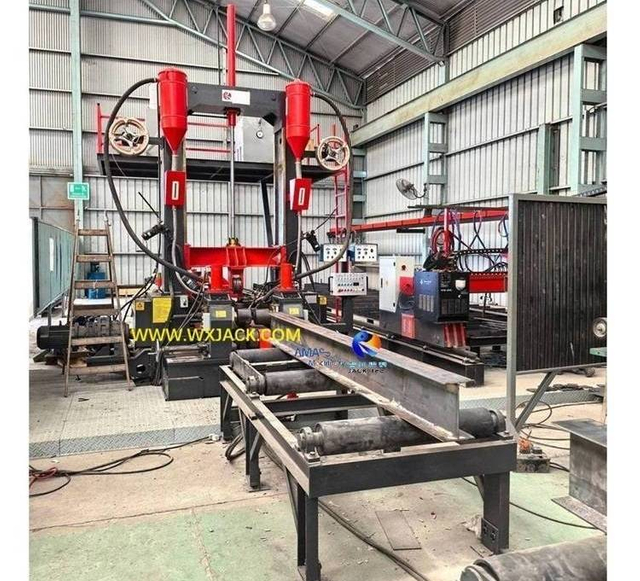

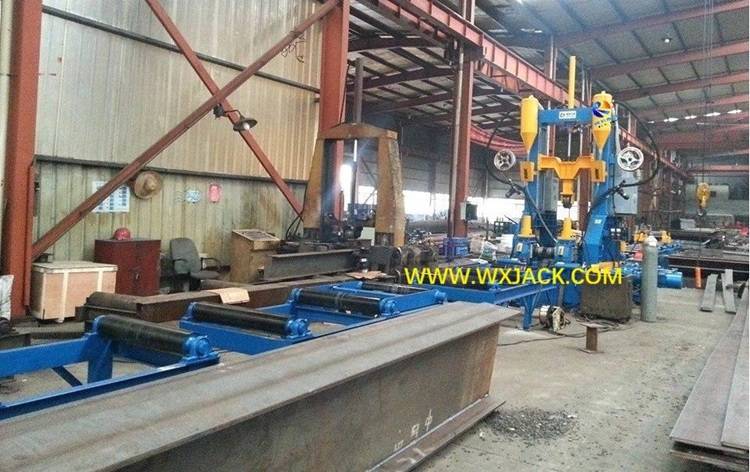

Working site of Wuxi JACK PHJ15 model 3 in 1 Integral Function H Beam Welding Machine at Customer Facility
Integral Function Three in One H Beam Welding Machine 42

Welding Modes Applicable for 3 in 1 H Beam Machine

More >>

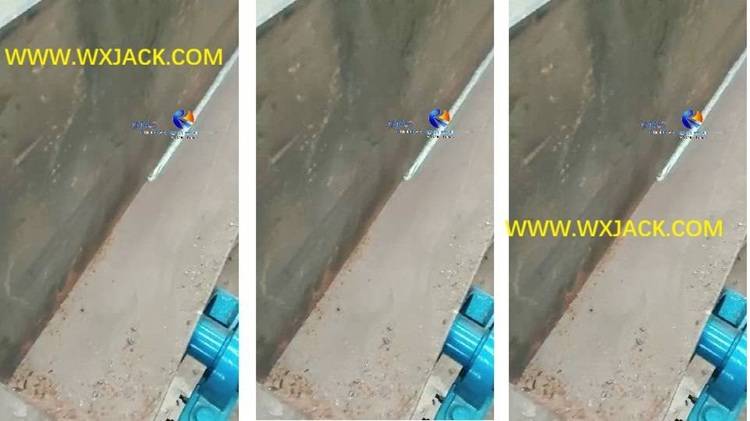

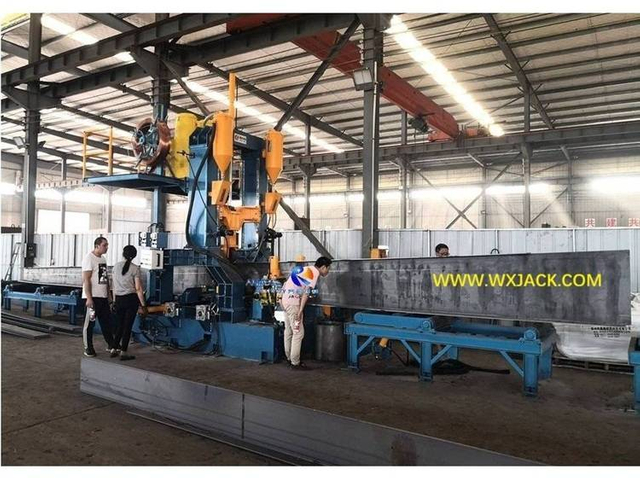

Lefthand scrolling photos: Operation moment of Wuxi JACK assembly welding straightening H Beam 3 in 1 Production Machine and its finished workpieces

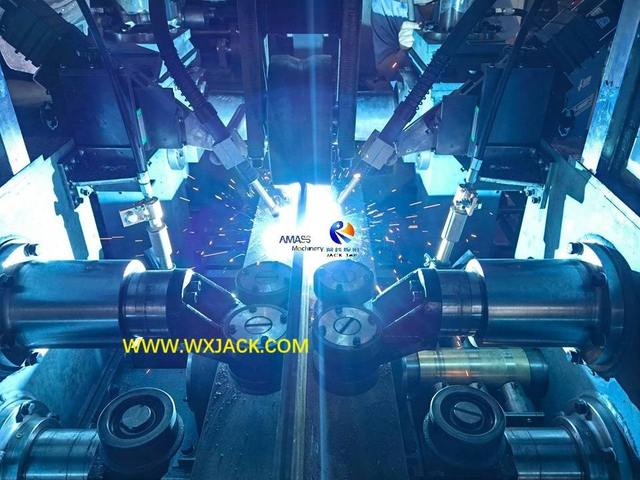

0° Flat SAW or GMAW Welding in Assembly Welding Straightening 3 in 1 H Beam Machine:

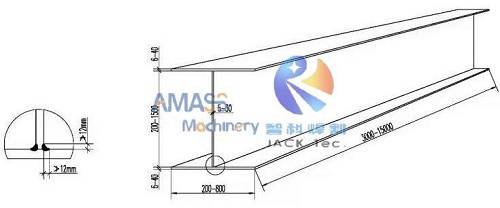

1. Shown in the below sketch, H Beam to be produced in this machine stands in vertical orientation. Accordingly, welding is performed in flat position: (Fig.2)

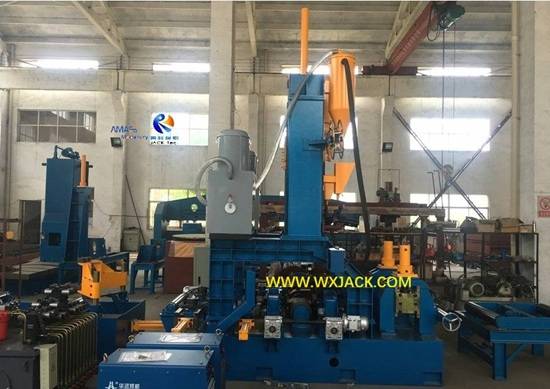

Fig1 Integrated Function H Beam Welding machine


2. This is the reason why this machine focuses on producing light to medium duty welding T I H Beam (“Light to medium duty” refer to: The finished welding seam have toe size of 8~ 12mm);
3. The second feature in working modes of the machine is, benefitting from its integrating assembly/ welding/ straightening units together in a row in its function unit, T Beams and H Beams are produced from steel plates with its passing through of the machine: The first time flange and web pass through is fabricated into T Beam; The second time pass through is fabricated into H Beam. This is the reason the machine is often called “Assembly welding straightening 3 in 1 H Beam Machine”;
4. Welding Modes: Over 90% of applicating cases of the machine is with Single Arc/ Twin Arc/ Tandem Arc SAW (Submerged arc welding): The finished T I H Beam flange and web plate thickness is 6mm ~ 40mm; Under 10% customer choose GMAW CO2 gas shielded welding, for producing 3mm ~ 6mm plate small thickness T H Beams.

Development Journey on 3 in 1 Integral Function H Beam Welding Machine

1) Importance: H Beam, also named as I Beam, is the most extensively used workpieces in steel structure industry. Correspondingly, assembly welding straightening H Beam 3 in 1 Production Machine is the principal equipment being applied in this field, from year 2009 until today 2025;
2) Wide Variety: This machine has undergone rapid growth and diversified development from its inception, on its structure/ configuration/ personalized functions. Today, when customers plan to purchase this machine, there are many factors need to be considered, before confirming on final design and configuration.


A. Develop History of Assembly Welding Straightening H Beam 3 in 1 Production Machine:

1. This machine was initiated in the year 2000, push to market in year 2009 by Wuxi JACK, popularized over the past 16 years to today year 2025, and sees widespread production in industry by more and more companies. In other words, although it has large market demand, the competition also grows fiercer;
2. Wide Diversification: Because it is so popular, structure and configuration also gradually diversified among companies, leading to different levels of manufacture cost/ machine price/ performance level. As customer first encounter on the welding 3 in 1 H Beam Machine, the variety of machine may make you dazzled, and at a loss on how to make wise choice;
3. Its development purpose is to partly replace traditional H Beam Production Line, combining the original 3 machines for H Beam assembly/ welding and straightening into one machine;
4. Ideology: People always seek easier/ smarter/ more cost effective affordable machine. Therefore, functions were integrated into one, thus bring along wise solution of:

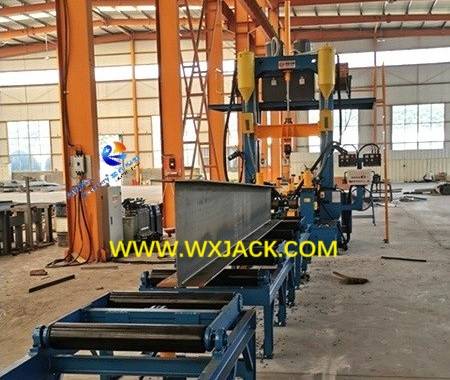

1) Wuxi JACK ZHJ15 model assembly welding straightening 3 in 1 H Beam Machine: (Fig.1)
Fig1 Integral Function 3 in 1 H Beam Welding Machine 30

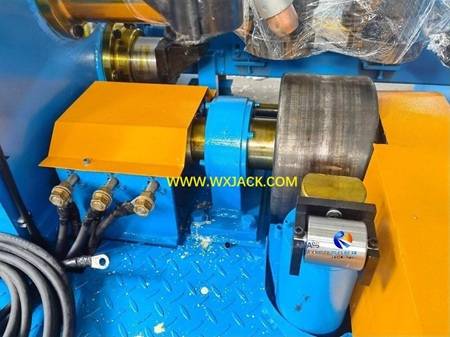

2) Vertical View: From top to bottom, combined assembly/ welding/ straightening function devices in Wuxi JACK welding H Beam 3 in 1 Production Machine: (Fig.2)

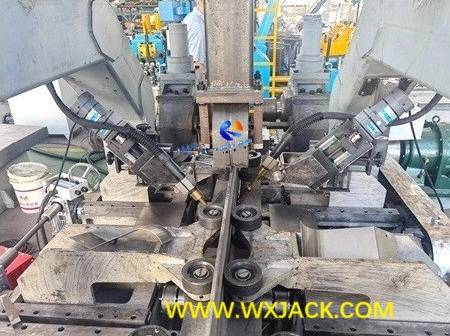

Fig2 Integral Function 3 in 1 H Beam Welding Machine 2 IMG_20220912_092427

5. Strong Points of Assembly Welding Straightening H Beam 3 in 1 Production Machine:

The consequent merits are countless: Saving investment/ utility/ floor occupation/ raising efficiency... You name it:
1) Financial Benefit: Substantially boosts manufacturing efficiency, lowers running expenses, conserves installment space;
2) Friendly for Process Technology: Flexible arrangement of machine, not only as individual, but also new type of production line.


B. Work Pace of 3 in 1 Integral Function H Beam Welding Machine:

This machine simplifies H Beam production with breakthrough:
1. In traditional H Beam Production Line, different functions are distributed among different work stations, which need to work in coordination, and hence line balance rate is a critical index for managing on highly efficient production;
2. Comparatively, in this newly generation machine, the original unbalanced production route can be simplified into a single point, and working productivity is greatly raised:
The high fluent production brought with Wuxi JACK 3 in 1 Integral Function H Beam Welding Machine, 2 sets forming a line: (Fig.3)

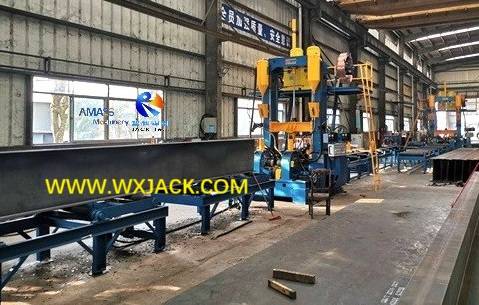

Fig3 3 in 1 H Beam Steel Structure Fabrication Machine 26

3. Upgrade on Assembly Welding Straightening H Beam 3 in 1 Production Machine:

1) Friendly Operation: As result of H Beam double sides welding, heat effect on four corners of H Beam flange is well balanced to the best degree, which relieves duty of subsequent straightening;
2) It not only ensures satisfactory welding quality: Deeper penetration and broader cover face, but also makes it much easier to eliminate interior stress post fabrication;
3) More Variety of Welding Modes: Besides, compared with traditional H Beam SAW Welding Machine, which only has one welding technology of single type single arc 45° fillet SAW welding, here in this assembly welding straightening 3 in 1 H Beam Machine, welding mode selection is more flexible, there are 4 to 5 types available for choice, which meets on customers requirement on productivity/ cost/ welding seam formation separately.

Technical Evolution on Wuxi JACK Assembly Welding Straightening 3 in 1 H Beam Machine

Journey: From year 2009 as pioneer on this machine, to today in Nov. 2025 year as backbone supplier, Wuxi JACK 3 in 1 Integral Function H Beam Welding Machine experiences technical evolution with time going, advancing toward better performance, more reasonable structure and operation. The tenet behind our hard work is: “There is never the best, there is always the better waiting ahead”.
Below are 4 typical upgrades on machine design and equipment over the past 10 year from 2015 to today 2025 year ending, that notable for record:


1. Welding Torch Mechanism of 3 in 1 Integral Function H Beam Welding Machine:

1) Before: Welding Torch Mechanism of Assembly Welding Straightening 3 in 1 H Beam Machine:

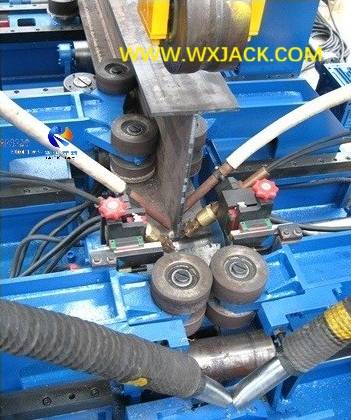

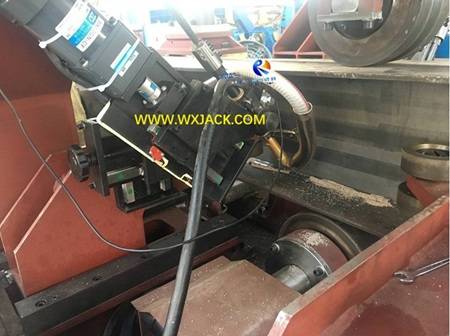

1 Fig1 Welding H Beam 3 in 1 Production Machine 209
a) As shown in the above photo, that there is no means for adjusting and guaranteeing precise position of welding torches;
b) Accordingly, operators should command on proficient skill, on manipulating welding torch positions;
c) Besides, even after welding torch position is adjusted to correct level, it is easy to drift away during welding operation, because of no fixture on welding torches;
d) Thus, welding torch position and hence quality can not be fully controlled, and operator needs to watch on welding process all the while;
e) Need to emphasize is, until today by November 2025 year, over 90% companies still have their welding torch mechanism in such design;

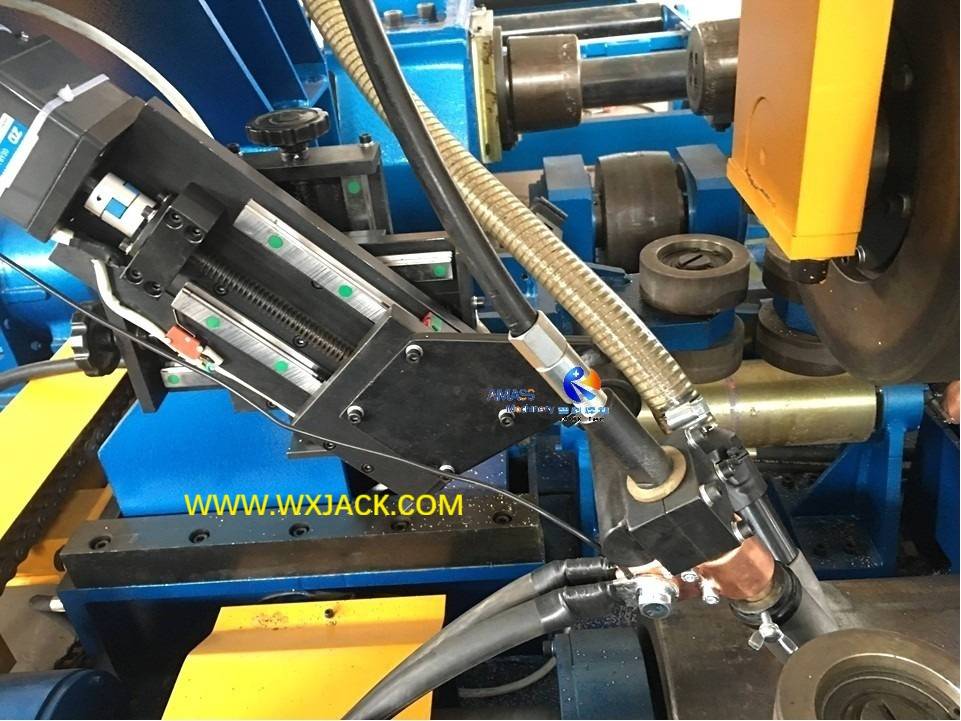

2) After: Welding Torch Mechanism of Assembly Welding Straightening 3 in 1 H Beam Machine:

a) Around 10 years ago in year 2015, Wuxi JACK engineers gave full play to their intelligence and wit, absorbing feedbacks from customers, and introduce new type of welding torch mechanism in our 3 in 1 Integral Function H Beam Welding Machine, as shown in below photo:

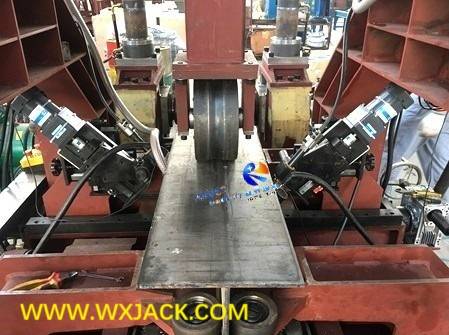

2 Fig2 Three in One H Beam Assembly Welding Straightening Integral Machine 12

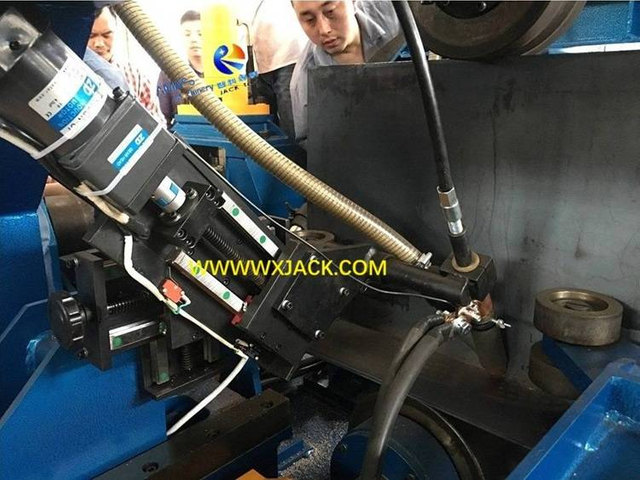

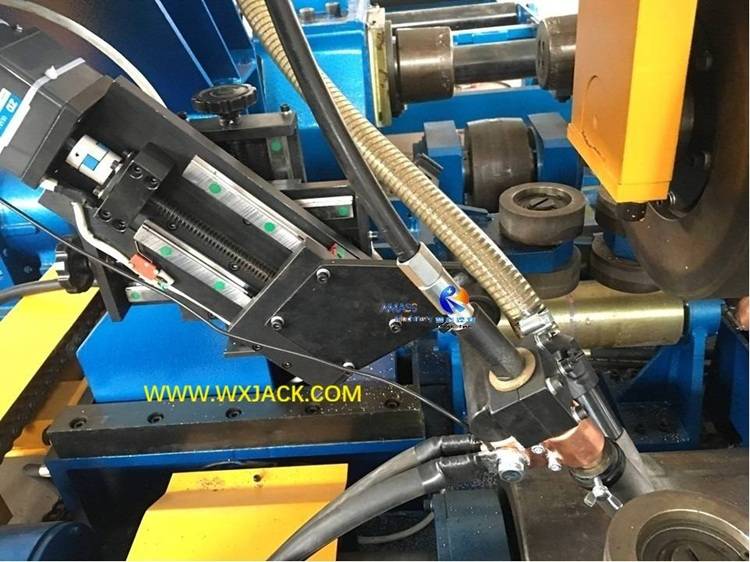

b) Welding torch is installed onto a motor drive cross slides, with high precision linear guiderails installed along horizontal and vertical directions. The welding torch itself is oriented in 45° slant angle;
c) In this way, operator can easily modulate on position of welding torch in precise way, and position is maintained during the entire welding period without any drift;
d) This can not only fully guarantee on welding performance, but also relieves operator labor intensity during operation: Operator just need to sit alongside, to watch on machine operation;
e) Until today by November 2025 year, in this industry, still only Wuxi JACK has such ingenious design on welding torch mechanisms of our H Beam 3 in 1 Production Machine.



2. Downward Pressing Roller Mechanism of Assembly Welding Straightening H Beam 3 in 1 Production Machine:

This is another critical point in technical aspect, which differs Wuxi JACK welding 3 in 1 H Beam Machine from other producers:
1) Transient Design on Downward Press Roller:
There had once been over short period, our H Beam upper flange press roller is with this design, that its up and down guidance is by means of 4 pieces of rollers, as shown in the below photo:

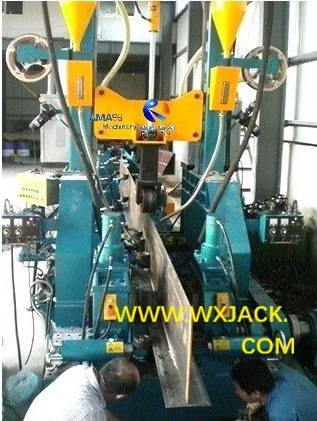

3 Fig3 Three in One H Beam Assembly Welding Straightening Integral Machine 163

2) Revised Design in Assembly Welding Straightening 3 in 1 H Beam Machine:

a) But soon we found out that, such design is not so stable and durable, especially after long time use, although it can reduce manufacturing cost, and hence bring along more profit to us;
b) Accordingly, Wuxi JACK engineers adopted again the original design of downward press unit, of rectangular box structure, guided with 4 pieces of heavy duty linear guiderails. In this way, the contact gliding surface area is greatly enlarged, promising more stable/ reliable / durable holding on flange and web during T H Beam fabrication:
4 Fig4 Three in One H Beam Assembly Welding Straightening Integral Machine 179
c) Need to emphasize is, until today by November 2025, such design is unique label of Wuxi JACK 3 in 1 Integral Function H Beam Welding Machine: That if you find such structure, you can 100% sure this machine is produced by Wuxi JACK.

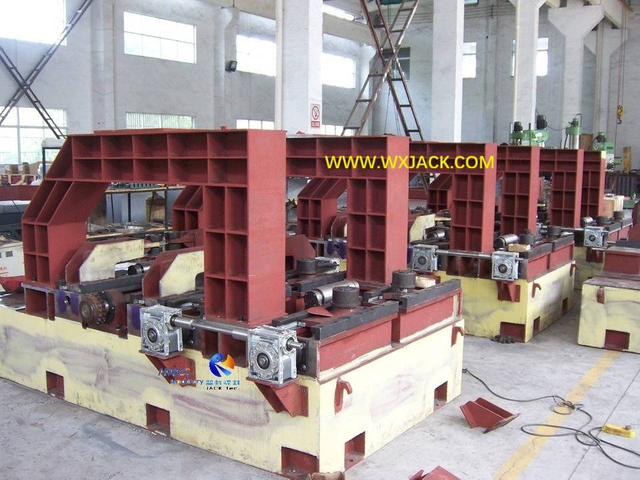

3. Lateral Mechanical Base Bed of PHJ Models Assembly Welding Straightening 3 in 1 H Beam Machine:

The above left 2 photos compare on before and after design on pedestal of PHJ models.
Noted: The before design itself is very good design. The reasons we changed design are:

1) Stronger mechanical strength: As can be seen from the photo, the before design is with several pieces of steel plates and assemblies fabricated together, while the new design is with integral structure;
2) Under the precondition of maintaining superior performance, new design can reduce machine production cost, so as to lower down welding 3 in 1 H Beam Machine quotation accordingly. This makes our machines more competitive in the market;
3) More convenient use: The new design is easier to clean and service, because it has more concise structure. This will bring convenience for customer operator during daily operation;
The above right 2 photos demonstrate on the old and new design of, erected Wuxi JACK PHJ models assembly welding straightening 3 in 1 H Beam Machine;
Complement: Mechanical base structure of ZHJ models is different from PHJ series, and always kept unchanged over the past 16 years from 2009 to 2025. It is classical design.

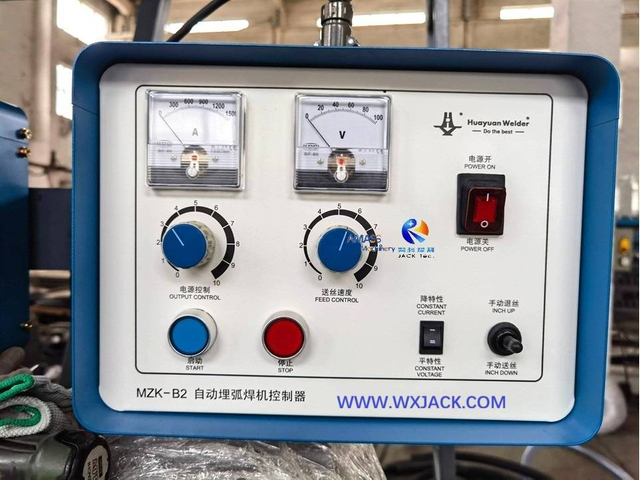

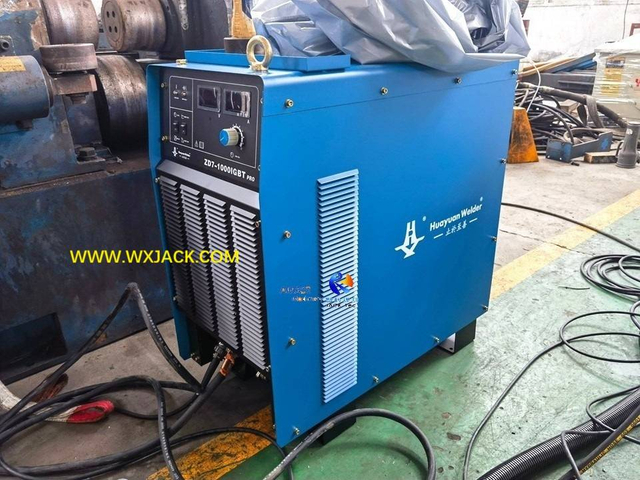

4. Welding Power Supply Equipped with 3 in 1 Integral Function H Beam Welding Machine:

This is another great leap forward in development history of assembly welding straightening H Beam 3 in 1 Production Machine:
a) At early stages of this machine, welding power supplies were all Lincoln brand, D.C1000 for single arc SAW in majority, or DC1250 plus AC1200 for tandem arc SAW;
b) Later years see rapid development of Chinese local brand welding machines, especially after year 2015, Chinese welding machines gradually taken place of Lincoln brand, because of its merits of:
1) Cost effectiveness: Much lower price, and good quality. This helps companies offer more affordable machine quotation for customers;
2) More shorter lead time, benefit for shortening lead time of welding 3 in 1 H Beam Machine accordingly;
3) More quick reaction on after sale service, this is easy to understand, that it is more time saving to communicate with engineers in China than in America;

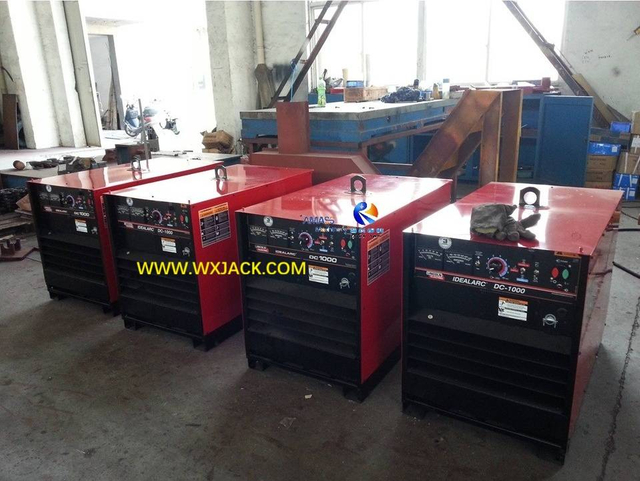

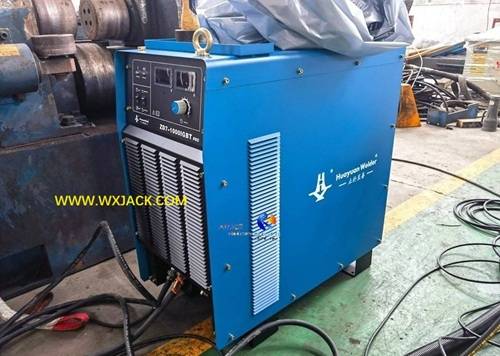

2 stages of SAW welding machines to be equipped with 3 in 1 Integral Function H Beam Welding Machine:

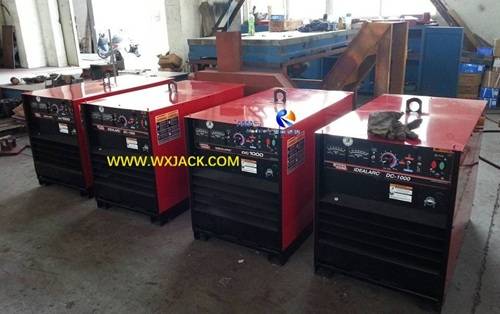

American Lincoln Brand
Chinese Local Brand
Today by end of year 2025, Chinese local brand welding power supply takes over 90% of market share in the field of welding 3 in 1 H Beam Machine. It is default configuration of machine, unless customers specifically designate other brands.

Application and Related Equipment of Assembly Welding Straightening H Beam 3 in 1 Production Machine

Below other common seen machines and equipment, which are applied in steel structure industry:

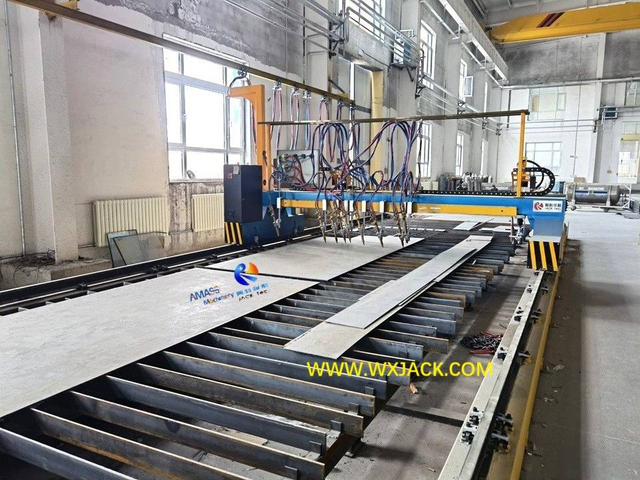

CNC-CG4000 CNC Strip Flame Cutting Machine

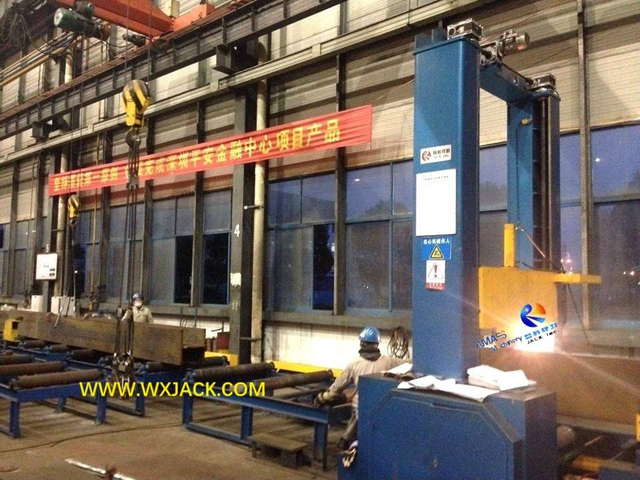

Z15 H Beam Assembly and Tack Welding Machine

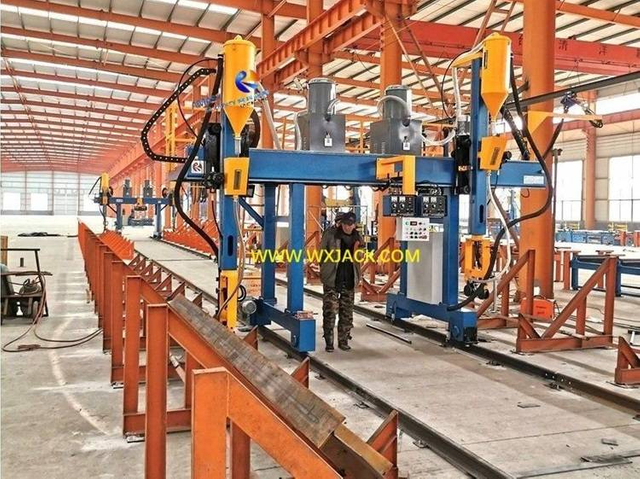

LHT H Beam Gantry SAW Welding Machine

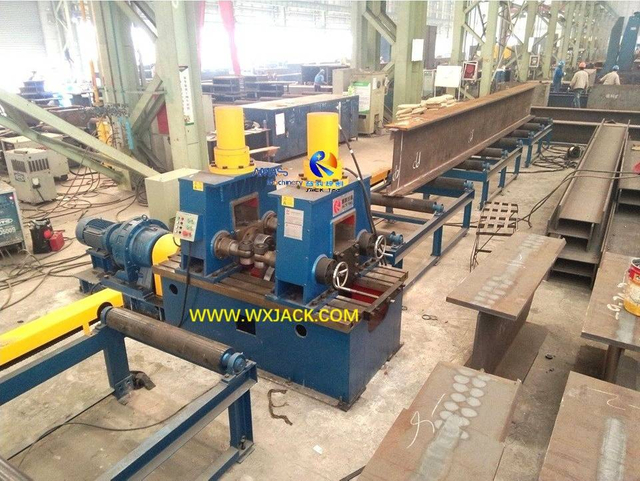

YTJ60 Hydraulic Drive H Beam Straightening Machine

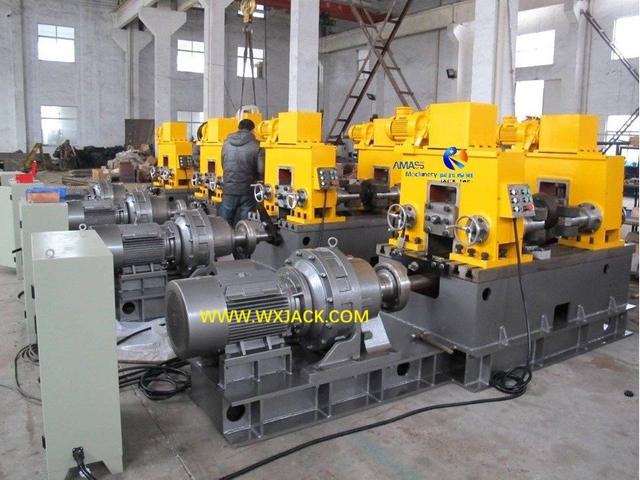

HYJ800 Motor Drive H Beam Straightening Machine

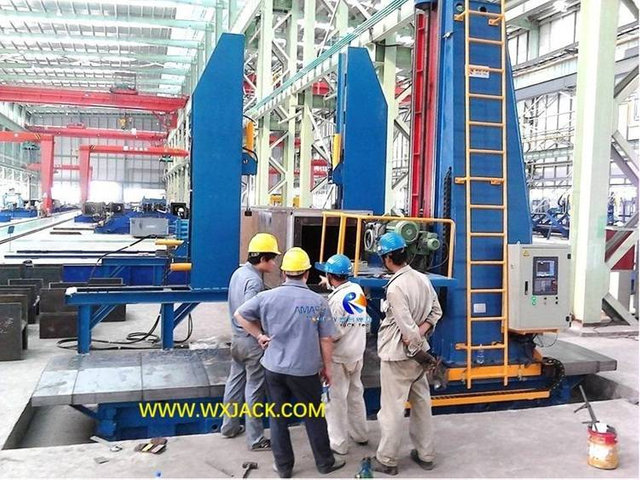

CNC-DX3030 Cross BOX H Beam CNC End Face Milling Machine

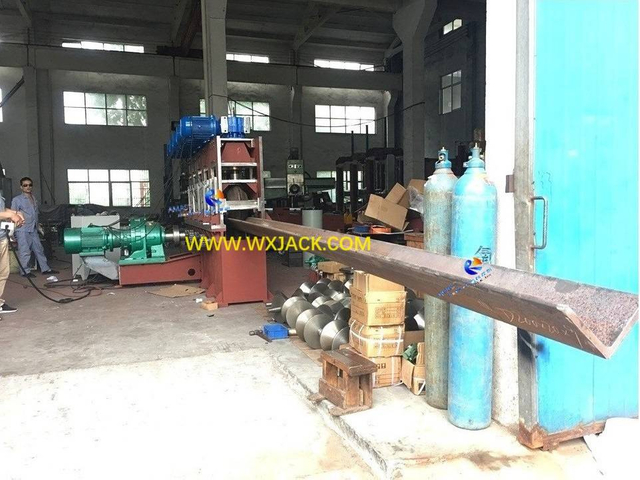

ASM200 Angle Steel Straightening Machine

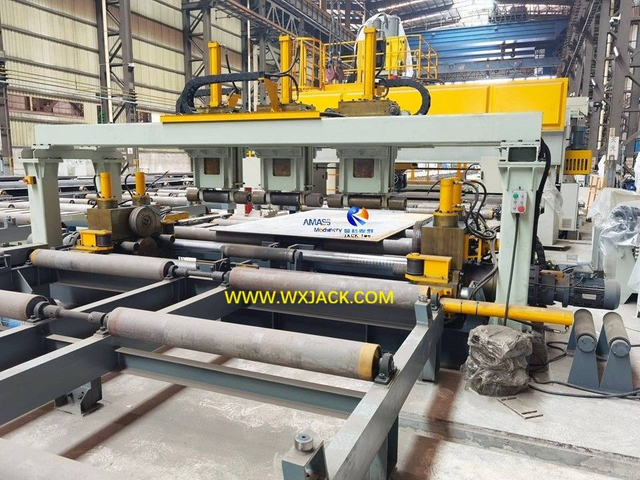

RH3000 Wide Plate Edge Rounding and Deburring Machine

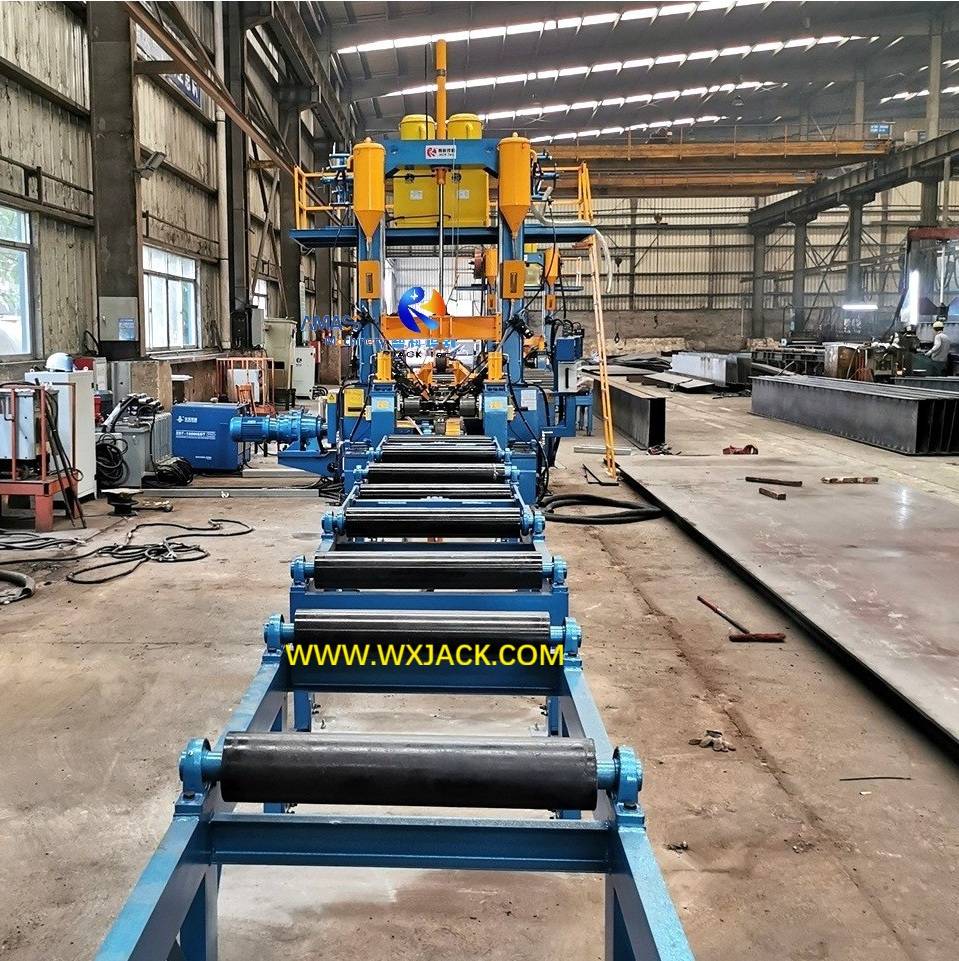

Three in One H Beam Welding Machine
01

Three in One H Beam Welding Machine
02

Three in One H Beam Assembly Welding Straightening Integral Machine
03

FAQ on Wuxi JACK Three in One Integral Function H Beam Welding Machine

Below are some frequently asked questions from customers, when consider and communicate with us purchasing welding H Beam 3 in 1 Production Machine. Especially over the past recent years to end of year 2025:


  • Q What is standard on Distinguishing medium duty H Beam for Welding 3 in 1 H Beam Machine, and heavy duty H Beam for H Beam Production Line?

    A
    1. 1) There is no explicit definition and distinction between medium and heavy duty H Beam in Steel Structure industry. In common practice, 12mm toe height welding seam is the threshold for distinguishing heavy and medium duty H Beam;
    2. 2) Three in One Integral Function H Beam Welding Machine can complete 12mm welding toe on finished H Beam with single time welding pass; For heavier duty workpieces with 12mm bigger welding seam, H Beam Gantry SAW Welding Machine should be used, which can be referred to as “heavy welding”;
    3. 3) The 2 machines have different welding orientations when welding on H Beam, 0° versus 45°.

  • Q What is Welding Mode adopted in Wuxi JACK Three in One Integral Function H Beam Welding Machine?

    A
    1. 1) Majority of welding 3 in 1 H Beam Machine is equipped with single arc 1000A SAW (Submerged arc welding), which is applicable for producing 10mm ~ 40mm thickness flange and web;
    2. 2) When producing small thickness H Beam, namely 3mm to 10mm, the more proper welding mode is 500A CO2 GMAW;
    3. 3) When customers seek on the Max. welding efficiency, twin arc/ tandem arc SAW is considered configuration: A.C.1250A and D.C.1200A. The downside of such choice is high cost on machine purchase: 4 sets of welding power supply compared with 2 sets;
    This is featured function of Wuxi JACK assembly welding straightening H Beam 3 in 1 Production Machine.

  • Q What is Recommended Welding Process Parameters, in Wuxi JACK Three in One Integral Function H Beam Welding Machine?

    A
    1. 1) Welding Current: When working in SAW welding model, for flange and web thickness 20mm~ 30mm, the suggestive welding current is around 550~ 750A; When working with CO2 GMAW on 5mm to 6mm thickness, 350A welding current is often adjusted;
    2. 2) Welding Speed: Customers care on this parameter the most, because it directly determines H Beam productivity. Although some producers claim on 1700 to 1800 mm/min., the proper Max. welding speed should be 1200 mm/min., this is determined by welding technology, not the welding 3 in 1 H Beam Machine itself. Too high improper welding velocity will lead to insufficient welding seam fusion, and thus inferior welding quality.

  • Q What is Application Form of Assembly Welding Straightening H Beam 3 in 1 Production Machine?

    A There are two primary common seen ways of deployment on welding 3 in 1 H Beam Machine:
    1. 1) Installed and operated as individual equipment. Some customers purchase single set machine, some customers purchase two or more sets, but all in the way of individual. So, in the case of two or more machines, these machines are installed certain distance apart, to fulfil different jobs;
    2. 2) Composed into new type of welding H Beam Production Line, different from conventional lines. This new line is composed of 2 sets of three in one Integral Function H Beam Welding Machine, in the form of staggered straight line at workshop, with deviation of conveyor width. In this way, H Beam welding can be completed with its moving through the 2 sets of machines in a row. For the purpose of saving labor intensity, some customers also ask on group of hydraulic drive 90° Overturning Table, to be situated between the 2 sets of welding 3 in 1 H Beam Machine.

  • Q Why T Beam H Beam is Orientated in Vertical, during its Manufacture, in Assembly Welding Straightening 3 in 1 H Beam Machine?

    A
    1. 1) This is the questions often raised by South Asia customers, especially Indian customers. By the time end of 2025 year, every time Indian customer inquired on welding H Beam 3 in 1 Production Machine, they asked this question;
    2. 2) The reason may lies in the way of their H Beam production, which is based on American standard, that H Beam is situated in horizontal, and fairly percentage of conditions, H Beams are welded only with single side, the opposing side is not welded;
    3. 3) Comparatively, in other countries and regions including China, H Beams are usually produced in vertical way, that H Beam will be flipped 180° one time in the process, to weld on its both sides. This is popular way of process technology being applied in three in one Integral Function H Beam Welding Machine.

  • Q Are There any Details that Easily to be Neglected by Customers when Purchasing 3 in 1 Integral Function H Beam Welding Machine?

    A Yes, although customers usually spend long time investigating on machines before purchase, they are not insiders, and sometimes may encounter manufacturers, that although looks good proposal is proposed, some details are not mentioned or underlined in purpose, which, in the stage of purchase it looks unimportant, but plays key role in subsequent official running;
    In the case of Assembly Welding Straightening 3 in 1 H Beam Machine, some examples on this aspect, from year 2009 to end of year 2025:
    1. 1) Straightening capacity on H Beam flange thickness: Although very often seen H Beam plate in the thickness around 20mm, which looks acceptable at the beginning, but imagine on in the following 10+s year machine service life, that customers will inevitably come across producing on 30 to 40mm thickness H Beam, and only Wuxi JACK produced assembly welding straightening H Beam 3 in 1 Production Machine can fulfil such task;
    2. 2) Capacity of SAW Flux Hopper: Yes, this is an even nuisance technical index, that if not emphasized, over 95% customer will not pay attention on it. A real case is, in this year 2025, Wuxi JACK had a Columbia customer, who planned to purchase the 2nd set of their three in one Integral Function H Beam Welding Machine. 10 years ago they bought their first set from another Chinese company, that capacity of SAW flux hopper is only 50kg. This time, they took lessons, and noted that Wuxi JACK equipped capacity is 100kg for our SAW flux hopper;
    “Detail determines excellence”, the above 2 technical data, and other technical characteristics of our welding 3 in 1 H Beam Machine, help us winning this South American customer in Aug. 2025 year.

Other Series of Wuxi JACK Products besides Welding H Beam 3 in 1 Production Machine

General Purpose Automatic Lengthwise ASM63 Angle Steel Straightening Machine
General Purpose Automatic Lengthwise ASM63 Angle Steel Straightening Machine
1. What can ASM63 do for Customer?
2. Why You need Angle Straightening Machine?
3. The Good Points of ASM series Machine:
4. Technical View on ASM63:
5. Technical Parameters of ASM63:
0
0
Medium Large DX3030 Steel Structure End Face Milling Machine
Medium Large DX3030 Steel Structure End Face Milling Machine
1. General Introduction on DX3030:
2. Constructure of DX3030: Machine body / Horizontal Bed / Upright Column / End Face Milling Carriage / Operating Standing
3. Technical Parameters of DX3030:

0
0
DX1530 Welding Structure Member End Facing Machine for Long Parts
DX1530 Welding Structure Member End Facing Machine for Long Parts
A. Scope and Wide Use of DX15xx and DX12xx Models Conventional Siz:  Conventional Models of machine/ Usage  / Background
B. Structure and Work Principle of Conventional Models:  Overall Structure/ Work Principle/ Milling Working Speed Control and Display
C. Main Units of Conventional Models:  HIWIN Heavy duty Ball Bearing Precise Guiderail/ Operating panel / Protection on Guiderail/ Mechanical main frame/ Milling Head / Lubrication/ milling cutter head
D. Technical Parameters of DX12xx and DX15xx Standard Models

0
0
HMI Control Advanced Function SXBJ-12 Large Edge Milling Machine
HMI Control Advanced Function SXBJ-12 Large Edge Milling Machine
A. Function of SXBJ-12:
B. Structure and Main Units in SXBJ-12:
C. Workpiece Steel Plate Feeding System in SXBJ-12:
D. Electric Control System of SXBJ-12:
E. Technical Parameters of SXBJ-12:


0
0
HMI Operation MP23 Plate Flat Butt Joint Welding Machine
HMI Operation MP23 Plate Flat Butt Joint Welding Machine
A. Specialty and Function of MP23: Operation Way / Function
B. Structure, Main Function Cells, and Working Principle of MP23:  Main Units/  Work Principle
C. Advanced Technique and Operation of MP23:  The critical core technique/ Critical Units/  Double Layer Welding Flux/ Workpiece Clamp/ Operation
D. Mechanical Features of MP23:  Main Body/ Plates Clamp during Butt Welding/ Input and Output Conveyors
E. Technical Parameters of MP23
0
0
MP20 To MP50 Sheet Metal Steel Plate Butt Joint Welding Machine
MP20 To MP50 Sheet Metal Steel Plate Butt Joint Welding Machine
A. Usage and Great Value of MP20 to MP50:  Usage/ Specification/ material of Metal Steel Plate/ Welding Mode/ Application Scenario/ Benefit on Productivity, Variable Cost, and Safe Operation
B. Main Function Units: General Layout / Flame Triple Cutting Torch/ SAW Butt Welding System / Copper Pad and Welding Base/ Welding Torch Unit
C. Technical Parameters of MP20 to MP50
0
0
6 And 7 Axis CNC-CP6/7-2000~3000/L CNC Large Pipe Cutting Machine
6 And 7 Axis CNC-CP6/7-2000~3000/L CNC Large Pipe Cutting Machine
A. Applicable Workpiece and Application of CNC-CP6/7-2000~3000/L:  Workpiece Sizes and Models/ Applied Industries/ Functions
B. Technical Characteristics of CNC-CP6/7-2000-3000/L:  The 6th V Axis and 7th W Axis/ Cutting Torch Swiveling Unit
C. Main Units of CNC-CP6/7-2000-3000/L:  Mechanical System/ Electric Control System
D. Operation on CNC-CP6/7-2000-3000/L:  Operation Station/ Generating Cutting Program/ Workpiece Supporting Tools
E. Technical Parameters of CNC-CP6/7-2000-3000/L
0
0
Middle Size 1800mm Height Semi-Automatic Welded H Beam Production Machine Line
Middle Size 1800mm Height Semi-Automatic Welded H Beam Production Machine Line
A. Application of HB1800:
B. Usage and Advantages of HB1800:
C. Machine Tools Constitutes in semi-Automatic Line:
D. Technical Parameters of HB1800:
0
0
HB-series High Quality Automatic Welding H Beam Production Line
HB-series High Quality Automatic Welding H Beam Production Line
1. The Benefit of HB series Automatic Line:
2. Layout:
3. Technical Parameters:
0
0
Z30 Heavy Duty Large I H Beam Assembly Machine
Z30 Heavy Duty Large I H Beam Assembly Machine
A. Specialty of Z30 Heavy duty model:  Purpose/  Max. Workpiece Size/ Features
B. Application and Major Specifications of Z30:  Task/ Technical Specifications of Z30
C. Working Style and Configuration of Z30:  2 Main Functions/ Assembly Form and Welding Mode and Style on 3,000mm Height Large T I H Beam/ Operation
D. Technical Features of Z30:  Workpiece Assembly Principle/ Composition of Assembly Unit/ Tack Welding
E. Three Working Modes of Machine: Manual/ Single Cycle/ Auto Cycle

0
0
LHC Moving Cantilever I H Beam Trolley SAW Welding Machine
LHC Moving Cantilever I H Beam Trolley SAW Welding Machine
A. Usage and Application of LHC:  Function/ Working Site
B. Operation on LHC:  Welding Torch Position Management / Consumables/ Daily Service
C. Process Technology in LHC:  2 Welding Zones/ Main Trolley Movement / SAW Welding Speed / Double drive in Trolley Movement
D. Composition and Supply Range of LHC:  Mechanical Main Frame/ SAW Welding Mechanism / Drive and Transmission/ Outsourced Parts/ Pneumatic system/ Electric control system
E. Technical Parameters of LHC



0
0
High Efficiency Hydraulic Drive YTJ-50 I Beam Straightening Machine
High Efficiency Hydraulic Drive YTJ-50 I Beam Straightening Machine
1. Application of YTJ-50 Hydraulic:
2. Main units of the YTJ-50 Hydraulic:  Main Frame and Base / Front side and rear side conveyor / Straightening Roller unit / Hydraulic station / Bottom transmission unit / Motor reducer / Web clamp unit / Control board and Operation station
3. Technical Specification of YTJ-50:  Operation
4. Technical Parameters of YTJ-50 Hydraulic:
0
0
Heavy Duty Thick Thickness YTJ-80 I Beam Straightening Machine
Heavy Duty Thick Thickness YTJ-80 I Beam Straightening Machine
1. Highlight of YTJ-80 Heavy duty Machine: Personalized Specification
2. Operation of YTJ-80 and YTJ-60:
3. Technical Parameters of YTJ-80 Heavy duty:
0
0
HJ-200 Hydraulic High Efficiency Length Direction H Beam Straightening Machine
HJ-200 Hydraulic High Efficiency Length Direction H Beam Straightening Machine
A. Purpose of HJ200;
B. Working Principle of HJ200: Working Nature/ Acting unit/ Straightening Stroke Management;
C. Operation on on HJ200:  Straightening Style/ Workpiece Sending Forward/ operating pendent / Straightening Segment Adjustment/ Conventional Models
D. Working Process of of HJ200


0
0

Blogs on Assembly Welding Straightening 3 in 1 H Beam Machine

  • Effective Service on 3 in 1 H Beam Assembly Welding Straightening Integral Machine

    Effective Service on 3 in 1 H Beam Assembly Welding Straightening Integral Machine
    Function Cells and Its Role in 3 in 1 H Beam Fabrication Machine; Welding Mode and SAW Features of Automatic 3 in 1 H Beam Welding Machine; Welding Technology Exploration on 3 in 1 Pull Through Vertical H Beam Welder; Daily Maintenance on 3 in 1 H Beam Steel Fabrication Machine; Summary on Servicing 3 in 1 H Beam Assembly Welding Straightening Integral Machine Read More
  • H beam assembly weld straighten integral machine application advantages in steel structure production

    H beam assembly weld straighten integral machine application advantages in steel structure production
    Strong Production Capacity of 3 in 1 H Beam Assembly Weld Straighten Integral Machine; Saving Cost Benefitting from Integral Function 3 in 1 H Beam Welding Machine; Strong Capability of 3 in 1 I Beam Fabrication Machine; Working Style and Operation on 3 in 1 Vertical H Beam Welding Machine; Summary and Wuxi JACK Leading Edges on 3 in 1 H Beam Fabrication Machine Read More
  • Do you know what is H beam assembly weld straighten integral machine?

    Do you know what is H beam assembly weld straighten integral machine?
    Why So Popular 3 in 1 H Beam Assembly Welding Straightening Integral Machine? Definition and Outline on 3 in 1 H Beam Fabrication Machine Market Demand on 3 in 1 Integral Function H Beam Welding Machine Procedure Sequence of Automatic 3 in 1 H Beam Welding Machine Summary on Wuxi JACK 3 in 1 H Beam Assembly Weld Straighten Integral Machine Read More
Home

Home Products About Us R&D Customization FAQ Blog Contact Us

WUXI AMASS MACHINERY CO., LTD
WUXI JACK TECHNOLOGY CO., LTD
0510-83297829
English Language: 15852755799;
Chinese Language: 13621515089
support@WXJACK.com
No. 2, Ouyang Road, Luoshe Town, Wuxi City, Jiangsu Province, China
CONTACT US
© Wuxi AMASS Machinery Co., Ltd  2021 All Rights Reserved.
备案证书号：苏ICP备13045244号-1
