0 Heavy duty Hydraulic H Beam Straightening Machine 27

Wuxi JACK I H Beam Flange Straightening Machine,

from Medium to Heavy duty with Powerful Straightening Capacity for Customer Choice

Wuxi JACK Motor Drive and Hydraulic H Beam Straightening Machine

1. Wuxi JACK Achievement on H Beam Straightening Machinery:

1) From March 2009 to beginning of September 2026, for close to 2 decades, Wuxi JACK has provided over 300 sets of sturdy and durable H Beam Straightening Machinery to customers, which differ in structures and straightening capacity:

2) Work principle, and operation of Wuxi JACK YTJ60/ YTJ80 heavy duty Hydraulic H Beam Straightening Machine: (Fig.1, 2)

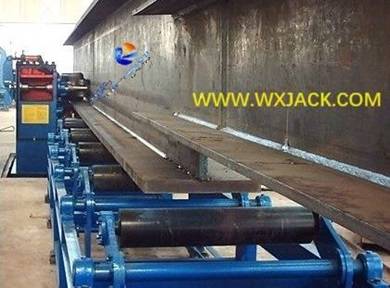

1 H Beam Straightening Machine 42 Hydraulic H Beam Straightening Machine 24



2. Types of Wuxi JACK I H Beam Flange Straightening Machine:

As the most extensive selling volume in product family H Beam Straightening Machinery, Wuxi JACK H Beam Flange Straightening Machine can be classified into 3 major types, differed on:
1) Straightening force: Motor drive on medium duty H Beam (Yield strength and flange thickness), or hydraulic drive on heavy duty;
2) H Beam orientation: Mainstream in vertical, and small percentage in horizontal;
3) Yield strength of H Beam: From medium level 235MPa to heavy duty 345MPa or 485MPa;
To be specifically,
1) HYJ models motor drive: For straightening on H Beam of 235MPa yield strength, flange thickness 6mm- 40mm, in vertical;
2) YTJ models hydraulic drive: For straightening on H Beam of:
a) 345MPa yield strength, flange thickness 6mm- 100mm,
b) Or ASTM A709 WTB1, Grade 50, of 485MPa yield strength, flange thickness 6mm- 80mm,
c) H Beam in vertical;
3) WJ models hydraulic drive: For H Beam of 235MPa yield strength, flange thickness 6mm- 40mm, H Beam in horizontal;
These wide variety of Wuxi JACK H Beam Straightening Machinery provides rich assortment for customer choice, and plays consistent high performance at various steel structure H Beam Production Line:

HYJ800 motor drive, the max. straightening capacity: 40mm flange thickness, 235MPa yield strength
YTJ50 hydraulic drive, the max. straightening capacity: 50mm flange thickness, 345MPa yield strength
YTJ80 hydraulic drive, the max. straightening capacity: 80mm flange thickness, 485MPa yield strength
YTJ50 Hydraulic H Beam Straightening Machine, the max. straightening capacity: 50mm flange thickness, 345MPa yield strength
WJ40 horizontal hydraulic drive, the max. straightening capacity: 40mm flange thickness, 345MPa yield strength

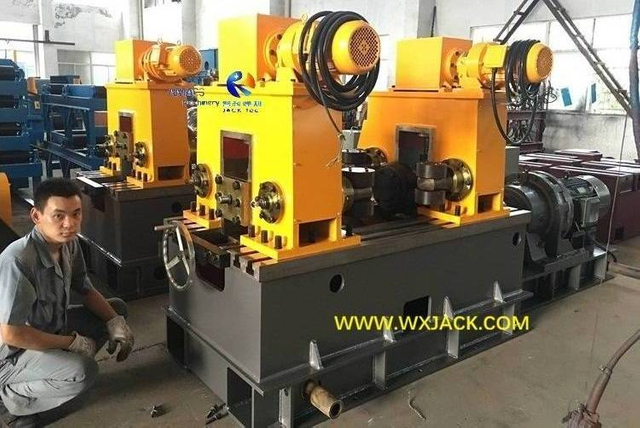

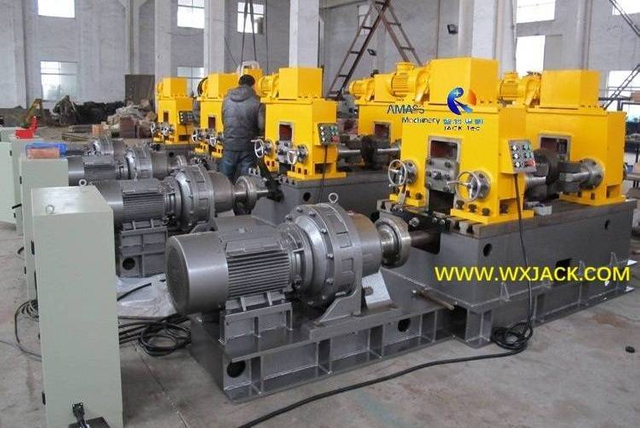

4 sets of motor drive type in batch production, HYJ20, HYJ40, HYJ800, the max. straightening capacity: 20mm to 40mm flange thickness, 235MPa yield strength, on small to medium H Beams

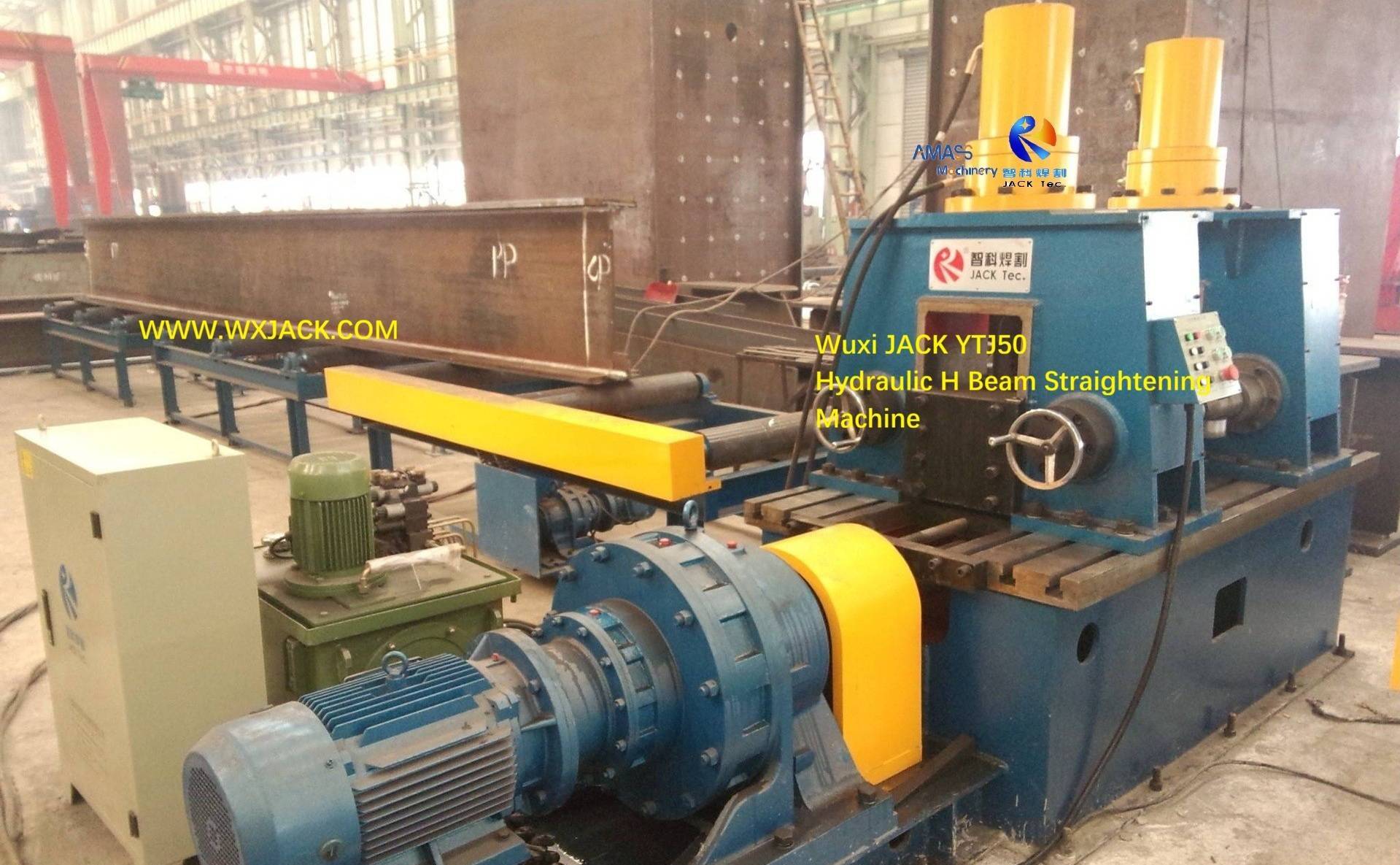

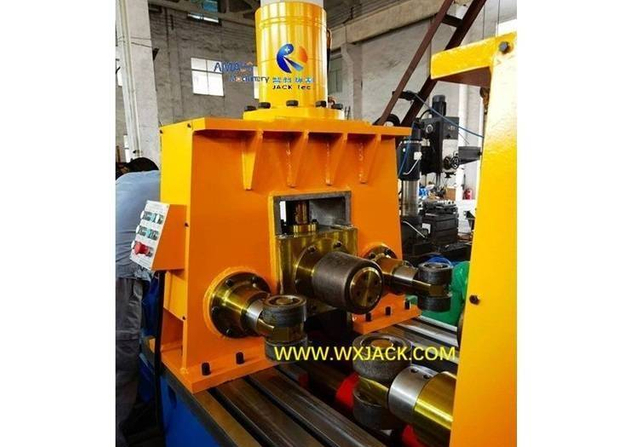

YTJ50 hydraulic drive, the max. straightening capacity: 50mm flange thickness, 345MPa yield strength

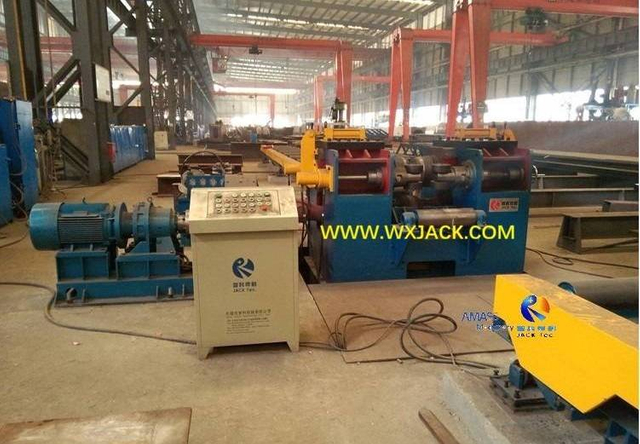

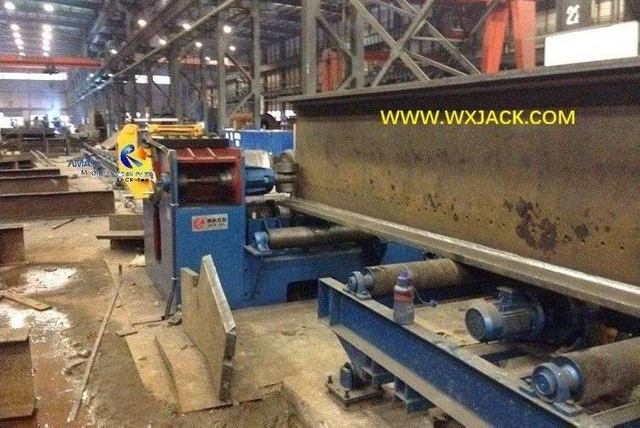

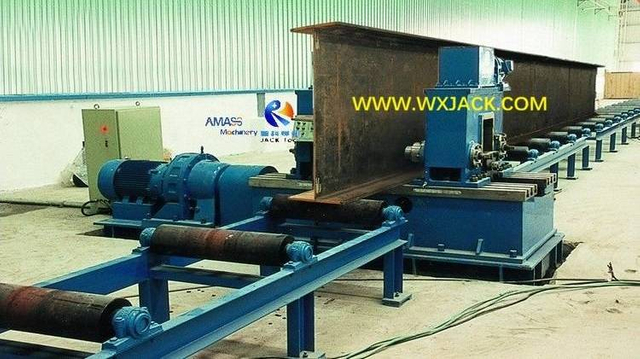

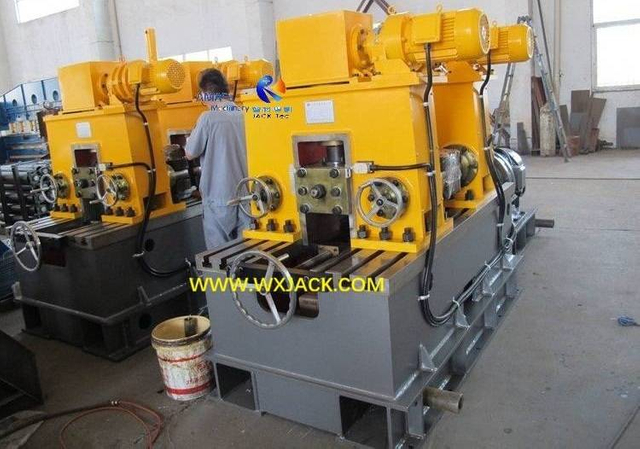

HYJ800 motor drive acting H Beam Flange Straightening Machine in operation at customer workshop, on 1,000mm web height 40mm flange thickness H Beam

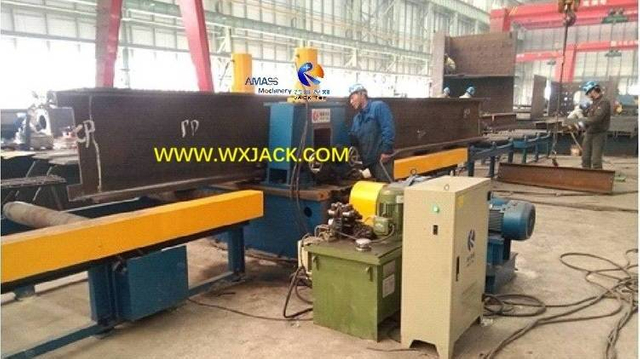

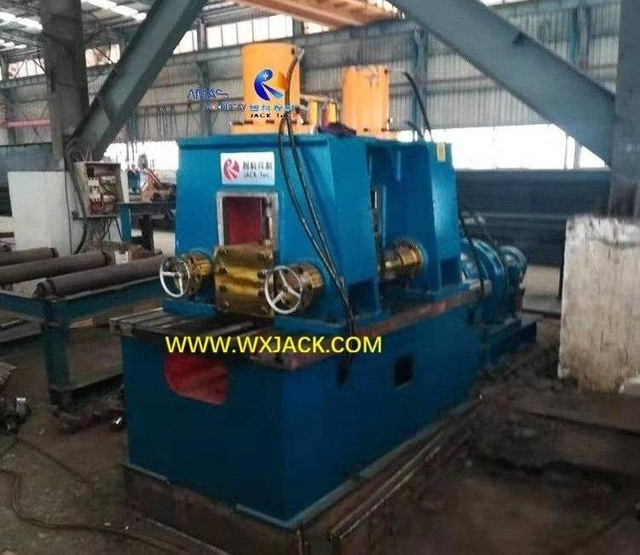

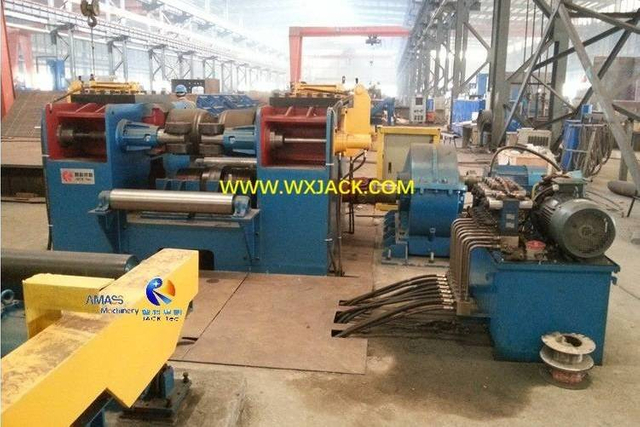

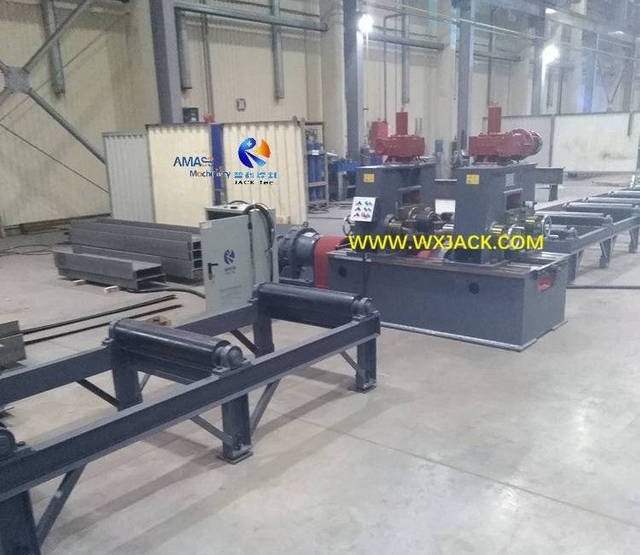

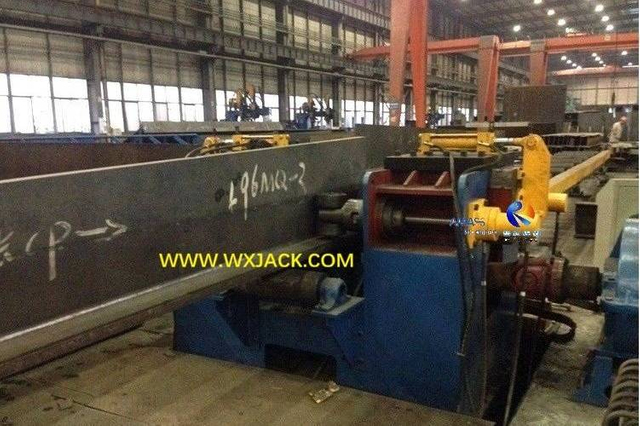

YTJ40 hydraulic drive in operation at customer facility, the max. straightening capacity: 40mm flange thickness, 345MPa yield strength
YTJ80 Hydraulic H Beam Straightening Machine, the max. straightening capacity: 100mm flange thickness, 345MPa yield strength

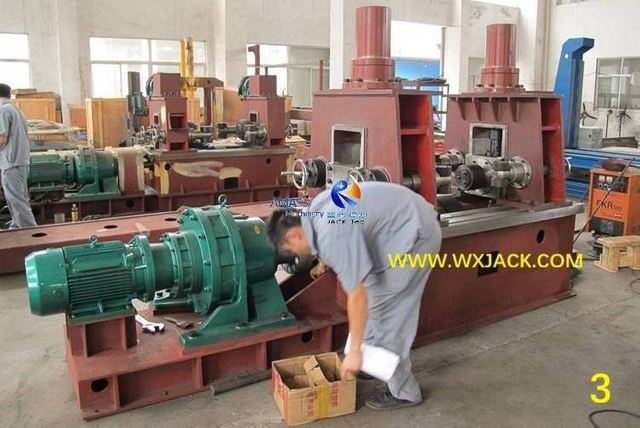

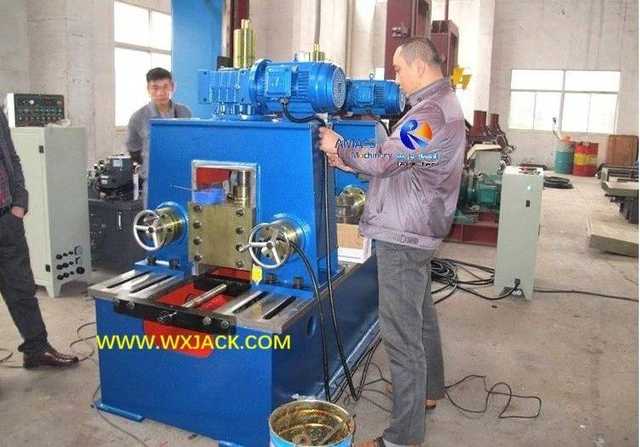

HYJ40 motor drive at customer factory, the max. straightening capacity: 40mm flange thickness, 235MPa yield strength
YTJ80 Hydraulic H Beam Straightening Machine, the max. straightening capacity: 100mm flange thickness, 345MPa yield strength

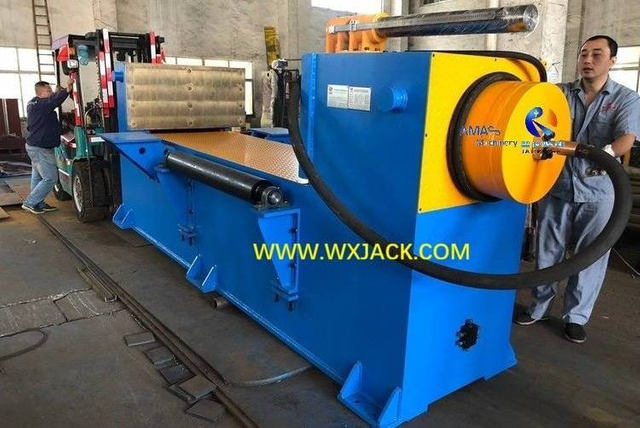

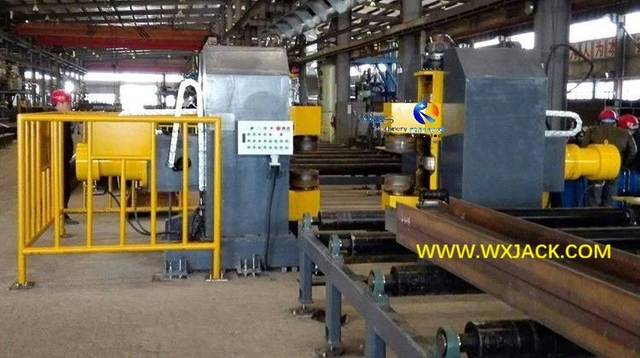

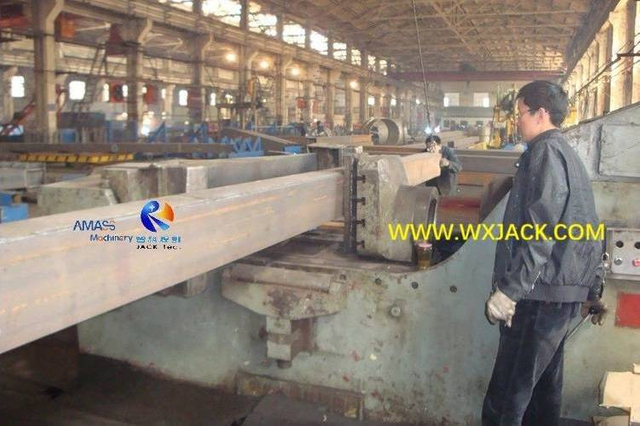

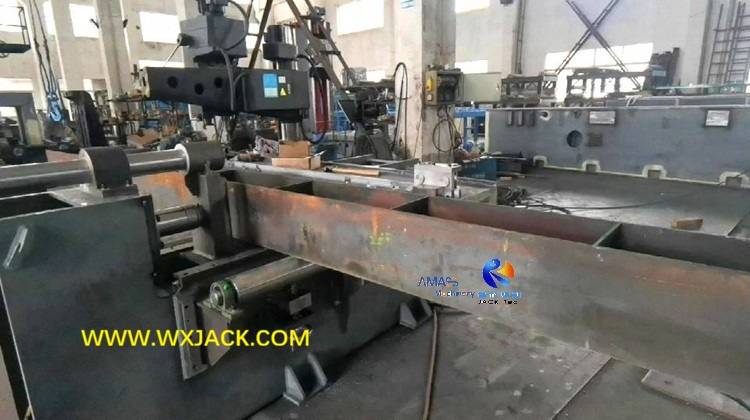

Wuxi JACK Featured Product of Longitudinal Hydraulic H Beam Straightening Machine:

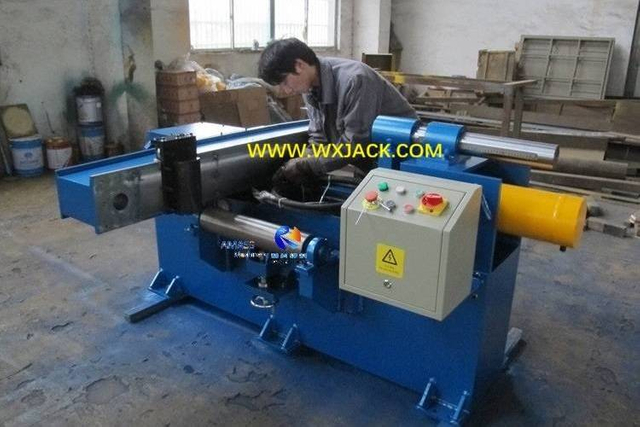

1) Function: Another widely used superior straightening machine provided by Wuxi JACK: HJ series steel structure BOX H Beam Horizontal Press Straightening Machine, which flattens out longitudinal deformation of steel structure workpieces with long length and small cross section;
2) Models: By today early September 2026, Wuxi JACK is one of very few Chinese professional producers, with technical strength and rich experience on designing and producing this BOX H Beam Lengthways Straightening Machine. Its models are denoted according to the max. delivered straightening force in unit of ton. For example, HJ300 model refers to straightening force of 300 ton, which is driven with oil cylinder:
HJ20
HJ300
HJ200
HJ300

Wuxi JACK Newly Produced Motor Drive and Heavy duty Hydraulic H Beam Straightening Machine in Year 2025 and 2026

From January 2025 to early September 2026, over the past 18 months, Wuxi JACK has distinguished performance on delivering to customers H Beam Straightening Machinery, especially in the field of heavy duty Hydraulic H Beam Straightening Machine. These machines are either in the form of part of welding H Beam Production Line, or individual equipment. Below are some business cases as examples:

1. YTJ50 Medium Heavy duty Hydraulic H Beam Straightening Machine in Spring 2025:

1) This machine was supplied to East European customer in the form of individual equipment;

2) Project Timeline on YTJ50 Hydraulic H Beam Straightening Machine:

a) Customer contacted with Wuxi JACK and asked on inquiry in December 2024;
b) Contract was signed between customer and Wuxi JACK in January 2025;
c) Production was initiated in February 2025, and finished in April;
d) The YTJ50 machine was shipped to customer in the same month;

3) Technical Specifications of YTJ50 Hydraulic H Beam Straightening Machine:

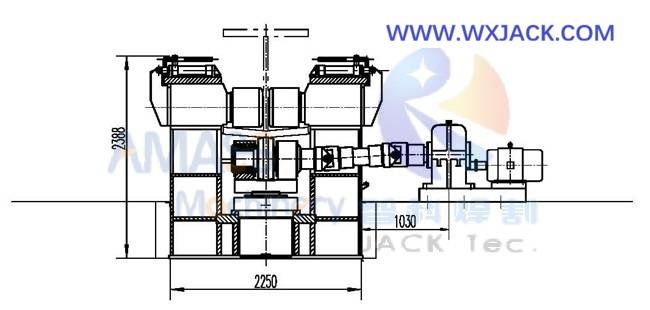

(Fig.1) Fig1 Hydraulic H Beam Straightening Machine 3
a) H Beam yield strength:  345MPa; Tensile strength: 600MPa;
b) Flange Thickness S:   6- 50mm
c) Flange Width b:           200- 800mm
d) Web Thickness a:       6- 50mm
e) Web Height h:              200- 1500mm
f) Straightening drive power: 15 kW
g) Straightening Speed:    6000mm/min., constant
h) Hydraulic Power and Rated Pressure:  5.5KW, 25MPa
Straightening unit: Straightening roller and web alignment rollers

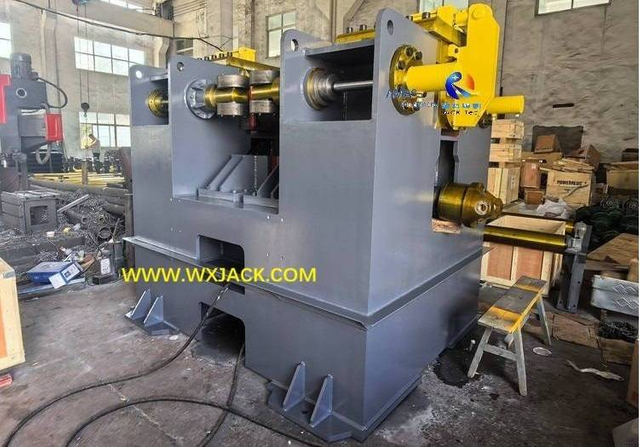

Painted main frame of YTJ50 before delivery

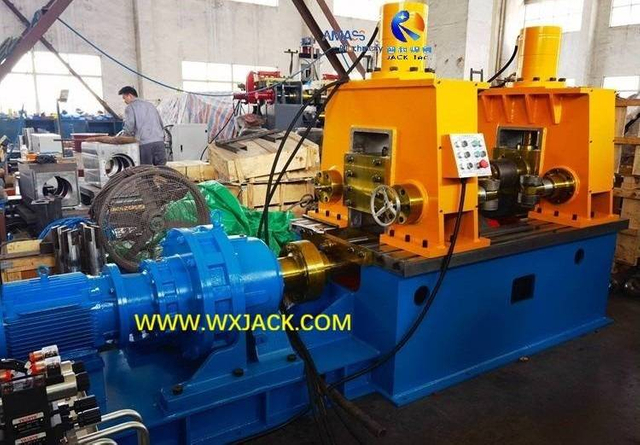

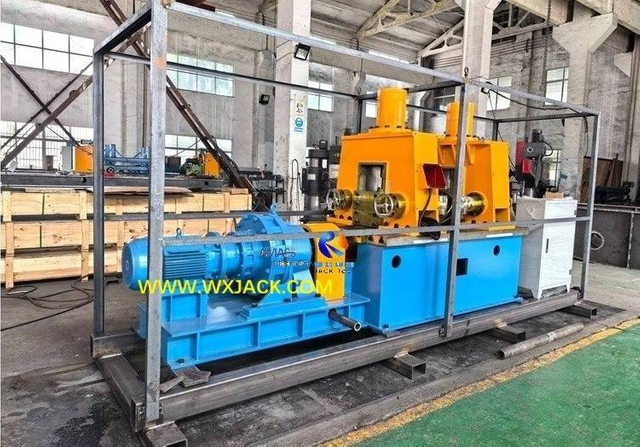

In April 2025, main machine of ready for shipment YTJ50, fixed into steel frame

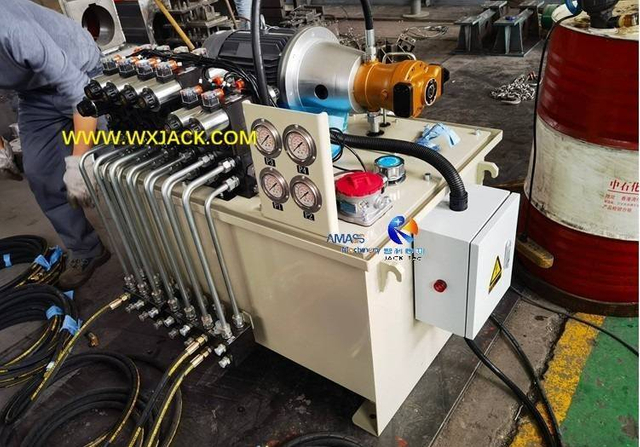

Hydraulic pump station of YTJ50

2. YTJ60 Medium Heavy duty Hydraulic H Beam Straightening Machine in Summer 2025:

1) Specialty of YTJ60 Hydraulic H Beam Straightening Machine:

a) Unlike common seen YTJ60 model, this set of YTJ60 is special designed according to customer requirement on H Beam size, and operation way:
b) H Beam flange width is small, which is difficult to be straightened;
c) Flange straightening speed can be adjusted continuously via A.C. inverter, and displayed in digital:

2) Specifications of Special Design YTJ60 Hydraulic H Beam Straightening Machine:

(Fig.2) Fig1 Hydraulic H Beam Straightening Machine 3
a) H Beam yield strength:    345MPa; Tensile strength: 600MPa;
b) Flange Thickness S:      10- 40mm
c) Flange Width b:              200- 500mm
d) Web Thickness a:          6- 20mm
e) Web Height h:                250- 1200mm
f) Straightening drive power: 15 kW
g) Straightening Speed:    6000- 9000mm/min., variable frequency drive, digital display
h) Hydraulic Power and Rated Pressure: 5.5KW, 25MPa

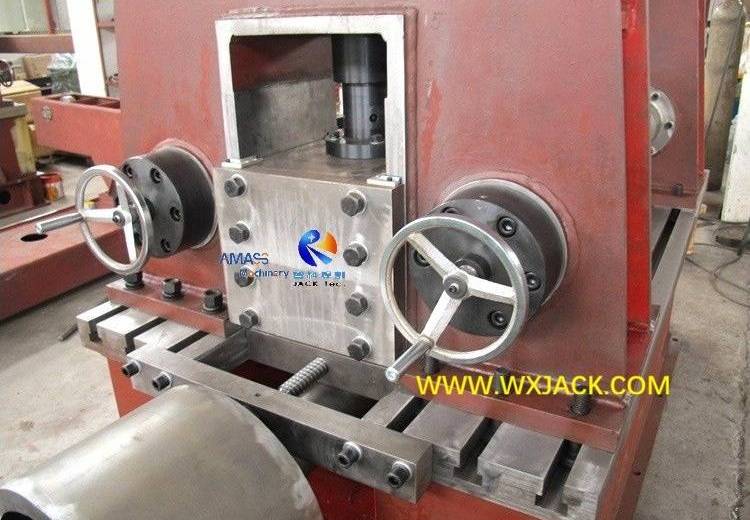

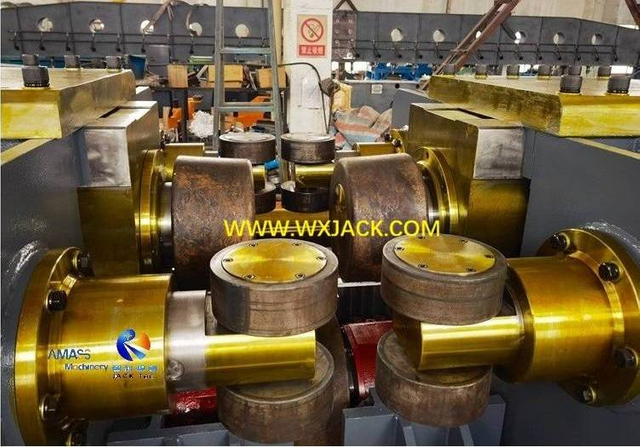

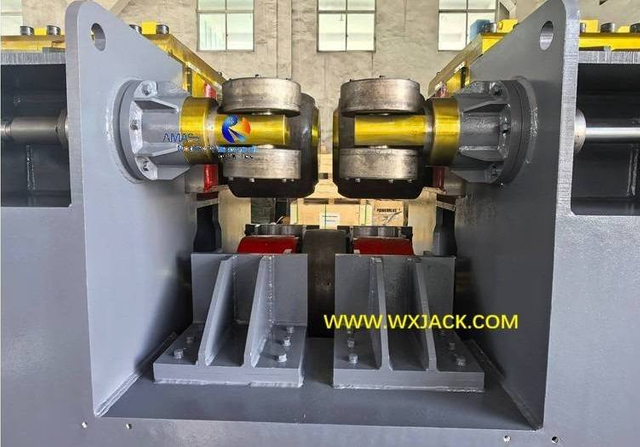

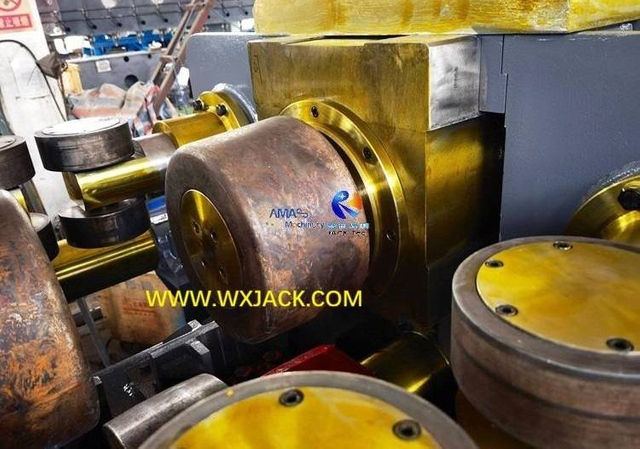

Close view on upper straightening roller
Straightening unit, the upper straightening rollers are conical
Assembled and painted main machine of YTJ60

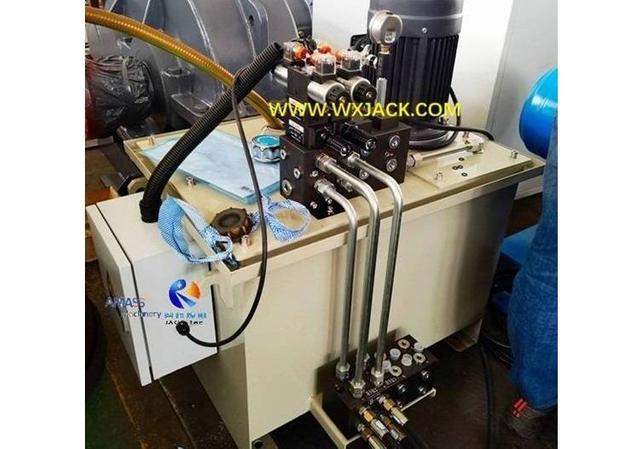

Hydraulic pump station of YTJ60

3. YTJ80 Heavy duty Hydraulic H Beam Straightening Machine in Year 2026:

1) Characteristic and Application: YTJ80 is the largest model on flange straightening, for building heavy H Beams. It is not only being used in Steel Structure industry, but also Bridge Building;
2) In year 2026 until beginning of September, Wuxi JACK has delivered 5 sets of YTJ80, to customers in China, East Europe, and South America. The specifications of these YTJ80 differ slightly, according to material yield strength:

3) Workpiece Specifications of YTJ80 Heavy duty Hydraulic H Beam Straightening Machine:

(Fig.3) Fig1 Hydraulic H Beam Straightening Machine 3
a) Flange Thickness S: (6- 80mm) for 485MPa yield strength, (6- 100mm) for 345MPa yield strength
b) Flange Width B:        160- 1000mm
c) Web Thickness A:     6- 70mm
d) Web Height H:           500- 3,000mm
e) H Beam Length:        4,000- 15,000mm
f) Straightening drive power:      26.4 kW
g) Straightening Speed:              6300mm/min., constant
h) Hydraulic Power and Rated Pressure:    5.5KW, 25MPa

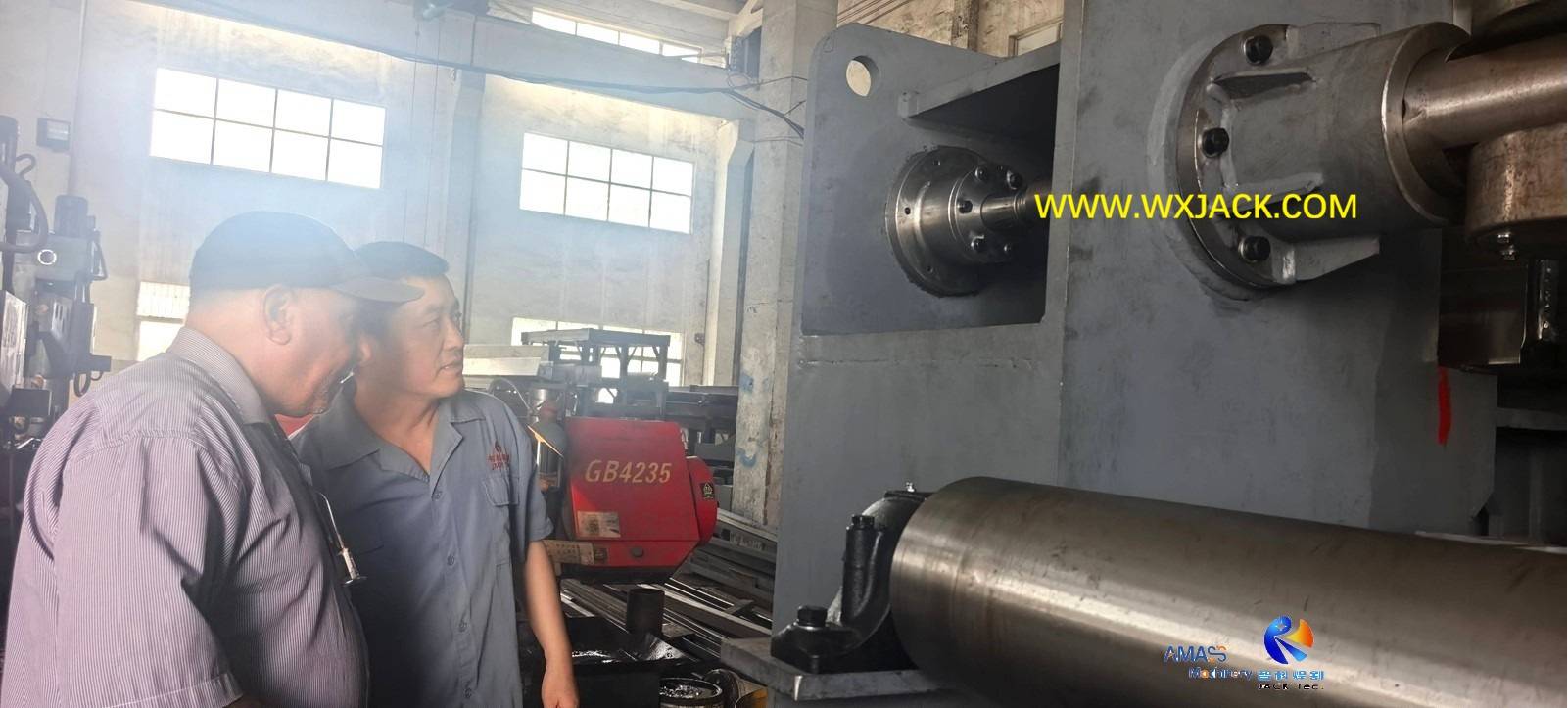

On August 24th 2026, middle east customer engineer discussed together with Wuxi JACK engineer, on YTJ80 model Hydraulic H Beam Straightening Machine:
0 Hydraulic H Beam Straightening Machine 3

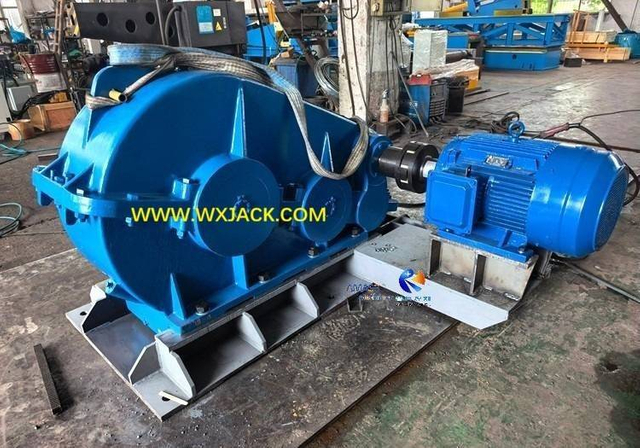

22KW Motor Reducer for driving on H Beam transportation

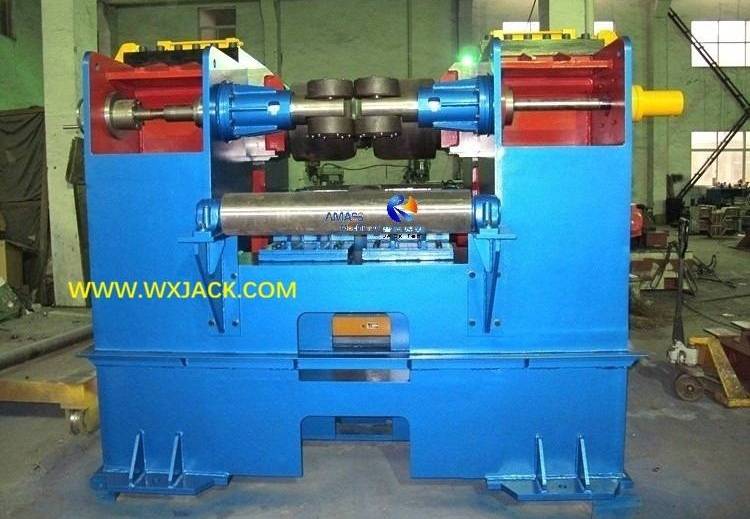

Straightening mechanism of YTJ80

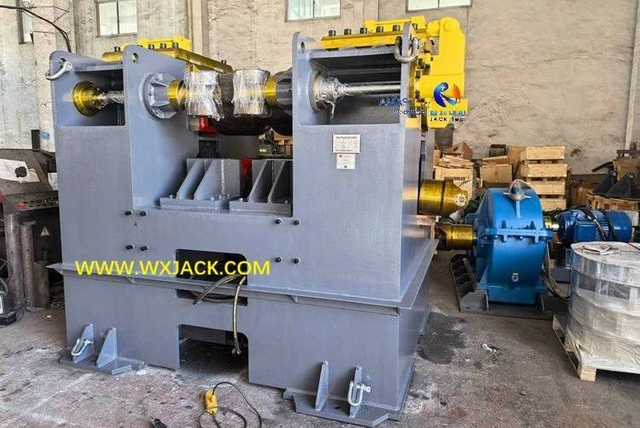

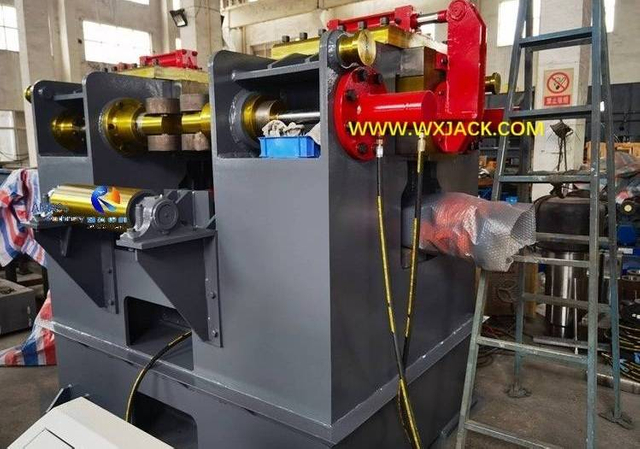

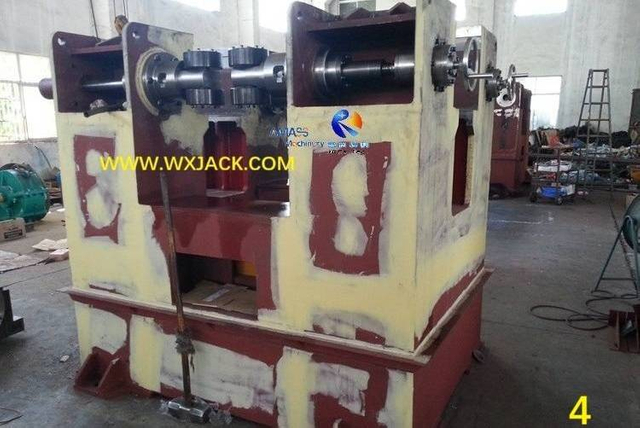

Overall view on the assembled main frame of YTJ80

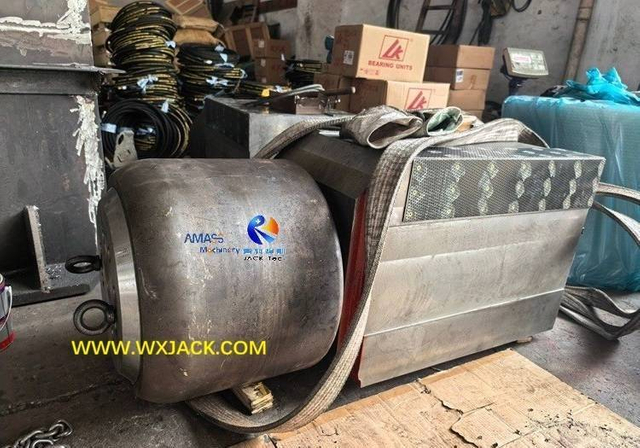

The large, solid and heavy straightening roller mechanism

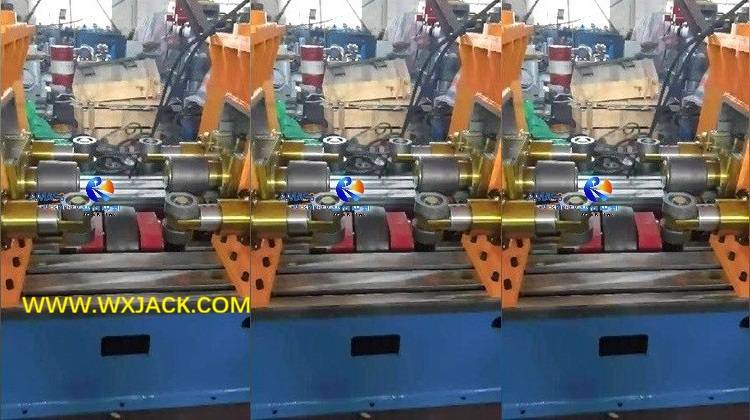

Videos of Wuxi JACK H Beam Straightening Machinery

Note: Idle test at Wuxi JACK: Load test on H Beam Flange Straightening Machine need installation of its main frame into foundation. Depth of foundation is in the range of 700mm to around 1,000mm, this can not be implemented before delivery. For this reason, videos taken at Wuxi JACK on H Beam Flange Straightening Machine is in the form of idle trial run.

Technical Specifications of Wuxi JACK I H Beam Flange Straightening Machine

Below parameters table is for your quick review on Wuxi JACK different types of H Beam Straightening Machinery on flange:
List of Wuxi JACK I H Beam Flange Straightening Machine
  H Beam in Vertical H Beam in Horizontal
HYJ Series YTJ Series WJ Series
 Model  HYJ20/ HYJ40/ HYJ800  YTJ40/ YTJ50/ YTJ60/ YTJ80 WJ25/ WJ40
 Straightening source  A.C. motor drive Hydraulic oil cylinder drive Hydraulic oil cylinder
 H Beam material yield strength  235Mpa 345/ 485Mpa 235Mpa
 H Beam flange thickness   (5- 20) or (6- 40)mm (6- 40/ 50/ 60/ 80/ 100)mm (6- 25/ 40)mm
 H Beam flange width  (100- 600) or (200- 800)mm (150- 1000)mm (200- 800)mm
 H Beam web height  (150- 1500)mm (350/ 500- 3000)mm (150- 1500)mm
 H Beam length  (4000- 15000)mm (4000- 15000)mm (4000- 15000)mm
 Straightening speed  6,500/ 9,000/ 17,000 mm/min. 6,300- 9,000 mm/min. 9,000 mm/min. Efficiency: 2 pieces of H Beam to be straightened simultaneously

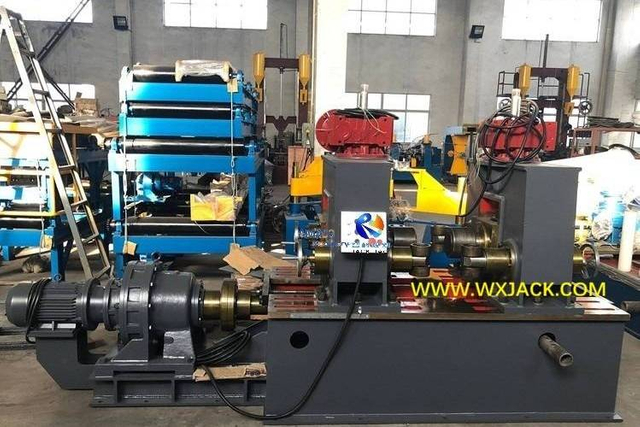

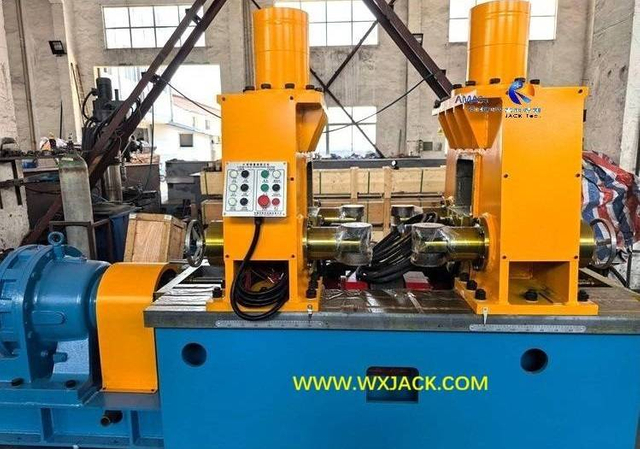

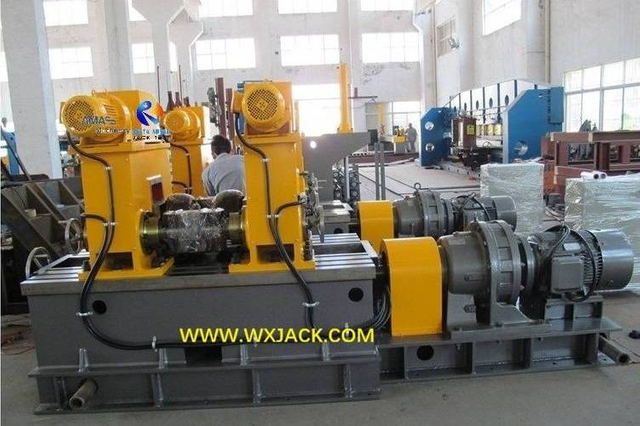

Motor drive straightening small model HYJ20/ HYJ40
Motor drive straightening medium duty HYJ800
Hydraulic drive straightening medium heavy duty YTJ40/ YTJ50
Hydraulic drive straightening heavy duty YTJ60/ YTJ80

Work Principle of Wuxi JACK H Beam Flange Straightening Machine

For our motor drive and hydraulic drive types of H Beam Flange Straightening Machine, its principle can be illustrated in below 4 sketches:

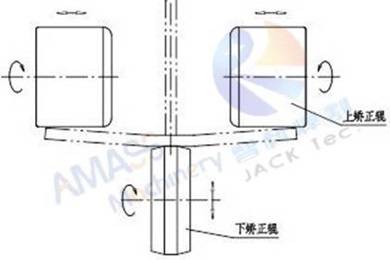

1. The 1st sketch: General Principle of I H Beam Flange Straightening Machine:

1) Three points being subjected to force, implemented in a confined space straightening cavity, forming squeezing effect onto both sides top surface and middle bottom surface of H Beam flange, from the 3 pieces of upper (2 pieces) and bottom (1 piece) straightening rollers;
2) Acting Element: The bottom installed solid straightening roller is larger than the 2 pieces of up installed straightening rollers. During straightening, this bottom large roller revolves without elevation, transmitting on sending forward of H Beam, which goes through the entire set of I H Beam Straightening Machinery;
3) Process Control: The straightening stroke, which is downward stroke of the 2 pieces of upper straightening rollers, generate sufficient downward pressing force onto flange of H Beam;

2. The 2nd sketch: Straightening Source in Motor Drive HYJ Series I H Beam Flange Straightening Machine:

This gives illustration on where does the straightening power come from: 2 sets of 1.5kW A.C. motor. The motors are installed in symmetry right above the 2 pieces of upper straightening rollers;

3. The 3rd sketch: Straightening Source in Medium duty Hydraulic Drive YTJ-40/ 50 I H Beam Straightening Machinery:

This gives denotation on the straightening power source in YTJ40 and YTJ50 models: 2 pieces of tailor made oil cylinders. The oil cylinders are installed in symmetry right above the 2 pieces of upper positioned straightening rollers;

4. The 4th sketch: Heavy duty Hydraulic Drive YTJ-60/ 80 I H Beam Flange Straightening Machine:

1) Due to its necessary excessive heavy straightening force involved in the flange straightening process, the role of upper and bottom straightening rollers is exchanged with respect to YTJ40/ 50 models:
2) Under the drive of oil cylinder, the bottom straightening roller props up H Beam flange in heavy force, onto middle of flange bottom surface;
3) In the straightening operation, the 2 pieces of upper straightening rollers only revolve for driving forward H Beam, no elevation.

Work Manner of Wuxi JACK I H Beam Flange Straightening Machine

Continued from the previous segment on straightening principle, in Wuxi JACK motor drive and Hydraulic H Beam Straightening Machine, flange straightening operation is carried out in the way of:

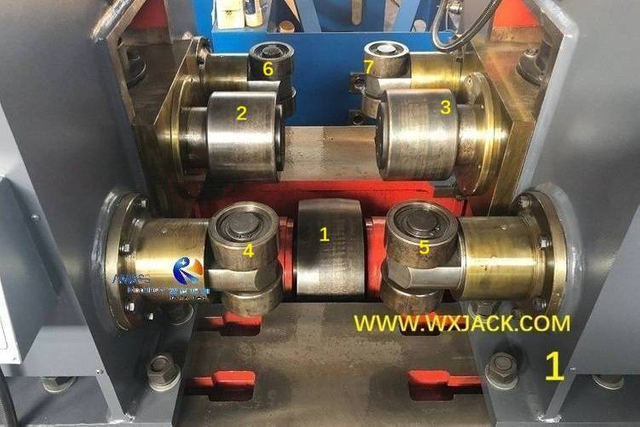

1. No.1 Photo: Straightening Cell in Vertical I H Beam Flange Straightening Machine:

1) Roller “1” corresponds with the bottom position straightening roller, and rollers “2” and “3” correspond with the 2 pieces of upper assembled straightening rollers;
2) Symmetric rollers unit “4/ 5/ 6/ 7” are alignment rollers, for supporting and correct positioning on vertical web of H Beam during straightening operation;
3) Universal Structure: Such straightening mechanism is applied in both motor drive and hydraulic drive models on flange straightening;

2. No.2 Photo: Straightening Rollers Motion Control in HYJ Models Motor Drive I H Beam Flange Straightening Machine:

1) Accommodating varied H Beam Flange Width: The distance between the left and right two pairs of web alignment rollers is adjusted manually by turning handwheel;
2) Guidance: During adjustment on the above mentioned distance, shaft boxes of the 2 pieces of upper straightening rollers slide along T slot, on work table of machine main frame;
3) Straightening Driving Force: The downward pressing of the 2 pieces of upper straightening rollers, which is the most important process control for flange straightening operation, is driven with 2 sets of 1.5kW A.C. motor;
4) Straightening Stroke Precision Control: There are measurement rulers on front wall of straightening units. These 2 rulers are assembled in left and right symmetry, to demonstrate on: The actual position of web alignment rollers span, and real time downward stroke of upper straightening rollers;

3. No.3 Photo: Straightening Rollers Motion Control in Medium duty YTJ40/50 Hydraulic I H Beam Flange Straightening Machine:

1) Accommodating on varied H Beam Flange Width: The distance between the two pairs of web alignment rollers is also adjusted by manually turning handwheel;
2) Straightening Driving Force: The down pressing movement of the 2 pieces of upper straightening roller is driven with vertical mounted oil cylinders;

4. No.4 Photo: Straightening Rollers Motion Control in Heavy duty YTJ60/80 Hydraulic I H Beam Flange Straightening Machine:

1) Swapped Straightening Action between Upper and Bottom Rollers: Different from YTJ40/ YTJ50 models, in YTJ60/80 models, straightening is by means of the upward pressing movement of the bottom straightening roller, onto middle of bottom surface of H Beam flange. This upward pressing movement is also driven with oil cylinder;
2) Swapped Transmission Action on H Beam: Meanwhile, the 2 pieces of upper straightening rollers only revolve, no elevation, forming friction force, and transmitting on H Beam forward. From this, we can see that structure of YTJ60/ YTJ80 main machine is different from YTJ40/ YTJ50;
3) Accommodating on varied H Beam Flange Width: The distance change between left and right web alignment rollers are also driven with oil cylinders. This is the unique design in Wuxi JACK heavy duty YTJ60/ YTJ80 Hydraulic H Beam Straightening Machine.

Selecting Proper Models of Wuxi JACK I H Beam Flange Straightening Machine

This should be considered on below 3 critical technical points of:
1) The max. straightening capacity and special requirement according to customer workpieces: Flange thickness and H Beam yield strength;
2) Straightening efficiency that meets customer demand;
3) Suitable purchasing budget applicable for customer expectation
Hydraulic drive YTJ80
Motor drive HYJ800
Motor drive HYJ40
Hydraulic drive YTJ50

1. The Max. Straightening Capacity and Special Requirement on H Beam Straightening Machinery:

This is weighted on the basis of:
1) The max. thickness of H Beam flange --- 40/ 50/ 60/ 80/ 100mm;
2) Yield strength of H Beam carbon steel --- Medium duty 235MPa; Heavy duty 345MPa, 485MPa;
3) Special size of H Beam --- Technical difficulty of H Beam flange not only lies in the max. yield strength and thickness of flange, but also minimum width of flange. For example, for effective operation of YTJ80, H Beam flange width should be ≧500mm;


2. Straightening Efficiency of Motor Drive and Hydraulic H Beam Straightening Machine:

1) Work Speed: Normally, all models of I H Beam Straightening Machinery work in constant speed, with several grades of 6,300/ 9,000/ 17,000 mm/min. --- It can be denoted by customers, which is differed from power of driving motors;
2) Comparatively, the other 2 core machines in H Beam Production Line: H Beam Assembly Machine and H Beam SAW Welding Machine, should all work in the continuously adjustable range of 240- 2400 mm/min.;
3) So, straightening station is not bottom neck in the process flow of welding H Beam Production Line. Usually one set of H Beam Flange Straightening Machine can fully meet on output requirement.


3. Investment Budget on I H Beam Flange Straightening Machine:

1) HYJ series (Motor drive, H Beam in vertical) has the least level quotation, and is widely applied in producing small to medium H Beams;
2) YTJ series (Hydraulic drive, H Beam in vertical) has higher quotation, and with heavier straightening capacity. Nowadays, by year 2026, because more and more heavier steel structure construction and bridge building are put into practice, customer selection on YTJ series Hydraulic H Beam Straightening Machine is on the trend of rapid increase;
3) WJ series (Hydraulic drive, H Beam in horizontal) has the highest quotation, because of its special structure and higher straightening efficiency: 2 pieces of H Beam are straightened, doubling on efficiency. However, for most majority customers, higher straightening efficiency is not necessary, because, as discussed previously, straightening station is not bottleneck in H Beam Production Line;
4) As conclusion, usually straightening efficiency is not an issue for selecting on models of H Beam Flange Straightening Machine;
5) An obvious trend over the past several years, to today year 2026 is, more and more Hydraulic H Beam Straightening Machine are selected by customer, taking precedence over motor drive HYJ series. Because more and more heavy duty large H Beam, with yield strength of 345MPa and 485MPa, and larger flange thickness (50mm to 100mm) are applied in steel structure and bridge construction field.

Engineering to Order Value Chain of Wuxi JACK I H Beam Straightening Machinery

H Beam Flange Straightening Machine

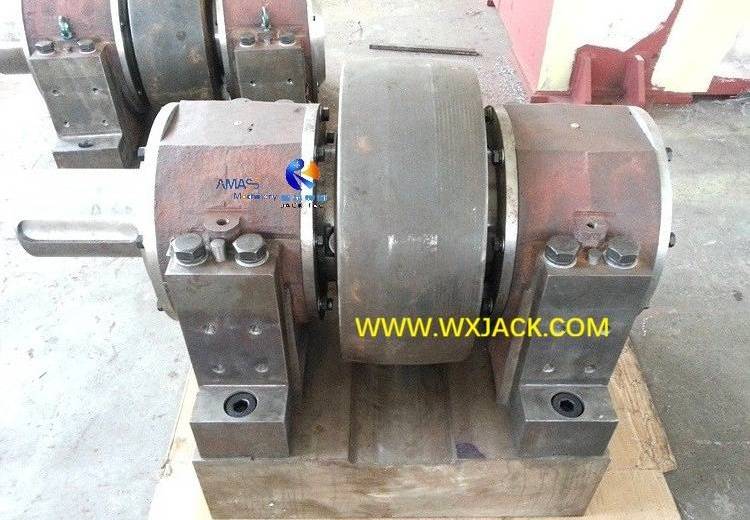

1 Hydraulic H Beam Straightening Machine 2

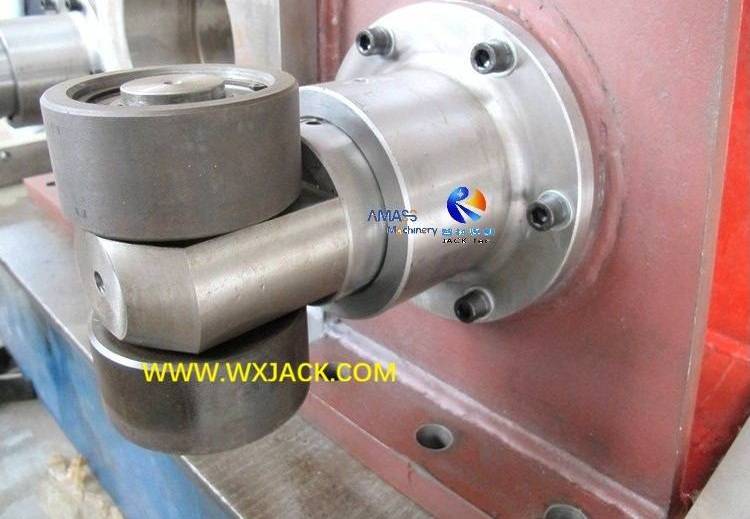

2 Hydraulic H Beam Straightening Machine 8 IMG_0107
3 Hydraulic H Beam Straightening Machine 14

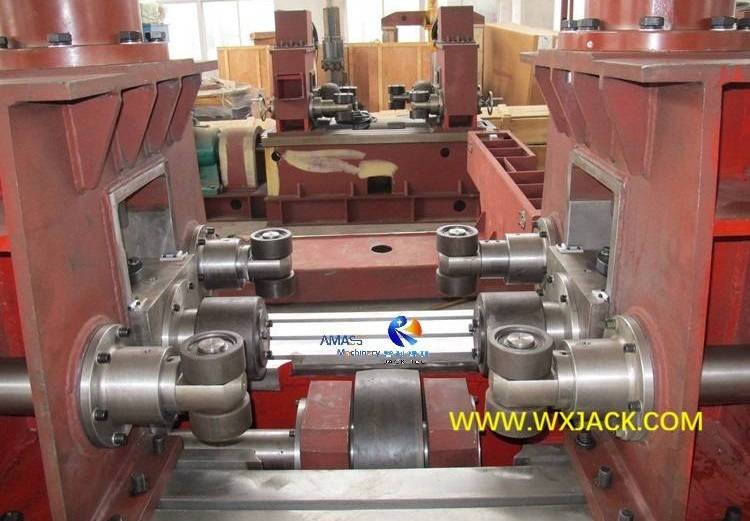

4 Hydraulic H Beam Straightening Machine 13
5 Hydraulic H Beam Straightening Machine 2
6 Hydraulic H Beam Straightening Machine 34

Put into Use on Wuxi JACK I H Beam Flange Straightening Machine

Here we take the largest model YTJ80 hydraulic drive H Beam Straightening Machinery, which has rather good selling performance in the recent 2 years of 2025 and 2026 as example:

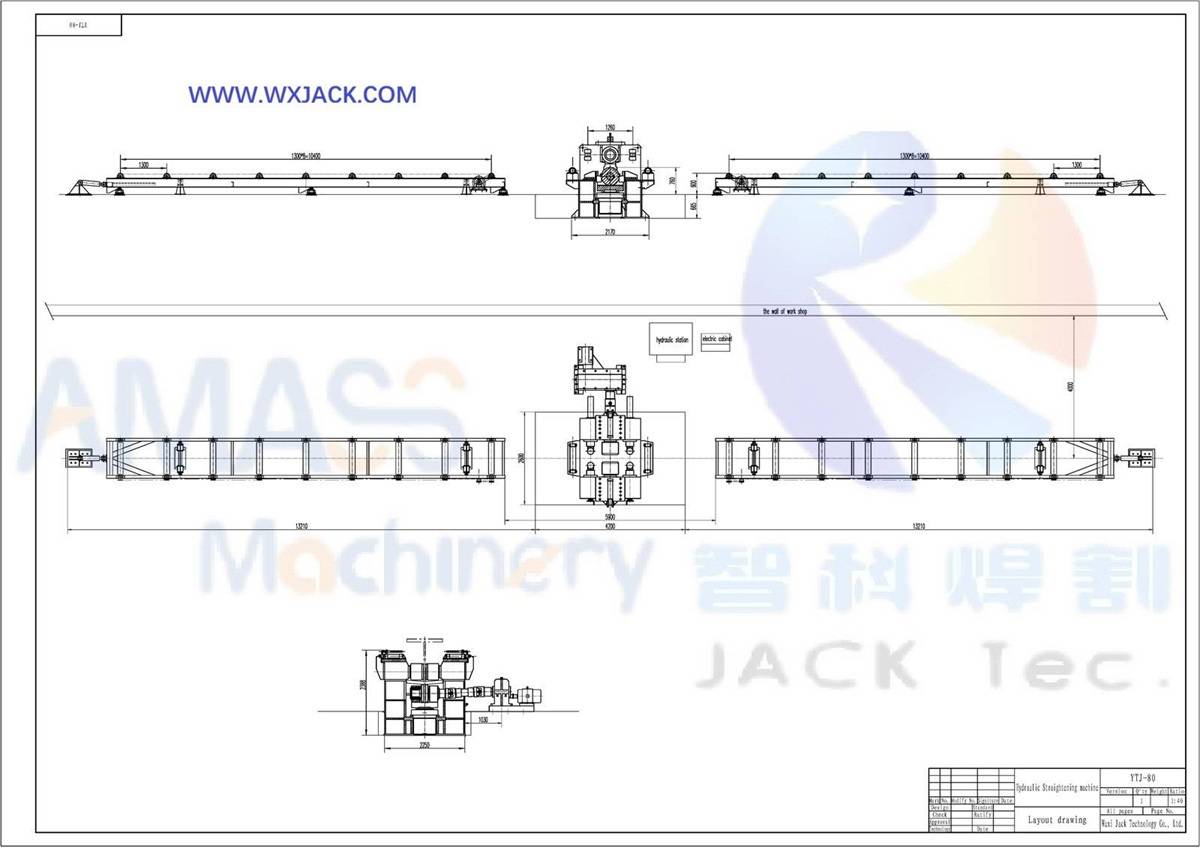

1. On Site Layout of Wuxi JACK YTJ80 Hydraulic H Beam Straightening Machine:

0 Hydraulic H Beam Straightening Machine

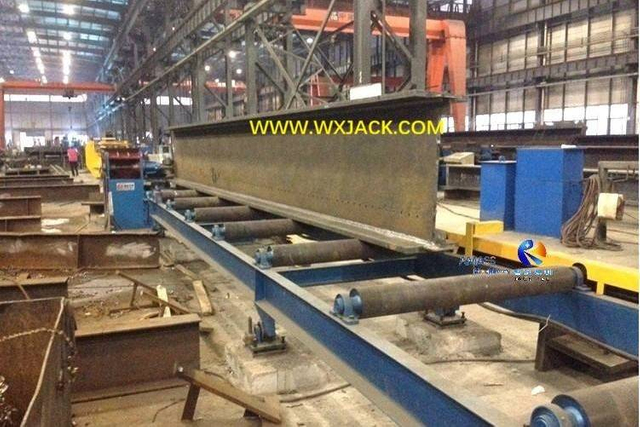

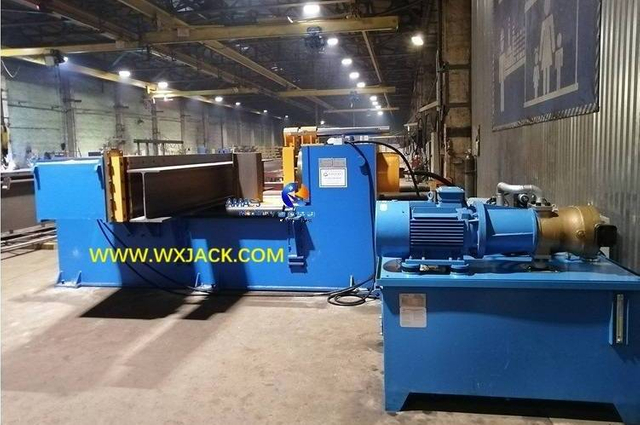

Wuxi JACK YTJ80 on site operation at customer facilities:

2. Mechanical Main Frame of Wuxi JACK YTJ80 Hydraulic I H Beam Straightening Machinery:

Front view on the mechanical main frame of YTJ80 in design sketch: (Fig.1)

Fig1 Hydraulic H Beam Straightening Machine


Photos taken at customer facility and Wuxi JACK workshop on different models of machine:

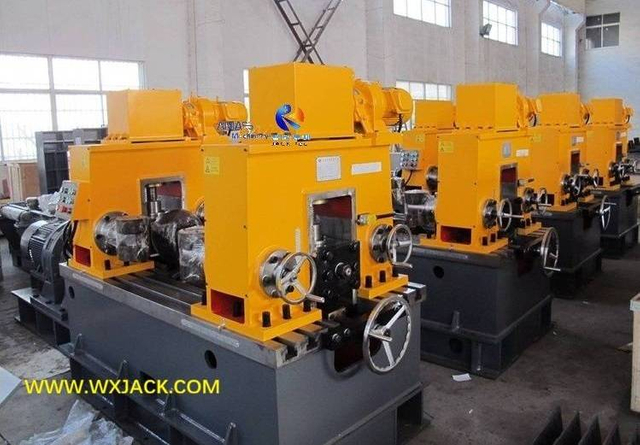

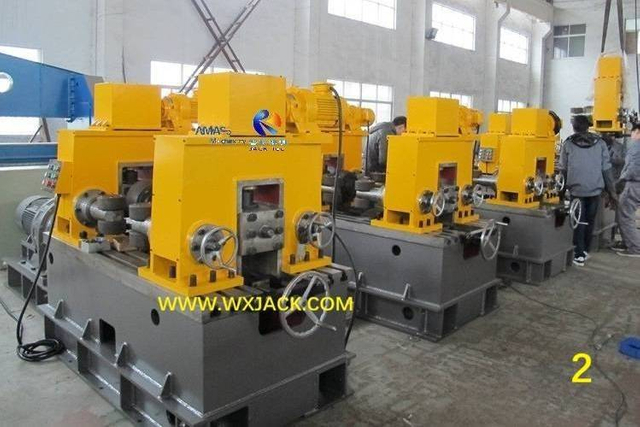

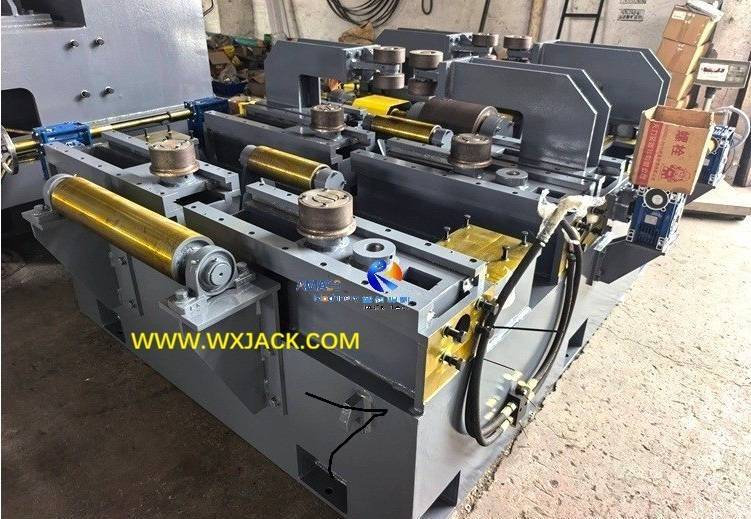

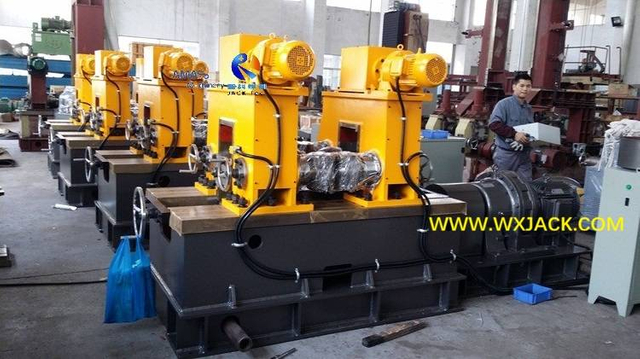

HYJ800 ready for shipment at Wuxi JACK workshop

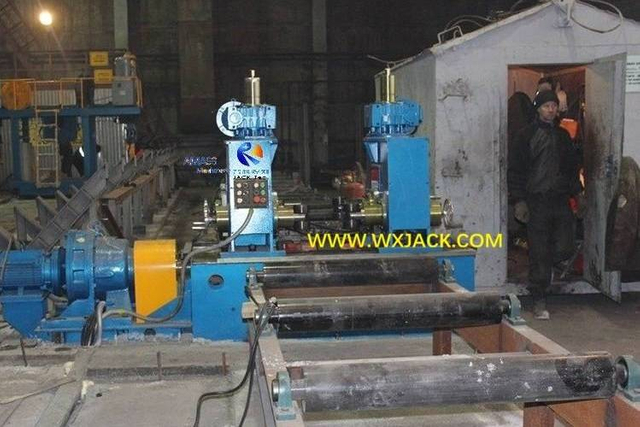

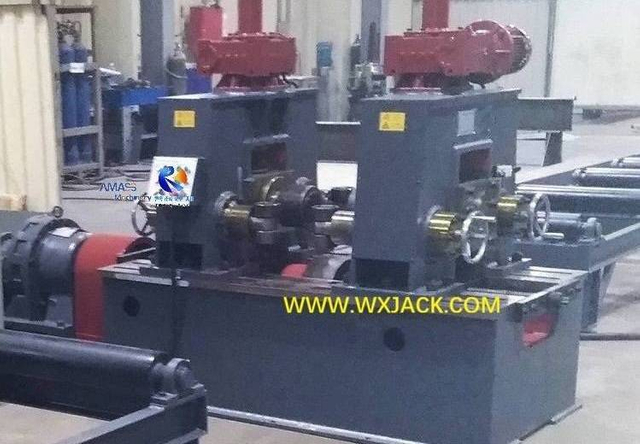

HYJ40 being installed at East European customer plant

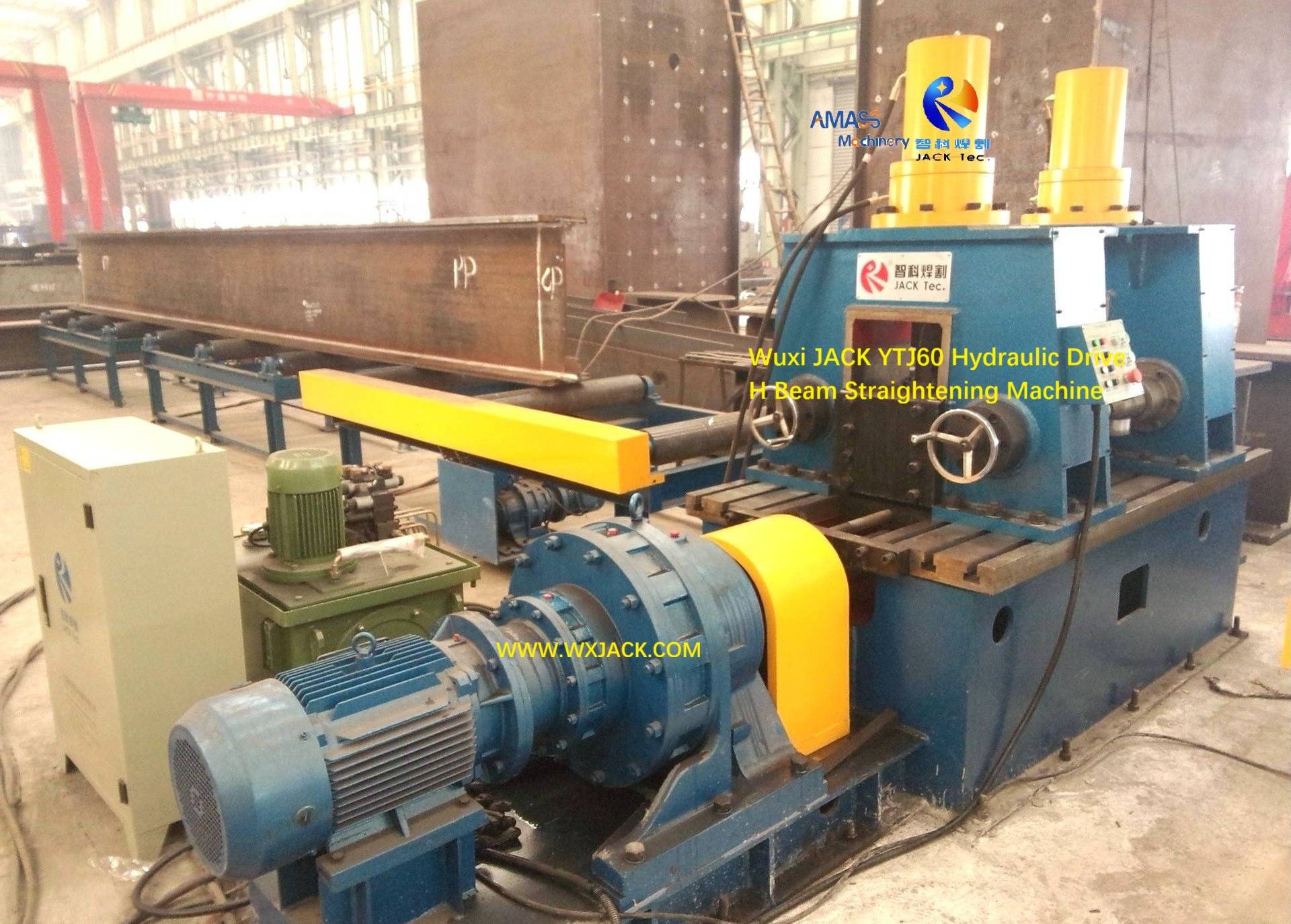

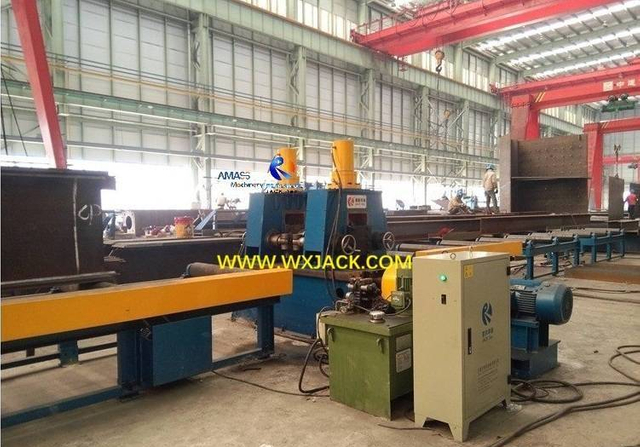

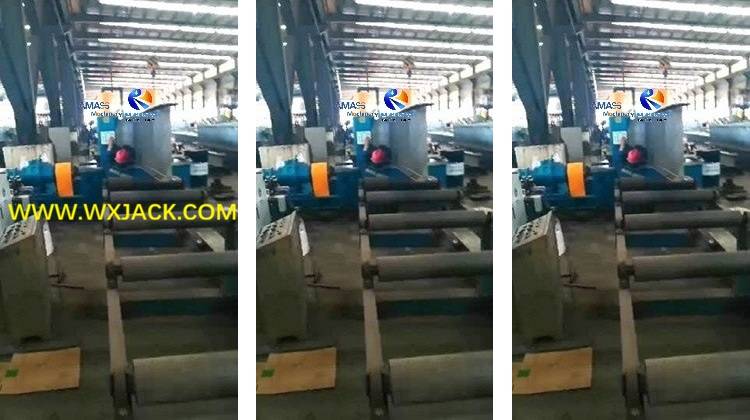

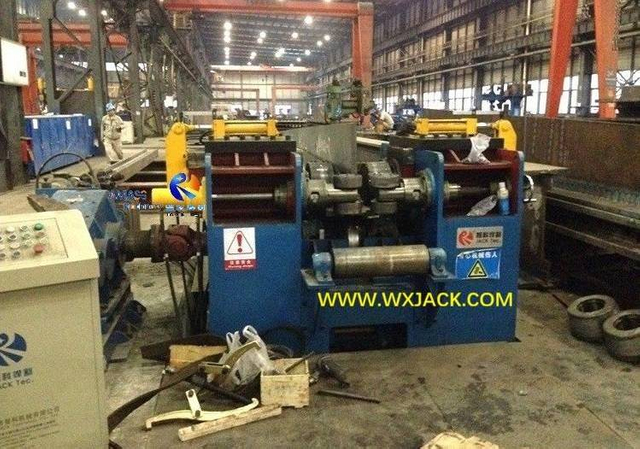

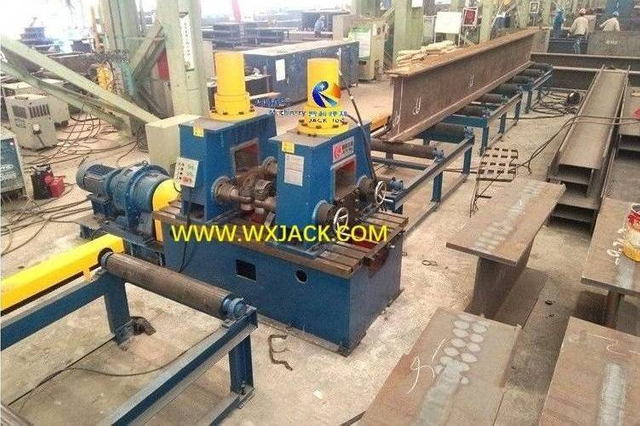

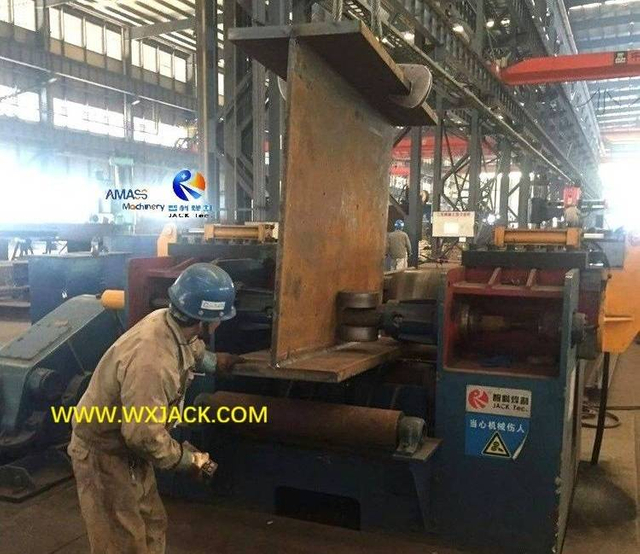

Operation site of hydraulic YTJ60/ YTJ80 at customer factory

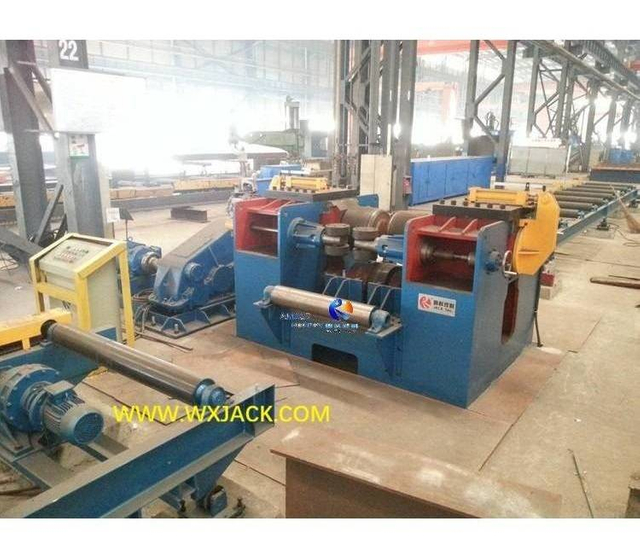

Assembled YTJ80 for middle east customer in year 2026
1) As can be seen from the above design print and photos, operating height level of Wuxi JACK H Beam Flange Straightening Machine is suitable for adult operator --- Conform to ergonomics requirement;
2) Operation is safe and convenient;
3) This is true with all the types and models of Wuxi JACK machinery and equipment.


3. Customer On Site Operation on Wuxi JACK I H Beam Flange Straightening Machine:

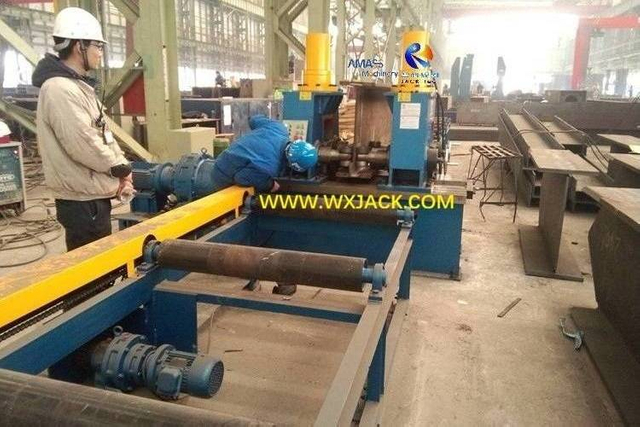

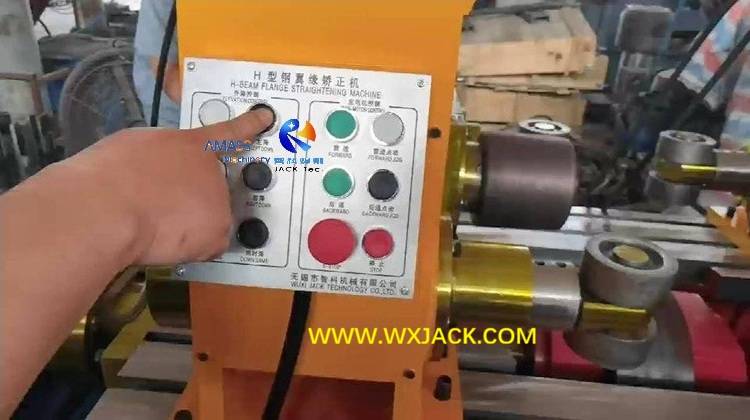

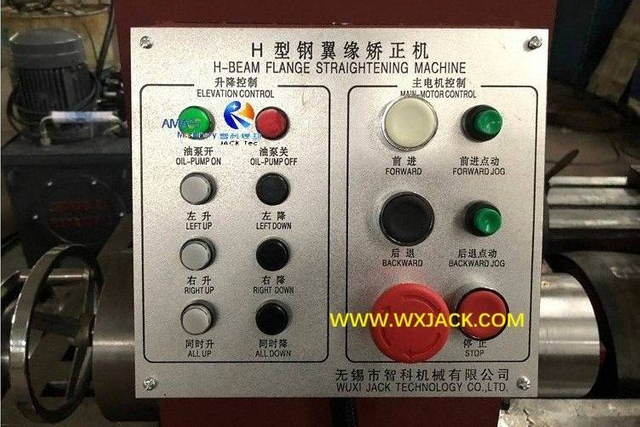

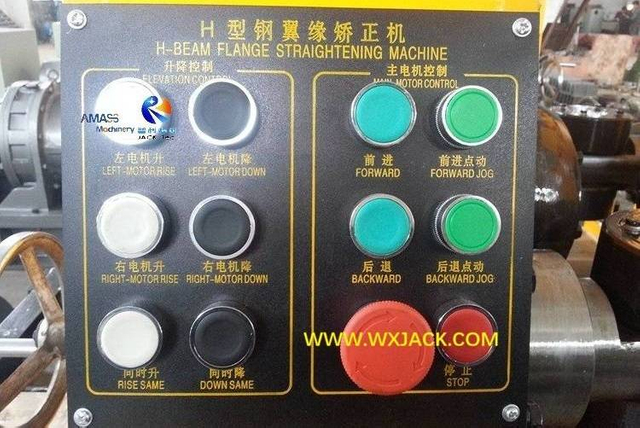

1) As can be seen from the above 1st and 2nd photos, operation on H Beam flange straightening is intuitive and user friendly. The left and right 2 pieces of upper installed straightening rollers can be adjusted either together, or one by one;

2) Process Control on Straightening Operation in Vertical I H Beam Straightening Machinery:

This mainly focus on correct modulation on below two aspects:
a) Span of the 2 pieces of upper position straightening rollers, fitting for different width of H Beam flange;
b) Downward stroke of the 2 pieces of upper position straightening rollers, based on thickness, deformation and yield strength of H Beam flange;
c) Web is aligned with 2 pairs of symmetrically assembled rollers;
3) Straightening Accuracy Control: The above two points can all be confirmed with measurement rulers being installed at straightening mechanism, as shown in the 3rd photo;
4) Straightening Passes: To straighten on the 2 pieces of flanges in one H Beam, the H Beam should go through the H Beam Straightening Machinery 2 times, with one time H Beam 180° flipping in the process;

4. Empirical Data on Operation Wuxi JACK I H Beam Flange Straightening Machine:

1) Rule of Thumb: For all models of Wuxi JACK H Beam Straightening Machinery, there is relationship between thickness and width of H Beam flange. We give these data in manual book of each model;
2) For example, below is empirical Data on operating medium duty motor drive HYJ800 model:
Flange Thickness (mm) -20 20- 30 30- 35 35- 40
Flange Width (mm) 200- 800 350- 800 550- 800 650- 800

Wuxi JACK Other Steel Structure Machines besides I H Beam Straightening Machinery

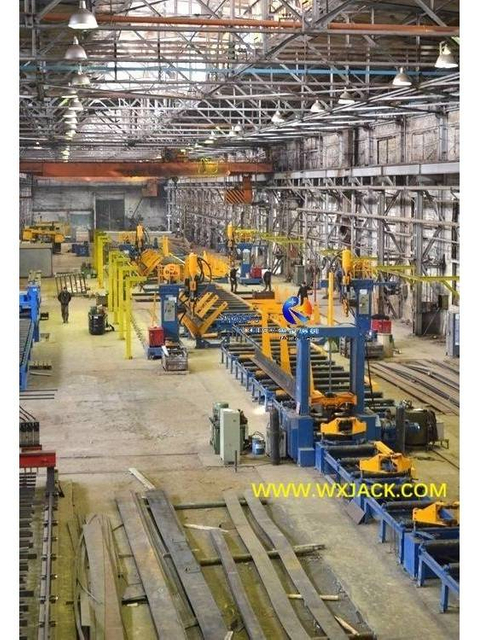

HB1500 automatic H Beam Welding Production Line

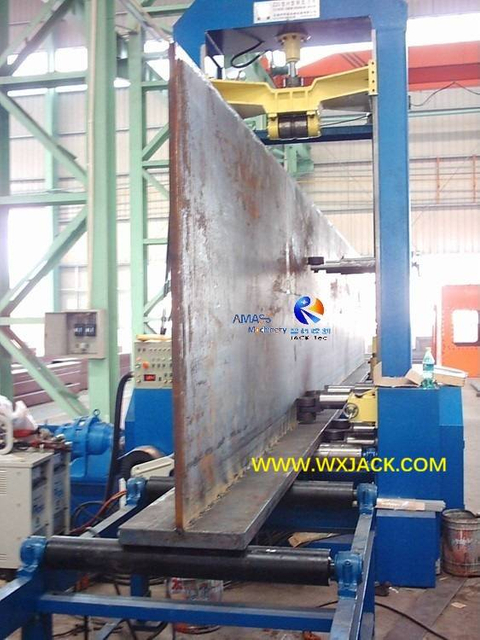

Z15 3 in 1 H Beam Assembly and Tack Welding Machine

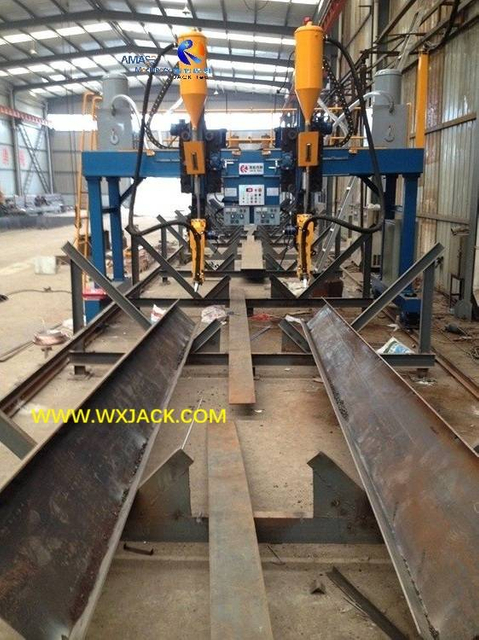

LHA5Z H Beam Gantry SAW Welding Machine

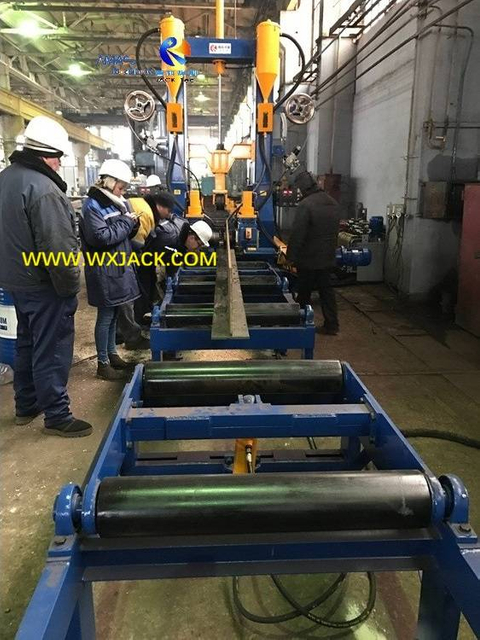

PHJ15 model 3 in 1 H Beam Assembly Welding Straightening Machine (H Beam Fabrication Machine)

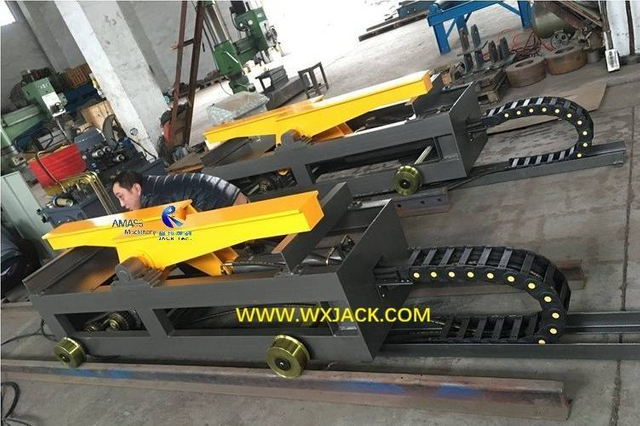

YF1520 Motor Drive Moving Hydraulic 180° H Beam Turnover Machine

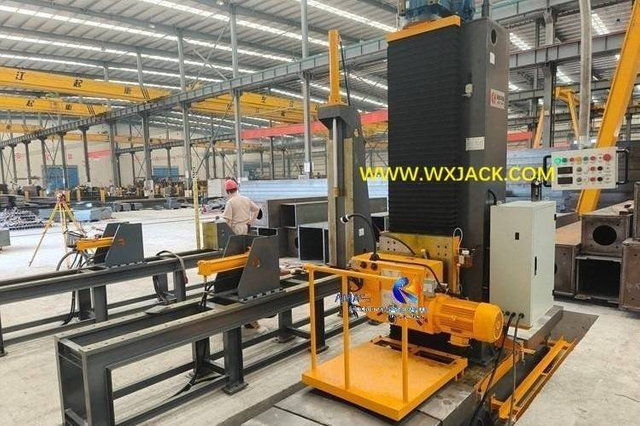

DX1520 BOX H Beam End Face Milling Machine

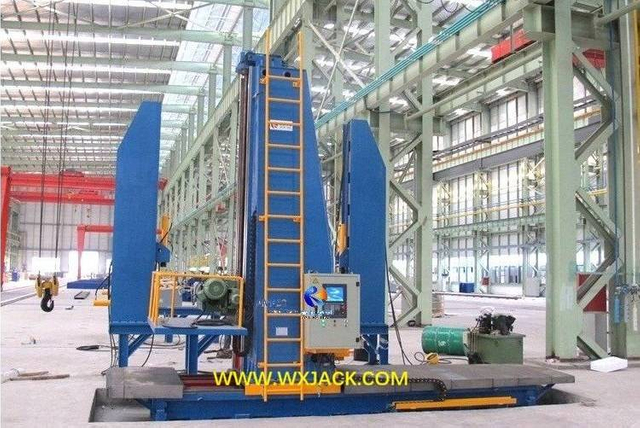

CNC-DX3030 CNC Control BOX H Beam End Face Milling Machine

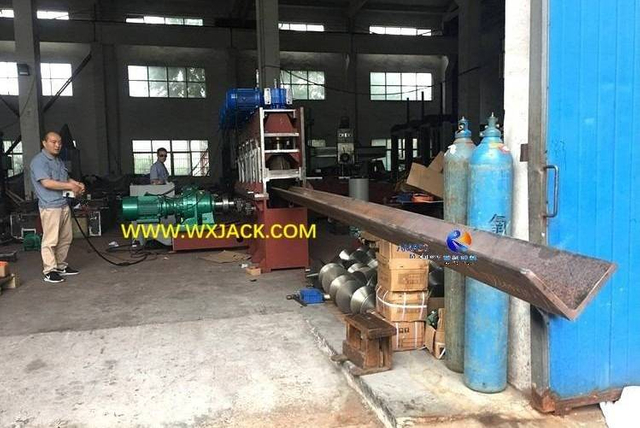

ASM200 L Angle Steel Straightening Machine

FAQ on Wuxi JACK I H Beam Flange Straightening Machine

  • Q Now that there are so many types of H Beam Flange Straightening Machine, how to select the most proper model, so that not only can meet requirement on flange straightening, but also with the least investment budget?

    A Proper selection on H Beam Straightening Machinery depends on below 2 critical factors:
    1. 1) The max. specification of H Beam flange for straightening;
    2. 2) Special specification of H Beam flange;
    This can be explained with 2 business communications between customer and Wuxi JACK in year 2026:
    1. 1) The max. straightening capacity:
    In August 2026, a South American customer asked Wuxi JACK engineer, whether our YTJ80 Hydraulic H Beam Straightening Machine can straighten on H Beam flange with 100mm thickness and 485MPa yield strength (Carbon steel: ASTM A709 WTB 1, Grade 50);
    This is Wuxi JACK engineer response on customer question:
    1. a) For H Beam straightening, because yield strength of customer H Beam is 485MPa, it is hard to straighten on 100mm thickness flange: This will press out obvious dent on surface of H Beam flange. The max. thickness of flange should not exceed 80mm under 485MPa yield strength;
    2. b) For straightening H Beam flange thickness 100mm, the yield strength should not exceed 345MPa;
    1. 2) The min. size of H Beam flange and web for straightening:
    In July 2026, a Bangladesh customer inquired Wuxi JACK on small model HYJ20 motor drive I H Beam Flange Straightening Machine. Size of their H Beam:
    1. a) Flange thickness: 5- 20mm;
    2. b) Flange width: 100- 300mm;
    3. c) Web height: 150- 500mm;
    This should be selected with HYJ20 model motor drive H Beam Straightening Machinery;
    We can also see that, in the field of H Beam Flange Straightening Machine, there is restriction on the minimum width of flange and minimum height of web. For example, for hydraulic drive YTJ80, the minimum width of H Beam flange is 500mm; For YTJ60, it is 350mm.

  • Q How to Manage on Straightening Stroke in Wuxi JACK Motor Drive and Hydraulic H Beam Straightening Machine?

    A
    1. 1) Wuxi JACK adopts on mature and the most cost effective way of downward acting stroke rulers, which are assembled alongside the 2 pieces of upper straightening rollers. This is also conventional design in industry, intuitive, simple and reliable;
    2. 2) Under customer requirement, we also use HMI (Human machine interface) and digital display, with proximity switch to be assembled on straightening rollers, to detect on downward straightening stroke. Of course, this will add on manufacturing cost of H Beam Flange Straightening Machine, and hence its selling price.

  • Q As Professional Supplier on H Beam Straightening Machinery, what is your observance on application trend of this machine in recent five to six years from year 2021 to 2026?

    A
    1. 1) 10 to 20 years ago, the mainstream product in the field of H Beam Flange Straightening Machine was motor drive HYJ800 and HYJ40 models, which have the max. straightening capacity of flange thickness 40mm, with yield strength of 235MPa;
    2. 2) Nowadays, more and more customers select on YTJ series Hydraulic H Beam Straightening Machine, especially those large models: YTJ60 and YTJ80. This is because Steel Structure industry has the trend of more complicated construction using heavier raw materials. And other industries, like Bridge construction industry customers, buy large and heavy H Beam Production Line for their project.

  • Q We know Customer sometimes purchase more than one set of H Beam Welding Machine and CNC Flame Cutting Machine, to meet their target on monthly and annually output on welding H Beam. How about quantity of H Beam Flange Straightening Machine in this regard?

    A
    1. 1) In process technology of welding H Beam production, H Beam flange straightening station is very seldom bottleneck on TAKT time of the entire line. Straightening speed is in the range of 6300mm/min. to 17,000mm/min.. Compared with 300- 2000mm/min. working speed of H Beam assembly and SAW welding, straightening velocity is rather high;
    2. 2) Therefore, one set of H Beam Straightening Machinery can meet customer demand on productivity, no matter it is a HYJ series motor drive type, or YTJ series hydraulic drive machine.

  • Q How to carry out trial run on Motor drive and Hydraulic H Beam Straightening Machine at Wuxi JACK workshop?

    A
    1. 1) What’s special with H Beam Flange Straightening Machine, compared with H Beam Assembly Machine and H Beam Welding Machine is, it can not be commissioned with workpiece loaded before delivery. Which means, it can only be tested in idle running: Try on vertical and horizontal movement of straightening rollers, and web alignment rollers;
    2. 2) This is because actual operation on H Beam flange straightening need to have main machine being installed and consolidated into its foundation, which has around 1,000mm depth into workshop floor. This can only be realized at customer facility;
    3. 3) In August 2026, Wuxi JACK had middle east customer engineers going to our company, for FAT (Factory Acceptance Test) on YTJ80, together with Z30 H Beam Assembly Machine and LHA H Beam Welding Machine. We explained this situation to customer engineers, and gained their understanding and agreement on having workpiece test on Z30 and LHA only.

Other Products We Own besides I H Beam Flange Straightening Machine

General Purpose Automatic Lengthwise ASM63 Angle Steel Straightening Machine
General Purpose Automatic Lengthwise ASM63 Angle Steel Straightening Machine
1. What can ASM63 do for Customer?
2. Why You need Angle Straightening Machine?
3. The Good Points of ASM series Machine:
4. Technical View on ASM63:
5. Technical Parameters of ASM63:
0
0
Double Individual U Frame Chain Manipulator Overturning Machine on Steel Structure Beam
Double Individual U Frame Chain Manipulator Overturning Machine on Steel Structure Beam
1. Purpose of Equipment
2. Structure and Work Principle of Equipment
3. Operation Process in Equipment
4. Main Units and Supply Range of Equipment
5. Technical Parameters of Equipment
0
0
Symmetric Beam ZHJ18 Model 3 in 1 Vertical H Beam Welder Machine
Symmetric Beam ZHJ18 Model 3 in 1 Vertical H Beam Welder Machine
A. Product Brief on ZHJ18 Model:
B. Technical Comparison on PHJ Versus ZHJ Series:
C. Quality Control on PHJ and ZHJ Series 3 in 1 Machine:
D. Technical Parameters of ZHJ18:
0
0
HB-series High Quality Automatic Welding H Beam Production Line
HB-series High Quality Automatic Welding H Beam Production Line
1. The Benefit of HB series Automatic Line:
2. Layout:
3. Technical Parameters:
0
0
HMI Operation MP23 Plate Flat Butt Joint Welding Machine
HMI Operation MP23 Plate Flat Butt Joint Welding Machine
A. Specialty and Function of MP23: Operation Way / Function
B. Structure, Main Function Cells, and Working Principle of MP23:  Main Units/  Work Principle
C. Advanced Technique and Operation of MP23:  The critical core technique/ Critical Units/  Double Layer Welding Flux/ Workpiece Clamp/ Operation
D. Mechanical Features of MP23:  Main Body/ Plates Clamp during Butt Welding/ Input and Output Conveyors
E. Technical Parameters of MP23
0
0
HMI Control Advanced Function SXBJ-12 Large Edge Milling Machine
HMI Control Advanced Function SXBJ-12 Large Edge Milling Machine
A. Function of SXBJ-12:
B. Structure and Main Units in SXBJ-12:
C. Workpiece Steel Plate Feeding System in SXBJ-12:
D. Electric Control System of SXBJ-12:
E. Technical Parameters of SXBJ-12:


0
0
Steel Column Member Use DX1520 End Face Milling Machine
Steel Column Member Use DX1520 End Face Milling Machine
A. Function and Application of DX1520:  Applicable Workpieces/ What Service can DX1520Provide for Customer?/ Milling Operation Control Type
B. Workpiece Clamping Table of DX1520:  Task of Workpiece Clamping Table/ Structure
C. Structure of DX1520:  Stationary Width Direction Bed/ Moving Upright Column/ Milling Head Carriage
D. Technical Parameters of DX1520
0
0
DX1530 Welding Structure Member End Facing Machine for Long Parts
DX1530 Welding Structure Member End Facing Machine for Long Parts
A. Scope and Wide Use of DX15xx and DX12xx Models Conventional Siz:  Conventional Models of machine/ Usage  / Background
B. Structure and Work Principle of Conventional Models:  Overall Structure/ Work Principle/ Milling Working Speed Control and Display
C. Main Units of Conventional Models:  HIWIN Heavy duty Ball Bearing Precise Guiderail/ Operating panel / Protection on Guiderail/ Mechanical main frame/ Milling Head / Lubrication/ milling cutter head
D. Technical Parameters of DX12xx and DX15xx Standard Models

0
0

Blogs on Wuxi JACK H Beam Straightening Machinery

  • H beam assembly weld straighten integral machine application advantages in steel structure production

    H beam assembly weld straighten integral machine application advantages in steel structure production
    Strong Production Capacity of 3 in 1 H Beam Assembly Weld Straighten Integral Machine; Saving Cost Benefitting from Integral Function 3 in 1 H Beam Welding Machine; Strong Capability of 3 in 1 I Beam Fabrication Machine; Working Style and Operation on 3 in 1 Vertical H Beam Welding Machine; Summary and Wuxi JACK Leading Edges on 3 in 1 H Beam Fabrication Machine Read More
  • Do you know what is H beam assembly weld straighten integral machine?

    Do you know what is H beam assembly weld straighten integral machine?
    Why So Popular 3 in 1 H Beam Assembly Welding Straightening Integral Machine? Definition and Outline on 3 in 1 H Beam Fabrication Machine Market Demand on 3 in 1 Integral Function H Beam Welding Machine Procedure Sequence of Automatic 3 in 1 H Beam Welding Machine Summary on Wuxi JACK 3 in 1 H Beam Assembly Weld Straighten Integral Machine Read More
  • Preparation before Putting into Use of I Beam Assembly Welding Straightening Machine

    Preparation before Putting into Use of I Beam Assembly Welding Straightening Machine
    Environmental Working Conditions of the 3 in 1 I Beam Assembly Welding Straightening Machine; Power Conditions of the Automatic 3 in 1 H Beam Welding Machine; Hoisting Capacity of the Workshop for the 3 in 1 Vertical H Beam Welder; Foundation and Installation of the Automatic 3 in 1 H Beam Welding Machine; Mechanical Oil and Hydraulic Oil of the 3 in 1 I Beam Fabrication Machine; Welding Materials used in the Automatic 3 in 1 H Beam Welding Machine Read More
Home

Home Products About Us R&D Customization FAQ Blog Contact Us

WUXI AMASS MACHINERY CO., LTD
WUXI JACK TECHNOLOGY CO., LTD
0510-83297829
English Language: 15852755799;
Chinese Language: 13621515089
support@WXJACK.com
No. 2, Ouyang Road, Luoshe Town, Wuxi City, Jiangsu Province, China
CONTACT US
© Wuxi AMASS Machinery Co., Ltd  2021 All Rights Reserved.
备案证书号：苏ICP备13045244号-1
