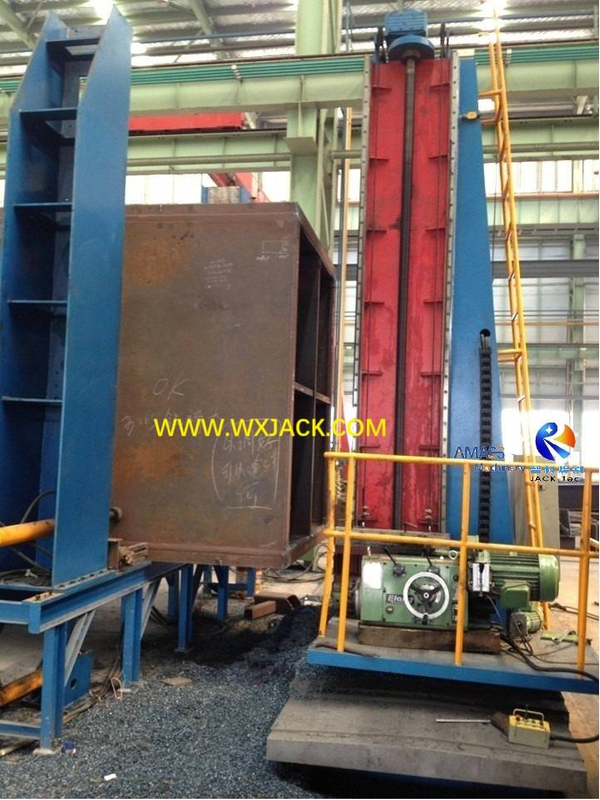

In the first photo, a set of DX3030 Welding Structure End Face Milling Machine was about to have facing operation on a piece of large BOX beam workpiece. With visual inspection, this BOX beam workpiece has cross section size of around 2.5m side length. So, what this machine can support you as customer?
1) DX3030 refers to max end facing stroke of 3m length by 3m width. It belongs to medium large models of Steel Structure H Beam End Face Milling Machine;

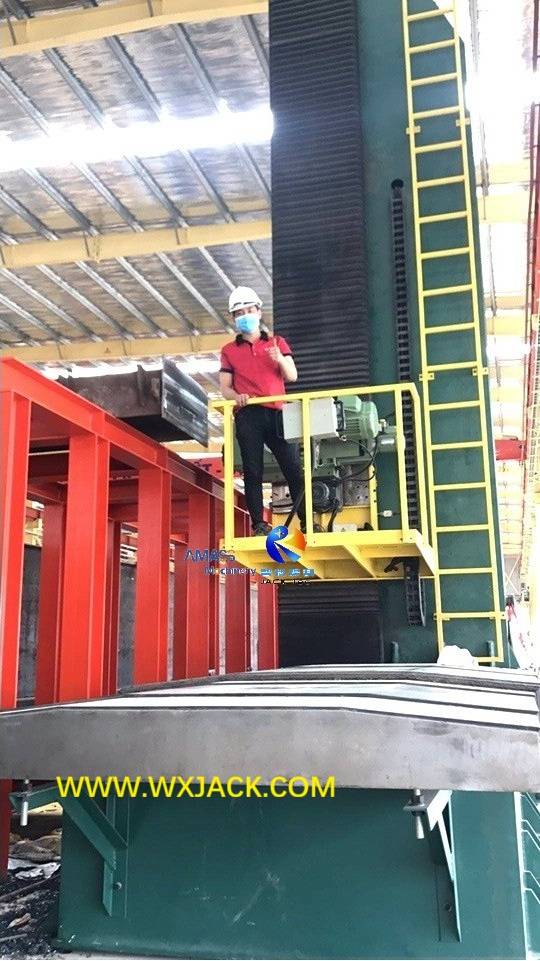

2) For vertical stroke higher than 2m, the operating platform should have elevating function, together with milling carriage and milling head itself, to get convenient facing operation monitored by working staff. Please check the second photo: For a set of DX6080 Steel Structure H Beam Face Milling Machine exported to Vietnam by Wuxi JACK in 2018;
3) Within the scope of medium large and large I Beam Face Milling Machine, DX3030 is one of the most selected models because of its fitting workpiece size in practical use;
4) Without CNC, this ordinary type Steel Structure H Beam End Face Milling Machine is best fitting for facing on square and or rectangular cross workpiece, including H Beam/ I Beam/ BOX Beam, as the case in the first photo.

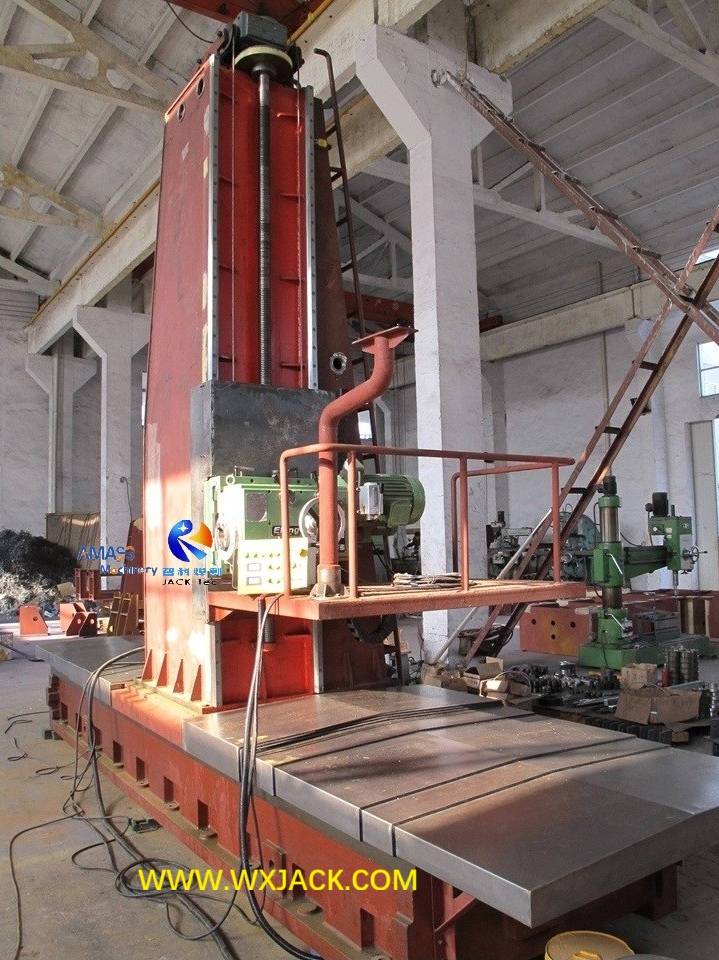

1) Typical frame bodies of I Beam End Face Milling Machine please see the 3rd and 4th photos, in the state of before painting and after painting respectively. At a first glance, it looks similar to Welding Manipulator, but completely different kinds of equipment. The machines in the two photos are DX1520 H Beam End Face Milling Machine, the most popular model in this product group;

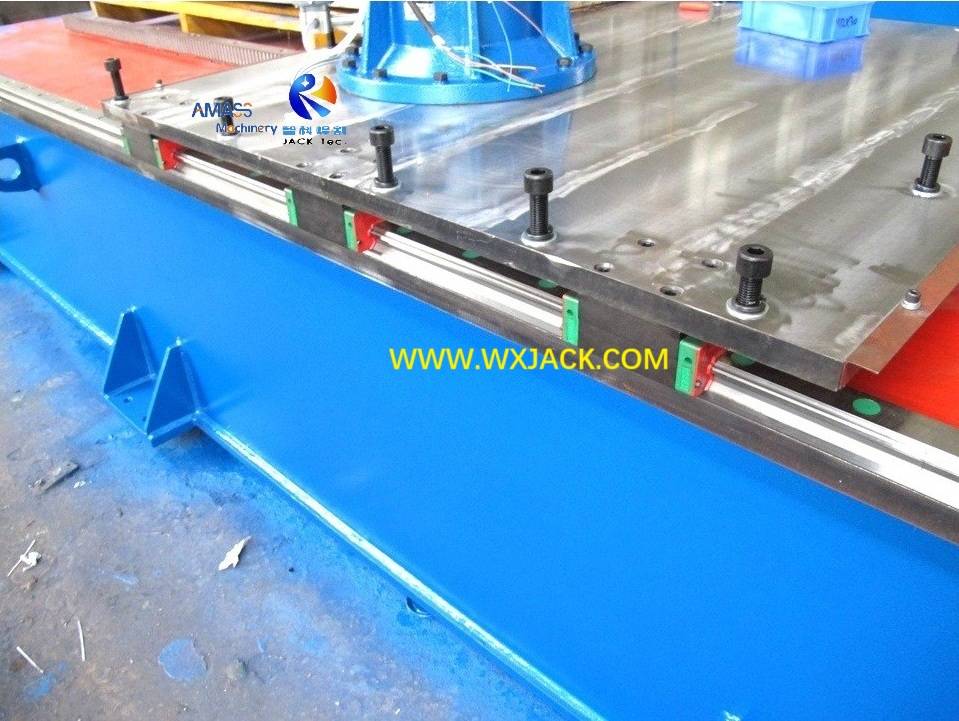

i. It is fixed into workshop floor, solid and sturdy. Under most majority of applications, it is made from welding structure members. Its height depends on specific model of machine. For this DX3030 Welding Structure End Face Milling Machine, it has height of around 600mm;
ii. Functions of this unit is to serve as foundation of the whole machine, and forms up the sliding base of the upright column (Hence milling carriage and head) along X axis in the process of facing;
i. It is movable along the above mentioned horizontal bed with motor drive. It has two types of speeds: The solitary idle high speed of 1.2m/ min. when not in end face milling, and adjustable working speed of 100~ 800mm./min. during facing job of the H Beam Face Milling Machine; The latter speed is controlled with A.C. inverter;
ii. Function of this unit is to form spatial motion base of the milling carriage along both X and Y axis;

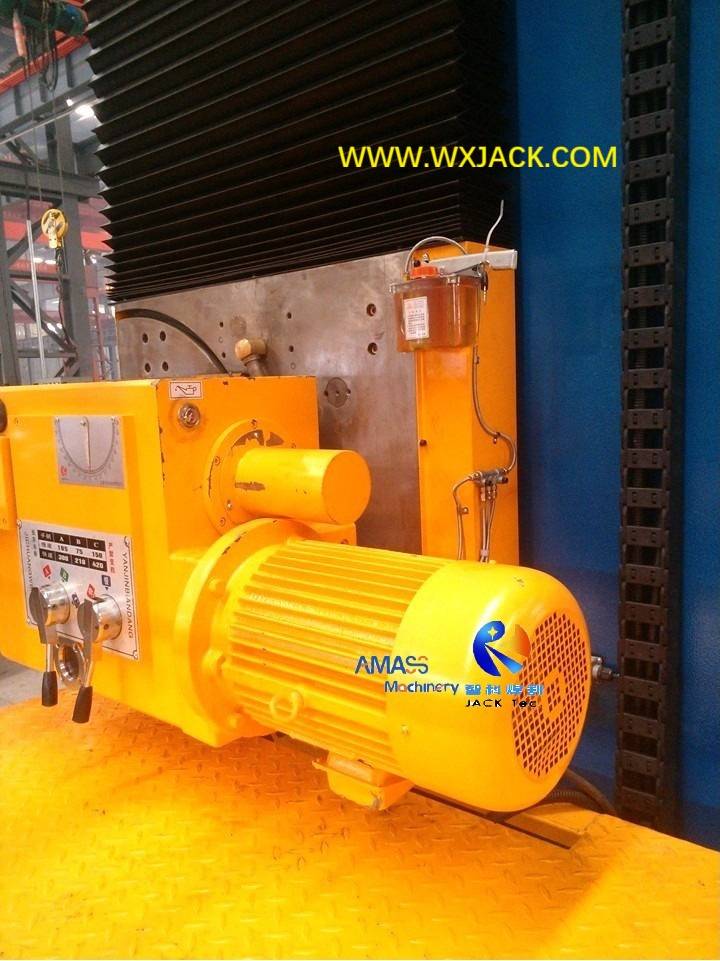

i. This is working unit of the H Beam End Face Milling Machine. It consists of milling head and its installation board. Please check the 5th photo;
ii. The installation board travels up and down along the upright column under the drive of A.C. motor, leading the milling head going up and down accordingly, fulfilling facing operation in Y axis;
i. This is for operator to stand during work of the H Beam Face Milling Machine. It is made from pattern plate, with safeguarding rails one full circle;
ii. For equipment of models below 2m valid stroke (Excluding), for example DX15xx/DX10xx/DX12xx…, this standing is fixed at the bottom of the upright column;
iii. While for Welding Structure End Face Milling Machine of models higher than 2m valid stroke (Including), for example DX2030/ DX3030/ DX4080… This standing is lifting type integrated with the milling carriage, moving as an integral unit during work of the Welding Structure End Face Milling Machine. Please check the 2nd photo.
For this DX3030 Large Size Steel Structure H Beam End Face Milling Machine:
No. | Parameter | Ordinary type Medium Large DX3030 Steel Structure H Beam End Face Milling Machine | |
1 | Applicable Max. Workpiece Cross Section Size Height × Width= | 3000×3000 mm | |
2 | Horizontal End Face Milling Speed | 100~800 mm/min | Working speed, variable frequency drive |
3 | Facing Carriage Idle speed in horizontal and vertical direction | 1200 mm/min | Constant speed |
4 | Vertical End Face Milling Speed | 100~800 mm/min | Working speed, variable frequency drive |
5 | X/Y Axis Facing Guide | Heavy duty Precise Linear guiderail, installed onto base bed and column | |
6 | Horizontal Driving Motor | 2.2 kW | Variable frequnecy motor |
7 | Vertical Driving Motor | 3.0 kW | Variable frequnecy motor |
8 | Milling Head Power | 7.5 kW | Made in Chinese mainland |
9 | Milling Head Spindle Revolution | 75~420 rpm | 6-grade Revolution adjustable |
10 | Diameter of Facing Cutter | Ø125~250 mm | Ø 200 equipped with machine |
11 | Milling Head Spindle Stroke | L=100 mm | |
12 | Hydraulic Workpiece Rack (Optional) | 1 set | 1 set of pump station; Quantity of racks depends on length of workpiece |
