A. Extensive Use of CNC-CP5-1400/L 5 Axis CNC Pipe Cutting Machine:
1. Function and Workpiece Specifications of 5 Axis CNC Pipe Intersection Cutting Machine:
The model “CNC-CP5-1400/L” has implications of:
1) 5 axis CNC control, which entails useful functions of:
a) Length of segment cutting in pipe;
b) Hole cutting in pipe body;
c) Straight or slant edge beveling with length and pipe cutting:
2) The max. diameter of pipes for cutting is Φ1,400mm;
3) “L” denotes on the max. length of pipe, the typical length is 12m:

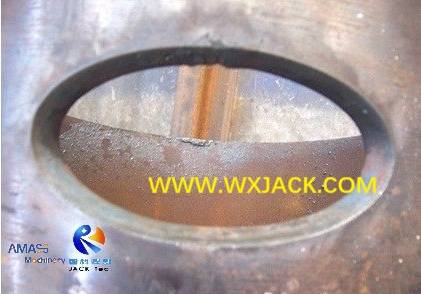

a) The elliptical hole with oblique rim cut in pipe, by means of 5 control axis in CNC: (Fig.1)

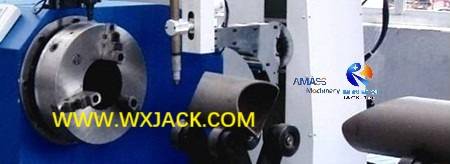

b) The cut off pipe segment, with curve rim for intersection joint: (Fig.2)
4) Cutting Technology: Pipe cutting is by means of thermal gas cutting, can be:
a) Either Oxygen fuel cutting on thick wall, up to 100mm thickness,
b) Or compressed air plasma cutting on thin to medium thickness, usually in the scope of 3mm to 30mm;
2. Wide Application of 5 Axis CNC Pipe Flame Plasma Cutting Machine:

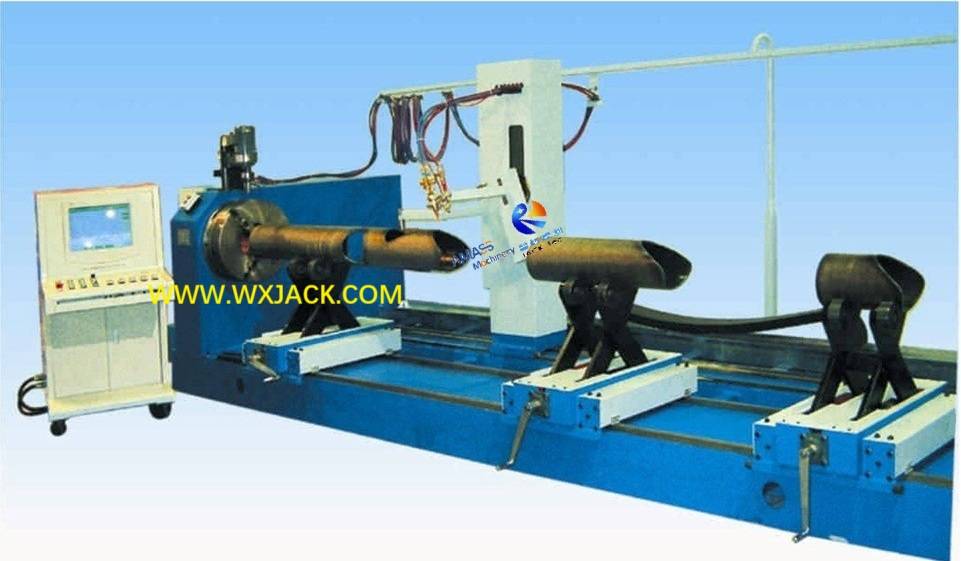

1) As the No.1 selling volume of CNC-CP series CNC Pipe Oxygen Fuel Plasma Cutting Machine, this model of CNC-CP5-1400/L can be viewed as “Classical Product”, because it sees extensive use in various manufacturing industry, benefitting from the most popular focus on pipe dimensions and covered functions:

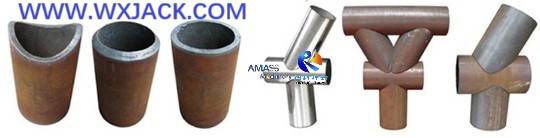

a) Typical workpieces with 5 axis CNC control pipe cutting: cut off pipe segment with straight/ slant / curve rims, and pipe assemblies with intersection joint lines, of small to medium size: (Fig.3)

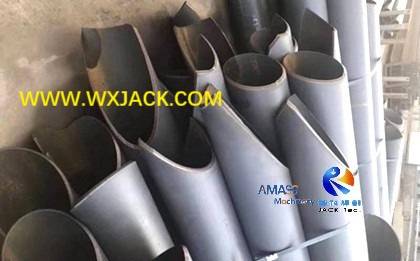

b) Heaps of cut off small pipes with curve rims, from 5 axis CNC control: (Fig.4)

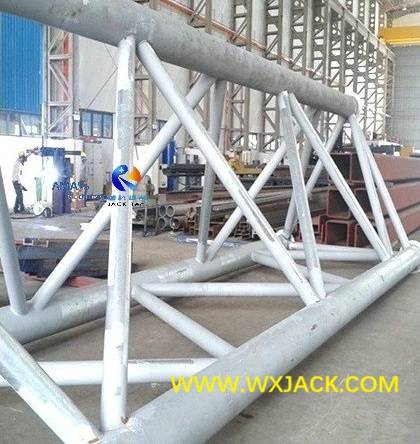

c) Pipeline construction, from small and medium size cut off pipes: (Fig.5)
2) Applied Industry: In all, 5 Axis CNC Pipe Thermal Gas Cutting Machine see application in Steel Structure/ Stadium/ Exhibition Center/ Ventilation Duct, etc.
B. Great Value of CNC-CP5-1400/L 5 Axis CNC Pipe Intersection Cutting Machine:
Breakthrough on Pipe Cutting Operation: There is revolutionary change on quality and productivity of pipe cutting and beveling, with the introduction of CNC-CP series Flame Plasma CNC Pipe Intersection Cutting Machine. Without this powerful machinery, the traditional manual pipe cutting operation was very time consuming and difficult to manage on quality control:
1. Traditionally, it is necessary to spend lots of time on lineation scribing on the pipe, and carrying on layout out samples;
2. These manual doing production procedures are slow and volatile, and difficult to manage accuracy, and depends on skill of operators completely;
3. Now, with the introduction of this powerful CNC machine on pipe cutting, all the above mentioned problems can be removed;
4. With the advanced 5 axis control technology, the entire operation of length cutting and pipe chamfering can be made into standardization to the most degree, and the manual steps of marking and making samples are not needed any more, improving both productivity and quality control of pipe processing:

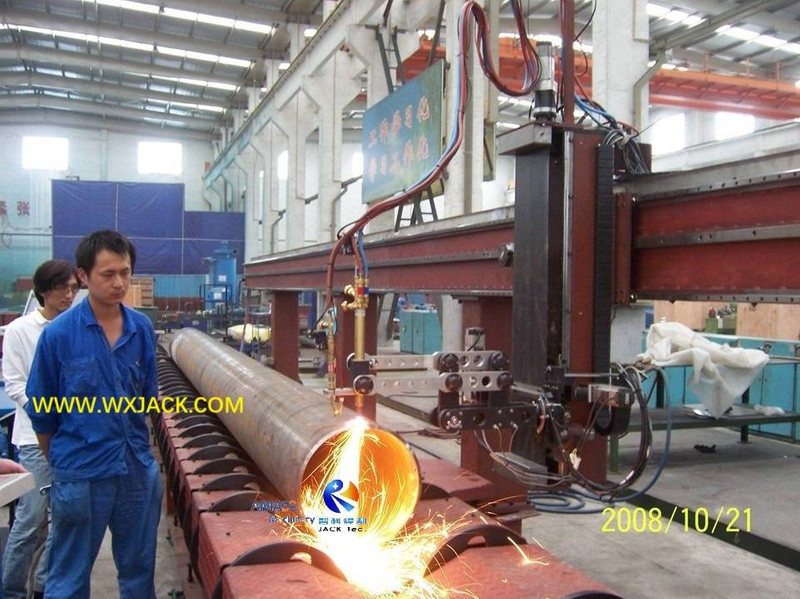

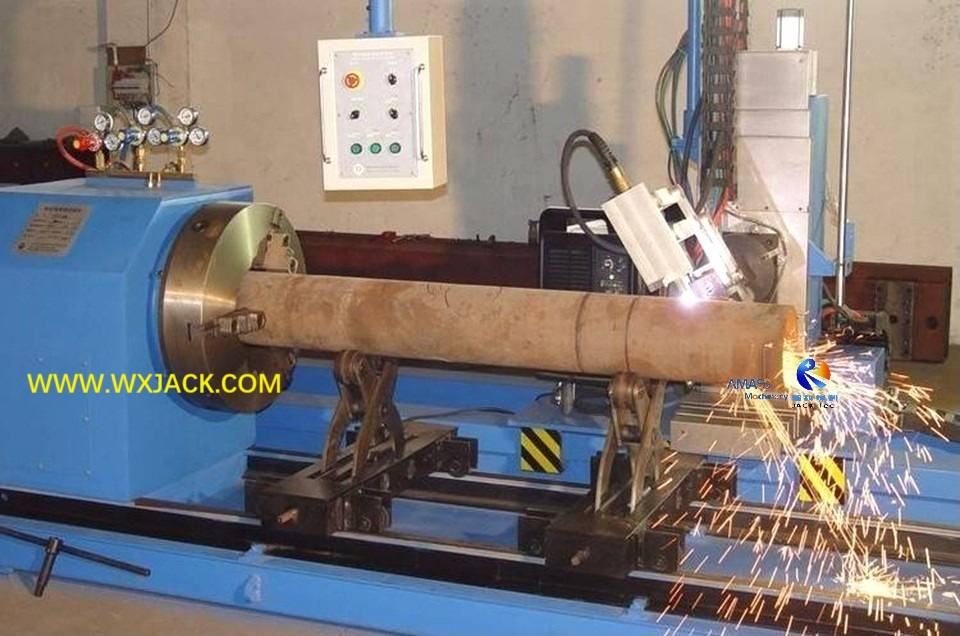

Flame cutting on Φ500mm pipe, with Wuxi JACK CNC-CP5-1400/12 model 5 Axis CNC Pipe Flame Plasma Cutting Machine: (Fig.6)
C. Technical View on CNC-CP5-1400/L 5 Axis CNC Pipe Flame Plasma Cutting Machine:
1. The 5 Axis of Cutting Torch in 5 Axis CNC Pipe Cutting Machine:

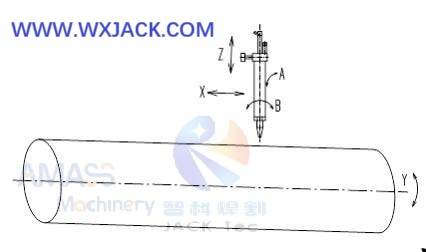

Indication on 5 axis: (Fig.7)
As demonstrated in above sketch, on the basis of basic 3 axis of:
1) X Axis- Along pipe longitudinal direction, length;
2) Y Axis- Pipe 0° ~ 360° infinite revolve for circumference cutting;
3) Z Axis- Cutting torch moves up and down, according to pipe diameter;
Adding on the 4th and 5th axis of A and B:
4) A Axis- Cutting torc swing along pipe longitudinal direction;
5) B Axis- Cutting torc swing along pipe axial direction;
With these 5 control axis, hole cutting with slant edge can be fulfilled:

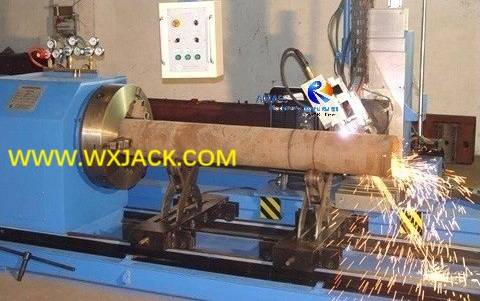

Cutting torch swing along pipe axial direction, for bevel cut in 5 Axis CNC Pipe Thermal Gas Cutting Machine: (Fig.8)
2. Specifications of 5 Axis CNC Pipe Oxygen Fuel Plasma Cutting Machine:
1) Numerical Control: There are 5 Control axis in CNC station of the machine, for drilling hole/ severing/ oblique face chamfering on edges and body of pipes;
2) Pipe Diameter and Thickness: From Φ300mm to Φ1400mm. This can cover the biggest share of pipe size in practical use; No specific restriction on thickness of the pipe wall;
3) Pipe Length: The max. length of workpieces pipe is 12,000 mm. It can be designated by customer;
4) Pipe Material and Cutting Technology:
a) Majority is carbon steel. Any other common used materials, such as stainless steel, Al, bronze... can also be cut in this equipment;
b) Correspondingly, Oxygen fuel flame cutting with Oxygen and Acetylene (Or Propane) together with Plasma Power supply are all equipped in this CNC Pipe Flame Plasma Cutting Machine;

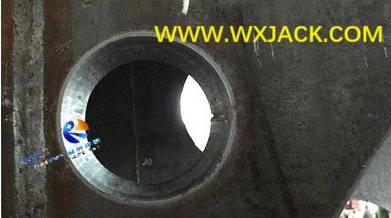

5) Beveling Cut in Circular Trace: (Fig.9)
From the above photo we can see that, compared with 3 axis control, with the addition of A and B axis for cutting torch swing and movement respectively, customers can get much more useful functions: After pipe completion of cut and bevel, the workpieces pipes will be sent to next working station for processing;
3. Operation in 5 Axis CNC Pipe Cutting Machine:
1) The process control on complicated pipe cutting task, can be managed conveniently with CNC controller monitor:

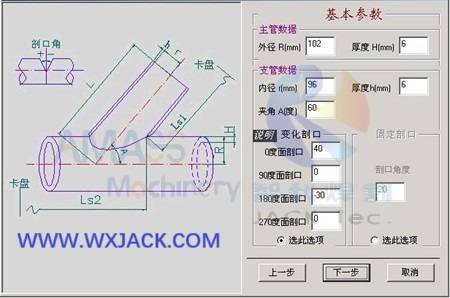

2) Interface on keying in process control parameters on pipe cutting: (Fig.10)
3) The professional abundant workpiece library built in at CNC industrial computer of machine is simple and easy to use; The groove for later on welding can be cut together with cutting, without the need of follow up machining, accurate and efficient;
4) Operator can very easily manage on all necessary parameters of:
a) Pipe length;
b) Pipe internal and external diameters;
c) Pipe wall thickness;
d) Cutting kerf slant angle...
D. Major Configuration of 5 Axis CNC-CP5-1400/L CNC Pipe Oxygen Fuel Plasma Cutting Machine:

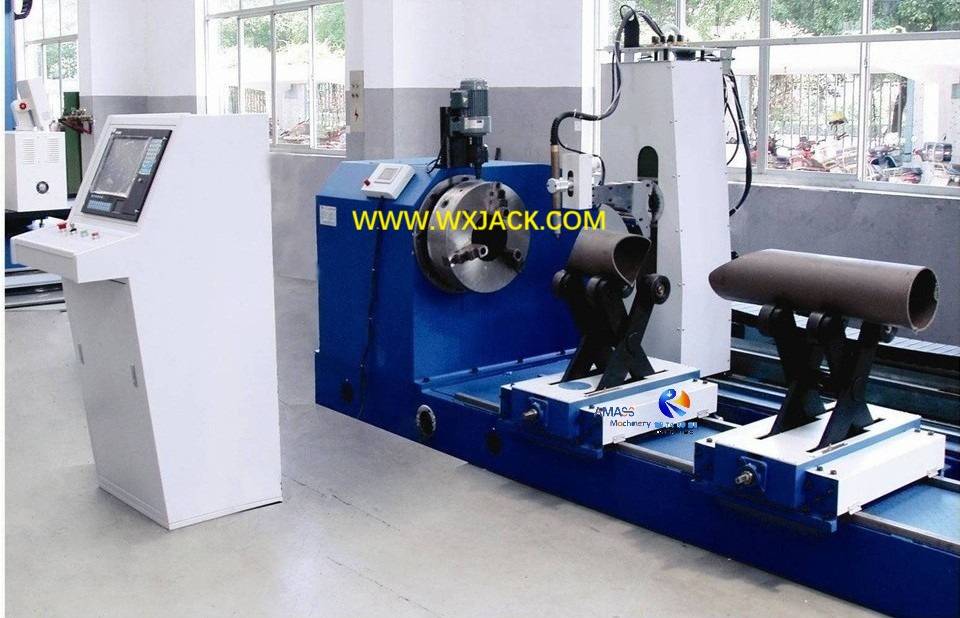

1. General layout of 5 Axis CNC Pipe Cutting Machine:

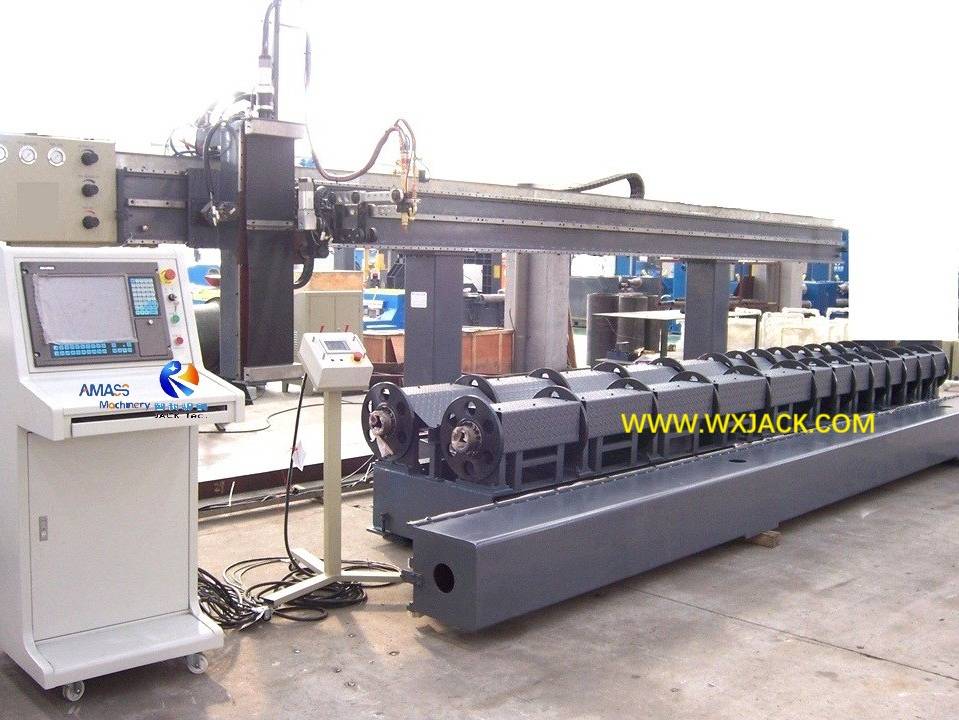

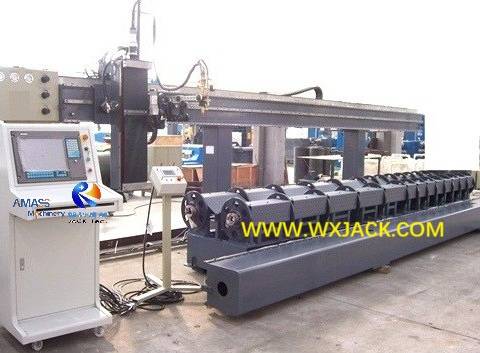

A set of Wuxi JACK CNC-CP5-600/12 model machine: (Fig.11)
Shown in the above,
1) The backbone of this machine is a stationary gantry, with horizontal Beam at its top, serving guide on movement of cutting torch along pipe length, guided with heavy duty ball bearing linear guiderail;
2) Execution unit of cutting torch motorized moving carriage, moving along horizontal beam linear guiderail;
3) Pipe laying and rotating unit: Frication roller beds, accommodating on different diameters of pipes;
4) CNC controller industrial computer, integrated standing type electric control board, and a piece of convenient remote operating foot pedal switch, with several key switches and HMI touch screen being assembled on its top;
5) Oxygen fuel cutting gas panel, at left end of gantry horizontal beam;

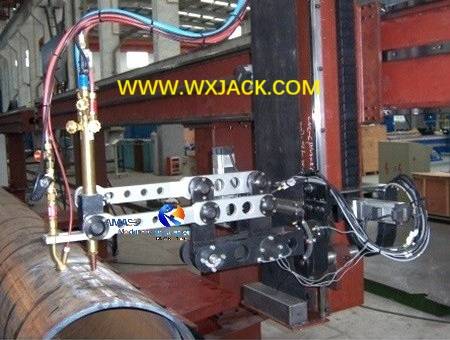

2. Cutting Torch of 5 Axis CNC Pipe Cutting Machine: (Fig.12)
Cutting torch in 5 axis model has 2 pieces of additional articulated arm, making capability of 2 directional swing, accomplishing task of A and B axis motion;
3. Thermal Gas Cutting System in 5 Axis CNC Pipe Flame Plasma Cutting Machine:
1) The machine is equipped with single group of cutting torch unit, with both flame cutting and plasma cutting onto the same piece of carriage;
2) Oxygen fuel cutting for performing flame cutting on carbon steel, of small to medium to large thickness;
3) Plasma cutting torch unit for non-ferrous material, of small to medium thickness;
4) Cutting torch and gas tubes moving system, along the entire length of machine frame. The Oxygen and cutting gas tubes are laying on top section of stationary gantry;
4. Pipe Fixture of 5 Axis CNC Pipe Intersection Cutting Machine:
1) Different from small and light pipes in 3 axis models machines, which can be clamped and rotated reliably in 3 jaw chuck, with increasement of pipe diameter/ thickness/ weight, it should be laid onto friction roller beds, which is composed of mechanical brackets, and 2 arrays of friction rollers:

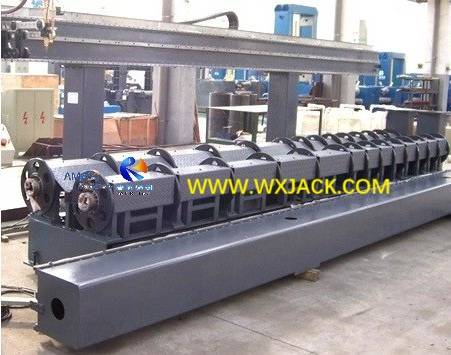

2) Friction roller beds of pipes in Wuxi JACK 5 axis model machine: (Fig.13)
3) The word “friction” here refers to, it leads pipe rotation is by means of friction force, generated between these revolving rollers and pipes;
4) During pipe cutting operation, by means of rotation of rollers, the pipe will be lead and guided into rotation, fulfilling Y axis of motion: Pipe 0° ~ 360° infinite revolve;
5. Electric Control System
E. Superiority of Control Technique in Wuxi JACK CNC-CP5-1400/L 5 Axis CNC Pipe Thermal Gas Cutting Machine:
1. At the early stage of CNC Pipe Cutting Machine, 5 Axis was the high end version for Φ1400mm diameter pipe;
2. At that time, the impetus on exploiting 5 Axis control for the purpose of chamfering and beveling is, this machine is for making prepare for next step of welding and or assembly, in corresponding Welding Roller Bed. So, the ability of beveling the critical performance index, for any set of machine on pipe cutting;
3. For those pipes with thick wall, without groove of kerf (3 Axis model machine can not attain this target), it will be difficult to have accurate assemble under the condition of oblique intersection of pipe;
4. The reason is, in CNC Pipe Intersection Cutting Machine, programming is done on the basis of external diameter of pipe. So, the wall thickness multiply with cos of oblique angle of pipe, the result will be bigger or smaller than the accurate result, which causes difficulty on later on assembly;
5. For this 5 Axis configuration CNC machine, the difficulty mainly lies in precision and stability of kerf cutting unit, which calls for sophisticated technology;
6. Recent years sees burgeoning on technique of CNC control pipe cutting, and the 5 Axis CNC version is the mainstream, which has advantages of best cost effectiveness, delivering stable and good quality performance from machine nowadays.

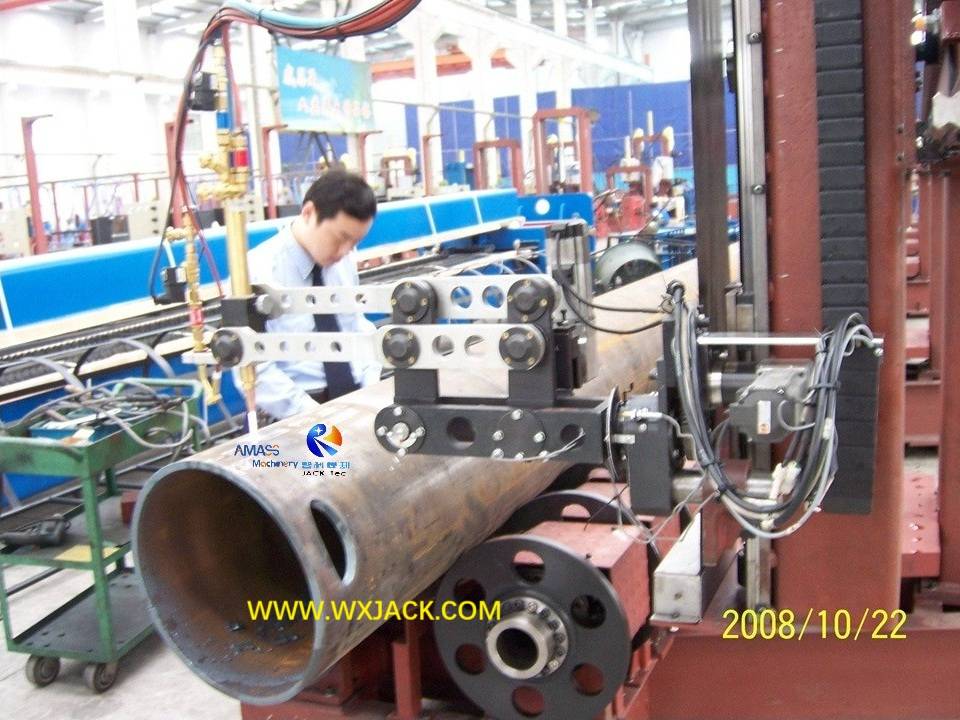

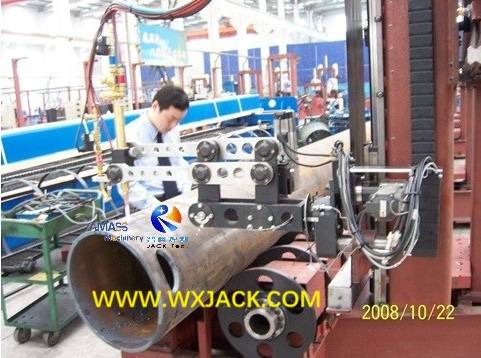

Commissioning site on Wuxi JACK 5 Axis CNC Pipe Flame Plasma Cutting Machine: (Fig.14)
F. Technical Parameters of CNC-CP5-1400/L 5 Axis CNC Pipe Cutting Machine:
Model Technical parameter | 5 Axis CNC-CP 1400/L |
Accommodating Diameter Range of Pipe for Cutting and Beveling | 300 ~ 1400 mm |
Accommodating Max. Length of Pipe for Cutting and Beveling | 6,000 ~ 12,000 mm |
Accommodating Thickness Range of Pipe (mm) | 6~ 100 mm for flame cutting; 3 ~ 25mm for plasma cutting |
Thermal Gas Cutting Speed | 200∼ 800mm/min. for flame cutting Around 200~ 2000mm/min. for plasma cutting (Based on thickness of Pipe and Plasma Power) |
CNC Control Axis | 5 Axis of X /Y / Z/ A/ B |
