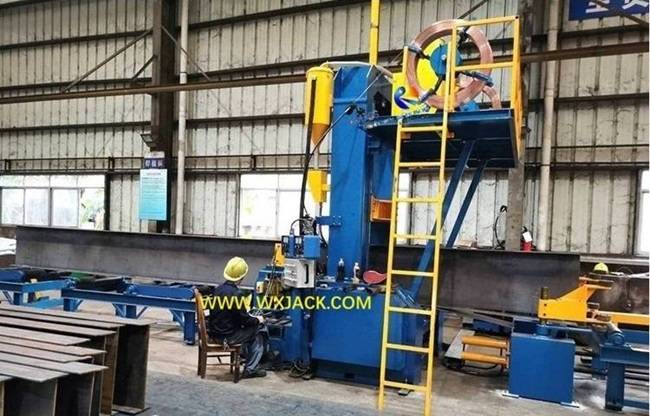

1) What is the Purpose of H Beam Fabrication Machine?

a) H Beam Fabrication Machine, the other name is three in one H Beam Assembly Welding Straightening Integral machine, is for producing welding T Beam, H Beam, I Beam of light duty and medium duty;
b) H Beam Fabrication Machine is a high tech equipment, rendering the best solution for customers from Steel Structure industry, in terms of quality, cost and productivity: H Beam Fabrication Machine brings along revolutionary change in making welding T Beam, H Beam, I Beam in the field. Ever since the introduction of three in one H Beam Assembly Welding Straightening Integral machine into market, a new era begins;

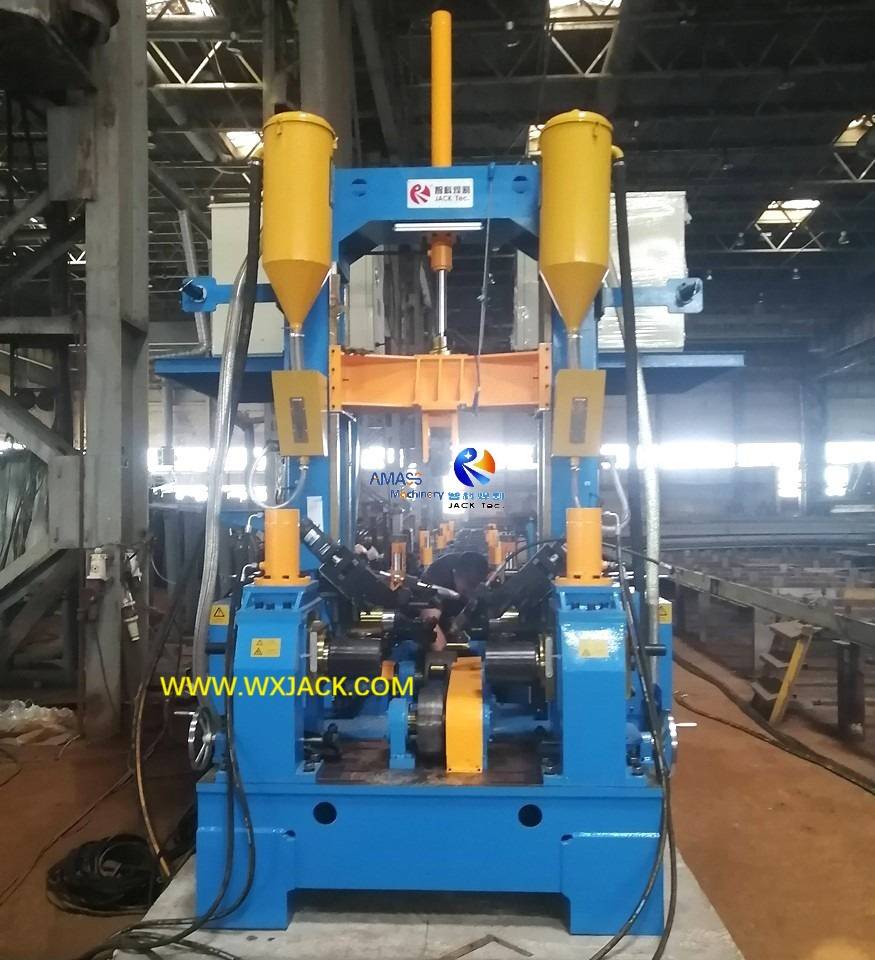

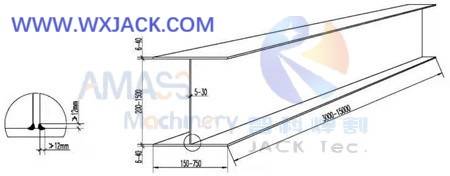

2) Below is sketch on welding H Beam produced from H Beam Fabrication Machine:


H Beam Fabrication Machine



3) What are the Powerful Strengths and Leading Edge of Wuxi JACK H Beam Fabrication Machine?

a) Wuxi JACK is the first company to deliver mature product of H Beam Fabrication Machine into market.

 From the year 2000~ 2008, H Beam Fabrication Machine was only in laboratory stage. Due to some technical difficulties that can not be surmounted, this product could not be pushed to market in genuine sense;
b) In 2009, Wuxi JACK took the lead in launching the first set of ready to use three in one H Beam Assembly Welding Straightening Integral machine to customers, upgrading the product from years of concept design to practical application;
c) The H Beam Fabrication machine has superior performance at customer site. It does wonderful job in value added job for clients all over the world, and gained word of mouth from them in broadly. Over the past decade, Wuxi JACK ranks the No.1 in market on H Beam Fabrication Machine, and has delivered over 1000 sets for Steel Structure customers. Currently, the H Beam Fabrication Machine has not only taken very high market share in Chinese domestic, but also be exported to overseas in large volume, especially Russia, Central Asia, Southeast Asia, etc.


Now, allow us to show you more wonderful information on Wuxi JACK
H Beam Fabrication Machine as below

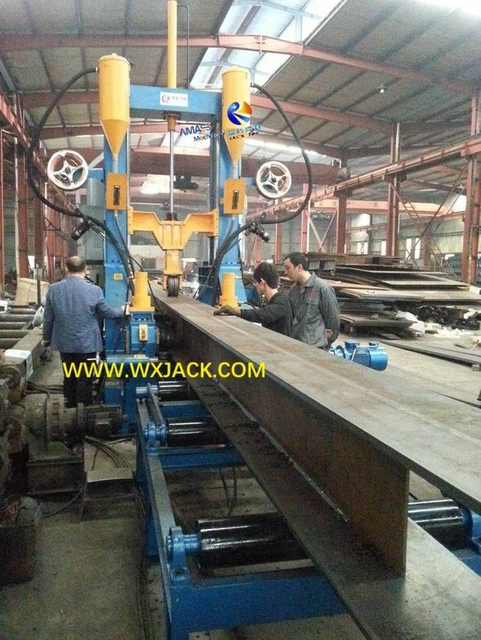

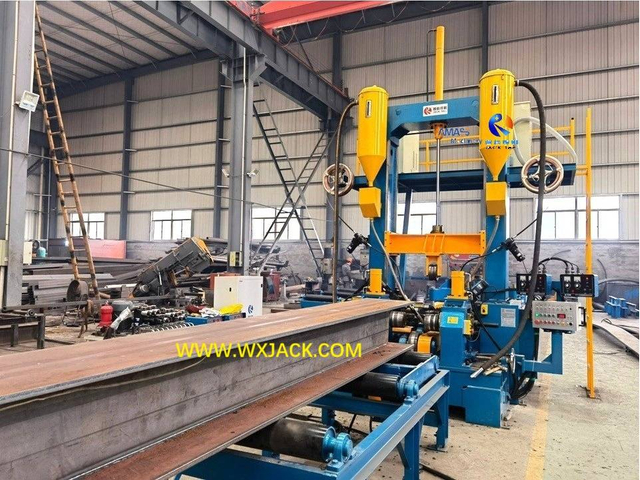

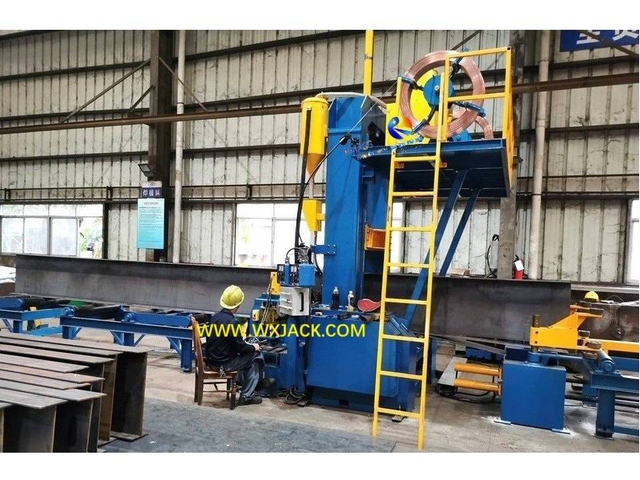

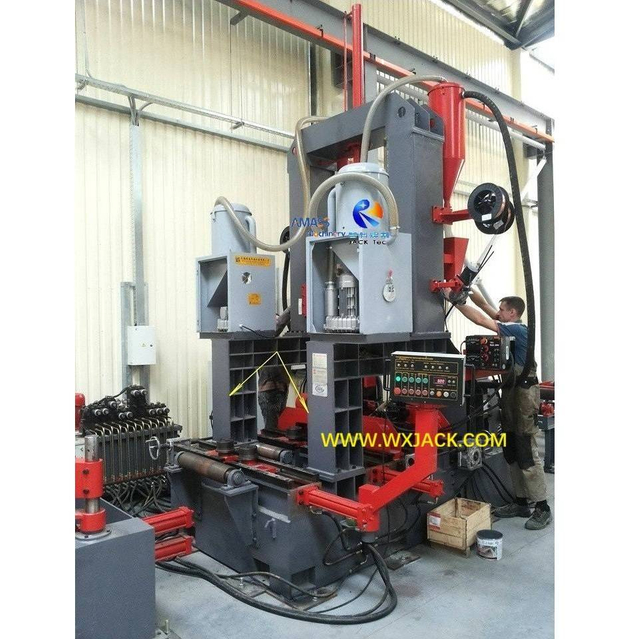

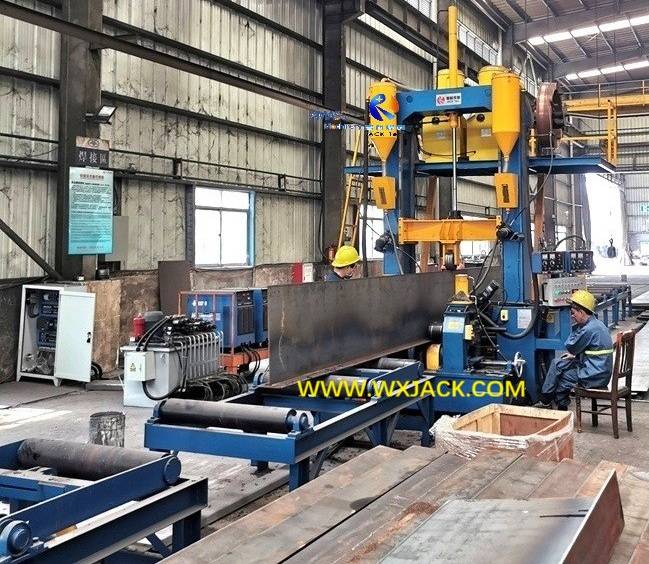

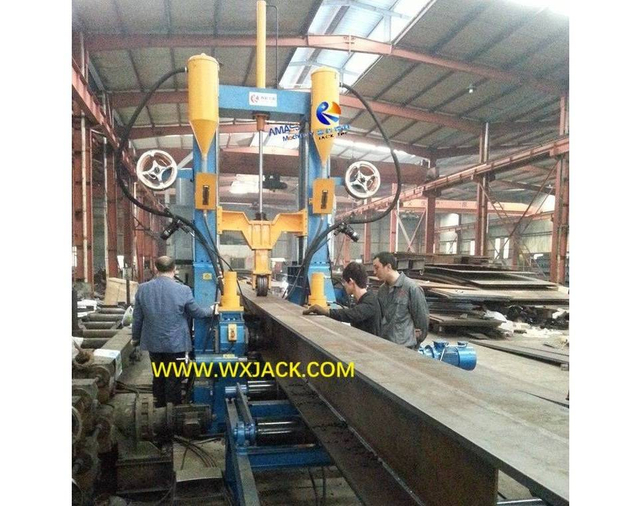

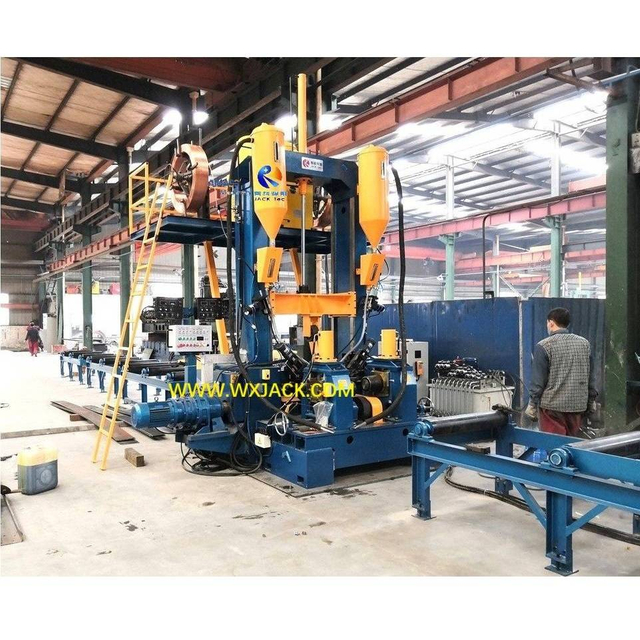

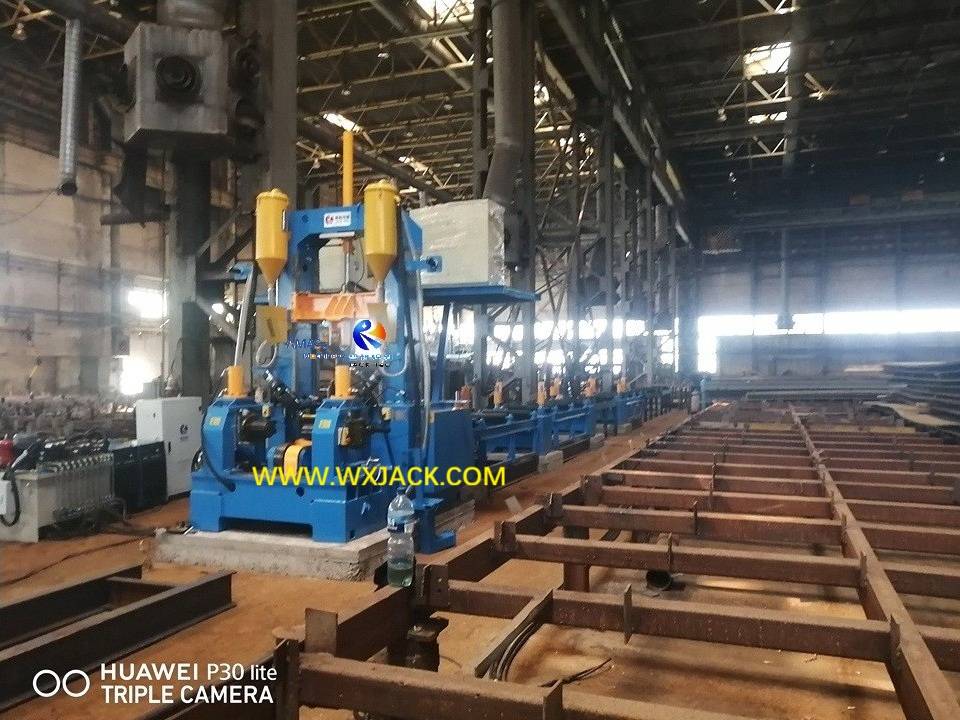

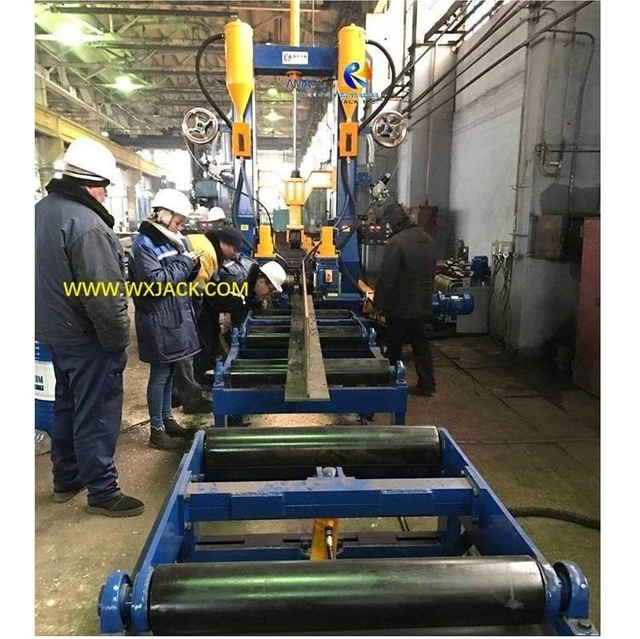

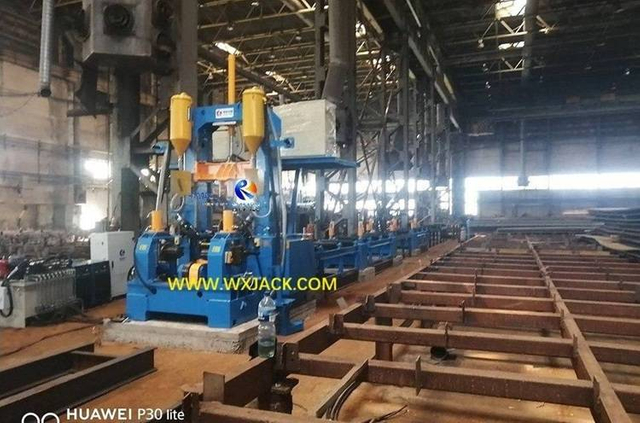

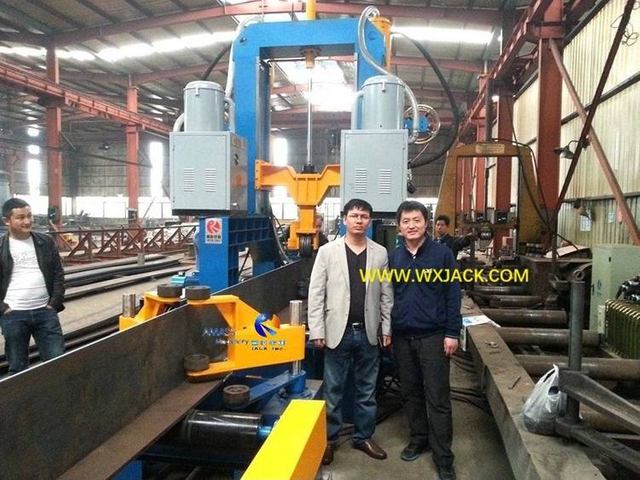

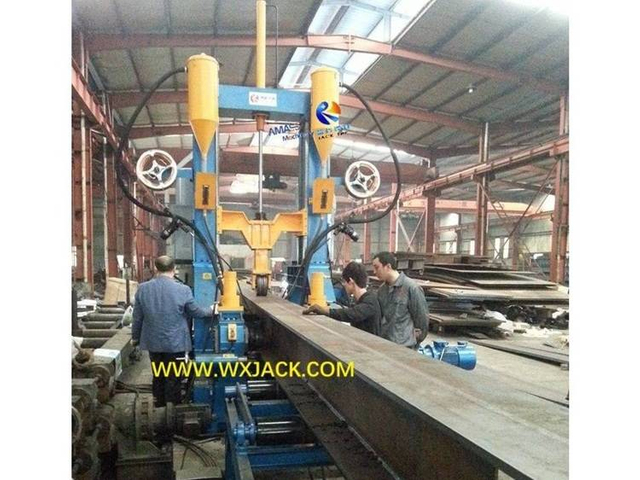

Over Thousand sets of H Beam Assembly Welding Straightening Machine Delivered from Wuxi JACK

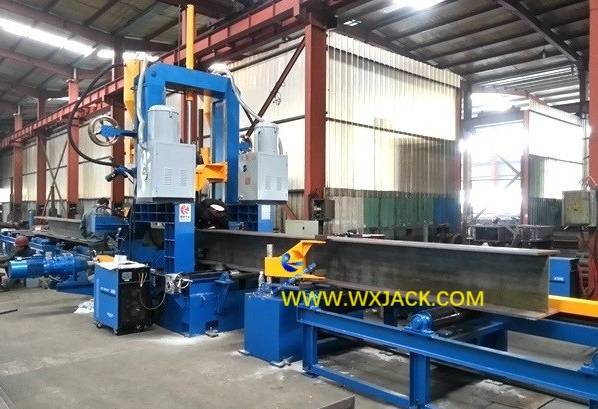

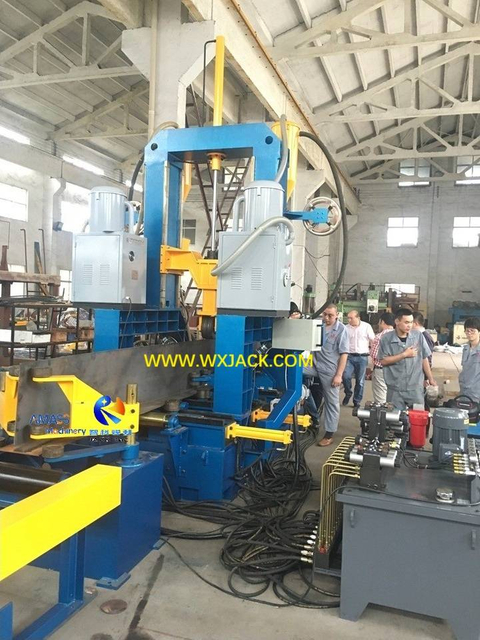

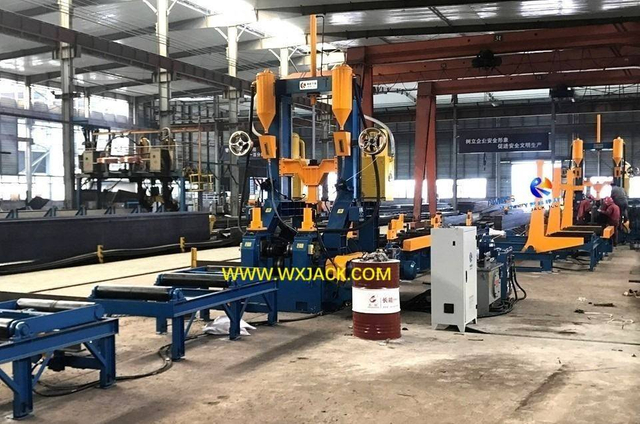

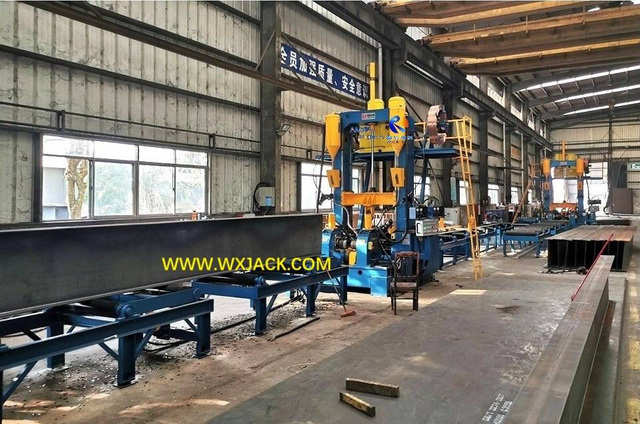

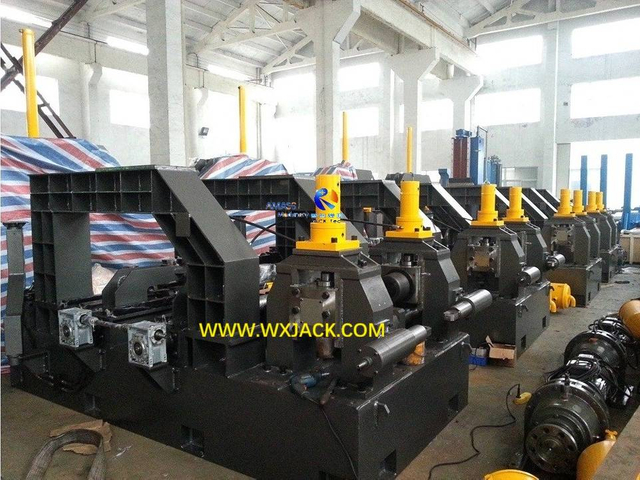

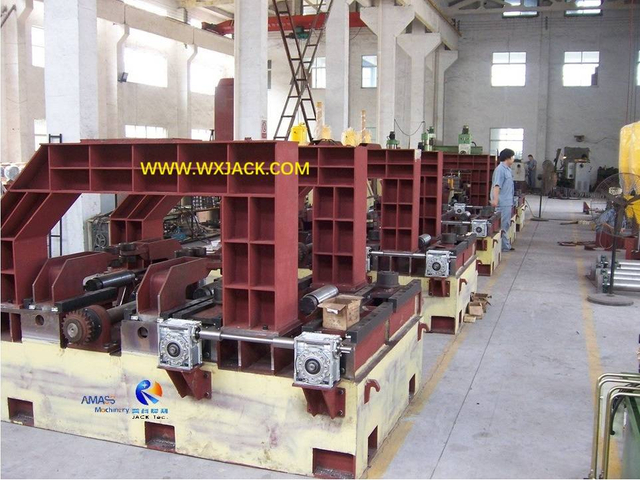

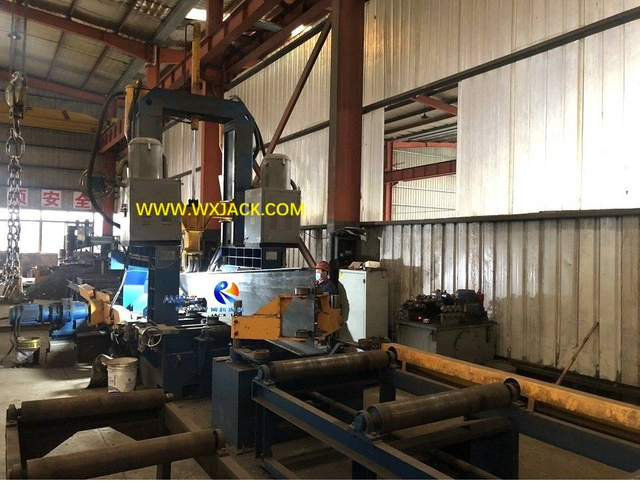

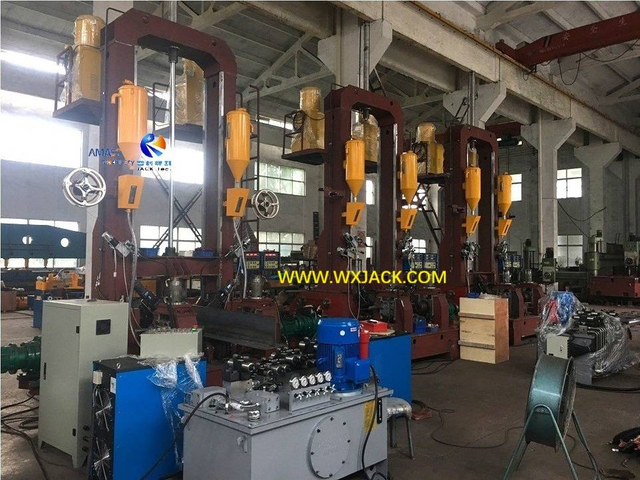

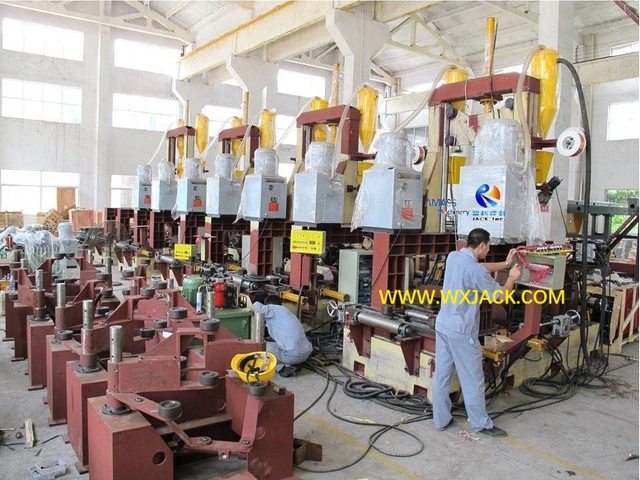

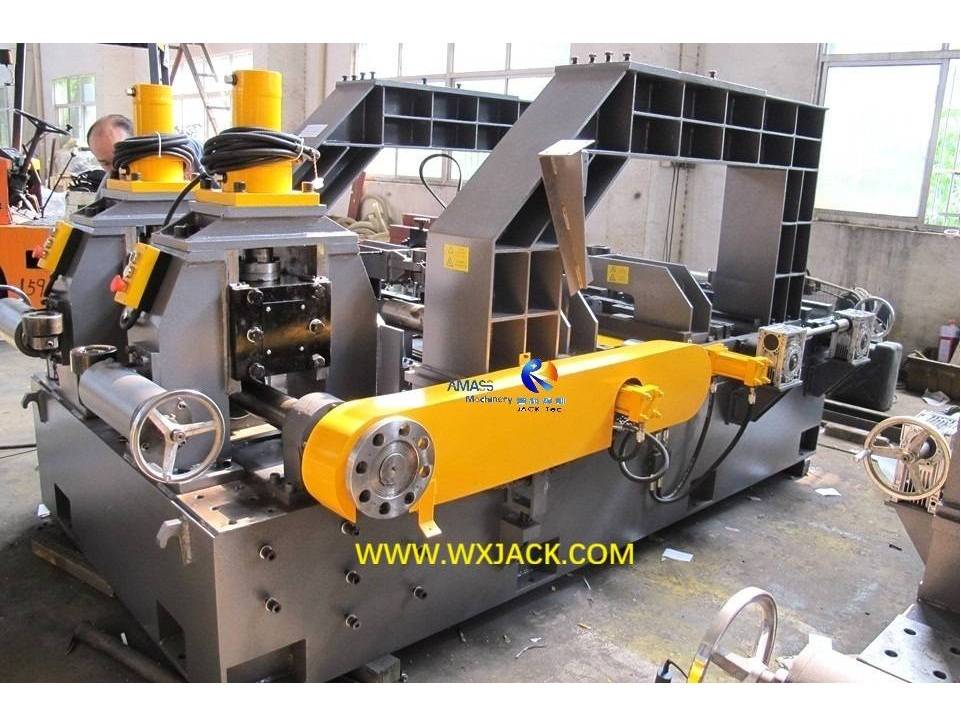

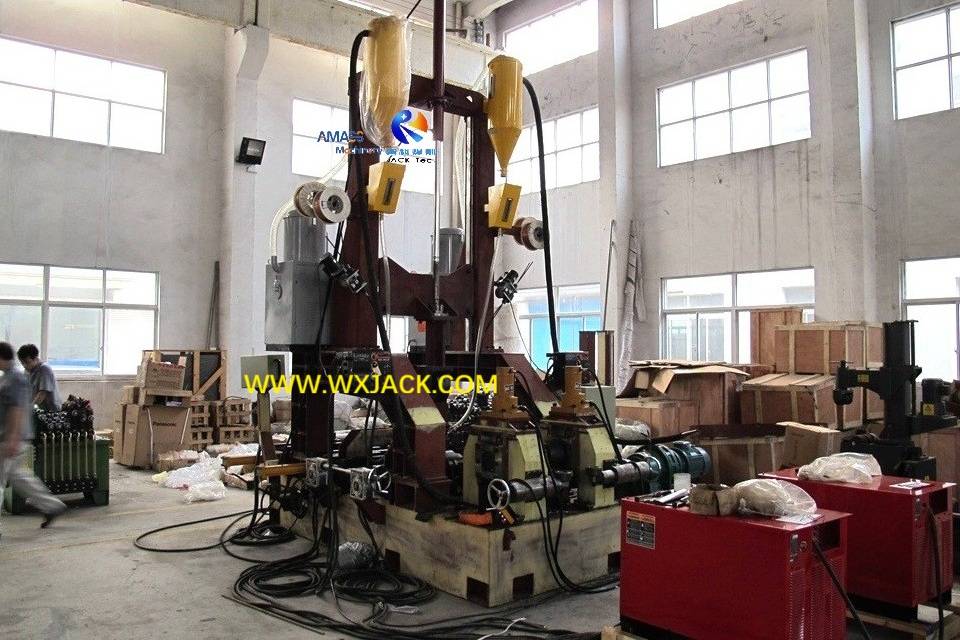

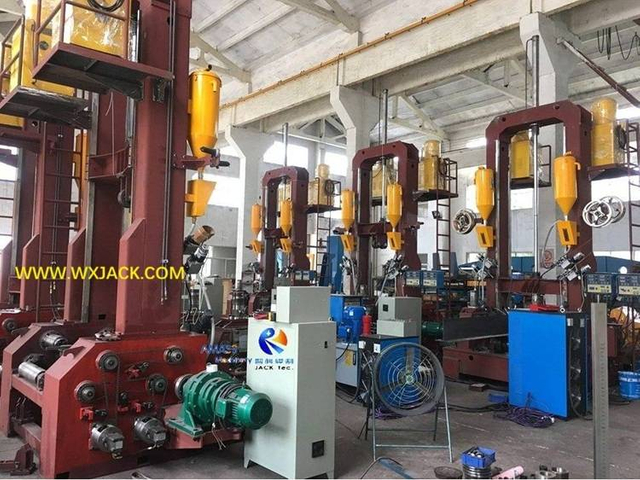

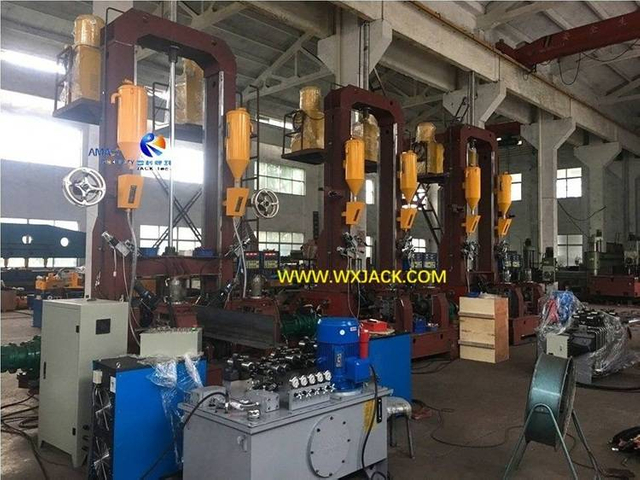

H Beam Fabrication Machine in Batch Production

at Wuxi JACK

1- 17-Support- Original- ZHJ8015 16

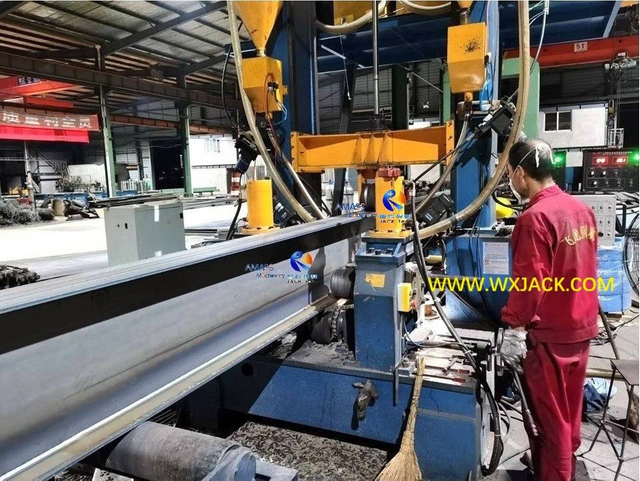

2- 187- 微信图片_20211206143447

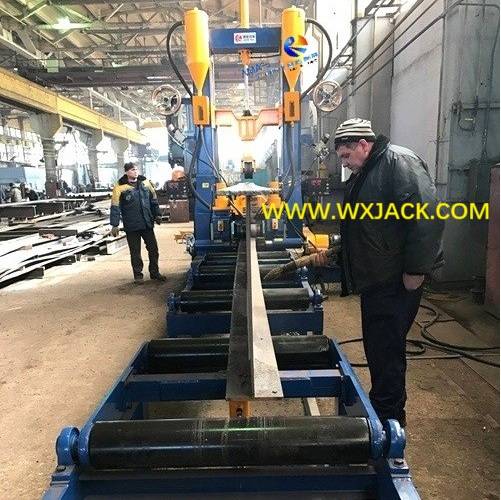

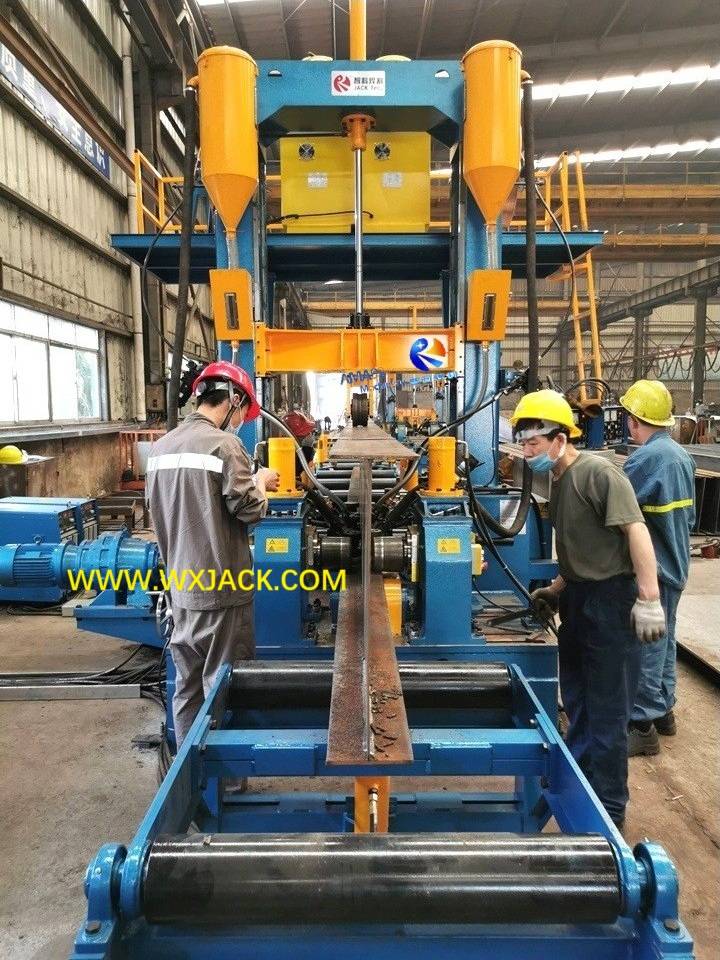

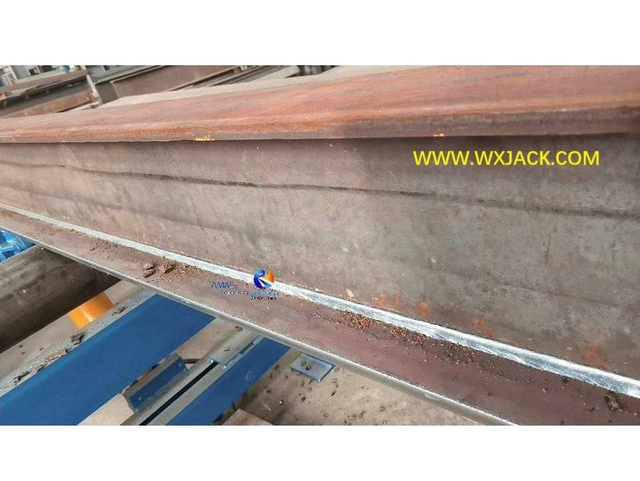

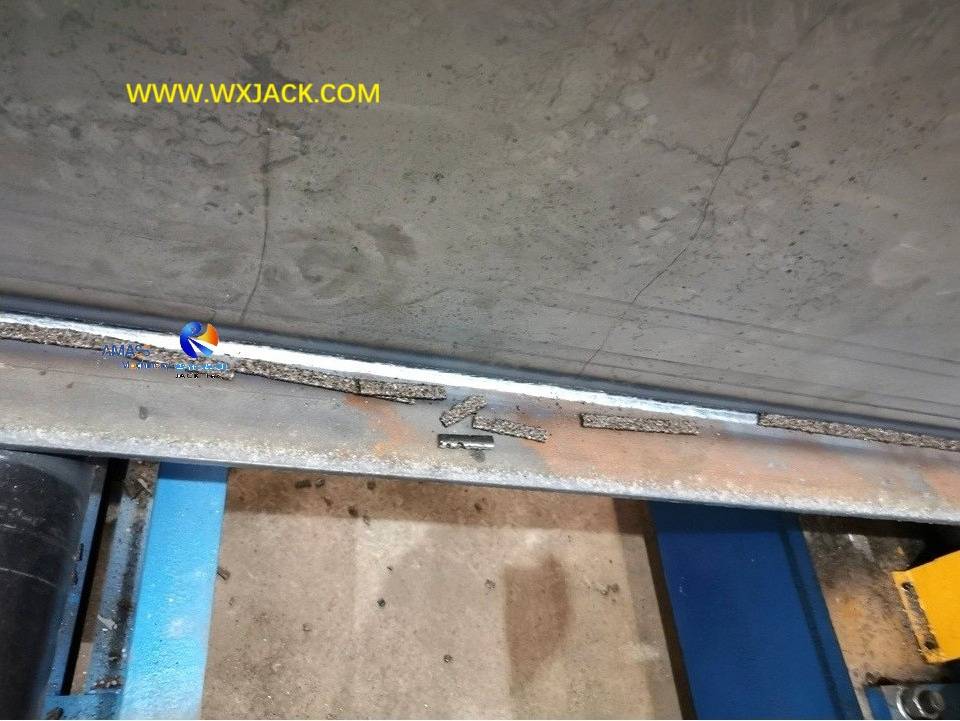

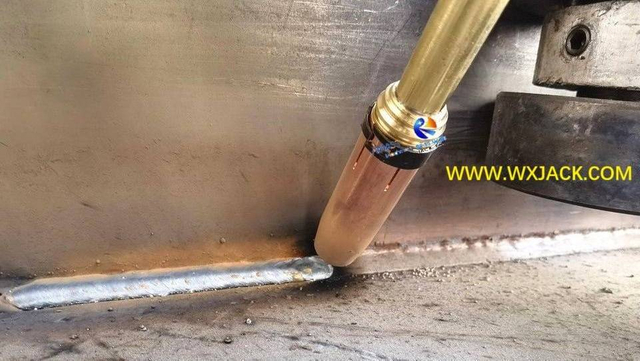

3- 19- Finished seam

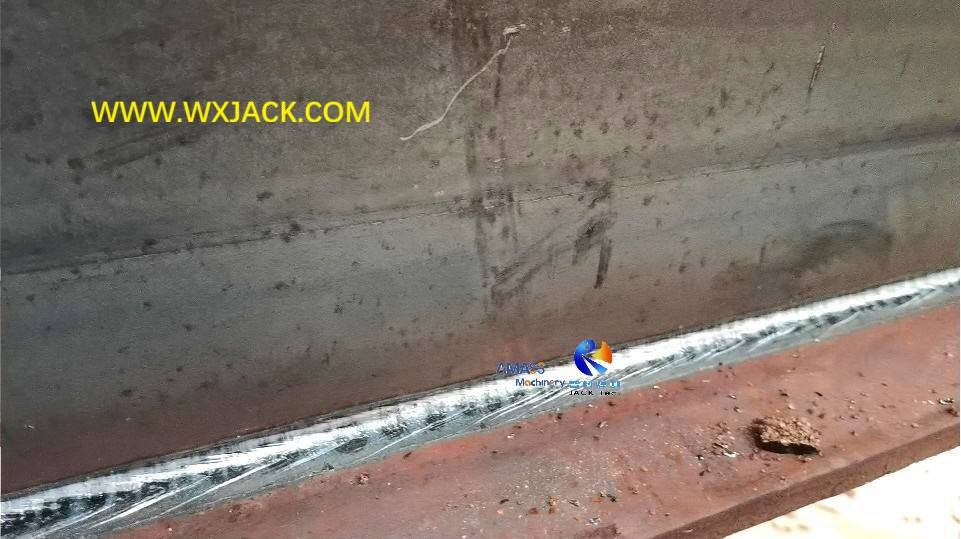

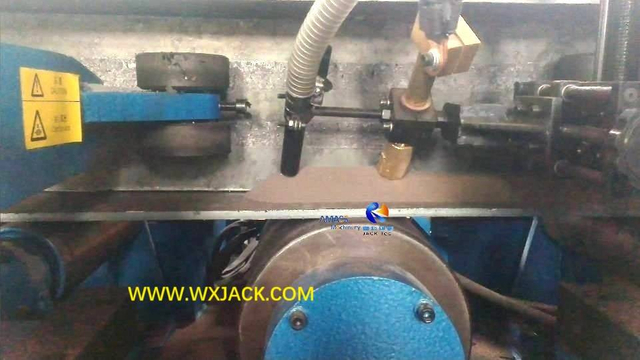

4- 15- Welding process

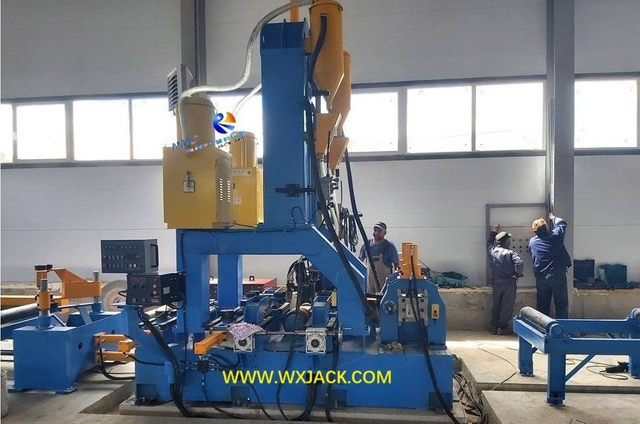

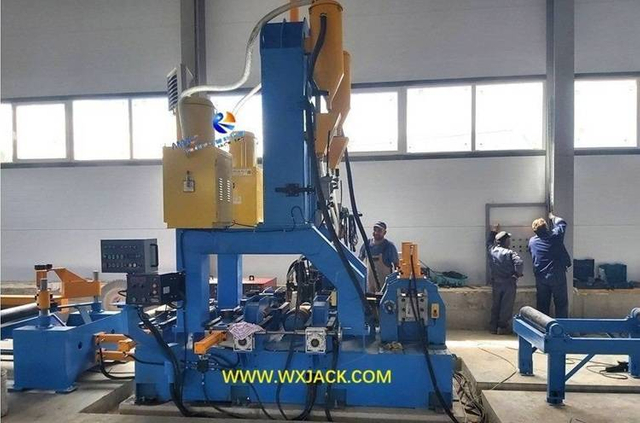

5- 57- ZHJ5010 安装好 (1)
6- 114- IMG_6908

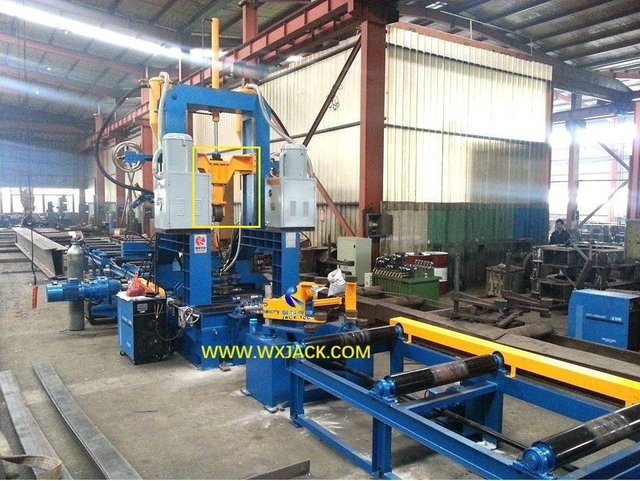

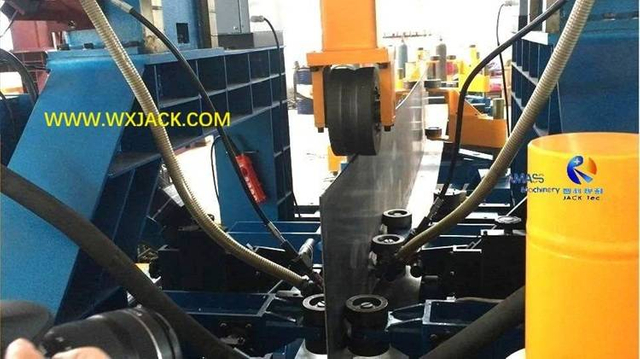

7- 12- Alignment
8- 109- 20140426_171531

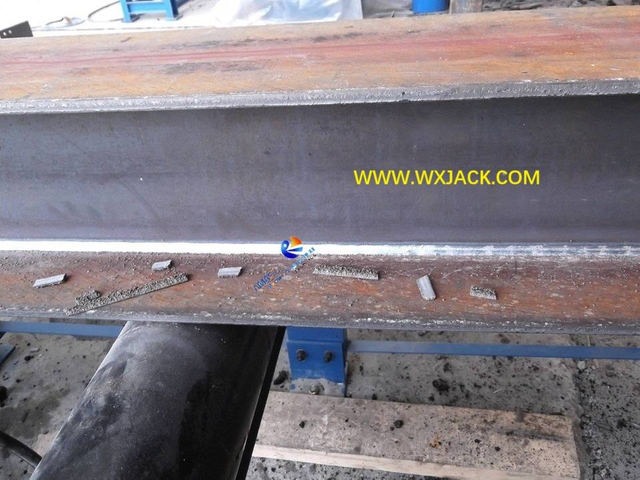

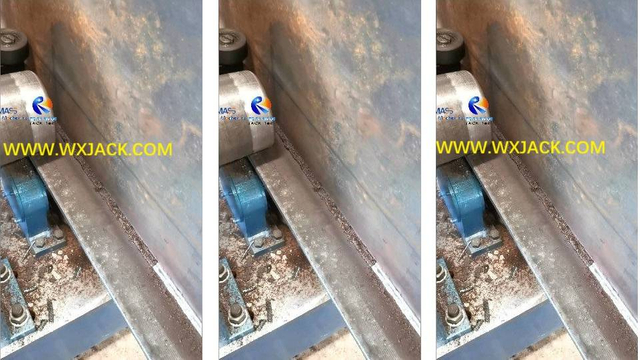

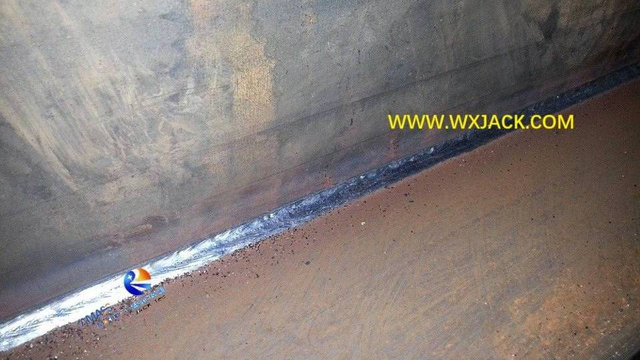

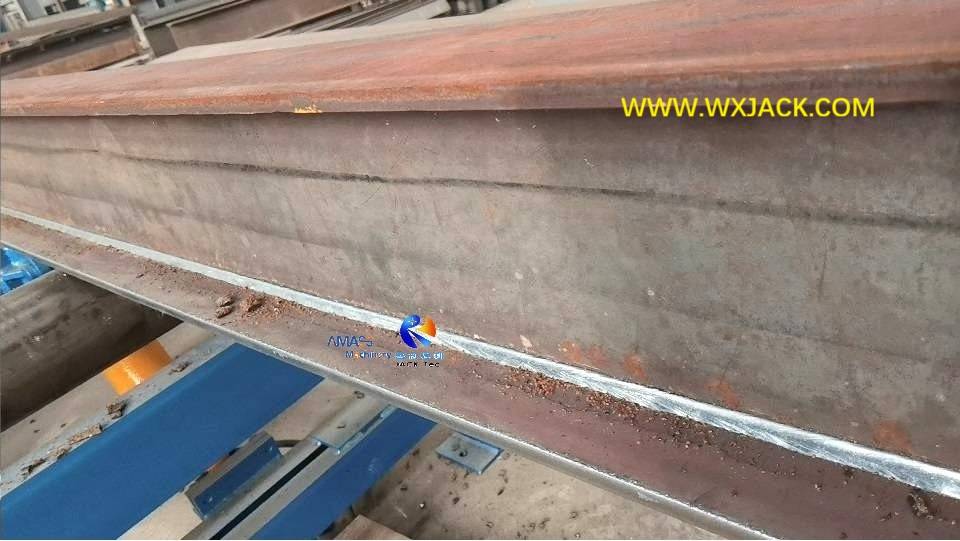

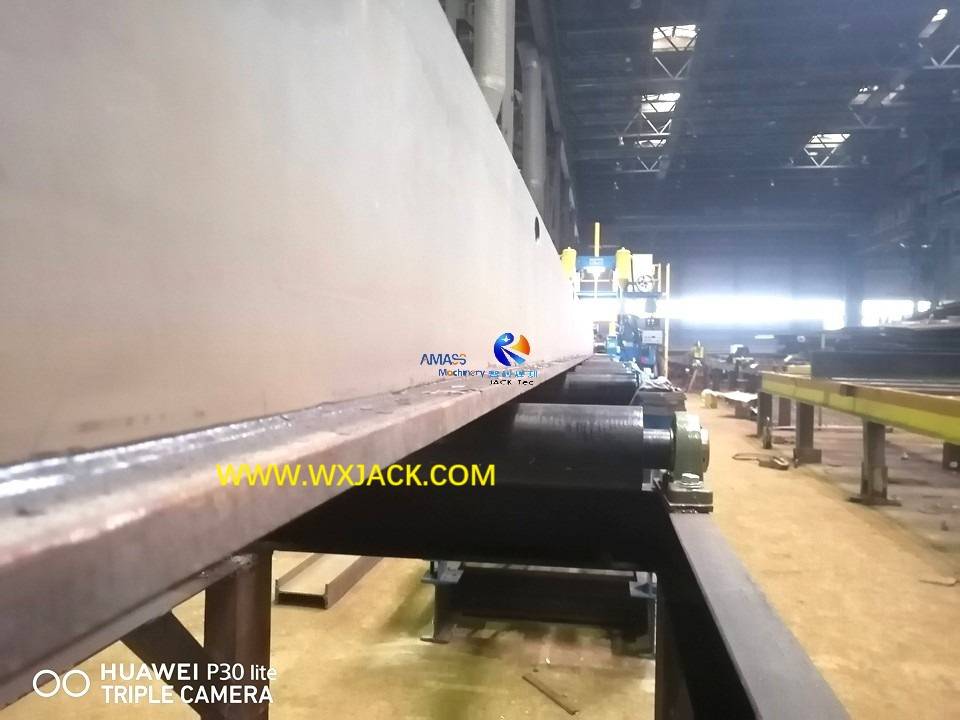

The Excellent Welding Seam Delivered from

Wuxi JACK H Beam Fabrication Machine

How does Wuxi JACK H Beam Fabrication Machine Make Contribution for Customers?

More >>

Want to check the welding T Beam, H Beam and I Beam produced from Wuxi JACK H Beam Fabrication Machine? Please check the lefthand scrolling photos


Why Customer Need Wuxi JACK H Beam Assembly Welding Straightening Integral Machine?
1. What is the Usage of H Beam Fabrication Machine:

1) H Beam Fabrication machine, or three in one H Beam Assembly Welding Straightening Integral machine, is for producing the most important raw material in Steel Structure Industry: The welding T Beam, H Beam, I Beam. The corresponding welding seam height is from 6mm to 12mm, the typical size is 8mm;
2) H Beam Fabrication machine is an advanced new generation production equipment equipped in Steel Structure industry facilities, and sees explosive development over the past decades;
3) The fundamental change brought along with H Beam Fabrication Machine is, with one set of this equipment, the original three types of H Beam production machine composing H Beam Production Line: H Beam Assembly and Tack Welding machine, H Beam Submerged Arc Welding machine and H Beam Straightening machine can be replaced: This is why H Beam Fabrication Machine is called three in one H Beam Assembly Welding Straightening Integral machine;

4) For more analysis, please check product of “PHJ ZHJ Three in One H Beam Assembly Weld Straighten Integral Machine”.



2. Strong Points and Values Added from H Beam Fabrication Machine:

The most conspicuous label of H Beam Fabrication machine is its perfect combination of cost effectiveness and high standard performance, which helps customer acquiring ideal revenue with substantially decreasing period cost and variable cost:
1) Under the prerequisite of delivering controllable, uniform, and high quality welding T Beam H Beam, with introduction of the H Beam Fabrication machine, customers can get the benefits of:
2) Period Cost Decrease: Save over 40% investment budget on purchase of the original three sets of H Beam production machine, to now one set of H Beam Fabrication machine only;
3) Variable Cost Decrease: From 6 operators to 2 operators: Reduce operators of the original three sets of H Beam Production machine, to one set of H Beam Fabrication machine only;
4) Value Stream Created: Raise 60%~70% manufacturing efficiency on welding T Beam H Beam production;
5) Period Cost Decrease: Reduce 60%~ 70% workshop land occupation, from the original three sets of H Beam Production machine, to now one set of three in one H Beam Assembly Welding Straightening Integral machine only, and eliminating H Beam Overturning Rack;
6) Variable Cost Decrease: Diminish over 50% electricity consumption of the original three sets of H Beam Production machine, to now one set of H Beam Fabrication machine only;
7) Period Cost Decrease: Remove the transfer units among the original three sets of H Beam Production machine such as travel crane, because it is not necessary in working of one set of H Beam Fabrication machine.

What are the Standing Out Features of

Wuxi JACK H Beam Fabrication Machine?

1. As an equipment with integrated functions of assembling, welding, and straightening, the H Beam Fabrication Machine delivered from Wuxi JACK has series of unique and excellent functions. Let us pick up three functions from assembling, welding and straightening process of the H Beam Fabrication Machine respectively;
2. If you are interested, please pay a visit to the product family of three in one H Beam Assembly Welding Straightening Integral Machine.

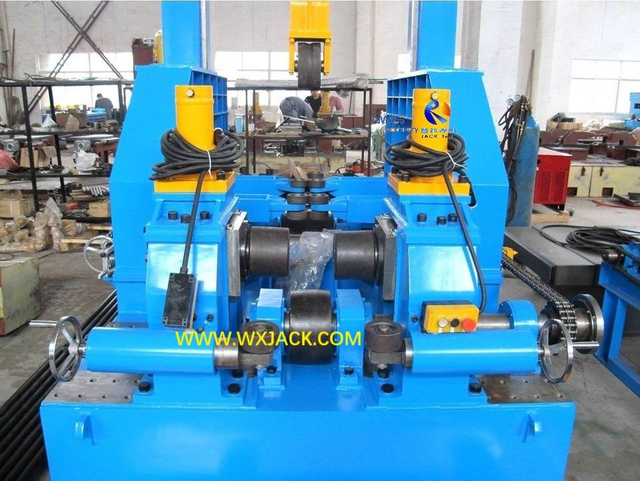

1. High Precision Assembling Effect got from Wuxi JACK H Beam Fabrication Machine:



What is the Importance on High Accuracy T Beam H Beam Assembly in H Beam Fabrication Machine?



1) The precision on T Beam H Beam assembling got from three in one Wuxi JACK H Beam Assembly Welding Straightening Integral Machine can be controlled within the tolerance of ±1mm, for both flange fitting up and web fitting up. This is the unique capability compared with H Beam Fabrication Machine in the industry delivered from other suppliers;

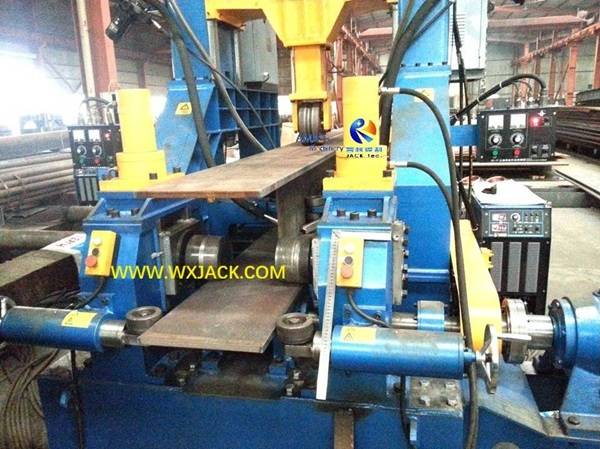

2) How to Attain Such Outstanding Superiority in Wuxi JACK H Beam Fabrication Machine?

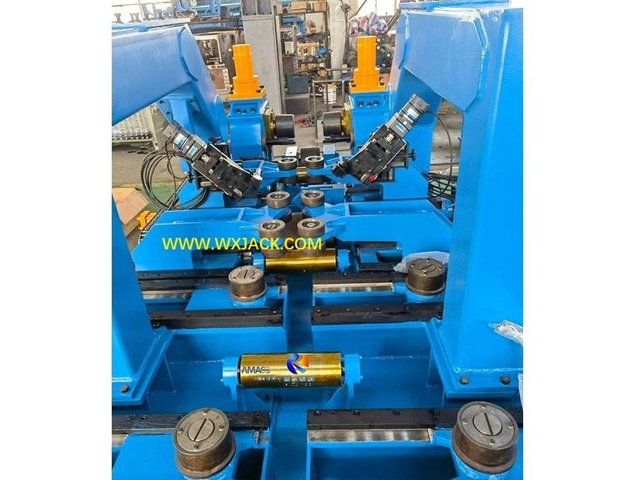

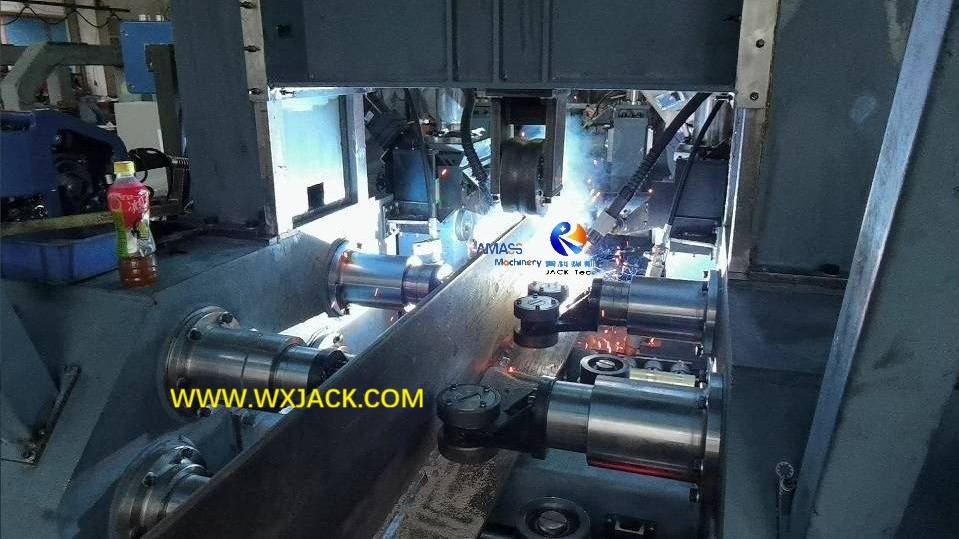

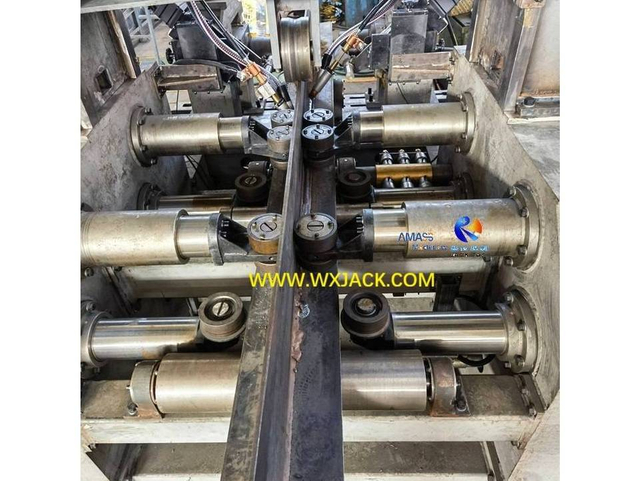

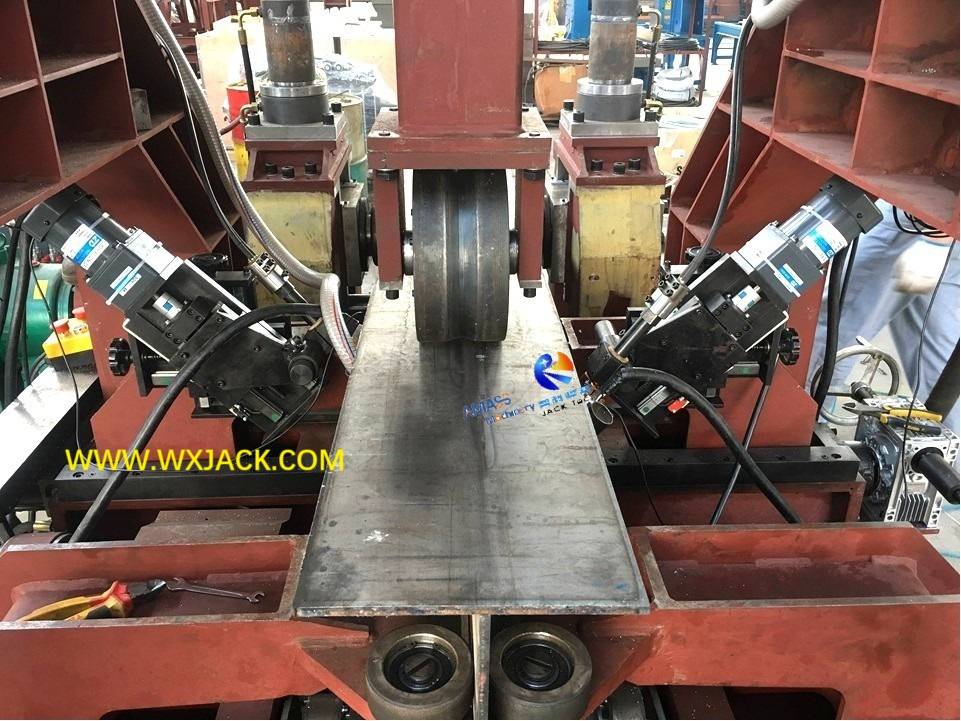

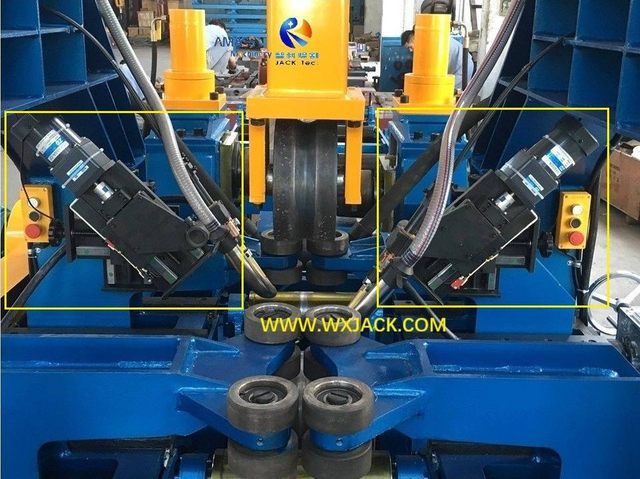

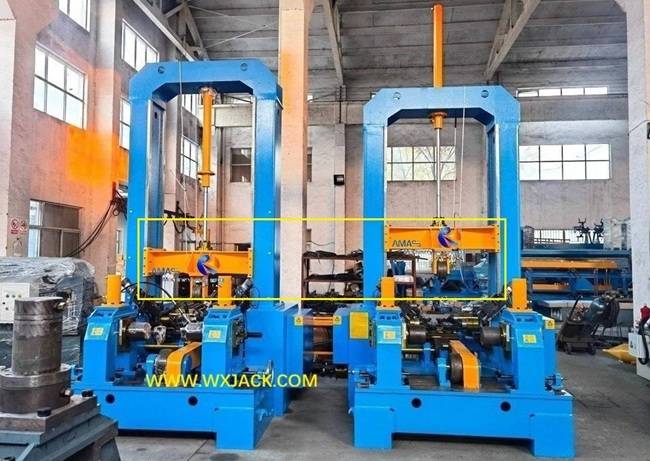

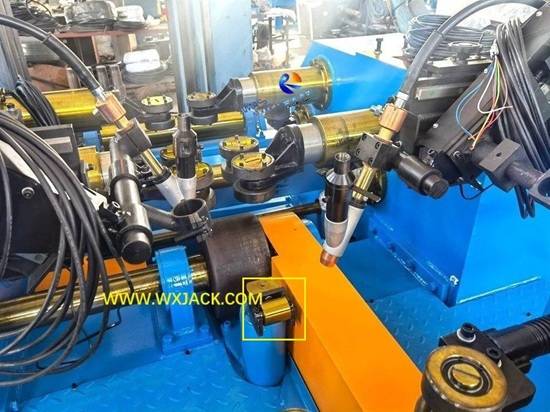

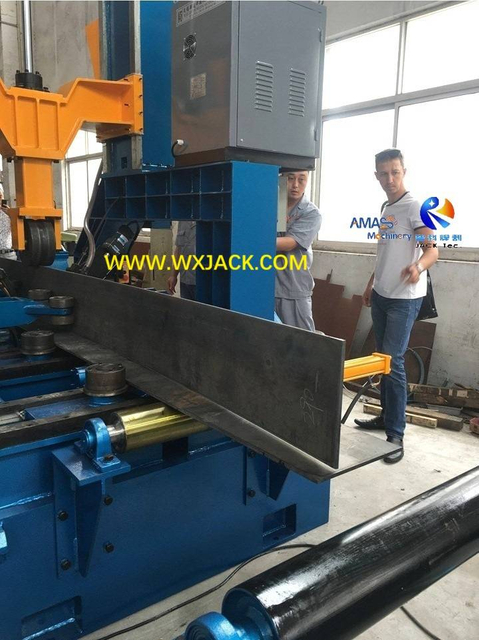

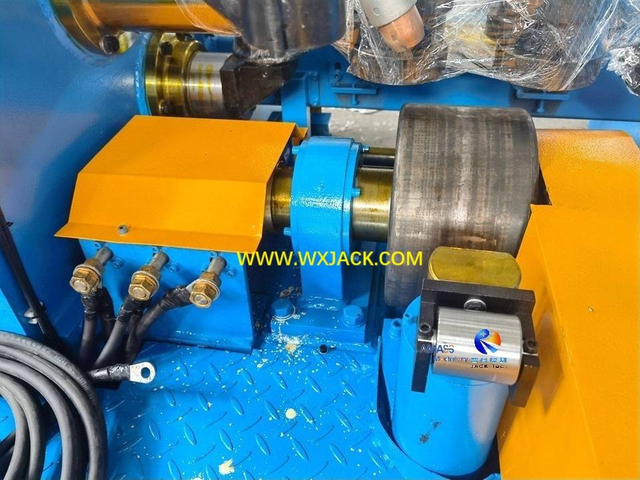

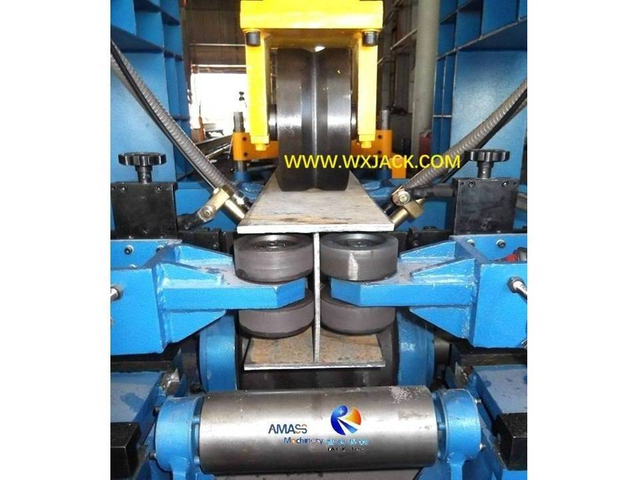

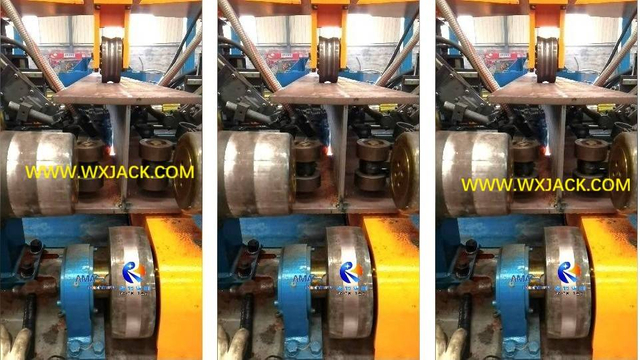

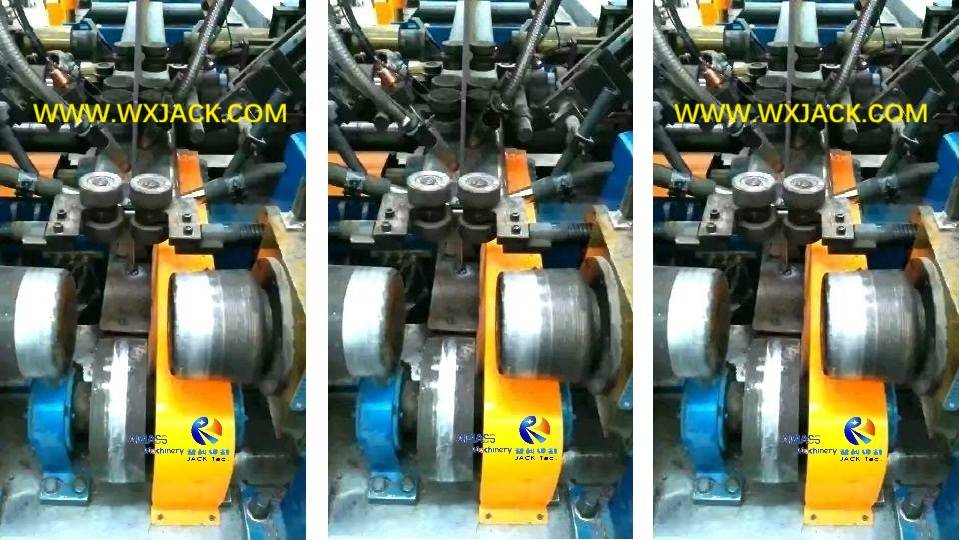

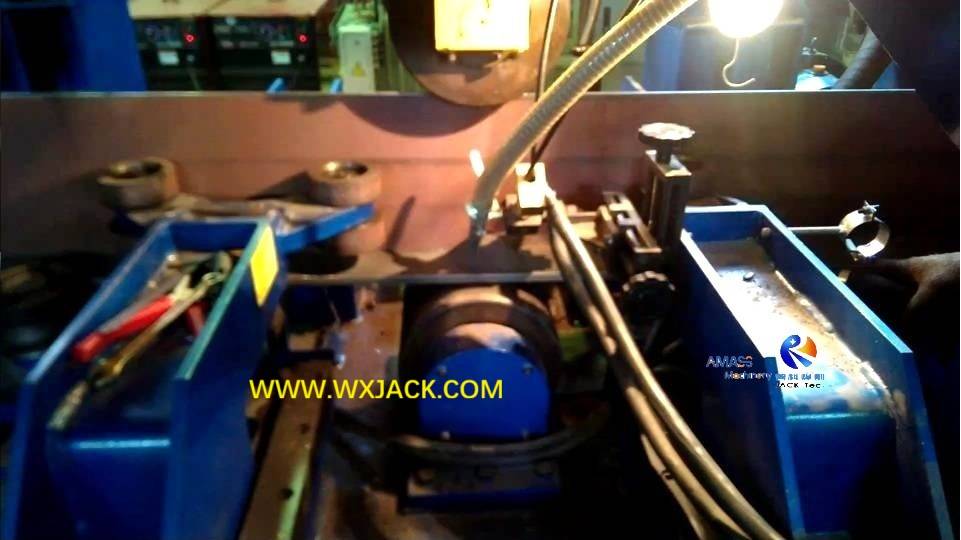

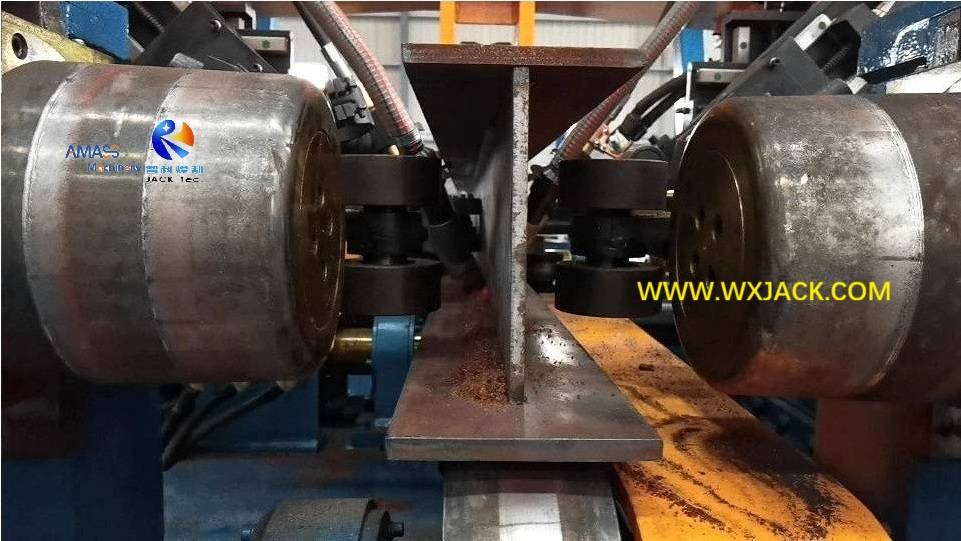

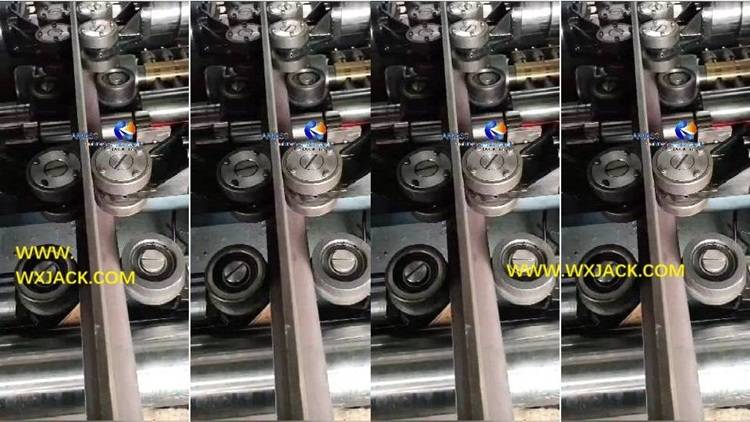

a) Just as you can find from the above photo, in Wuxi JACK H Beam Fabrication Machine, the alignment rollers in assembling unit are of eccentric type. This will give the H Beam Fabrication Machine capability of final inching adjustment, on the basis of the second stage of assembling;
b) You can get the highest degree of assembling precision for both symmetric T Beam H Beam and asymmetric T Beam H Beam. For producing the symmetric workpiece, the ZHJ series H Beam Fabrication Machine is your best choice; For making asymmetric workpiece, the PHJ series H Beam Fabrication Machine is the proper solution for you;
c) As customer of the Wuxi JACK three in one H Beam Assembly Welding Straightening Integral Machine, you can switch between automatic and manual mode for assembling process of the H Beam Fabrication Machine, at your preference and practical condition;

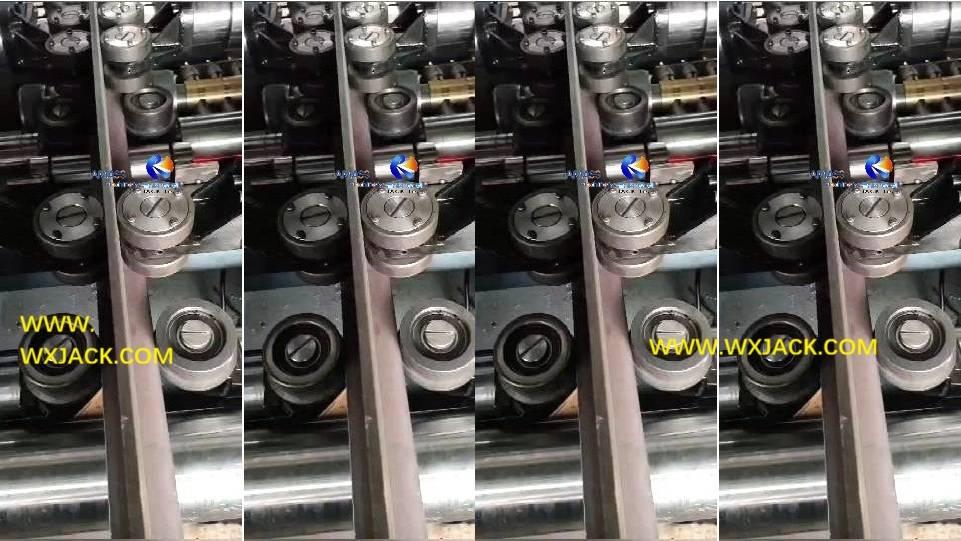

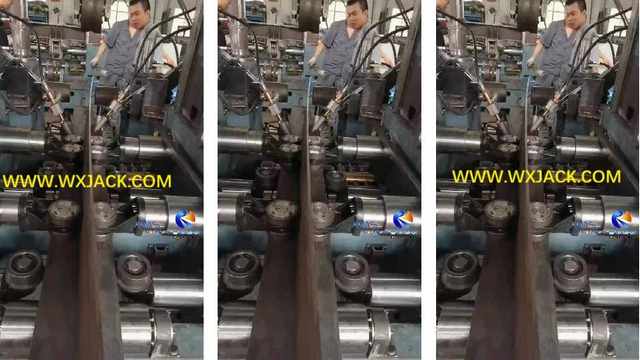

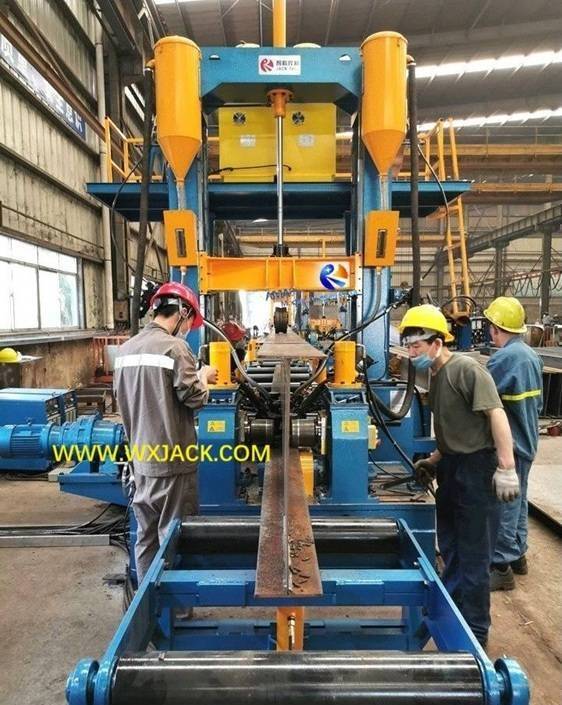

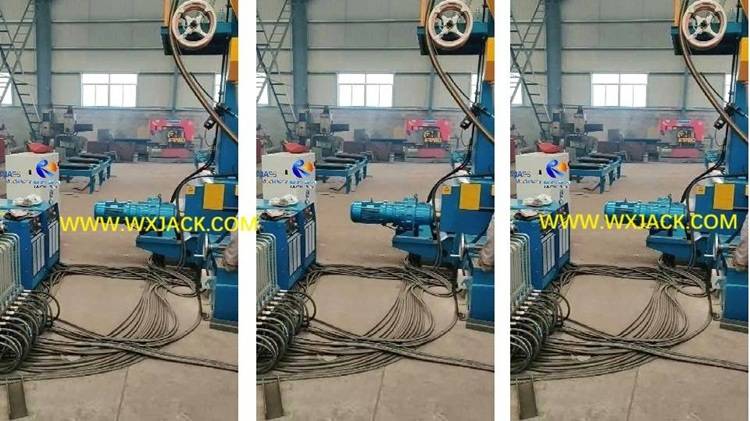

d) Please check below video on working process of Wuxi JACK H Beam Fabrication Machine.

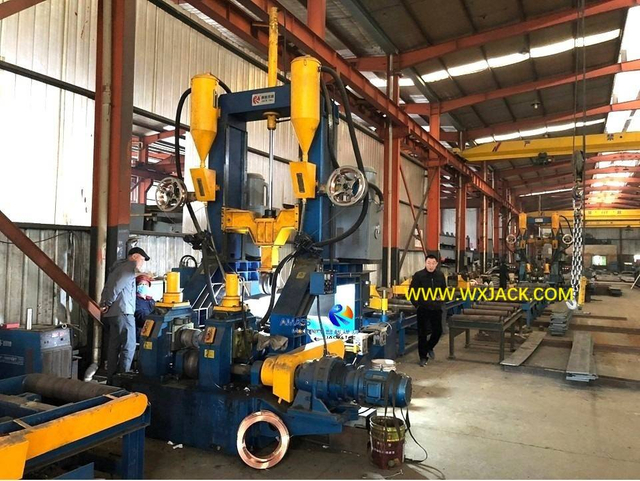

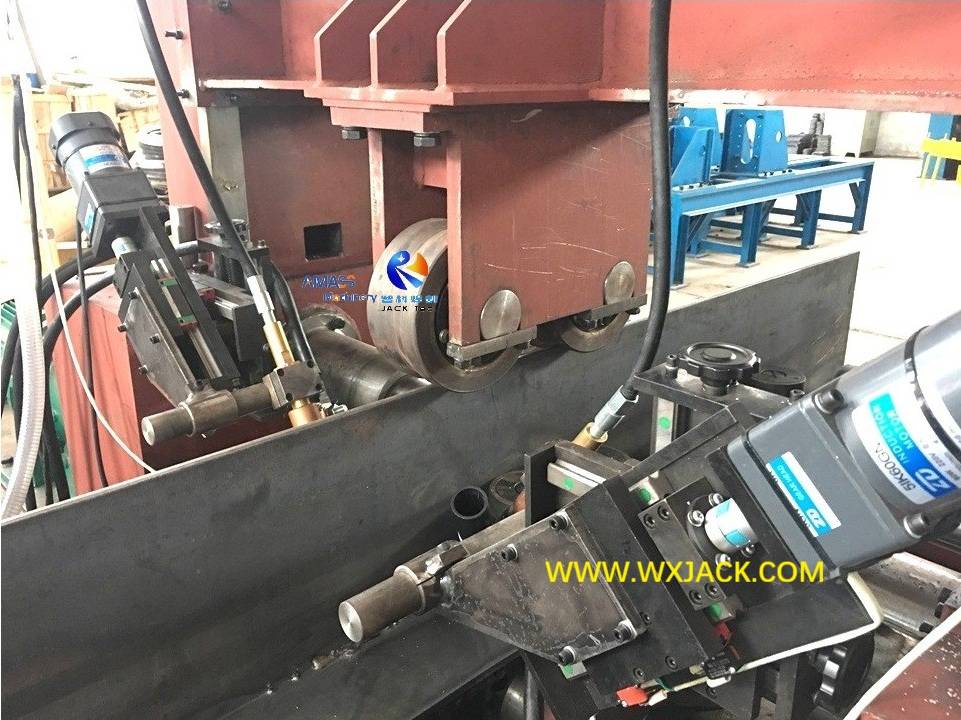

2. The All Direction Position Control on Welding Torch in Wuxi JACK H Beam Fabrication Machine:



Why you need the function of Welding Torch All Around Position Management in H Beam Fabrication Machine?



1) As the leading producer on three in one H Beam Assembly Welding Straightening Integral Machine, over the years Wuxi JACK strives on continuous improvement on function of H Beam Fabrication Machine, and the any direction change of welding torch is one of them;
2) As we know, the sizes of workpiece T Beam H Beam produced from H Beam Fabrication Machine always varies, for both web height, flange width and thickness;
3) And one of the preconditions to the acquire eligible welding seam quality is, to make sure front end tip of welding torch should be aimed at welding seam all the while for whatever sizes of the workpiece. And hence entails the ability on flexible modulation of welding torch position in H Beam Fabrication Machine;
4) Besides, during the feeding in of workpiece into central working area of H Beam Fabrication Machine, the two sets of welding torch should be moved away to leave sufficient space, so that it will not collide with workpiece of the equipment;

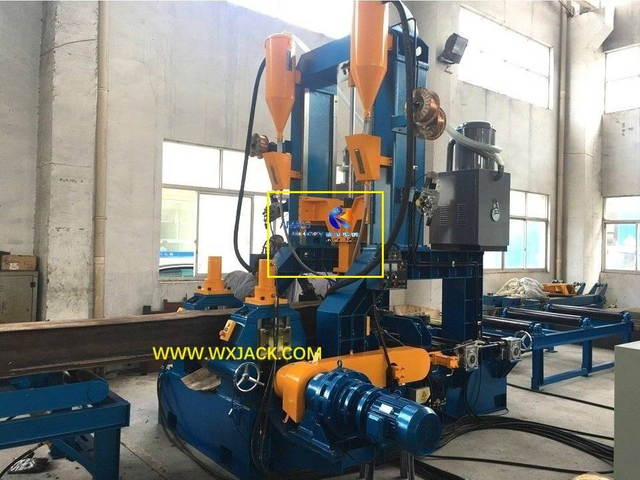

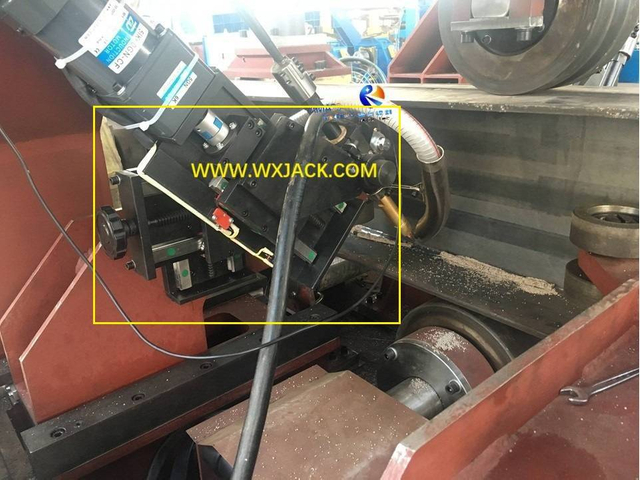

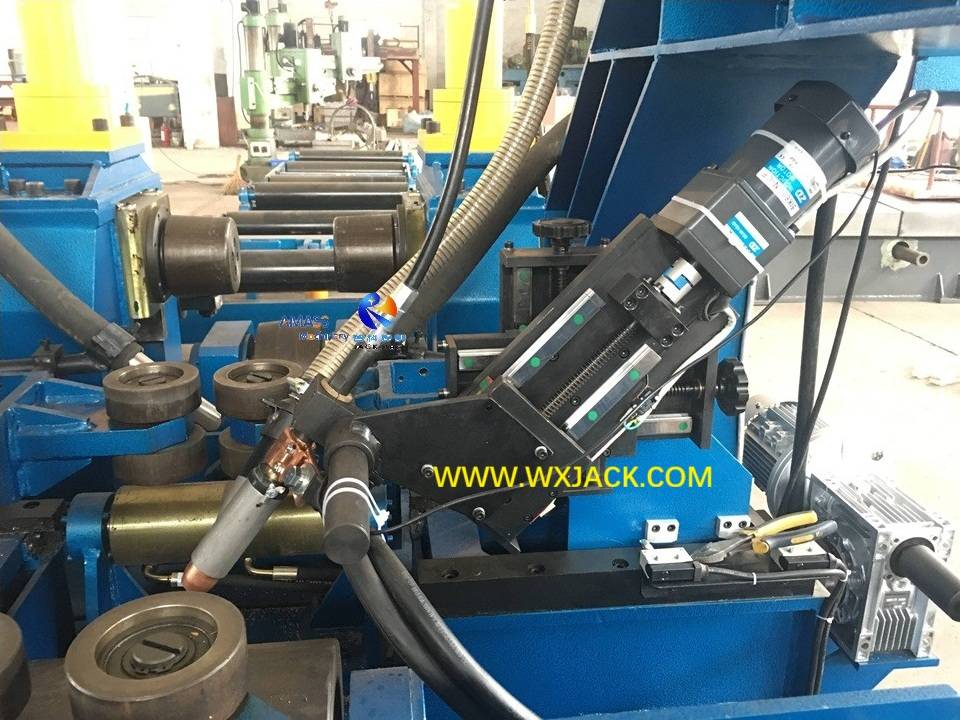

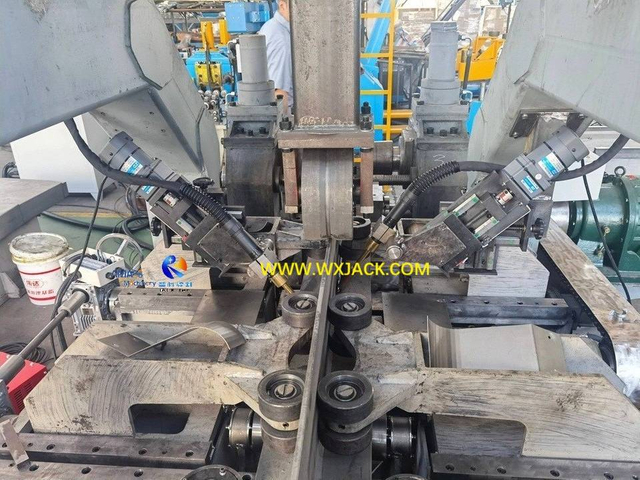

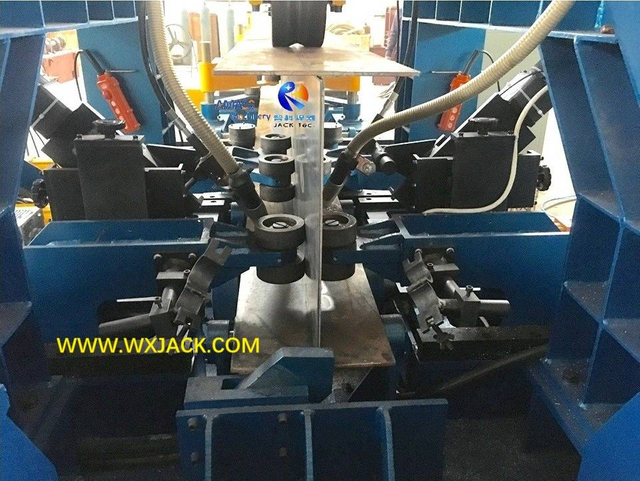

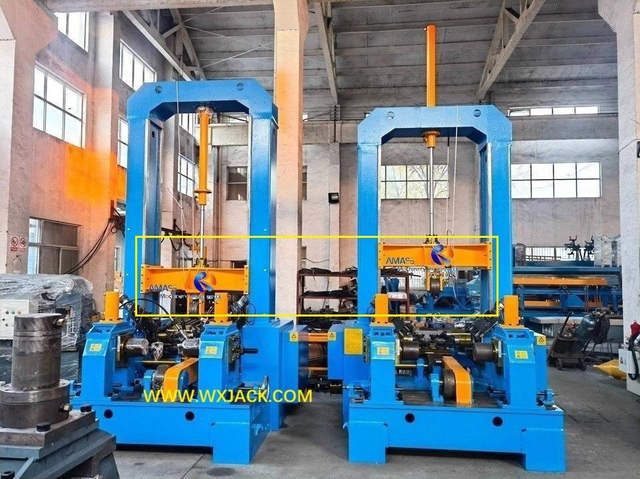

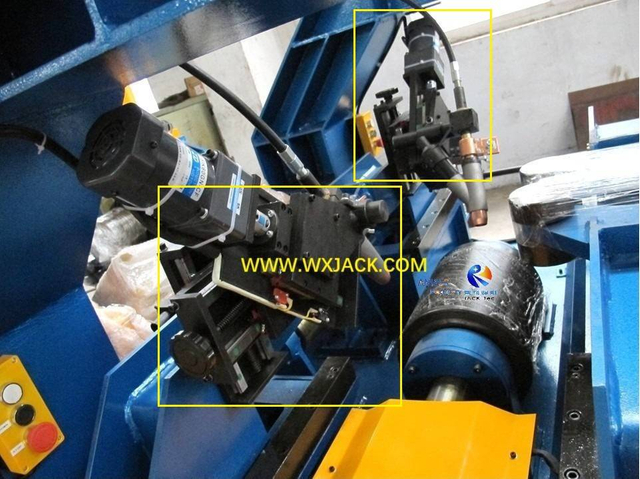

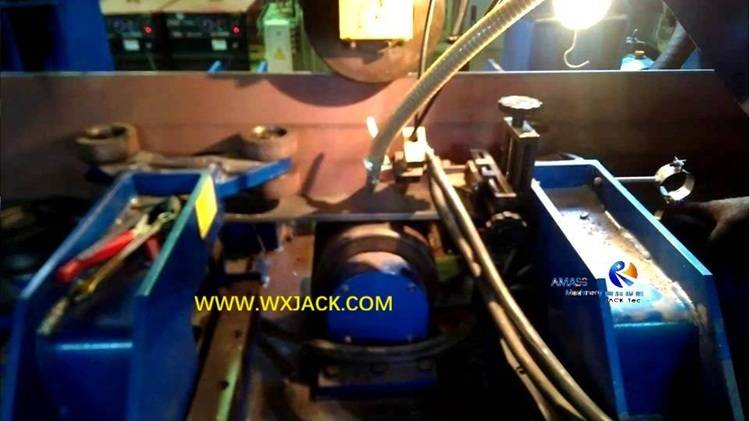

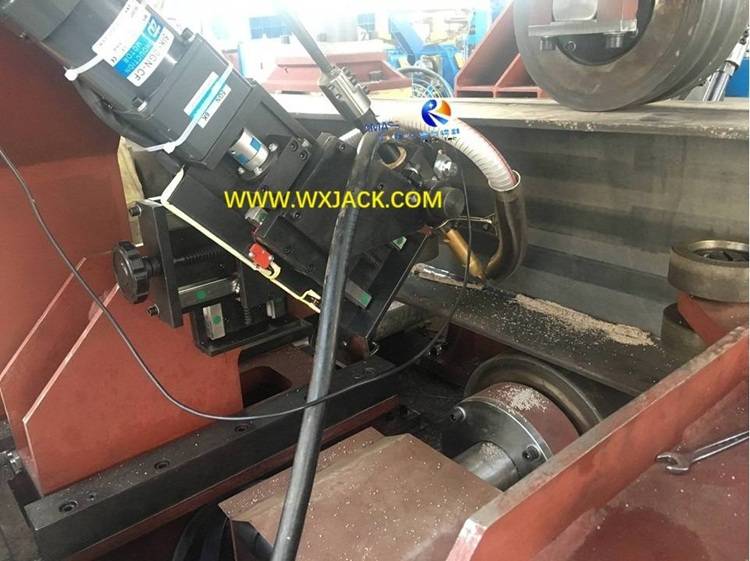

5) So, what is the detailed availability on welding torch position change in Wuxi JACK H Beam Fabrication Machine? As you can check from the above photo, the welding torch can not only be adjusted up and down, forward and backward in vertical and horizontal way, but also available for sliding in the 45° slant axis under motor drive. Really uncommon ability for the three in one H Beam Assembly Welding Straightening Integral Machine;
6) For more detail, please product of “PHJ18 High Precision Three in One I Beam Fabrication machine”.

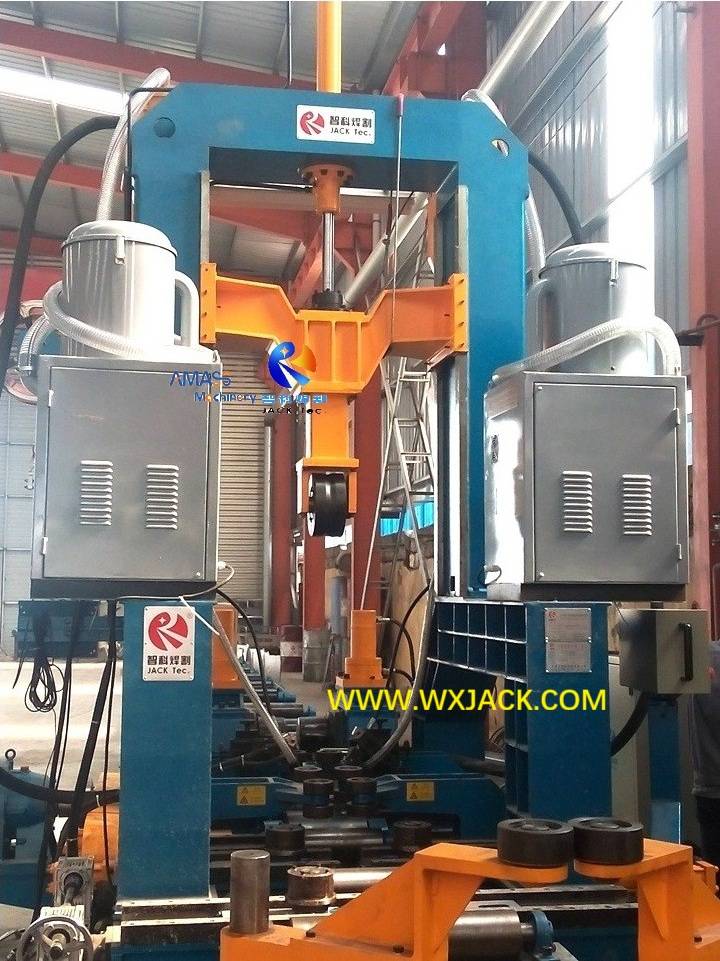

3. The Super Strong Straightening Capability in Wuxi JACK H Beam Fabrication Machine:



How to attain, and what is the Meaning and Benefit of Super Powerful Straightening Capability for H Beam Fabrication Machine?


1) The Max. straightening flange thickness that can be straightened in Wuxi JACK H Beam Fabrication Machine is 40mm, while the corresponding common specification in industry is only 16~20mm;
2) With this distinguished capability, all the specifications of small to medium duty T Beam H Beam can be made with Wuxi JACK three in one H Beam Assembly Welding Straightening Integral Machine --- As we know, the thickness range of H Beam flange is from 6mm to 40mm. In this respect, any designed T Beam H Beam can be made from Wuxi JACK H Beam Fabrication Machine;

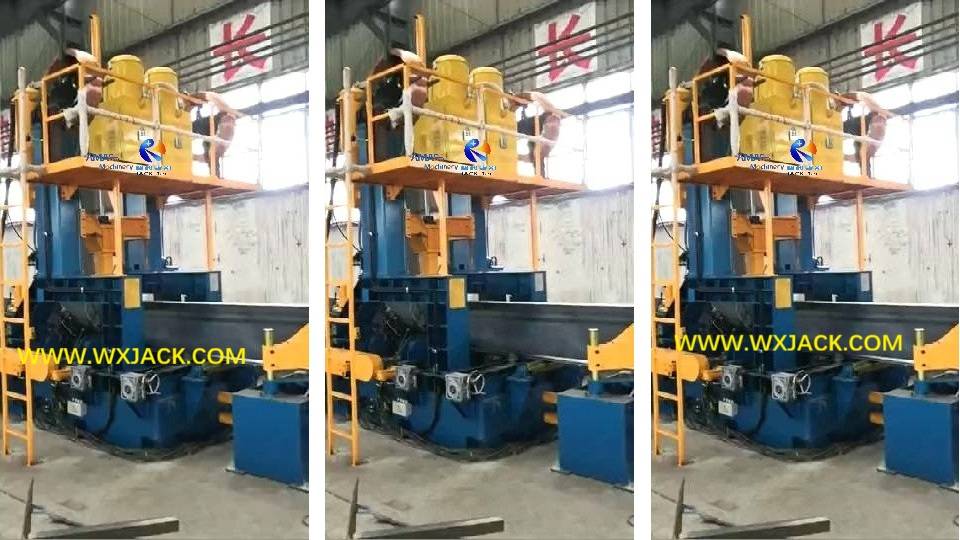

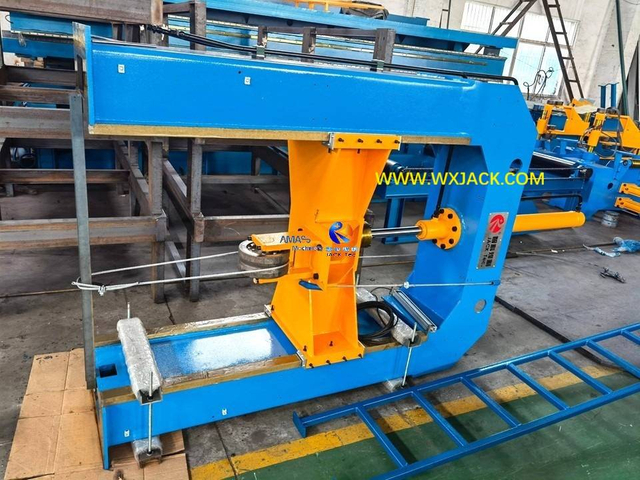

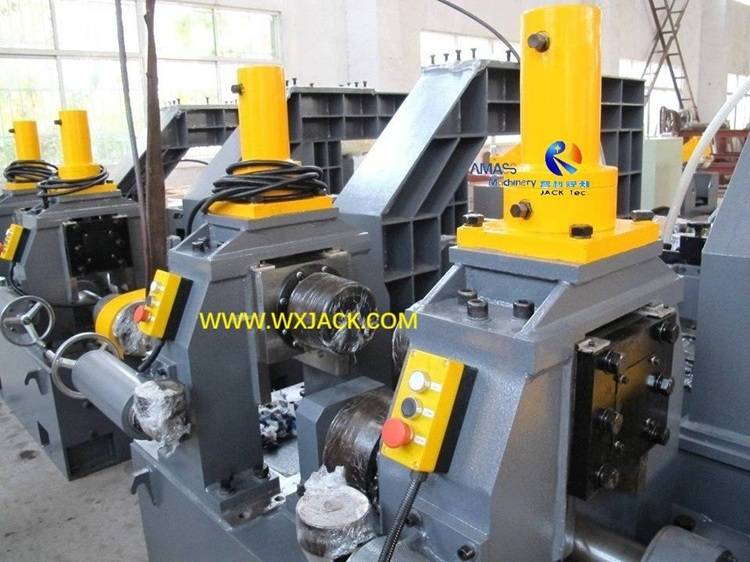

3) So, how does Wuxi JACK H Beam Fabrication Machine attain such outstanding performance for its heavy and strong straightening force? As you can check from the above photo, the straightening cell in Wuxi JACK three in one H Beam Assembly Welding Straightening Integral Machine works in the working mode of hydraulic drive downward stroke, which has two sets of vertical installed oil cylinder with high power and strong force;

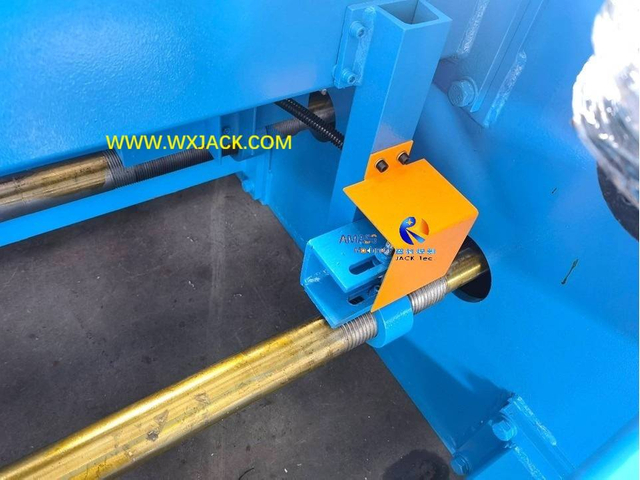

4) Besides, there is straightening stroke measurement ruler at the straightening mechanism of Wuxi JACK three in one H Beam Assembly Welding Straightening Integral Machine, to acquire the best degree of straightening control. For detail, please check the product of “PHJ18 Hybrid Drive Three in One H Beam Fabrication machine”.

Check Below Videos on Wonderful Working Process of H Beam Assembly Welding Straightening Integral Machine as below!

What are the types of Wuxi JACK

H Beam Fabrication machine?

As the first tier producer in making three in one H Beam Assembly Welding Straightening Integral machine, Wuxi JACK design and produce full range H Beam Fabrication machine for Steel Structure clients, which can be divided into three general groups of PHJ series H Beam Fabrication machine, ZHJ series H Beam Fabrication machine, and Light duty ZHJ series H Beam Fabrication machine:
1. PHJ series H Beam Fabrication machine is for producing both symmetric and asymmetric welding T Beam, H Beam, I Beam;
2. ZHJ series H Beam Fabrication machine is for producing both symmetric welding T Beam, H Beam, I Beam only;
3. Light duty ZHJ series H Beam Fabrication machine is for producing light duty welding T Beam, H Beam, I Beam.



Next, let us check every one group of Wuxi JACK H Beam Fabrication machine!

Please Click on Below Buttons to Jump to the Corresponding Group of Wuxi JACK H Beam Fabrication Machine

H Beam Fabrication machine

1. PHJ Series H Beam Fabrication Machine

More >>

1. The Usage, Standard Models and Technical Characteristic of PHJ series H Beam Assembly Welding Straightening Machine:

1) Workpiece Delivered from PHJ series H Beam Fabrication Machine:

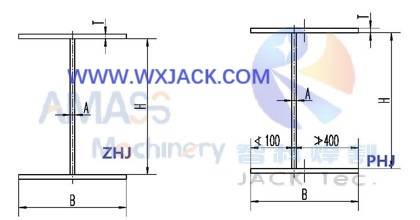

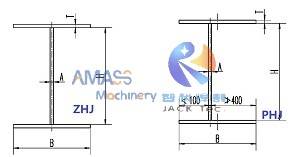

a) As you can check from below sketch, the disparity between PHJ and ZHJ three in one H Beam Assembly Welding Straightening Integral Machine is the type of T Beam H Beam cross section produced: The extended both sides of flange with respect to web can be either in the same width, which is the symmetric H Beam, or in different width, which is the asymmetric H Beam;

0 H Beam Fabrication Machine

b) The second point in characteristic of PHJ H Beam Fabrication Machine is, the T Beam H Beam produced from it has larger size and hence heavier weight compared with that of the ZHJ models H Beam Fabrication Machine. Please check below technical parameters of PHJ and ZHJ H Beam Fabrication Machine;

2) The Welding Mode Adopted in PHJ series H Beam Fabrication Machine:

Same as ZHJ, the PHJ three in one H Beam Assembly Welding Straightening Integral Machine adopts Submerged Arc Welding in flat position;

3) Assembling Way in PHJ series H Beam Fabrication Machine:

The assembling way in PHJ series H Beam Fabrication Machine is one side hydraulic cylinder drive, the other side manual leadscrew turning. This is different from ZHJ series;

4) Standard Models of PHJ series H Beam Fabrication Machine:

Based on web height of T Beam and H Beam, the PHJ series H Beam Fabrication Machine has three standard models of PHJ15, PHJ18, and PHJ20.

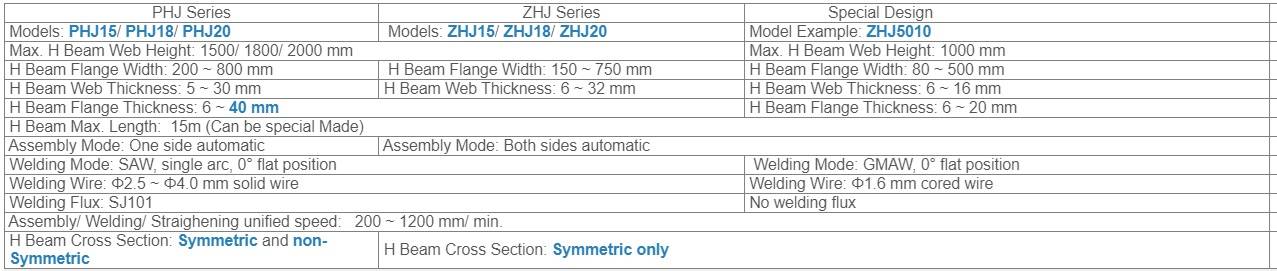

2. Technical Parameters of PHJ series H Beam Assembly Welding Straightening Machine:

 Standard Models  PHJ15/ PHJ18/ PHJ20
 T Beam H Beam Type  Symmetric and Asymmetric
 Cross Section
 T Beam H Beam Web Height  200 ~ 1500 / 1800/ 2000 mm
 T Beam H Beam Web Thickness   5 ~ 30 mm
 T Beam H Beam Flange Width  200 ~ 800 mm
 T Beam H Beam Flange Thickness  6 ~ 40 mm
 T Beam H Beam Length  3000 ~ 15000 mm
 Welding Mode  Single Arc or Twin Arc SAW
 Welding Speed  200 ~ 1200 mm/min.
 Single Pass of Welding Seam  6 ~ 12 mm
 Input and Output Conveyor  11m length Each in 3 Segments
 Hydraulic System  4.4 kW Oil Pump motor,
 6~8 MPa Working Pressure

2. ZHJ Series H Beam Fabrication Machine

More >>



1. The Usage, Standard Models and Technical Characteristic of ZHJ series H Beam Assembly Welding Straightening Integral Machine:

1) Workpiece Delivered from ZHJ series H Beam Fabrication Machine:

a) From the same illustration as below, you can get to know that the feature of T Beam H Beam produced from ZHJ series H Beam Fabrication Machine is: Cross section of asymmetric only;

0 H Beam Fabrication Machine

b) Compared with PHJ series H Beam Assembly Weld Straighten Integral Machine, the welding T Beam H Beam delivered from ZHJ series H Beam Fabrication Machine is slightly smaller and lighter. Please check below technical parameters of ZHJ models H Beam Fabrication Machine;

2) The Welding Mode Adopted in ZHJ series H Beam Fabrication Machine:

The ZHJ series three in one H Beam Assembly Weld Straighten Integral Machine also uses Submerged Arc Welding in flat position as its welding style;

3) Assembling Way in ZHJ series H Beam Fabrication Machine:

Different from PHJ models, the flange and web fitting up in ZHJ series H Beam Fabrication Machine is realized in the way of: Both sides synchronous automatic hydraulic drive and leadscrew pushing;

4) Standard Models of ZHJ series H Beam Fabrication Machine:

Similarly, based on web height of welding T Beam and H Beam produced, the ZHJ series H Beam Fabrication Machine has three standard models of ZHJ8015, ZHJ8018, and ZHJ8020.


2. Technical Parameters of ZHJ series H Beam Assembly Weld Straighten Integral Machine:

  Standard Models  ZHJ8015/ ZHJ8018/ ZHJ8020
 T Beam H Beam Type  Symmetric Cross Section Only
 T Beam H Beam Web Height  200 ~ 1500 / 1800/ 2000 mm
 T Beam H Beam Web Thickness  6 ~ 32 mm
 T Beam H Beam Flange Width  150 ~ 750 mm
 T Beam H Beam Flange Thickness  6 ~ 40 mm
 T Beam H Beam Length  3000 ~ 15000 mm
 Welding Mode  Single Arc or Twin Arc SAW
 Welding Speed  200 ~ 1200 mm/min.
 Single Pass of Welding Seam  6 ~ 12 mm
 Input and Output Conveyor  11m length Each in 3 Segments
 Hydraulic System  4.4 kW Oil Pump motor,
 6~8 MPa Working Pressure
H Beam Fabrication machine

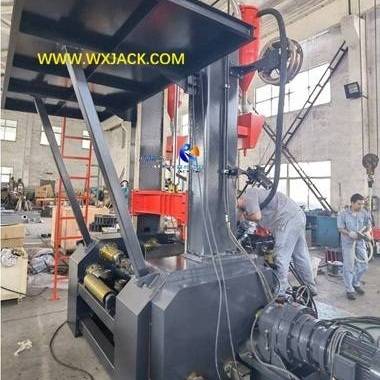

Light duty H Beam Fabrication Machine

3. Light Duty H Beam Fabrication Machine:

More >>

1. The Usage, Standard Models and Technical Characteristic of Light Duty H Beam Assembly Welding Straightening Integral Machine:

1) Workpiece Delivered from Light duty H Beam Fabrication Machine:

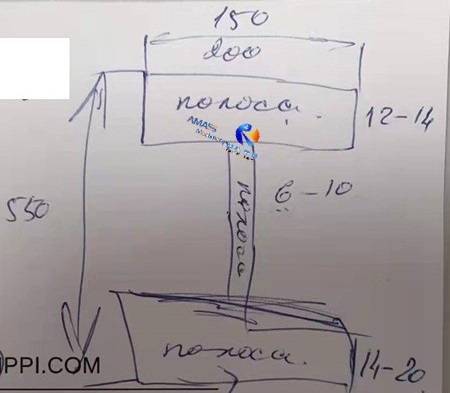

a) Below sketch gives one of the examples on which kind of T Beam H Beam to be produced from light duty H Beam Fabrication Machine: Its cross section sizes are much smaller than that of the "Normal" size PHJ and ZHJ H Beam Fabrication Machine, including web and flange thickness, web height and flange width;

Light duty

b) In application filed of T Beam and H Beam, there is fairly percentage of such size range, which we group it together as specifically Light duty H Beam Assembly Weld Straighten Integral Machine;

2) The Welding Mode Adopted in Light Duty H Beam Fabrication Machine:

a) This is the most fundamental difference between Light duty and PHJ/ ZHJ series three in one H Beam Assembly Weld Straighten Integral Machine: It adopts with CO2 Gas Shielded GMAW welding;
b) The reason behind that is, the traditional SAW has too large welding current for making small thickness range of 6~ 14mm in this Light Duty H Beam Fabrication Machine;

3) Assembling Way in Light duty H Beam Fabrication Machine:

a) Light duty H Beam Assembly Weld Straighten Integral Machine can be viewed as sibling product of ZHJ H Beam Fabrication Machine: The flange and web fitting up is also in the working mode of: Both sides synchronous automatic hydraulic drive and leadscrew pushing;
b) Due to the smaller size of workpiece, so is the overall size, especially height of the Light duty H Beam Assembly Weld Straighten Integral Machine compared with ZHJ and PHJ H Beam Fabrication Machine: Around 500mm shorter;

4) Standard Models of Light Duty H Beam Fabrication Machine:

The most often seen model in Light duty is ZHJ5010 H Beam Fabrication Machine.


2. Technical Parameters of Light Duty H Beam Assembly Weld Straighten Integral Machine:

  Model Example  ZHJ5010
 T Beam H Beam Type  Symmetric Cross Section Only
 T Beam H Beam Web Height  160 ~ 1000 mm
 T Beam H Beam Web Thickness  6 ~ 16 mm
 T Beam H Beam Flange Width  80 ~ 500 mm
 T Beam H Beam Flange Thickness  6 ~ 20 mm
 T Beam H Beam Length  3000 ~ 20000 mm
 Welding Mode  CO2 GMAW
 Welding Speed  200 ~ 2000 mm/min.
 Input and Output Conveyor  16m length Each in 4 Segments
 Hydraulic System  4.4 kW Oil Pump motor,
 6~8 MPa Working Pressure

Application of Wuxi JACK H Beam Assembly Welding Straightening Integral Machine

1) H Beam Fabrication Machine, or H Beam Assembly Weld Straighten Integral Machine, is applied in all the facilities of Steel Structure industry;

2) Before development of H Beam Fabrication Machine, or H Beam Assembly Weld Straighten Integral Machine, when customers purchase H Beam production machine for producing light duty to medium duty T Beam and H Beam, their choices are:

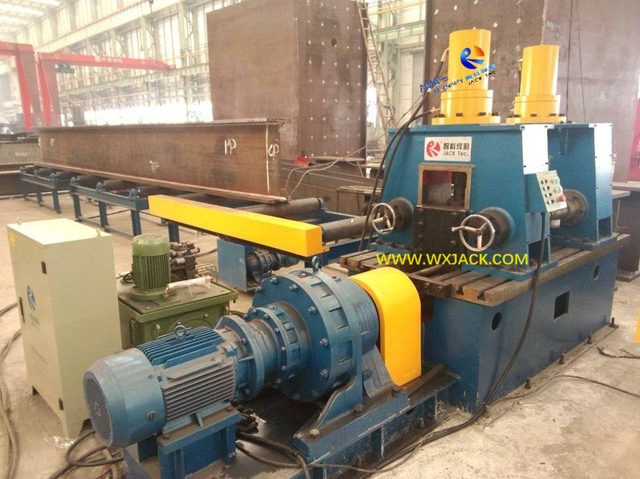

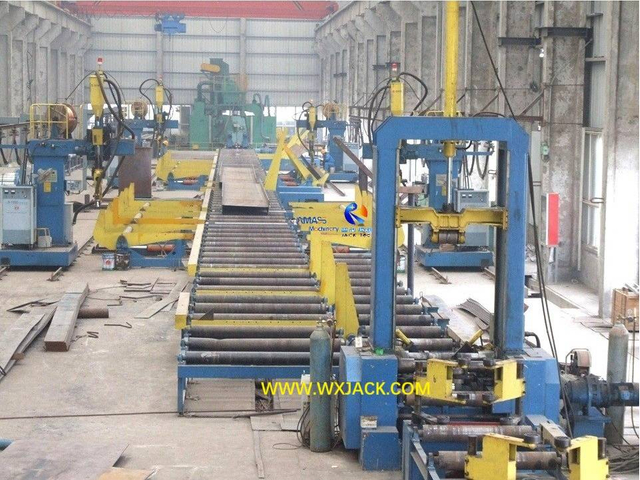

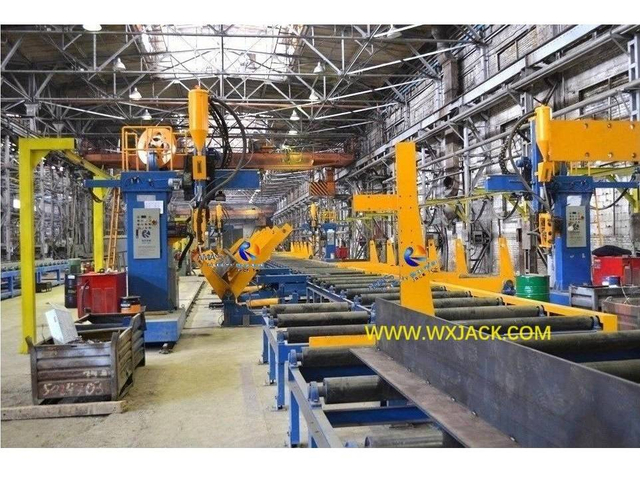

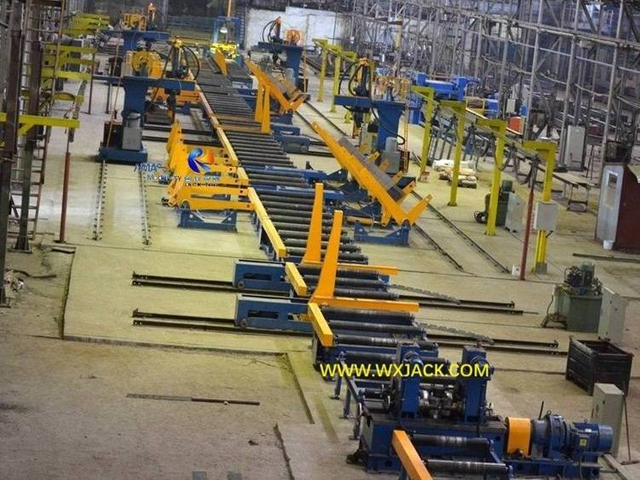

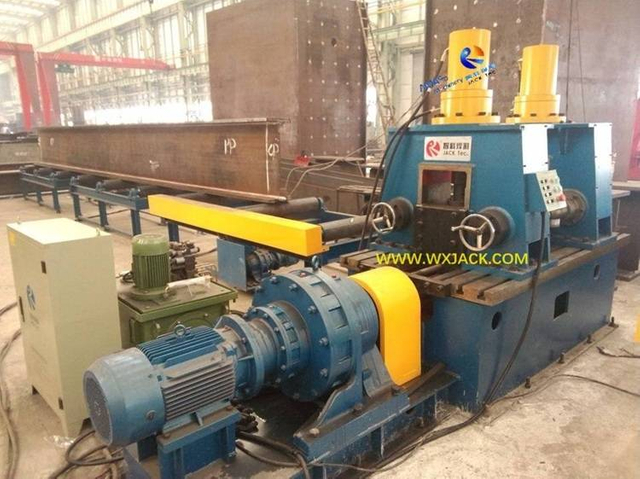

a) Automatic H Beam Production line, including H Beam Assembly and Tack Welding machine, H Beam Welding Machine, H Beam Straightening machine, 60° Overturning Rack, 90° Overturning Rack, 180° Overturning Rack, Transferring Equipment such as Steel Conveyor;
b) Or semi automatic working shop with individual equipment: H Beam Assembly machine, H Beam Welding Machine, H Beam Straightening machine;
3) Now, with the introduction of H Beam Fabrication Machine, one set of this H Beam production machine can replace all the above mentioned equipment;
4) On the other hand, here we stress that, the success application of H Beam Assembly Welding Straightening Integral Machine does not necessarily mean the phase out of H Beam Production line and its corresponding machines: Both groups of H Beam production machine focus on different application niche: The H Beam Fabrication Machine is the perfect choice for manufacturing light to medium duty welding T Beam H Beam, while H Beam Production line and its machines are the only equipment for making heavy duty steel structure working parts;

5) One complement is, for putting into work of H Beam Assembly Weld Straighten Integral Machine, you need to prepare a set of CNC Strip Plate Cutting Machine at its preceding working station, for cutting off flange and web to be supplied to the H Beam Fabrication Machine.

H Beam Fabrication machines
01

H Beam Fabrication machines
02

H Beam Fabrication machines
03

How does Wuxi JACK H Beam Fabrication machine Work?

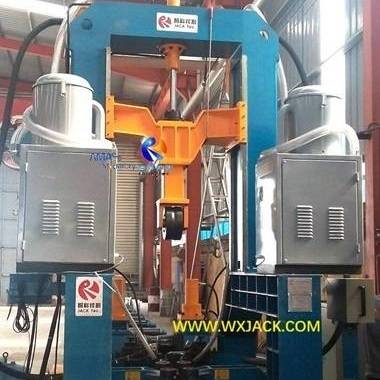

Design and Working Principle of H Beam Fabrication Machine

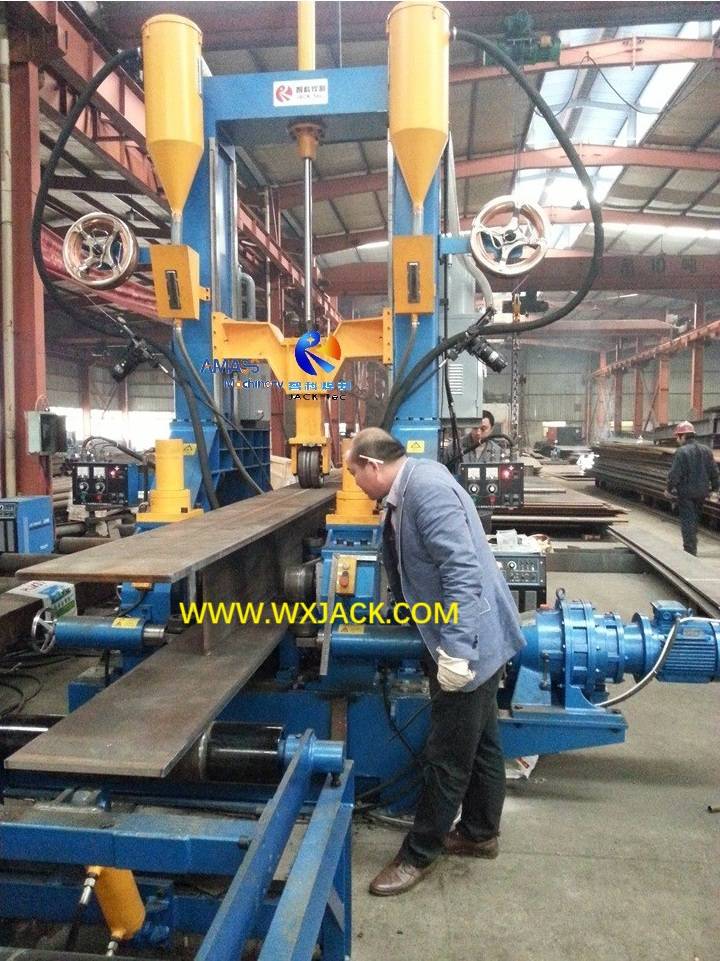

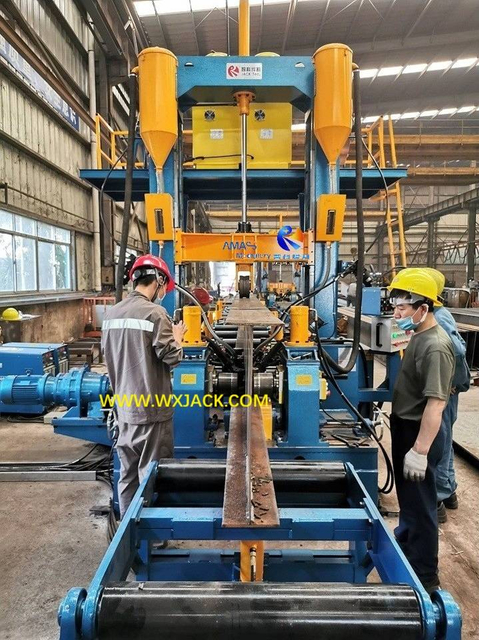

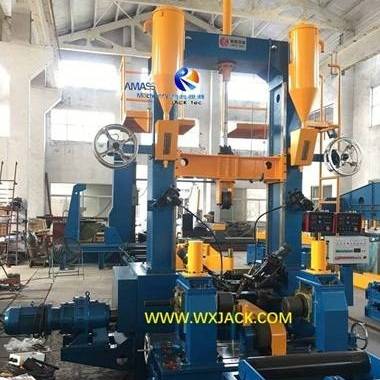

Let us use the Wuxi JACK ZHJ8015 H Beam Assembly Welding Straightening Integral Machine as an example, on explaining how does H Beam Fabrication Machine work:


Main Units of H Beam Assembly Weld Straighten Integral Machine:



1. Assembly unit of H Beam Assembly Welding Straightening Integral Machine:



1) The assembling section is installed at inlet of central working zone of the H Beam Fabrication Machine;

2) The Assembling cell of H Beam Fabrication Machine is consisted of:

a) Pulling rod system, which is a kind of hydraulic drive manipulator, is installed on the input conveyor of the H Beam Fabrication Machine. It is for first stage positioning of web and flange, during sending in of raw materials. This is the step of rough assembly;
b) Self alignment rollers, which are installed at main body of the H Beam Assembly Welding Straightening Integral Machine. This is for final stage positioning and securing of web and flange, into the structure of T Beam and or H Beam. This is the step of precise Assembly.



2. Welding unit of H Beam Assembly Welding Straightening Integral Machine:

1) The welding section is installed at middle position of central working zone of the H Beam Fabrication Machine. It includes 2 sets of outsourced SAW power supply, welding torch, arc tracing unit, welding flux conveying and recovery unit;
2) These elements are composed into automatic submerged arc welding cell of the H Beam Fabrication Machine, and performs SAW on the assembled T Beam and or H Beam.



3. Straightening unit of H Beam Assembly Welding Straightening Integral Machine:

1) The straightening section is installed at outlet of central working zone of the H Beam Fabrication machine;
2) The straightening cell of the H Beam Fabrication Machine is consisted of 2 pieces of bottom straightening rollers, and 1 piece of top downward straightening roller, which form a T cavity for straightening the welded T Beam and or H beam.



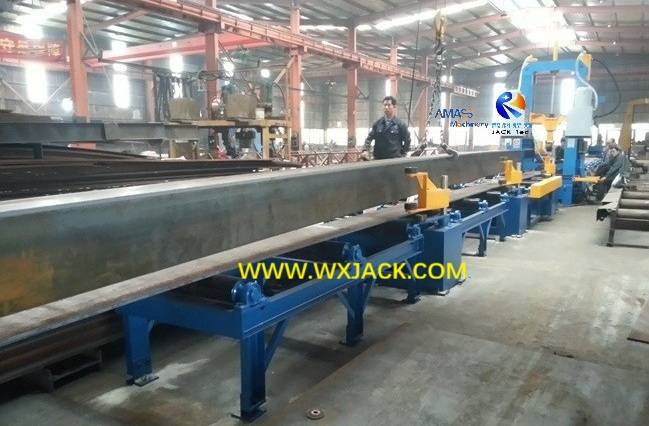

4. Input and Out Conveyor of H Beam Assembly Welding Straightening Integral Machine:

1) For delivering standard length of 3~ 15m T Beam H Beam to be produced from the H Beam Fabrication Machine, there are 11m length of input and output conveyors deployed at the front side and rear side of machine main body respectively;
2) Both the input and output conveyors have 3 segments each, which is, one segment is driving work, and the other two segments are follower work.

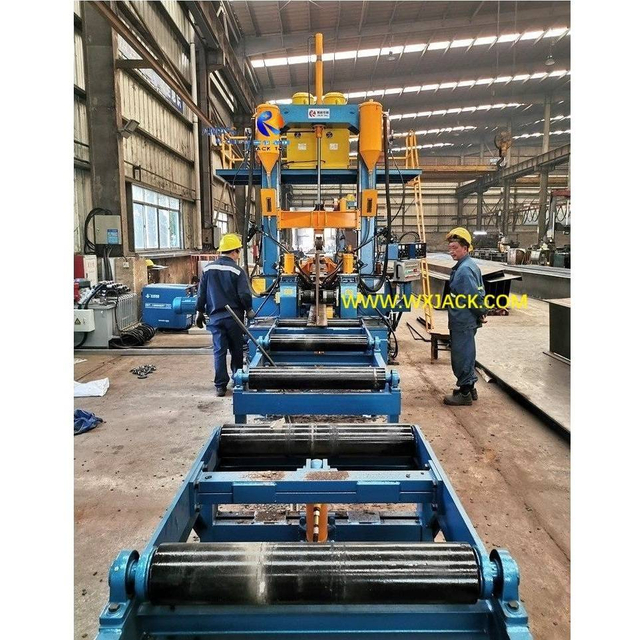

H Beam Fabrication machine

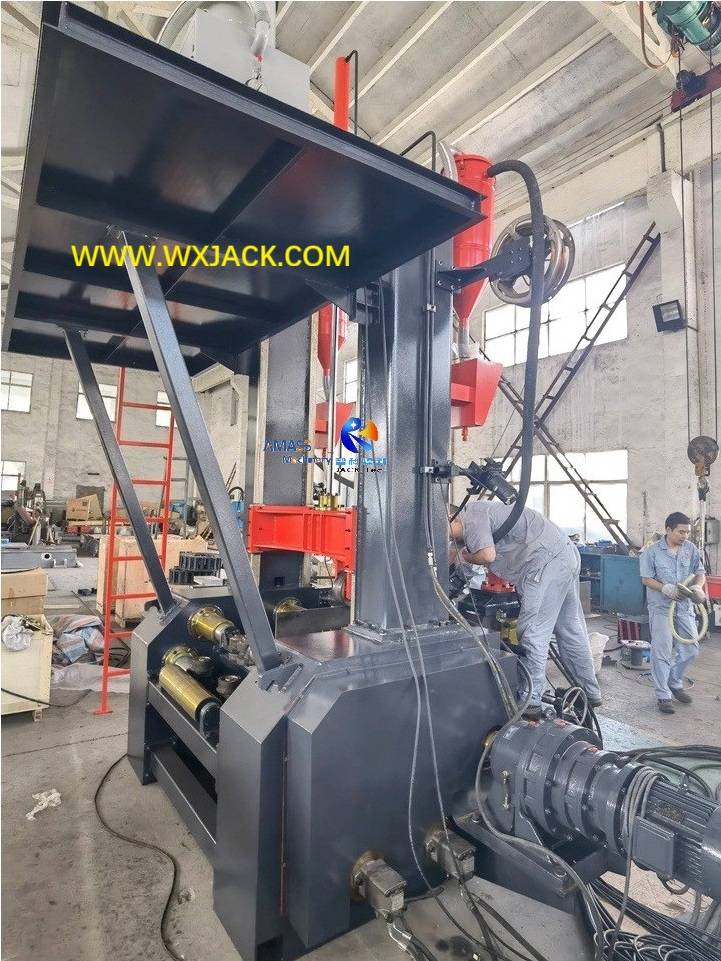

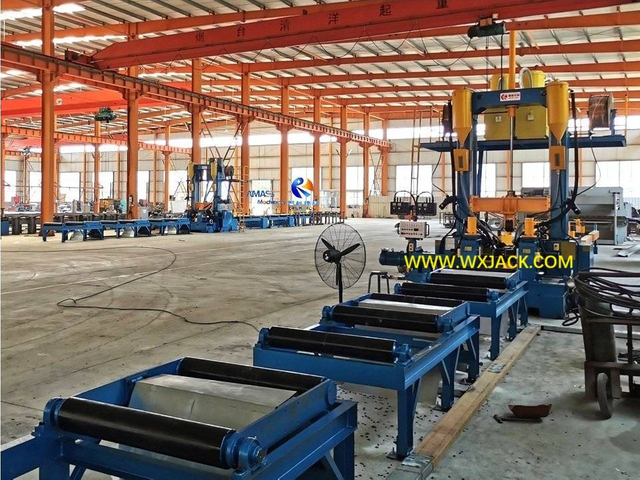

H Beam Fabrication Machine Commissioning Zone at Wuxi JACK

H Beam Assembly Welding Straightening Integral Machine

How to use Wuxi JACK H Beam Fabrication machine?

 1. Before Putting into Use of Wuxi JACK H Beam Assembly Welding Straightening Integral machine:

1) Before installing the H Beam Assembly Weld Straighten Integral machine, the first thing you need to confirm is the utility condition at your workshop: As an equipment with two sets of Submerged arc welding power supply, which have large welding current and high power consumption, the working area of H Beam Fabrication Machine should have electricity capacity of at least 140~ 200 KVA;

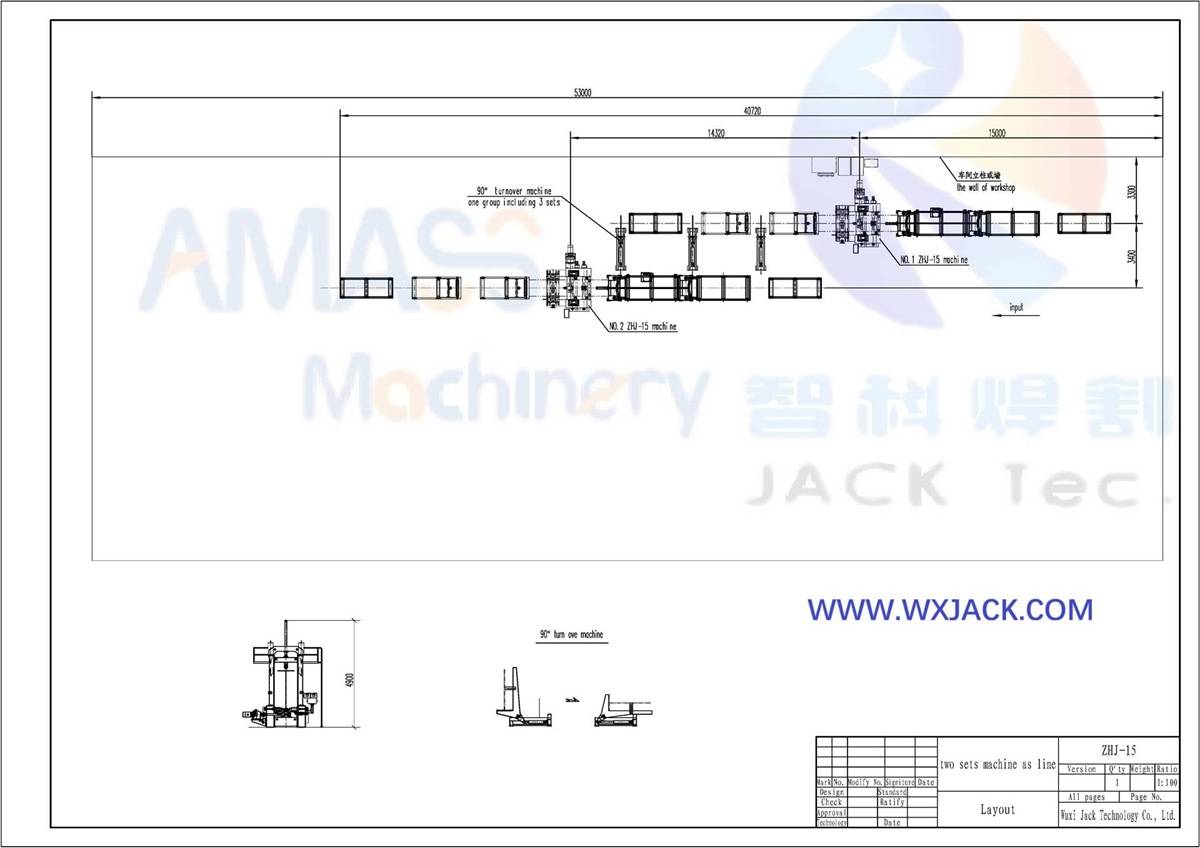

2) The second point before installing the H Beam Assembly Weld Straighten Integral Machine is: You need to plan well on the layout of H Beam Fabrication Machine with respect to other manufacturing equipment: Well planned logistic is of vital importance for daily running of the H Beam Fabrication Machine;
3) Besides, the H Beam Fabrication Machine itself has many separate working units: The hydraulic pump station, the SAW power supply, welding flux recycling machine, and control board of the H Beam Fabrication Machine. So, you need to configure on how to arrange these working units before installation of the H Beam Assembly Weld Straighten Integral Machine.


2. Notice for Attention on the Use of H Beam Assembly Welding Straightening Integral machine:

1) As an equipment integrating the three functions of assembling, welding, and straightening, the H Beam Fabrication Machine should be operated with operator not only having skill on how to operate the machine itself, but also knowledge on welding process technology;
2) When design the H Beam Assembly Weld Straighten Integral Machine, Wuxi JACK always takes safety operation of the machine as the No.1 factor. So, H Beam Fabrication Machine is a kind of equipment with the highest degree of safety level. Meanwhile, working on a heavy duty mechanical equipment as this H Beam Fabrication Machine, operator should put on proper PPE including hard shoes/ safety glass, and conform to safety regulation of the workshop.

The Information Of H Beam Fabrication Machine

  • What is relationship between Wuxi JACK Technology Co., Ltd and Wuxi AMASS Machinery Co., Ltd?

    Wuxi JACK was established in the beginning of 2009 specializing in design& manufacture. Wuxi AMASS is the company specializing in selling JACK products and other involved products overseas.

  • What is your service term?

    1) We have 1 year warranty free of charge for all our products from the date acceptance of products by customer;
    2) We keep on giving our customer best service at expiry of warranty period with
    best price;
    3) We provide our customer spare parts with best price;
    4) Upon receiving information from customer, our response time is within 2 hours for
    Chinese mainland customers, and within 1 Day the longest (depending on time zone)
    for overseas clients;
    5) We give service covering installation, commissioning and training for our products;
    6) We give consult to our customers on all technical issues involved

  • Do you have overseas branch or selling office?

    Currently no. But we do have long term partner of over 10 years at Russia and central Asia where we have very broad customer base. (They are local companies who distribute and help serving our products)
    To have any inquiry on our products, please use contact way listed above. We will give you feedback within 24hours upon receiving inquiry from you.

  • Do you have price list of your products?

    Because our products are Engineering to Order type, we do not have price list at present. For detailed information of our products, you can go to PRODUCTS of this website to view; And you can download from DOWNLOAD under INFORMATION of this website.
    Should you have any request on our products, please contact us at your convenience.

  • What is the service scope of your company (Products, its application and business mode)?

    Design& Manufacture& Sell (Including After-Sale Service) of below Machine& Equipment:
    Metal Plate/Pipe/Beam Weld/Cut/Machining equipment;

        H Beam Assembly Welding Straightening Integral Machine;
        Plate Butt Joining Machine;
        Beam End Face Milling Machine;
        H Beam Production Line (Including Assembly Machine, Gantry type Submerged Arc Welding Machine, Straightening Machine, Steel Conveyor);
        CNC Pipe Intersection Cutting Machine;
        CNC/Strip Plate Flame/Plasma Cutting Machine;
        BOX Beam Production Line (Including Assembly Machine), Electro Slag Welding Machine, Submerged Arc Welding Machine, Beam End Face Milling Machine);
        T Beam Production Line (Including Assembly Machine, Submerged Arc Welding Machine/ CO2 Welding Machine);
        Welding Turning Roll;
        Welding Manipulator;
        Welding Positioner;
        Various Specialized Welding Machine

    These equipment are widely used in industry of steel structure, ship building, bridge building, pressure vessel, petrochemical, etc.

  • What are the payment terms of your products?

    For Chinese mainland customers, we accept payment with transfer accounts in RMB;
    For Overseas customers, we accept payment in T/T and or L/C at sight in USD; Direct settlement between Euro and RMB.

  • How to contact with you?

    You can get us by official e-mail: support@wxjack.com ; sell@wxjack.com
    Google& YouTube account: Betty20210224@gmail.com;
          Mobile &WeChat& Facebook: 86 15852755799； 13621515089
          QQ: 3214565680
         Tel: 86-510-83297829

  • Where can I find information on your company & products?

    This website (www.wxjack.com) is the only official link to our company in internet.
    Also, you are warmly welcome to visit our company on site to below address:
    No.2nd YangDong Road, YangShi Town, HuiShan District, Wuxi City, JiangSu Province, China

  • What is the latest development on welding of pipe/tank/vessel/structure member?

    Turning roll/ Positioner/ Manipulator is the most common type of welding equipment for pipe/tank/vessel/structure member. These 3 kinds of equipment can be used individually, or integrally as welding center. With years of development, these products have very mature technology and sees trend of homogenization.
    On the other hand, there is no end to meet customer requirement and chase technology advancement. With years of explore, we are not only very good at manufacturing standard products of welding equipment, but also combining optional unit such as Robot control/ Welding seam tracer, etc. to have flexible application.
    Meanwhile, we also design and produce series of special purpose welding equipment, the list includes these products but not limited to: Hobbing Cutter/ Rolling boring machine/ Roller Strap Cladding machine/ Internal Longitudinal Welding machine of large Pipe Tank Tube/ Longitudinal Seam Welding machine/ Pipe Tube Flange Welding machine/ Small Flange Welding Equipment/ Cylinder Body Circumferential Welding Equipment, etc.

  • Why guaranteeing machining stability/precision is a great challenge on heavy-duty Beam end facing machine?

     Beam end facing machine is for milling end face of beam in steel structure and ship building industry. Same as plate edge milling machine, for best milling quality& efficiency, we improved machine design to better level: Different from the general used milling head of 5.5kW and welded rail in industry, we adopt milling head of 7.5kW/11kW and high-precision ball bearing linear guideway, making milling process more efficient and good quality, while maintain the same level of machine price.
    At the same time, we have superior technology in design and manufacture heavy-duty end facing machine. Same as high rise building, increase in size& loading capacity for facing machine poses great challenge to machine manufacturer, and we overcome the difficulty thanks to our rich experience and advanced technology.
    In 2011, we designed and made the ever largest end facing machine of DX4080 (for beam cross section size up to 4*8m) successfully for a domestic ship-building customer and had very positive feedback from them.

  • How to make plate edge milling process more efficient, precise and flexible?

    Plate edge milling machine is commonly used equipment in steel structure and ship building industry. Its usage is to mill plate edge into various size and/or type of bevel/chamfer for the ease of following operation (for example, welding).

    Due to its wide application, improving milling precision& efficiency is critical target of machine manufacturer. For this purpose, we improved machine design to better level: Different from the general used milling head of 5.5kW and welded rail in industry, we adopt milling head of 7.5kW and high-precision ball bearing linear guideway, making edge milling process more efficient and better quality, while maintain the same level of machine price as other machine manufacturers.

    Our plate edge milling machine takes leading position in terms of performance in market, and gained word of mouth from customers.

  • What is the difference among flame/plasma/laser cutting and how to choose from them?

     Plate cutting is the basic operation in nearly all aspect of industry involves metal plate. In general, there are 3 kinds of cutting machine in terms of cutting way: Flame/ Plasma and Laser.

    -Flame cutting is the earliest technology, appliable for cutting thick carbon steel(up to 100mm thickness)with relative slow speed (1m/min.) and low precision. Also, it is the most cost-effective way to cut plate into strips. Machine investment& operating cost is low;
    -Plasma cutting was developed following flame cutting. It is suitable for cutting medium thickness (3 ~40mm) plate of carbon steel/stainless steel/brass in medium speed (2~ 6m/min.) with good precision. Machine investment is medium. Operating cost is higher than flame cutting because of consumable consumption;
    -Laser cutting is the latest developed technology over the last 10~20 years. It is suitable for cutting thin metal plate (1~6mm) in high speed (6~10m/min.) with high precision. Machine investment is much higher than that of flame cutting and plasma cutting. Operating cost is at same level with plasma cutting;
    -To cut plate into finished product of required shape& size, majority of cutting machine is equipped with CNC and nesting software.
    We have 20years of experience in design and manufacture flame & plasma &laser cutting machine.

  • Why is H Beam Assembly Weld Straightening Integral machine so popular in market?

    1)H Beam Assembly& Tack Weld machine;
    2)H Beam Submerged Arc Weld machine;
    3)H Beam Straightening machine.
    4)Besides, transport units such as conveyor/steel cart is necessary to carry H Beam among the 3 machines.
    Comparatively, H Beam Assembly Weld Straightening Integral machine integrates function of the above-mentioned 3 machines into 1 machine, and removing transport unit accordingly. Price of this machine is only half of the 3 machines, let alone investment on transport unit. In this sense, our customer can increase productivity and reduce investment on equipment & work site greatly with this machine.

    In 2009, we are the first company upgrading this machine from concept design to practical stage. Ever since, it gained popular recognition among customers both domestic and abroad.

  • What is the advantage of plate butt joining machine over traditional plate joining process?

     Traditional plate joining process is like this:
    1)Weld one side of joint of the 2 plates first;
    2)Flip the 2 half-finished joint plates;
    3)Perform carbon gorging on inverse side of joint;
    4)Weld inverse side of joint
    Plate joining machine makes the above-mentioned 4 steps into 1 step thanks to large current melt-thru technology. And, because of water-cooling copper pads at the inverse side of the plates, welding seam formed at the inverse side also has good finish. The machine improves plate joining process quality& efficiency greatly.

    We developed this new machine in 2016 and gained patent in 2017. The machine is very much welcomed not only in domestic, but also overseas market such as Russia, Central Asia, Vietnam, India, etc.

Other series of Wuxi JACK Products

H Beam Fabrication Machine Blogs

Home

Home Products About Us R&D Customization FAQ Blog Contact Us

  • LINCOLN, PowerWaveACDC1000S CN.pdf

  • LINCOLN, POWERPLUS 1000HD & Rover Tractor EN.pdf

  • LINCOLN, POWER WAVE STT MODULE EN.pdf

  • LINCOLN, POWER WAVE ACDC 1000SD MAXsa & Cruiser EN.pdf

  • LINCOLN, NA-5 EN.pdf

  • LINCOLN, NA-3S & NA-4 EN.pdf

  • LINCOLN, InvertecSTT-II CN.pdf

  • LINCOLN, IdealArcDC-1500 CN.pdf

  • LINCOLN, IdealArcDC-1000 CN.pdf

  • LINCOLN, IdealArcDC-600 CN.pdf

  • LINCOLN, IdealArcAC-1200 CN.pdf

  • LINCOLN, IDEALARC DC-1500 EN.pdf

  • LINCOLN, IDEALARC DC-1000 EN.pdf

  • LINCOLN, IDEALARC AC-1200 EN.pdf

  • Lincoln Manual, ROVER including RCH-1 EN.pdf

  • Lincoln Manual, PP1000 HD EN.pdf

  • Lincoln Manual, NA-5.pdf

  • Lincoln Manual, NA-3 NA-4.pdf

  • LINCOLN, IDEALARC AC-1200 EN.pdf

  • Lincoln Manual, DC-1000 IM420.pdf

WUXI AMASS MACHINERY CO., LTD
WUXI JACK TECHNOLOGY CO., LTD
0510-83297829
English Language: 15852755799;
Chinese Language: 13621515089
support@WXJACK.com
No. 2, Ouyang Road, Luoshe Town, Wuxi City, Jiangsu Province, China
CONTACT US
© Wuxi AMASS Machinery Co., Ltd  2021 All Rights Reserved.
备案证书号：苏ICP备13045244号-1
