CNC-CG6000 To CNC-CG10000 Large Span CNC Shape Cutting Machine

A. Scope and Operation Feature of Flame Plasma Large CNC Cutting Machine:

1. Percentage of Conventional Versus Large Models CNC Shape Cutting Machine:

1) Majority: In the application field of flame plasma CNC Shape Cutting Machine, most majority models (Over 80%) fall within scope of 3,000mm cutting rail span (CNC-CG3000) to 5,000mm cutting rail span (CNC-CG5000), especially CNC-CG4000, the single model account for around 50% of actual use;

2) Large Cutting Rail Span Models:

When cutting rails span reaches and exceeds 6,000mm (CNC-CG6000), the machine can be viewed as large span models, which, although in small percentage use, has its irreplaceable position, on the aspect of:

a) Application;

b) Mechanical frame structure;

c) Cutting rails;

d) Configuration;

2. Scope and Operation Features of Large Flame Plasma CNC Profile Cutting Machine:

1) Currently, the recommended Large CNC Flame Plasma Cutting Machine is from CNC-CG6000 to CNC-CG10000:

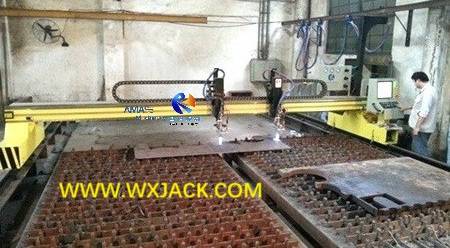

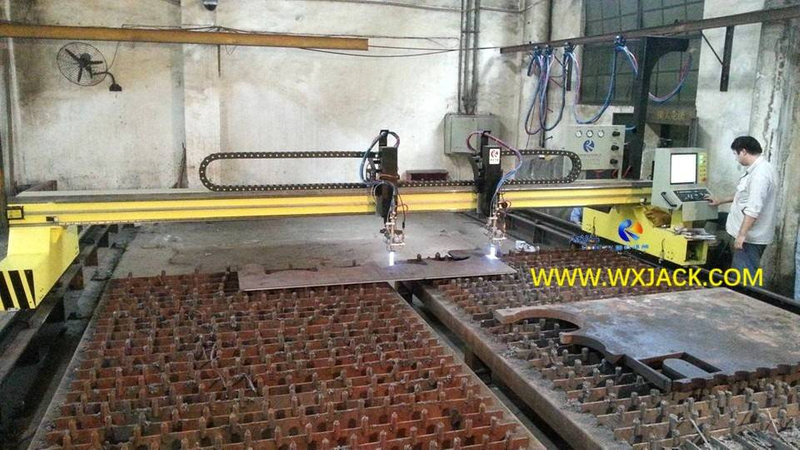

a) Customer operation site Wuxi JACK CNC-CG8000 model Large CNC Flame Cutting Machine: (Fig.1)

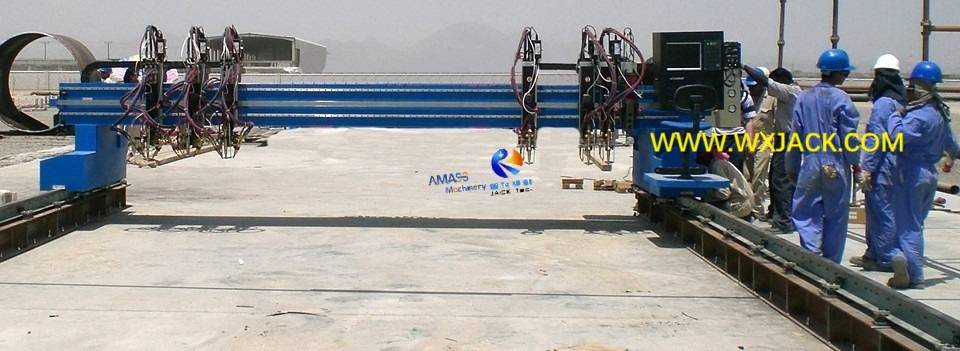

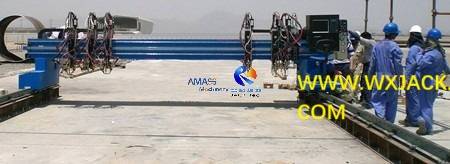

b) Outdoors installed Wuxi JACK CNC-CG10000 model Large machine, installed with 6 groups of flame triple cutting torches: (Fig.2)

2) Operation Features of Flame Plasma Large CNC Cutting Machine:

a) Large models machines are basically applied for shape cutting, or called profile cutting, and flame triple cutting. As can be observed from the above photos, there is seldom strip cutting torches to be equipped in these large machines:

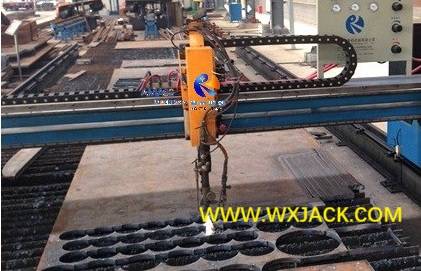

b) Shape cutting on carbon steel plates, with Wuxi JACK Large CNC Cutting Machine: (Fig.3)

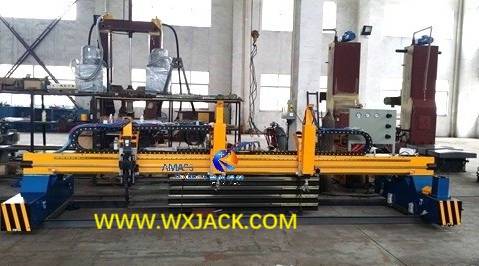

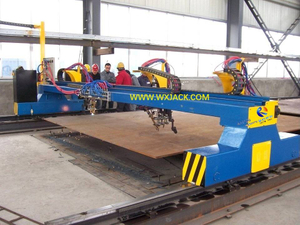

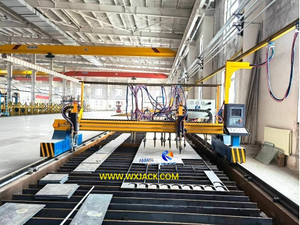

c) Wuxi JACK CNC-CG6000 model Oxygen fuel Large CNC Cutting Machine, equipped with 3 groups of triple cutting torches: (Fig.4)

B. Usage and Great Value of Large Flame Plasma CNC Profile Cutting Machine:

1. Function: CNC machine realizes automatic cutting on metal plate in batches, making consistent and uniform delivery of workpieces with whatever required quantity. Together with Press Brake and Shearing Machine, these three machines are the basic and requisite equipment in modern manufacturing facilities;

2. Put into Use: Flame Plasma Large CNC Cutting Machine is used for plate profile cutting of large width carbon steel plates (Wider than 5,000mm), or two pieces of narrow plates at the same time. As you can find from below photo, there are two sets of cutting platforms under mechanical main frame of machine:

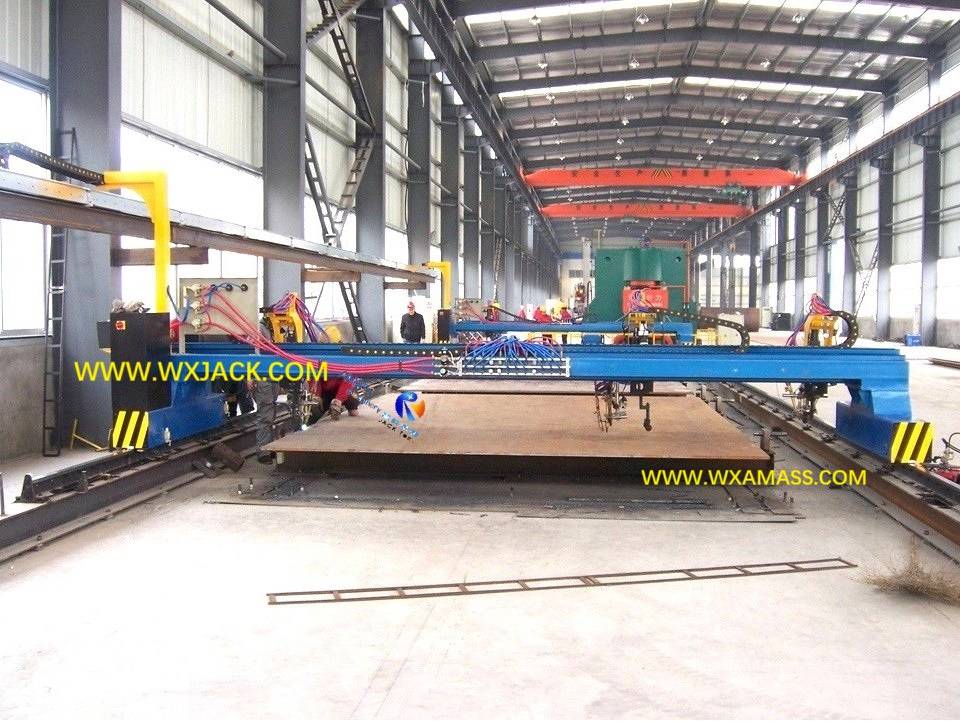

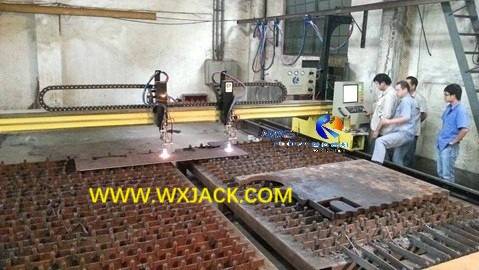

In Wuxi JACK CNC-CG8000 model large span machine, there are 2 sets of cutting table, and 2 pieces of steel plate can be cut simultaneously: (Fig.5)

3. Double Drive: Here we emphasize again that for machine cutting rail span equals to and wider than 4,000mm, double drive is a must for its normal running and eligible work;

4. Operation: The management on cutting operation is accomplished with buttons and switches on the yellow panel; The cutting program is edited and enforced with the CNC controller:

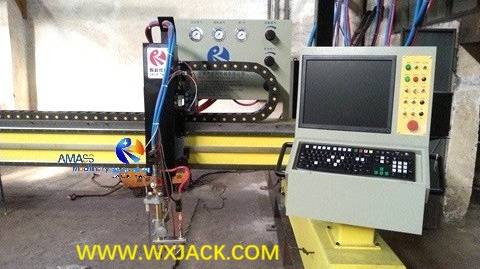

Operating station (CNC controller plus operation panel) of Wuxi JACK CNC-CG8000 model Large Flame Plasma CNC Shape Cutting Machine: (Fig.6)

5. Benefits of Flame Plasma Large CNC Cutting Machine for Customers:

1) Cutting Super Large Integral piece of Steel Plate:

Some industries involve processing of steel plates with excessive width. For example, Shipbuilding, Port Machinery, Bay Bridge, etc.;

2) Saving Steel Plates Handling Cycle Time:

To save loading/ unloading time of metal plates into and out of machine, customers expect to cut two pieces of standard size (Three to four meters width) metal plates at the same time in one batch;

3) Cutting Several Pieces of Short Length Steel Plates in a Row:

When the raw material of steel plates have length at around the same size as valid cutting width of machine, for example, for CNC-CG8000 model Large CNC Flame Plasma Cutting Machine, of 8,000mm cutting rail span, 7,200mm length of steel plates, lay several pieces of such carbon steel plates in 90° turning positioning on machine cutting table, and cut the steel plates with one time machine operation, thus saving more supporting time: Load/ Unload/ Call Program of machine.

C. Control and Drive Units of Large Flame Plasma CNC Shape Cutting Machine:

1. CNC and Electric Control System of Flame Plasma CNC Profile Cutting Machine:

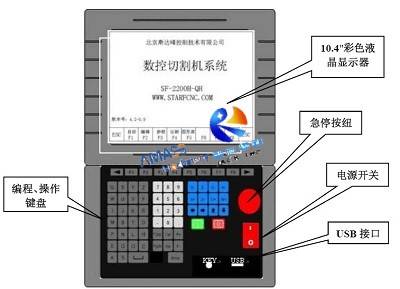

CNC controller: (Fig.7)

1) Chinese brand SH2300H. It is dedicated CNC controller for metal plate cutting;

2) 9.4 inch VGA color monitor screen;

3) Rich way of cutting program generation: G code/ Workpiece library embedded/ External input into machine;

4) All the main languages available for choice: Chinese/ English / Russian...;

5) Multiple Working Mode: Automatic/ Manual/ Teach-in/ Diagnosis/ Edit;

6) User Friendly Operation: Software operating system interface/ Hardware membrane touch screen function keys;

2. Servo Drive System of CNC Shape Cutting Machine:

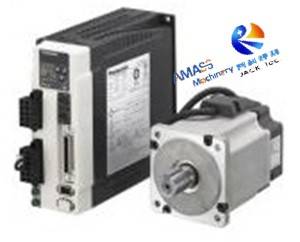

Panasonic servo driver and motor reducer on CNC plate cutting: (Fig.8)

1) 2 sets of 750W to 1.5kW for cutting torch longitudinal direction double drive along the 15m long rails;

2)1 set of 400W for cutting torch transverse direction along the 6,000mm to 10,000mm gantry beam;

3) Equipped with functions of: Working status display/ Diagnosis/ Alarm/ Parameter setting;

4) Equipped with high precision encoder for detecting on displacement condition of cutting torch during CNC plate cutting operation;

3. Cutting Torch Transverse Moving Unit of Flame Plasma CNC Shape Cutting Machine:

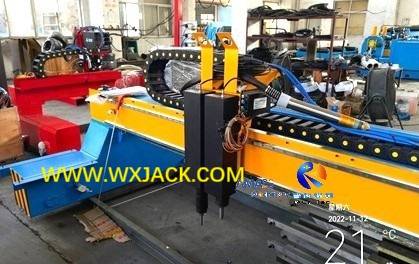

Servo motor drive plasma flame cutting torch carriage: (Fig.9)

1) Shown in the above photo, there is a set of servo motor drive carriage, moving along transverse beam of mechanical gantry, installed with flame cutting torch and plasma cutting torch, and driven with the 400W servo motor;

2) Cutting torch movement is guided with heavy duty ball bearing precise linear guiderail, fully guaranteeing on stable and smooth cutting performance, without any impact:

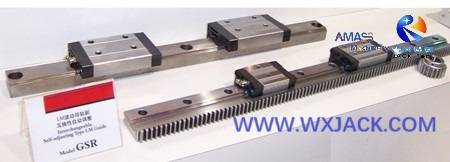

HIWIN heavy duty ball bearing precise linear guiderail: (Fig.10)

D. Mechanical Frame and Thermal Cutting Systems of Large CNC Flame Cutting Machine:

1. Supplementary Cutting Function Units of Large CNC Flame Cutting Machine:

1) The A.C.24V automatic ignitor for initiating on flame cutting in safe and reliable manner;

2) The arc voltage plasma cutting torch height controller, for automatically adjusting on cutting torch height with respect to surface of plate;

3) The cutting gas feeding circuit: Oxygen and acetylene for flame cutting/ Compressed air for plasma cutting;

4) Are all installed in the transverse moving carriage of machine:

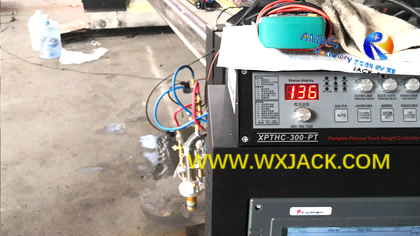

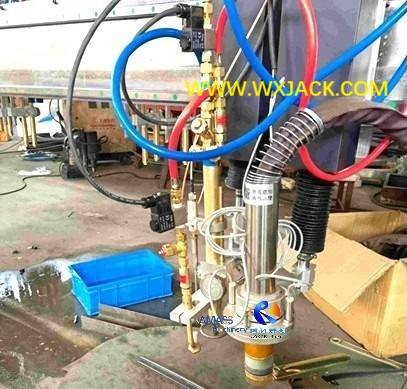

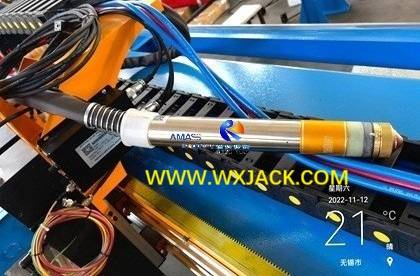

Plasma cutting torch mechanism with arc voltage type height controller: (Fig.11)

2. Mechanical Frame of Flame Plasma Large CNC Cutting Machine:

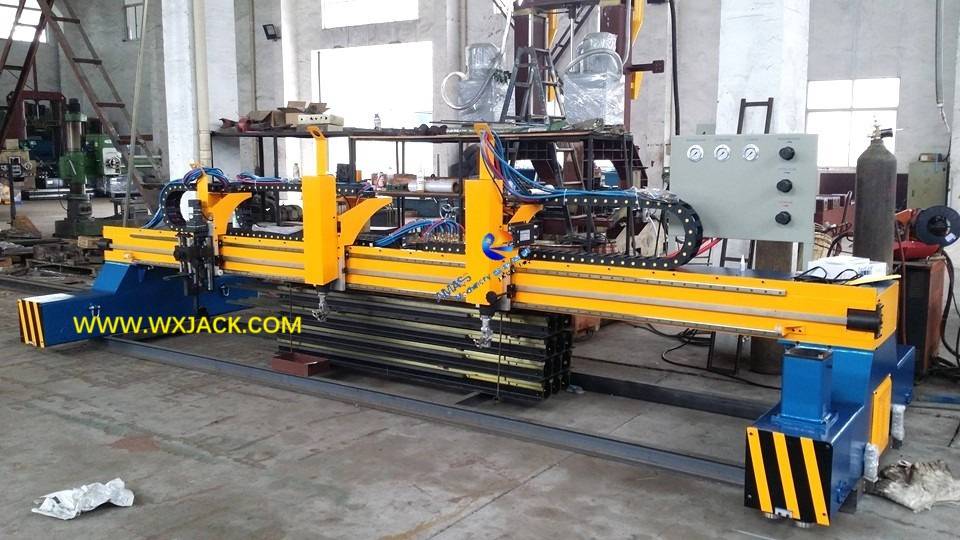

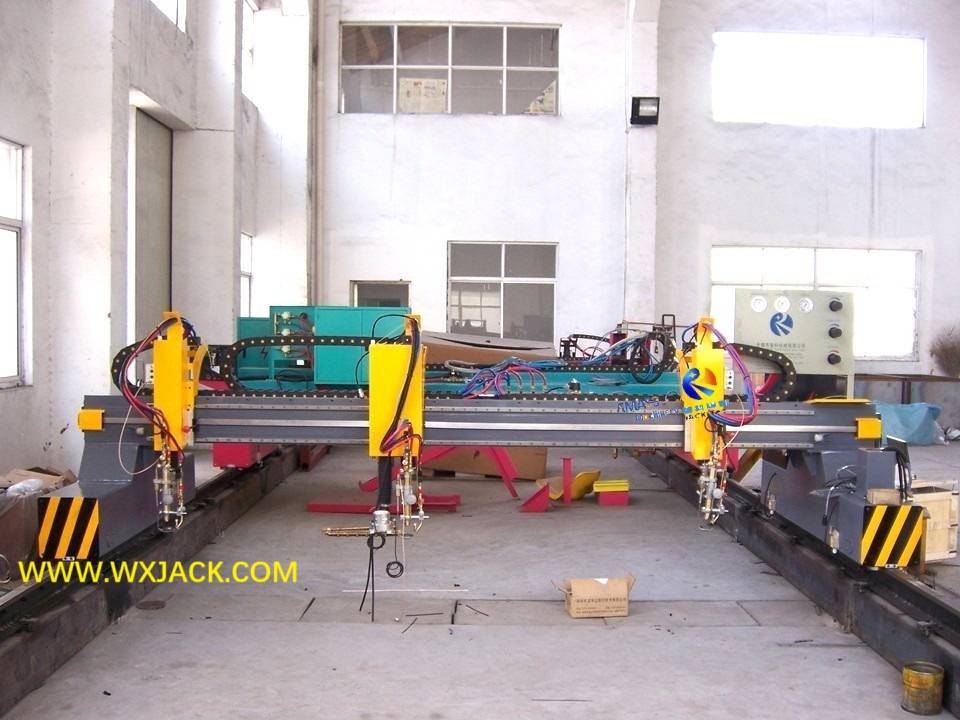

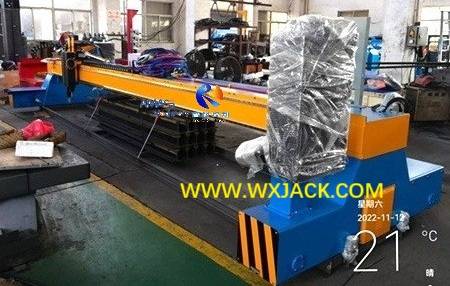

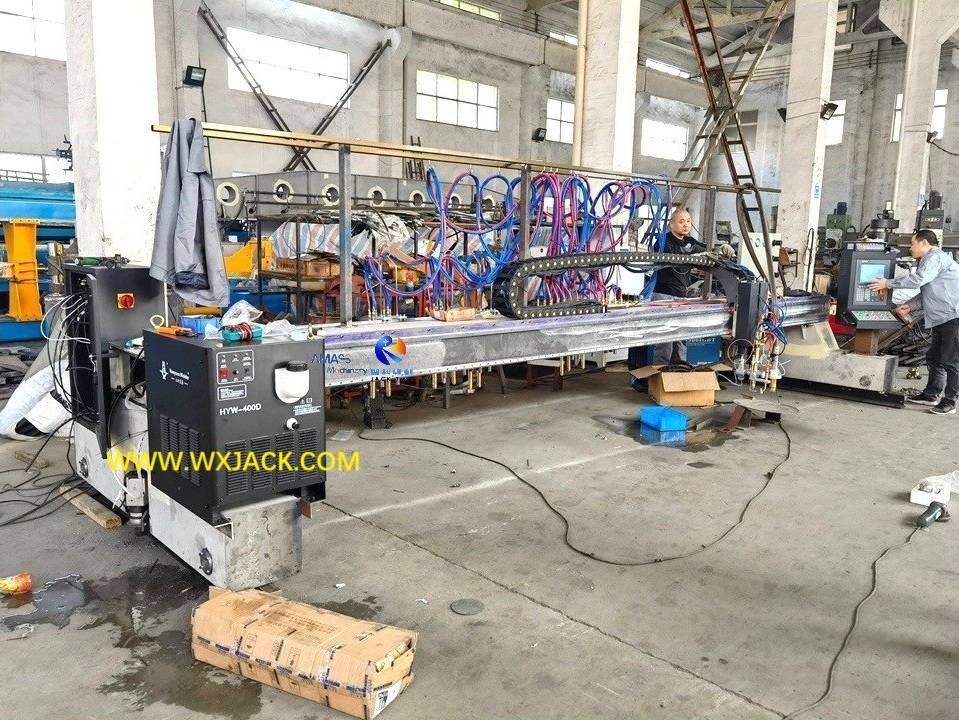

Gantry beam of Wuxi JACK CNC-CG6000 model machine: (Fig.12)

1) Mechanical frame is in the structure of box gantry frame, which moves along the 15m rails under CNC cutting working velocity;

2) The mechanical frame is stress relieved after welding and fabrication, giving high rigidity and light deadweight of the entire machine mechanical frame, making sure its stable/ smooth/ flexible moving during operation of machine;

3) There is guiding roller at the bottom of the moving gantry, adjusting on tension status of gantry with respect to cutting rails;

3. Oxygen fuel flame cutting gas circuit system: (Fig.13)

4. Plasma Power Supply:

Chinese brand HUAYUAN model LGK-300IGBT, equipped with Wuxi JACK CNC-CG6000 model Flame Plasma Large CNC Cutting Machine, for cutting on carbon steel in the thickness range of 1~ 50mm: (Fig.14)

E. Technical Parameters of CNC-CG6000 to CNC-CG10000 Large CNC Flame Plasma Cutting Machine:
