DX1520 H Beam End Face Milling Machine for Steel Structure

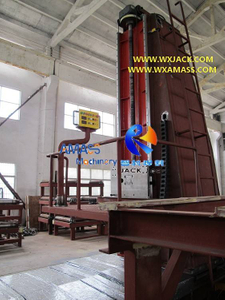

The first photo gives typical application of DX1520 H Beam End Face Milling Machine: You can find a piece of H Beam lying on the workpiece bracket and just finished end facing.

1. Application of DX1520 H Beam End Face Milling Machine:

1) DX1520 is one of the most common used models of DX series H Beam End Milling Machine. It is for end facing workpieces with cross section size up to 1.5m height and 2m width, which covers the widest range of Beam size in steel structure facilities. Generally speaking, these H Beams / BOX Beams are finished products of HB1500 H Beam Production Line and 1200& 1500 BOX Beam Production Line;

2) In the first photo, you can find there are numerous kinds of workpieces in the far distance: H Beam/ Pipe, which are all suitable for end milled in this I Beam End Face Milling Machine.

2. Below are Function Briefs of DX1520 H Beam End Face Milling Machine for Steel Structure Member:

1) Precise Linear Guiderails of both directions for Precision Guarantee in H Beam End Face Milling Machine:

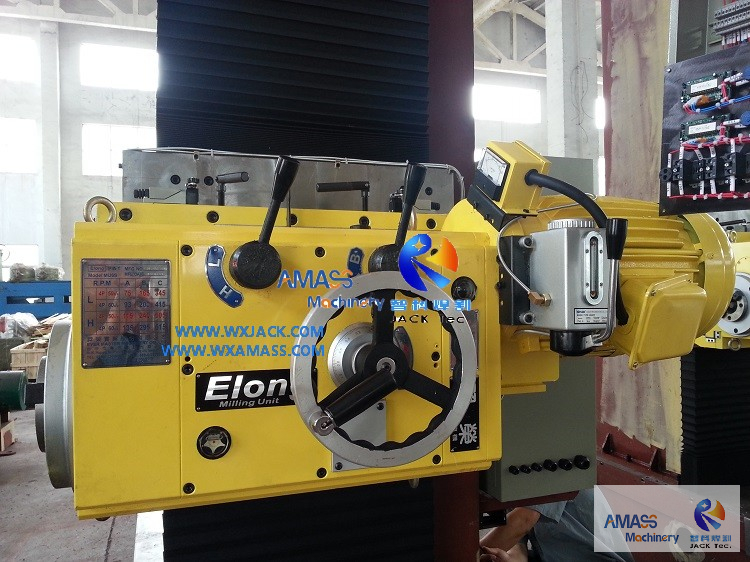

Please check the 2^nd photo. One of the most salient advantages of DX series H Beam End Face Milling Machine delivered by Wuxi JACK is, full range of this product family are adopted with heavy duty integral linear guideway for milling head travel (facing operation), instead of the welding guideway adopted by competitors. This specialty fully guarantees loading capacity and milling accuracy of the H Beam End Milling Machine;

2) Working Speed Control in H Beam End Face Milling Machine:

During work of the DX series H Beam End Facing Machine, end milling speed in both horizontal (For workpiece height) and vertical direction (For workpiece width) are controlled with A.C. inverters in ordinary H Beam End Milling machine, and controlled with CNC system in CNC type I Beam End Face Milling Machine;

3) Working Tool of Powerful Milling Head of the H Beam End Face Milling Machine:

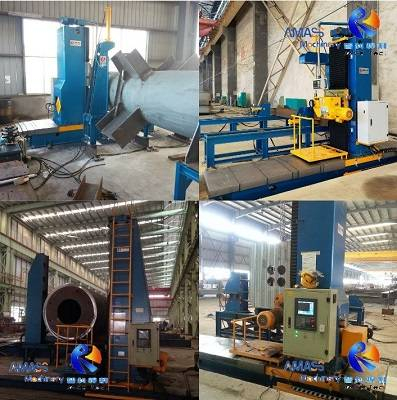

a) Please check the 3^rd photo. DX series I Beam End Milling Machine uses the same type working tools for its operation process as XBJ series Edge Milling Machine: High power (7.5kW) milling head unit made by professional manufacturer. It has good rigidity, high efficiency and low noise, ideal for being equipped in H Beam End Facing Machine;

b) Meanwhile, we should distinguish the different tasks of this milling head in the two machines: In Edge Milling Machine it is for making welding groove of X/Y/K bevels, while in I Beam End Milling Machine, the milling head is primarily for straight end face milling;

c) Besides, to mill various end face of workpiece, angle of the milling unit can be adjusted manually along its vertical surface within the range of 0° ~ 45°, so that beveling can be made during work of the I Beam End Face Milling Machine. Please check the attached video;

4) Operation of the H Beam End Face Milling Machine:

The 4^th photo records a set of DX1520 H Beam End Facing machine in work. Sparks flied. The equipment has user-friendly operation, superior and consistent quality, as well as high efficiency. It is a kind of general purpose H Beam End Milling Machine which sees extensive use in steel structure industry;

5) Workpiece Clamp in H Beam End Face Milling Machine:

Please check the 5^th photo. To make sure eligible end facing outcome, workpieces processed in DX1520 I Beam End Face Milling Machine need to be fixed because of its relative light weight (Compared with workpieces for heavy duty machines), during end facing process. Optional hydraulic driven workpiece rack is for clamping workpiece reliably, dampening milling vibration and lessening noise greatly, in the process of H Beam End Face Milling machine operation.

3. Technical Parameters of DX1520 H Beam End Face Milling Machine:

Below are parameters of DX1520 H Beam End Facing Machine (H Beam End Milling Machine):
