DX1015 Hydraulic H Beam End Face Milling Machine

Quantity:

DX1015 Hydraulic H Beam End Face Milling machine is the light-duty of the product, for facing workpiece of max. cross section size L× W= 1×1.5m.



Below list outline of DX10xx-series Hydraulic H Beam End Facing machine:

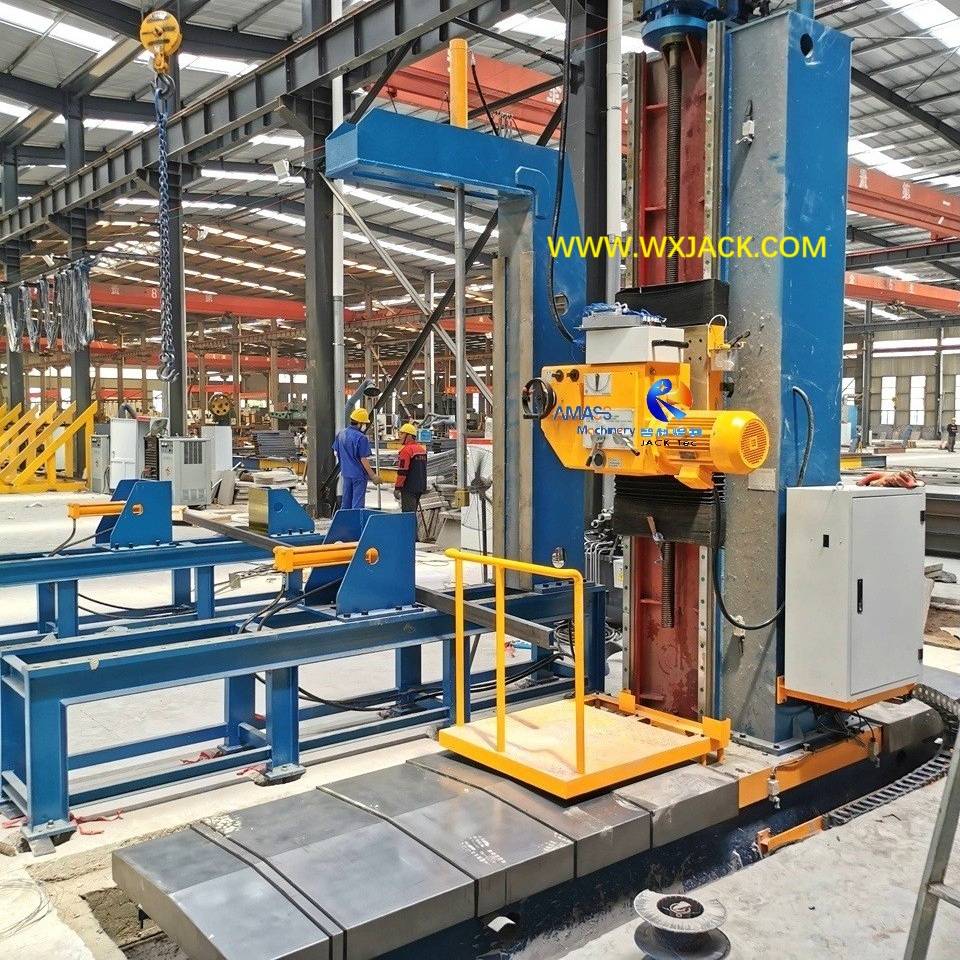

  1. The “hydraulic” of the machine refers to its hydraulic-drive workpiece rack. Please check attached pictures. For light-duty, or small size of the hydraulic Beam End Facing equipment, due to its small size and consequently light weight of workpiece, during facing operating, there exist potential risk of workpiece vibration, which may cause negative impact on facing quality. For this purpose, we equipped the hydraulic cylinder drive rack in this series of Hydraulic H Beam End Face Milling equipment, for the purpose of clamping the workpiece tightly;

  2. For most of small size hydraulic End Face Milling machine in the market, milling head is usually 5.5kW. While Wuxi JACK produces full range of our Hydraulic Beam End Face Milling machine with 7.5kW one, including DX10xx-series, which has the good point of high speed milling process, increasing output efficiency, creating more profit for customers;

  3. The facing-blade bed of this Hydraulic Beam End Facing machine is of standard type, which is available on the market. The facing-blade is made of carbide alloy steel;

  4. For guarding unit of horizontal rail, it is of cascading style, with the advantage of good seal, good dissipation and long life. There is peep hole on the guard cover, thru which lubricating and cleanness condition of the rail can be observed;

  5. The nameplates on this Hydraulic End Facing machine and technical documents are all written in Chinese and English. The machine has the standard color of JACK-blue, and can be denoted by customer;

  6. Hydraulic station of this Hydraulic H Beam End Facing equipment includes pump, cylinder and two sets of rack.



Below are parameters of DX1015 Hydraulic Beam End Face Milling Equipment:



Technical   parameter

DX1015 H Beam BOX Beam End Face Milling Machine

Workpiece Cross-section   Height (mm)

1000

Workpiece Cross-section   Width (mm)

1500

Facing Head Power

7.5KW

Horizontal Facing   Speed

100∼800mm/min Inverter Control

Vertical Facing Speed

100∼800mm/min Inverter Control

Facing Head   Spindle Rotation Speed

75-420rpm

Angle of Facing Head   along Vertical Surface

0º∼45º
