CNC-DX1520 I Beam End Face Milling Machine for Shape Facing

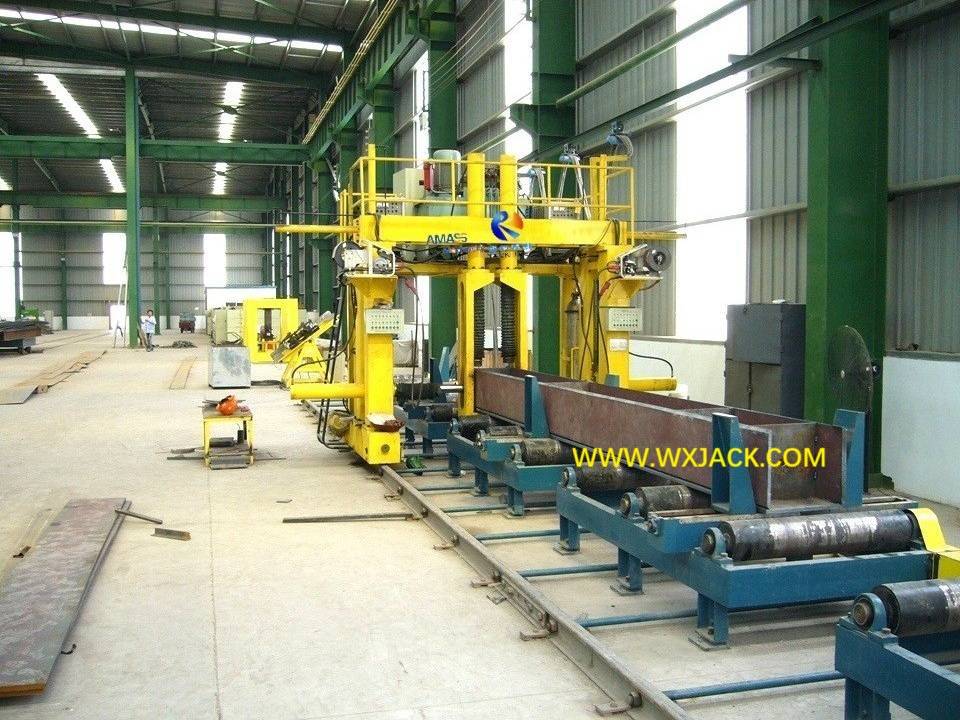

In the attached first photo, operator was checking on the cross beam structure just finished facing with Wuxi JACK CNC-DX1520 CNC H Beam End Face Milling Machine.

1. Application of CNC-DX1520 CNC H Beam End Face Milling Machine:

1)       CNC-DX1520 is one of the most applicative models in both ordinary and CNC Steel Structure End Face Milling Machine, because of its fitting size of workpiece falling within the scope of largest volume: Max. 1500 mm height by 2000 mm width;

2)       As can be seen from the first photo, the operating stand is fixed type at bottom of the machine column --- Operator does not need to rise together with milling head to observe working progress of the CNC Section Steel End Face Milling Machine. An adult working staff can catch the vertical facing stroke of 1500 mm;

3)       The workpiece machined in this CNC H Beam End Face Milling Machine can be all kinds of structure members ---H Beam/ I Beam/ Cross Beam/ BOX Beam/ Tube, or the complicated structure as shown in the 2^nd photo… Whatever shape of cross section you may need.

2. What is Expect on Operator of CNC-DX-series CNC Steel Structure End Face Milling Machine?

1)       With the help of CNC controller, operator of the CNC H Beam End Face Milling Machine does not need to care on how to have facer blade setting, as in ordinary H Beam End Face Milling Machine --- CNC system will finish these jobs, including finding zero point as initiation of end face milling operation, positioning the facer blade to the zero point, etc.…

2)       Instead, operator should command the ability on operating the CNC controller of the DX series H Beam End Face Milling Machine,

Including, but not limited to operations in H Beam End Face Milling Machine:

a) Being familiar with distribution of buttons/ switches/ interface ports/ function keys on the front panel of the CNC controller (Please check the 3^rd photo) in the CNC H Beam End Face Milling Machine;

b) Call out part programs for doing end facing from embedded library;

c) Modify parameters of workpiece and operation based on practical condition of the CNC H Beam End Face Milling Machine, etc.;

3)       So, you can see, with technological development of DX series CNC Welding Structure End Face Milling Machine, so is also the requirement on skill of its working staff. On the other hand, the developing trend is always on the way to better friendly operation, higher precision, and higher manufacturing efficiency.

3. Development and Technical Features of CNC-DX-Series CNC H Beam End Face Milling Machine:

1)       Traditional Use: For over decades, DX-series CNC Structure Member End Face Milling Machine is confined to steel structure application for H Beam/ I Beam/ BOX Beam. This is the reason such equipment was named directly as “H Beam End Face Milling Machine”;

2)       Extended Application with CNC H Beam End Face Milling Machine: Over the past 6~7 years, with higher demand on design of steel structure projects, as well as the End Face Milling Machine being expanded to application in more industries, working on other kinds of workpieces such as pipe, or with those cut holes inside, more and more “special” shape workpieces necessary on end face milling appears. Echoing this market demand, CNC was introduced to CNC-DX series CNC H Beam End Face Milling Machine;

3)       CNC controller of the machine is originated from that of CNC Strip Plate Cutting Machine. There are many commands/ Functions inside the CNC still fitting for plate cutting use. Meanwhile, because of lesser function involved in CNC End Face Milling Machine, for example, there is no necessity of workpiece nesting/ torch height controlling … as in the case of CNC Strip Plate Cutting Machine, all the functions required on the CNC-DX series CNC H Beam End Face Milling Machine can be identified in this CNC controller;

4)  So, this control system matches perfectly with the DX series H Beam End Face Milling Machine, helping upgrading the End Face Milling machine to a new level and generation. And, both the CNC Strip Plate Cutting Machine and CNC Section Steel End Face Milling Machine work in rugged working condition of spark/ heat/ scrap, there is no issues of “Not acclimatized” with this CNC controller;

5)       The remaining main units of the CNC-DX series CNC H Beam End Face Milling Machine: Milling head (The 4^th photo), machine frame (The 5^th photo), cable wiring (The 6^th photo), are all the same with ordinary type Welding Structure H Beam End Face Milling Machine.

4. Technical Parameters of CNC-DX1520 CNC H Beam End Face Milling Machine:

For this CNC-DX1520 CNC Welding Structure End Face Milling Machine:
