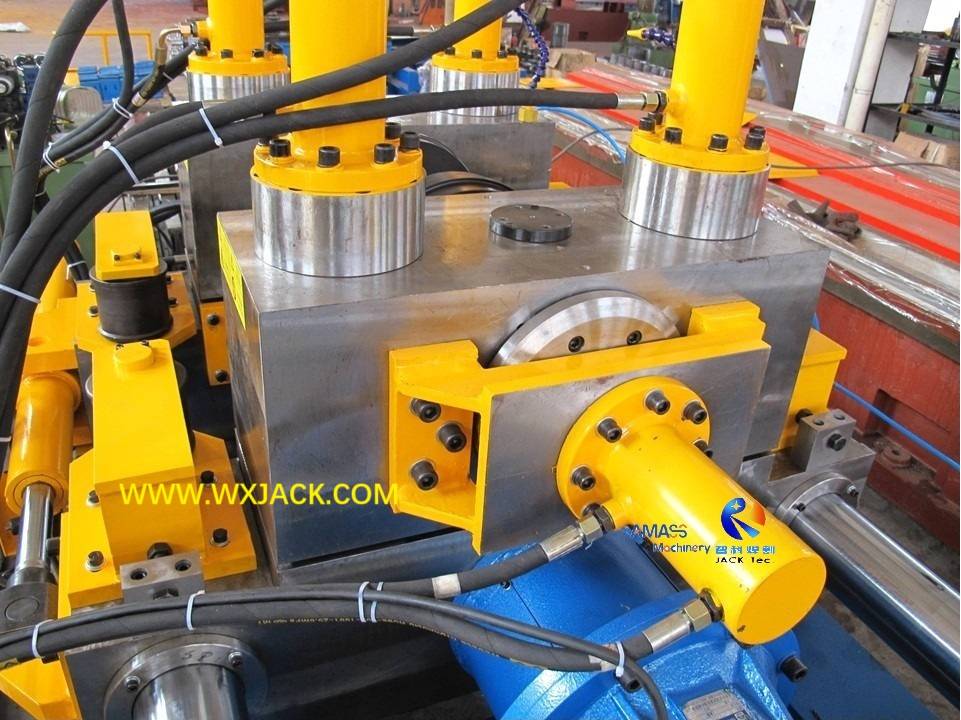

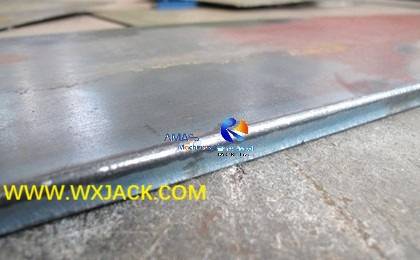

RH-3000 High Power Plate Edge Rounding Machine for Shipyard

Quantity:

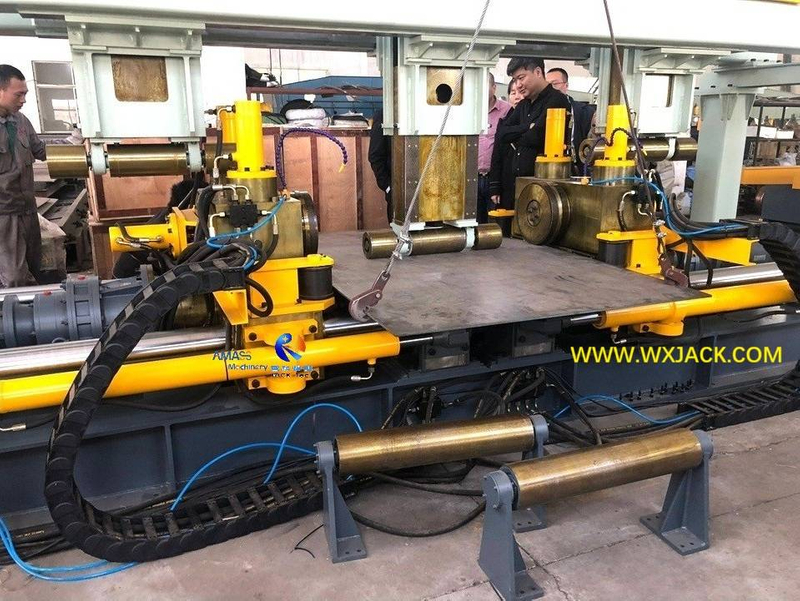

The attached picture shows a set of RH3000 Edge Deburring and Rounding machine for port machinery industry in the process of acceptance by customer.



In the 7th product section of “RH-1000 Automatic for T Beam Production”, we give introduction on several supplementary and requisite units for RH-series Edge Rounding machine in its small model. Here we give complement on the assistant units for larger models of RH1500/RH2000/RH3000 gantry type Edge Rounding equipment:

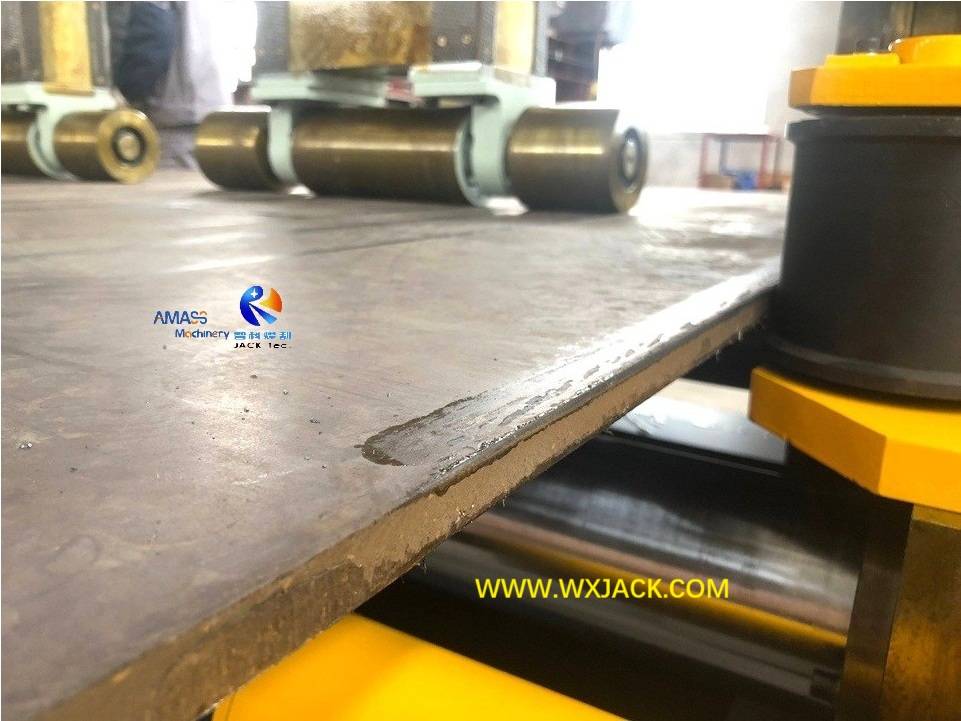

    1.  Downward Stroke Pressing Unit:

    1) We mentioned this unit several times before. It is for pressing top surface of workpiece in the process of

       rounding, to prevent the workpiece surface from being propped up under the effect of both sides rounding

      force;

    2) 1500mm width is threshold on considering this issue. This is the reason we introduce this unit and adopts

       gantry-type frame from the model of RH1500;

    3) There are three pieces of down pressing rollers in one set of such Edge Deburring and Rounding equipment;

    4) The up and down movements of the rollers, which is for the purpose of accommodating workpiece thickness,

      are hydraulic driven, controlled with related valves in hydraulic circuit and manipulated with related

     button/switch on operating pendant of this Edge Rounding machine;

    5) Besides vertical axis, these three rollers can also be moved along transverse direction by hand, to be

      adaptable for changed width of workpiece processed with the Edge Rounding equipment;

    6) Besides acting integrally for wide workpiece (2.5m~ 3m width), these three pressing rollers can also work

     individually, depending on actual width of workpiece. For example, for rounding plate of 1500mm width, only

     the middle one of pressing roller is necessary to act in this automated Edge Deburring and Rounding machine;


   2. Bottom Supporting Rollers:

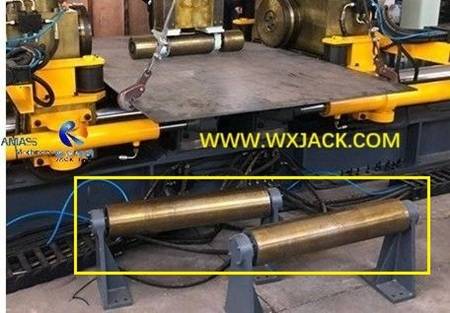

    1) The 2 pieces of long rollers put idle on the floor at the front side of machine body shown in the picture are

        bottom supporting rollers used in RH3000 Edge Deburring and Rounding machine. The picture shows it is in

        idle state (Not used);

    2) These bottom supporting rollers are used in pair with the downward pressing rollers described in item 1);

    3) These bottom supporting rollers are manual manipulated. Which means, they are placed into and taken out

       from machine body by hand;

    4) Usage of these bottom supporting rollers: During rounding operation of the Edge Rounding machine, the

       downstroke pressing rollers descend to hold top surface of workpiece tightly; At the same time, these bottom

      supporting rollers hold bottom surface of workpiece tightly, to make the holding operation firm and reliable.



   3. Below are parameters of this RH3000 Edge Deburring and Rounding machine for port machine:

No.

Item

Parameter

1

Work piece   width

150 ~ 3000 mm

2

Work piece thickness

10 ~ 40mm

3

Work piece   length

1000 ~ 12000mm

4

Suit H-beam   Min web beam height

320mm

5

Rounding   speed

7200 mm/min

6

Rounding   radius

R2.5mm

7

Main rollers   diameter

φ300mm

8

Hydraulic   station

4 kW

9

Max pressure   in hydraulic system

12 MPa

10

Input and Output   Conveyor length

10m each

11

Machine   total power

10.6kW

12

Power

380V, 50Hz, 3P
