Compact Size 1m Width High Speed Strip Edge Rounding Machine

1.  Characteristic of 1,000mm Width Automatic Edge Rounding and Deburring Machine:

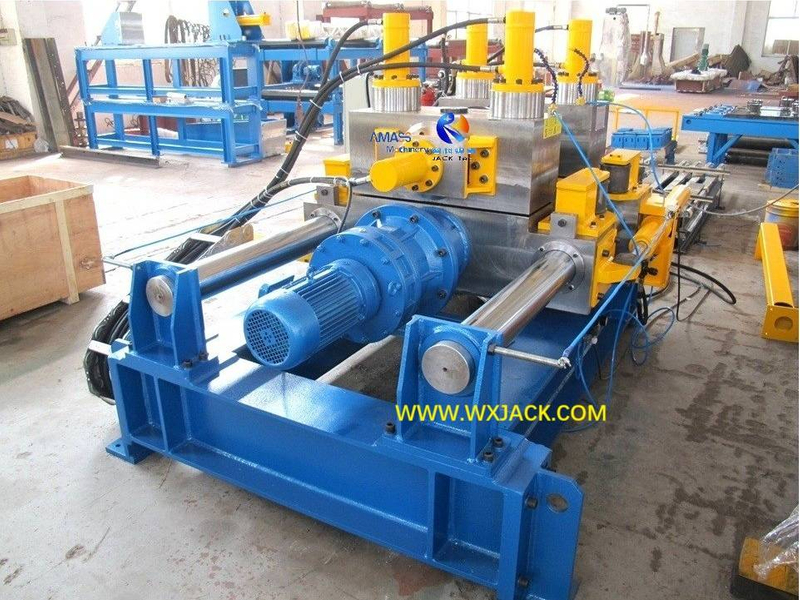

1) Appearance: The effective edge rounding width of 1,000mm width High Speed Strip Edge Rounding Machine in the attached first photo, shows the lateral view of the model machine. We can see that, it has reasonable structure and compact size;

2) Where Used: This 1,000mm width automatic machine is a requisite equipment tool in the process technology of T Beam Production Line: Before the next step of welding and painting, the four edges on the both sides of strip end plates should be rounded and deburred:

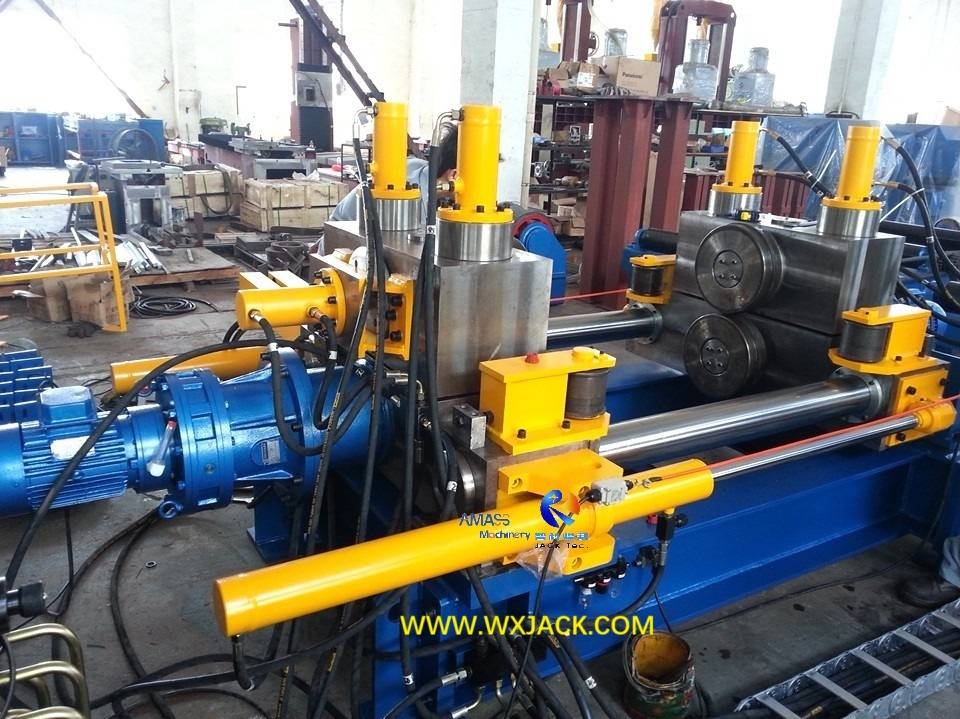

Wuxi JACK RH1000 model Edge Rounding and Deburring Machine being applied in T Beam Production Line: (Fig.1)

2. Criterion on Model Selection in RH Series High Efficiency Edge Rounding Machine:

As introduced in its product family, the RH series equipment has several standard models to choose from. And from customer’s perspective, the selection criteria on proper models of automatic machine can be attributed as below two points:

1) Valid Width of Working Parts:

The standard models of RH1000 to RH3000 reflect on the max. effective width 1,000mm ~ 3,000mm of working parts;

2) Applicating Industry of Edge Trimming Machine:

a) Generally speaking, the larger models (RH2000, and RH3000) Edge Rounding and Deburring Machine are usually applied in Ship Building, Bridge Industry, and or Port Machinery;

b) While the smaller models (RH1000, and RH1500) models machine are usually produced for T Beam Production Line and or H Beam Production Line.

3) Supplementary Units in RH Series Automatic Edge Rounding Machine:

1)  We have become being familiar with structure and working principle of the RH series automatic machine, which has been introduced in the product of RH2000 model;

2) Below is introduction on some supplementary units of the RH series machinery.

3. Rounding Scrap Cleaning Unit in RH Series Edge Trimming Machine:

1) This unit is for blowing off the scraps generated in the process of edge rounding, which is installed at the outlet side of the equipment (In the attached first picture, right side, or as below):

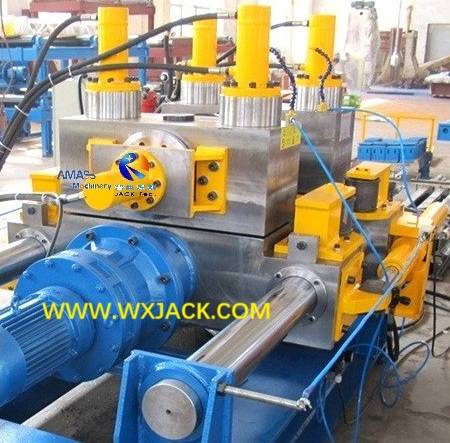

Scraps cleaning unit in Wuxi JACK Edge Rounding Machine: (Fig.2)

2) Pneumatic Drive: In RH series machine, this scrap cleaning unit is pneumatic drive: As can be seen from the photo, it is composed of air compressor, control valve, air tube, and blowing tip;

3) Performance: The two pieces of blue color thin tube at the outlet side of machine body sends air to the 2 pieces of blowing tip, above the central rounding area of this automatic machine, maintaining on cleanness condition of the working area all the time;

4) So long as input and output conveyors are in the state of running, this gas drive cleaning unit will be in working status.

4. Input and Output Conveyors of RH Series Edge Rounding and Deburring Machine:

1) There are 10m length of input and output conveyors respectively, equipped at the front and rear side of the RH800/ RH1000 ~ RH3000 models width automatic machine:

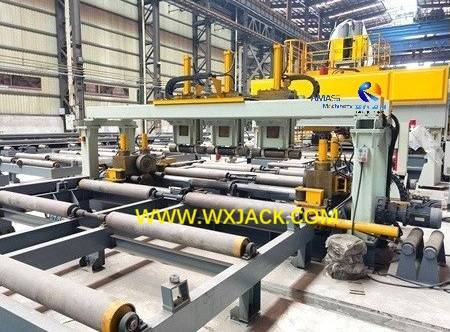

Output conveyor roller tables of Wuxi JACK RH3000 model machine: (Fig.3)

2) At the forwarding terminal of input conveyor of the automatic Edge Trimming Machine, (Which means, the terminal of the input conveyor roller table approximating to machine body), there is long plate alignment unit, for maintaining on correct position of workpiece sheet metal, for carrying out rounding operation in the machine. With this unit, terminals of the workpieces for edge rounding will be leaned against rounding rollers for proper job.

5. Security Unit in RH Series Strip Edge Rounding Machine:

1) Safety is the foremost factor to be taken for both customer and supplier, especially heavy duty mechanical equipment;

2) Hidden Risk: For this RH1000 model 1,000mm width machine on strip plate edge rounding effect, the deburring and rounding speed of 7200mm/min. is fairly fast, and people working around it should take precaution;

3) So, what is the Design of Wuxi JACK Edge Rounding Machine for Safety Purpose?

a) The design of the machine mechanical structure makes edge rounding unit to be located at middle of the machine body, which means, it is difficult to have direct access to working area of the machine by operators;

b) Contingency Shut Off: Besides, to have a double insurance, we have Emergency Stop buttons deployed at both inlet and outlet side of the machine main frame.

6. Technical Parameters of 1,000mm Width Strip Edge Rounding Machine:
