A. Complicated Control Claw type Thermal CNC Pipe Cutting Machine:
1. Specifications of Thermal CNC Pipe Intersection Cutting Machine:
Here the complicated control Claw type model refers to the equipment with:
1) Pipe diameter in the scope of 80mm ~ 600mm, which is small size;
2) The pipes are clamped into chuck claws, instead of on friction rollers;
3) Quantity of control axis in CNC is 6: A/ B/ X/ Y/ Z/ V;
4) For definition on specific meaning of the above mentioned 6 axis, please check parameter table at the bottom of this product section;
2. Mechanical System and Workpiece Fixture in Claw type CNC Pipe Intersection Cutting Machine:

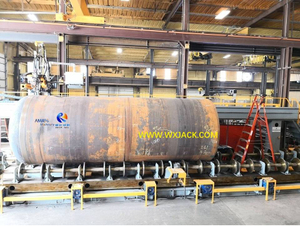

1) As can be seen from the attached first photo and below small picture, mechanical system and workpiece fixture in this range of models is different from those of 1400mm specification and 3000mm specification models:

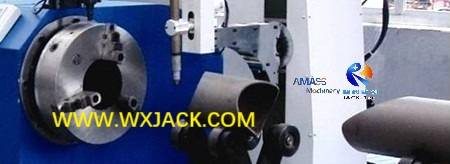

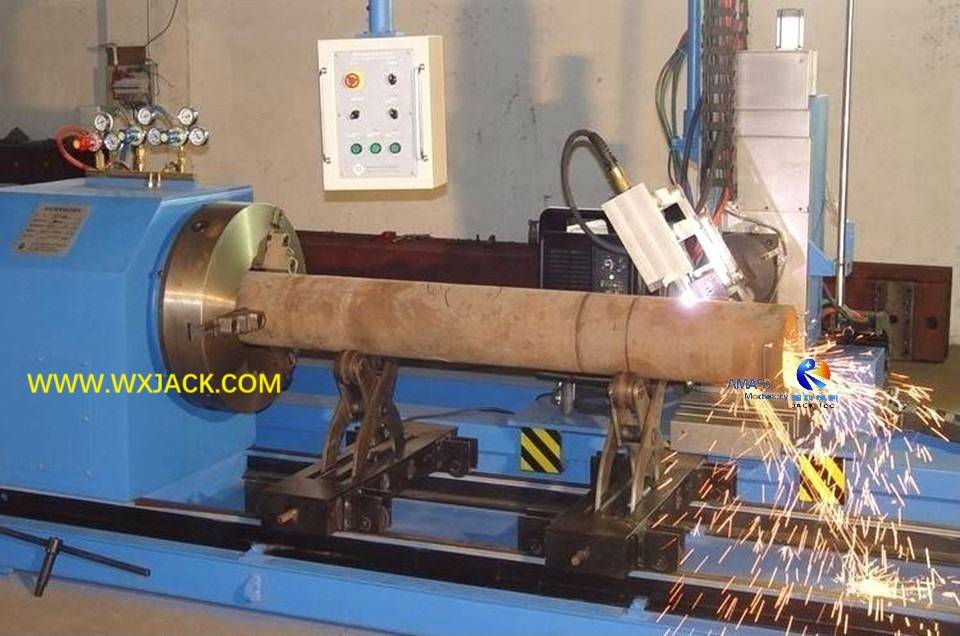

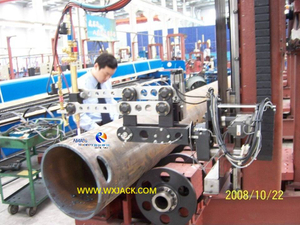

2) The workpiece is secured into a set of chuck claw fixture in Claw type CNC Pipe Cutting Machine, instead of on the friction rollers: (Fig.1)
3) This is because in this range of 600mm specification machine, the diameter range of pipes is from 80mm to 600mm, which is suitable to be held in the claw type chuck fixture;

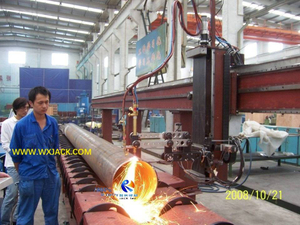

4) Correspondingly, mechanical system of Claw type CNC machine is also different from that of the friction roller type, to cater for pipe cutting and beveling operation on CNC control pipe cutting. Please check below 2 photos for compare:

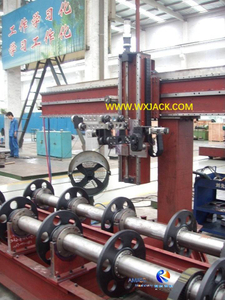

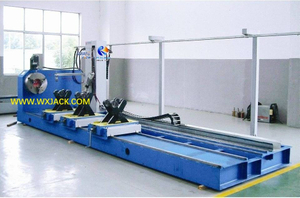

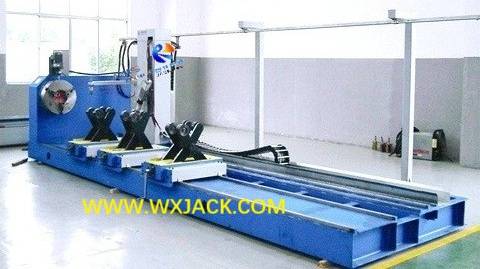

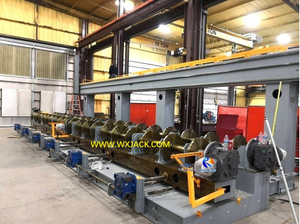

3. Mechanical frame of Wuxi JACK 600mm diameter specification chuck claw type machine: (Fig.2)

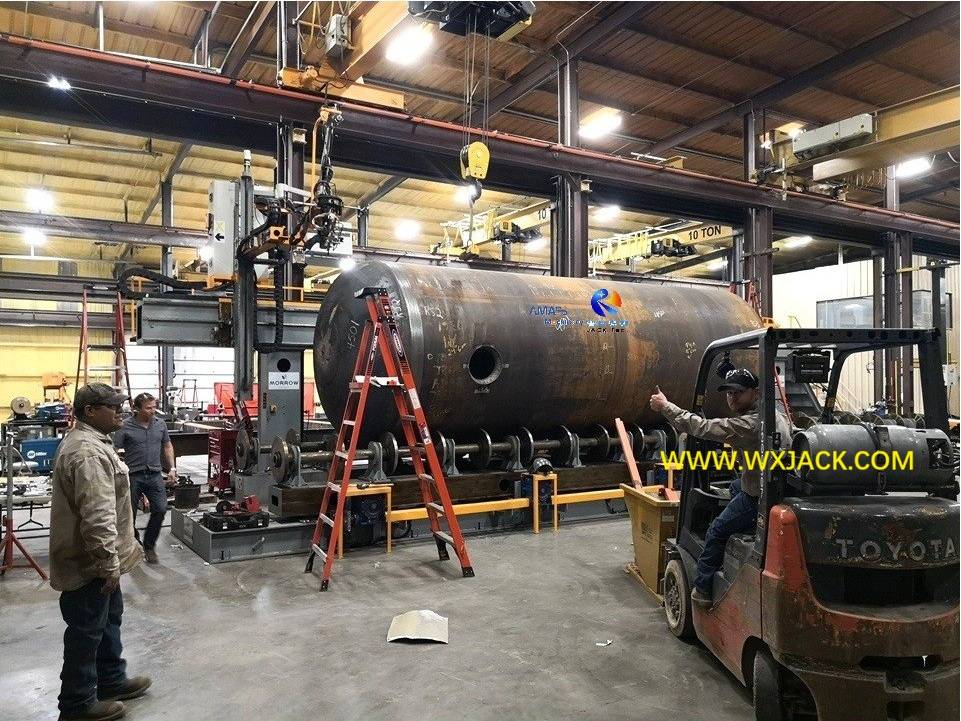

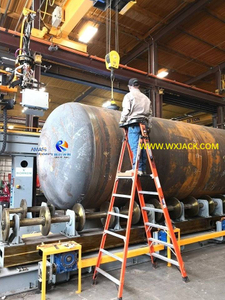

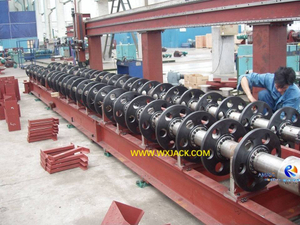

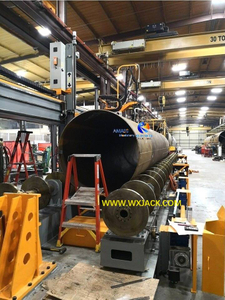

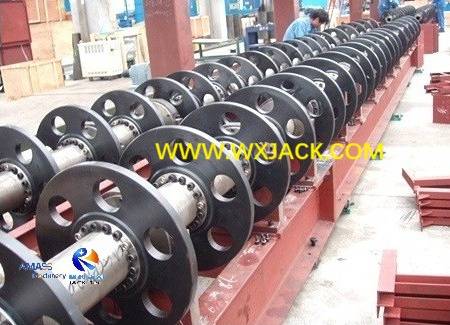

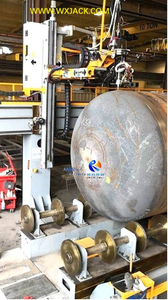

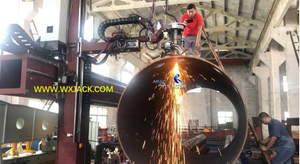

4. Mechanical frame of 1400mm and 3000mm diameter specification friction roller type machine: (Fig.3)
B. Application of Complicated Control Claw type Thermal CNC Pipe Cutting Machine:

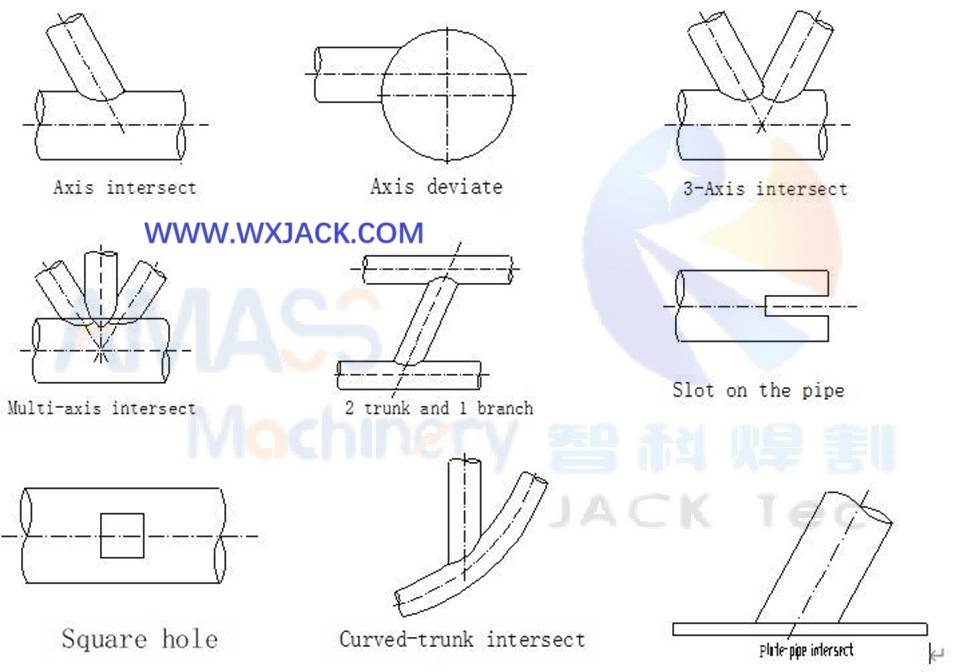

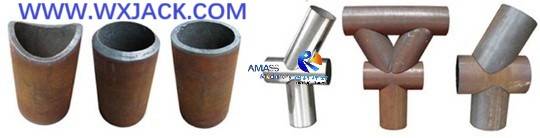

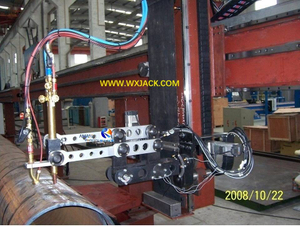

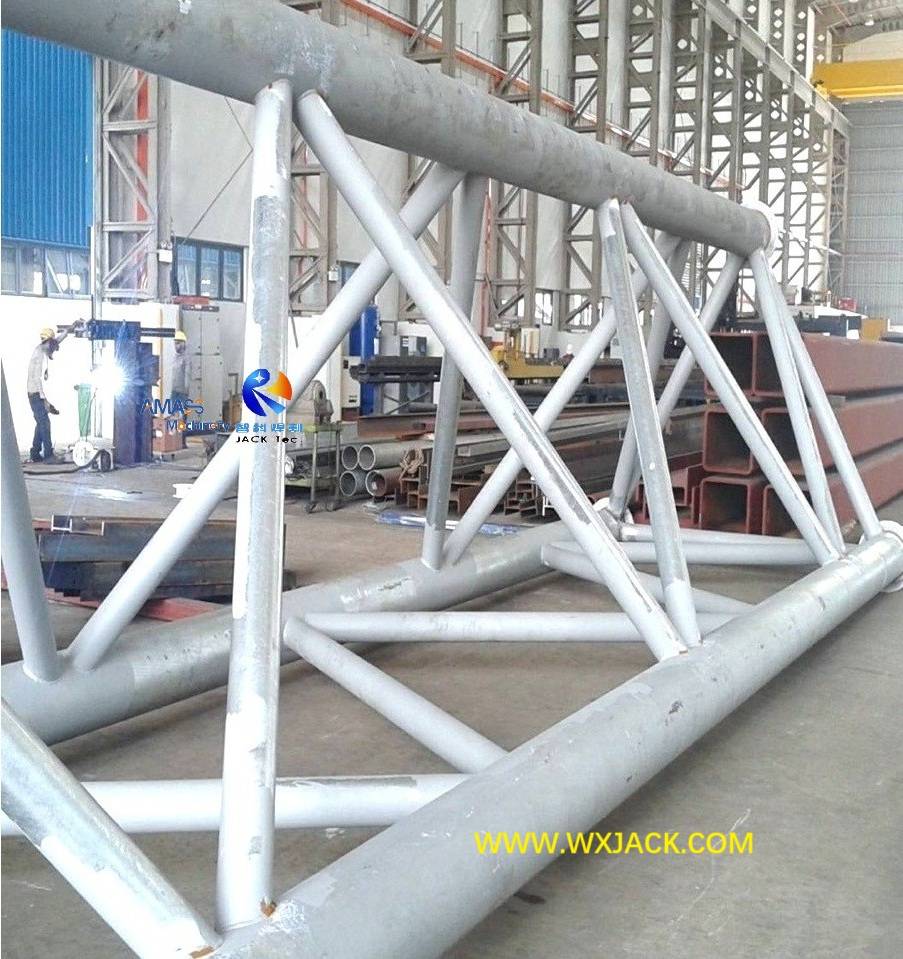

1. Below illustration gives applicable finished workpieces delivered from complicated control Claw type machine: (Fig.4)
2. It is a group of small diameter pipes and tubes, which need to be processed with relatively complicated jobs of cutting and beveling. This can only be realized with the 6 axis complicated control Claw type CNC machine on pipe cutting.
C. Uniqueness of Complicated Control Claw type Thermal CNC Pipe Intersection Cutting Machine:
1. The 6 Axis 600/12 model is the smallest in size, among the branch of complicated control Oxygen fuel machine;

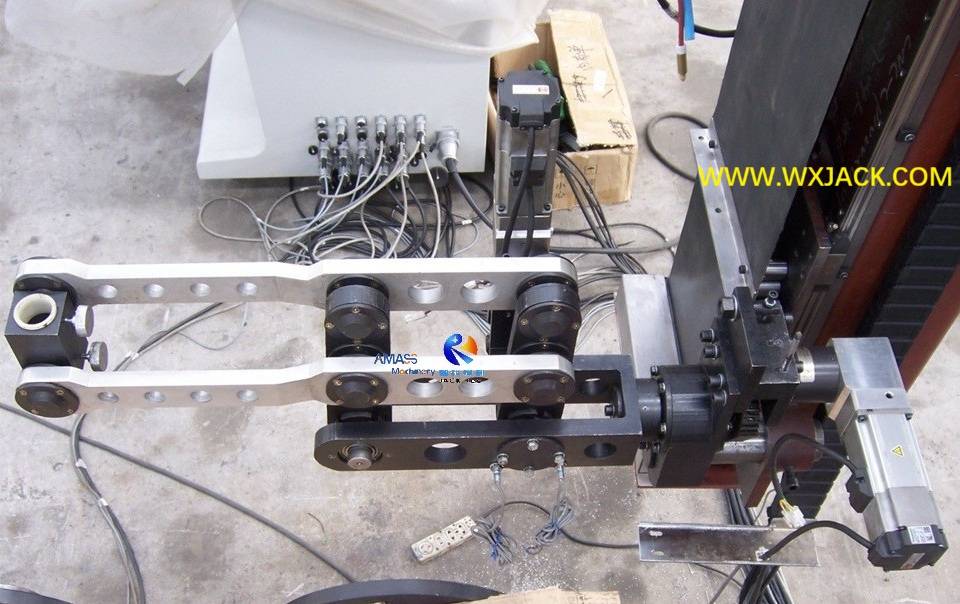

2. Besides, 6 axis is the up limit in terms of control axis quantity, for this diameter range of machine:

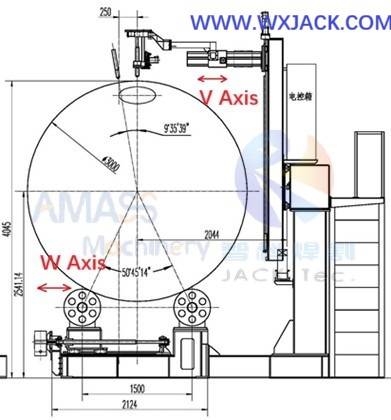

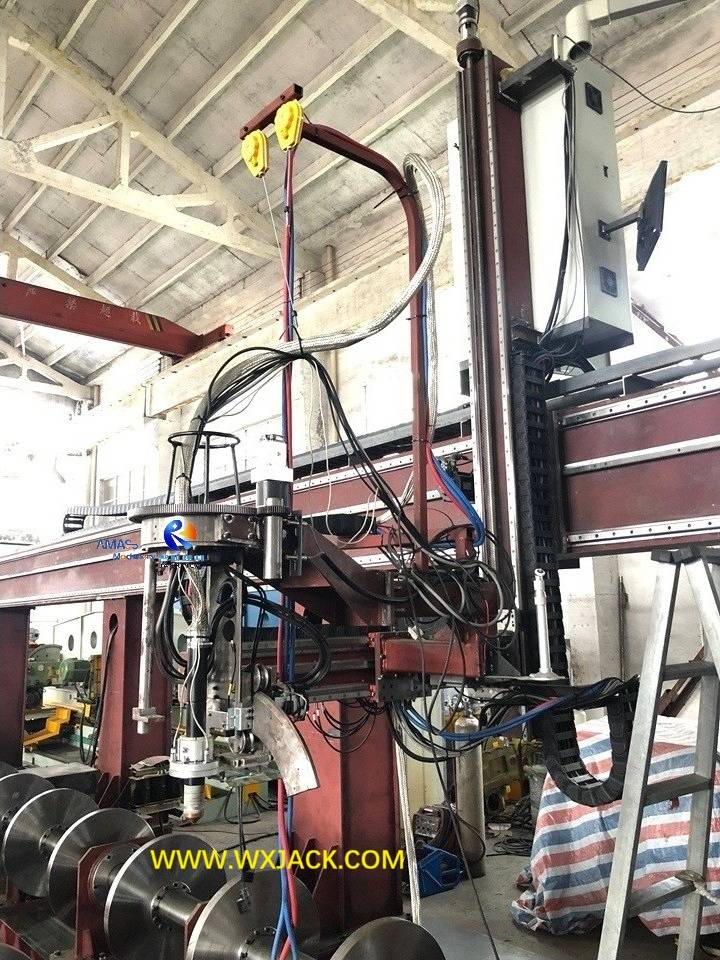

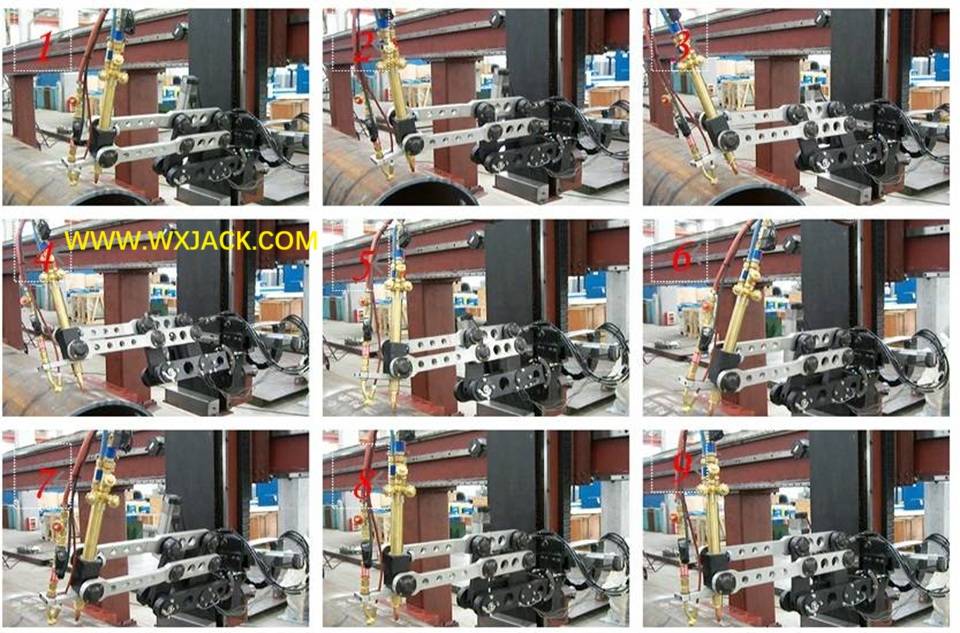

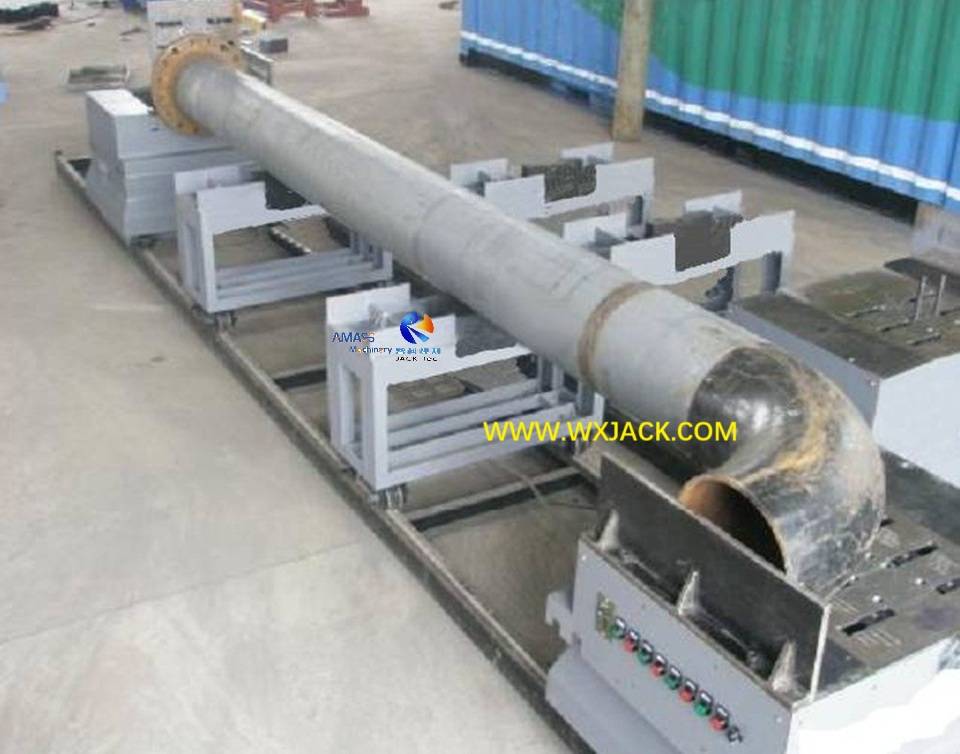

3. It is not necessary for the 7th W axis as below in such small size claw type CNC machine: (Fig.5)
D. Background of Claw type CNC Pipe Cutting Equipment:
1. In product family of CP series CNC Pipe Intersection Cutting Machine, claw type model has the same meaning as 600mm diameter specification. This is the first specification branch of the machine being put into market;
2. Around 20 years ago, at the early stage development, 600mm series was the 1st developed and had the most extensive application: It can cut and make beveling on the pipes with diameter up to 600mm, which can meet majority demand from customers;
3. The trend is, usage of this machine on profile Oxygen fuel thermal cutting was started from small diameter pipes, gradually extended to large size of 1400mm range and 3000mm range.
E. Technical Parameters of Claw type Thermal CNC Pipe Cutting Machine:
Model Technical Parameter | 6 Axis CNC-CP 600/12 Complicated Control Claw type Thermal CNC Pipe Intersection Cutting Machine |
Diameter Range of Pipe for Cutting and Beveling | 80 ~ 600 mm |
Max. Length of Pipe for Cutting and Beveling | 12,000 mm |
Thickness of Pipe for Cutting and Beveling | 6~ 100 mm for flame cutting 3 ~ 25mm for plasma cutting |
Applicable Cutting Speed | 200∼ 800mm/min. for flame cutting Around 200~ 2000mm/min. for plasma cutting (Based on thickness of Pipe and Plasma Power) |
CNC Control Axis Meaning | 6 Axis of X/ Y/ Z /A /B / V: A: Cutting torch swing along pipe length; B: Cutting torch swing along pipe radius; V: Pipe Rotation; X: Cutting Torch Move along pipe length; Y: Cutting Torch Move along pipe radius; Z: Cutting Torch elevation |
