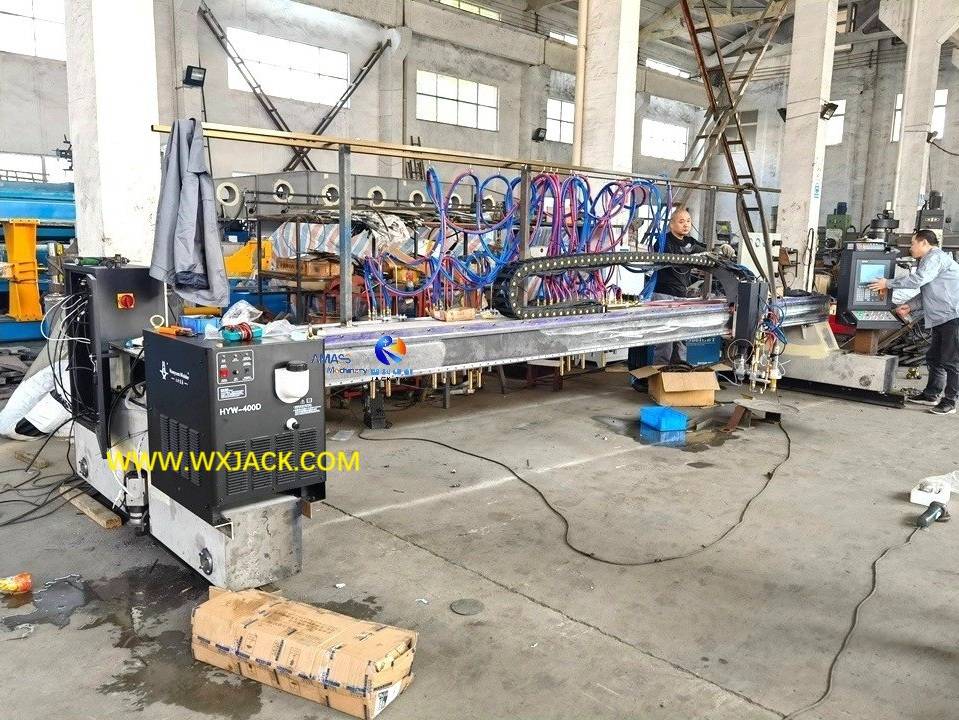

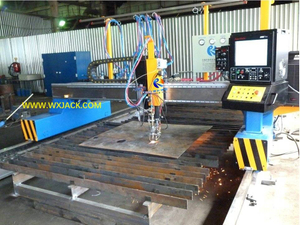

Multi-Function CNC-CG6000 Flame Plasma CNC Strip Plate Cutting Machine

A.      Function and Advantages of the CNC-CG6000 Double Drive CNC Flame Plasma Cutting Machine:

1.       Application: This is kind of highly efficient automatic 1^st operation equipment for machining metal plates;

2.       Function of the CNC-CG6000 CNC Strip Plate Cutting Machine:

1)       It is combination of CNC Plate Cutting Machine and CNC Strip Flame Plate Cutting Machine: The machine can not only complete linear cutting along longitudinal and transverse direction, but also cut out any shape composed from arc/ curve/ contour;

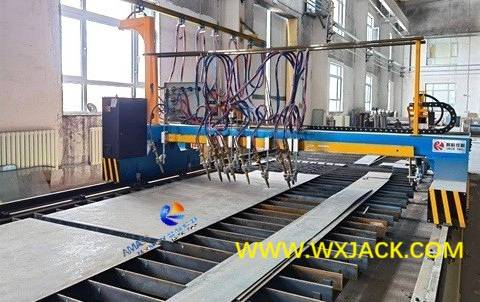

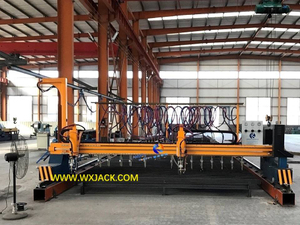

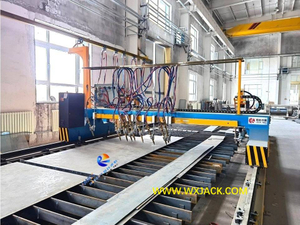

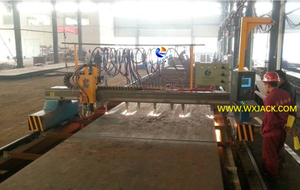

2)       Transverse and Longitudinal Linear Cutting in Wuxi JACK Strip Flame Plate Cutting Machine: (Fig.1)

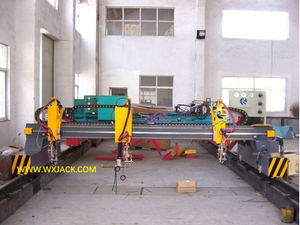

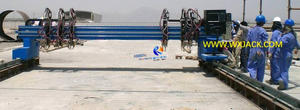

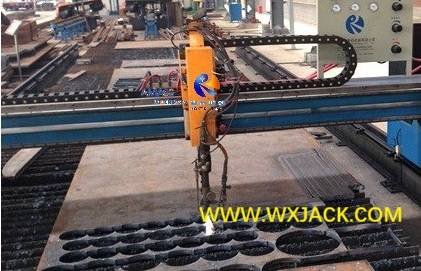

3)       Shape Cutting in Wuxi JACK CNC Plate Cutting Machine: (Fig.2)

3.       Output: The finished workpiece cut from this CNC Plasma Flame Cutting Machine has gloss roughness, high precision, and small deformation. The max. size of steel plate is 5200mm width by 13000mm length;

4.       Advantage of the CNC-CG6000 Double Drive CNC Plate Cutting Machine:

1)       It has versatile function (Plasma CNC cutting/ Flame CNC cutting/ Flame strip cutting), high automation, advanced configuration, stable and precise cutting quality, high dynamic stability;

2)       The consummate coordination between its hardware and software delivers consistent high standard performance of the CNC Flame Plasma Cutting Machine.

B.       Composition and Configuration of the CNC-CG6000 Double Drive CNC Strip Plate Cutting Machine:

The machine can be viewed as integration of CNC Strip Flame Plate Cutting Machine and Plasma CNC Plate Cutting Machine, with the main composing units of:

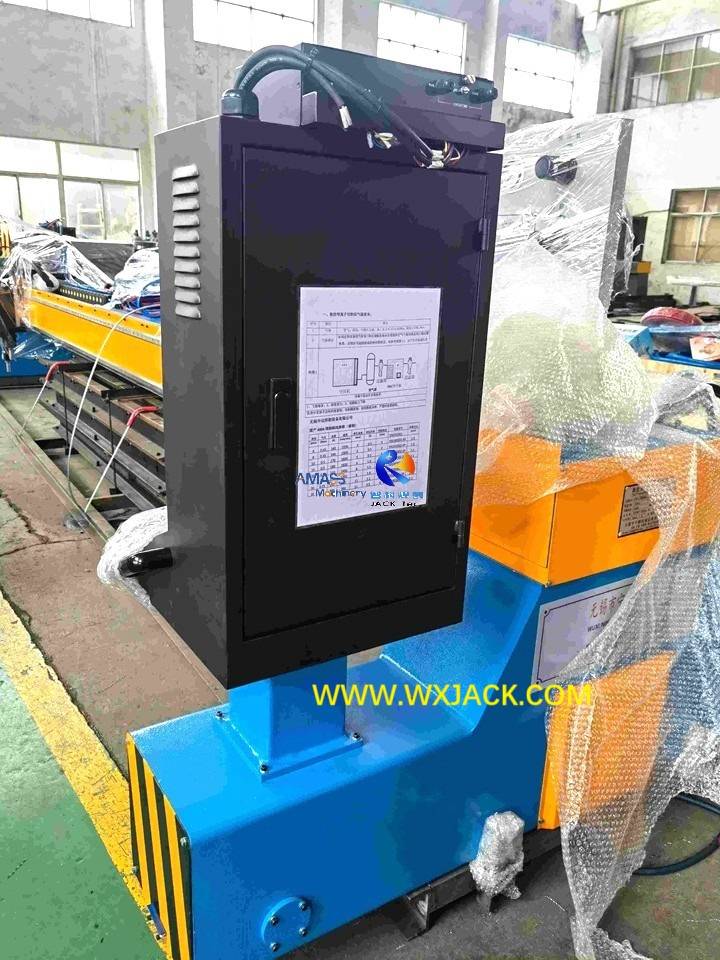

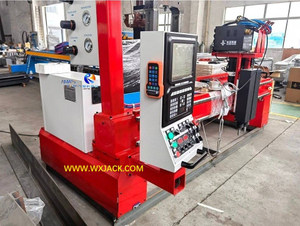

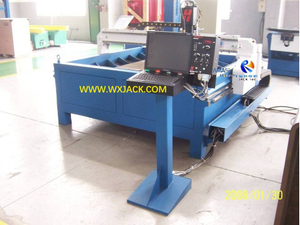

1.       CNC and Electric Control System of the CNC-CG6000 CNC Plate Cutting Machine: (Fig.3)

1)       Chinese brand SH2300H. It is dedicated CNC controller for metal plate cutting;

2)       9.4 inch VGA color monitor screen;

3)       Rich way of cutting program generation: G code/ Workpiece library embedded/ External input into the CNC Flame Plasma Cutting Machine;

4)       All the main languages available for choice: Chinese/ English / Russian...;

5)       Multiple Working Mode: Automatic/ Manual/ Teach-in/ Diagnosis/ Edit;

6)       User Friendly Operation: Software operating system interface/ Hardware membrane touch screen function keys;

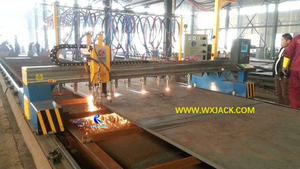

2.       Servo Driving System of the CNC-CG6000 Double Drive CNC Plate Cutting Machine: (Fig.4)

1)       2 sets of 750W for cutting torch longitudinal direction double drive along the 15m long rails;

2)       1 set of 400W for cutting torch transverse direction along the 6m gantry beam;

3)       Equipped with functions of: Working status display/ Diagnosis/ Alarm/ Parameter setting;

4)       Equipped with high precision encoder for detecting displacement condition of cutting torch during running of the CNC Strip Plate Cutting Machine;

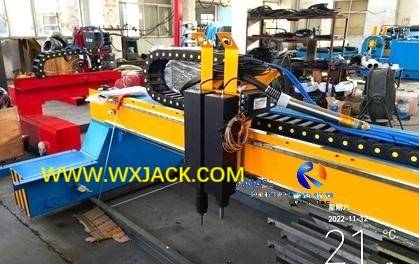

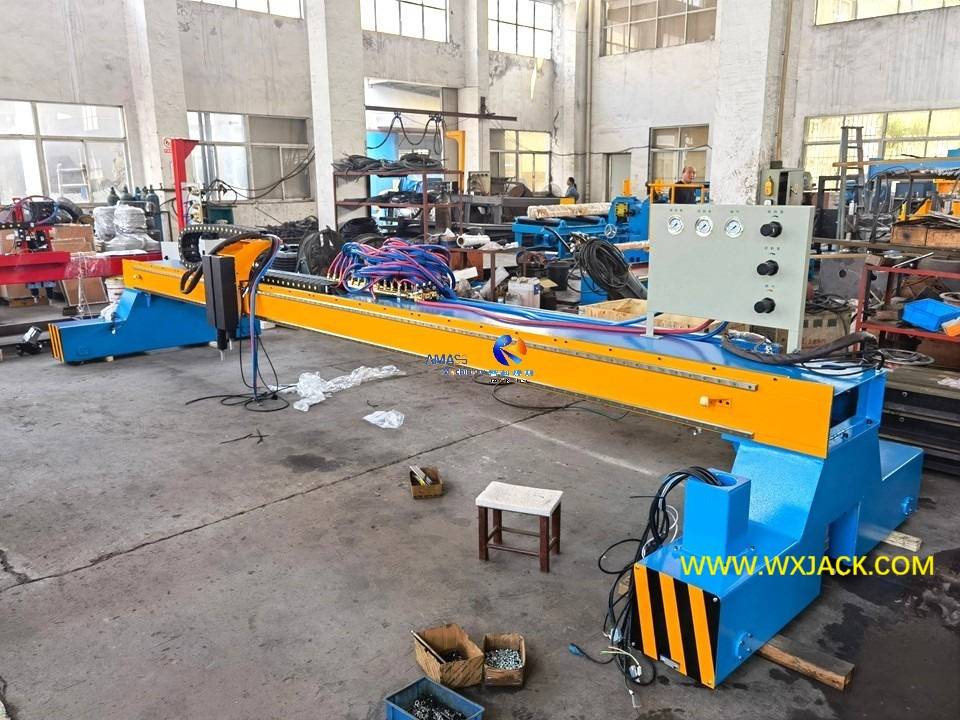

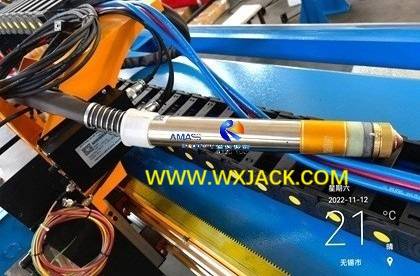

3.       Cutting Torch Transverse Moving Unit in the CNC-CG6000 CNC Plasma Flame Cutting Machine: (Fig.5)

1)       Shown in the above photo, there is a set of moving carriage along the transverse beam of mechanical gantry, installed with flame cutting torch and plasma cutting torch, and driven with the 400W servo motor;

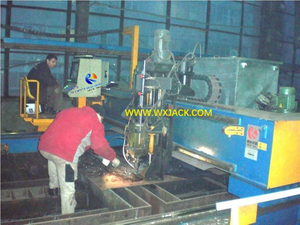

2)       Its movement is guided with heavy duty ball bearing precise linear guiderail, guaranteeing stable and smooth cutting process of the Flame Plasma CNC Plate Cutting Machine, without any impact; (Fig.6)

4.       The Supplementary Cutting Function units in the CNC-CG6000 CNC Plasma Flame Cutting Machine:

1)       The A.C.24V automatic ignitor for initiating flame cutting in safe and reliable manner;

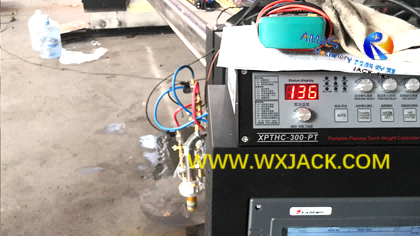

2)       The arc voltage plasma cutting torch height controller, for automatically adjusting torch height with respect to surface of plate, in this Plasma CNC Plate Cutting Machine;

3)       The cutting gas feeding circuit: Oxygen and acetylene for flame cutting/ Compressed air for plasma cutting;

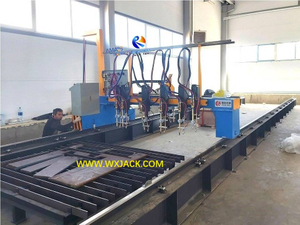

4)       Are all installed in the transverse moving carriage of the CNC Strip Plate Cutting Machine; (Fig.7)

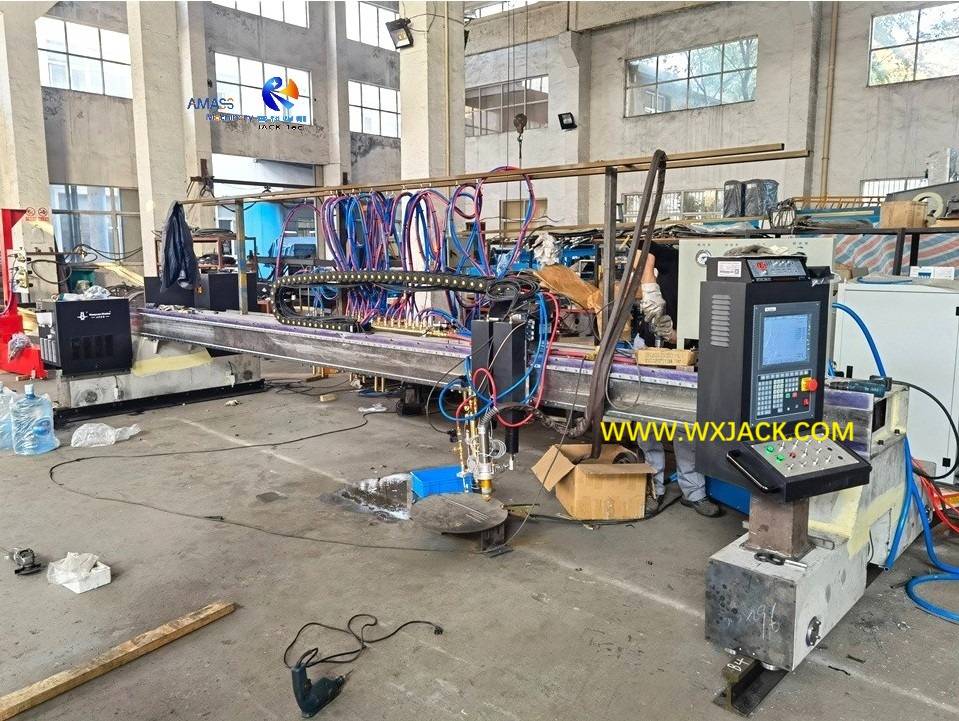

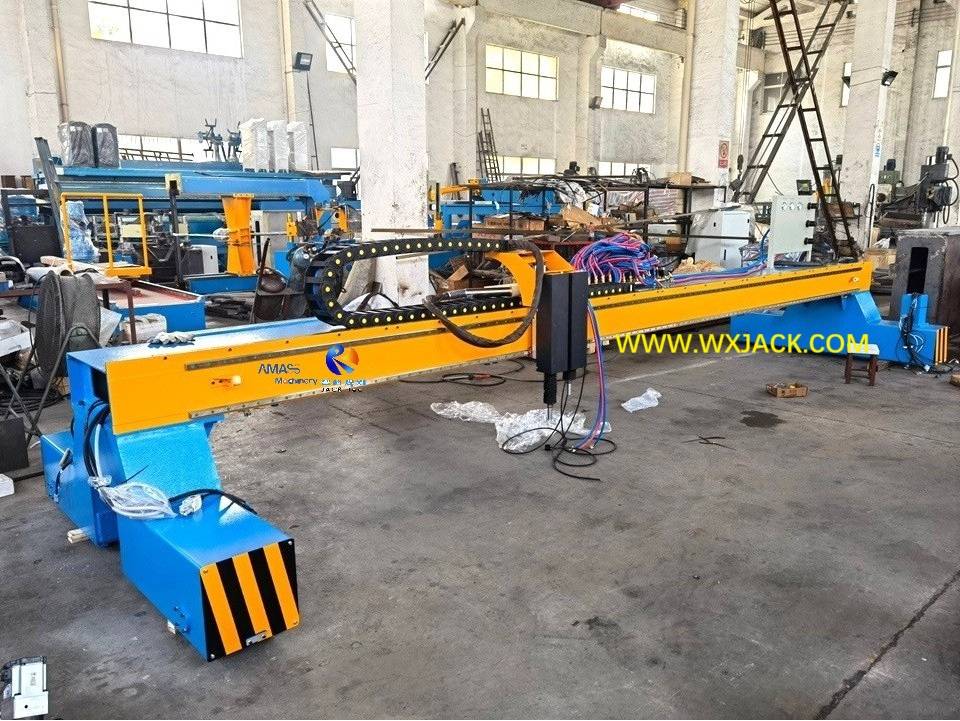

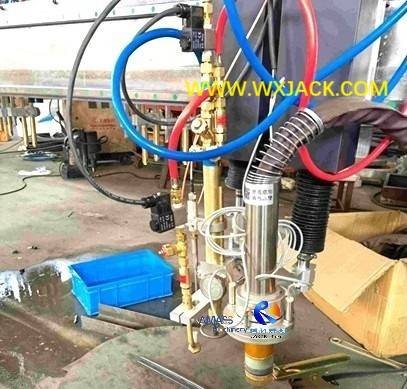

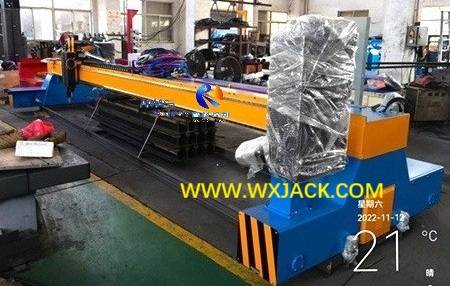

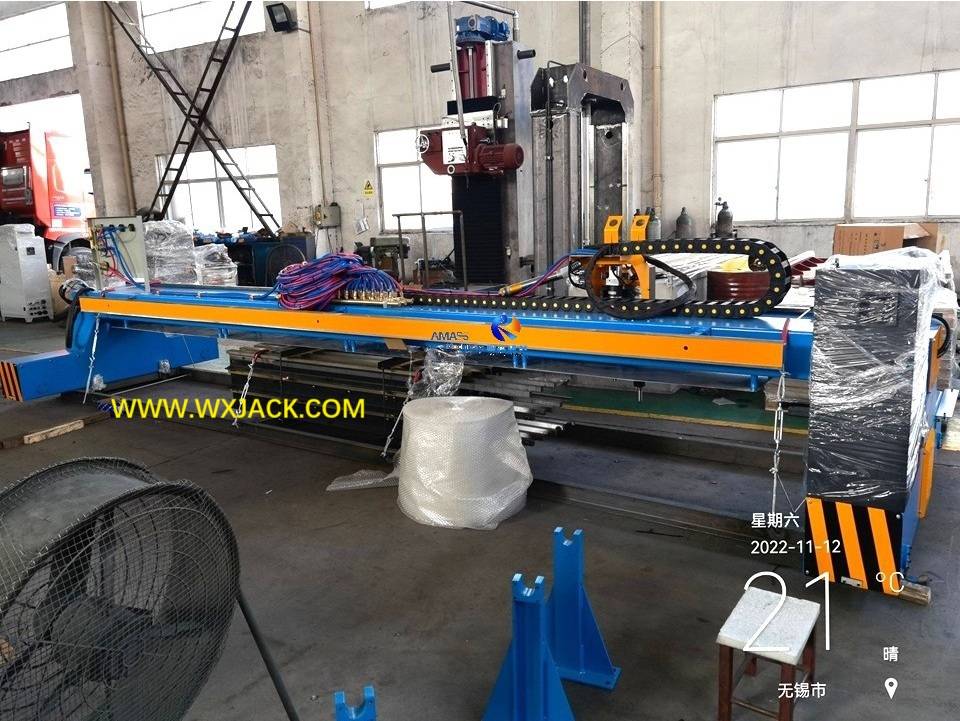

5.       Mechanical Frame of the CNC-CG6000 CNC Flame Plasma Cutting Machine: (Fig.8)

1)       It is in the structure of box gantry frame, which moves along the 15m rails under CNC cutting working speed;

2)      The mechanical frame is stress relieved after welding and fabrication, giving high rigidity and light deadweight of mechanical frame, making sure its stable/ smooth/ flexible moving during operation of the CNC Plate Cutting Machine;

3)       There is guiding roller at the bottom of the moving gantry, adjusting tension status of the gantry with respect to rails;

6.       Cutting Gas Circuit System of the CNC-CG6000 CNC Plasma Flame Cutting Machine: (Fig.9)

7.       Plasma Power Supply in the CNC-CG6000 Plasma CNC Plate Cutting Machine: (Fig.10)

Chinese brand HUAYUAN model LGK-300IGBT, for cutting carbon steel in the thickness range of 1~50mm.

C.      Technical Parameters of CNC-CG6000 Flame Plasma CNC Plate Cutting Machine:
