Welding Power Supply Equipped with 3 in 1 H Beam Welding Fabrication Machine

Background of This Article on Chinese Supplier on 3 in 1 H Beam Welding Fabrication Machine:


 1) Business Case: In beginning of Nov. 2024, Wuxi JACK, the top Chinese Producer on H Beam Welding 3 in 1 Machine, delivered a set of PHJ15 model machine to an East European customer. This machine is equipped with 2 sets of American Lincoln brand PowerPlus-1000HD welding power supply. Such configuration is common over 15 ~ 20 years ago, but uncommon in the industry nowadays for over 10 years;

2) Purpose: In this short blog, we will have a concise discussion on how to select proper type/ brand/ model of welding power supply, when customer purchase on 3 in 1 H Beam Welding Fabrication Machine, so as to acquire the optimum target of financial and performance;

3) Topics Covered on Welding Power Supply in H Beam Welding 3 in 1 Machine:

   1) Brief on Chinese Supplier on the machine;

   2) Welding Power Supply Options from Chinese Producer on the machine;

  3) Wuxi JACK Achievement and Strength as Top Chinese Producer on the machine


A. Brief on Chinese Supplier on H Beam Welding 3 in 1 Machine:


1. Task of Machine: This machine is used for T Beam, H Beam of equal flange and non-equal flange symmetrical Beams production, and also variable section beams production with web tilt angle up to 10°, by automatic welding:

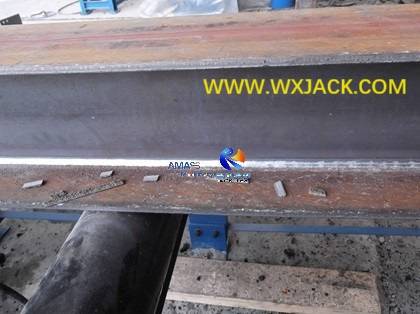

Welding H Beam produced from Wuxi JACK 3 in 1 H Beam Welding Fabrication Machine: (Fig.1)

Fig1 3 in 1 H Beam Welding Fabrication Machine 21

2) Functions Embedded with Machine: This machine integrates 3 necessary steps for making welding H Beam: Fit up, welding, straightening, so as to producing finished H Beam with single set of compact size equipment:

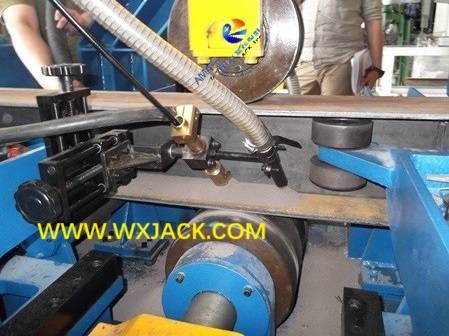

Lateral view on running of Wuxi JACK H Beam Welding 3 in 1 Machine when fabricating H Beam: (Fig.2)

Fig2 H Beam Welding 3 in 1 Machine 29

3. Specifications of Wuxi JACK 3 in 1 H Beam Welding Fabrication Machine:


Below are technical parameters of PHJ15 model for East European customer, also the most often selected model:

Parameter

Level

Flange thickness

6-40 mm

Flange width

200-800 mm

Web thickness

5-32 mm

Web height

200-1500 mm

H Beam length

4000-12000 mm

Welding power supply

2 sets - Lincoln PowerPlus-1000HD (China), RCH-1   (China)

Welding type

Automatic submerged arc welding

Welding wire

Æ2,4-4,0 mm, wire feeds from spool

Linear speed of work piece movement

0,2-2,0 m/min.

Linear speed of welding

0,2-0,9 m/min.

Work piece movement speed adjustment

Stepless, using inverter (Mitsubishi)

Input roll table

3 sections, of which one is driving

(For H Beam total length – 12m)

Output roller table

3 sections, of which two can be elevated

(For H Beam total length – 12m)

Machine working power (not including welding power supply)

18,6 kW

Welding power supply

2 х 69 KVA

Overall dimensions of machine

30 х 4 х 4,2 (L x W x H), m

Weight of machine

~13 tons


4. Wuxi JACK, the Top Grade Chinese Producer on 3 in 1 H Beam Welding Fabrication Machine:


1) As a technique based company in Steel Structure, Welding and Cutting Industry, with over 2 decades history, Wuxi JACK is the first Chinese Supplier on H Beam Welding 3 in 1 Machine, who took the lead on develop this machine and put into market in the year 2009, and has delivered over 400 sets for customers with delicate design and superior quality, around 20 sets every year:

2) Wuxi JACK different models 3 in 1 H Beam Welding Fabrication Machine work at Chinese and overseas customer facilities: (Fig.3)

Fig3 3 in 1 H Beam Welding Fabrication Machine 10



B. Welding Power Supply Options from Chinese Producer on 3 in 1 H Beam Welding Fabrication Machine:


1. Importance: Welding power supply is critical outsourced function unit for the machine, performing finished welding on assembled H Beam. During technical discussion between customer and producer on the machine, this unit need to be confirmed on its origin (brand), type (welding mode), and model;

2. Option 1 Welding Modes for H Beam Welding 3 in 1 Machine: SAW:


1) How to Select? The first step is to decide on which kind of welding to be adopted. This is based on the max. specification of H Beam to be fabricated:

2) As can be observed from the above parameter table, the max. thickness of H Beam flange and web are 40mm and 32mm respectively. This can only be achieved with SAW- Submerged arc welding:

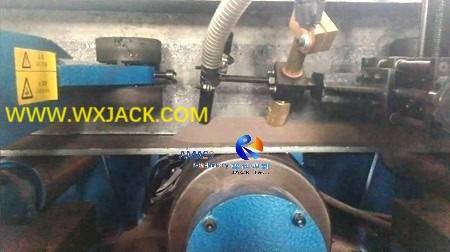

3) SAW in the process of fabricating welding H Beam in Wuxi JACK H Beam Welding 3 in 1 Machine: (Fig.4)

Fig4 H Beam Welding 3 in 1 Machine 197

4) The Technical Characteristics of SAW:


a) Large welding current --- Up to 1000A, often with working current of 500A ~ 700A;

b) Applicable for welding on large thickness plate, especially in the range of 20mm ~ 40mm, meeting the demand on medium to heavy duty H Beam production;

c) User and environment friendly operation --- No welding light and low noise level;

For these reasons, SAW account for over 90% of welding mode in application of H Beam Welding 3 in 1 Machine. In other words, default setting of the machine:

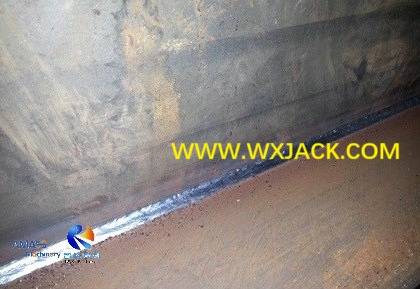

Finished SAW welding seam on fabricated welding H Beam: (Fig.5)

Fig5 3 in 1 H Beam Welding Fabrication Machine 18

3. Option 2 Welding Modes in 3 in 1 H Beam Welding Fabrication Machine: GMAW:


1) When to Use? In the field of light duty small steel structure production, namely plate thickness less than 12mm, and the minimum 3mm, SAW is not suitable here for welding. The more proper choice is GMAW CO2:

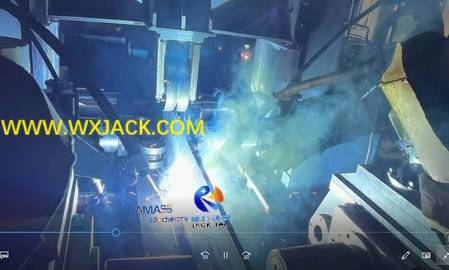

2) GMAW CO2 in Wuxi JACK ZHJ10 H Beam Welding 3 in 1 Machine: (Fig.6)

Fig6 H Beam Welding 3 in 1 Machine 98

3) Technical Features of GMAW CO2 Welding:


a) Certain Harm on People Health: As can be observed from the above photo, GMAW CO2 generates strong arc light. So, operator need to put on helmet as facial mask. Besides, the welding noise level of GMAW CO2 is high, so, ear plugs need to be used, when 3 in 1 H Beam Welding Fabrication Machine carries out GMAW CO2 gas shielded welding;

b) Strong intensity welding seam: The GMAW CO2 gas shielded welding has high IK value (Anti-impact), which promises strong intensity welding seam acquired from thin plates. So, it is often used in Ship building industry, which has high demand on welding strength;

As complement on SAW, GMAW CO2 gas shielded welding takes up around 10% use of H Beam Welding 3 in 1 Machine:

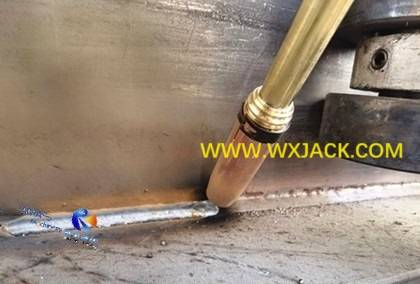

GMAW CO2 gas shielded welding and its finished seam on fabricated H Beam: (Fig.7)

Fig7 3 in 1 H Beam Welding Fabrication Machine 6

4. Origin (Brand) of Welding Power Supply in 3 in 1 H Beam Welding Fabrication Machine:


Now that we know how to select welding mode for the machine, the next step is to select supplier, which means brand of welding power supply:

1) Option 1: American Lincoln brand for SAW:


a) Over 10~ 15 year ago, which is 2009 year to 2014 year, this is major configuration recommended by Chinese Producer on 3 in 1 H Beam Welding Fabrication Machine;

b) The reason is, as international renowned brand, Lincoln is recognized by user across the globe, which has high standard stable performance, and easily serviced at every market:

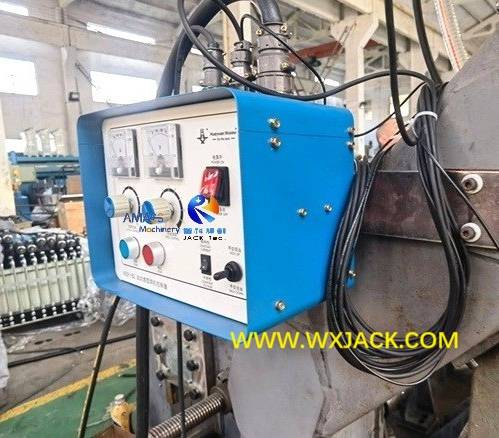

c) American Lincoln brand PowerPlus-1000HD welding power supply: (Fig.8)

Fig8 H Beam Welding 3 in 1 Machine 218

d) The disadvantage of Lincoln is its high price, and relative long lead time for Chinese Producer on H Beam Welding 3 in 1 Machine, because this brand power supply is produced in America and distributed to other nations. However, due to its superior quality, Lincoln was mainstream configuration in the 2010s;

2) Option 2: Japanese Panasonic brand for GMAW:


a) Every brand has its strong product. When customer select CO2 GMAW for producing light duty steel, Japanese brand Panasonic is preferred choice for customers;

b) This is also true with the condition 10~ 15 years ago, that when Chinese Supplier on H Beam Welding 3 in 1 Machine communicate with steel structure customers on GMAW welding, recommendation on brand of power supply is Panasonic. The reason is same as Lincoln in case of SAW: High quality and renowned reputation:

c) Panasonic KR500 welding power supply: (Fig.9)

Fig9 3 in 1 H Beam Welding Fabrication Machine 0H

d) The downside of Panasonic is also high cost;

3) Option 3: Rising Start on Welding Power Supply: Chinese HUAYUAN Brand for SAW and GMAW:


a) Catch Up from Behind: Things always change with time going. Over the past decades, the Chinese producers on welding power supply catch up with overseas famous brand, in terms of quality and performance. And in the field of 3 in 1 H Beam Welding Fabrication Machine, the most eye catching rising star is HUAYUAN brand:

b) HUAYUAN NB-630HD welding power supply: (Fig.10)

Fig10 H Beam Welding 3 in 1 Machine 0I

c) The Strong Points of Chinese Local Brand HUAYUAN:

i. The same superior quality performance as international famous brand Lincoln and Panasonic nowadays;

ii. Provide both welding modes: SAW and CO2 GMAW in different models;

iii. Much more reasonable cost of welding power supply itself, together with consumables (Welding torch, contact tube, etc.): Only one fifth that of Lincoln for SAW, and one third of Panasonic for GMAW;

iv. Much more short lead time, benefitting from local production;

Because of the above strong points, nowadays HUAYUAN is the first recommendation on supplier on welding power supply, by Chinese Supplier on 3 in 1 H Beam Welding Fabrication Machine.


C. Wuxi JACK Achievement and Strength as Top Chinese Producer on H Beam Welding 3 in 1 Machine:


1. Started by 3 senior engineer, as a company leading in design and technical strength, Wuxi JACK is benchmark as the best Chinese Supplier on H Beam Welding 3 in 1 Machine. Our technical strong points are illustrated in slides page: Quick understanding on Wuxi JACK 3 in 1 H Beam Welding Fabrication Machine;

2. In brief, our leading edges can be summarized as:


1) Abundant customer base and rich experience: Over 400 sets of this machine for customers since the year 2009;

2) Wide variety of models, designs, configurations: PHJ and ZHJ series, for producing H Beam of equal and un-equal length, height from 100mm up to 2000mm. The most complete supply in industry;

3) Superior quality, reasonable cost, and short lead time: Benefitting from Lean Production on the machine thanks to broad customer base.
