What is this Blog on 3 in 1 I Beam Welding Machine for:
Background: As a Vertical I Beam Welder being integrated with three functions, the 3 in 1 H Beam Assembly Weld Straighten Integral Machine (The other name of the Pull Through I Beam Welder: 3 in 1 I Beam Fabrication Machine/ Integral function 3 in 1 I Beam Welding Machine), has moving units of:
1) Moving workpiece and claws;
2) Revolving unit of assembling alignment rollers;
3) Welding unit of torches...
Although these working units are taken with full around protection measures during design and production of the 3 in 1 I Beam Welding Machine, still have certain safety potential risks, in the process of daily use and maintenance of such Pull Through I Beam Welder. This article explores matters for attention on this respect:
General Guideline on 3 in 1 H Beam Assembly Weld Straighten Integral Machine;
Electric Shock Protection in Integral Function 3 in 1 I Beam Welding Machine;
Eye Burn Protection in 3 in 1 I Beam Fabrication Machine;
Skin Protection in Vertical I Beam Welder;
Mechanical Harm Protection in Pull Through I Beam Welder
1. Safety Always First in 3 in 1 H Beam Assembly Weld Straighten Integral Machine:
1) Significance of Safe Operation: To make the 3 in 1 H Beam Assembly Weld Straighten Integral Machine fully play to its advantage, safe operation of the equipment is very important. Safety always ranks first in the design and manufacture of this Pull Through I Beam Welder, making sure the machine has the highest grade protection;
2) Security Guide: For this purpose, it is vital important to abide by safety precautions in the daily operation of this Pull Through I Beam Welder. Specifically, following steps should be performed.
2. General Guidance on Safety Precaution before Operating the 3 in 1 I Beam Fabrication Machine:
1) Make sure operators of the Integral 3 in 1 I Beam Welding Machine have access to operating manual and other manuals (including that of welding power supply) before the Vertical I Beam Welder put into operation;
2) Operator of the 3 in 1 I Beam Welding Machine read and grasp matters needing attention described in the manuals of 3 in 1 I Beam Fabrication Machine before on duty;
3) Operator of the 3 in 1 I Beam Welding Machine put on proper PPE (Personal Protection Equipment) before on duty (Safety shoes, hard hat, safety glasses, insulating gloves, ear plug);
4) Maintain dryness condition of 3 in 1 H Beam Assembly Weld Straighten Integral Machine working site all along;
Running site of Wuxi JACK PHJ15 3 in 1 H Beam Assembly Weld Straighten Integral Machine at customer site: (Fig.1)
3. Electric Shock Protection in 3 in 1 I Beam Welding Machine:
1) Protection gloves and safety shoes should be insulating type, as there is welding process in this Vertical I Beam Welder;
2) Do not operate 3 in 1 I Beam Fabrication Machine when any electrical element is not covered. There exists great danger at nude power terminals;
3) Periodically inspect cables of the 3 in 1 I Beam Welding Machine, and replace damaged/ worn wire with new ones if ever found;
4) Before inspecting and overhauling electric components, please cut off main power first. And tighten all connecting points before switching on power again;
5) Do not bypass and or short circuit fuse in the circuit of 3 in 1 I Beam Welding Machine;
6) Make sure power line of the Pull Through I Beam Welder are connected with grounding socket; Or grounding wire of power line is connected with ground wire of air breaker switch;
7) Be sure to tighten firmly bolt and nut at grounding wire of 3 in 1 H Beam Assembly Weld Straighten Integral Machine, guaranteeing reliable grounding;

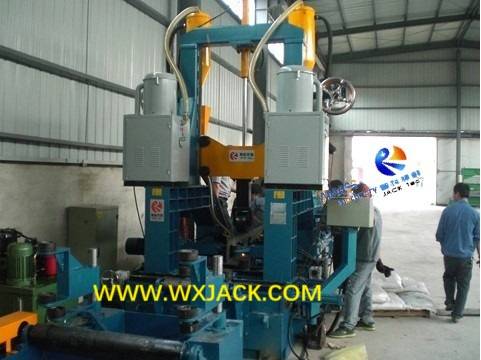

Installing Wuxi JACK 3 in 1 I Beam Fabrication Machine at customer facility: (Fig.2)
4. Eye Burn Protection in 3 in 1 I Beam Fabrication Machine:
1) Potential Risk on Eye Harm: Working of 3 in 1 H Beam Assembly Weld Straighten Integral machine is accompanied with Submerged Arc Welding, or sometimes CO2 MIG/MAG all along;
2) Proper PPE (Personal Protective Equipment): The helmet and safety glasses worn by operator should have protection function against harm caused from high brightness ultra violet/ light/ spark and burning metal, during welding operation of the 3 in 1 I Beam Welding Machine;
CO2 welding in Wuxi JACK ZHJ5010 model 3 in 1 I Beam Welding Machine and operator protection: (Fig.3)
5. Skin Protection in 3 in 1 H Beam Assembly Weld Straighten Integral Machine:
1) Burning Protection: There are lots of heat released during working of integral function 3 in 1 I Beam Welding Machine. Operator should put on whole set of working clothes, hard hat/ safety shoes/ protection gloves and safety glasses, making sure no nude non-protected skin;
2) Do not touch the H Beam just produced from the 3 in 1 I Beam Fabrication Machine with bare hand;

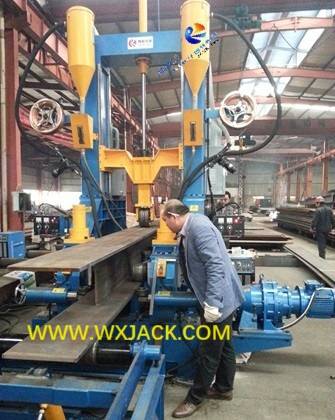

Check on welding H Beam just being fabricated from Wuxi JACK PHJ model 3 in 1 Vertical I Beam Welder: (Fig.4)
6. Mechanical Harm Protection in the 3 in 1 I Beam Welding Machine:
1) Squeeze Protection: There is rotation of assembling rollers/straightening rollers and motion of welding torch during working of 3 in 1 I Beam Fabrication Machine (Vertical I Beam Welder). Operator should be cautious against strangulation and crash injury;
2) There are many metal materials and workpiece at working site of 3 in 1 H Beam Assembly Weld Straighten Integral Machine. Caution against crush injury and scrapping injury;
3) Operator should keep in mind location of Pull Through I Beam Welder power switch. Press this switch when emergency happens to shut off the 3 in 1 H Beam Assembly Weld Straighten Integral Machine;

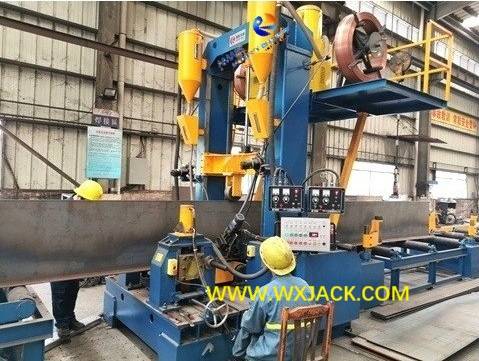

Comfortably monitoring on automatic operation of Wuxi JACK ZHJ8015 model 3 in 1 H Beam Assembly Weld Straighten Integral Machine: (Fig.5)
Summary on Safe Operation of 3 in 1 I Beam Welding Machine:
1) Significance: Safety is the foundation and primary importance in everyday job of the 3 in 1 H Beam Assembly Weld Straighten Integral Machine. It should not be just stopped at slogans, but put into daily work as well;
2) Wuxi JACK Performance: As prominent producer for PHJ and ZHJ models integral function 3 in 1 I Beam Welding Machine (3 in 1 I Beam Fabrication Machine) and other welding and cutting equipment, Wuxi JACK not only take safety as first importance in our operation, but also our products can keep best degree of safety record at customer site;
3) Other Related Steel Structure Welding Equipment: Besides this 3 in 1 I Beam Fabrication Machine (3 in 1 I Beam Welding Machine), as a renowned producer in Machine Tools Industry, Wuxi JACK also produces series of other high quality machines for steel structure/ welding/ cutting. For example, H Beam Production Line, and BOX Beam Production Line, etc. For more details and products, please check the product sections.
