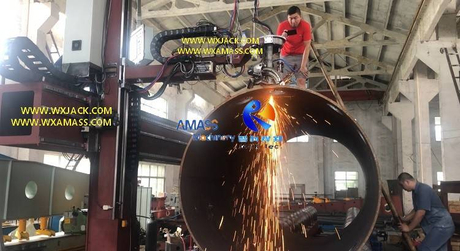

1. The attached photos reflect on factory commissioning on this Wuxi JACK Large CNC Pipe Cutting Machine. As can be found from it, operating staff need to climb onto top of the large diameter pipe for close distance observation;
2. At customer site, such large machine should be equipped with air passage, for operator convenient check on cutting torch right above large diameter workpiece: (Fig.1)
3. Here the 7 Axis 2000/9 model machine on CNC control pipe thermal cutting, is kindred product between 7 Axis 2000/12 model and 7 Axis 2000/6 model, with effective pipe cutting length fitting in between the 2 models;
4. The finished large diameter pipe cut, from Wuxi JACK High Efficiency CNC Pipe Cutting Machine: (Fig.2)
The Advantage of this highly effective machine tool, in the field of pipe cutting:
1) Recently years in manufacturing industry there is trend on “Machine replacing manual labor”, under the background of higher and higher labor cost, as well as request on quality control:
2) Machine delivers products with stable running and consistent performance, and is easy to be made into standard operation in terms of cycle time, hence advantageous for productivity improve also.
This model of machine, for the purpose of completing flame and plasma high efficiency CNC control pipe cutting, responses on this tendency perfectly:
1. Besides removing manual job of “Lineation scribing on / Carrying on layout out samples” mentioned in the model of “5 Axis 1400/12 ”, which increase production efficiency greatly, this CNC Pipe Intersection Cutting Machine also has many features, which greatly contribute to highly efficient production process of pipe cutting and beveling:
Pipe cutting interface of machine CNC controller: (Fig.3)
1) The operating system of industrial computer of this CP series flame and plasma CNC Pipe Cutting Machine is embedded with “Workpiece Sample Library”, which covers most majority of bevel/ chamfer styles in practical use;
2) With this function, customers do not need to spend time on compiling dedicated program for their demand. Instead, just input sizes of the projected workpiece, and the corresponding program will be generated for running of CNC control pipe cutting;
1) What Is "Idle Running": This refers to every time after the workpiece program generated, and before actual cutting and beveling operation in the machine, to validate correctness of the cutting program, and check whether there exist any issues, the machine can drive cutting torch into running based on designated trace of the generated program, without actual cutting and beveling operation;
2) Meaning of "Idle Running": This is something like “Failure Mode and Effects Analysis”, which can remove potential defect of pipe cutting job, and boost on productivity and quality greatly.
Model Technical Parameter | 7 Axis CNC-CP 2000/9 High Efficiency Flame Plasma CNC Pipe Intersection Cutting Machine |
Applicable Diameter Range of Pipe | 400 ~ 2000 (mm) |
Applicable Max. Length of Pipe (mm) | 9000 |
Applicable Thickness of Pipe (mm) | 6~ 100 mm for flame cutting; 3 ~ 25mm for plasma cutting |
Applicable Cutting Speed in Flame and Plasma | 200∼ 800mm/min. for flame cutting Around 200~ 2000mm/min. for plasma cutting (Based on thickness of Pipe and Plasma Power) |
Effective CNC Control Axis | 7 Axis of X/ Y/ Z/ A/ B/ V/ W X Axis: For cutting torch positioning along pipe length direction; Y Axis: For pipe rotation; Z Axis: For cutting torch elevation; A Axis: For tilting cutting torch along workpiece radius; B Axis: For tilting cutting torch along pipe length direction; V Axis: For moving cutting torch along pipe radius; W Axis: For moving friction rollers along pipe radius |
